◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#5894) — 145 parça

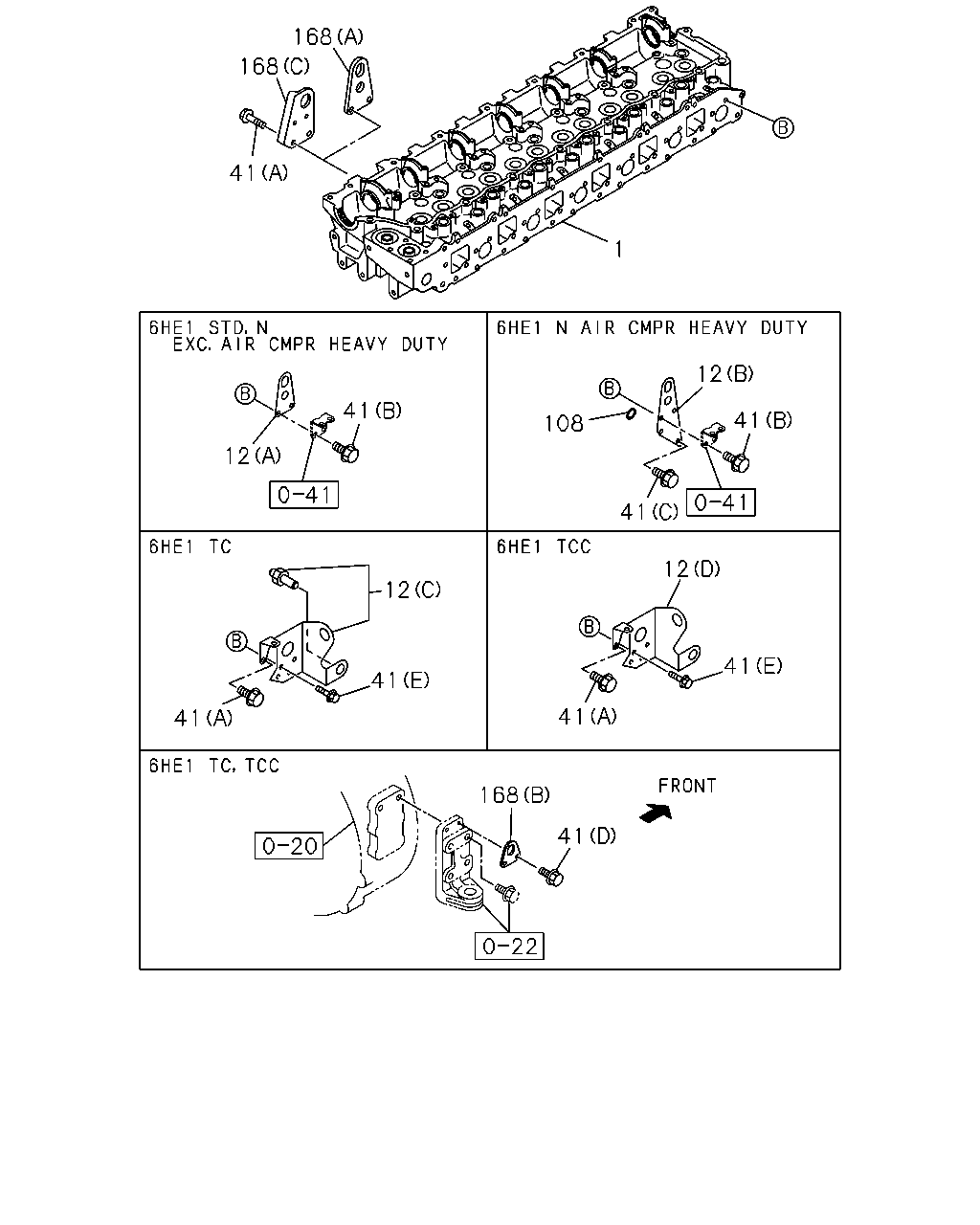

çizim 42388
168 168 41 1 12 41 41 108 12 41 12 12 41 41 41 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94394-918-4 01 1 9606-9608 ● ●
1 HEAD ASM; CYL 8-94390-965-1 01 1 9609-9810 ● ●
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9903- ●
12 HANGER; ENG,RR
(A) 		8-94399-404-2 01 1 9606-9609 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9606-9609 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-404-2 01 1 9610-9810 ● ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-405-0 01 1 9606-9810 ●
12 HANGER; ENG,RR
(C) 		8-94394-553-1 01 1 9811-0203 ●
12 HANGER; ENG,RR
(D) 		8-94394-337-1 01 1 9903- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9606-9810 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9811-9902 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9903-0203 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0204-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9606-9810 ● ●
41 BOLT; ENG HANGER
(D) M10X30 FLANGE 		0-28181-030-0 02 1 9811-0203 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9606-9810 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9811-9902 ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 9903-0203 ● ●
41 BOLT; ENG HANGER
(E) M12X22 FLANGE 		0-28181-222-0 03 1 0204- ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28781-025-0 02 1 9903-0512 ●
41 BOLT; ENG HANGER
(D) M10X25 FLANGE 		0-28751-025-0 02 1 0601- ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9606-9810 ●
168 HANGER; ENG,FRT
(A) 		8-94399-403-0 01 1 9606-9810 ● ●
168 HANGER; ENG,FRT
(C) 		8-94394-071-1 01 1 9811-0203 ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0204- ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9811-9902 ●
168 HANGER; ENG,FRT
(C) 		8-94391-505-0 01 1 9903- ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 9903-0203 ● ●

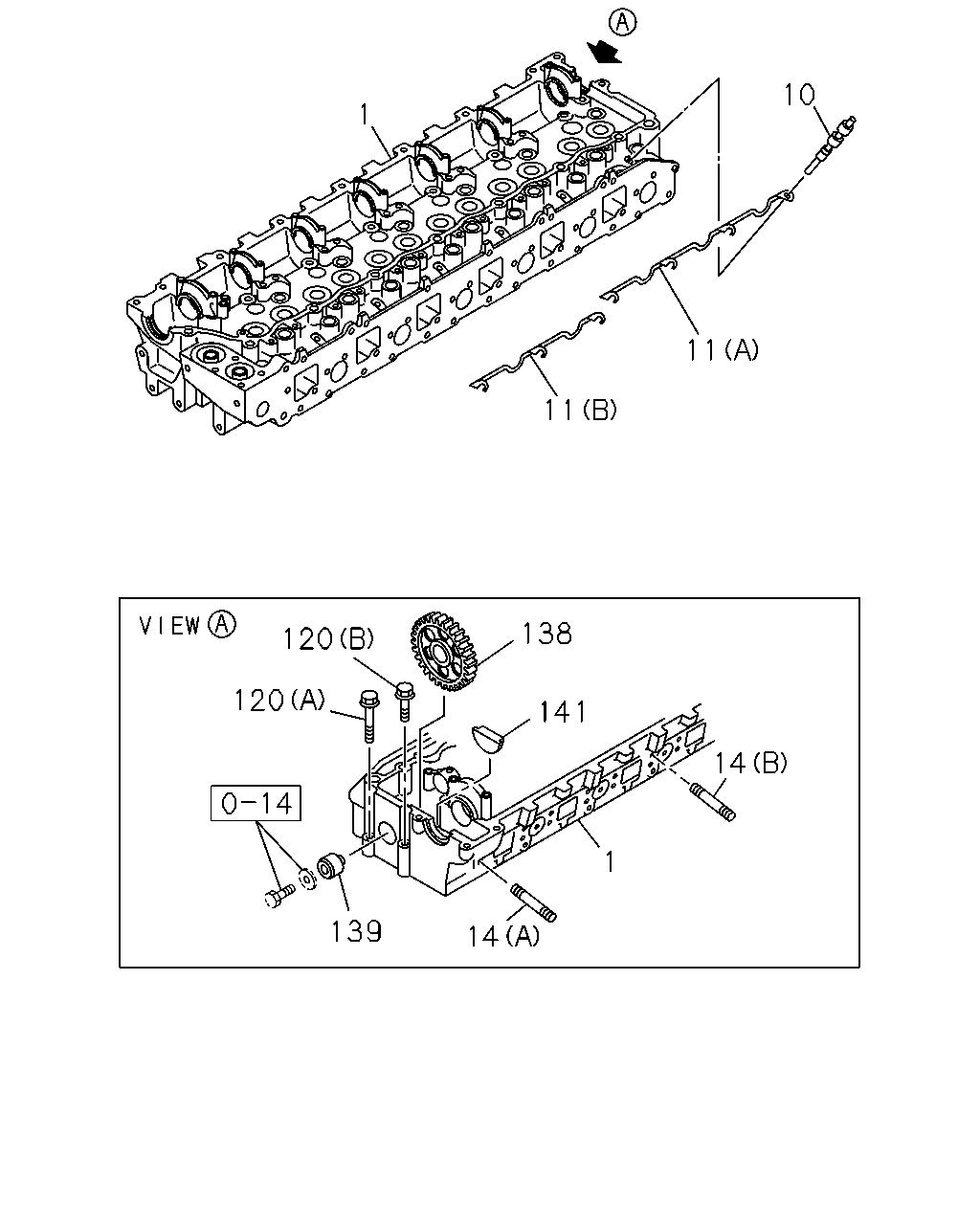

çizim 42783
10 1 11 11 138 120 120 141 14 1 139 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94394-918-4 01 1 9606-9608 ● ●
1 HEAD ASM; CYL 8-94390-965-1 01 1 9609-9810 ● ●
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9903- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9606-9809 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-9810 ● ●
10 PLUG; GLOW 1-82513-043-0 06 1 9811-9902 ●
10 PLUG; GLOW 1-82513-043-0 06 1 9903-0203 ● ●
10 PLUG; GLOW 1-82513-043-2 06 1 0204- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9606-9810 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9811-9902 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9903-0203 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0204-0206 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9606-9810 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9811-9902 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9903-0203 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0204- ●
14 STUD; EXH MANIF
(A) M10X93 L=108 		8-94396-123-0 10 1 9606-9810 ● ●
14 STUD; EXH MANIF
(A) M10X93 L=108 		8-94396-123-0 11 1 9811-0203 ●
14 STUD; EXH MANIF
(B) M10X60 L=75 		8-94397-286-0 02 1 9606-9810 ● ●
14 STUD; EXH MANIF
(B) M10X60 L=75 		8-94397-286-0 01 1 9811-0203 ●
14 STUD; EXH MANIF
(A),(B) M10X60 L=75 		8-94397-286-0 12 1 0204- ●
14 STUD; EXH MANIF
(A),(B) M10X60 L=75 		8-94397-286-0 12 1 9903-0203 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9606-9810 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9811-9902 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9903-0203 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0204- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9606-9810 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9811-9902 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9903-0203 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0204- ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9606-9810 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9811-9902 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9903-0203 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0204- ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9606-9711 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-9810 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9811-9902 ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9903-0203 ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0204- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9606-9810 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9811-9902 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9903-0203 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0204- ●

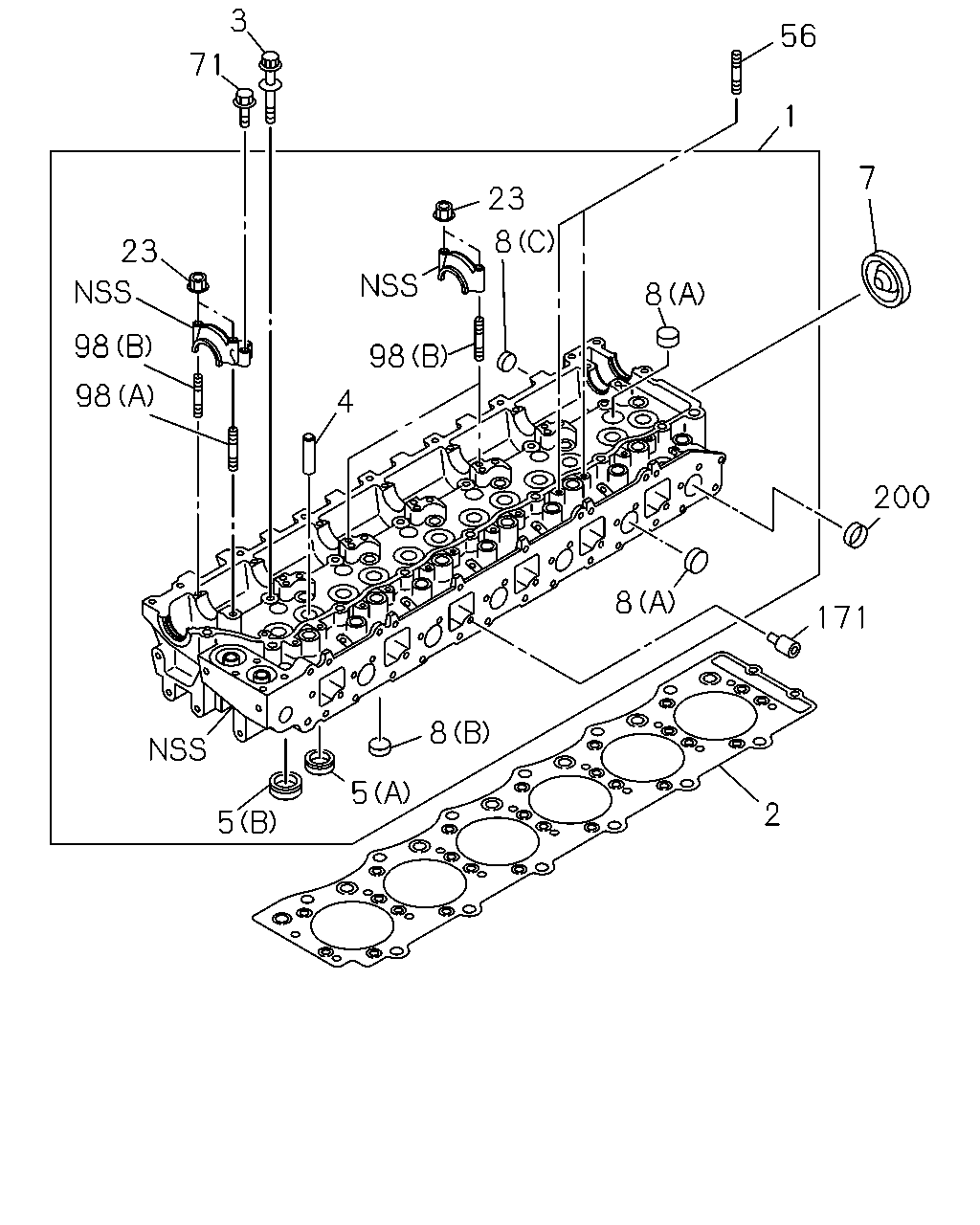

çizim 45091
3 56 71 1 7 23 8 23 8 98 98 98 4 200 8 171 8 5 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-94394-918-4 01 1 9606-9608 ● ●
1 HEAD ASM; CYL 8-94390-965-1 01 1 9609-9810 ● ●
1 HEAD ASM; CYL 8-94390-967-2 01 1 9811-0203 ●
1 HEAD ASM; CYL 8-94391-162-6 01 1 9903- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-334-0 01 1 9606-9810 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9811-9902 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-1 01 1 9903-0203 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0204- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9606-9810 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9811-9902 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9903-0203 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0204-0901 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902- ●
4 GUIDE; VLV 8-94396-598-0 12 1 9606-9810 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9811-9902 ●
4 GUIDE; VLV 8-94396-598-0 12 1 9903-0203 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0204- ●
5 SEAT; VLV INSERT
(B) INLET 		8-94396-171-0 06 1 9606-9810 ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9811-9902 ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 9903-0203 ● ●
5 SEAT; VLV INSERT
(B) INLET OD=48 		8-94394-462-0 06 1 0204- ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9606-9810 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9811-9902 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9903-0203 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0204- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9606-9810 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9811-9902 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9903-0203 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0204-0303 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0304- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 01 1 9606-9810 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9606-9810 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9606-9810 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 18 1 9811-0203 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9606-9810 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9811-9902 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9903-0203 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0204- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9606-9810 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9811-9902 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9903-0203 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0204- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 9903- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9606-9608 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-9810 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9811-9902 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9903-0203 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0204-0602 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0603- ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9606-9810 ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9811-9902 ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9903-0203 ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0204- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9606-9810 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9811-9902 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9903-0203 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0204-0512 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9606-9810 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9811-9902 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9903-0203 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0204- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9606-9608 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-9810 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9811-9902 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9903-0203 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0204- ●
171 SEAT; VLV 8-94395-571-1 06 1 9811-0203 ●
171 SEAT; VLV 8-94394-678-1 06 1 9903- ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 9903- ●
