Sayfa 1-41 - Isuzu EPC

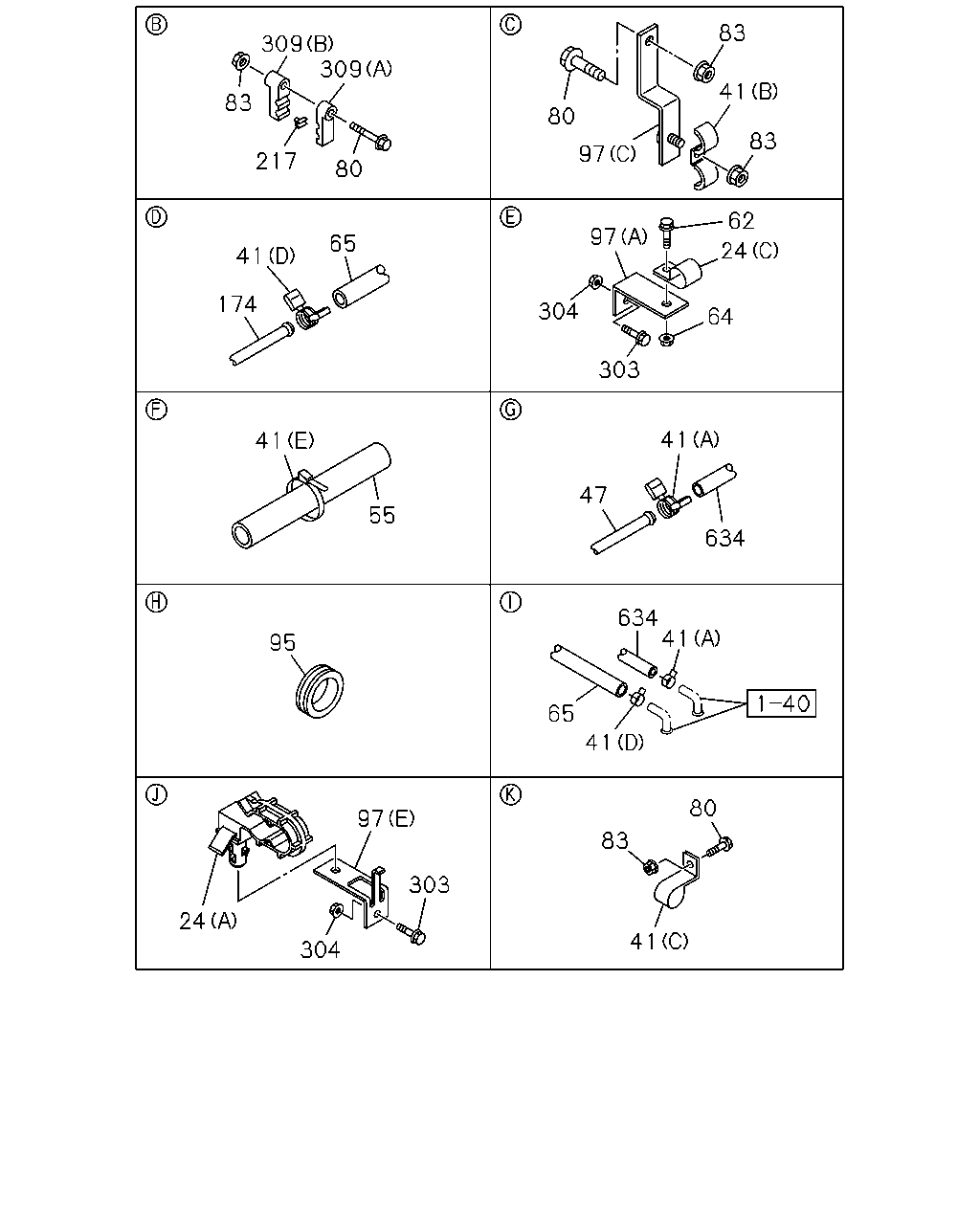

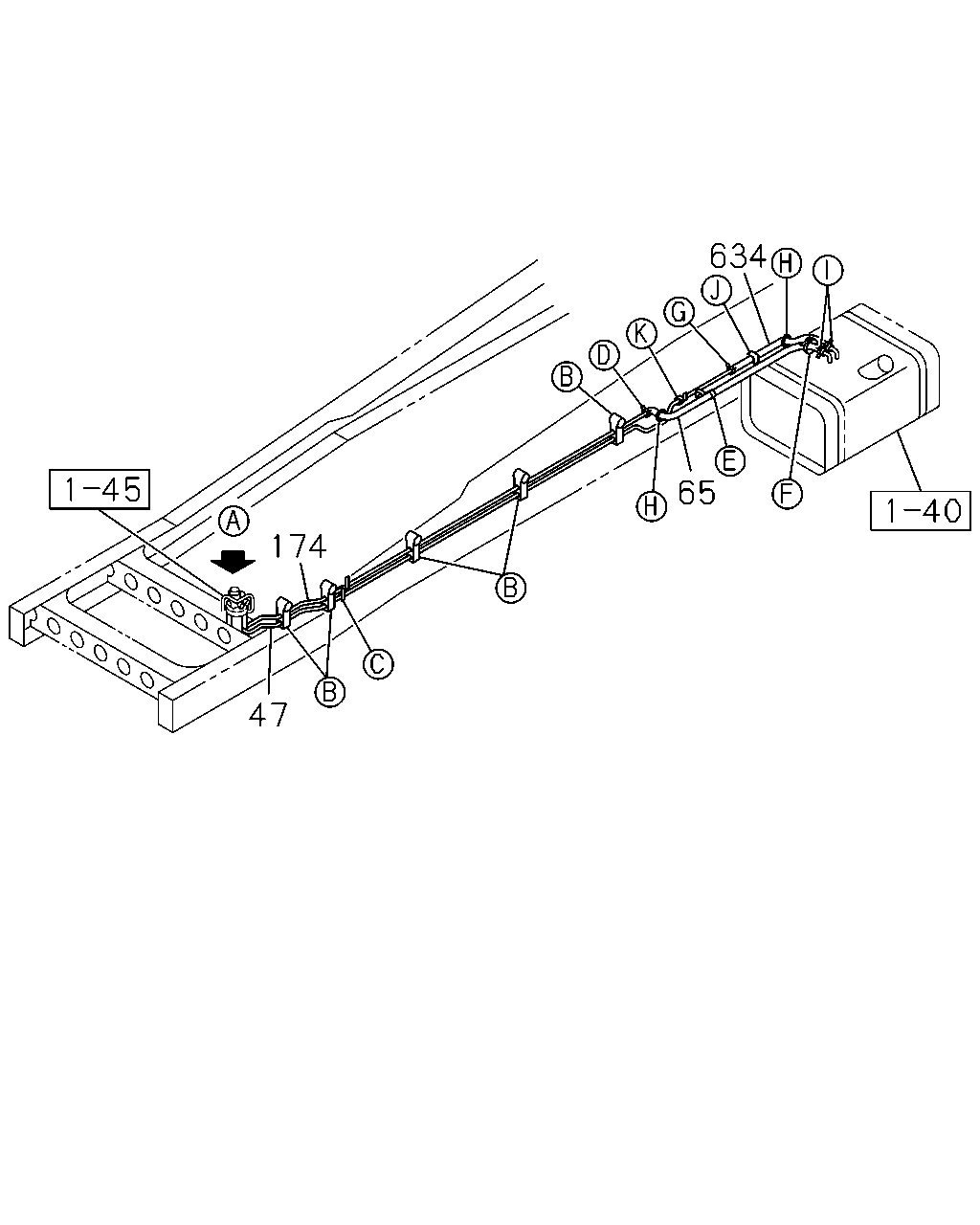

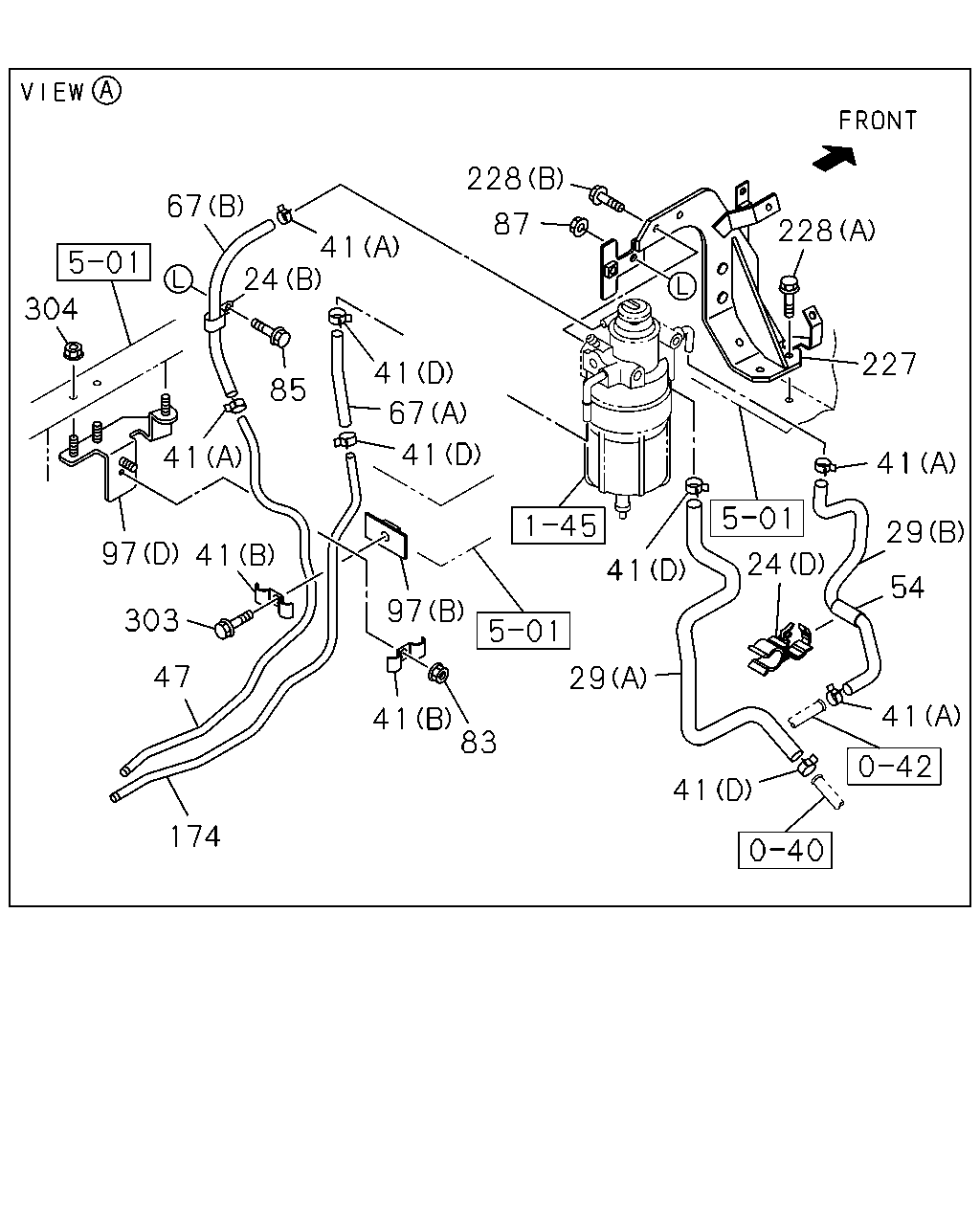

1-41 — FUEL PIPING; CHASSIS (#58925) — 237 parça

83 309 309 41 83 80 83 97 217 80 62 97 65 24 41 174 304 64 303 41 41 47 55 634 634 41 95 65 41 80 97 83 303 24 41 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1010-1107		●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1108-1109		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1110-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1110-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2475	8-98183-098-0	01	1	1108-		●
47	PIPE; FUEL,RETURN L=2985	8-98170-651-0	01	1	1010-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=2985	8-98170-651-0	01	1	1010-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1616	8-98170-650-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1606	8-98183-073-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1108-1109		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1110-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1010-	●	●
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1010-1107		●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1108-1109		●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	01	1	1110-		●
64	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
64	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1010-1107		●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1108-1109		●
64	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1110-	●
64	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1110-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98178-806-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98183-320-0	01	1	1108-1109		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98183-320-0	01	1	1110-	●	●
65	HOSE; FUEL,DELIVERY PIPE	8-98170-529-0	01	1	1010-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W)	8-98170-529-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE	8-98183-317-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W)	8-98183-317-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98170-526-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98183-315-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W)	8-98170-527-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W)	8-98183-316-0	01	1	1108-		●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1010-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1010-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	03	1	1010-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1010-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1010-1107		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1108-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	01	1	1010-1109		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	01	1	1110-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	01	1	1110-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	09	1	1010-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	06	1	1010-1107		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1108-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1010-1109		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1110-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1110-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1107	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1107	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1107		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1108-	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) ID=24 OD=30 T=17	9-09956-092-1	01	1	1010-1107		●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1010-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1010-		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1010-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1010-1107		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1108-1109		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1110-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1110-		●
174	PIPE; FUEL,FEED,FRT	8-98156-649-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W)	8-98156-649-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-649-0	01	1	1010-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98169-375-0	01	1	1108-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	02	1	1010-1107		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1108-		●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	1010-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1010-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-1107	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1010-1107		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1010-1107		●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1110-	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1110-		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1010-1107	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1010-1107		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1010-1107		●
304	NUT; BRKT WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1108-1109	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1108-1109		●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1108-1109		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1110-	●	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1110-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1110-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	02	1	1010-1107		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1108-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	02	1	1010-1107		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1108-		●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	1010-	●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1010-		●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	1010-	●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1010-		●
634	HOSE; RUBBER RETURN L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=490 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=560 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1109		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1110-	●	●

67 304 41 97 303 47 174 41 85 24 41 228 87 228 227 41 29 54 41 41 29 41 83 41 97 41 67 41 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1010-1107		●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1108-1109		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1110-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1110-		●
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-676-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1110-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2475	8-98183-098-0	01	1	1108-		●
47	PIPE; FUEL,RETURN L=2985	8-98170-651-0	01	1	1010-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=2985	8-98170-651-0	01	1	1010-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1616	8-98170-650-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1606	8-98183-073-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1108-1109		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1110-	●	●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1010-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	09	1	1010-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	09	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	06	1	1010-1107		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	05	1	1108-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1010-1109		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1110-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	07	1	1110-		●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1010-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1010-		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1010-	●	●
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1010-1107		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1108-1109		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1110-	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1110-		●
174	PIPE; FUEL,FEED,FRT	8-98156-649-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W)	8-98156-649-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-649-0	01	1	1010-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98169-375-0	01	1	1108-		●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-1107	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1010-1107		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1010-1107		●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1108-1109		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1110-	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1110-		●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
303	BOLT; BRKT WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1010-1107	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1010-1107		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1010-1107		●
304	NUT; BRKT WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1108-1109	●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1108-1109		●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1108-1109		●
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	1110-	●	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1110-	●
304	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1110-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●

634 65 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2475	8-98183-098-0	01	1	1108-		●
47	PIPE; FUEL,RETURN L=2985	8-98170-651-0	01	1	1010-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) L=2985	8-98170-651-0	01	1	1010-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1616	8-98170-650-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1606	8-98183-073-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1010-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1108-1109		●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=2445	8-98172-649-0	01	1	1110-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98178-806-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98183-320-0	01	1	1108-1109		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W)	8-98183-320-0	01	1	1110-	●	●
65	HOSE; FUEL,DELIVERY PIPE	8-98170-529-0	01	1	1010-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W)	8-98170-529-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE	8-98183-317-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W)	8-98183-317-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98170-526-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W)	8-98183-315-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W)	8-98170-527-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W)	8-98183-316-0	01	1	1108-		●
174	PIPE; FUEL,FEED,FRT	8-98156-649-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W)	8-98156-649-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-649-0	01	1	1010-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98169-375-0	01	1	1108-		●
634	HOSE; RUBBER RETURN L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=490 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W) L=560 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1109		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1110-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
