◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#5891) — 165 parça

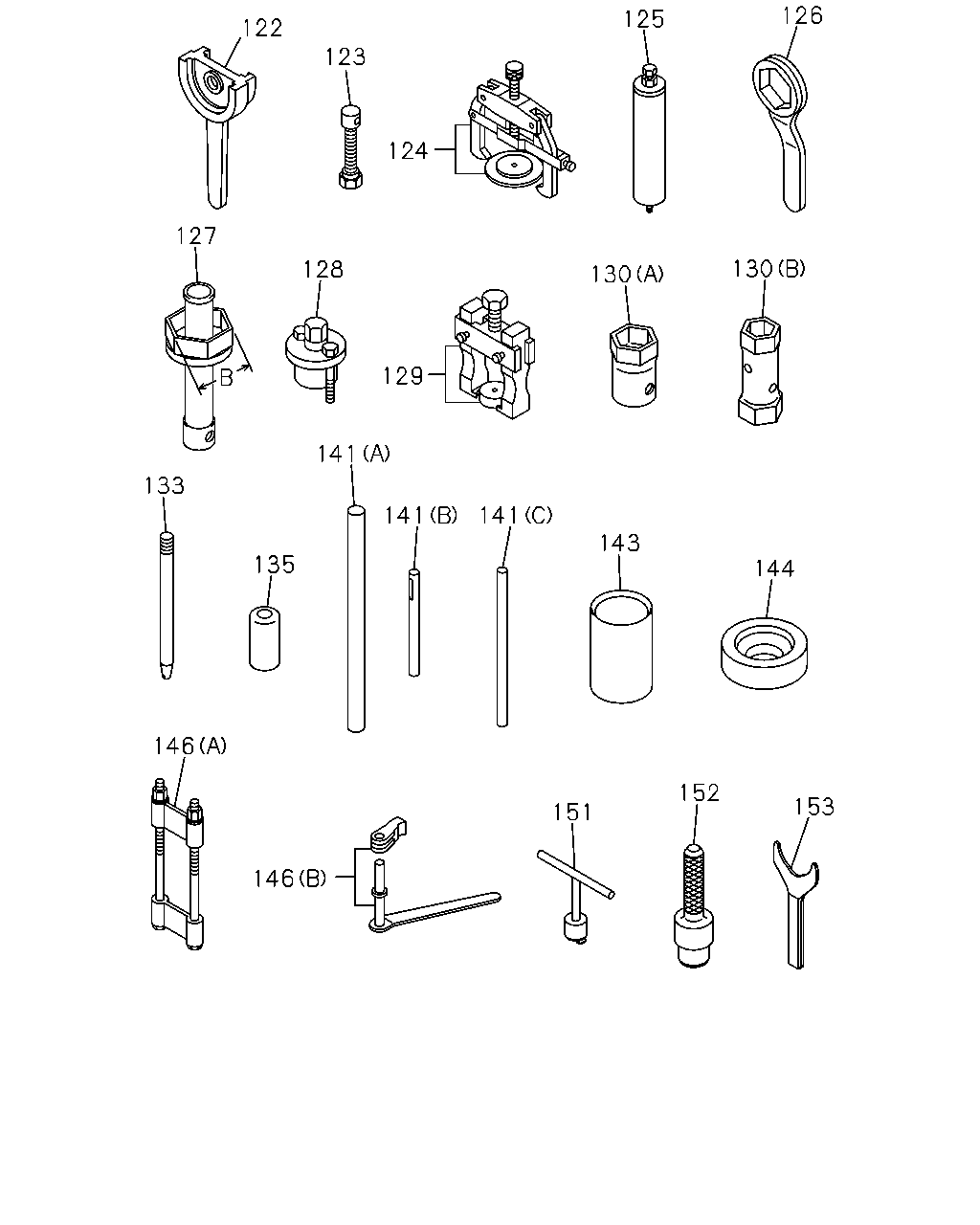

çizim 39165
126 125 122 123 124 127 130 128 130 129 141 133 141 141 143 135 144 146 152 153 151 146
BalonParca AdiParca NoAdetTipApplied Date A B
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9603- ● ●
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 9603- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9603- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9603- ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9603- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 9603- ● ●
127 WRENCH ASM; HUB BRG NUT
B=116 		9-85113-524-0 01 1 9603- ● ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 9603- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9603- ● ●
130 WRENCH; BOX
(A) B=63 		9-85111-368-0 01 1 9603- ● ●
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 9603- ● ●
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9603- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9603- ● ●
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9603- ● ●
133 WRENCH; NUT STARTER
V TYPE ENG<91L> 		1-85221-030-0 02 1 9603- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9603- ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9603-9805 ● ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9603- ● ●
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 9603- ● ●
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9603- ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9905- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9603- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9603- ● ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 9603- ● ●
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 9603- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9603- ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9603- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9603- ● ●

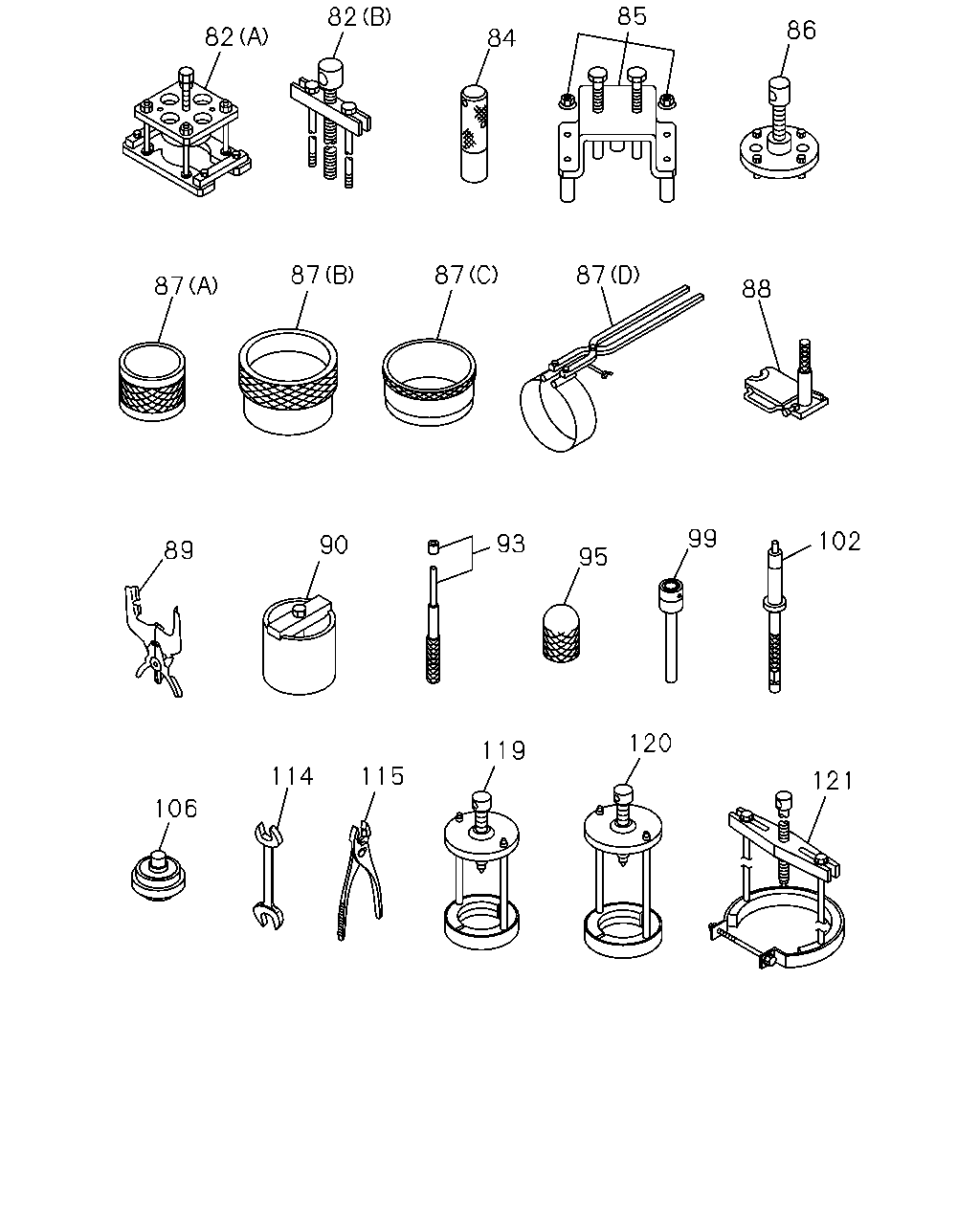

çizim 39166
85 82 86 82 84 87 87 87 87 88 99 102 93 90 89 95 120 119 115 114 121 106
BalonParca AdiParca NoAdetTipApplied Date A B
82 PULLER ASM; CR/SHF GEAR
L TYPE ENG<90L> (A) 		1-85210-064-0 AR 1 9603- ● ●
82 PULLER ASM; CR/SHF GEAR
V TYPE ENG<91L> (B) 		9-85211-139-0 01 1 9603- ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> INLET VALVE 		1-85221-136-0 AR 1 9603-9609 ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> INLET VALVE 		1-85221-184-0 AR 1 9610- ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> EXHAUST VALVE 		1-85221-140-1 AR 1 9603-9612 ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> EXHAUST VALVE 		1-85221-187-0 AR 1 9701- ● ●
85 REPLACER ASM; VALVE SPR
L TYPE ENG<90L> 		1-85235-010-0 AR 1 9603-9609 ● ●
85 REPLACER ASM; VALVE SPR
L TYPE ENG<90L> 		1-85235-013-0 AR 1 9610- ● ●
86 REPLACER; FLYWHEEL
V TYPE ENG<91L> 		1-85230-006-0 01 1 9603- ● ●
87 TOOL; PISTON
6WG1 TC-N(71L) (C) 		1-85220-059-0 AR 1 9707-9904 ●
87 TOOL; PISTON
6WG1 TC-C(72L) (C) 		1-85220-059-0 AR 1 9905- ● ●
87 TOOL; PISTON
L TYPE ENG<90L> (B) 		1-85220-046-0 AR 1 9603-9802 ● ●
87 TOOL; PISTON
6WA1 TC-S(56L) (B) 		1-85220-046-0 AR 1 9803-9903 ● ●
87 TOOL; PISTON
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-85220-046-0 AR 1 9904-9904 ● ●
87 TOOL; PISTON
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-85220-046-0 AR 1 9905- ● ●
87 TOOL; PISTON
V TYPE ENG<91L> (A) 		1-85220-058-0 01 1 9603-9806 ● ●
87 TOOL; PISTON
V TYPE ENG<91L> (D) 		1-85220-082-0 01 1 9807- ● ●
88 TOOL; CONNROD BUSHING
V TYPE ENG<91L> 		1-85220-002-0 01 1 9603- ● ●
89 TOOL; PISTON RING
6WG1 TC-N(71L) 		1-85221-025-0 AR 1 9707-9904 ●
89 TOOL; PISTON RING
6WG1 TC-C(72L) 		1-85221-025-0 AR 1 9905- ● ●
89 TOOL; PISTON RING
L TYPE ENG<90L> 		1-85221-029-0 AR 1 9603-9802 ● ●
89 TOOL; PISTON RING
6WA1 TC-S(56L) 		1-85221-029-0 AR 1 9803-9903 ● ●
89 TOOL; PISTON RING
6WA1 TC-C(55L),6WA1 TC-S(56L) 		1-85221-029-0 AR 1 9904-9904 ● ●
89 TOOL; PISTON RING
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) 		1-85221-029-0 AR 1 9905- ● ●
89 TOOL; PISTON RING
V TYPE ENG<91L> 		1-85221-029-0 01 1 9603- ● ●
90 PULLER; INJ PUMP BRG
V TYPE ENG<91L> 		1-85210-039-0 01 1 9603- ● ●
93 SETTING KIT; VALVE GUIDE
L TYPE ENG<90L> L=260 		9-85231-202-0 AR 1 9603- ● ●
93 SETTING KIT; VALVE GUIDE
V TYPE ENG<91L> L=260 		9-85231-202-0 01 1 9603- ● ●
95 SETTING TOOL; BRIDGE GUIDE
L TYPE ENG<90L> 		9-85221-324-0 AR 1 9603- ● ●
99 WRENCH; CYL HD BOLT
V TYPE ENG<91L> 		1-85115-013-0 01 1 9603- ● ●
102 ADAPTER; COMP GAGE
L TYPE ENG<90L> 		1-85317-019-0 AR 1 9603- ● ●
106 TOOL; SETTING PILOT BRG
L TYPE ENG<90L> 		1-85221-057-0 AR 1 9603- ● ●
106 TOOL; SETTING PILOT BRG
V TYPE ENG<91L> 		1-85221-057-0 01 1 9603- ● ●
114 WRENCH; INJ PUMP
V TYPE ENG<91L> 		1-85220-027-0 01 1 9603- ● ●
115 PLIER 5-85171-001-0 01 1 9603- ● ●
119 PULLER ASM; TOP GEAR BRG
ISUZU M/T<X9A> L=235 		9-85210-190-0 01 1 9603- ● ●
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 9603- ● ●
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> 		1-85210-069-0 01 1 9603- ● ●

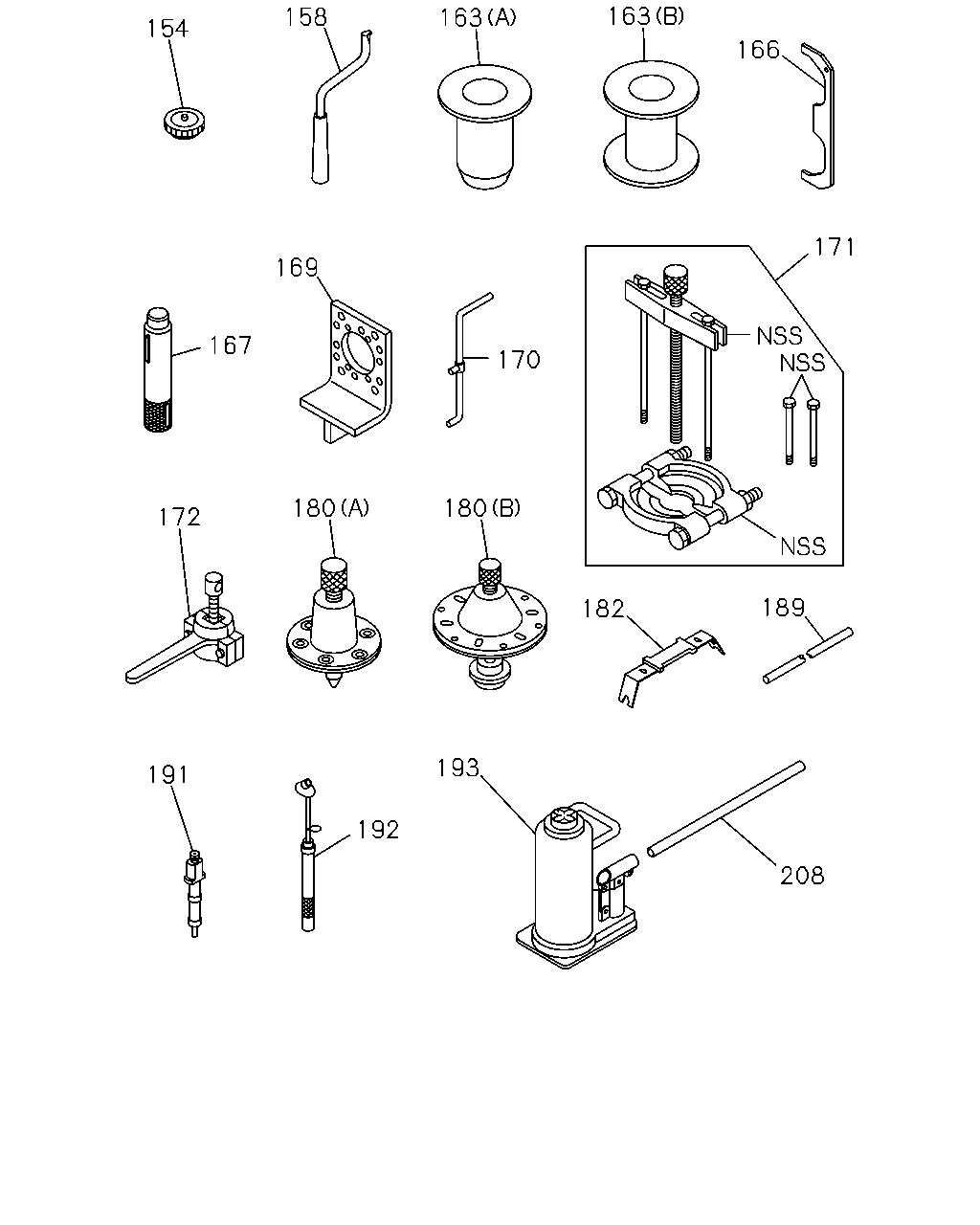

çizim 40899
163 158 163 154 166 171 169 167 170 180 180 172 189 182 193 191 192 208
BalonParca AdiParca NoAdetTipApplied Date A B
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9603- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9603- ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9603- ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9603- ● ●
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 9603- ● ●
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5 		1-85253-010-0 01 1 9603- ● ●
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9603- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9603- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9603- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9603- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9603- ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9603- ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9603- ● ●
182 REMOVER ASM 1-85239-008-0 01 1 9603- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9603- ● ●
191 ADAPTER
V TYPE ENG<91L> 		1-85317-002-0 01 1 9603- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9603-9912 ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0001- ● ●
193 JACK ASM
15TON 		1-85510-019-0 01 1 9603-9608 ● ●
193 JACK ASM
15TON 		1-85510-021-0 01 1 9709-9709 ● ●
193 JACK ASM
15TON 		1-85510-019-1 01 1 9710- ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9603- ● ●
çizim 41341
227 232 218 219 230 237 245 246 296 299 329 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
218 PLUG
V TYPE ENG<91L> 		1-15629-043-0 01 1 9603- ● ●
219 GASKET
V TYPE ENG<91L> 		9-09720-555-0 01 1 9603- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9603- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9603- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9603- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9603- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 9603- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 9603- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 9603- ● ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 9603-9904 ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
TIRE 1000-20 10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 9603-9904 ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
TIRE 1100-20 11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 9603-9904 ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 9603- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 9603- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 9603- ● ●
296 REPLACER; SLINGER
L TYPE ENG<90L> 		1-85210-027-0 AR 1 9603- ● ●
299 PULLER ASM; TRANS CONTROL
ZF M/T<X9E> 		1-85210-081-0 01 1 9603-9904 ● ●
329 PULLER ASM; SLINGER
V TYPE ENG<91L> ID=124 		1-85220-052-0 01 1 9603- ● ●

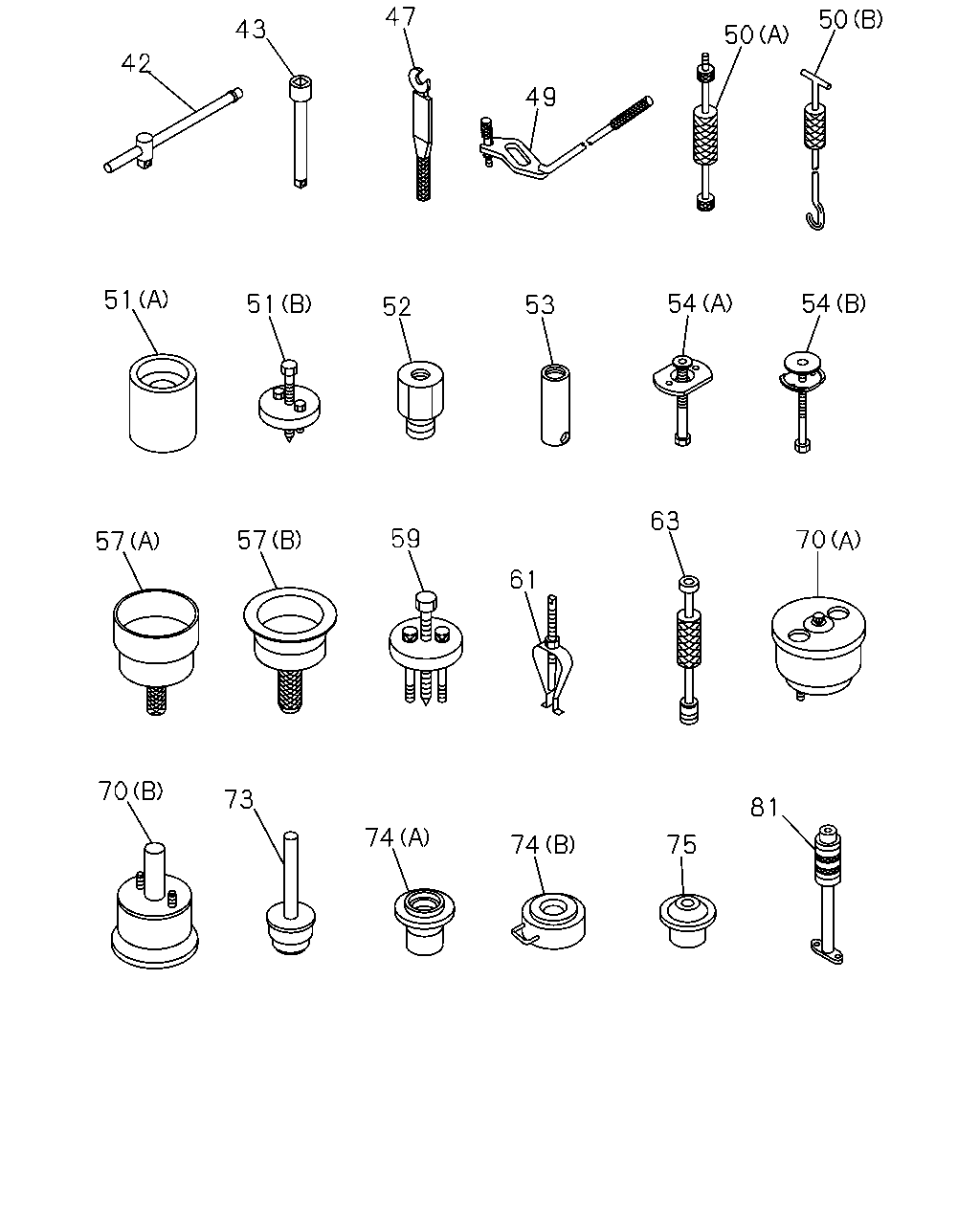

çizim 42622
47 50 43 50 42 49 51 54 54 51 53 52 63 59 70 57 57 61 70 73 81 74 74 75
BalonParca AdiParca NoAdetTipApplied Date A B
42 HANDLE; SLIDING 9-09590-512-0 01 1 9603- ● ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9603- ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP
V TYPE ENG<91L> 		1-85220-018-0 01 1 9603- ● ●
49 REPLACER ASM; VALVE
V TYPE ENG<91L> 		1-85235-001-0 01 1 9603- ● ●
50 REPLACER; NOZZLE HOLDER
L TYPE ENG<90L> (A) L=300 		1-85230-013-0 AR 1 9603- ● ●
50 REPLACER; NOZZLE HOLDER
V TYPE ENG<91L> (B) L=500 		1-85230-007-0 01 1 9603- ● ●
51 PULLER ASM; WATER PUMP
L TYPE ENG<90L> (A) 		1-85220-047-0 AR 1 9603- ● ●
51 PULLER ASM; WATER PUMP
V TYPE ENG<91L> (B) 		1-85210-028-0 01 1 9603- ● ●
52 REMOVER; WATER PUMP
L TYPE ENG<90L> 		1-85210-062-0 AR 1 9603- ● ●
53 PULLER; TAPER BUSHING
L TYPE ENG<90L> 		1-85210-063-0 AR 1 9603- ● ●
54 PULLER; THERMOSTAT SEAL
L TYPE ENG<90L> (B) 		1-85210-067-0 AR 1 9603- ● ●
54 PULLER; THERMOSTAT SEAL
V TYPE ENG<91L> (A) 		1-85210-029-0 01 1 9603- ● ●
57 TOOL; SETTING CRANK GEAR
L TYPE ENG<90L> (A) OD=162 		1-85220-045-0 AR 1 9603- ● ●
57 TOOL; SETTING CRANK GEAR
V TYPE ENG<91L> (B) OD=175 		1-85221-028-0 01 1 9603- ● ●
59 PULLER ASM; TIMING GEAR
L TYPE ENG<90L> 		1-85210-065-0 AR 1 9603- ● ●
61 PULLER ASM; PILOT BRG
L TYPE ENG<90L> 		9-85210-157-0 AR 1 9603- ● ●
61 PULLER ASM; PILOT BRG
V TYPE ENG<91L> 		9-85210-157-0 01 1 9603- ● ●
63 PULLER; NOZZLE SLEEVE
V TYPE ENG<91L> 		1-85210-026-0 01 1 9603- ● ●
70 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> (A) 		1-85220-043-0 AR 1 9603- ● ●
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL SEAL 		1-85220-051-0 01 1 9603- ● ●
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9603- ● ●
73 TOOL; SETTING,THERMOSTAT SEAL
L TYPE ENG<90L> 		1-85221-034-0 AR 1 9603- ● ●
73 TOOL; SETTING,THERMOSTAT SEAL
V TYPE ENG<91L> 		1-85221-034-0 01 1 9603- ● ●
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (A) 		1-85220-019-0 01 1 9603- ● ●
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (B) 		1-85220-020-1 01 1 9603- ● ●
75 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> 		1-85220-049-0 AR 1 9603- ● ●
81 PULLER; BRG CAP
V TYPE ENG<91L> 		1-85210-015-0 01 1 9603- ● ●

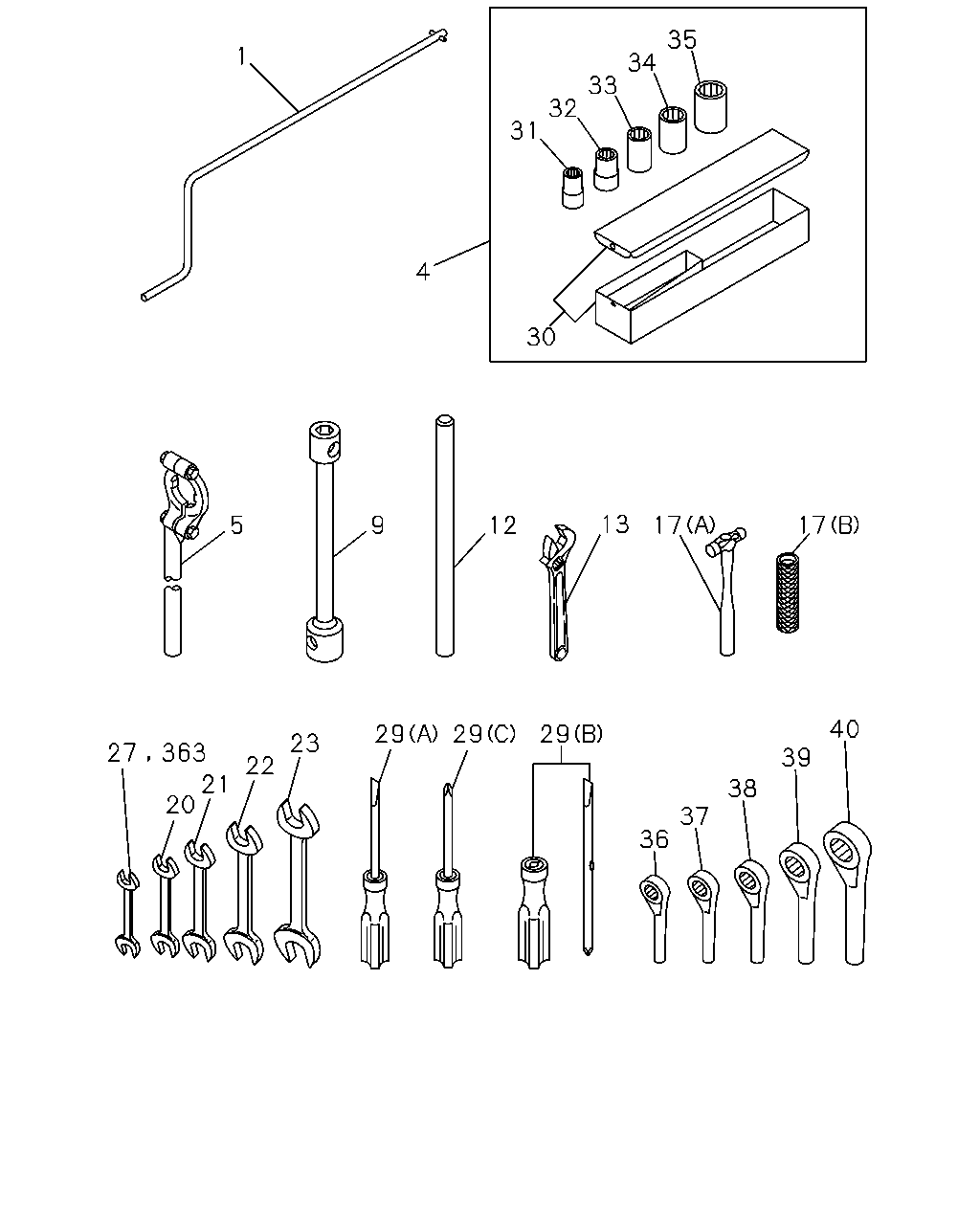

çizim 43115
35 34 33 32 1 31 4 30 13 5 9 12 17 17 40 29 29 29 23 363 39 22 21 20 38 37 36 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9603- ● ●
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9603- ● ●
5 WRENCH ASM; NUT,MAINSHAFT
ZF M/T<X9E> 		1-85110-010-0 01 1 9603- ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440 		1-85113-015-1 01 1 9603-9904 ●
9 WRENCH; WHEEL PIN
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440 		1-85113-015-1 01 1 9905- ● ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 9603-9904 ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9603-9904 ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 9905- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9603- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9603- ● ●
17 HAMMER
(A) 		9-85121-406-0 01 1 9603- ● ●
17 HAMMER
V TYPE ENG<91L> (B) 		1-85220-021-0 01 1 9603- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9603- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9603- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9603- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9603- ● ●
27 WRENCH; OPEN END 5.5X7
8X10 		9-99592-108-0 01 1 9603-9904 ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 9603- ● ●
29 DRIVER; SCREW
(B) <+>,<-> L=160 		8-94242-798-1 01 1 9603- ● ●
29 DRIVER; SCREW
(C) <+> L=275 		9-09595-023-0 01 1 9603- ● ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9603- ● ●
31 WRENCH; 12 9-09590-012-0 01 1 9603- ● ●
32 WRENCH; 14 9-09590-014-0 01 1 9603- ● ●
33 WRENCH; 17 9-09590-017-0 01 1 9603- ● ●
34 WRENCH; 19 9-09590-019-0 01 1 9603- ● ●
35 WRENCH; 22 9-09590-022-0 01 1 9603- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 9603- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 9603- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 9603- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 9603- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 9603- ● ●
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
