◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#5890) — 66 parça

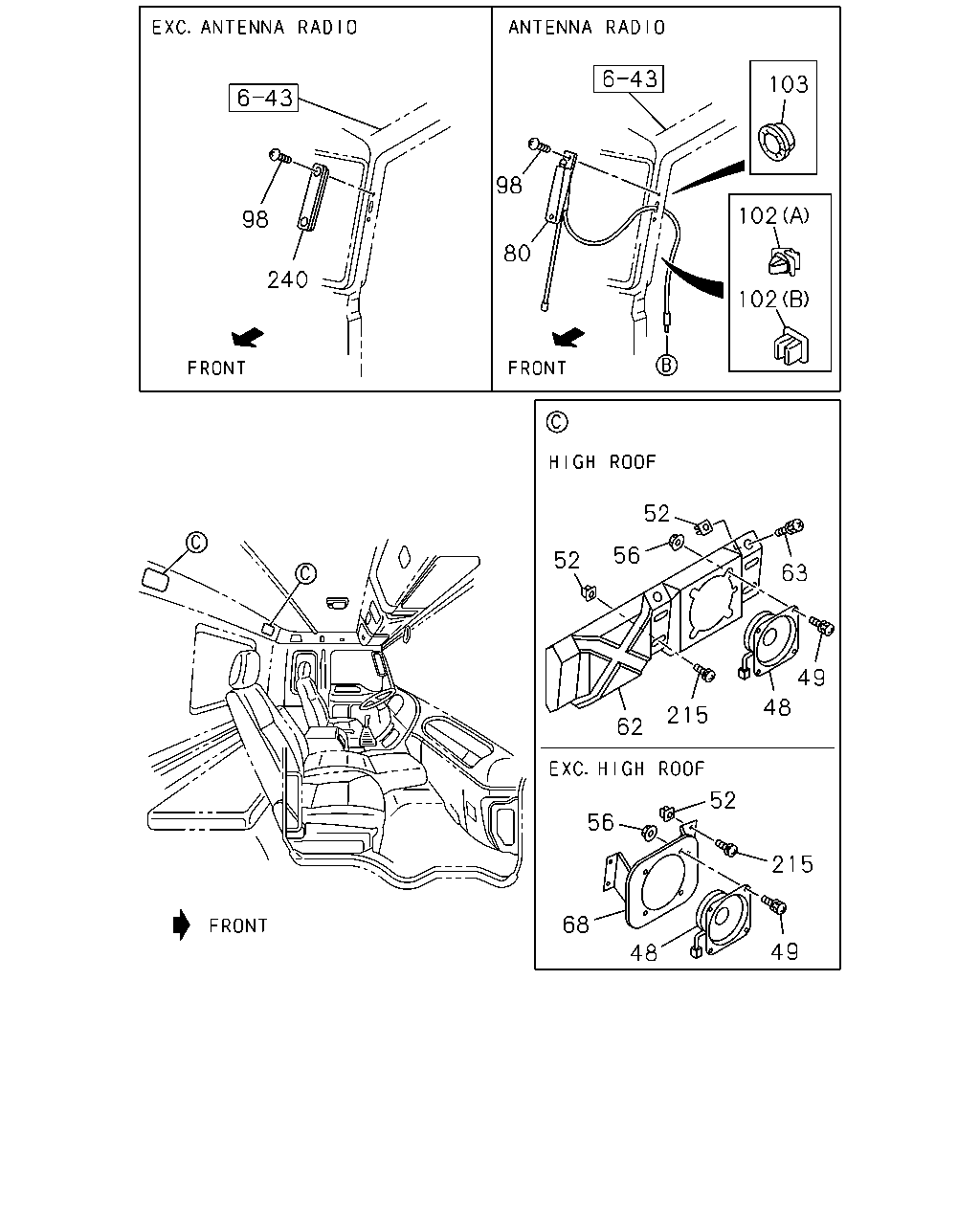

çizim 39168
103 98 102 98 80 240 102 52 56 52 63 49 48 215 62 52 56 215 68 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> 		1-84114-062-0 02 1 9603- ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) 		1-84114-050-0 01 1 9603-9904 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU> 		1-84114-050-0 01 1 9905- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 02 1 9603-9904 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> 		1-84114-050-0 02 1 9905- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-84114-057-0 02 1 9905- ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 9905- ● ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 9905- ● ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9905- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE 		1-09984-170-0 04 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9905- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) M5 FLANGE 		1-09984-170-0 02 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE 		1-09984-170-0 02 1 9905- ● ●
62 BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73347-749-3 01 1 9905- ● ●
62 BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73347-748-3 01 1 9905- ● ●
63 SCREW; RR SPEAKER BOX
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9905- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-786-2 01 1 9905- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-785-2 01 1 9905- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9603- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9603- ● ●
102 CLIP; CABLE
(A) ID=4.8 		8-94128-483-0 03 1 9603-9808 ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		8-94128-483-0 03 1 9809- ●
102 CLIP; CABLE
(B) ID=4.8 		8-94128-483-0 05 1 9603-9808 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		8-94128-483-0 04 1 9809-9809 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		8-94128-483-0 05 1 9810-9902 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		1-73907-618-0 05 1 9903- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (C) L=140 		5-09707-031-1 01 1 9603- ● ●
102 CLIP; CABLE
(A) ID=4.8 		8-94128-483-0 02 1 9603-9808 ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		8-94128-483-0 02 1 9809- ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9603- ● ●
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9905- ● ●
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9905- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9603- ● ●

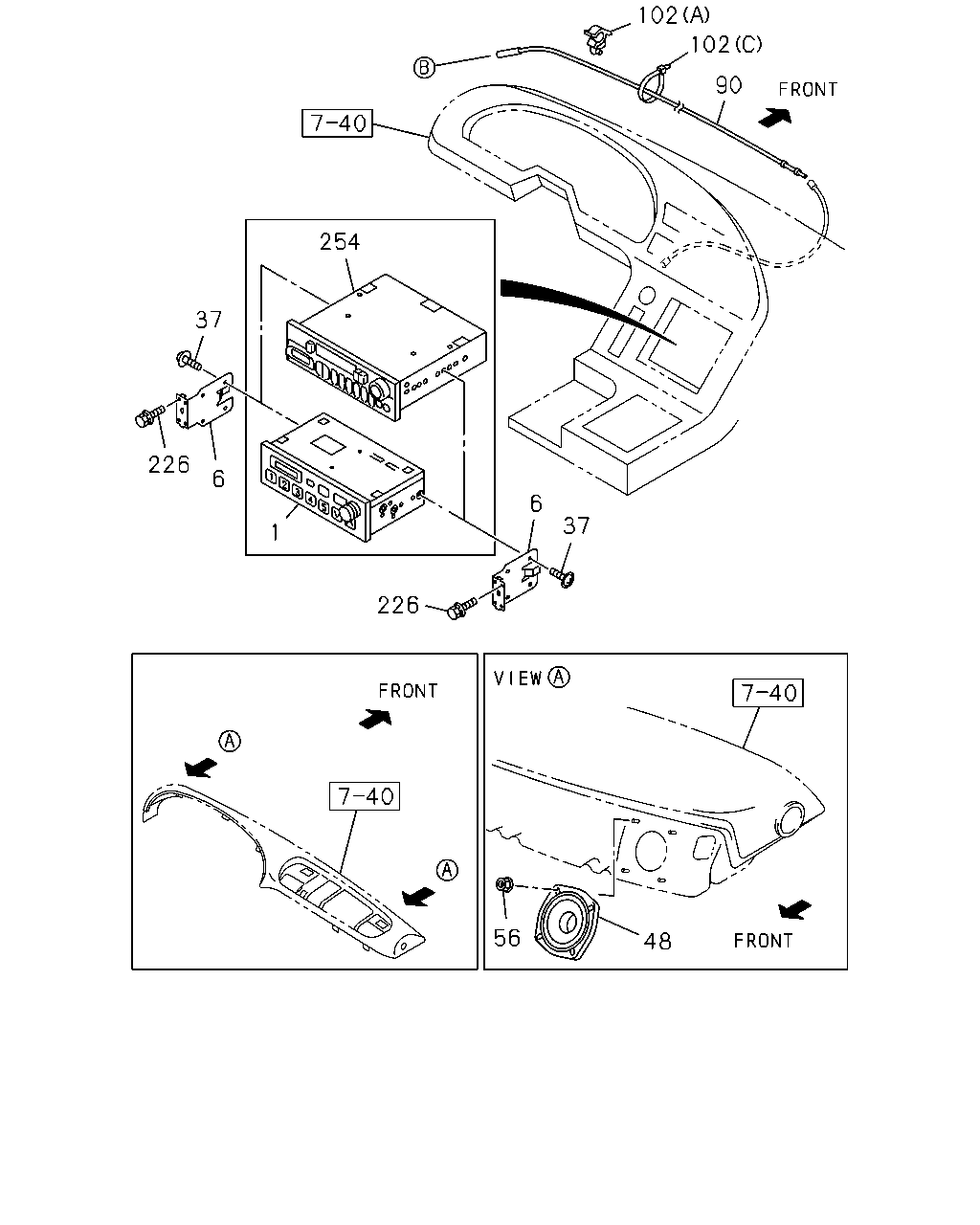

çizim 42407
102 102 90 254 37 226 6 6 37 1 226 56 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2) 		1-84112-063-0 01 1 9603-9911 ● ●
1 RADIO
RADIO CLARION(SK2) 		1-84112-063-0 01 1 9912- ●
1 RADIO
RADIO CLARION(SK2) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-84112-063-0 01 1 9912- ●
1 RADIO
RADIO CLARION(SK2) SAUDI ARABIA EQUIPMENT(WH1) 		1-84112-068-0 01 1 9912- ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9603- ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9603- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> 		1-84114-062-0 02 1 9603- ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) 		1-84114-050-0 01 1 9603-9904 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU> 		1-84114-050-0 01 1 9905- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 02 1 9603-9904 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> 		1-84114-050-0 02 1 9905- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-84114-057-0 02 1 9905- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE 		1-09984-170-0 04 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9905- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) M5 FLANGE 		1-09984-170-0 02 1 9603-9904 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE 		1-09984-170-0 02 1 9905- ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9603- ● ●
102 CLIP; CABLE
(A) ID=4.8 		8-94128-483-0 03 1 9603-9808 ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		8-94128-483-0 03 1 9809- ●
102 CLIP; CABLE
(B) ID=4.8 		8-94128-483-0 05 1 9603-9808 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		8-94128-483-0 04 1 9809-9809 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		8-94128-483-0 05 1 9810-9902 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		1-73907-618-0 05 1 9903- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (C) L=140 		5-09707-031-1 01 1 9603- ● ●
102 CLIP; CABLE
(A) ID=4.8 		8-94128-483-0 02 1 9603-9808 ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		8-94128-483-0 02 1 9809- ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION 		1-84122-032-2 01 1 9603-9911 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION 		1-84122-032-3 01 1 9912- ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION 		1-84122-032-3 01 1 9912- ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SAUDI ARABIA EQUIPMENT(WH1) 		1-84122-038-1 01 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
