0-13 — OIL PAN AND LEVEL GAUGE (#58889) — 28 parça

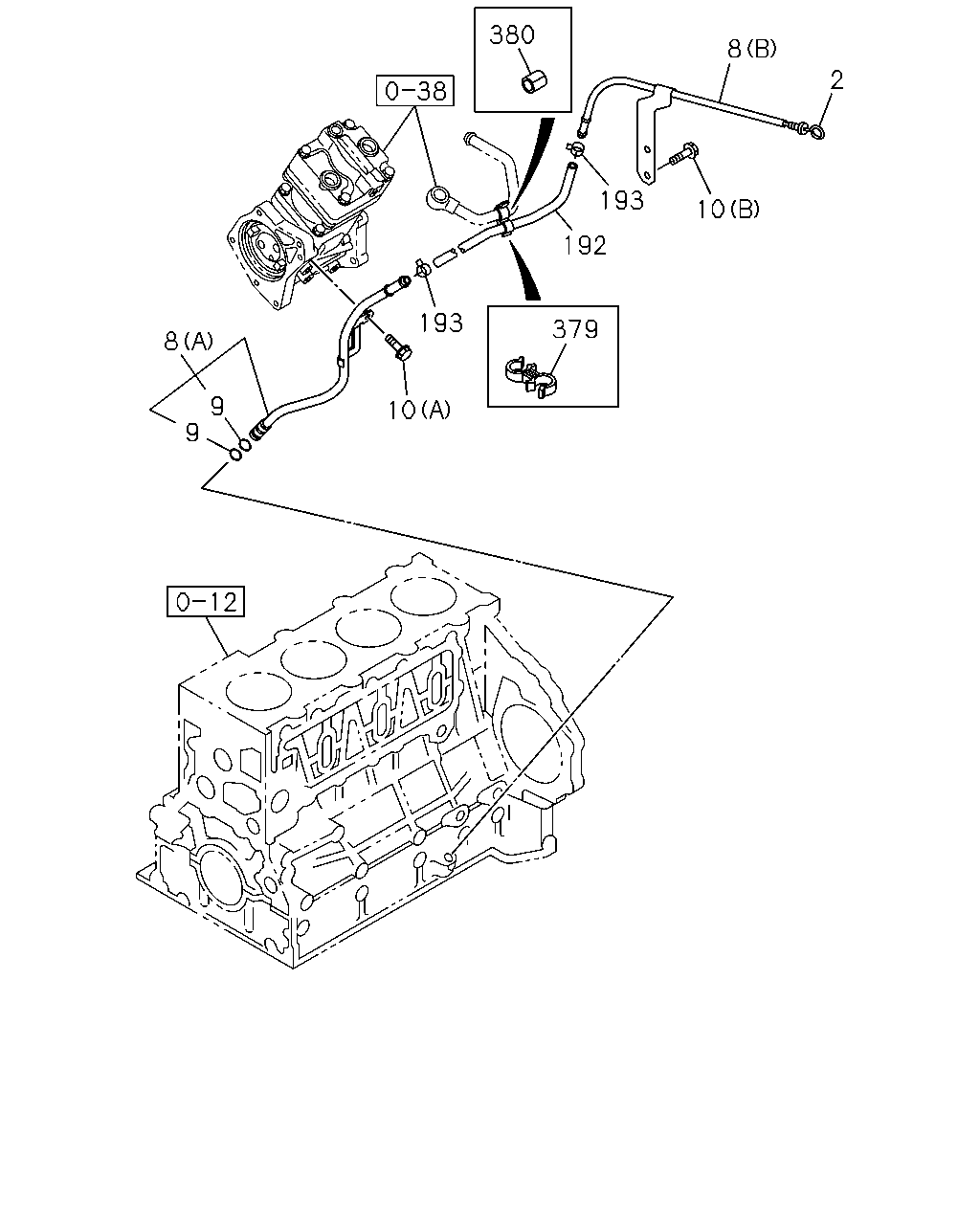

çizim 168975
380 8 2 193 10 192 193 379 8 9 10 9
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98085-153-0 01 1 1010-1406
2 GAUGE; OIL LEVEL 8-98245-514-0 01 1 1407-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98009-115-1 01 1 1010-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98010-328-1 01 1 1010-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1010-
10 BOLT; GUIDE TUBE
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1010-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1010-
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 1010-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1010-
379 CLIP; PIPE TO HOSE
ID=18 & 18 		8-94323-068-0 01 1 1010-
380 PROTECTOR; PIPE
ID=18 L=40 		8-98070-445-0 01 1 1010-

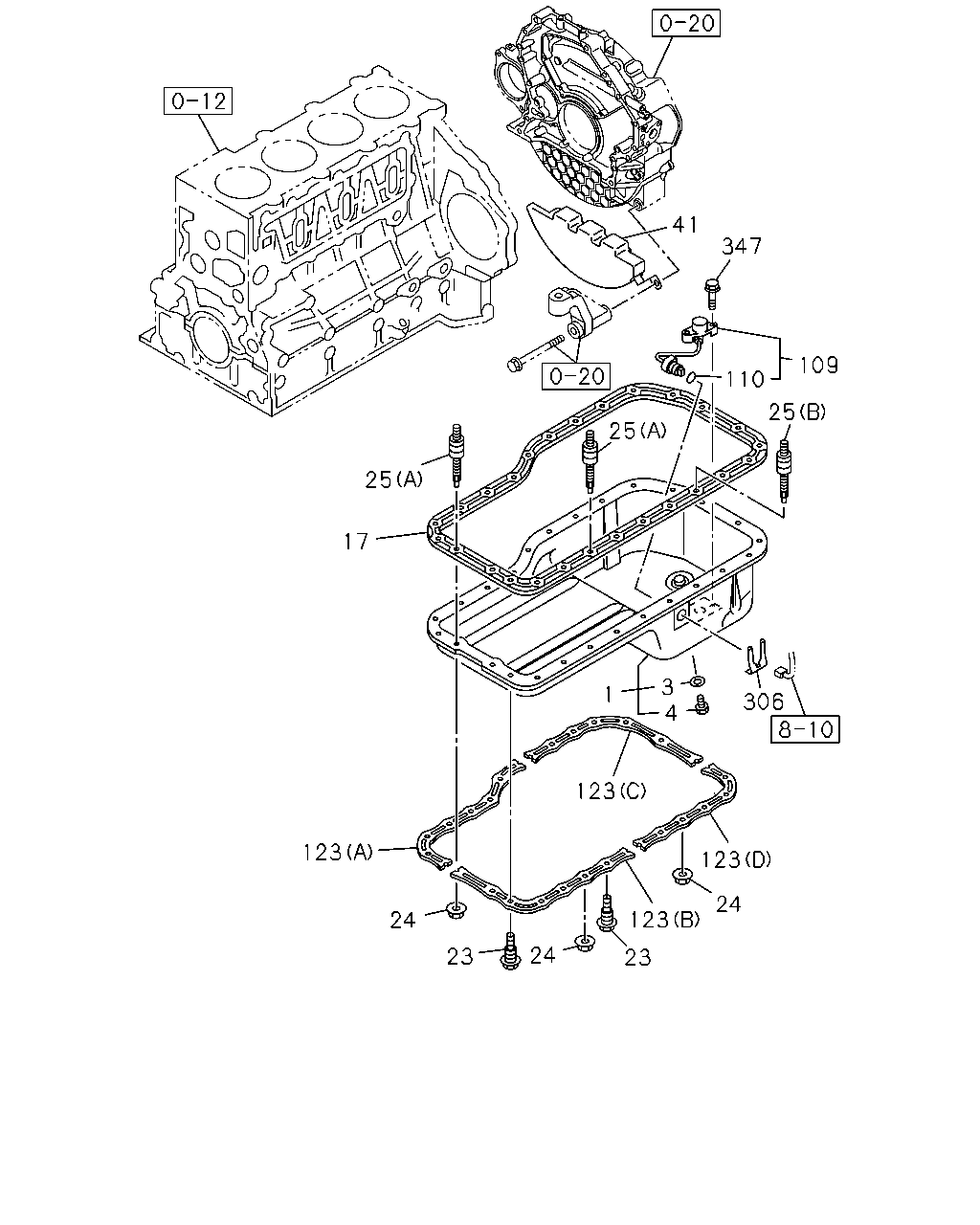

çizim 169073
41 347 109 110 25 25 25 17 3 4 1 306 123 123 123 24 123 24 24 23 23
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-97386-772-0 01 1 1010-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1010-
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1010-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1010-
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1010-
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 13 1 1010-
25 STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1010-
25 STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1010-
41 RUBBER; SPACE 8-97380-615-0 01 1 1010-
109 SWITCH; OIL LEVEL 8-97328-993-1 01 1 1010-
110 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 1010-
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1010-
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1010-
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1010-
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1010-
306 CLIP; CONNECTOR 8-97229-219-0 01 1 1010-
347 BOLT; OIL LEVEL SW
M6X25 FLANGE 		0-28650-625-0 02 1 1010-
