Isuzu WW
▶
TRUCKS
▶
FRR
▶
11303 - FRR AUST/NZ EURO5 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

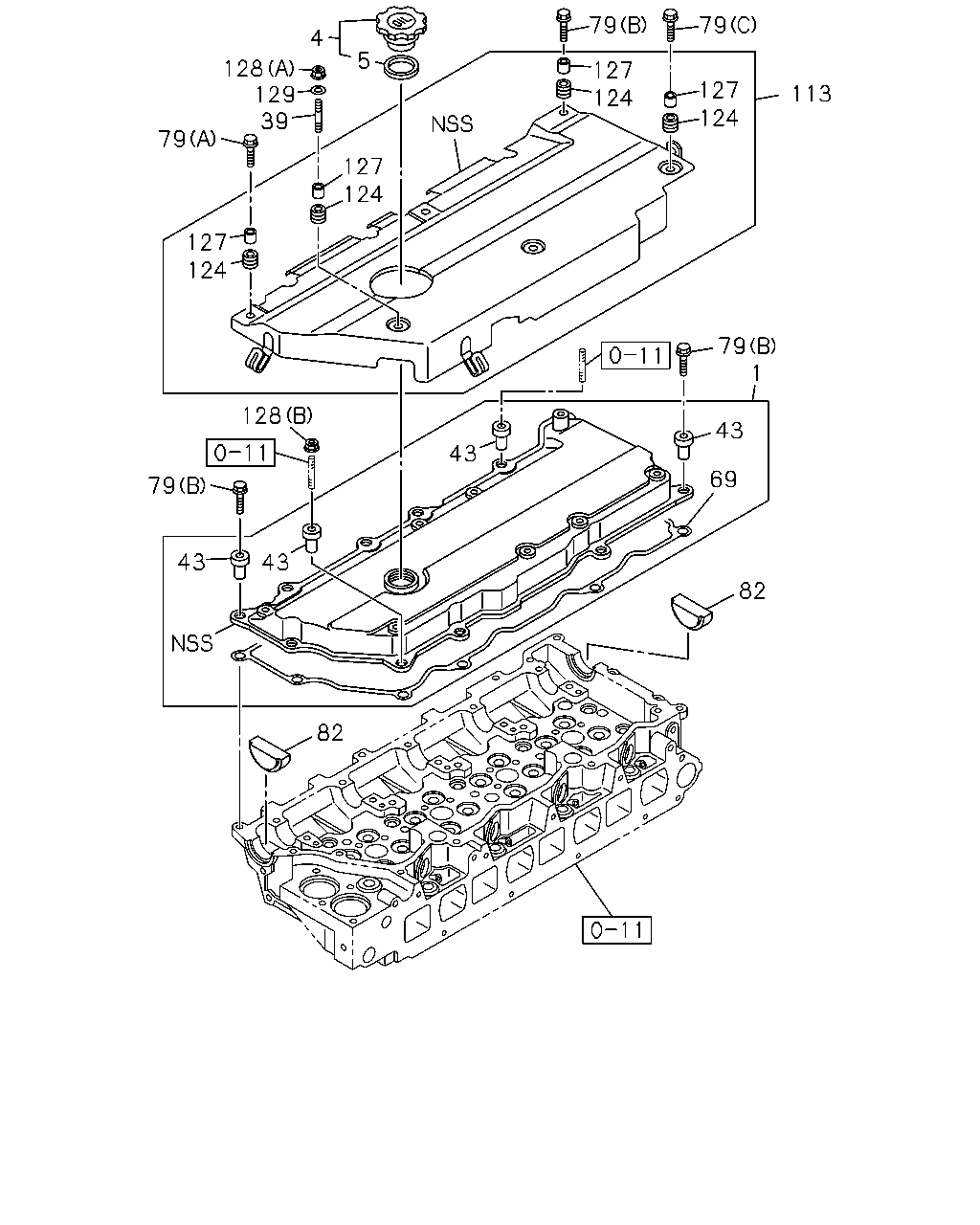

0-10 — CYLINDER HEAD COVER
(#58886) — 16 parça
79
79
4
5
128
129
39
127
124
127
124
113
79
127
124
127
124
79
1
128
43
43
69
79
43
43
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-97331-361-2
01
1
1010-
4
CAP; OIL FILLER
8-94133-207-5
01
1
1010-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
1010-
39
STUD; COVER,HD
M6X25 L=34
0-41010-625-0
02
1
1010-
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1010-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1010-
79
BOLT; COVER
(A) M8X35 FLANGE
0-28650-835-0
02
1
1010-
79
BOLT; COVER
(B) M8X65 FLANGE
1-09044-072-1
07
1
1010-
79
BOLT; COVER
(C) M6X20
8-97127-607-0
01
1
1010-
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1010-
113
COVER; CYL HEAD COVER
8-98115-676-0
01
1
1010-
124
RUBBER; MTG,COVER
8-97226-908-0
05
1
1010-
127
RETAINER; COVER
8-97092-314-0
05
1
1010-
128
NUT; COVER,CYL HEAD COVER
(A) M6 FLANGE
0-91180-106-0
02
1
1010-
128
NUT; COVER,CYL HEAD COVER
(B) M8 FLANGE
0-91180-108-0
02
1
1010-
129
WASHER; COVER,CYL HEAD COVER
ID=6.4 OD=18
0-91610-706-0
01
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
