◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#58880) — 122 parça

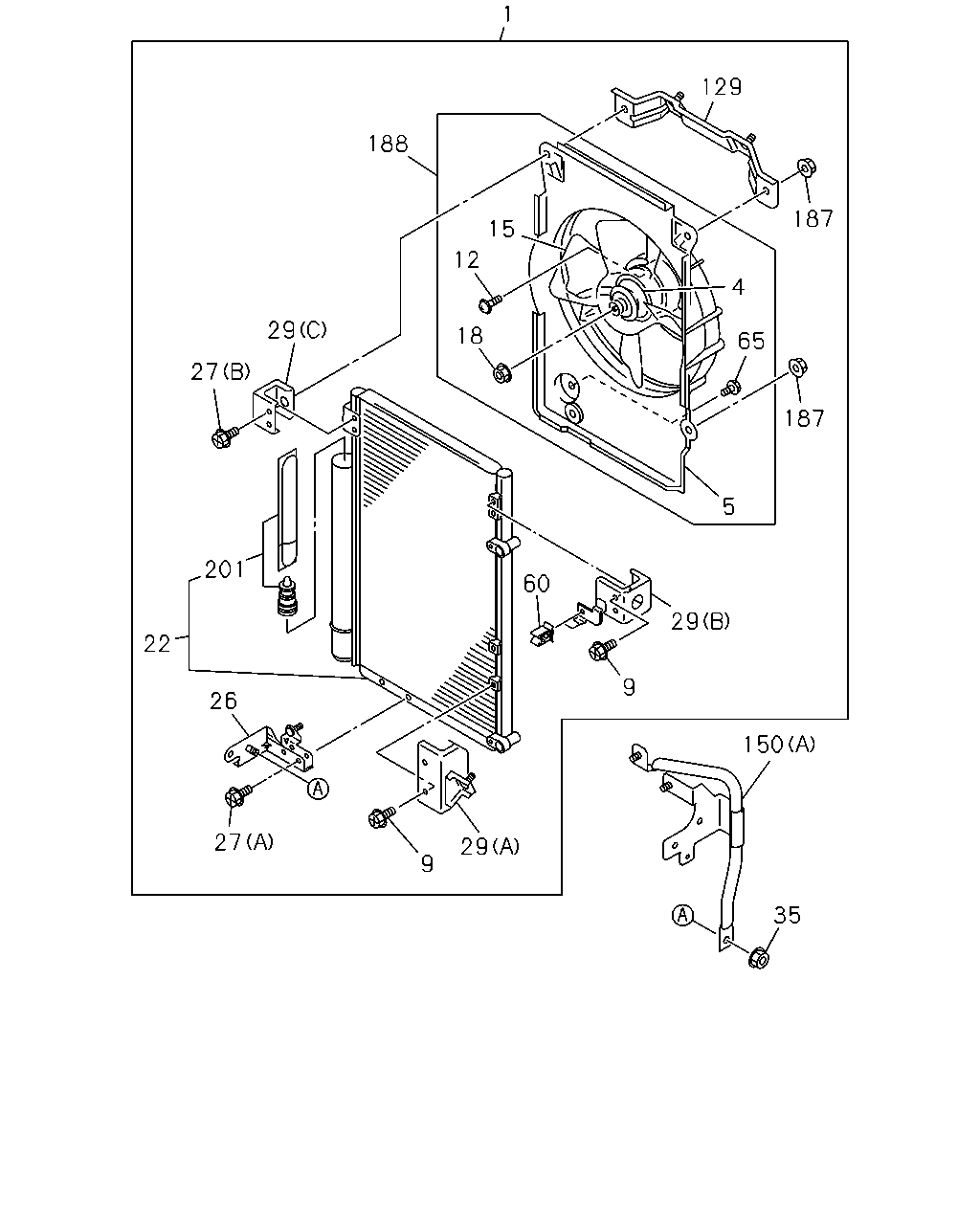

çizim 168775
129 187 188 1 15 12 18 4 65 187 5 29 27 201 22 26 27 9 29 60 29 9 150 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98098-373-1 01 1 1009-1302 ● ●
1 CONDENSER; A/C 8-98226-805-1 01 1 1303-1411 ● ●
1 CONDENSER; A/C 8-98226-805-1 01 1 1412- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98226-805-1 01 1 1412- ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-229-0 01 1 1009-1302 ● ●
4 MOTOR ASM; FAN 8-98116-585-0 01 1 1303-1411 ● ●
4 MOTOR ASM; FAN 8-98116-585-0 01 1 1412- ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-585-0 01 1 1412- ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1009-1302 ● ●
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1303-1411 ● ●
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1412- ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1412- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1009-1302 ● ●
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 1303-1411 ● ●
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 1412- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1412- ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 1009-1302 ● ●
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 1303-1411 ● ●
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 1412- ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 1412- ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1009-1302 ● ●
15 FAN; MOTOR 8-98076-092-0 01 1 1303-1411 ● ●
15 FAN; MOTOR 8-98076-092-0 01 1 1412- ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1412- ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 1009-1302 ● ●
18 NUT; FAN,CENTER 1-83539-313-0 01 1 1303-1411 ● ●
18 NUT; FAN,CENTER 1-83539-313-0 01 1 1412- ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 1412- ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-261-0 01 1 1009-1302 ● ●
22 CONDENSER ASM; A/C 1-83534-261-0 01 1 1303-1409 ● ●
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1410-1411 ● ●
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1412- ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98275-189-0 01 1 1412- ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-281-0 01 1 1009-1302 ● ●
26 BRACKET; LOW 1-83573-281-0 01 1 1303-1411 ● ●
26 BRACKET; LOW 1-83573-281-0 01 1 1412- ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-281-0 01 1 1412- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X14 		1-83539-382-0 02 1 1009-1302 ● ●
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 1303-1411 ● ●
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 1412- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X14 		1-83539-382-0 02 1 1412- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25 		8-97178-770-0 02 1 1009-1302 ● ●
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 1303-1411 ● ●
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 1412- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25 		8-97178-770-0 02 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-278-0 01 1 1009-1302 ● ●
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 1303-1411 ● ●
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-278-0 01 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-279-0 01 1 1009-1302 ● ●
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 1303-1411 ● ●
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-279-0 01 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-280-0 01 1 1009-1302 ● ●
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 1303-1411 ● ●
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 1412- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-280-0 01 1 1412- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1009-1302 ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1303-1411 ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1412- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1412- ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 1009-1302 ● ●
60 CLIP; PIPE 1-83574-266-0 01 1 1303-1411 ● ●
60 CLIP; PIPE 1-83574-266-0 01 1 1412- ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 1412- ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 1009-1302 ● ●
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 1303-1411 ● ●
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 1412- ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 1412- ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-0 01 1 1009-1302 ● ●
129 BRACKET; UPR 1-83573-129-0 01 1 1303-1411 ● ●
129 BRACKET; UPR 1-83573-129-0 01 1 1412- ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1412- ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1009-1302 ● ●
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1303-1411 ● ●
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1412- ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1412- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-187-1 01 1 1009-1302 ● ●
188 BLOWER ASM; SHROUD 8-98228-444-0 01 1 1303-1411 ● ●
188 BLOWER ASM; SHROUD 8-98228-444-0 01 1 1412- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98228-444-0 01 1 1412- ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 1009-1302 ● ●
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 1303-1409 ● ●
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1410-1411 ● ●
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1412- ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98282-482-0 01 1 1412- ●

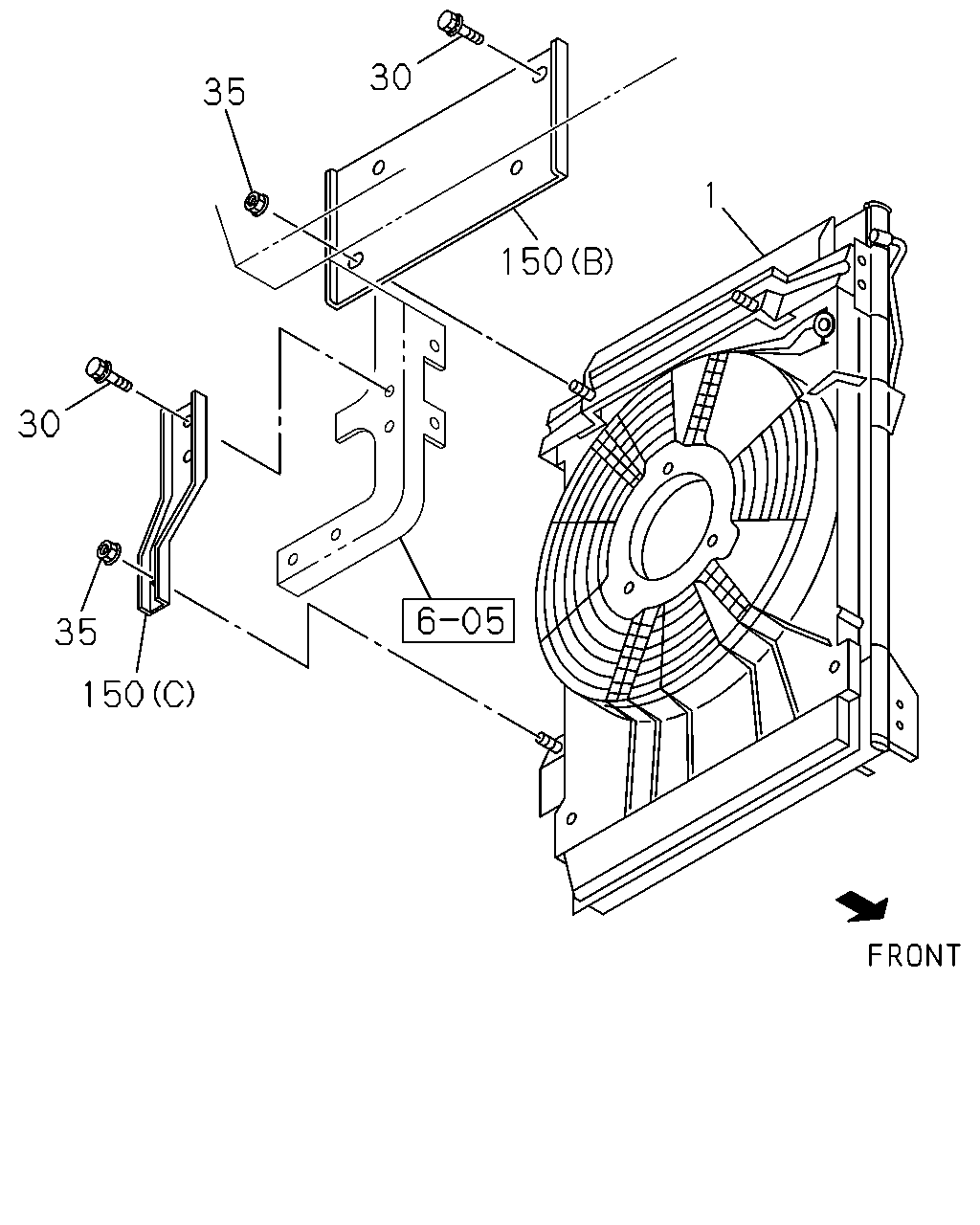

çizim 168781
35 30 30 35 150 150 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98098-373-1 01 1 1009-1302 ● ●
1 CONDENSER; A/C 8-98226-805-1 01 1 1303-1411 ● ●
1 CONDENSER; A/C 8-98226-805-1 01 1 1412- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98226-805-1 01 1 1412- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009-1302 ● ●
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1303-1411 ● ●
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1412- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1412- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1009-1302 ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1303-1411 ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1412- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-984-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-985-0 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1009-1302 ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1303-1411 ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1412- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-242-1 01 1 1412- ●
