◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#5888) — 65 parça

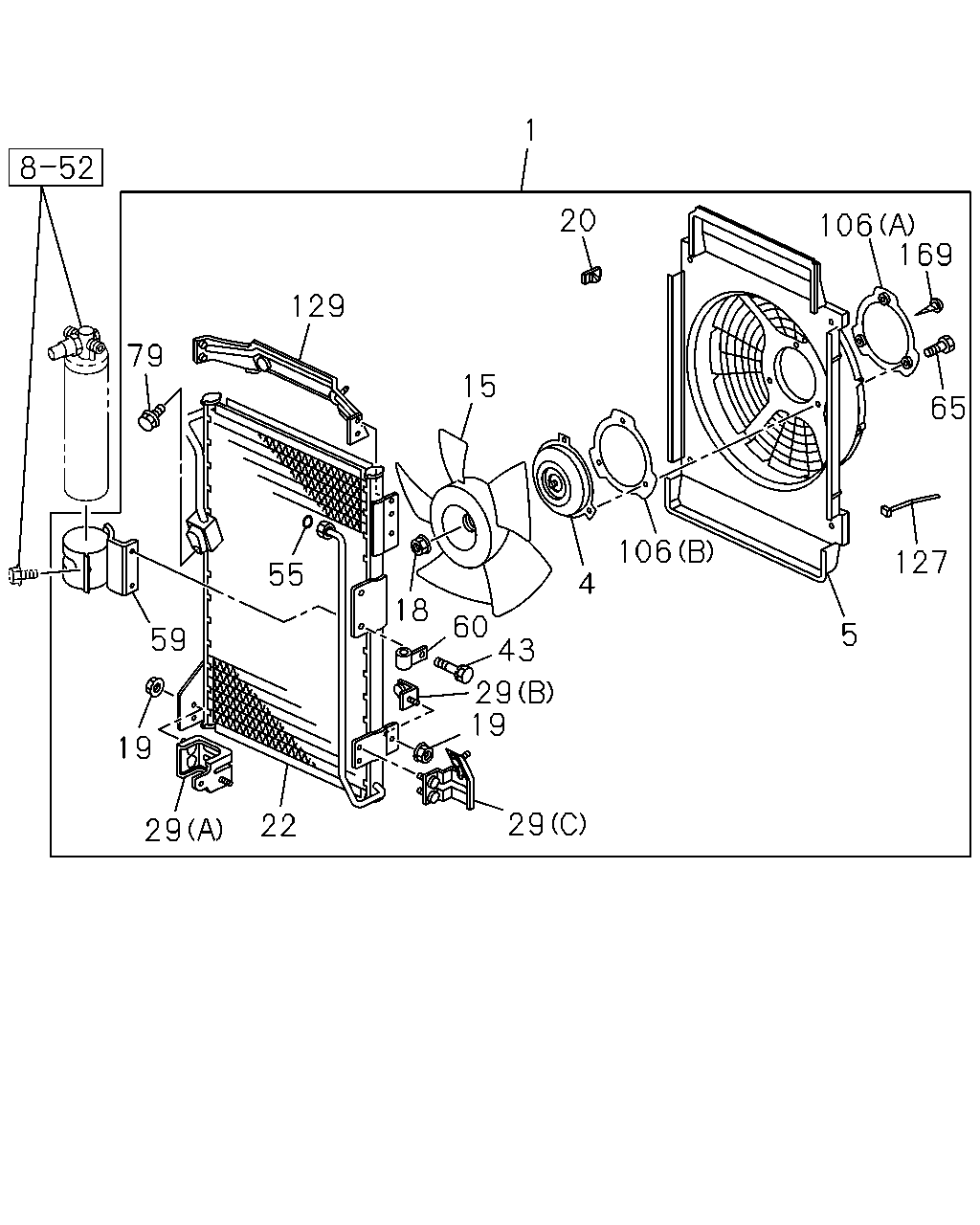

çizim 43024
1 20 106 169 129 79 15 65 106 127 55 4 18 60 43 5 59 29 19 19 29 22 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-187-4 01 1 9610-9904 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-213-2 01 1 9905- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-0 01 1 9603-9904 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9905- ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9603-9609 ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9610- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9603-9609 ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9610- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9603-9609 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9610- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9610-9904 ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9603-9904 ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9905- ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 11 1 9610- ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 12 1 9603- ●
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9603-9609 ●
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9610- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-169-3 01 1 9610-9904 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-222-1 01 1 9905- ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-193-0 01 1 9603-9904 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-226-1 01 1 9905- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-311-1 01 1 9610- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-0 01 1 9603-9609 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-1 01 1 9610- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9603-9609 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9610- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-262-1 01 1 9603- ●
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9603-9609 ●
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9610- ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9603-9609 ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9610-9904 ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9905-0001 ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 0002- ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 9905-0001 ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9603-9609 ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9610- ● ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9603-9609 ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9610- ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9603-9609 ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9610- ● ●
79 BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 		8-97103-452-0 01 1 0002- ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9603-9609 ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9610- ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9603-9609 ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9610- ● ●
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9603-9609 ●
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9610- ● ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-0 01 1 9603-9609 ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-1 01 1 9610- ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9603-9609 ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9610- ● ●

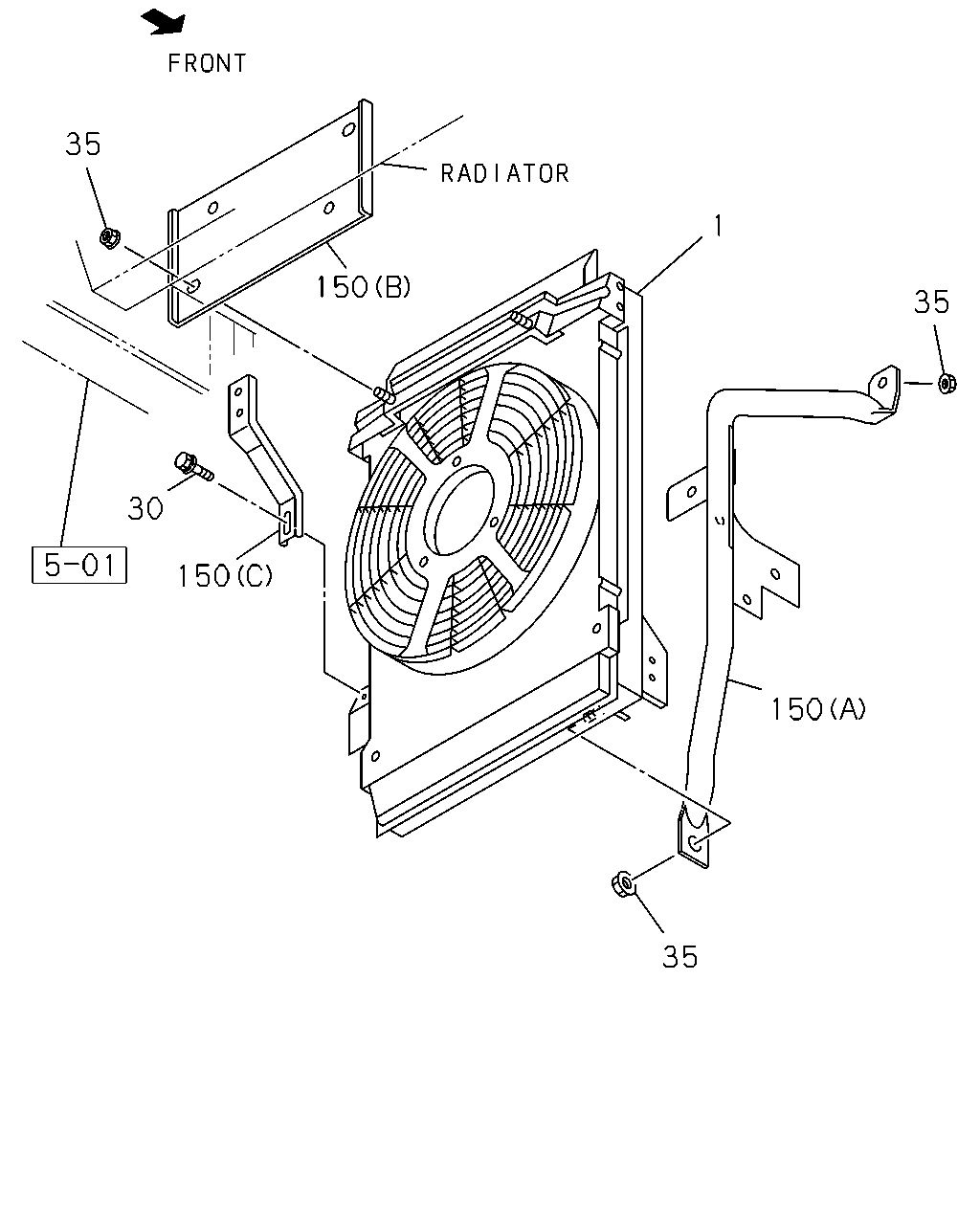

çizim 45076
35 1 150 35 30 150 150 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-187-4 01 1 9610-9904 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-213-2 01 1 9905- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-0 01 1 9603-9904 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9905- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603-9609 ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9610- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9603-9609 ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9610- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-826-0 01 1 9610- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-827-1 01 1 9610- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-909-0 01 1 9610- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-914-0 01 1 9603- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-915-0 01 1 9603- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-918-0 01 1 9603- ●
