◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶

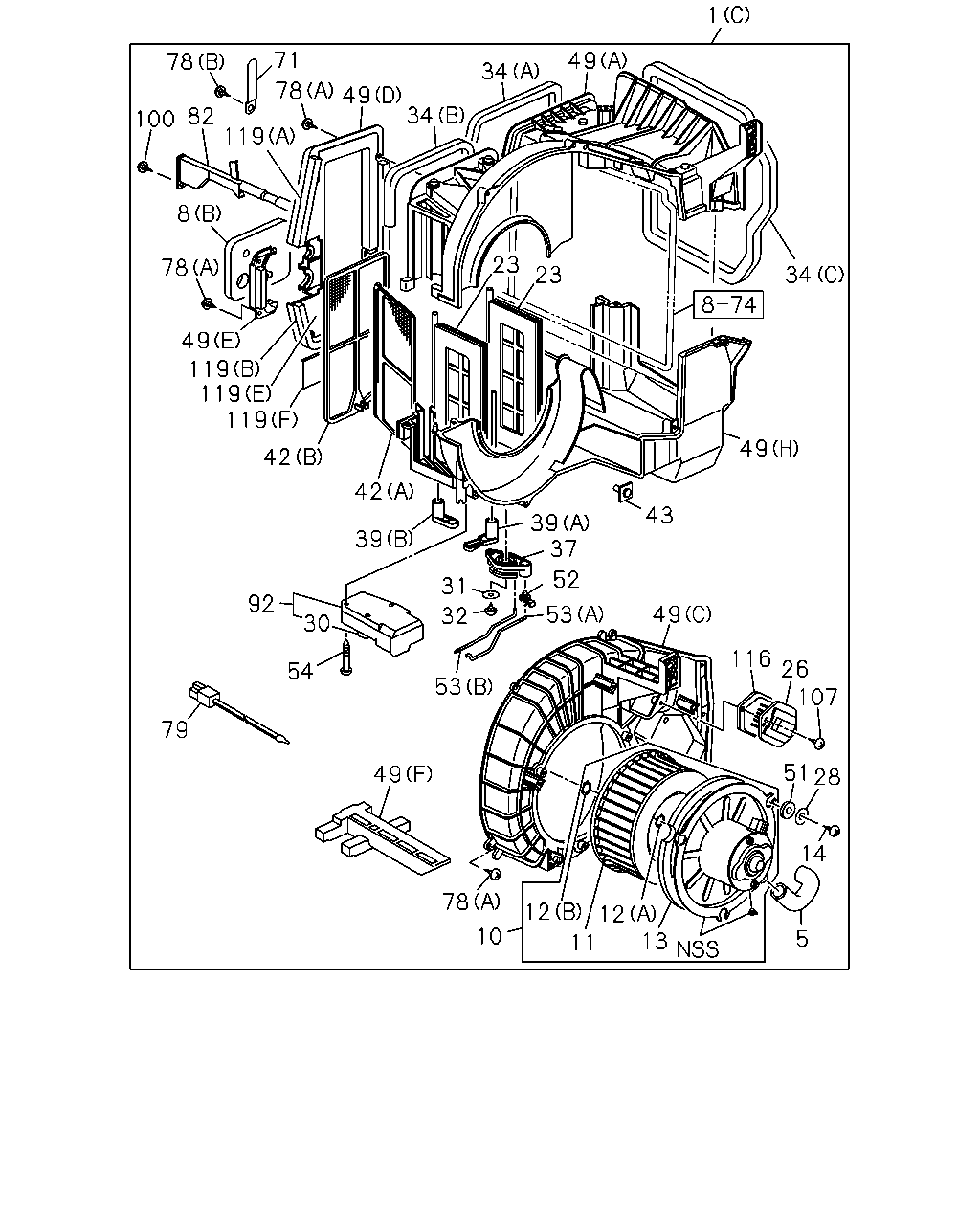

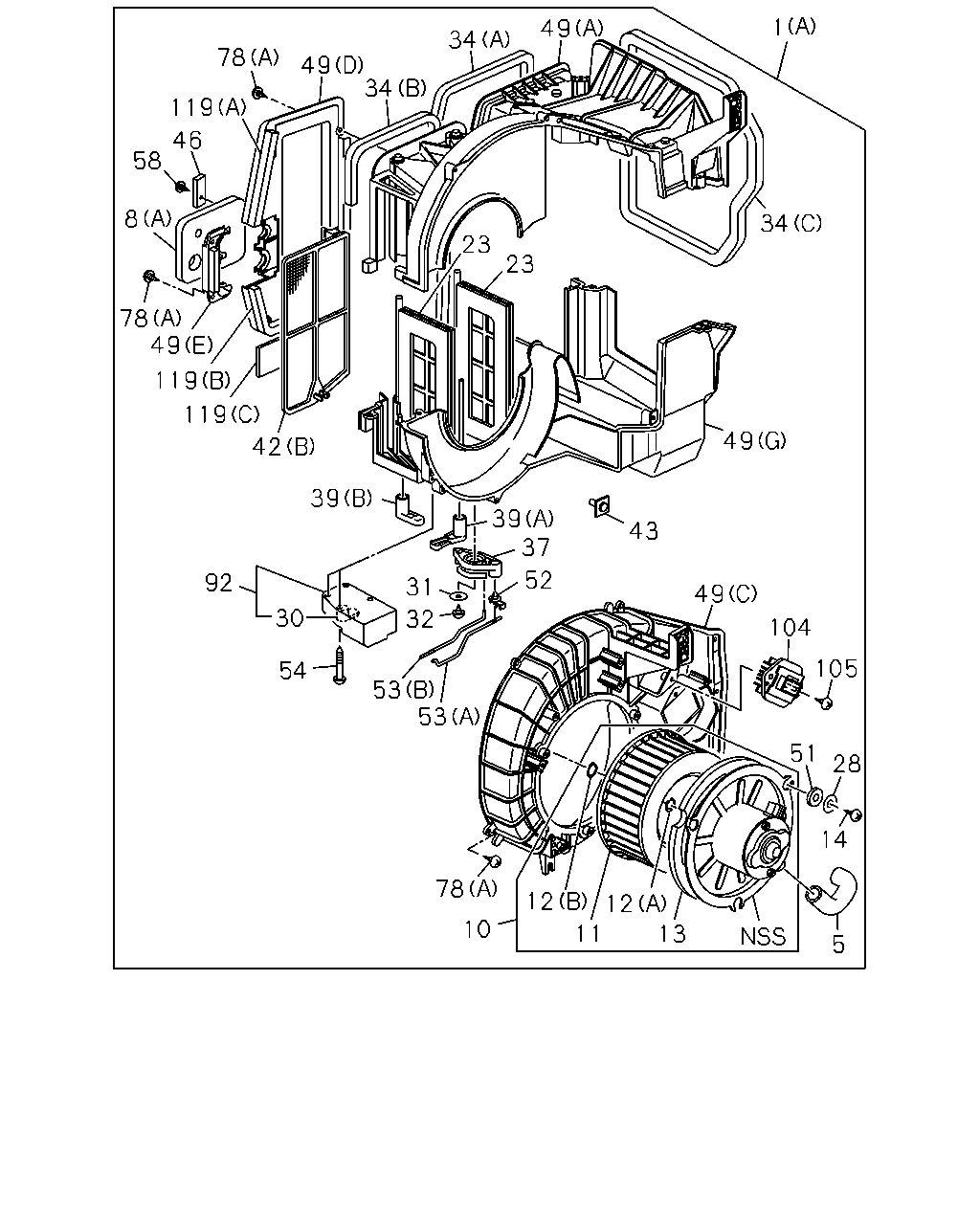

8-73 — BLOWER UNIT (#58878) — 737 parça

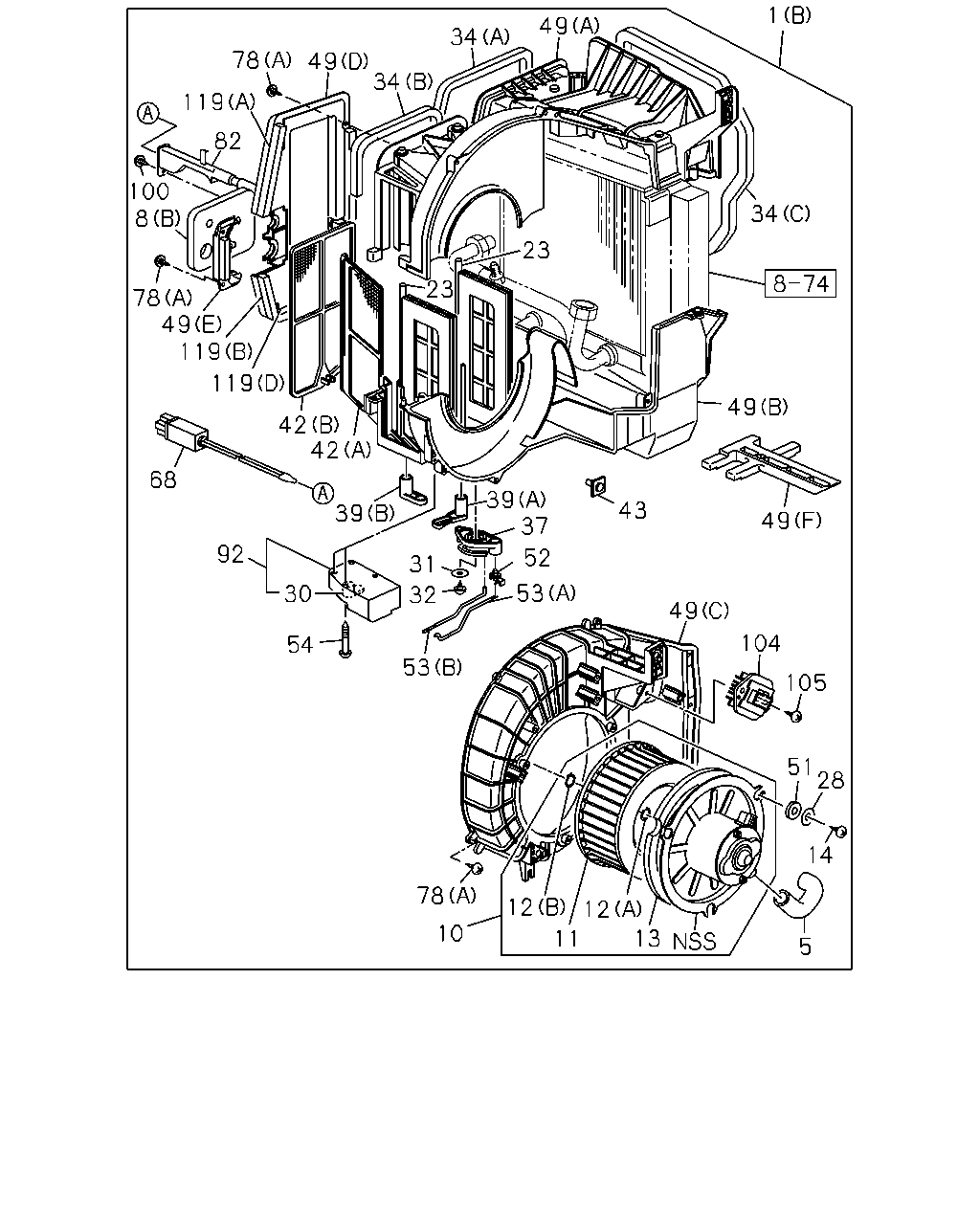

çizim 168777
119 78 49 82 100 8 78 49 119 119 68 92 30 54 42 42 39 31 32 53 34 23 23 34 49 1 34 49 43 49 39 37 52 53 49 104 105 51 28 14 5 13 12 11 12 10 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(C) 		1-83561-154-5 01 1 1303- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(B) 		1-83561-182-2 01 1 1303-1411 ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1412- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1009-1302 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1303-1411 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR 1-83563-140-0 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1303-1411 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1009-1302 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1303-1411 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1009-1302 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1303-1411 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1009-1302 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-1411 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1009-1302 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-1411 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1009-1302 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-1411 ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412-1412 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 1303- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1009-1302 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-1411 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1009-1302 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-1411 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1009-1302 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1303-1411 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-1411 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1009-1302 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1303-1411 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1009-1302 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1303-1411 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE 1-83579-657-2 04 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(H) 		1-83564-406-1 01 1 1303- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 1303-1411 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1009-1302 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-1411 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1009-1302 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1303-1411 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1009-1302 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-1411 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412- ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1009-1302 ● ●
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 1303-1411 ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1412- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1009-1302 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1303-1411 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1303- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 1009-1302 ● ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1303-1411 ● ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1412- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 1412- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1009-1302 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1303-1411 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1009-1302 ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1303-1411 ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1412- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1412- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1009-1302 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-1411 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1412-1412 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1412- ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1009-1302 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-1411 ●
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1412-1412 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1009-1302 ● ●
119 LINING; CASE
(F) 		1-83579-961-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1009-1302 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1303-1411 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1009-1302 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1303-1411 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1009-1302 ● ●
119 LINING; CASE
(D) 		1-83579-673-2 01 1 1303-1411 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1412- ●
119 LINING; CASE
(E) 		1-83578-032-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1412- ●
çizim 168780
1 34 49 34 34 49 78 119 46 58 8 78 49 119 119 42 39 23 23 49 43 52 37 39 31 32 53 53 54 30 92 78 10 12 11 12 13 5 14 28 51 105 104 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(C) 		1-83561-154-5 01 1 1303- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(B) 		1-83561-182-2 01 1 1303-1411 ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1412- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1009-1302 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1303-1411 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR 1-83563-140-0 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1303-1411 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1009-1302 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1303-1411 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1009-1302 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1303-1411 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1009-1302 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-1411 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1009-1302 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-1411 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1009-1302 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-1411 ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412-1412 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 1303- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1009-1302 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-1411 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1009-1302 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-1411 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1009-1302 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1303-1411 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-1411 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1009-1302 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1303-1411 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1009-1302 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1303-1411 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE 1-83579-657-2 04 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412- ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1009-1302 ● ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(H) 		1-83564-406-1 01 1 1303- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 1303-1411 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1009-1302 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-1411 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1009-1302 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1303-1411 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1009-1302 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-1411 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412- ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1009-1302 ● ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1412- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1009-1302 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1303-1411 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1303- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1009-1302 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1303-1411 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412- ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1009-1302 ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-1411 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1412-1412 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1412- ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1009-1302 ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-1411 ●
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1412-1412 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1009-1302 ● ●
119 LINING; CASE
(F) 		1-83579-961-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1009-1302 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1303-1411 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1009-1302 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1303-1411 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1009-1302 ● ●
119 LINING; CASE
(D) 		1-83579-673-2 01 1 1303-1411 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1412- ●
119 LINING; CASE
(E) 		1-83578-032-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1412- ●
çizim 336176
78 71 100 82 78 119 49 34 34 49 1 23 23 34 8 78 49 119 119 119 42 42 39 31 32 39 37 52 53 43 49 92 30 54 79 53 49 78 10 12 11 12 13 5 14 51 28 107 26 116 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(C) 		1-83561-154-5 01 1 1303- ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1009-1302 ● ●
1 BLOWER ASM
(B) 		1-83561-182-2 01 1 1303-1411 ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1412- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1009-1302 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1303-1411 ● ●
5 HOSE; AIR 1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412-1412 ●
5 HOSE; AIR 1-83563-140-0 01 1 1412- ●
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1009-1302 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1303-1411 ● ●
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1412- ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1009-1302 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1303-1411 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1412- ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1009-1302 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1303-1411 ● ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412-1412 ●
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1412- ●
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1009-1302 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-1411 ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412-1412 ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1412- ●
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1009-1302 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-1411 ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412-1412 ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1412- ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1009-1302 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-1411 ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412-1412 ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1412- ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1412- ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1009-1302 ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-1411 ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412-1412 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1412- ●
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 1303- ●
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 1303- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1009-1302 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-1411 ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412-1412 ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1412- ●
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1009-1302 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-1411 ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412-1412 ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1412- ●
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1009-1302 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1303-1411 ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412-1412 ●
31 WASHER; LEVER 1-83579-095-0 01 1 1412- ●
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-1411 ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412-1412 ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1412- ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1009-1302 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1303-1411 ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412-1412 ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1412- ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1009-1302 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1303-1411 ● ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412-1412 ●
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1412- ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1009-1302 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1303-1411 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1412- ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412-1412 ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1009-1302 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-1411 ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1412- ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1009-1302 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1303-1411 ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412-1412 ●
43 BOLT; CASE 1-83579-657-2 04 1 1412- ●
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(H) 		1-83564-406-1 01 1 1303- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412-1412 ●
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 1303-1411 ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1009-1302 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1303-1411 ● ●
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1412- ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1009-1302 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-1411 ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412-1412 ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1412- ●
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1009-1302 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1303-1411 ● ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412-1412 ●
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1412- ●
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1009-1302 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-1411 ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412-1412 ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1412- ●
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1009-1302 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-1411 ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412-1412 ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1412- ●
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1412- ●
71 CLIP; HARNESS 1-83574-080-0 01 1 1303- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1009-1302 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1303-1411 ● ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412-1412 ●
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 17 1 1412- ●
78 SCREW; CASE TO CASE
(B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 1303- ●
79 SENSOR; BLOWER UNIT 1-83544-037-0 01 1 1303- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 1009-1302 ● ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1303-1411 ● ●
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1412- ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 1412- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1009-1302 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1303-1411 ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412-1412 ●
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1412- ●
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1412- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1009-1302 ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1303-1411 ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1412- ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1412- ●
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 1303- ●
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1009-1302 ● ●
119 LINING; CASE
(F) 		1-83579-961-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1009-1302 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1303-1411 ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412-1412 ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1009-1302 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1303-1411 ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412-1412 ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1412- ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1009-1302 ● ●
119 LINING; CASE
(D) 		1-83579-673-2 01 1 1303-1411 ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1412- ●
119 LINING; CASE
(E) 		1-83578-032-0 01 1 1303- ●
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
