8-60 — HEATER UNIT; FRONT (#58876) — 221 parça

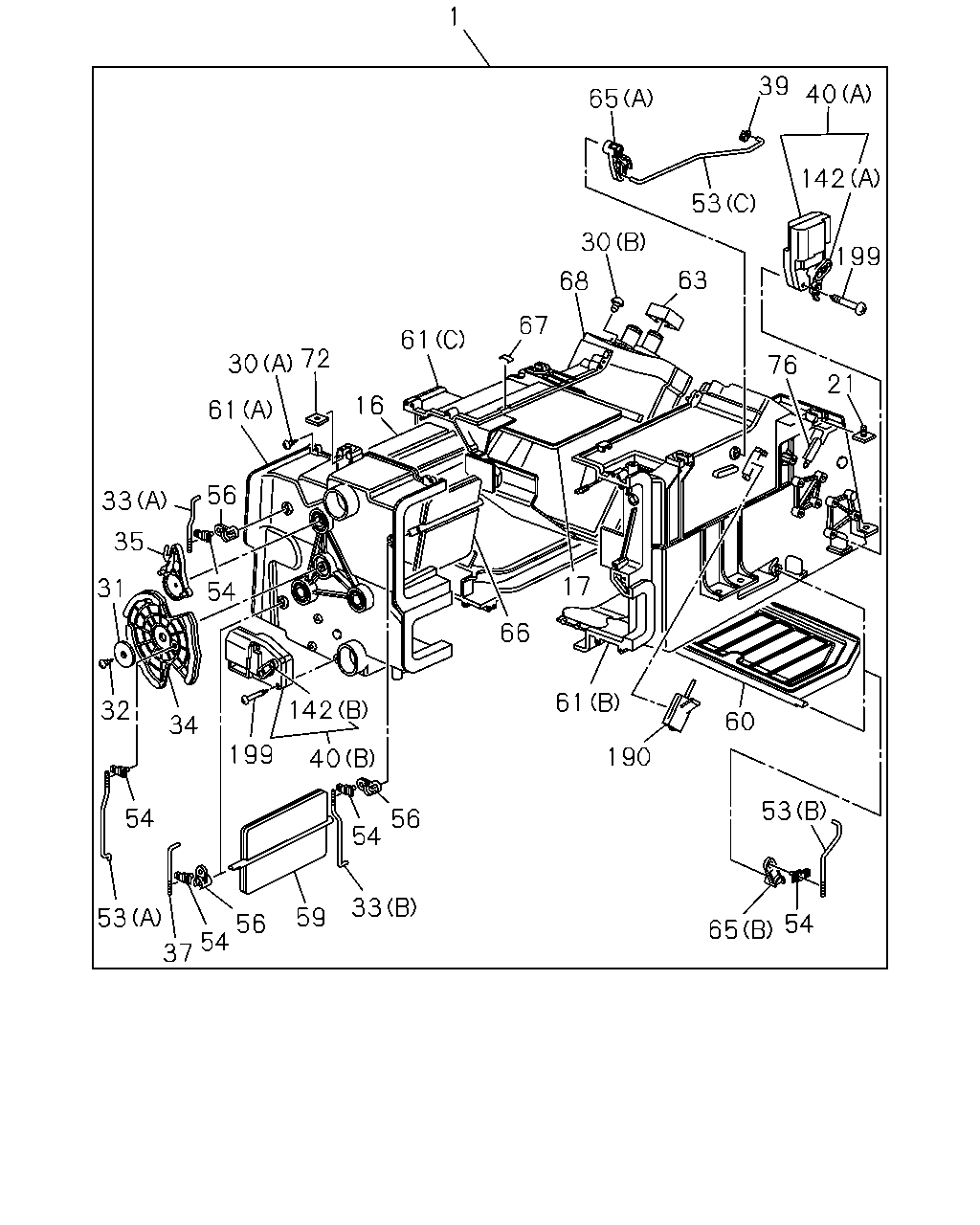

çizim 168642
1 65 39 142 40 30 72 61 67 68 30 53 199 76 21 16 61 33 31 35 56 54 32 34 54 53 37 59 54 56 33 54 56 40 199 142 66 61 190 60 53 65 54 63 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-175-1 01 1 1009-1302 ● ●
1 HEATER UNIT 1-83511-175-1 01 1 1303-1409 ●
1 HEATER UNIT 8-98238-476-0 01 1 1410-1411 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-476-0 01 1 1412-1412 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-476-0 01 1 1412- ●
1 HEATER UNIT 1-83511-184-1 01 1 1303-1409 ●
1 HEATER UNIT 8-98238-482-0 01 1 1410- ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 1009-1302 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1303-1411 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1412-1412 ●
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 1412-1412 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1412- ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 1412- ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 1009-1302 ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1303-1411 ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1412-1412 ●
17 SHUTTER; HTR UNIT,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 1412-1412 ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1412- ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 1412- ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 1009-1302 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1303-1411 ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1412-1412 ●
21 BOLT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 1412-1412 ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1412- ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 1412- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 1009-1302 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1303-1411 ● ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1412-1412 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 1412-1412 ●
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1412- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 1412- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20 		9-09829-324-1 01 1 1009-1302 ● ●
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1303-1409 ● ●
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-1411 ● ●
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1412-1412 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 		8-94248-820-0 01 1 1412-1412 ●
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1412- ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 		8-94248-820-0 01 1 1412- ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 1009-1302 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1303-1411 ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1412-1412 ●
31 WASHER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 1412-1412 ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1412- ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 1412- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302 ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1303-1409 ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-1411 ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1412-1412 ●
32 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-94248-820-0 01 1 1412-1412 ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1412- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-94248-820-0 01 1 1412- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 1009-1302 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1303-1411 ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1412-1412 ●
33 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 1412-1412 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1412- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 1412- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 1009-1302 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1303-1411 ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1412-1412 ●
33 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 1412-1412 ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1412- ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 1412- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 1009-1302 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1303-1411 ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1412-1412 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 1412-1412 ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1412- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 1412- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 1009-1302 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1303-1411 ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1412-1412 ●
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 1412-1412 ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1412- ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 1412- ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 1009-1302 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 1303-1411 ● ●
37 ROD; LEVER 1-83579-620-1 01 1 1412-1412 ●
37 ROD; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 1412-1412 ●
37 ROD; LEVER 1-83579-620-1 01 1 1412- ●
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 1412- ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 1009-1302 ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1303-1411 ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1412-1412 ●
39 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 1412-1412 ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1412- ●
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 1412- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 1009-1302 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1303-1411 ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1412-1412 ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 1412-1412 ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1412- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 1412- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 1009-1302 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1303-1411 ● ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1412-1412 ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 1412-1412 ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1412- ●
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 1009-1302 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1303-1411 ● ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 1009-1302 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1303-1411 ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 1009-1302 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1303-1411 ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 1412-1412 ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1412- ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 1412- ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 1009-1302 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1303-1411 ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1412-1412 ●
54 CLIP; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 1412-1412 ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1412- ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 1412- ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 1009-1302 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1303-1411 ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1412-1412 ●
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 1412-1412 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1412- ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 1412- ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 1009-1302 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1303-1411 ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1412-1412 ●
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 1412-1412 ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1412- ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 1412- ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 1009-1302 ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1303-1411 ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1412-1412 ●
60 DOOR; MIX,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 1412-1412 ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1412- ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 1412- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 1009-1302 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1303-1411 ● ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1412-1412 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 1412-1412 ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1412- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 1412- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 1009-1302 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1303-1409 ● ●
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1410- ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 1009-1302 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1303-1409 ● ●
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1410- ●
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410-1411 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98299-713-0 01 1 1412-1412 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98299-713-0 01 1 1412- ●
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410-1411 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98299-715-0 01 1 1412-1412 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98299-715-0 01 1 1412- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 1009-1302 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 1303-1411 ● ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 1412-1412 ●
63 LINING; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 1412-1412 ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 1412- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 1412- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 1009-1302 ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1303-1411 ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1412-1412 ●
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 1412-1412 ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1412- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 1412- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 1009-1302 ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1303-1411 ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1412-1412 ●
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 1412-1412 ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1412- ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 1412- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 1009-1302 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 1303-1411 ●
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 1412-1412 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 1412- ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1303- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 1009-1302 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1303-1411 ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1412-1412 ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 1412-1412 ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1412- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 1412- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 1009-1302 ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 1303-1409 ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-1411 ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1412-1412 ●
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-475-0 01 1 1412-1412 ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1412- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-475-0 01 1 1412- ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 1009-1302 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1303-1411 ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1412-1412 ●
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 1412-1412 ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1412- ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 1412- ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1303- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 1009-1302 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1303-1411 ● ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1412-1412 ●
142 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 1412-1412 ●
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1412- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 1412- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 1009-1302 ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1303-1411 ● ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1412-1412 ●
142 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 1412-1412 ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1412- ●
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 1412- ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1303- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 1009-1302 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1303-1411 ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1412-1412 ●
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 1412-1412 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1412- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
