8-40 — HEATER SYSTEM (#58872) — 119 parça

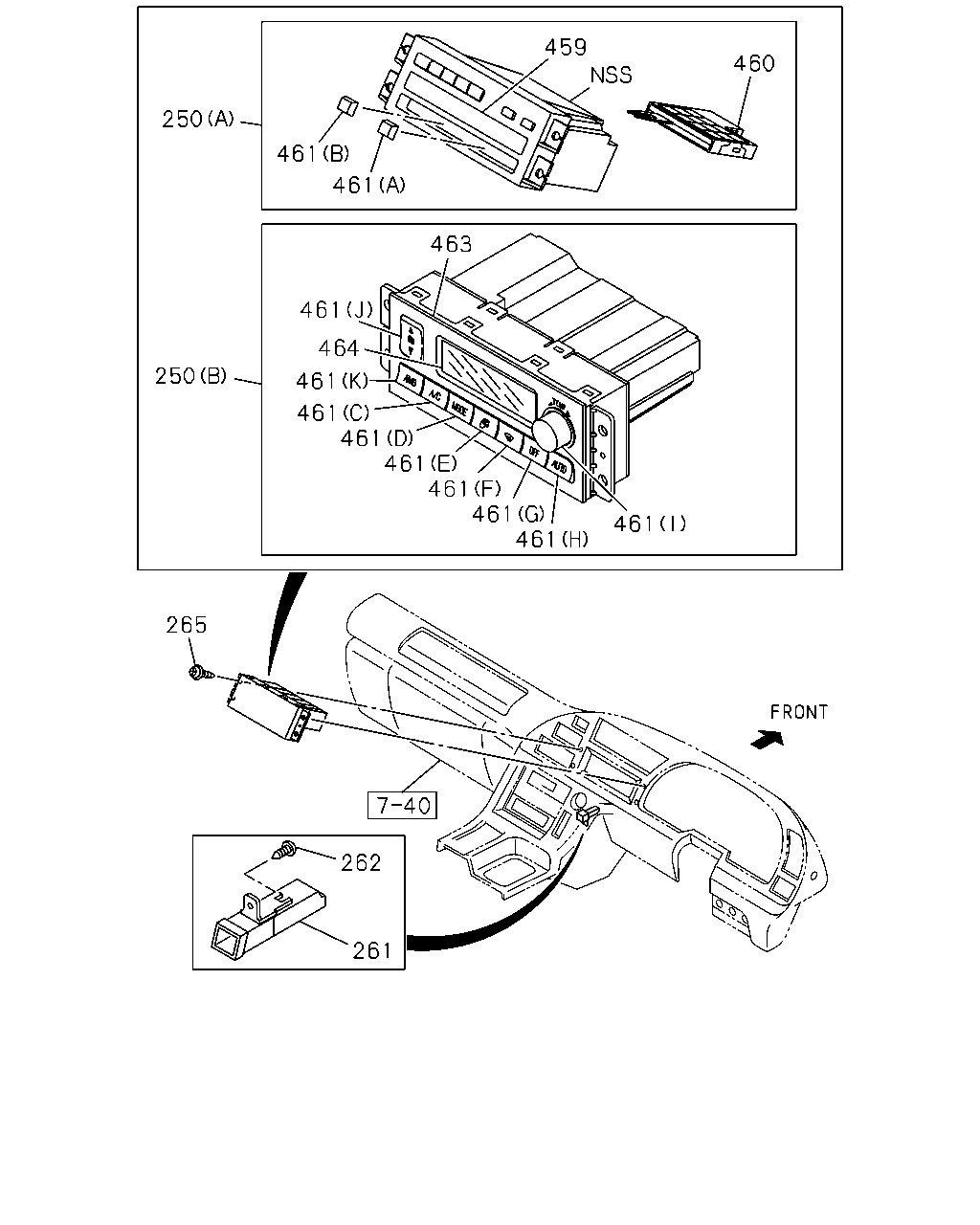

çizim 168613
250 461 459 461 463 461 262 261 265 460 461 464 461 461 461 461 461 461 461 250
BalonParca AdiParca NoAdetTipApplied Date A B
250 CONTROL ASM; A/C
(B) 		1-83543-038-1 01 1 1303- ●
250 CONTROL ASM; A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98034-326-0 01 1 1009-1302 ● ●
250 CONTROL ASM; A/C
(A) 		8-98034-326-0 01 1 1303-1411 ●
250 CONTROL ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98034-326-0 01 1 1412-1412 ●
250 CONTROL ASM; A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98034-326-0 01 1 1412- ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 1303- ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 1303- ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1009-1411 ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1412-1412 ●
265 SCREW; A/C CONT UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1412-1412 ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1412- ●
265 SCREW; A/C CONT UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1412- ●
459 PANEL; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83549-013-0 01 1 1009-1302 ● ●
459 PANEL; CONTROL ASM,A/C 1-83549-013-0 01 1 1303-1411 ●
459 PANEL; CONTROL ASM,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83549-013-0 01 1 1412-1412 ●
459 PANEL; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83549-013-0 01 1 1412- ●
460 SWITCH; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82489-006-0 01 1 1009-1302 ● ●
460 SWITCH; CONTROL ASM,A/C 1-82489-006-0 01 1 1303-1411 ●
460 SWITCH; CONTROL ASM,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82489-006-0 01 1 1412-1412 ●
460 SWITCH; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82489-006-0 01 1 1412- ●
461 KNOB; CONTROL ASM,A/C
(J) FAN 		1-83549-018-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(K) AMB 		1-83549-019-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 1303- ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83549-015-0 01 1 1009-1302 ● ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-015-0 01 1 1303-1411 ●
461 KNOB; CONTROL ASM,A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83549-015-0 01 1 1412-1412 ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83549-015-0 01 1 1412- ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83549-016-0 01 1 1009-1302 ● ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-016-0 01 1 1303-1411 ●
461 KNOB; CONTROL ASM,A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83549-016-0 01 1 1412-1412 ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83549-016-0 01 1 1412- ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 1303- ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 1303- ●

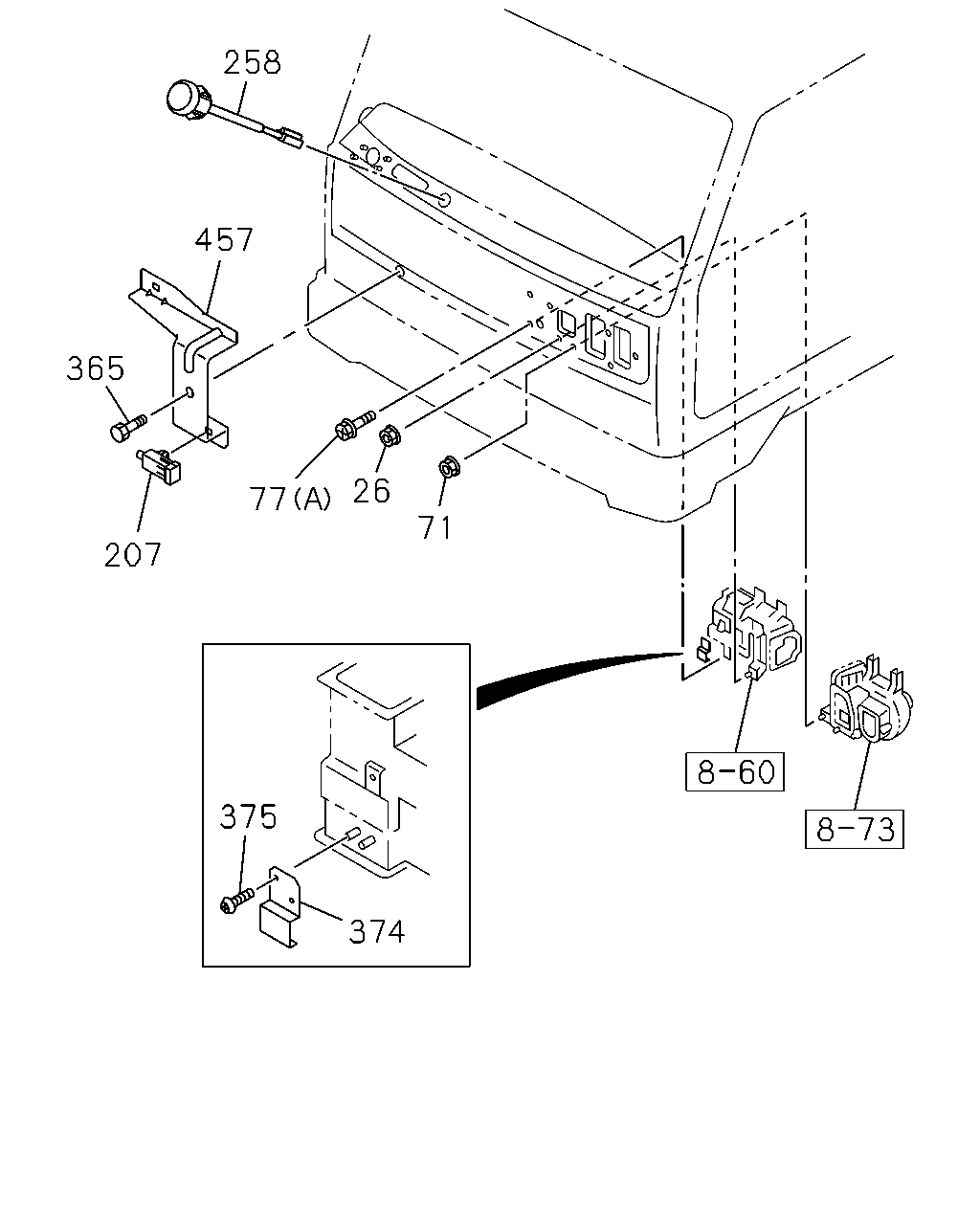

çizim 168614
258 457 365 207 77 375 374 26 71
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-1411 ● ●
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1412-1412 ●
26 NUT; HTR
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1412-1412 ●
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1412- ●
26 NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1412- ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1009-1411 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1412-1412 ●
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1412-1412 ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1412- ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1412- ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1009-1411 ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1412-1412 ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		1-09980-598-1 02 1 1412-1412 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1412- ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		1-09980-598-1 02 1 1412- ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1411 ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1303- ●
258 SENSOR; SUN 8-94472-043-2 01 1 1303- ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1303- ●
374 HOLDER; DUCT 1-76398-012-1 01 1 1009- ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 1009- ● ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 1303- ●

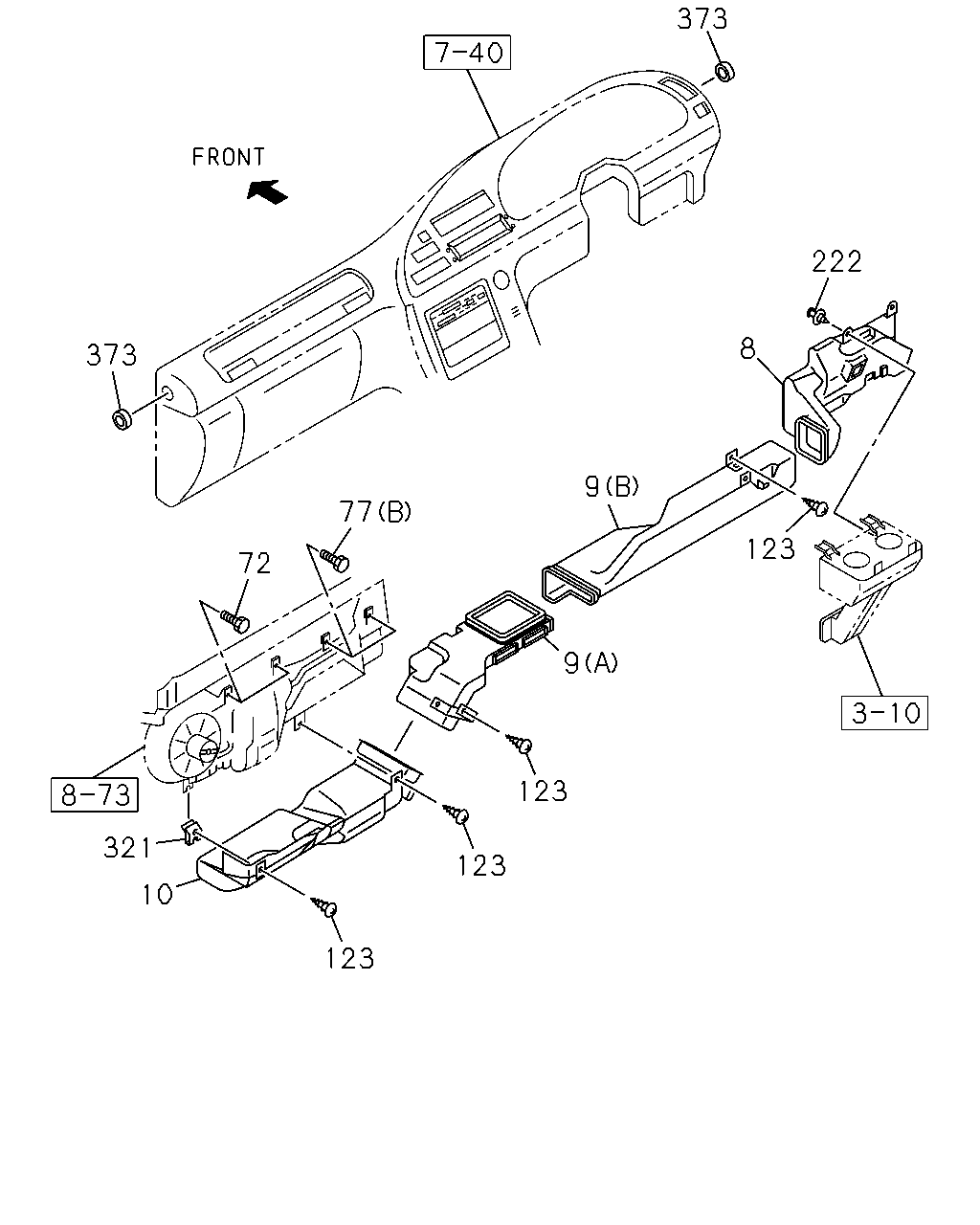

çizim 168644
373 373 72 77 321 10 123 123 123 9 9 123 8 222
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 1009- ● ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 1009- ● ●
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-226-2 01 1 1009- ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 1009- ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1411 ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
72 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1009-1411 ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1412-1412 ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		1-09980-598-1 02 1 1412-1412 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1412- ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		1-09980-598-1 02 1 1412- ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-1411 ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-1412 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412- ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1303-1411 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1412- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 12 1 1009-1302 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1303-1411 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1412- ● ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 1009- ● ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 1009- ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 1009- ● ●

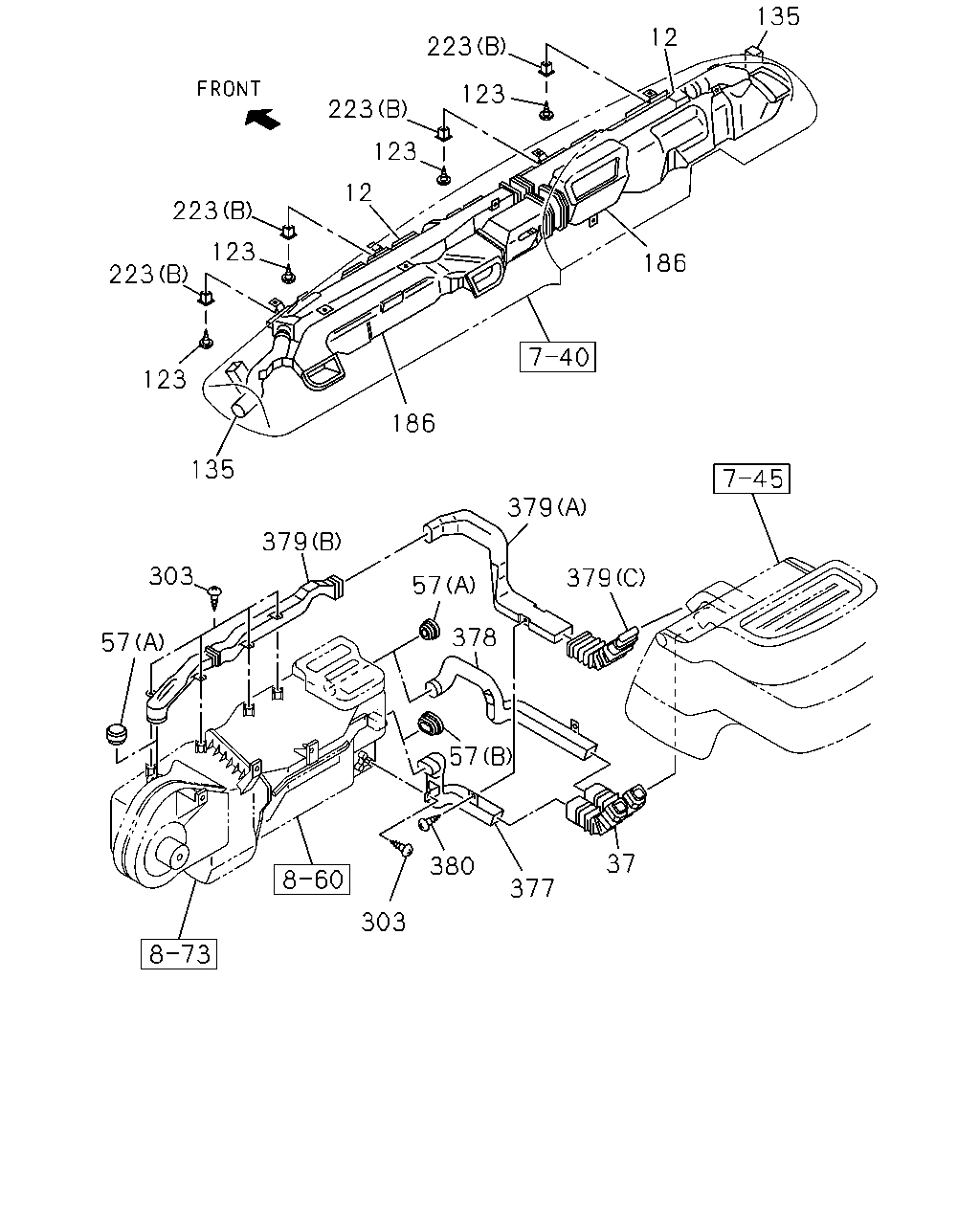

çizim 168651
223 12 135 186 186 135 123 123 12 123 123 223 379 379 57 379 303 223 223 37 377 380 303 57 378 57
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 1009- ● ●
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 1009- ● ●
37 HOSE; AIR,HTR 1-76377-193-3 01 1 1303- ●
57 COVER; INL DUCT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83579-617-0 02 1 1009-1302 ● ●
57 COVER; INL DUCT
CENTER SEAT(SA1) (A) 		1-83579-617-0 02 1 1303- ●
57 COVER; INL DUCT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-618-0 01 1 1009-1302 ● ●
57 COVER; INL DUCT
CENTER SEAT(SA1) (B) 		1-83579-618-0 01 1 1303- ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1303-1411 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1412- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 12 1 1009-1302 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 04 1 1303-1411 ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 1412- ● ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 1009- ● ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 1009- ● ●
186 DUCT; VENTILATOR 1-76377-243-1 01 1 1009- ● ●
186 DUCT; VENTILATOR 1-76377-246-0 01 1 1009- ● ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1009- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1009- ● ●
303 SCREW; HOSE
M5X14 		8-94279-325-0 05 1 1303- ●
377 HOSE; BOX,INLET,COOL 1-76377-159-5 01 1 1303- ●
378 HOSE; BOX,INLET,HOT 1-76377-161-6 01 1 1303- ●
379 HOSE; BOX,OUTLET
(A) 		1-76377-163-5 01 1 1303- ●
379 HOSE; BOX,OUTLET
(B) 		1-76377-164-3 01 1 1303- ●
379 HOSE; BOX,OUTLET
(C) 		1-76377-192-4 01 1 1303- ●
380 FASTENER; HOSE
D4.6X14.7 BLACK 		1-09983-104-0 03 1 1303- ●

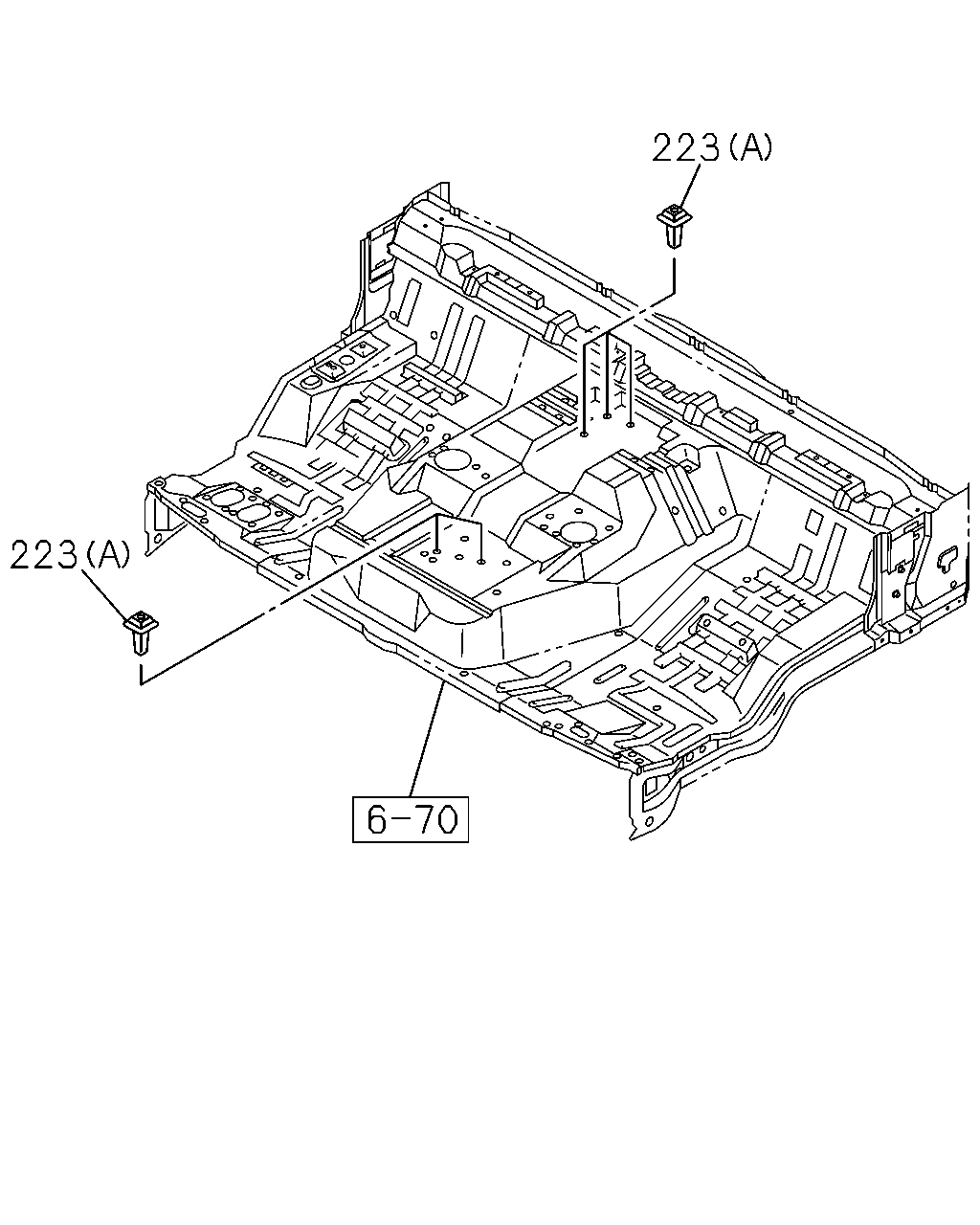

çizim 168667
223 223
BalonParca AdiParca NoAdetTipApplied Date A B
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1009- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1009- ● ●
