Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#58871) — 552 parça

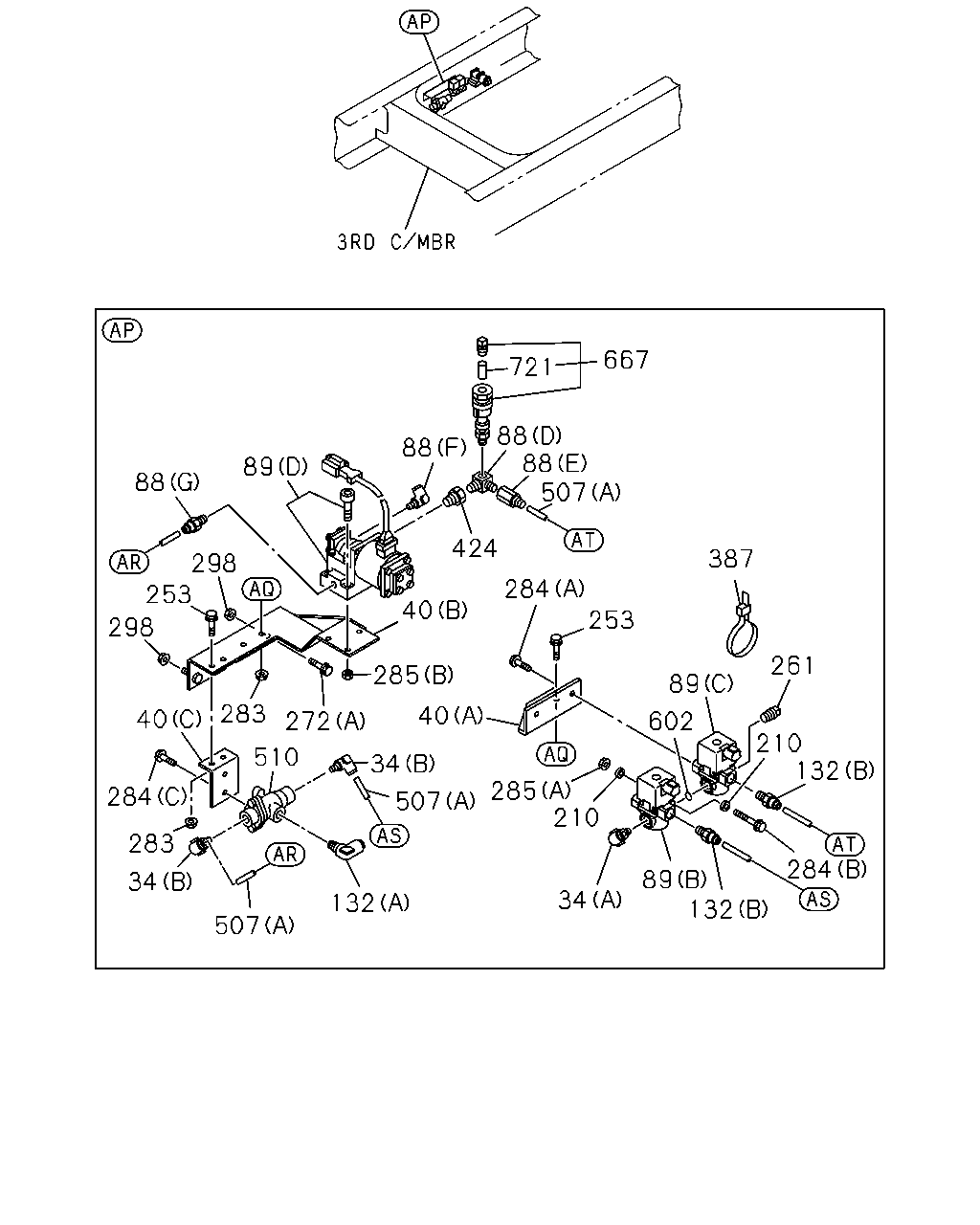

721 667 88 89 298 253 298 40 284 283 34 507 132 510 283 272 34 507 40 285 40 424 88 88 507 88 284 253 387 261 210 132 284 132 89 34 210 602 285 89

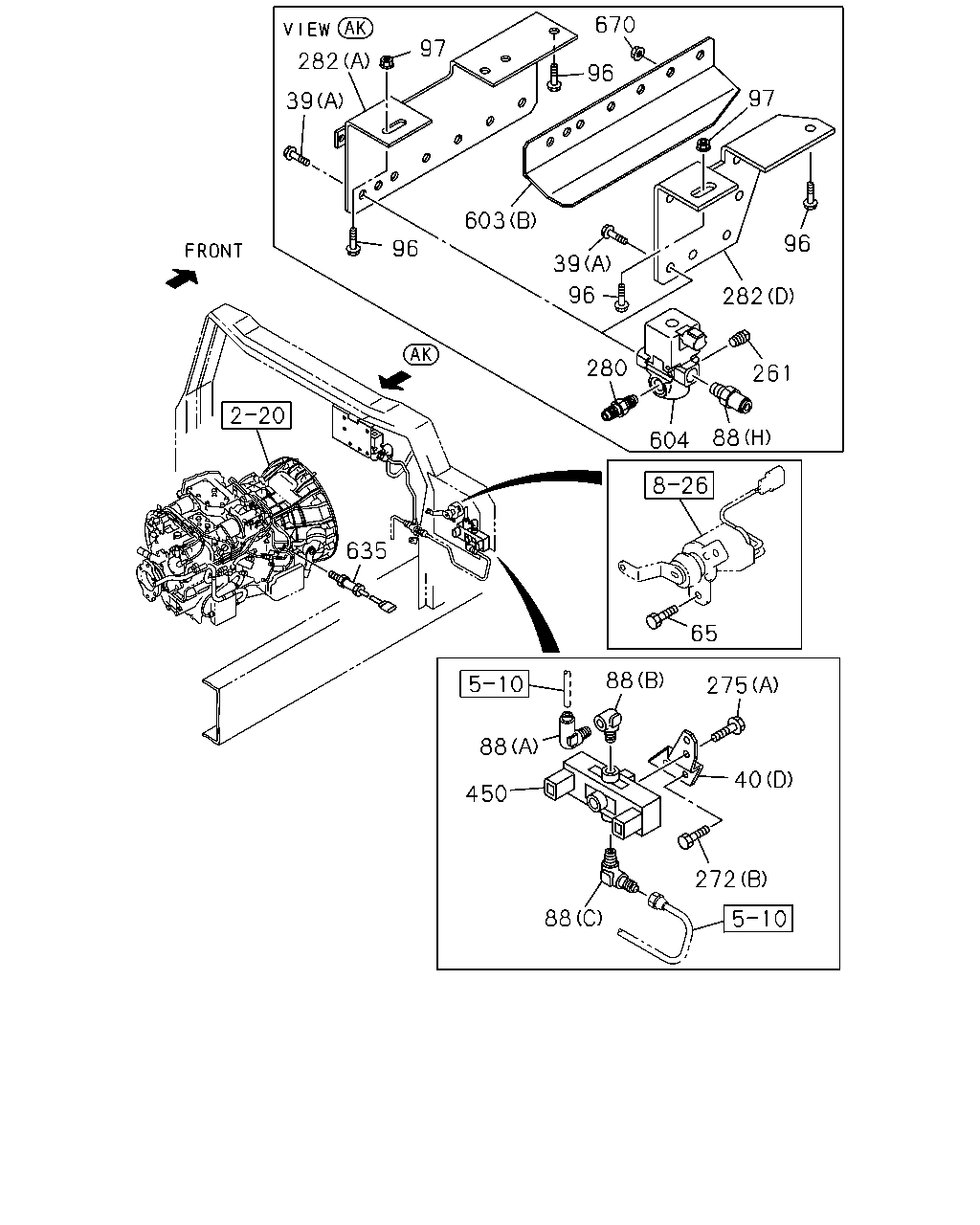

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

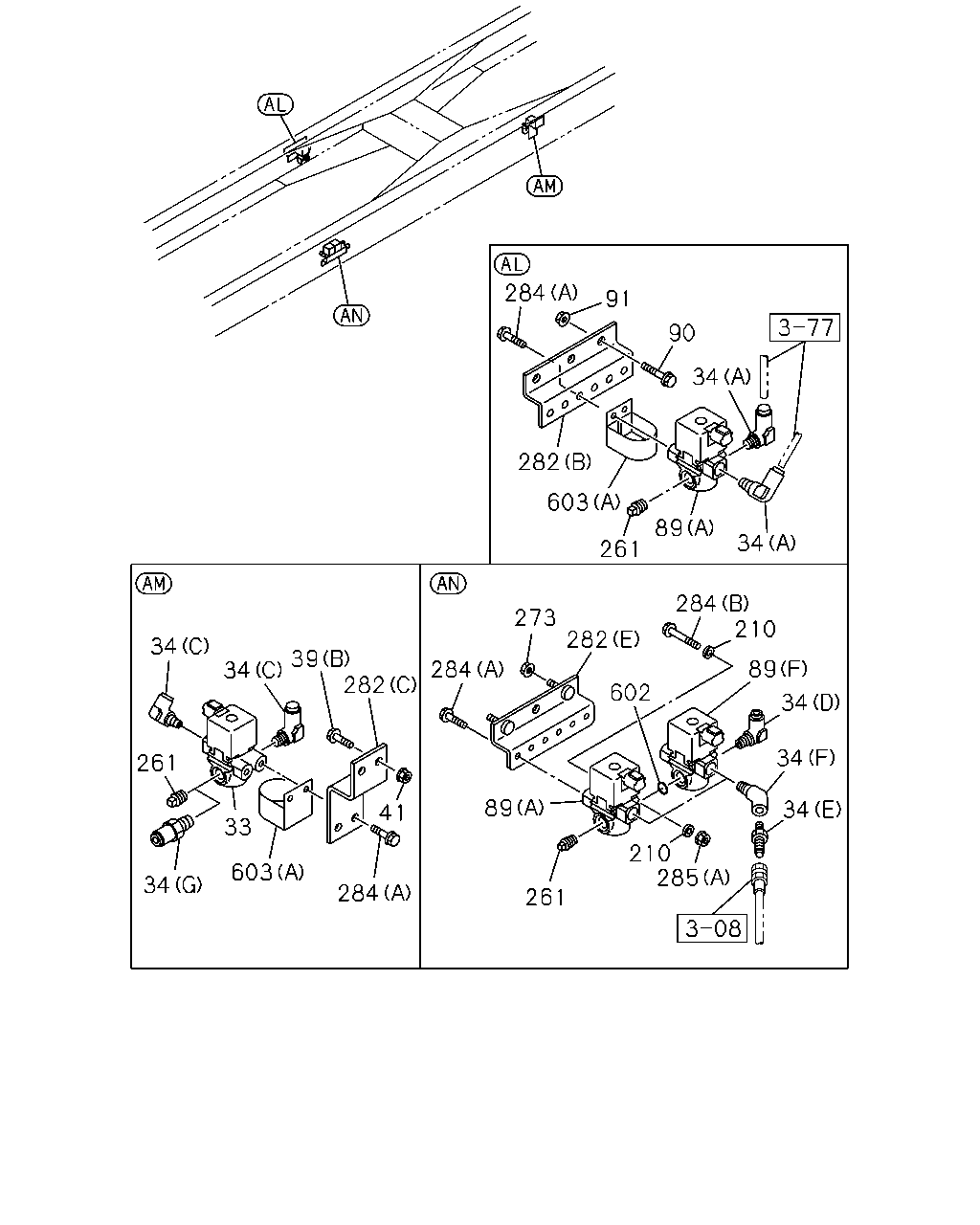

34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) R1/4 & RC1/4	1-09664-211-0	02	1	1303-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1303-1411	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1302		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1302	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-1411		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1411	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1412-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	1009-1302	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	1009-	●

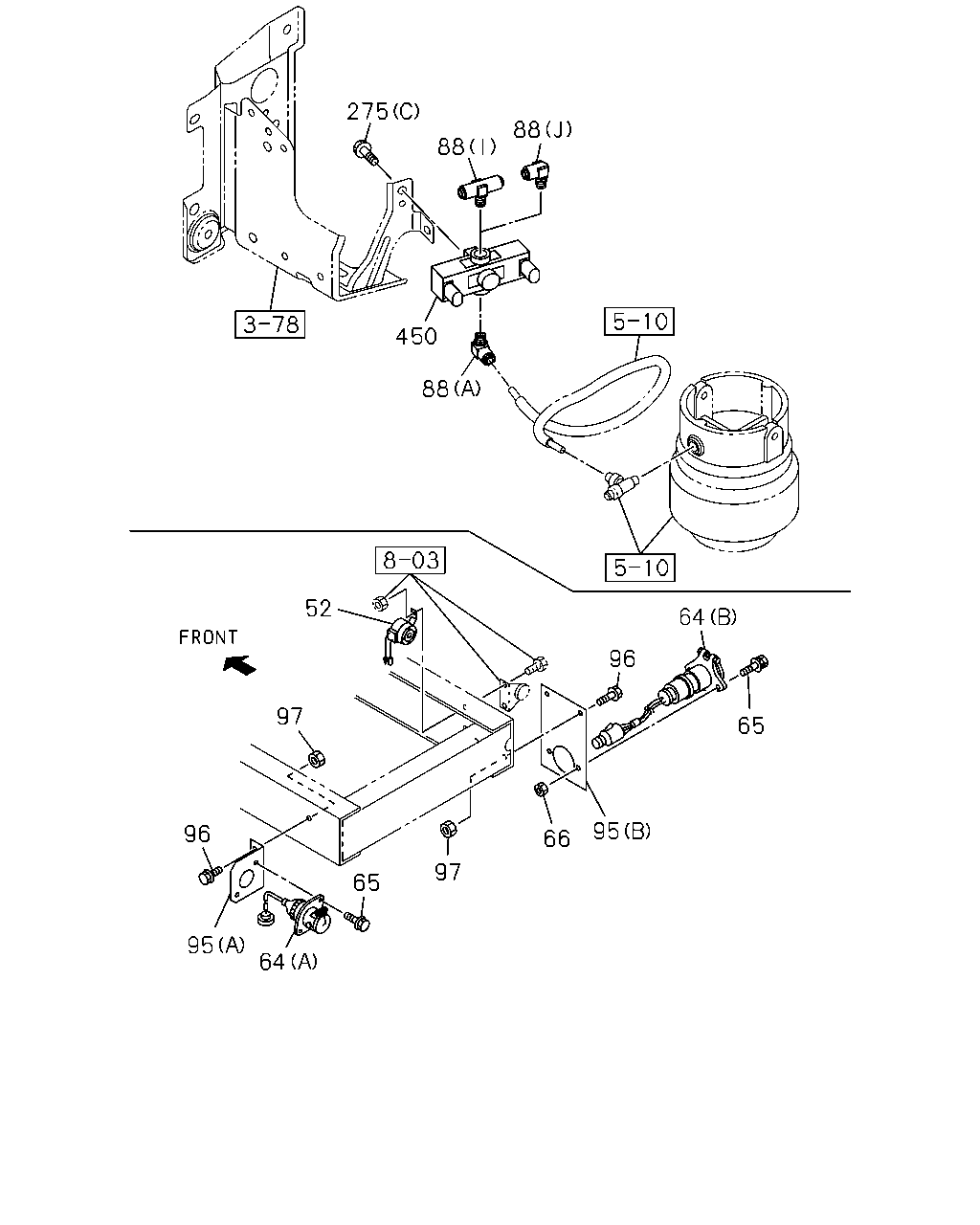

88	CONNECTOR; MAG VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1412-		●
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1412-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302	●
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1303-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F)	1-82563-872-1	01	1	1303-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	1009-	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	1009-	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	1009-1302	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1303-	●
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1009-	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	1009-1302	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1303-		●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W)	1-82569-266-0	02	1	1303-	●
253	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	1009-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4500MM(45W) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	1303-	●
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1411	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
283	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	04	1	1009-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	1009-1302	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1009-	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	1009-1302	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1303-		●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	01	1	1303-	●
298	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	03	1	1009-	●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	1009-	●
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) PT3/8	1-09664-210-0	01	1	1009-	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1412-	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1412-	●
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	1009-	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	1009-1302	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1303-		●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1303-	●
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	8-98063-001-0	01	1	1009-	●
721	ELEMENT; LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-028-0	01	1	1009-	●

507 174 674 386 386 133 77 505 80 78 40

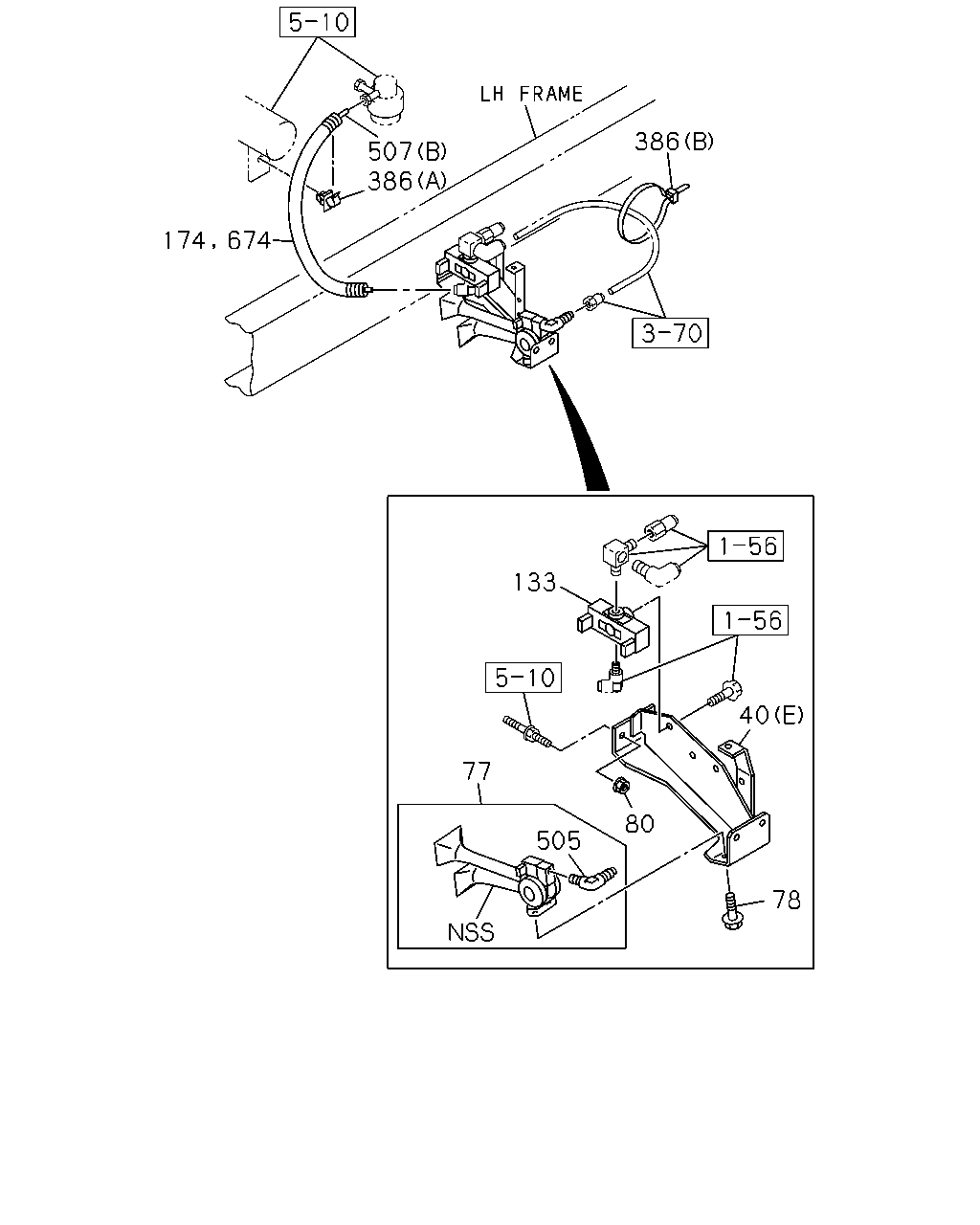

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1411	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1412-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	1009-1302	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	1009-	●
77	HORN ASM	1-83430-041-2	01	1	1009-1302	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●	●
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	1009-1302	●	●
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	1009-1302	●	●
174	COVER L=800	1-83129-031-1	01	1	1009-1302	●	●
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	1009-1302	●	●
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	1009-1302	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	1009-1302	●	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1412-	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1412-	●
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1302	●	●

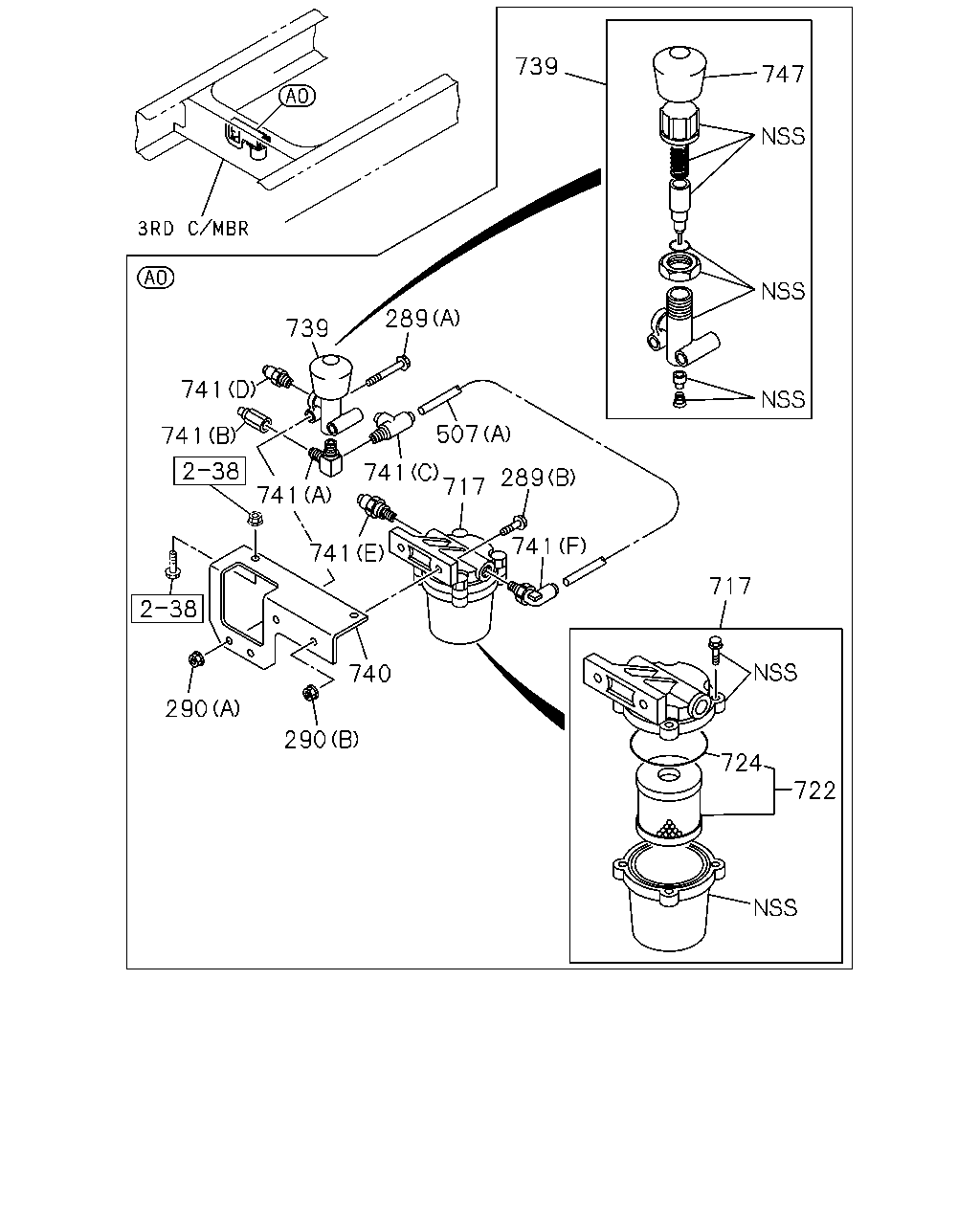

739 747 739 289 741 741 741 741 507 717 741 290 290 740 741 289 717 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (A) M6X50 FLANGE	0-28050-650-0	02	1	1009-	●
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	02	1	1009-	●
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	1009-	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1412-	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1411	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1412-	●
717	FILTER; MAG VLV MJX12P M/T SMOOTHER-G(Y4S)	8-98092-703-0	01	1	1009-	●
722	ELEMENT; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-040-0	01	1	1009-	●
724	GASKET; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	5-09623-075-0	01	1	1009-	●
739	VALVE; PRESSURE MJX12P M/T SMOOTHER-G(Y4S)	1-48410-738-0	01	1	1009-	●
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-042-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1009-	●
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1009-	●
747	BOOT; PRESSURE VALVE MJX12P M/T SMOOTHER-G(Y4S)	1-48419-073-0	01	1	1009-	●

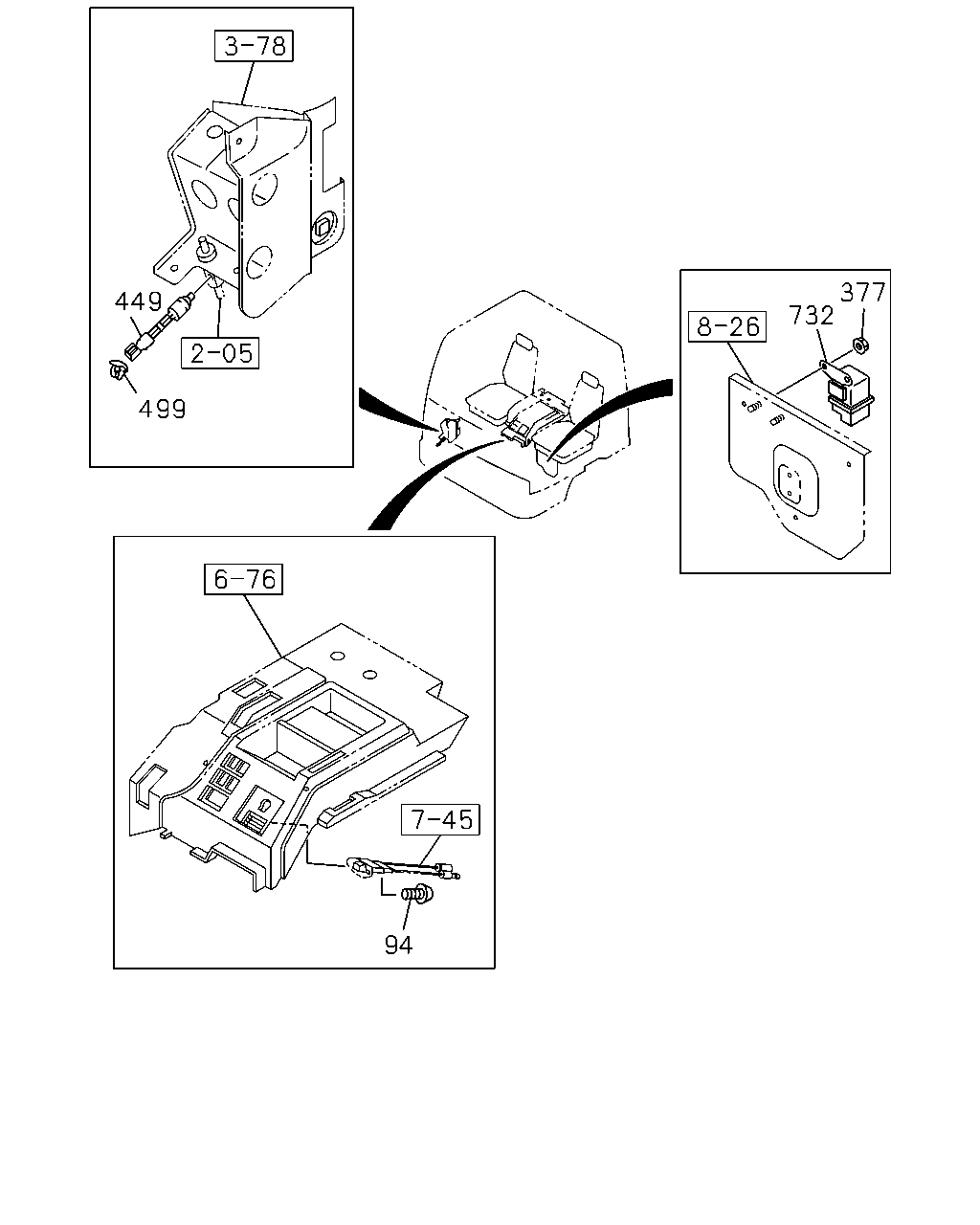

449 499 94 732 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

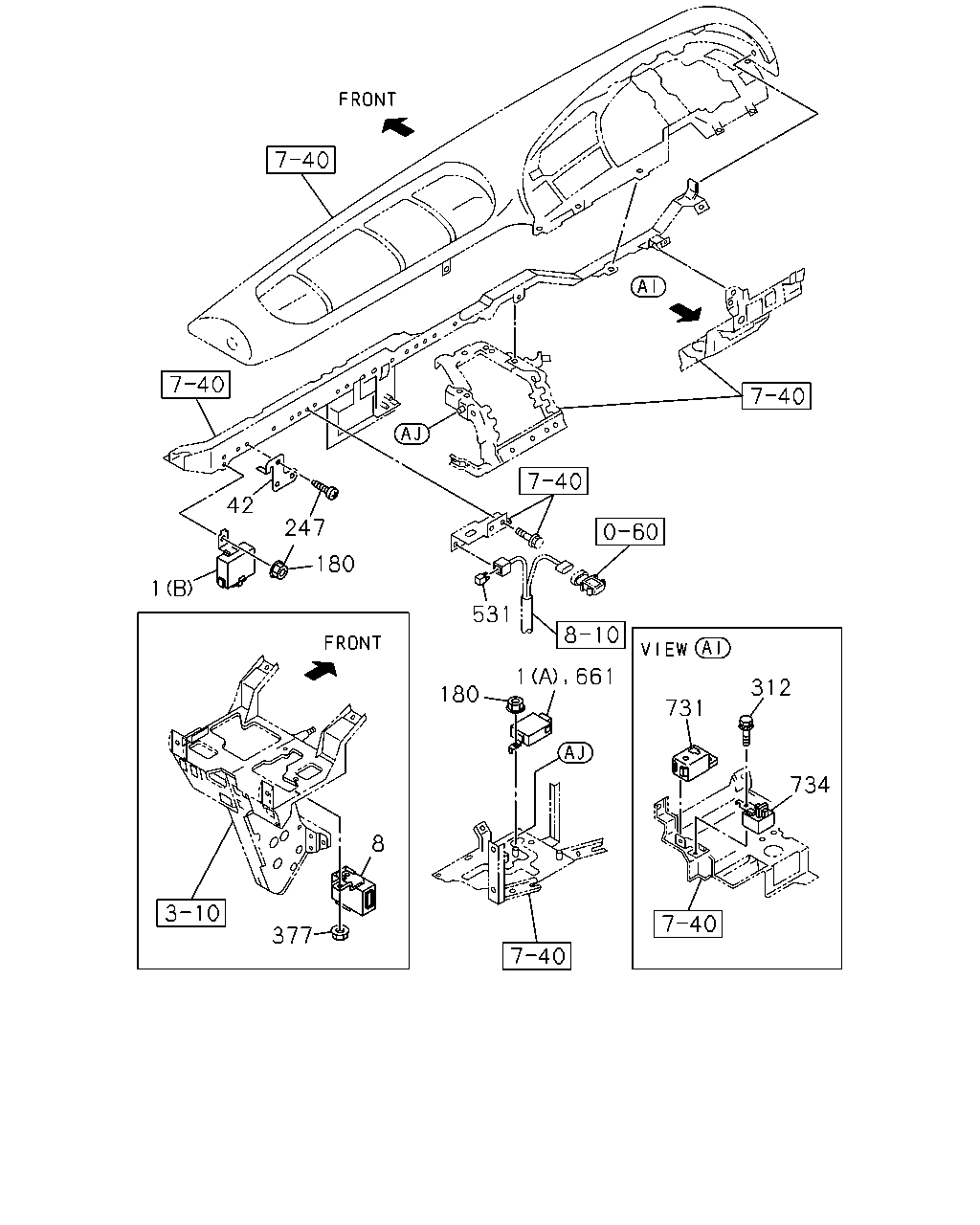

94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1009-	●	●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302		●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1009-1302	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-1411	●	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1412-		●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1412-	●
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-	●
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA(SLD)	1-82410-143-1	01	1	1009-1302		●
449	SWITCH; OIL PRESS,CLUTCH EXC. SMOOTHER-G(C1W),MJX M/T<Y9N>	1-82410-143-1	01	1	1009-1302	●
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N>	1-82410-143-1	01	1	1303-	●
449	SWITCH; OIL PRESS,CLUTCH MJX M/T<Y9N> EXC. SMOOTHER-G(C1W)	1-82410-180-0	01	1	1009-1302	●
449	SWITCH; OIL PRESS,CLUTCH MJX M/T<Y9N> BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W)	1-82410-180-0	01	1	1303-	●
499	CLIP; SWITCH BRAKE SYSTEM HSA(SLD) OD=9 H=6	1-09709-178-0	01	1	1009-1302		●
499	CLIP; SWITCH EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	1009-1302	●
499	CLIP; SWITCH BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	1303-	●
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1009-	●

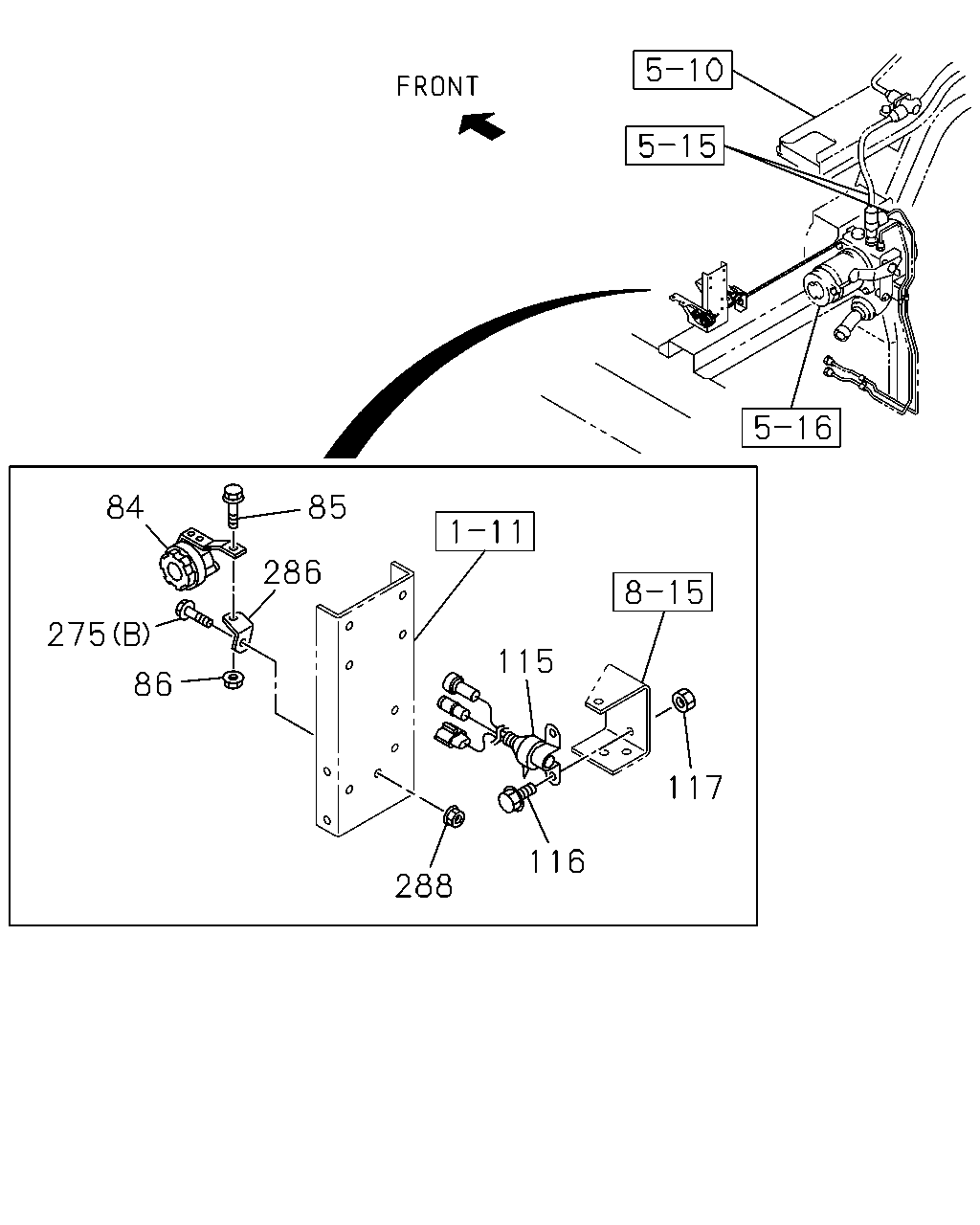

84 275 86 286 85 115 288 116 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1009-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1009-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1009-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1009-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411	●	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1411	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
286	BRACKET	1-82699-199-0	01	1	1009-	●	●
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-	●	●

284 91 282 603 261 34 89 34 90 34 34 261 34 33 603 284 282 39 284 273 282 602 89 261 210 285 34 34 34 89 210 284 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1009-1302		●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)	1-82563-871-2	01	1	1009-1302	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82563-871-2	01	1	1303-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) R1/4 & RC1/4	1-09664-211-0	02	1	1303-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1303-1411	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1302		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1009-1302	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-1411		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4500MM(45W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1009-1302		●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1009-1302	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8 FLANGE	0-91180-108-0	02	1	1303-	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1303-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F)	1-82563-872-1	01	1	1303-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	1009-	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	1009-	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	1009-1302	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	8-98160-653-1	01	1	1303-	●
90	BOLT; MAG VLV EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	02	1	1412-	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1303-		●
90	BOLT; MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1009-1411	●
90	BOLT; MAG VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	02	1	1412-	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1009-1302	●	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1303-	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	1009-1302	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1303-		●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W)	1-82569-266-0	02	1	1303-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4500MM(45W) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	1303-	●
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	1303-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-47471-175-0	01	1	1303-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) (D)	1-82569-277-2	01	1	1009-1302		●
282	BRACKET; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-82569-277-2	01	1	1009-1302		●
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	1009-1302	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1303-	●
282	BRACKET; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98076-313-0	01	1	1009-1302		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-82569-358-0	01	1	1303-		●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-1302	●	●
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	1303-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	1009-1302	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	01	1	1303-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	1009-1302	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M5	0-91110-505-0	03	1	1009-	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	1009-1302	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1303-		●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	01	1	1303-	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	1009-1302	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1303-		●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	01	1	1303-	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	1009-1302	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	1009-1302		●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A)	1-47471-046-0	01	1	1009-1302	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	1303-	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-47471-046-0	01	1	1303-	●
603	PROTECTOR; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98076-312-1	01	1	1009-1302		●

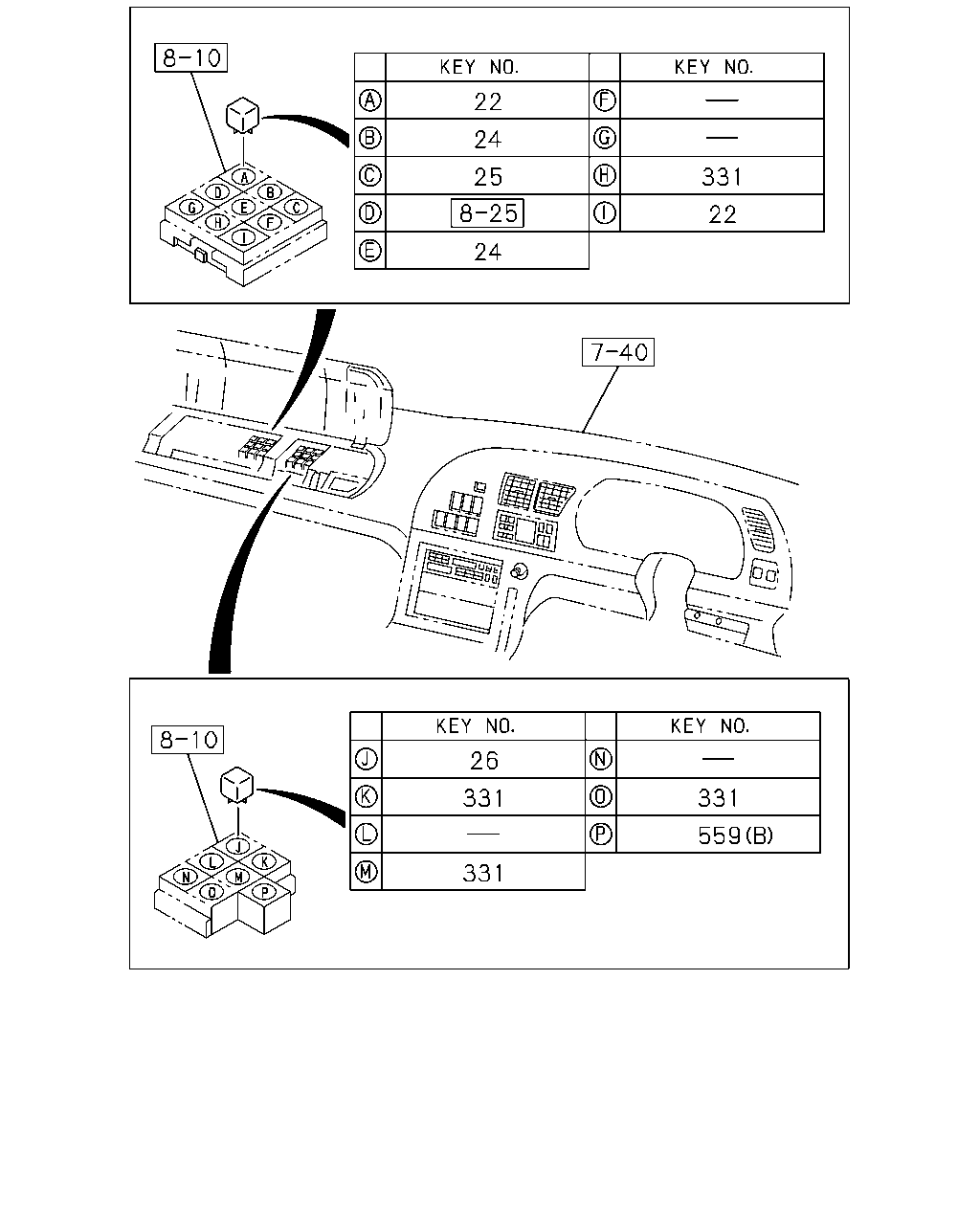

22 24 24 25 331 22 331 559 26 331 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1304	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1304		●
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1304	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1305-	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1305-		●
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1305-	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-	●	●
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-1411	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1412-1412	●
331	RELAY; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1412-	●
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-1411	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1412-	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	03	1	1009-1302	●	●
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	04	1	1303-		●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-	●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-	●

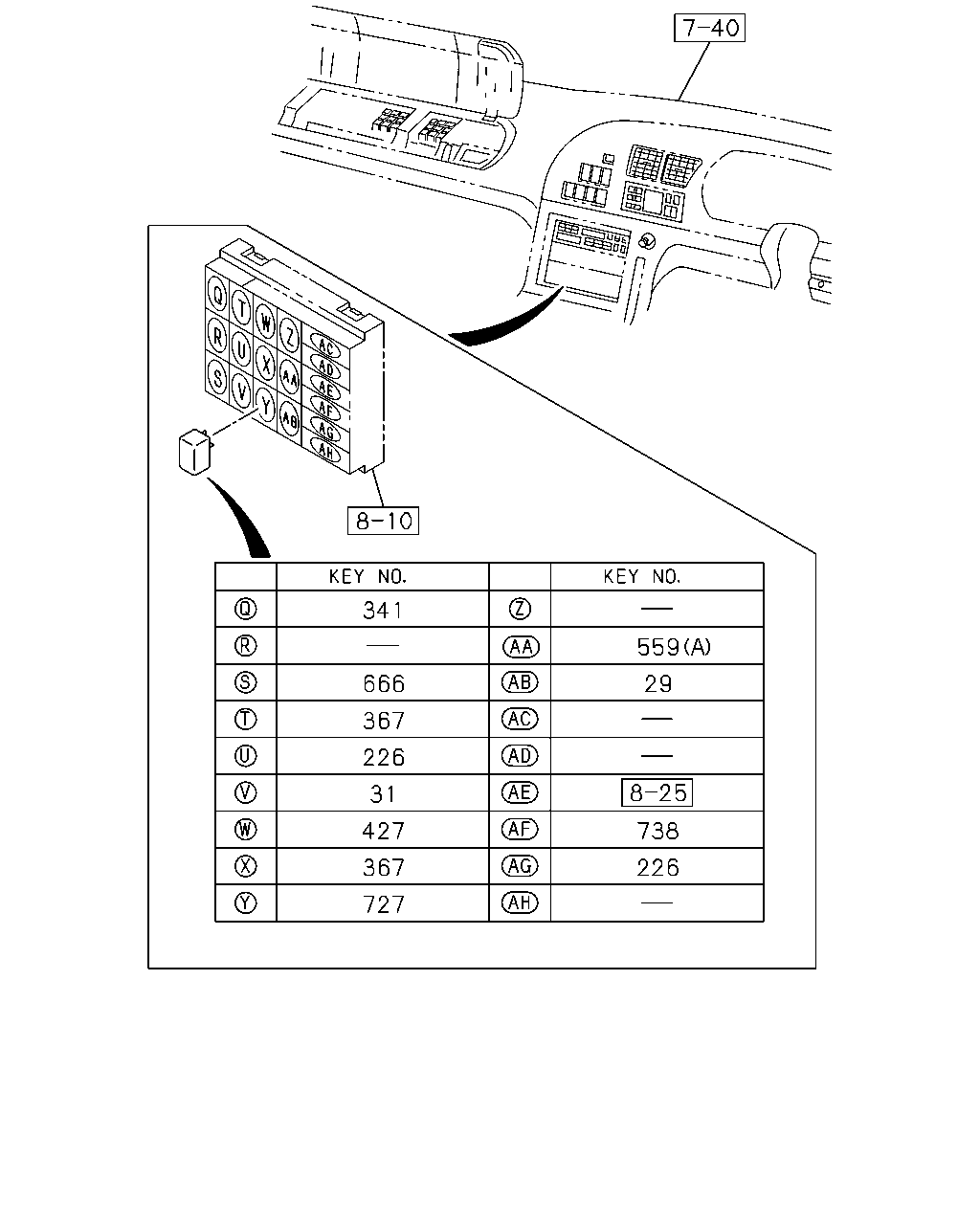

341 666 367 226 31 427 367 727 226 738 559 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-	●	●
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302	●
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-	●
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-	●	●
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1411	●	●
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	1412-		●
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1412-	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302	●	●
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1303-	●	●
367	RELAY; NEUTRAL SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-	●
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	01	1	1303-		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	01	1	1303-		●
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	1303-	●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-	●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-	●
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-	●
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1306	●	●
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-	●	●
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-	●	●

42 1 247 531 180 377 8 180 661 1 731 734 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER (B)	8-97613-970-1	01	1	1303-1510		●
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6> (B)	8-97613-970-1	01	1	1303-1510	●
1	UNIT; FLASHER (B)	8-97613-970-1	01	1	1511-		●
1	UNIT; FLASHER FULL TRAILER PIPING<Z25> (B)	8-97613-970-1	01	1	1511-	●
1	UNIT; FLASHER (A)	8-98025-533-1	01	1	1009-1302	●	●
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6> (A)	8-98025-533-1	01	1	1303-1510	●
1	UNIT; FLASHER EXC. FULL TRAILER PIPING<Z25> (A)	8-98025-533-1	01	1	1511-	●
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1009-1302		●
8	RELAY; WIPER	1-83316-002-4	01	1	1009-1302	●
8	RELAY; WIPER	1-83316-002-4	01	1	1303-1411	●	●
8	RELAY; WIPER	1-83316-002-4	01	1	1412-		●
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1412-	●
42	BRACKET; RELAY	1-82698-128-2	01	1	1009-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1009-1302	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-1510	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1303-1510		●
180	NUT; FLASHER UNIT FULL TRACTOR TRUCK<RD6> M6 FLANGE	0-91180-106-0	01	1	1303-1510	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1511-		●
180	NUT; FLASHER UNIT FULL TRAILER PIPING<Z25> M6 FLANGE	0-91180-106-0	01	1	1511-	●
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1009-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1009-	●	●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302		●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1009-1302	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-1411	●	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1412-		●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1412-	●
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1009-	●
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1009-	●	●
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1303-1510		●
661	CONTROL UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-066-1	01	1	1303-1510	●
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1511-		●
661	CONTROL UNIT; FLASHER FULL TRAILER PIPING<Z25>	1-83470-066-1	01	1	1511-	●
731	ALARM; INFORMATION SMOOTHER-G(C1W)	1-83460-051-1	01	1	1009-	●
734	ALARM; MULTI	1-83460-106-0	01	1	1009-	●	●

282 39 97 96 603 96 670 97 39 96 282 280 604 88 261 65 635 88 450 88 275 40 272 88 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-	●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4500MM(45W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302		●
39	BOLT; BRKT,MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1303-	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-1411	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1412-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (D)	1-53458-380-0	01	1	1412-	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	1009-1302	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	1009-	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	1009-	●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	04	1	1303-1303		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	04	1	1304-		●
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	1009-1302	●	●
65	BOLT; SOCKET FIX M6X25 FLANGE	0-28050-625-0	02	1	1303-1411	●	●
65	BOLT; SOCKET FIX M6X25 FLANGE	0-28050-625-0	02	1	1412-		●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X25 FLANGE	0-28050-625-0	02	1	1412-	●
88	CONNECTOR; MAG VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1412-		●
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1412-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302	●
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> M8X35 FLANGE	0-28650-835-0	04	1	1304-	●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1303-		●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302		●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302		●
96	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	01	1	1009-1302	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1303-	●	●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
96	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	01	1	1303-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
97	NUT; BRKT FIX WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
97	NUT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1303-1303		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1304-		●
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1304-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-1302	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4500MM(45W) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) PT1/4	9-99204-513-0	01	1	1009-1302		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) PT1/4	9-99204-513-0	01	1	1009-1302	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1303-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1303-		●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) PT1/4	9-99204-513-0	01	1	1303-	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4	9-99204-513-0	01	1	1303-	●
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-1411	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X25 FLANGE	0-28651-025-0	02	1	1412-	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411	●	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1411	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
280	CONNECTOR; IN,MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
280	CONNECTOR; IN,MAG VLV WHEEL BASE 4500MM(45W) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
280	CONNECTOR; IN,MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
280	CONNECTOR; IN,MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	1009-1302	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-47471-175-0	01	1	1303-	●
282	BRACKET; MAG VLV WHEEL BASE 4500MM(45W) (D)	1-82569-277-2	01	1	1009-1302		●
282	BRACKET; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-82569-277-2	01	1	1009-1302		●
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	1009-1302	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1303-	●
282	BRACKET; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (A)	8-98076-313-0	01	1	1009-1302		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E)	1-82569-358-0	01	1	1303-		●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-1302	●	●
282	BRACKET; MAG VLV (D)	1-82569-277-2	01	1	1303-	●	●
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302	●	●
450	VALVE; MAG	1-53458-378-2	02	1	1303-1411	●	●
450	VALVE; MAG	1-53458-378-2	02	1	1412-		●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1412-	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	1009-1302	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	1009-1302		●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A)	1-47471-046-0	01	1	1009-1302	●
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	1303-	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-47471-046-0	01	1	1303-	●
603	PROTECTOR; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B)	8-98076-312-1	01	1	1009-1302		●
604	VALVE; MAG,ENG CONT WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1)	1-82563-871-2	01	1	1009-1302		●
604	VALVE; MAG,ENG CONT WHEEL BASE 4500MM(45W)	1-82563-871-2	01	1	1009-1302		●
604	VALVE; MAG,ENG CONT WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1)	1-82563-871-2	01	1	1009-1302		●
604	VALVE; MAG,ENG CONT WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W)	1-82563-871-2	01	1	1009-1302	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1303-	●	●
635	SENSOR; PICK UP,INPUT SHAFT MJX12P M/T SMOOTHER-G(Y4S)	1-81510-736-1	01	1	1009-	●
670	NUT; PROTECTOR WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●

275 88 88 450 88 64 96 65 95 66 97 65 95 96 97 52 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK METRO DENSO	8-98069-861-0	01	1	1303-		●
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (A) L=860	8-98172-008-0	01	1	1304-	●
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1303-1303		●
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1304-1510		●
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (B) 7P	1-82523-014-0	01	1	1304-1510	●
64	SOCKET; TRAILER (B) 7P	1-82523-019-0	01	1	1511-		●
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (B) 7P	1-82523-019-0	01	1	1511-	●
64	SOCKET; TRAILER (A) L=940	8-98172-009-0	01	1	1303-		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	04	1	1303-1303		●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	04	1	1304-		●
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	1009-1302	●	●
65	BOLT; SOCKET FIX M6X25 FLANGE	0-28050-625-0	02	1	1303-1411	●	●
65	BOLT; SOCKET FIX M6X25 FLANGE	0-28050-625-0	02	1	1412-		●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X25 FLANGE	0-28050-625-0	02	1	1412-	●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1303-1303		●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1304-		●
66	NUT; SOCKET FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1304-	●
88	CONNECTOR; MAG VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (I)	1-09661-073-0	01	1	1412-		●
88	CONNECTOR; MAG VLV SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULL FLOATING CAB(W16) (I)	1-09661-073-0	01	1	1412-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4500MM(45W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302		●
88	CONNECTOR; MAG VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1302	●
88	CONNECTOR; MAG VLV (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1303-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1412-	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-1411	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1412-	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1411	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1412-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-	●
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	1303-1303		●
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	1304-		●
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (B)	1-82699-387-0	01	1	1304-	●
95	BRACKET; SOCKET,TRAILER (A)	8-97985-137-0	01	1	1303-1303		●
95	BRACKET; SOCKET,TRAILER (A)	8-97985-137-0	01	1	1304-		●
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (A)	8-97985-137-0	01	1	1304-	●
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> M8X35 FLANGE	0-28650-835-0	04	1	1304-	●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302		●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1009-1302	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1303-		●
96	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302		●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28651-030-0	01	1	1009-1302		●
96	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	01	1	1009-1302	●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1303-	●	●
96	BOLT; BRKT FIX WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302		●
96	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	01	1	1303-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1303-	●	●
97	NUT; BRKT FIX WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
97	NUT; BRKT FIX WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1009-1302		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-1302	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1303-1303		●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1304-		●
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1304-	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-1411	●	●
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (C) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-1411	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-		●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	1412-	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-	●	●
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302	●	●
450	VALVE; MAG	1-53458-378-2	02	1	1303-1411	●	●
450	VALVE; MAG	1-53458-378-2	02	1	1412-		●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	02	1	1412-	●

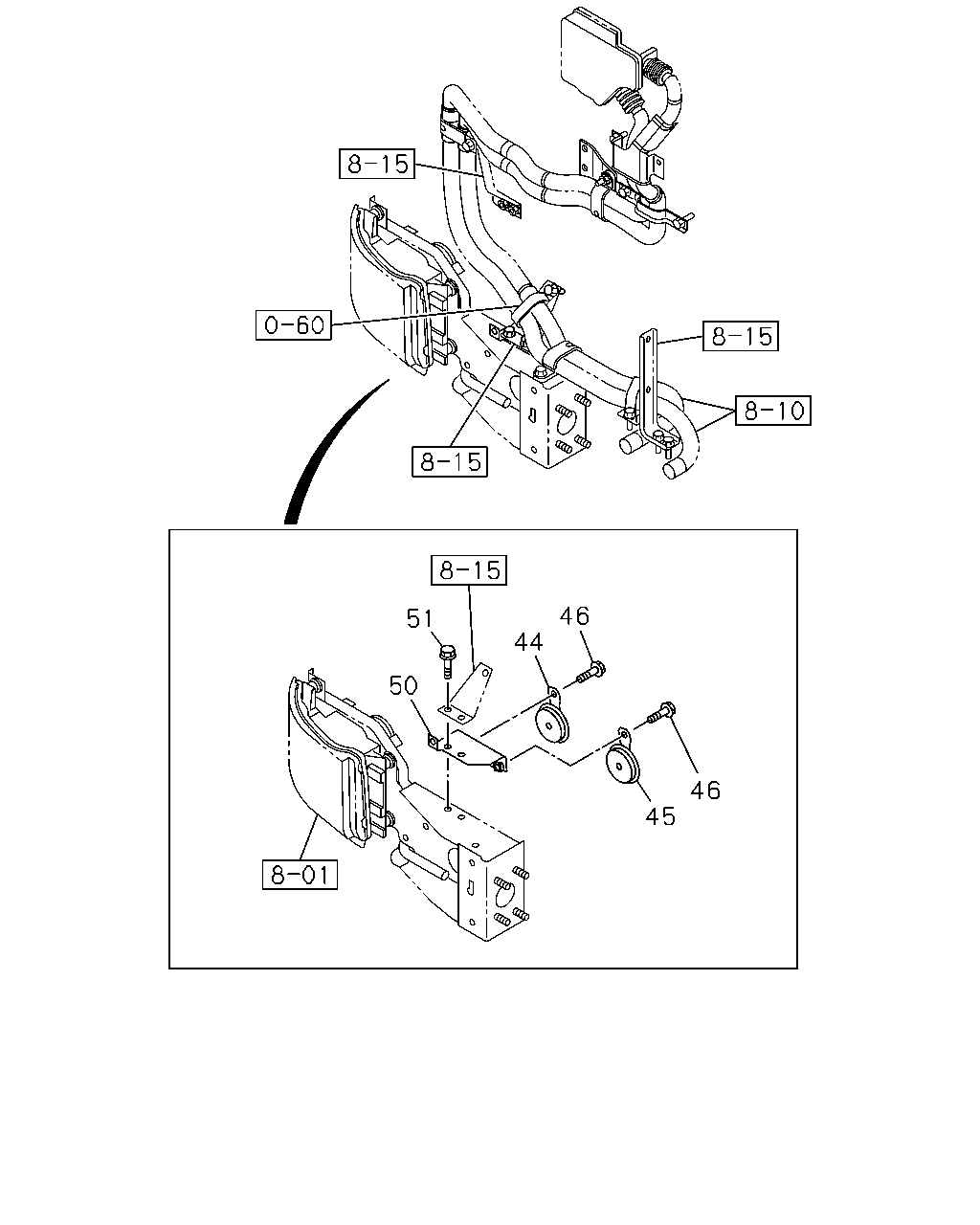

51 50 44 45 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1303-	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	1303-	●	●
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-	●	●
50	BRACKET; HORN	8-98210-372-0	01	1	1303-	●	●
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
