Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11290 - CYZ RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

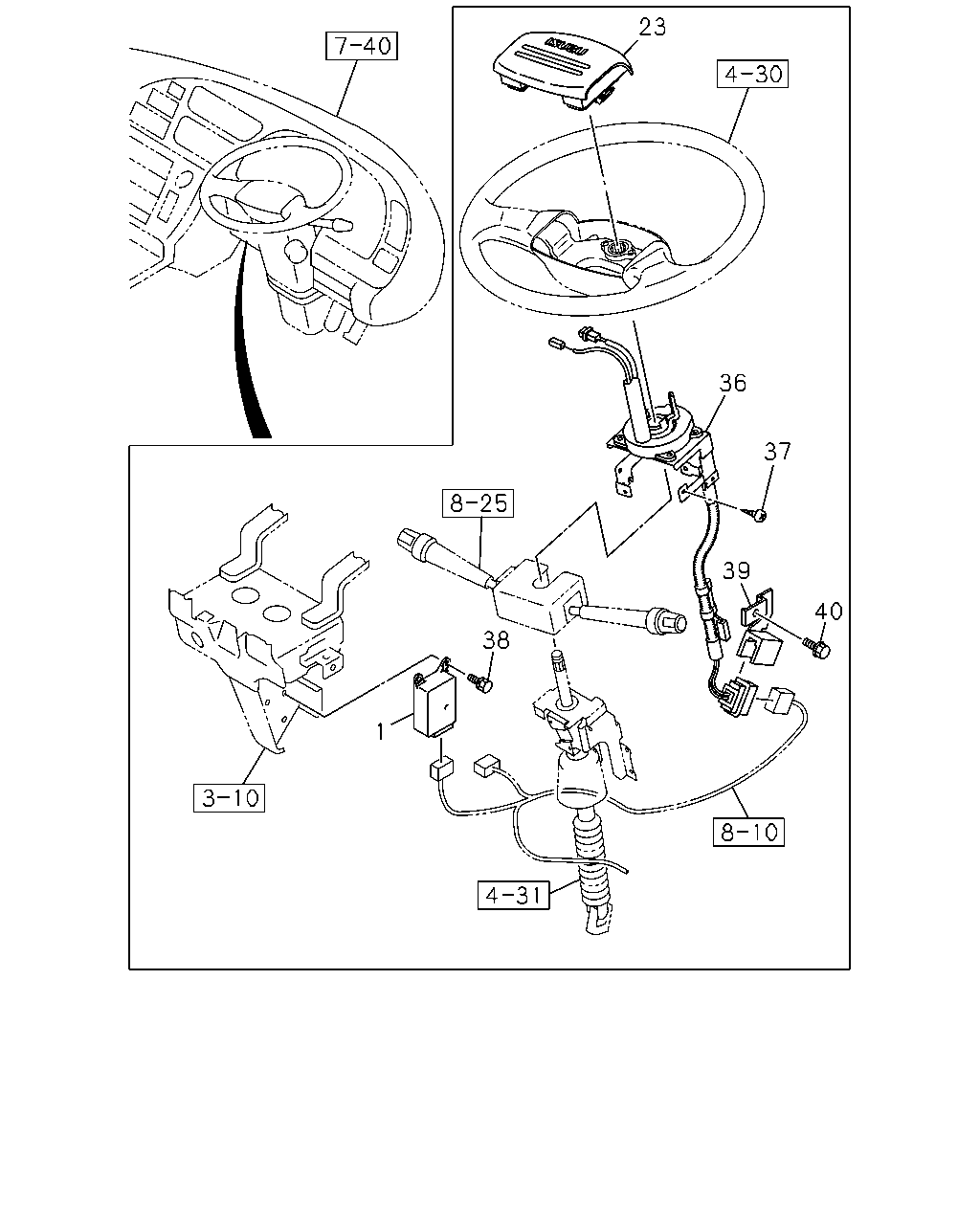

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#58870) — 35 parça
Tümü
A - CYZ5MC
B - CYZ5MF
23
1
38
36
37
39
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CONTROL UNIT; SIR
AIR BAG(TFQ)
1-80190-131-1
01
1
1009-1302
●
1
CONTROL UNIT; SIR
1-80190-131-1
01
1
1009-1302
●
1
CONTROL UNIT; SIR
1-80190-131-1
01
1
1303-1411
●
●
1
CONTROL UNIT; SIR
1-80190-131-1
01
1
1412-
●
1
CONTROL UNIT; SIR
AIR BAG(TFQ)
1-80190-131-1
01
1
1412-
●
23
AIR BAG UNIT
AIR BAG(TFQ)
1-75630-003-6
01
1
1009-1302
●
23
AIR BAG UNIT
1-75630-003-6
01
1
1009-1302
●
23
AIR BAG UNIT
1-75630-003-6
01
1
1303-1411
●
●
23
AIR BAG UNIT
1-75630-003-6
01
1
1412-
●
23
AIR BAG UNIT
AIR BAG(TFQ)
1-75630-003-6
01
1
1412-
●
36
COIL; SRS
AIR BAG(TFQ)
1-82699-951-6
01
1
1009-1302
●
36
COIL; SRS
1-82699-951-6
01
1
1009-1302
●
36
COIL; SRS
8-97622-684-1
01
1
1303-1411
●
●
36
COIL; SRS
8-97622-684-1
01
1
1412-
●
36
COIL; SRS
AIR BAG(TFQ)
8-97622-684-1
01
1
1412-
●
37
SCREW; BRKT
AIR BAG(TFQ) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1009-1302
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1009-1302
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1303-1411
●
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1412-
●
37
SCREW; BRKT
AIR BAG(TFQ) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1412-
●
38
BOLT; CONT UNIT
AIR BAG(TFQ) M6X18 W/PL WASHER
8-97105-796-1
03
1
1009-1302
●
38
BOLT; CONT UNIT
M6X18 W/PL WASHER
8-97105-796-1
03
1
1009-1302
●
38
BOLT; CONT UNIT
M6X18 W/PL WASHER
8-97105-796-1
03
1
1303-1411
●
●
38
BOLT; CONT UNIT
M6X18 W/PL WASHER
8-97105-796-1
03
1
1412-
●
38
BOLT; CONT UNIT
AIR BAG(TFQ) M6X18 W/PL WASHER
8-97105-796-1
03
1
1412-
●
39
HOLDER; CONNECTOR
AIR BAG(TFQ)
1-82699-955-1
01
1
1009-1302
●
39
HOLDER; CONNECTOR
1-82699-955-1
01
1
1009-1302
●
39
HOLDER; CONNECTOR
1-82699-955-1
01
1
1303-1411
●
●
39
HOLDER; CONNECTOR
1-82699-955-1
01
1
1412-
●
39
HOLDER; CONNECTOR
AIR BAG(TFQ)
1-82699-955-1
01
1
1412-
●
40
BOLT; BRKT
AIR BAG(TFQ) M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1009-1302
●
40
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1009-1302
●
40
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1303-1411
●
●
40
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1412-
●
40
BOLT; BRKT
AIR BAG(TFQ) M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1412-
●
