◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#58868) — 150 parça

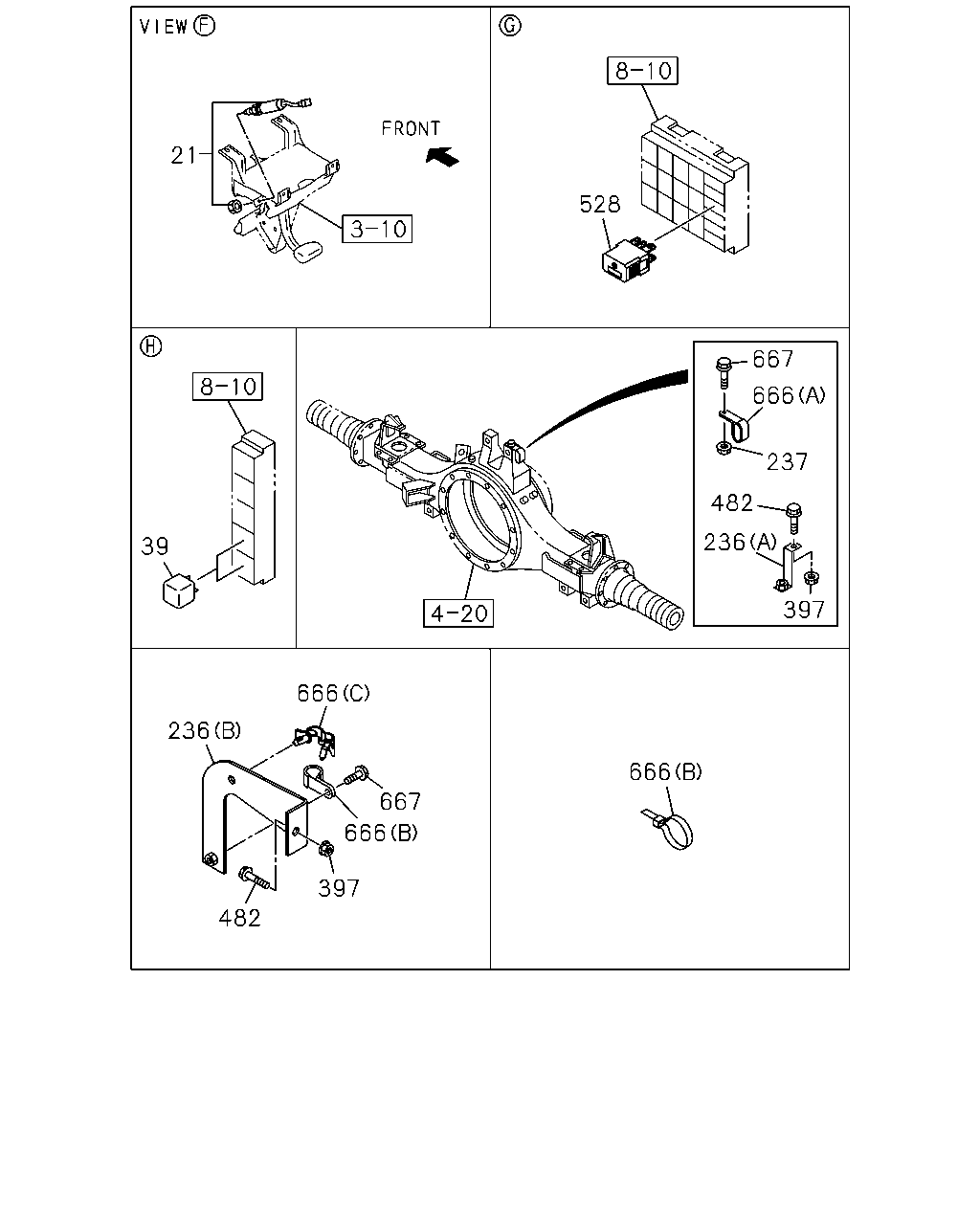

çizim 168591
21 528 667 666 237 482 236 397 666 397 666 667 666 236 482 39
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU 1-82380-114-3 01 1 1009- ●
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 1009- ●
39 RELAY; DOOR LK
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1303- ●
236 BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82698-595-0 01 1 1303- ●
236 BRACKET; AXLE HARNESS,RR
(A) 		1-47476-200-0 01 1 1009-1302 ● ●
236 BRACKET; AXLE HARNESS,RR
(A) 		1-47476-200-0 01 1 1303- ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
237 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411 ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1411 ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ●
237 NUT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ● ●
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 1303- ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1303- ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302 ● ●
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 01 1 1303- ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1303- ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=24 		0-95235-045-0 01 1 1303- ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 03 1 1303-1411 ●
666 CLIP; AXLE HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=11X2 L=20 		1-09700-871-0 03 1 1412- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11X2 L=20 		1-09700-871-0 05 1 1009-1302 ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 05 1 1009-1302 ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 02 1 1303-1411 ● ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 02 1 1303-1411 ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 02 1 1412- ● ●
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=20 		1-09700-871-0 02 1 1412- ●
666 CLIP; AXLE HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=11X2 L=20 		1-09700-871-0 02 1 1412- ●
667 BOLT; CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 02 1 1412- ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1304-1411 ●
667 BOLT; CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 03 1 1412- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303 ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303 ● ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●

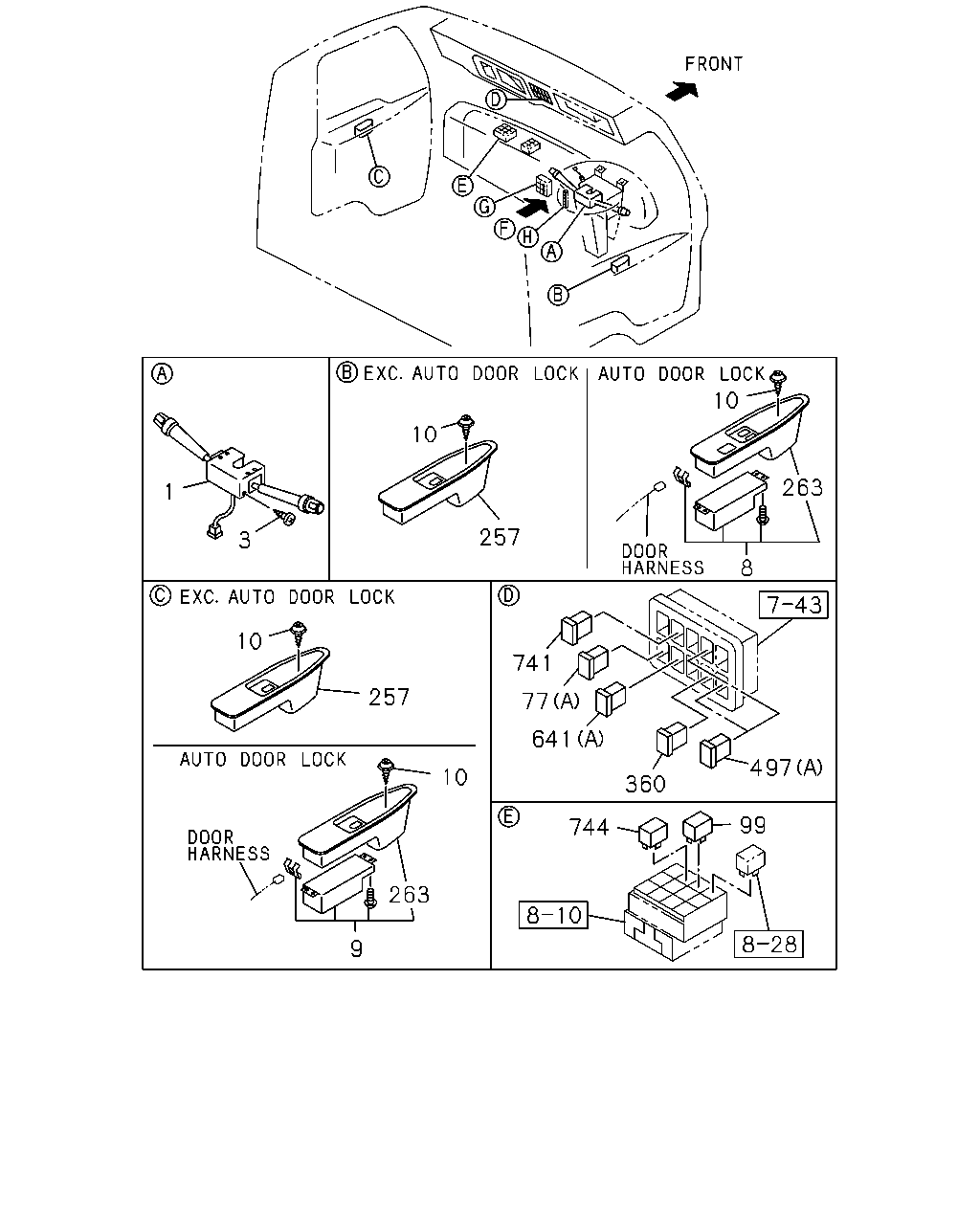

çizim 168592
1 3 10 257 10 263 8 741 77 641 360 497 744 99 10 257 10 263 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) 		8-98152-592-0 01 1 1412- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-580-2 01 1 1303- ●
1 SWITCH; COMB
AIR BAG(TFQ) 		1-82360-548-1 01 1 1009-1302 ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 1009-1302 ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 1303-1411 ●
1 SWITCH; COMB
AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 1412- ●
1 SWITCH; COMB
EXC. AIR BAG(TFQ) 		8-98152-592-0 01 1 1009-1302 ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-579-2 01 1 1303- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) 		1-82360-701-1 01 1 1009- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 1009- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-166-2 01 1 1009-1302 ●
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-166-2 01 1 1009-1302 ●
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-166-2 01 1 1303- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82380-167-1 01 1 1009-1302 ●
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-167-1 01 1 1009-1302 ●
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-167-1 01 1 1303- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1009-1411 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1412- ●
10 SCREW; POWER WINDOW SW
POWER WINDOW<A30> M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1412- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 1304- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. DUMP TRUCK<RA1> (A) 		8-97386-993-4 01 1 1303- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 1009-1302 ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> 		1-82389-011-2 01 1 1412- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> 		1-82389-012-2 01 1 1412- ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-011-2 01 1 1009-1302 ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-012-2 01 1 1009-1302 ●
263 COVER; SW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82385-005-2 01 1 1009-1302 ●
263 COVER; SW
DRIVER SIDE 		1-82385-005-2 01 1 1009-1302 ●
263 COVER; SW
DRIVER SIDE 		1-82385-005-2 01 1 1303- ● ●
263 COVER; SW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82385-006-3 01 1 1009-1302 ●
263 COVER; SW
PASSENGER SIDE 		1-82385-006-3 01 1 1009-1302 ●
263 COVER; SW
PASSENGER SIDE 		1-82385-006-3 01 1 1303- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 1009-1302 ● ●
360 SWITCH ASM; DIFF LK 8-98222-520-1 01 1 1303- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) HSA OFF 		1-82340-408-1 01 1 1009-1105 ●
497 SWITCH; HSA
(A) HSA OFF 		1-82340-408-1 01 1 1009-1105 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) HSA OFF 		8-98191-448-1 01 1 1106-1302 ●
497 SWITCH; HSA
(A) HSA OFF 		8-98191-448-1 01 1 1106-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) 		8-97386-923-2 01 1 1303- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (B) HSA ADJUST 		1-82350-237-2 01 1 1009-1302 ●
497 SWITCH; HSA
EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 1009-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 1303- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (C) HSA RESET 		8-97076-356-0 01 1 1009-1302 ●
497 SWITCH; HSA
EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-97076-356-0 01 1 1009-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-98134-958-1 01 1 1303- ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (A) 		8-97615-637-0 01 1 1009-1302 ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1303-1411 ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1412- ●
741 SWITCH; TRAILER
SMOOTHER-G(C1W) FULL TRACTOR TRUCK<RD6> 		8-98222-522-1 01 1 1303- ●
744 RELAY; TILT,LID OPEN
24V 10A PANASONIC 		8-97173-035-1 01 1 1303- ● ●

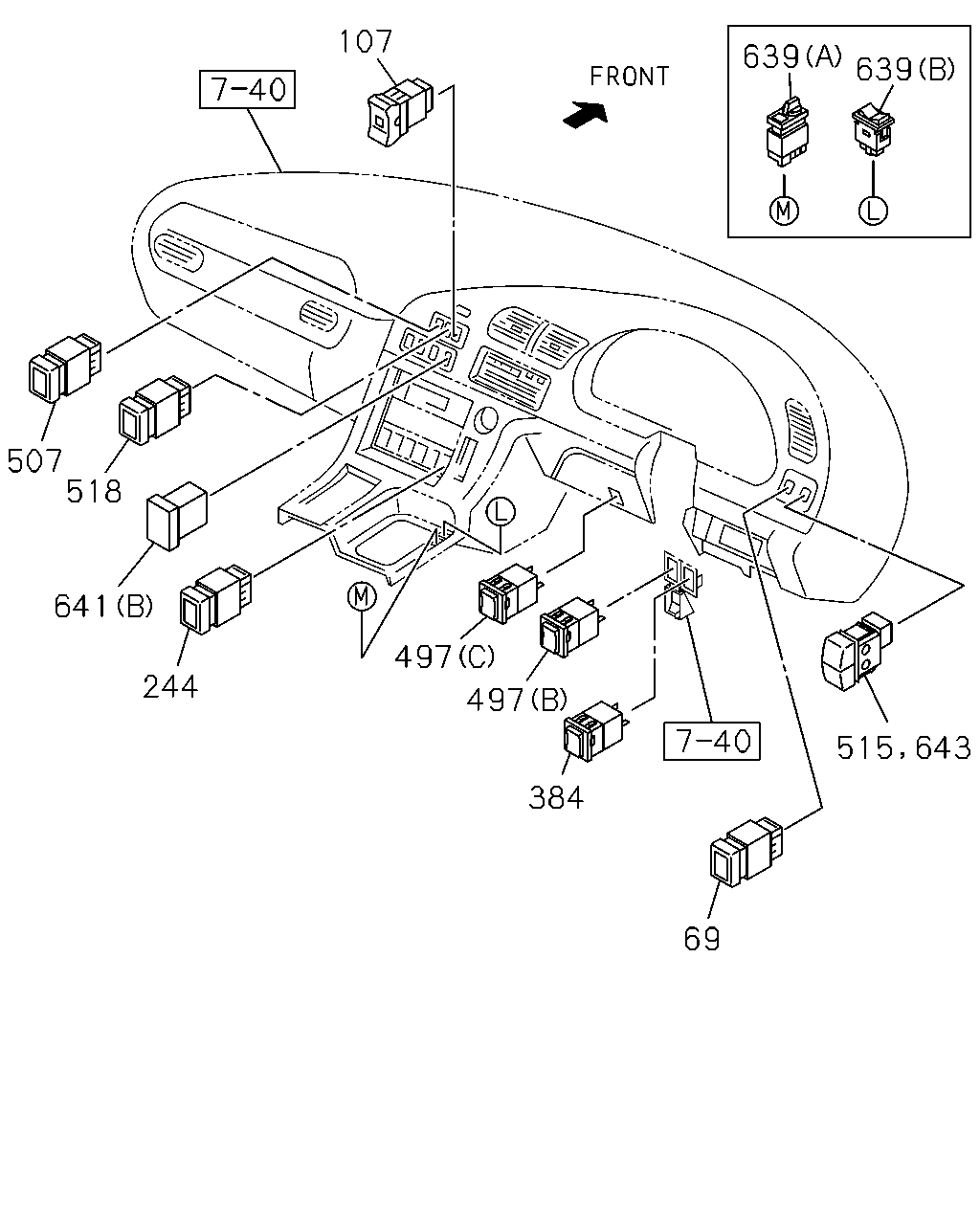

çizim 168593
107 507 641 244 497 497 384 69 515 643 639 639 518
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE 8-98011-344-1 01 1 1303- ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 1009-1302 ●
107 SWITCH; REMOTE CONT,MIRROR 1-82350-233-0 01 1 1009-1302 ●
107 SWITCH; REMOTE CONT,MIRROR
STRAGE 		8-98011-343-2 01 1 1303-1411 ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> STRAGE 		8-98011-343-2 01 1 1412- ●
244 SWITCH; BATTERY
FUEL TANK TRUCK<RD5> 		8-98138-304-0 01 1 1305- ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 1009- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) HSA OFF 		1-82340-408-1 01 1 1009-1105 ●
497 SWITCH; HSA
(A) HSA OFF 		1-82340-408-1 01 1 1009-1105 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) HSA OFF 		8-98191-448-1 01 1 1106-1302 ●
497 SWITCH; HSA
(A) HSA OFF 		8-98191-448-1 01 1 1106-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (A) 		8-97386-923-2 01 1 1303- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (B) HSA ADJUST 		1-82350-237-2 01 1 1009-1302 ●
497 SWITCH; HSA
EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 1009-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 1303- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) (C) HSA RESET 		8-97076-356-0 01 1 1009-1302 ●
497 SWITCH; HSA
EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-97076-356-0 01 1 1009-1302 ●
497 SWITCH; HSA
BRAKE SYSTEM HSA(SLD) EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-98134-958-1 01 1 1303- ●
507 SWITCH; MIRROR HEATER
MIR O/S RR VIEW HEATED<DNN> 		1-82340-423-0 01 1 1009-1302 ●
507 SWITCH; MIRROR HEATER 1-82340-423-0 01 1 1009-1302 ●
507 SWITCH; MIRROR HEATER
HEATER 		8-97386-924-3 01 1 1303-1411 ● ●
507 SWITCH; MIRROR HEATER
HEATER 		8-97386-924-3 01 1 1412- ●
507 SWITCH; MIRROR HEATER
MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER 		8-97386-924-3 01 1 1412- ●
515 SWITCH; FLUORESCENT LAMP 8-97386-917-2 01 1 1303- ●
518 SWITCH; RADIO TUNE 8-98222-523-1 01 1 1303- ●
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (A) 		1-82330-068-0 01 1 1009- ●
639 SWITCH; EMERGENCY
SMOOTHER-G(C1W) (B) 		1-82350-363-0 01 1 1009- ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (A) 		8-97615-637-0 01 1 1009-1302 ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1303-1411 ●
641 SWITCH; MAP
SMOOTHER-G(C1W) (B) 		8-98222-524-1 01 1 1412- ●
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) 		8-97381-251-0 01 1 1009-1302 ●
643 SWITCH; SKIP SHIFT
SMOOTHER-G(C1W) 		8-98129-204-2 01 1 1303- ●

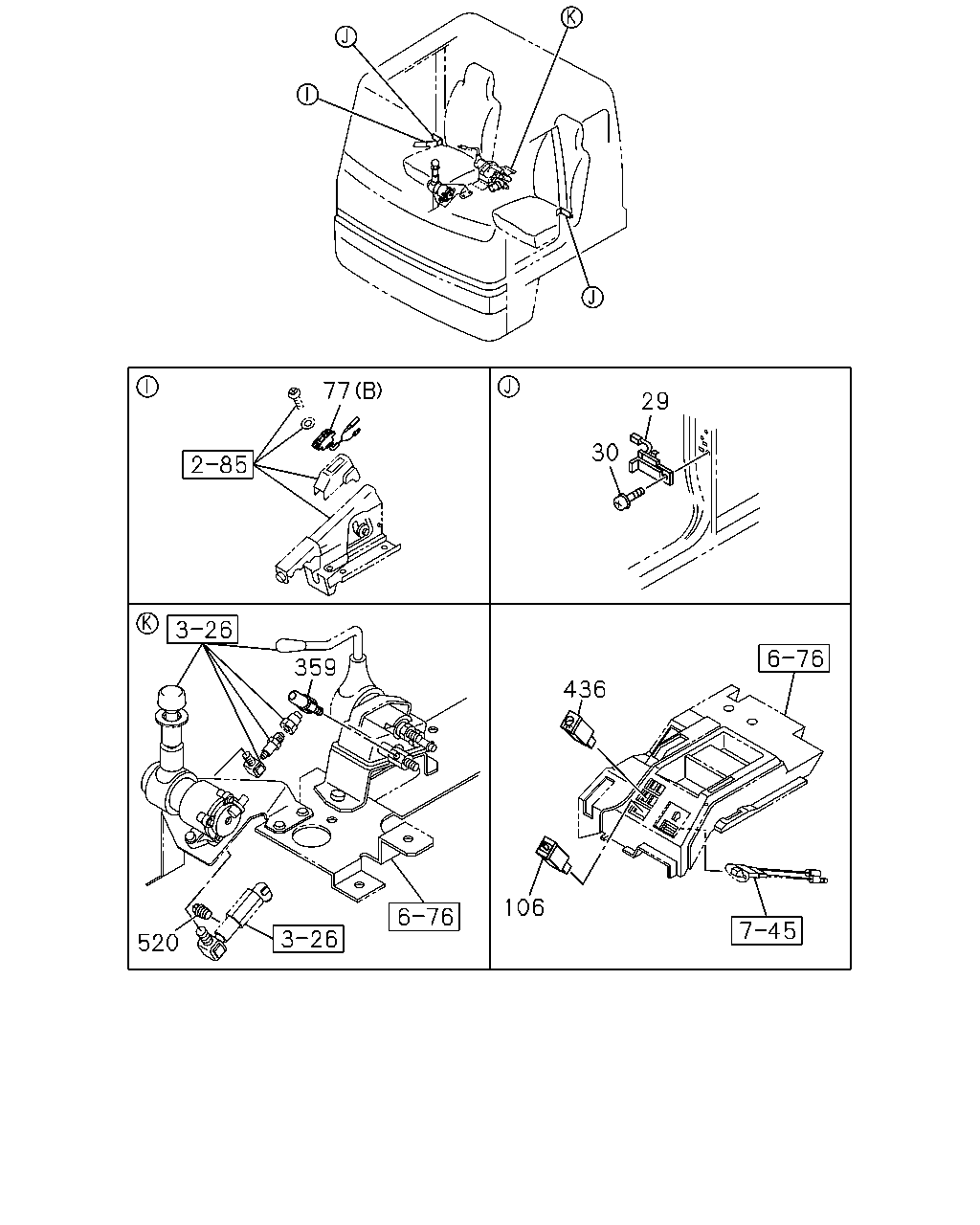

çizim 168594
77 359 520 436 106 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 02 1 1009- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 1009- ● ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 1304- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1009-1302 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. DUMP TRUCK<RA1> (A) 		8-97386-993-4 01 1 1303- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 1009-1302 ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 1303- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 1303- ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL(NLG) STAMP 0.3 		8-98010-857-0 01 1 1303- ●
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 1009-1302 ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1303- ● ●
520 PLUG; CONNECTOR
PT1/4 		9-99204-513-0 01 1 1504- ●
520 PLUG; CONNECTOR
SINGAPORE EQUIPMENT(WQ3) FULL TRAILER PIPING<Z25> PT1/4 		9-99204-513-0 01 1 1504- ●
520 PLUG; CONNECTOR
PT1/4 		9-99204-513-0 01 1 1009-1302 ● ●

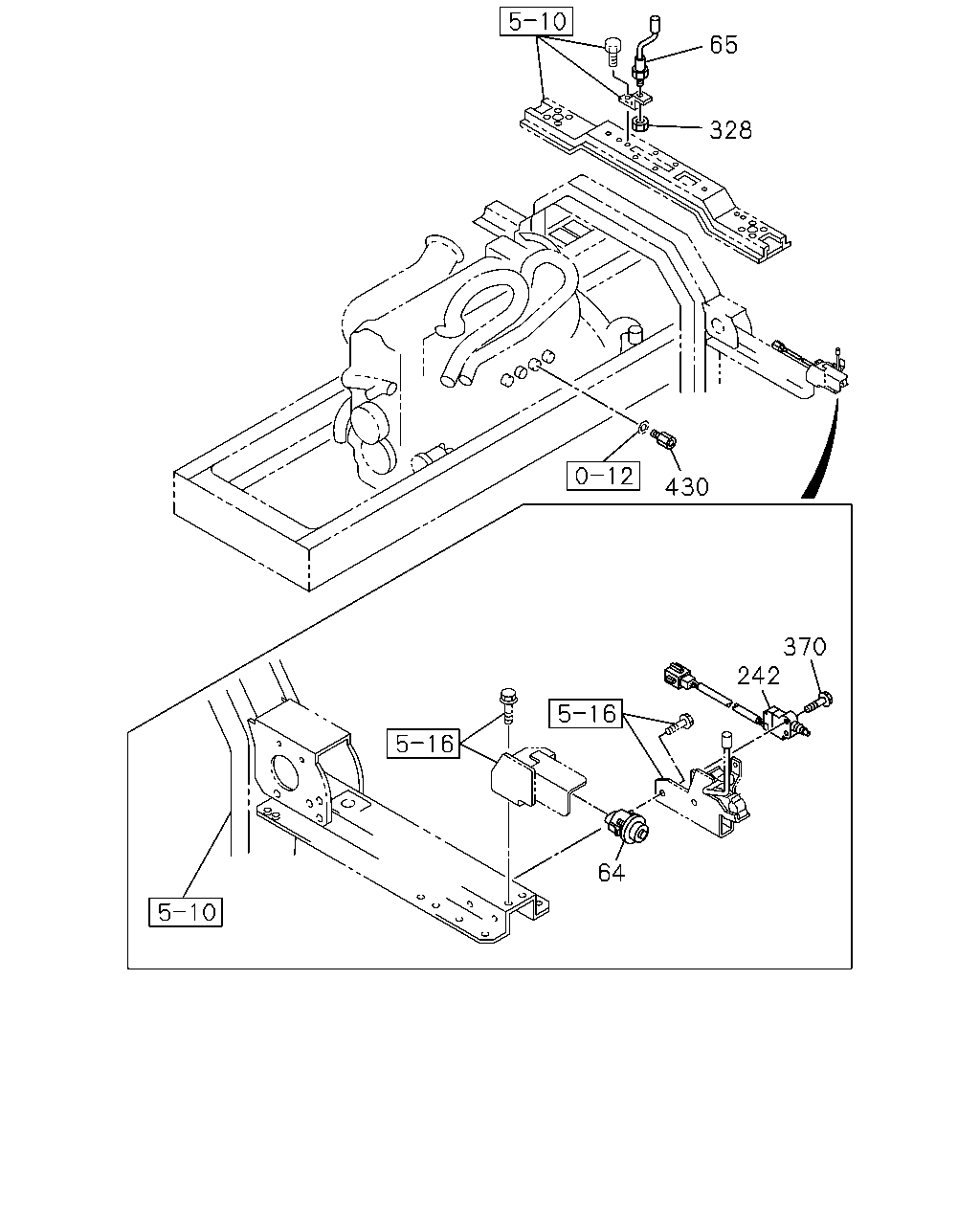

çizim 168648
430 370 242 64 328 65
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1009- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 1009- ● ●
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 1009- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 1009- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1009- ● ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
