◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#58867) — 33 parça
çizim 168589
46 461 8 260 259 46
BalonParca AdiParca NoAdetTipApplied Date A B
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-838-3 01 1 1009-1302 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-840-3 01 1 1009-1302 ● ●
46 BRACKET; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-73907-724-0 02 1 1009-1302 ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER 		0-36220-508-0 04 1 1009-1302 ● ●
260 BOLT; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302 ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1009-1302 ● ●

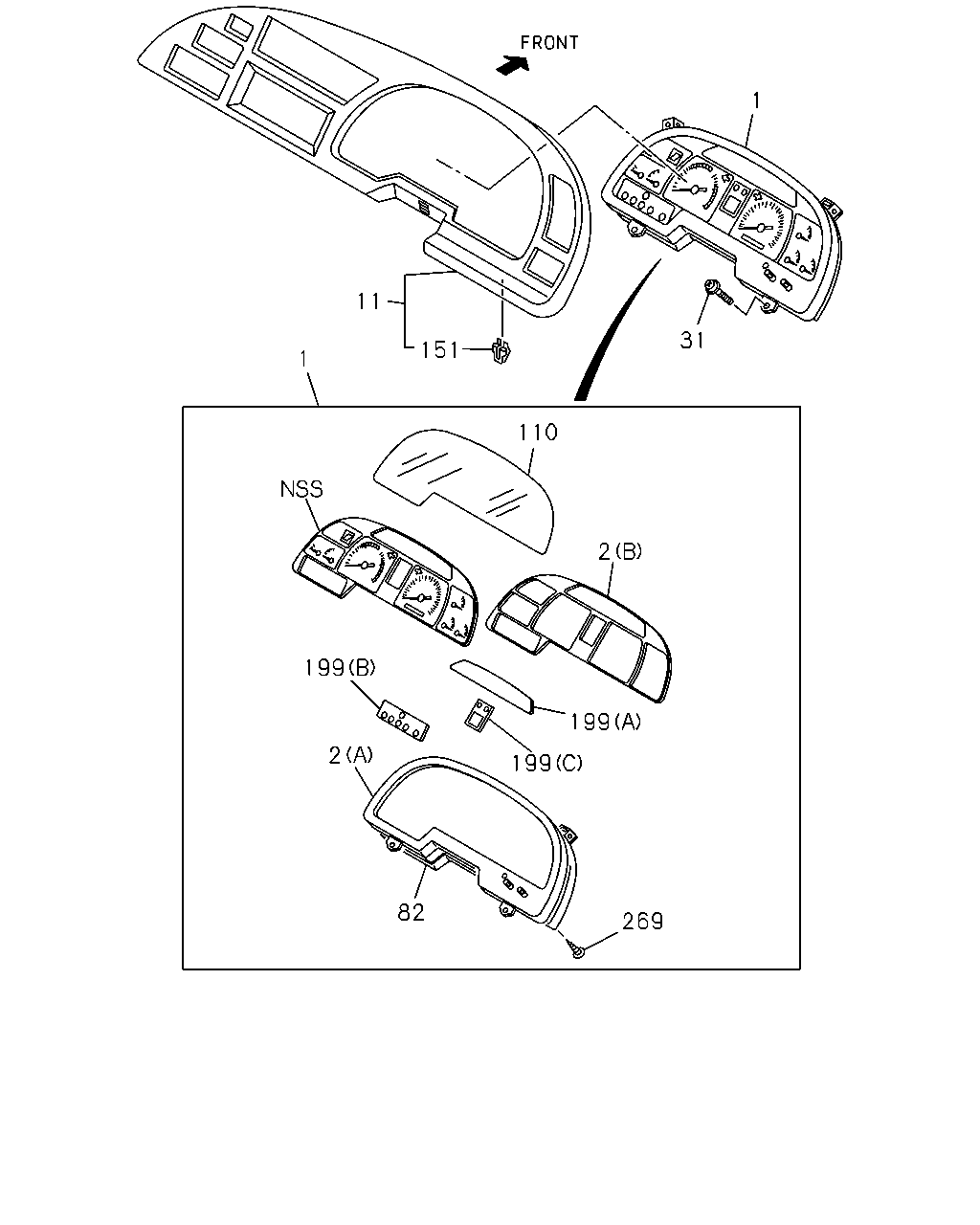

çizim 168590
1 31 151 11 1 110 2 199 199 2 82 269 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97631-091-1 01 1 1009-1103 ●
1 METER COMPL; CLUSTER
EXC. SMOOTHER-G(C1W) 		8-97631-091-1 01 1 1009-1103 ●
1 METER COMPL; CLUSTER 8-97638-835-1 01 1 1104-1302 ●
1 METER COMPL; CLUSTER
EXC. SMOOTHER-G(C1W) 		8-97638-835-1 01 1 1104-1302 ●
1 METER COMPL; CLUSTER 8-97638-835-1 01 1 1303- ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E) 		8-97638-835-1 01 1 1303- ●
1 METER COMPL; CLUSTER
SMOOTHER-G(C1W) 		8-97631-092-1 01 1 1009-1103 ●
1 METER COMPL; CLUSTER
SMOOTHER-G(C1W) 		8-97638-836-1 01 1 1104- ●
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 1009- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 1009- ● ●
11 CLUSTER ASM; METER
EXC. INST PANEL CARBON<EGW> 		1-72418-012-9 01 1 1409- ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 1305-1305 ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 1009-1302 ● ●
11 CLUSTER ASM; METER 8-98217-874-0 01 1 1303-1304 ● ●
11 CLUSTER ASM; METER 8-98217-874-0 01 1 1305-1305 ●
11 CLUSTER ASM; METER 8-98217-874-0 01 1 1306-1408 ● ●
11 CLUSTER ASM; METER 8-98217-874-0 01 1 1409- ●
11 CLUSTER ASM; METER
INST PANEL CARBON<EGW> 		8-98217-874-0 01 1 1409- ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 1009-1302 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1009- ● ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1009- ● ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1009- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1009- ● ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1009- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 1009- ● ●
199 LENS; WARNING LAMP
(A) 		8-98133-606-0 01 1 1009- ● ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1009- ● ●
