◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#58866) — 18 parça

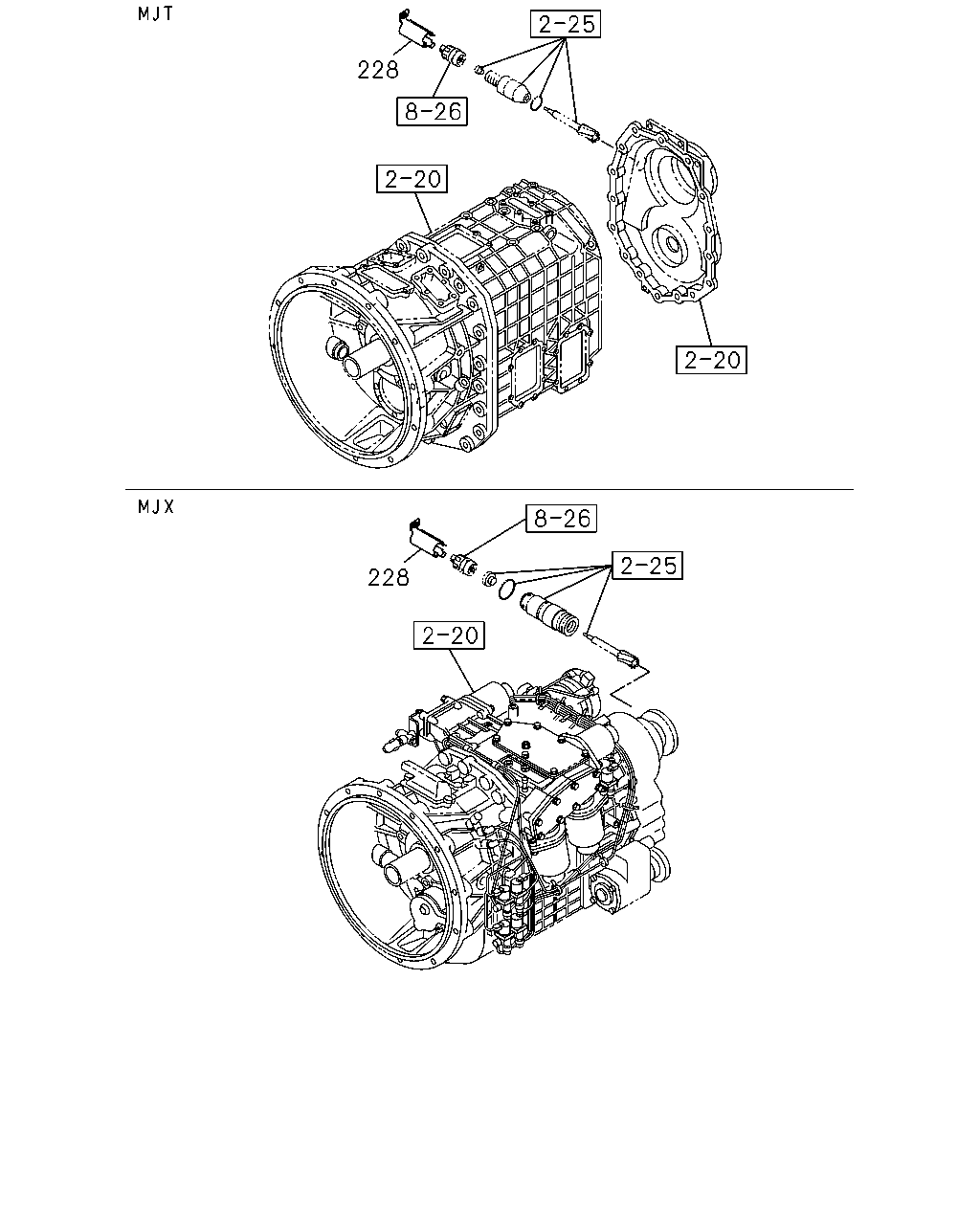

çizim 168587
228 228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1009-1302 ● ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1303- ●

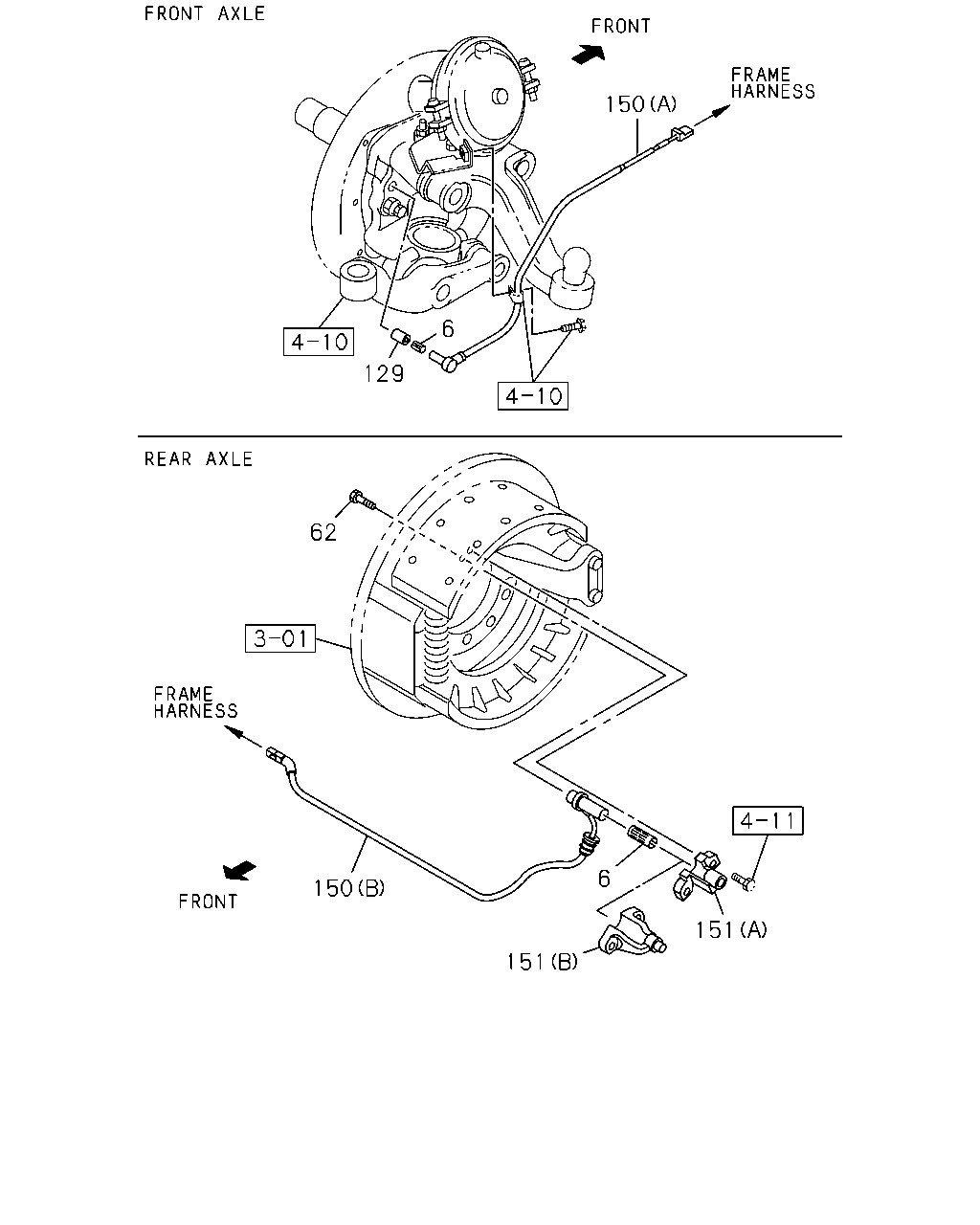

çizim 168624
129 150 62 150 151 6 151 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1009- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1009- ● ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 1009-1506 ● ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ● ●
129 COLLAR 1-83129-471-0 02 1 1009- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98130-586-0 01 1 1303- ●
150 SENSOR; SPEED,ABS
(B) 		8-98130-587-0 01 1 1303- ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 1009- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98121-318-0 01 1 1009-1302 ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98224-161-0 01 1 1303- ●
150 SENSOR; SPEED,ABS
(B) 		8-98121-319-0 01 1 1009-1302 ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98224-162-0 01 1 1303- ●
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 1009-1504 ● ●
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505- ● ●
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 1009-1504 ● ●
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505- ● ●
