8-15 — FIXING PARTS; WIRING HARNESS (#58865) — 1233 parça
çizim 168617
340 515 294 552 515 469 294 219 524 423 82 119
BalonParca AdiParca NoAdetTipApplied Date A B
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 1303- ●
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 1009-1302 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1009-1302 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1303- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
219 NUT
EXC. MJX M/T<Y9N> M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 1304- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
219 NUT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
219 NUT
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
219 NUT
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-1303 ● ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 1303-1303 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-1411 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-1411 ● ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1305-1411 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1412- ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
219 NUT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1412- ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
219 NUT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 1009-1302 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303- ● ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 1009-1302 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1304 ● ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1303-1304 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ●
219 NUT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ●
219 NUT
EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1305-1411 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1412- ●
219 NUT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1412- ●
219 NUT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 02 1 1412- ●
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1303- ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1303- ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1303- ●
294 NUT
EXC. SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 1303- ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 1303- ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 08 1 1009-1302 ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 1303- ● ●
294 NUT
MJX12P M/T SMOOTHER-G(Y4S) (A) M10 FLANGE 		0-91180-210-0 01 1 1009- ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1009- ● ●
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 02 1 1303-1303 ●
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W),FULL TRACTOR TRUCK<RD6> ID=8.4 		1-09503-264-0 02 1 1304-1510 ●
423 WASHER; HARNESS,EARTH
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 02 1 1511- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302 ●
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1009-1302 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 1303- ●
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 1009-1302 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1303-1303 ●
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1303-1303 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1304-1510 ●
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) EXC. FULL TRACTOR TRUCK<RD6> ID=8.4 		1-09503-264-0 03 1 1304-1510 ●
423 WASHER; HARNESS,EARTH
FULL TRACTOR TRUCK<RD6> EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1304-1510 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1511- ●
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) EXC. FULL TRAILER PIPING<Z25> ID=8.4 		1-09503-264-0 03 1 1511- ●
423 WASHER; HARNESS,EARTH
FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1511- ●
469 NUT; PROTECTOR
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1009-1302 ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1303- ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1009-1302 ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1303- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ● ●

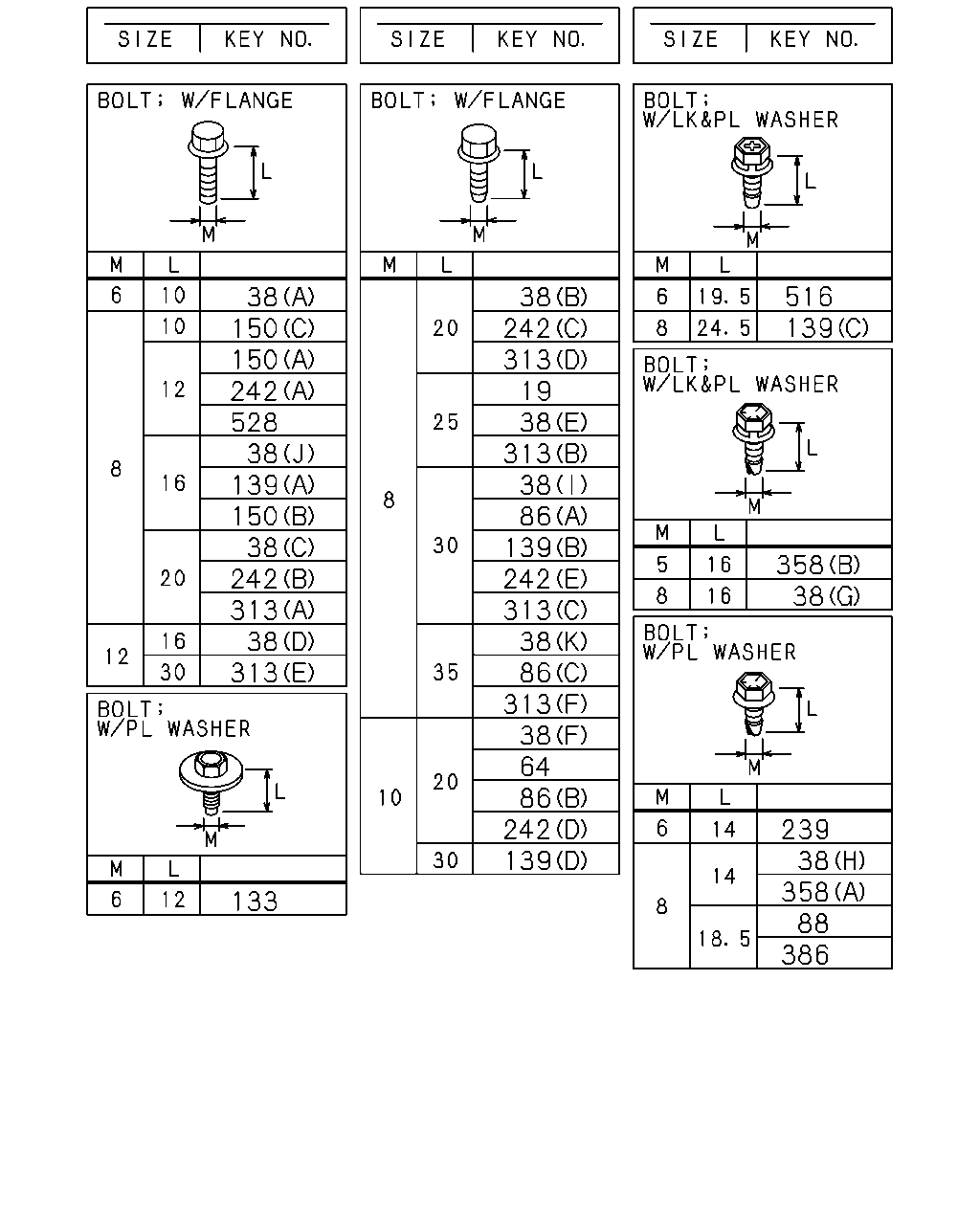

çizim 168622
38 150 150 242 528 139 38 150 242 38 313 38 313 38 242 313 38 313 38 86 139 242 313 38 86 313 38 64 86 242 139 516 139 358 38 239 38 358 88 386 133 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (J) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ●
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28650-835-0 01 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28650-835-0 01 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
FULL TRAILER PIPING<Z25> (K) M8X35 FLANGE 		0-28650-835-0 01 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (F) M10X20 FLANGE 		0-28751-020-0 01 1 1303- ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ●
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304 ● ●
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304 ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ● ●
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1305- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1411 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1411 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ●
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1412- ●
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1009-1302 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-1303 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1304-1304 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 1305- ● ●
38 BOLT; CLIP,HARNESS
(F) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302 ● ●
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 04 1 1303- ● ●
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105 ● ●
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-1302 ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-1302 ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) EXC. FULL TRACTOR TRUCK<RD6> (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
FULL TRACTOR TRUCK<RD6> EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1511- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) EXC. FULL TRAILER PIPING<Z25> (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1511- ●
38 BOLT; CLIP,HARNESS
FULL TRAILER PIPING<Z25> EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1511- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1303- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1009-1201 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302 ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W),FULL TRACTOR TRUCK<RD6> (H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1304-1510 ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1303- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1303- ● ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 01 1 1303- ●
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302 ●
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302 ●
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M10X20 FLANGE 		0-28751-020-0 01 1 1303- ●
86 BOLT; CLIP BRKT
EXC. SMOOTHER-G(C1W),HONG KONG EQUIPMENT(PQ1), SINGAPORE EQUIPMENT(WQ3) (C) M8X35 FLANGE 		0-28650-835-0 01 1 1412- ●
86 BOLT; CLIP BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE 		0-28751-020-0 01 1 1303- ●
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302 ● ●
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1303-1411 ●
86 BOLT; CLIP BRKT
EXC. SMOOTHER-G(C1W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1303-1411 ●
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1412- ●
86 BOLT; CLIP BRKT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1412- ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1009-1302 ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1009-1302 ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-1411 ● ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1412- ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1412- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1009- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1303- ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1009-1111 ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1112-1302 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1303-1303 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-1304 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1305- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1302 ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303- ● ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009- ● ●
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE 		0-28050-810-0 01 1 1303- ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1009- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 1009- ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1009- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303- ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 04 1 1009-1302 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1303- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302 ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
242 BOLT; BRKT,HARNESS
(D) M10X20 FLANGE 		0-28651-020-0 01 1 1009-1302 ● ●
242 BOLT; BRKT,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 1303- ● ●
313 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
313 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) M8X35 FLANGE 		0-28650-835-0 01 1 1412- ●
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1412- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1304-1411 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1412- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-1302 ● ●
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302 ● ●
313 BOLT; BRKT
SMOOTHER-G(C1W) (E) M12X30 FLANGE 		0-28051-230-0 01 1 1303- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 06 1 1009-1302 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 05 1 1303-1303 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1304-1411 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1412- ● ●
358 BOLT; EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303- ●
358 BOLT; EARTH
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1303- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009- ● ●
528 BOLT; CONNECTOR
MJX12P M/T SMOOTHER-G(Y4S) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ●

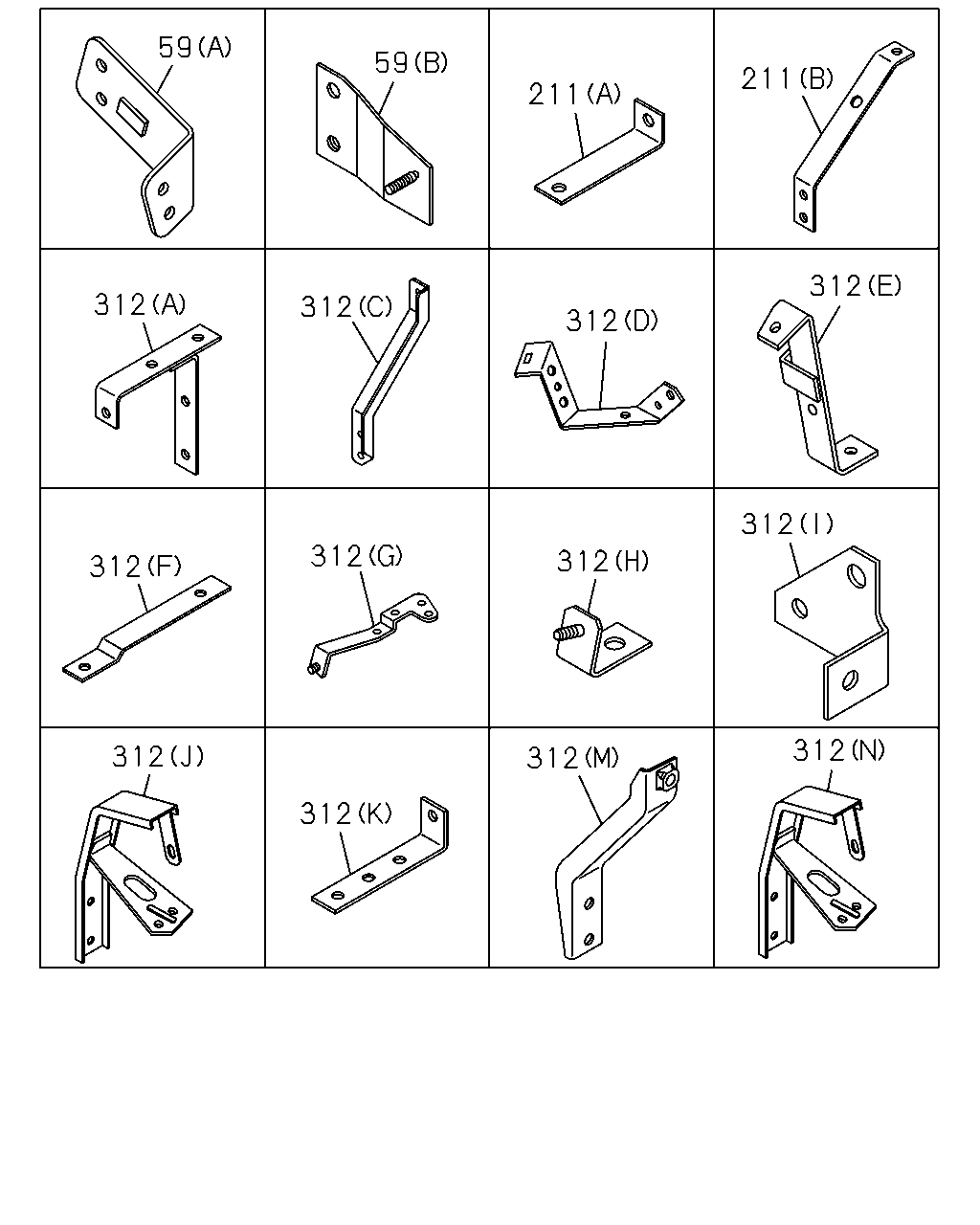

çizim 168626
59 59 211 211 312 312 312 312 312 312 312 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS
EXC. FULL TRAILER PIPING<Z25> (A) 		8-97633-543-1 01 1 1303- ●
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 1009-1302 ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97639-069-0 01 1 1303- ●
59 BRACKET; FRAME HARNESS
FULL TRAILER PIPING<Z25> (A) 		8-97639-069-0 01 1 1303- ●
59 BRACKET; FRAME HARNESS
(B) 		8-98061-135-1 01 1 1009- ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=95 		1-82699-085-0 02 1 1009-1302 ●
211 BRACKET; AXLE HARNESS
(A) L=95 		1-82699-085-0 02 1 1009-1302 ●
211 BRACKET; AXLE HARNESS
(A) L=95 		1-82699-085-0 02 1 1303- ●
211 BRACKET; AXLE HARNESS
(B) 		1-47479-430-0 02 1 1303- ●
211 BRACKET; AXLE HARNESS
(C) 		1-82698-588-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98254-842-0 01 1 1412- ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
MJT7 M/T<Y9E> (A) 		1-82698-479-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (I) 		1-82698-570-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(B) L=82 B=20 		1-47478-420-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(J) 		8-97638-177-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
FULL TRAILER PIPING<Z25> (J) 		8-97638-177-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(K) L=120 H=35 		1-82698-088-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
EXC. SMOOTHER-G(C1W) (K) L=120 H=35 		1-82698-088-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(D) 		1-82698-556-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(L) L=160 H=30 		1-47479-759-0 01 1 1303- ● ●
312 BRACKET; CLIP HARNESS
(F) 		8-98035-927-1 01 1 1009- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-98052-591-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(M) 		8-97636-868-1 01 1 1303- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82698-443-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
EXC. FULL TRAILER PIPING<Z25> (J) 		8-97635-477-2 01 1 1303- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (I) 		1-82698-570-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (L) L=160 H=40 		8-97629-006-0 01 1 1303-1411 ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (L) L=160 H=40 		8-97629-006-0 01 1 1412- ●
312 BRACKET; CLIP HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) 		1-82698-586-0 01 1 1009- ●

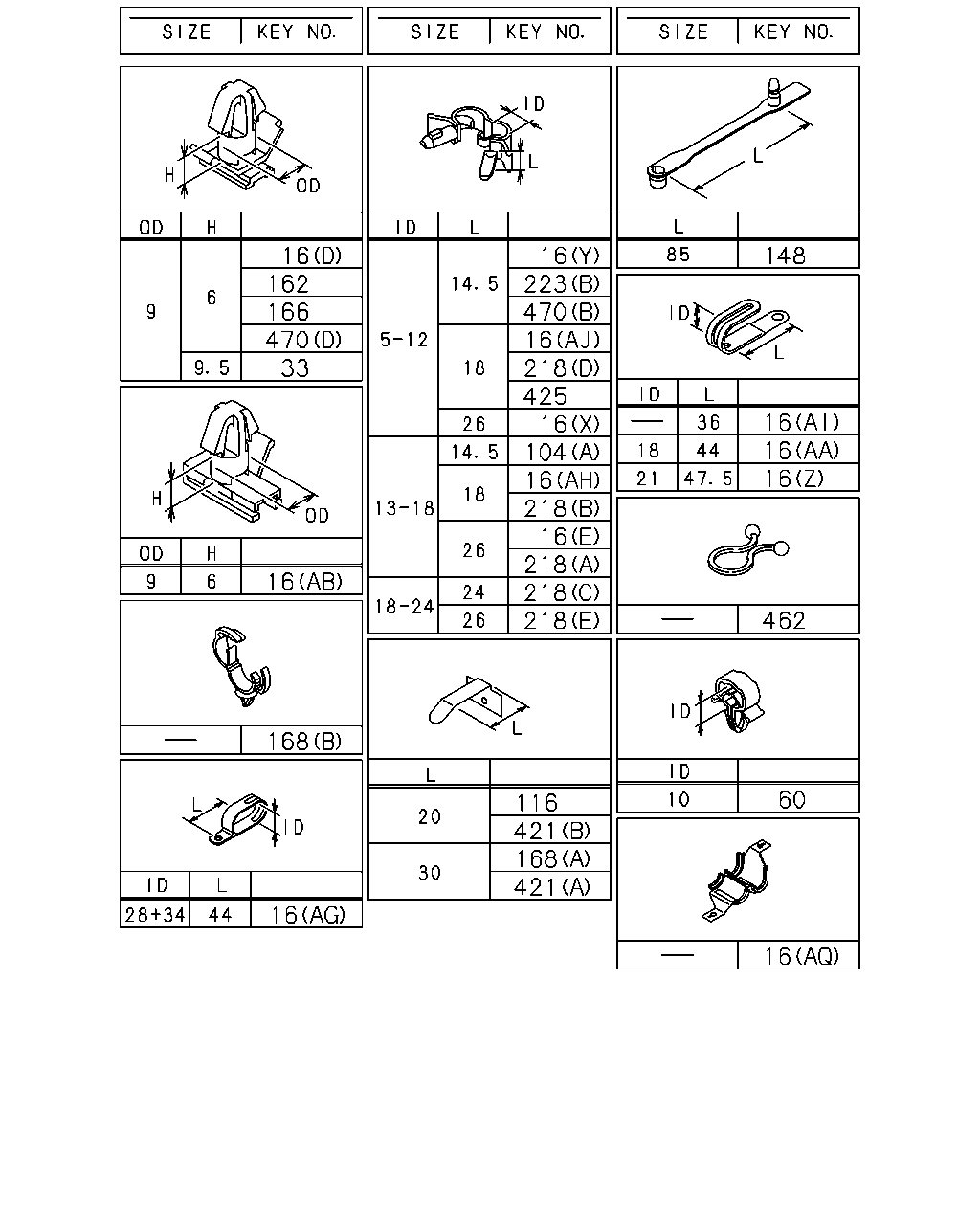

çizim 168632
16 166 162 470 16 33 168 16 16 470 223 16 425 104 218 218 218 218 116 421 168 421 148 16 16 16 462 60 16 16 16 218
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (AC) ID=14 L=44 		9-09917-427-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 1305- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302 ● ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1304-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) ID=11 L=16 		0-95235-025-0 01 1 1303- ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 02 1 1009- ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009- ● ●

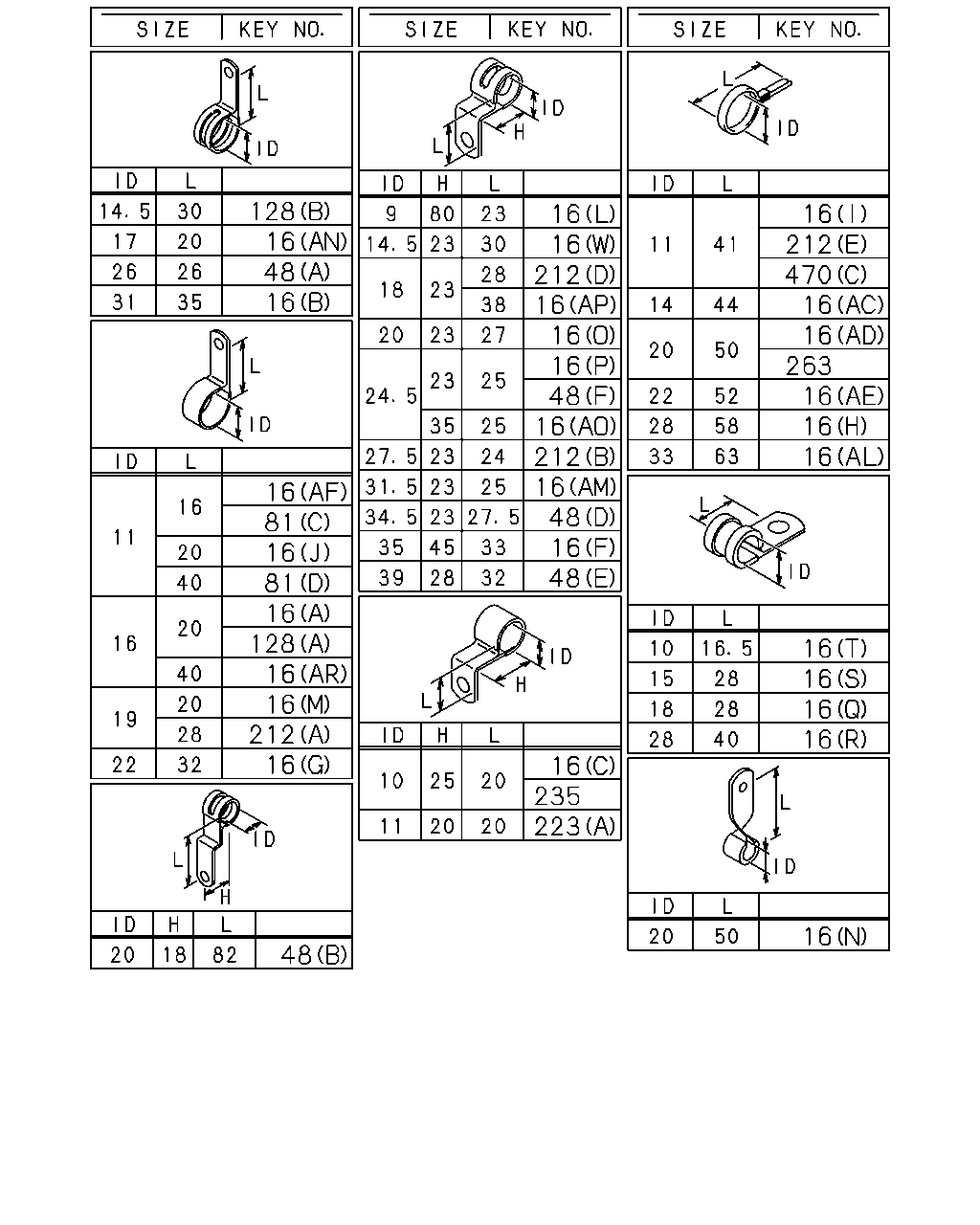

16 CLIP; HARNESS
(Q) ID=18 L=28 		1-09701-067-0 03 1 1009- ● ●
16 CLIP; HARNESS
(R) ID=28 L=40 		1-09701-261-0 01 1 1009- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009- ● ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=10 L=16.5 		8-98082-034-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 09 1 1009-1205 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 09 1 1206-1302 ●
16 CLIP; HARNESS
(AR) ID=16 L=40 		0-95235-576-0 01 1 1303- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1303- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1412- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1303-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1412- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (K) L=250 		5-09707-030-1 03 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1303-1411 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 03 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 02 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) L=350 		1-09707-183-0 02 1 1303- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (A) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303- ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 04 1 1303-1303 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1103-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AL) ID=33 L=63 		1-09700-807-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 05 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (AC) ID=14 L=44 		9-09917-427-0 04 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 07 1 1303- ● ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1303- ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(A) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1303- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 1303-1304 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1305-1411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-1411 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 1009- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1303- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AN) ID=17 L=20 		8-97619-251-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 06 1 1303- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1009-1411 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1009-1302 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1303-1303 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (D) OD=9 H=6 		1-09709-178-0 07 1 1009- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) OD=9 H=9.5 		1-09709-179-0 01 1 1009- ●
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 1009-1302 ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1303- ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 04 1 1009-1302 ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 1303- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1009-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1009- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
166 CLIP; HARNESS CLU SW
OD=9 H=6 		1-09709-178-0 01 1 1009-1302 ●
166 CLIP; HARNESS CLU SW
EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 1009-1302 ●
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1412- ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 1009-1302 ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 1303- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1009-1302 ● ●
218 CLIP; BAND,RR COMB
FULL TRACTOR TRUCK<RD6> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=13-18 L=26 		1-09709-293-0 05 1 1412-1510 ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=13-18 L=26 		1-09709-293-0 05 1 1511- ●
218 CLIP; BAND,RR COMB
FULL TRACTOR TRUCK<RD6> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) ID=18-24 L=26 		1-09709-296-0 01 1 1412-1510 ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) ID=18-24 L=26 		1-09709-296-0 01 1 1511- ●
218 CLIP; BAND,RR COMB
EXC. HONG KONG EQUIPMENT(PQ1),FULL TRACTOR TRUCK<RD6>,SINGAPORE EQUIPMENT(WQ3) (A) ID=13-18 L=26 		1-09709-293-0 06 1 1412-1510 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) (A) ID=13-18 L=26 		1-09709-293-0 06 1 1009-1302 ●
218 CLIP; BAND,RR COMB
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4900MM(49W) (B) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1302 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5300MM(53W) (B) ID=13-18 L=18 		1-09709-291-0 07 1 1009-1302 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5300MM(53W) (A) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) ID=13-18 L=18 		1-09709-291-0 03 1 1009-1411 ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 03 1 1412- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1411 ●
218 CLIP; BAND,RR COMB
(C) ID=18-24 L=18 		1-09709-294-0 01 1 1412- ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1302 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303-1510 ●
223 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1009-1302 ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 1009-1302 ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 1009- ●
425 CLIP; MODULATOR
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=5-12 L=18 		1-09709-287-0 01 1 1511- ●
462 CLIP; HARNESS,HTR
HEATER & DEFROSTER(C41) ID=20 		1-09709-068-0 02 1 1412- ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 1009-1302 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 04 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 03 1 1009-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 05 1 1112-1302 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1303- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=11 L=41 		1-09700-403-0 01 1 1112-1302 ●
470 CLIP; HARNESS,LICENSE LAMP
(D) OD=9 H=6 		1-09709-178-0 01 1 1303- ●

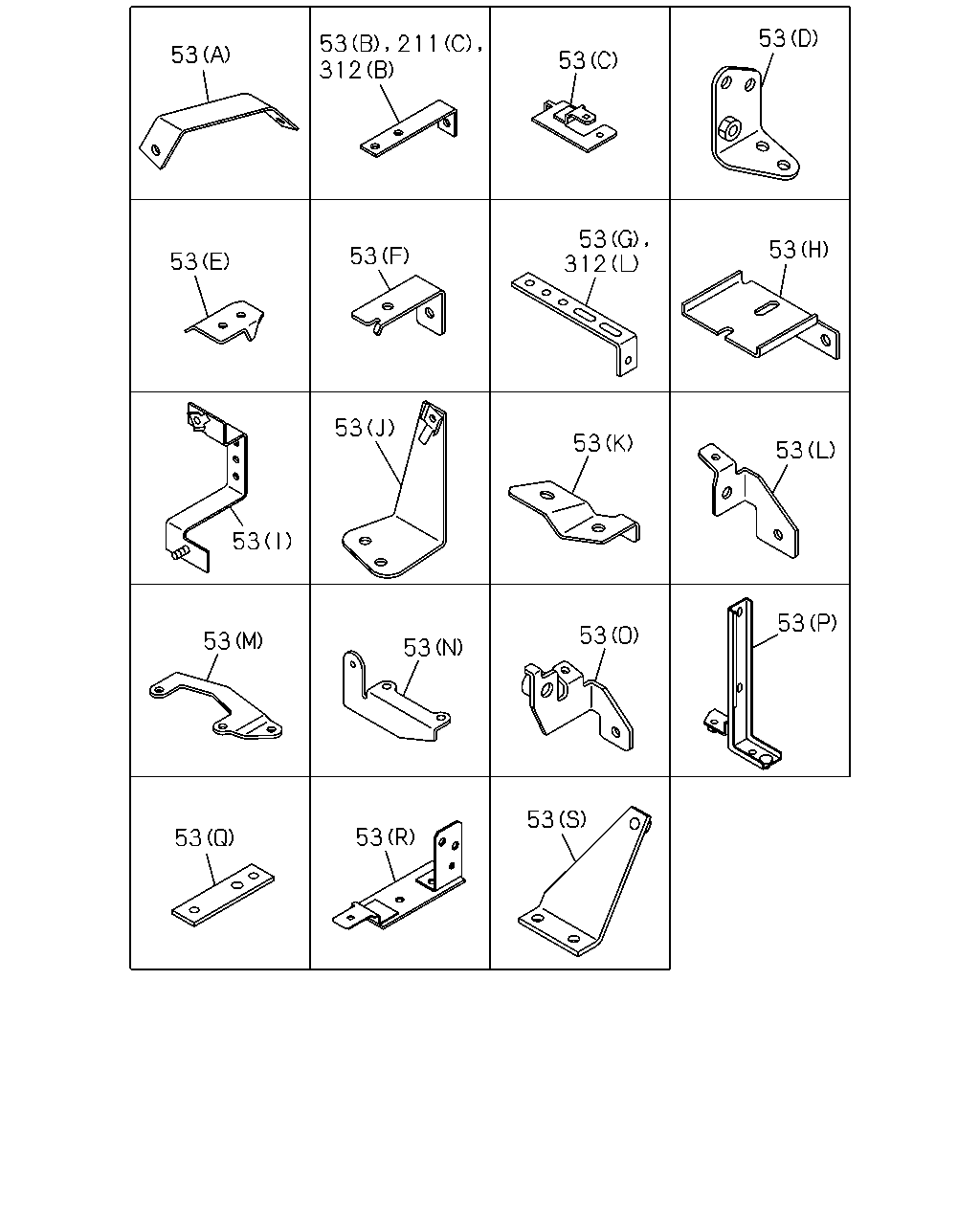

çizim 168650
53 53 53 53 53 53 53 53 53 53 211 312 53 53 312 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(Q) L=130 		1-47478-959-0 02 1 1303- ●
53 BRACKET; HARNESS
(E) 		8-97625-412-0 02 1 1009-1302 ● ●
53 BRACKET; HARNESS
(P) 		8-98227-138-0 01 1 1303- ● ●
53 BRACKET; HARNESS
(F) 		8-97625-794-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(K) 		8-97630-437-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(L) 		8-98123-473-1 01 1 1009-1111 ● ●
53 BRACKET; HARNESS
(O) 		8-98194-068-0 01 1 1112- ● ●
53 BRACKET; HARNESS
(M) 		8-98123-474-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(N) 		8-98123-475-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 10 1 1009-1302 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1303-1510 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1511- ● ●
53 BRACKET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-47479-537-0 02 1 1511- ●
53 BRACKET; HARNESS
(G) L=160 H=30 		1-47479-759-0 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 03 1 1303- ● ●
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(R) 		8-97638-190-0 01 1 1303- ● ●
53 BRACKET; HARNESS
(H) 		8-98032-696-0 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(S) 		8-98227-141-0 01 1 1303- ● ●
53 BRACKET; HARNESS
(I) 		8-98050-989-0 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1303- ● ●
53 BRACKET; HARNESS
(J) 		8-98052-592-0 01 1 1009-1302 ● ●
53 BRACKET; HARNESS
(E) 		8-97625-412-0 02 1 1303- ● ●
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1009- ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=95 		1-82699-085-0 02 1 1009-1302 ●
211 BRACKET; AXLE HARNESS
(A) L=95 		1-82699-085-0 02 1 1009-1302 ●
211 BRACKET; AXLE HARNESS
(A) L=95 		1-82699-085-0 02 1 1303- ●
211 BRACKET; AXLE HARNESS
(B) 		1-47479-430-0 02 1 1303- ●
211 BRACKET; AXLE HARNESS
(C) 		1-82698-588-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98254-842-0 01 1 1412- ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
MJT7 M/T<Y9E> (A) 		1-82698-479-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (I) 		1-82698-570-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(B) L=82 B=20 		1-47478-420-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(J) 		8-97638-177-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
FULL TRAILER PIPING<Z25> (J) 		8-97638-177-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(K) L=120 H=35 		1-82698-088-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
EXC. SMOOTHER-G(C1W) (K) L=120 H=35 		1-82698-088-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(D) 		1-82698-556-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(L) L=160 H=30 		1-47479-759-0 01 1 1303- ● ●
312 BRACKET; CLIP HARNESS
(F) 		8-98035-927-1 01 1 1009- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-98052-591-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
(M) 		8-97636-868-1 01 1 1303- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82698-443-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
EXC. FULL TRAILER PIPING<Z25> (J) 		8-97635-477-2 01 1 1303- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (I) 		1-82698-570-0 01 1 1009-1302 ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (L) L=160 H=40 		8-97629-006-0 01 1 1303-1411 ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (L) L=160 H=40 		8-97629-006-0 01 1 1412- ●
312 BRACKET; CLIP HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (H) 		1-82698-586-0 01 1 1009- ●
çizim 168669
14 51 67 81 102 104 206 212 305 369 14 16 81 102 111 121 142 171 194 208 305 369 380 470 14 194 212 14 48 102 194 380 16 51 142 208 369 16 16 142
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250 		5-09707-030-1 02 1 1303- ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) L=140 		5-09707-031-1 01 1 1303- ●
14 CLIP; BAND,HARNESS
(C) L=250 		1-09707-126-0 02 1 1009- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-1302 ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1303- ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (AC) ID=14 L=44 		9-09917-427-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 1305- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302 ● ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1304-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) ID=11 L=16 		0-95235-025-0 01 1 1303- ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 02 1 1009- ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=28 		1-09701-067-0 03 1 1009- ● ●
16 CLIP; HARNESS
(R) ID=28 L=40 		1-09701-261-0 01 1 1009- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009- ● ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=10 L=16.5 		8-98082-034-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 09 1 1009-1205 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 09 1 1206-1302 ●
16 CLIP; HARNESS
(AR) ID=16 L=40 		0-95235-576-0 01 1 1303- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1303- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1412- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1303-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1412- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (K) L=250 		5-09707-030-1 03 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1303-1411 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 03 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 02 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) L=350 		1-09707-183-0 02 1 1303- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (A) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303- ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 04 1 1303-1303 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1103-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AL) ID=33 L=63 		1-09700-807-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 05 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (AC) ID=14 L=44 		9-09917-427-0 04 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 07 1 1303- ● ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1303- ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(A) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1303- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 1303-1304 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1305-1411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-1411 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 1009- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1303- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AN) ID=17 L=20 		8-97619-251-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 06 1 1303- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1009-1411 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1009-1302 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1303-1303 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (D) OD=9 H=6 		1-09709-178-0 07 1 1009- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 01 1 1303- ● ●
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 03 1 1303- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1303-1411 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1412-1510 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1411 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1412- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1303- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1009-1302 ● ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1303-1411 ● ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1412-1412 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1412-1412 ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1412- ●
51 CLIP; COOLER CMPR
HEATER & DEFROSTER(C41) SINGAPORE EQUIPMENT(WQ3) (A) L=180 		1-09707-162-1 01 1 1412- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1412- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1009-1302 ● ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1303-1411 ● ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1412-1412 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1412-1412 ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1412- ●
51 CLIP; COOLER CMPR
HEATER & DEFROSTER(C41) SINGAPORE EQUIPMENT(WQ3) (B) L=140 		5-09707-031-1 01 1 1412- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1412- ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 1009-1302 ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> TRANSMISSION CONTROL CABLE TYPE(C1A) L=140 		5-09707-031-1 01 1 1303- ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 1009-1302 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (A) L=250 		5-09707-030-1 02 1 1009-1302 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16 		0-95235-025-0 01 1 1303- ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 08 1 1009-1302 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (B) L=140 		5-09707-031-1 08 1 1009-1302 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=40 		0-95235-075-0 01 1 1303- ●
81 CLIP; HARNESS
FRONT SPOILER<VP1> (B) L=140 		5-09707-031-1 04 1 1009-1302 ●
102 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 1303- ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 1101-1302 ● ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 1303-1411 ●
102 CLIP; BAND
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=350 		1-09707-183-0 01 1 1412- ●
102 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) (B) L=250 		5-09707-030-1 01 1 1009- ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302 ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 04 1 1009-1302 ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 1303- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 1009-1302 ● ●
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 1303- ●
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 1009-1207 ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208- ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 02 1 1009-1205 ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 02 1 1206- ● ●
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 01 1 1009- ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1009-1302 ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1303-1411 ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1412-1510 ●
171 CLIP; STARTER HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=250 		5-09707-030-1 02 1 1412-1510 ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1511- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 1303- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 1009-1202 ●
194 CLIP; BAND
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (B) L=350 		1-09707-183-0 05 1 1009-1202 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1203-1302 ●
194 CLIP; BAND
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (B) L=350 		1-09707-183-0 06 1 1203-1302 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 1303-1303 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1303-1305 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1306-1307 ●
194 CLIP; BAND
WHEEL BASE 6300MM(63W) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=350 		1-09707-183-0 01 1 1306-1307 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1308-1410 ●
194 CLIP; BAND
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 01 1 1411- ●
194 CLIP; BAND
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (B) L=350 		1-09707-183-0 01 1 1009-1302 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1303- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1009- ● ●
194 CLIP; BAND
(C) L=250 		5-09707-030-1 01 1 1009-1302 ● ●
194 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) (C) L=250 		5-09707-030-1 06 1 1009-1302 ●
194 CLIP; BAND
MJX12P M/T SMOOTHER-G(Y4S) (C) L=250 		5-09707-030-1 09 1 1303- ●
194 CLIP; BAND
WHEEL BASE 6300MM(63W) (B) L=350 		1-09707-183-0 06 1 1009-1202 ●
194 CLIP; BAND
WHEEL BASE 6300MM(63W) (B) L=350 		1-09707-183-0 07 1 1203-1302 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1009- ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
208 CLIP; HARNESS,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=250 		5-09707-030-1 01 1 1303-1303 ●
208 CLIP; HARNESS,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=250 		5-09707-030-1 01 1 1303-1303 ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
208 CLIP; HARNESS,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=250 		5-09707-030-1 01 1 1303-1303 ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1304-1304 ● ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) L=250 		5-09707-030-1 01 1 1304-1304 ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1305- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=250 		5-09707-030-1 01 1 1009-1302 ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1303- ● ●
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302 ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (D) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302 ●
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302 ●
305 CLIP; ENG HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=140 		5-09707-031-1 01 1 1511- ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1009-1302 ● ●
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 04 1 1303- ● ●
369 CLIP; BAND EDS HARNESS
(A) L=180 		1-09707-162-1 01 1 1009-1302 ● ●
369 CLIP; BAND EDS HARNESS
(C) L=140 		5-09707-031-1 01 1 1303- ● ●
369 CLIP; BAND EDS HARNESS
(B) L=250 		5-09707-030-1 01 1 1009-1302 ● ●
369 CLIP; BAND EDS HARNESS
FULL TRACTOR TRUCK<RD6> (B) L=250 		5-09707-030-1 02 1 1304-1510 ●
369 CLIP; BAND EDS HARNESS
FULL TRAILER PIPING<Z25> (B) L=250 		5-09707-030-1 02 1 1511- ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1303- ● ●
380 CLIP; EARTH HARNESS
(A) L=250 		5-09707-030-1 01 1 1009-1302 ● ●
380 CLIP; EARTH HARNESS
(A) L=250 		5-09707-030-1 02 1 1303- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 04 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 03 1 1009-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 05 1 1112-1302 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1303- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=11 L=41 		1-09700-403-0 01 1 1112-1302 ●
470 CLIP; HARNESS,LICENSE LAMP
(D) OD=9 H=6 		1-09709-178-0 01 1 1303- ●
çizim 168673
128 16 48 16 16 81 16 81 16 128 16 16 212 16 48 16 16 212 16 16 16 48 16 212 16 48 16 48 16 235 223 16 212 470 16 16 263 16 16 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3),FULL TRAILER PIPING<Z25> (AC) ID=14 L=44 		9-09917-427-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (V) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 07 1 1305- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302 ● ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1304-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1412- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1009-1302 ●
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) ID=11 L=16 		0-95235-025-0 01 1 1303- ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 02 1 1009- ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 04 1 1303- ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=28 		1-09701-067-0 03 1 1009- ● ●
16 CLIP; HARNESS
(R) ID=28 L=40 		1-09701-261-0 01 1 1009- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1303-1411 ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTLO149 18(Y4C) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (D) OD=9 H=6 		1-09709-178-0 01 1 1412-1412 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 01 1 1412- ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009- ● ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=10 L=16.5 		8-98082-034-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 09 1 1009-1205 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 09 1 1206-1302 ●
16 CLIP; HARNESS
(AR) ID=16 L=40 		0-95235-576-0 01 1 1303- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 1009-1205 ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1206-1302 ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 10 1 1303- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-1411 ● ●
16 CLIP; HARNESS
(AP) ID=18 L=38 H=23 		1-09701-147-0 01 1 1412- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 02 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> (X) ID=5-12 L=26 		1-09709-289-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 08 1 1009-1302 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1303-1303 ●
16 CLIP; HARNESS
(AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AQ) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 06 1 1009-1302 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1303-1411 ●
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 02 1 1412- ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (K) L=250 		5-09707-030-1 03 1 1009-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 03 1 1303-1411 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (K) L=250 		5-09707-030-1 03 1 1412- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 02 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (V) L=350 		1-09707-183-0 02 1 1303- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 1009-1302 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (A) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1303- ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1102 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 1103-1302 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 04 1 1303-1303 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1304-1510 ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 02 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1009-1102 ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 02 1 1103-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 1103-1302 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1304-1411 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (K) L=250 		5-09707-030-1 01 1 1412-1510 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AL) ID=33 L=63 		1-09700-807-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (AD) ID=20 L=50 		9-09917-430-0 01 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (I) ID=11 L=41 		1-09700-403-0 05 1 1009-1302 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> HONG KONG EQUIPMENT(PQ1) (AC) ID=14 L=44 		9-09917-427-0 04 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 07 1 1303- ● ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1303- ● ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1303- ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1009-1302 ●
16 CLIP; HARNESS
(A) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1303- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 03 1 1303- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1009-1302 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 1303-1304 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1305-1411 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (I) ID=11 L=41 		1-09700-403-0 02 1 1412- ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-1411 ● ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1412-1510 ●
16 CLIP; HARNESS
(AM) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 1009- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(F) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 1009-1302 ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1303- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 05 1 1009-1302 ● ●
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AN) ID=17 L=20 		8-97619-251-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AI) L=36 		8-94224-891-1 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 01 1 1009-1302 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 06 1 1303- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1009-1411 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1412-1510 ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1009-1302 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304- ● ●
16 CLIP; HARNESS
(A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1009- ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (AO) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 1303- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302 ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AE) ID=22 L=52 		9-09917-431-0 01 1 1009-1302 ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1303-1303 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1411 ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1412-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (E) ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (D) OD=9 H=6 		1-09709-178-0 07 1 1009- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302 ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 01 1 1303- ● ●
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 03 1 1303- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1303-1411 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1412-1510 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 03 1 1511- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1411 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1412- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303- ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-1302 ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1303- ●
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 1009-1302 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (A) L=250 		5-09707-030-1 02 1 1009-1302 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=16 		0-95235-025-0 01 1 1303- ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 08 1 1009-1302 ●
81 CLIP; HARNESS
EXC. FRONT SPOILER<VP1> (B) L=140 		5-09707-031-1 08 1 1009-1302 ●
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=40 		0-95235-075-0 01 1 1303- ●
81 CLIP; HARNESS
FRONT SPOILER<VP1> (B) L=140 		5-09707-031-1 04 1 1009-1302 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1009- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1009- ● ●
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 1009-1302 ● ●
212 CLIP; HORN HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302 ●
212 CLIP; HORN HARNESS
EXC. SMOOTHER-G(C1W) (D) ID=18 H=23 L=28 		1-09700-860-0 03 1 1009-1302 ●
212 CLIP; HORN HARNESS
SMOOTHER-G(C1W) (B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302 ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1302 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303-1510 ●
223 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. MJX M/T<Y9N> ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303- ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 1009-1302 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 01 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 04 1 1303- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 03 1 1009-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) L=250 		5-09707-030-1 05 1 1112-1302 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) ID=11 L=41 		1-09700-403-0 01 1 1303- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1111 ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) ID=11 L=41 		1-09700-403-0 01 1 1112-1302 ●
470 CLIP; HARNESS,LICENSE LAMP
(D) OD=9 H=6 		1-09709-178-0 01 1 1303- ●
çizim 168772
1 1 1 224 1 78 178 178 178 178 178 178 178 178 530 178 292 503 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1511- ●
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1009- ● ●
1 SLEEVE; RUBBER
(C) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1009- ● ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1009- ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1009-1302 ● ●
1 SLEEVE; RUBBER
(D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1303-1411 ● ●
1 SLEEVE; RUBBER
(D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1412-1412 ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1412-1412 ●
1 SLEEVE; RUBBER
(D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1412- ●
1 SLEEVE; RUBBER
HEATER & DEFROSTER(C41) SINGAPORE EQUIPMENT(WQ3) (D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1412- ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1412- ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (F) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1412- ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1412- ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1412-1510 ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1412-1510 ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1412-1510 ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ●
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (J) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1009-1302 ●
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1009-1302 ●
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1303-1411 ● ●
178 GROMMET; HARNESS
(B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1412- ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) W0/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 1412- ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1009-1302 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1009-1302 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1303-1411 ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1412- ●
178 GROMMET; HARNESS
WHEEL BASE 4500MM(45W) (D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1303-1411 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412- ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412- ●
178 GROMMET; HARNESS
WHEEL BASE 4500MM(45W) (F) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
WHEEL BASE 4900MM(49W) (E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
(H) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303- ● ●
178 GROMMET; HARNESS
SMOOTHER-G(C1W) (H) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303- ●
178 GROMMET; HARNESS
WHEEL BASE 4900MM(49W) (G) ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
(G) ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009-1302 ●
178 GROMMET; HARNESS
(I) ID=39 OD=45 T=13 		1-09332-076-0 02 1 1303- ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009-1302 ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1303-1411 ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1303-1411 ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1412- ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1412- ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 1412- ●
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1303-1411 ● ●
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1412- ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1412- ●
178 GROMMET; HARNESS
(A) 		1-82698-551-0 01 1 1009- ●
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (A) 		1-82698-551-0 01 1 1009- ●
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1303- ●
292 CAP; RUBBER
HEATER & DEFROSTER(C41) SINGAPORE EQUIPMENT(WQ3) 		1-82690-668-0 01 1 1412- ●
292 CAP; RUBBER 1-82690-667-0 01 1 1009-1302 ● ●
503 CONNECTOR
EXC. BRAKE SYSTEM HSA(SLD) 		1-82690-666-0 01 1 1009-1302 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 1303- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1303- ●
530 SEAL; HARNESS
EXC. SMOOTHER-G(C1W) 180X40 		1-72498-019-1 01 1 1303- ●
530 SEAL; HARNESS
SMOOTHER-G(C1W) 180X40 		1-72498-019-1 03 1 1303- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1009-1302 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 13 1 1303- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1009- ● ●
çizim 352503
334 334 335 342 342 375 504 600
BalonParca AdiParca NoAdetTipApplied Date A B
334 BRACKET
(A) 		1-53457-153-2 01 1 1009- ● ●
334 BRACKET
SMOOTHER-G(C1W) (B) 		1-82698-650-0 01 1 1009- ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1009-1304 ● ●
335 BRACKET; CONNECTOR
WHEEL BASE 4900MM(49W) 		1-82698-167-0 01 1 1305- ●
335 BRACKET; CONNECTOR
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		1-82698-167-0 01 1 1305- ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1009- ● ●
342 BRACKET; HARNESS CAB MTG
EXC. MIXER TRUCK<RA2> (B) 		1-47479-974-0 01 1 1009-1302 ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 1009-1302 ●
342 BRACKET; HARNESS CAB MTG
(B) 		8-98240-938-0 01 1 1303- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1009- ● ●
504 PROTECTOR; HARNESS
MIR O/S RR VIEW HEATED<DNN> 		1-82698-391-0 02 1 1009-1302 ●
504 PROTECTOR; HARNESS 1-82698-391-0 02 1 1009-1302 ●
504 PROTECTOR; HARNESS 1-82698-391-0 02 1 1303-1411 ●
504 PROTECTOR; HARNESS
MIR STAY O/S W/REMOTE<TBA> MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		1-82698-391-0 02 1 1412- ●
600 PROTECTOR; HEAT
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) 		8-98084-026-0 01 1 1009-1302 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
