◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#58864) — 298 parça

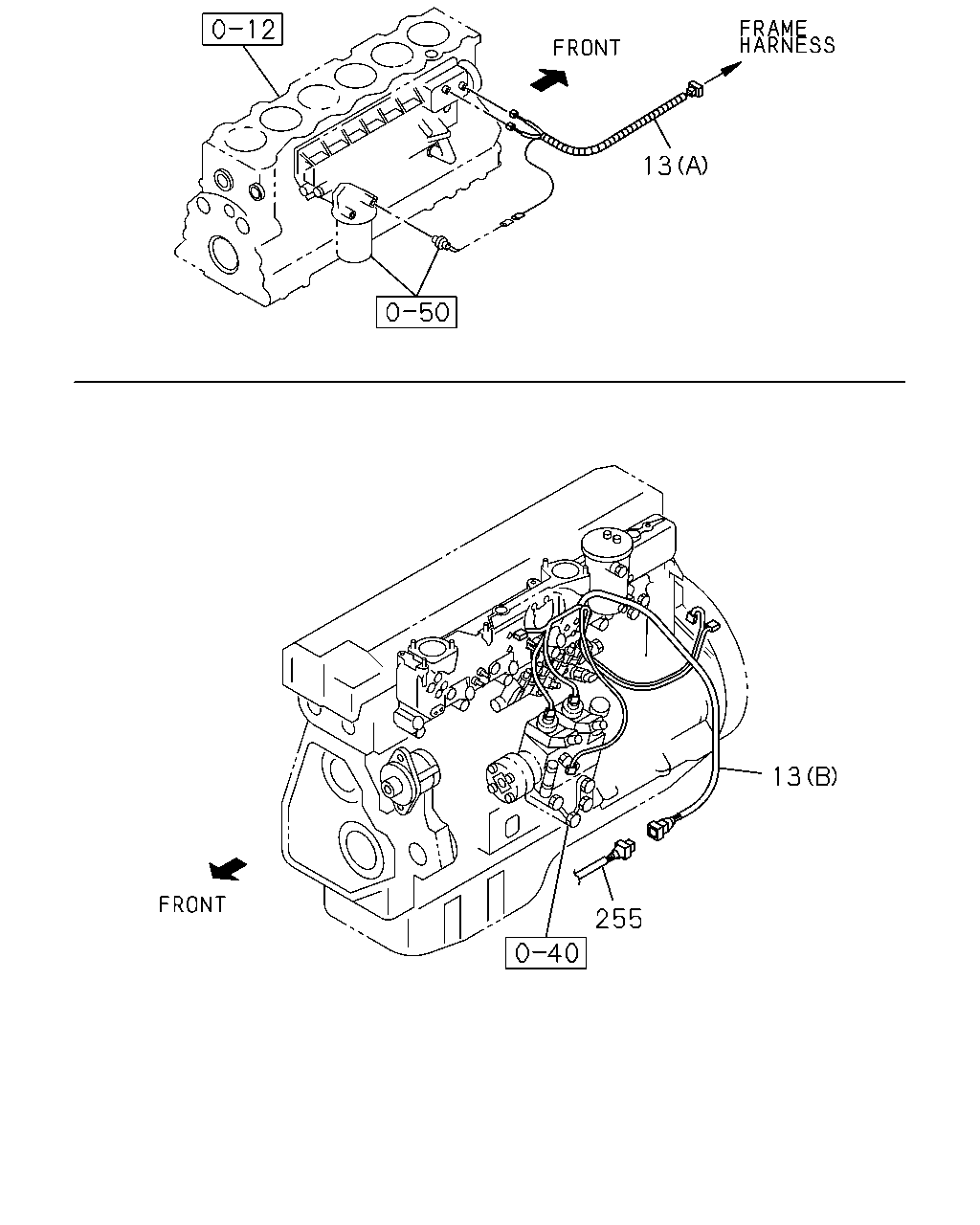

çizim 168649
13 255 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204 ● ●
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205- ● ●
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009- ● ●
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302 ● ●
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303- ● ●

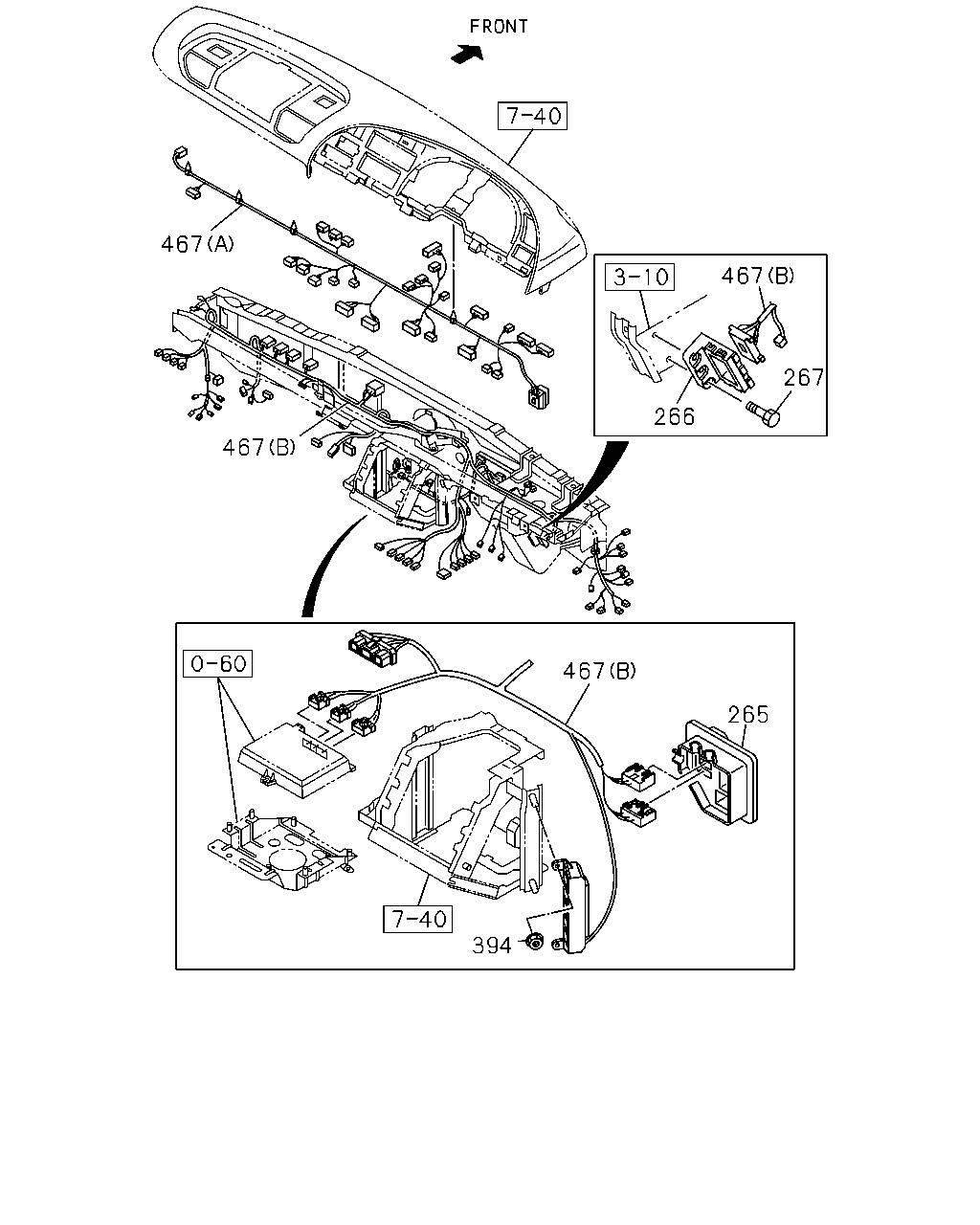

çizim 168654
467 467 394 265 67 267 266 467
BalonParca AdiParca NoAdetTipApplied Date A B
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009- ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1009- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1009- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1303-1411 ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1412- ●
394 NUT; RELAY BOX TO BODY
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6 FLANGE 		0-91180-106-0 01 1 1412- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
(B) 		8-97645-737-1 01 1 1303- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411 ●
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412- ●
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302 ● ●
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303- ● ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97635-009-2 01 1 1009-1302 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-1411 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1412- ●

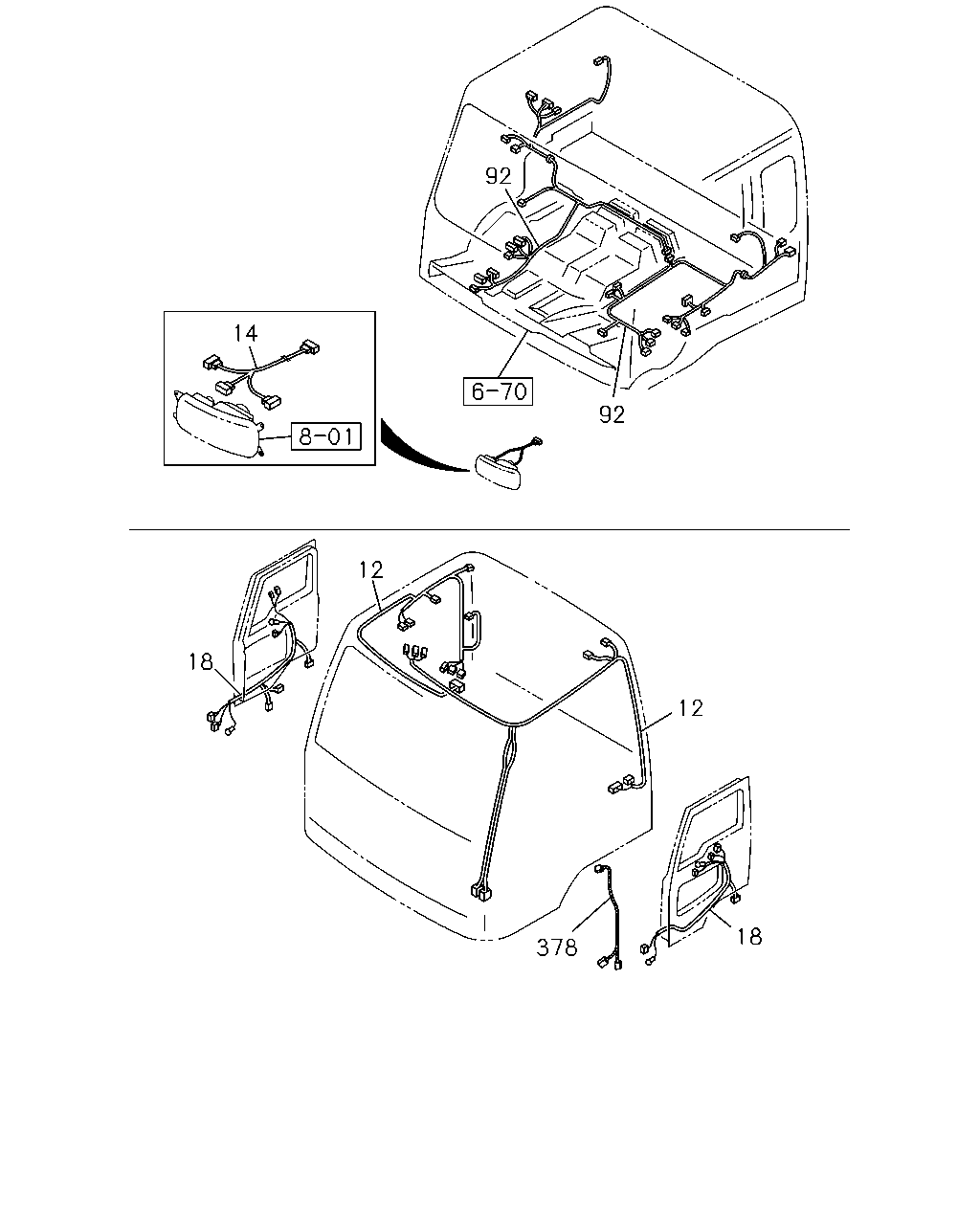

çizim 168656
92 12 18 12 18 378 14 92
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
PASSENGER SIDE 		8-97644-022-2 01 1 1303-1410 ●
12 HARNESS; ROOF
PASSENGER SIDE 		8-98284-065-0 01 1 1411- ●
12 HARNESS; ROOF
PASSENGER SIDE 		8-97611-861-1 01 1 1009-1302 ● ●
12 HARNESS; ROOF
PASSENGER SIDE 		8-97644-079-3 01 1 1303-1410 ●
12 HARNESS; ROOF
PASSENGER SIDE 		8-98284-066-0 01 1 1411- ●
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 1303- ● ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-97607-335-0 02 1 1009-1302 ● ●
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1303- ● ●
18 HARNESS; DOOR 8-97644-086-0 01 1 1303-1411 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97644-086-0 01 1 1412- ●
18 HARNESS; DOOR 8-97644-087-0 01 1 1303-1411 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97644-087-0 01 1 1412- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-060-0 01 1 1009-1302 ●
18 HARNESS; DOOR 8-97631-060-0 01 1 1009-1302 ●
18 HARNESS; DOOR 8-97632-130-0 01 1 1303- ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-061-0 01 1 1009-1302 ●
18 HARNESS; DOOR 8-97631-061-0 01 1 1009-1302 ●
18 HARNESS; DOOR 8-97632-131-0 01 1 1303- ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97644-014-1 01 1 1412- ●
92 HARNESS; FLOOR 8-97645-739-0 01 1 1303- ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-056-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-056-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97645-330-0 01 1 1303- ●
92 HARNESS; FLOOR 8-97631-425-1 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-425-1 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1303-1411 ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1412- ●
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97635-015-0 01 1 1009-1302 ●
92 HARNESS; FLOOR 8-97645-740-0 01 1 1303- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-055-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-326-0 01 1 1303-1401 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98258-216-0 01 1 1402-1411 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98258-216-0 01 1 1412- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-426-1 01 1 1009-1210 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98229-078-0 01 1 1211-1302 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-331-1 01 1 1303- ●
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 1303- ●

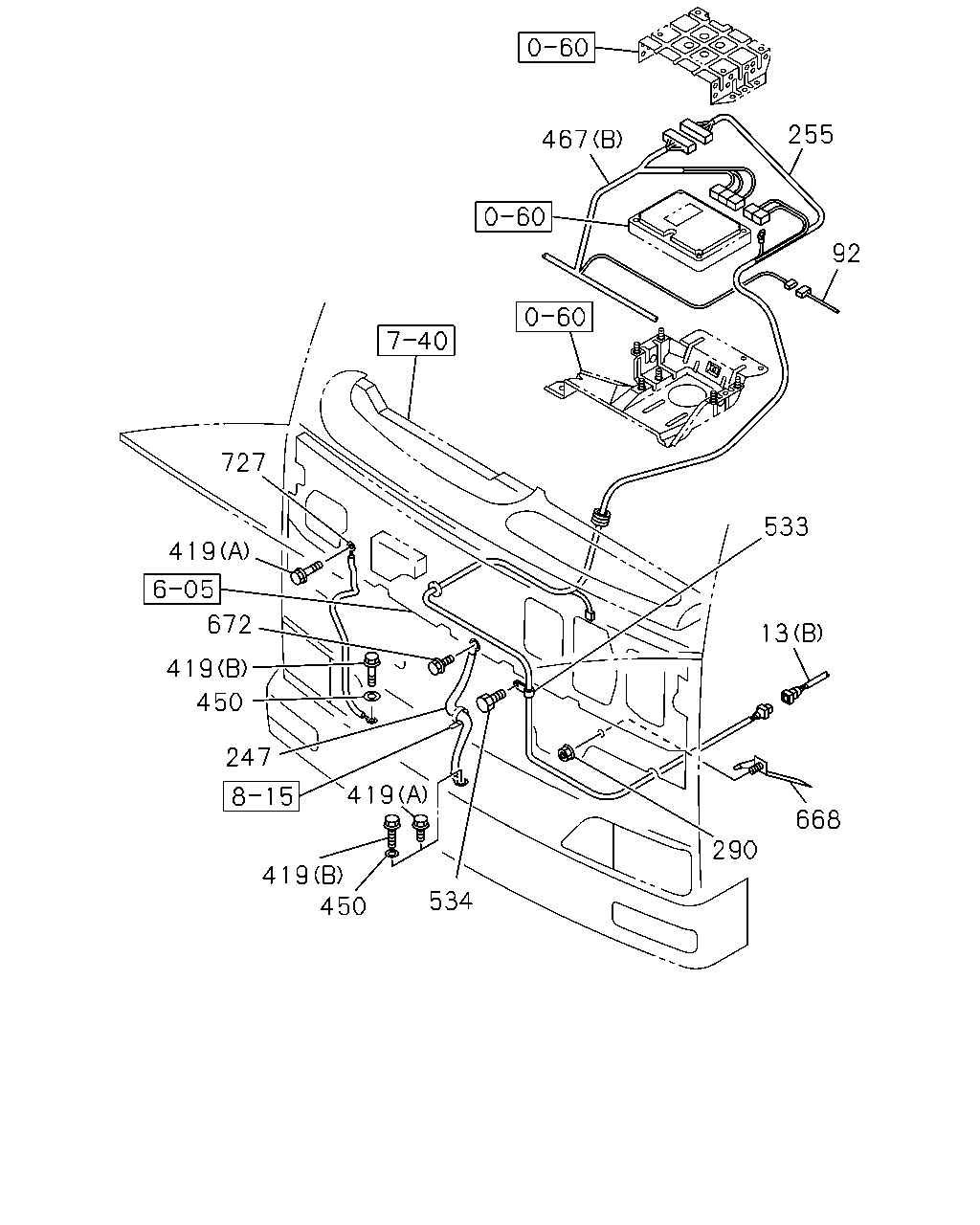

çizim 168658
467 255 92 533 13 668 290 534 419 419 450 247 450 419 672 419 727
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204 ● ●
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205- ● ●
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009- ● ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97644-014-1 01 1 1412- ●
92 HARNESS; FLOOR 8-97645-739-0 01 1 1303- ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-056-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-056-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97645-330-0 01 1 1303- ●
92 HARNESS; FLOOR 8-97631-425-1 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97631-425-1 01 1 1009-1302 ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1303-1411 ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1412- ●
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97635-015-0 01 1 1009-1302 ●
92 HARNESS; FLOOR 8-97645-740-0 01 1 1303- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-055-2 01 1 1009-1302 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-326-0 01 1 1303-1401 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98258-216-0 01 1 1402-1411 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98258-216-0 01 1 1412- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97631-426-1 01 1 1009-1210 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98229-078-0 01 1 1211-1302 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-331-1 01 1 1303- ●
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 1009- ● ●
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302 ● ●
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303- ● ●
290 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91180-108-0 01 1 1412- ●
290 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1009-1302 ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302 ● ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303- ● ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
(B) 		8-97645-737-1 01 1 1303- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411 ●
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412- ●
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302 ● ●
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303- ● ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97635-009-2 01 1 1009-1302 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-1411 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1412- ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
533 CLIP
EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 1009-1302 ●
533 CLIP
ID=35 L=35 		1-09700-684-0 01 1 1303- ●
533 CLIP
EXC. SMOOTHER-G(C1W) ID=35 L=35 		1-09700-684-0 01 1 1303- ●
533 CLIP
SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 1009- ●
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41) 		1-82698-415-1 01 1 1412- ●
668 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82698-415-1 01 1 1009-1302 ● ●
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1009-1302 ● ●
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303- ● ●
727 HARNESS; CAB,EARTH
L=760 		8-97632-854-0 01 1 1303- ● ●

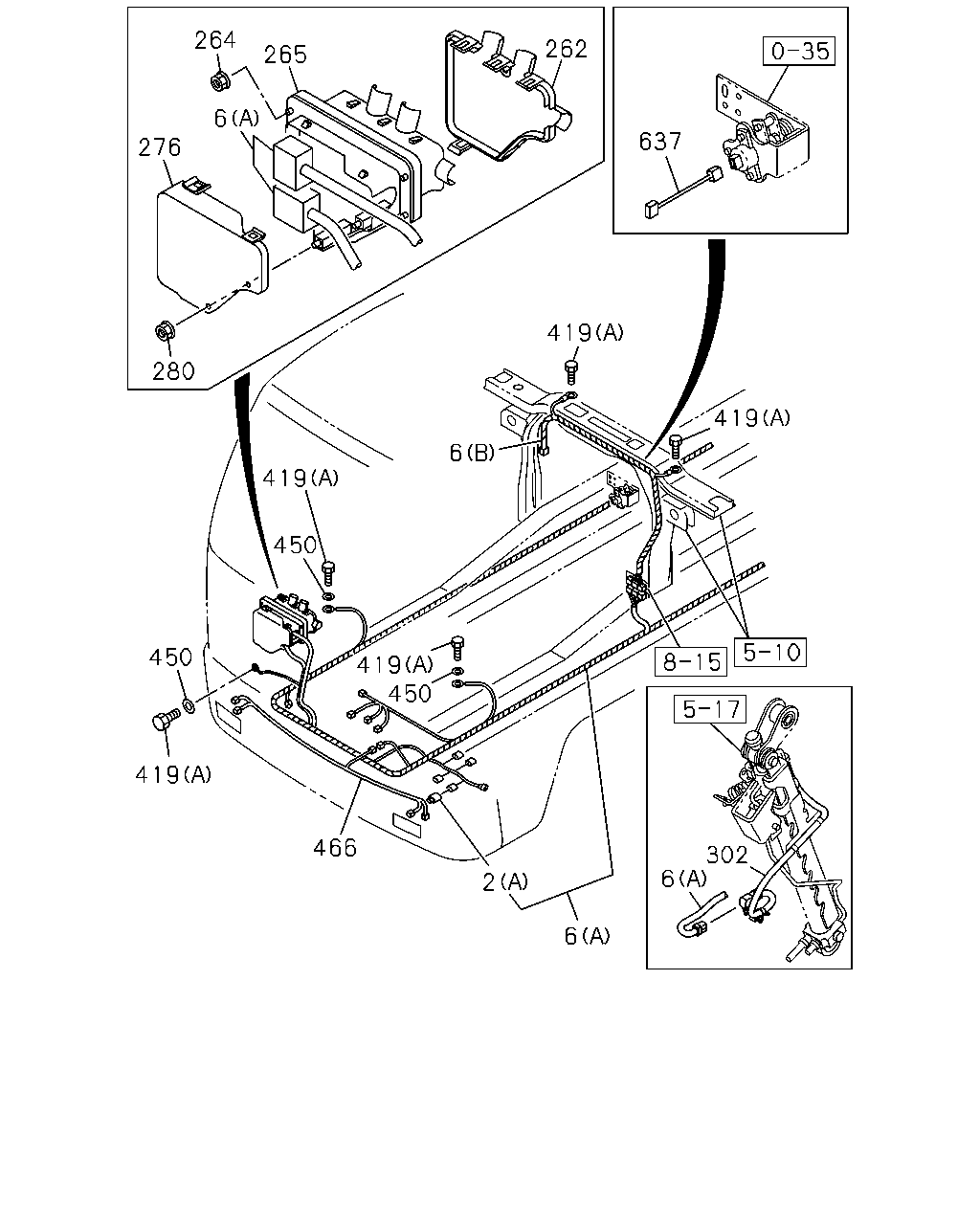

çizim 168666
264 276 280 6 265 262 637 419 419 6 419 450 450 419 466 450 419 2 6 6 302
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-1411 ●
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1412- ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302 ● ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1303- ●
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-080-0 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6100MM(61W) EXC. SMOOTHER-G(C1W) (A) 		8-98232-951-3 01 1 1303- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-082-0 01 1 1103-1302 ●
6 HARNESS; FRAME
(A) 		8-98236-445-2 01 1 1303- ●
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A) 		8-98186-081-0 01 1 1103-1302 ●
6 HARNESS; FRAME
(A) 		8-97631-066-2 01 1 1009-1102 ●
6 HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-066-2 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) SMOOTHER-G(C1W) (A) 		8-98232-953-4 01 1 1303- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97631-069-2 01 1 1009-1102 ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-069-2 01 1 1103-1302 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97631-068-2 01 1 1009-1102 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-068-2 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 4500MM(45W) (B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
(B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
(A) 		8-98232-959-2 01 1 1303-1411 ● ●
6 HARNESS; FRAME
(A) 		8-98232-959-2 01 1 1412-1502 ●
6 HARNESS; FRAME
FULL FLOATING CAB(W16) (A) 		8-98232-959-2 01 1 1412-1502 ●
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503- ●
6 HARNESS; FRAME
FULL FLOATING CAB(W16) (B) 		8-98306-826-0 01 1 1503- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97631-088-2 01 1 1009-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. SMOOTHER-G(C1W) (A) 		8-98232-952-4 01 1 1303- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1009- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1009- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1009- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009- ● ●
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1303- ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302 ● ●
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303- ● ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302 ● ●
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303- ● ●
466 HARNESS; BUMPER 8-97610-101-0 01 1 1009-1302 ●
466 HARNESS; BUMPER
EXC. FRONT SPOILER<VP1> 		8-97610-101-0 01 1 1009-1302 ●
466 HARNESS; BUMPER
FRONT SPOILER<VP1> 		8-97610-100-0 01 1 1009-1302 ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1009- ● ●

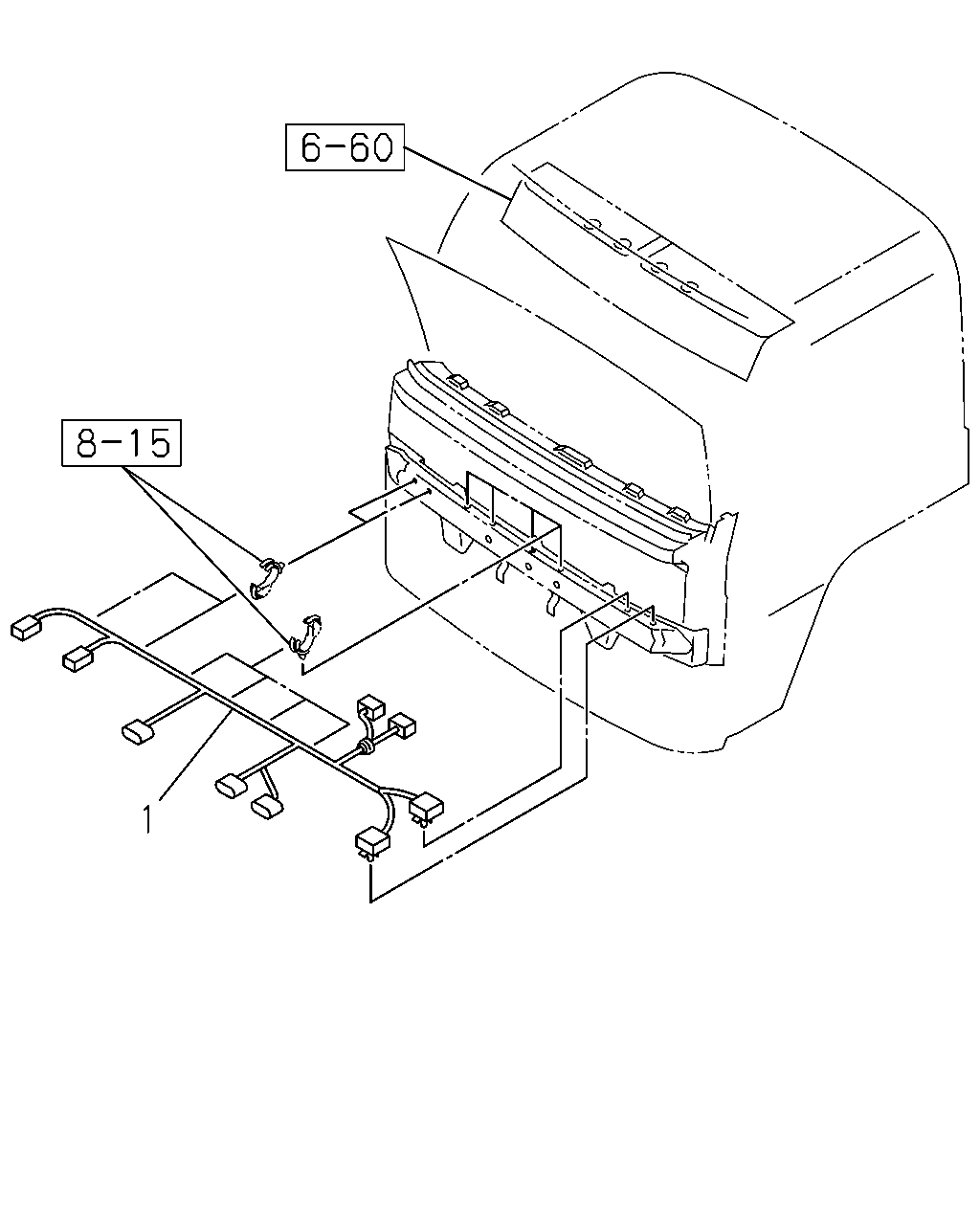

çizim 168765
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 1-82662-363-1 01 1 1303- ●

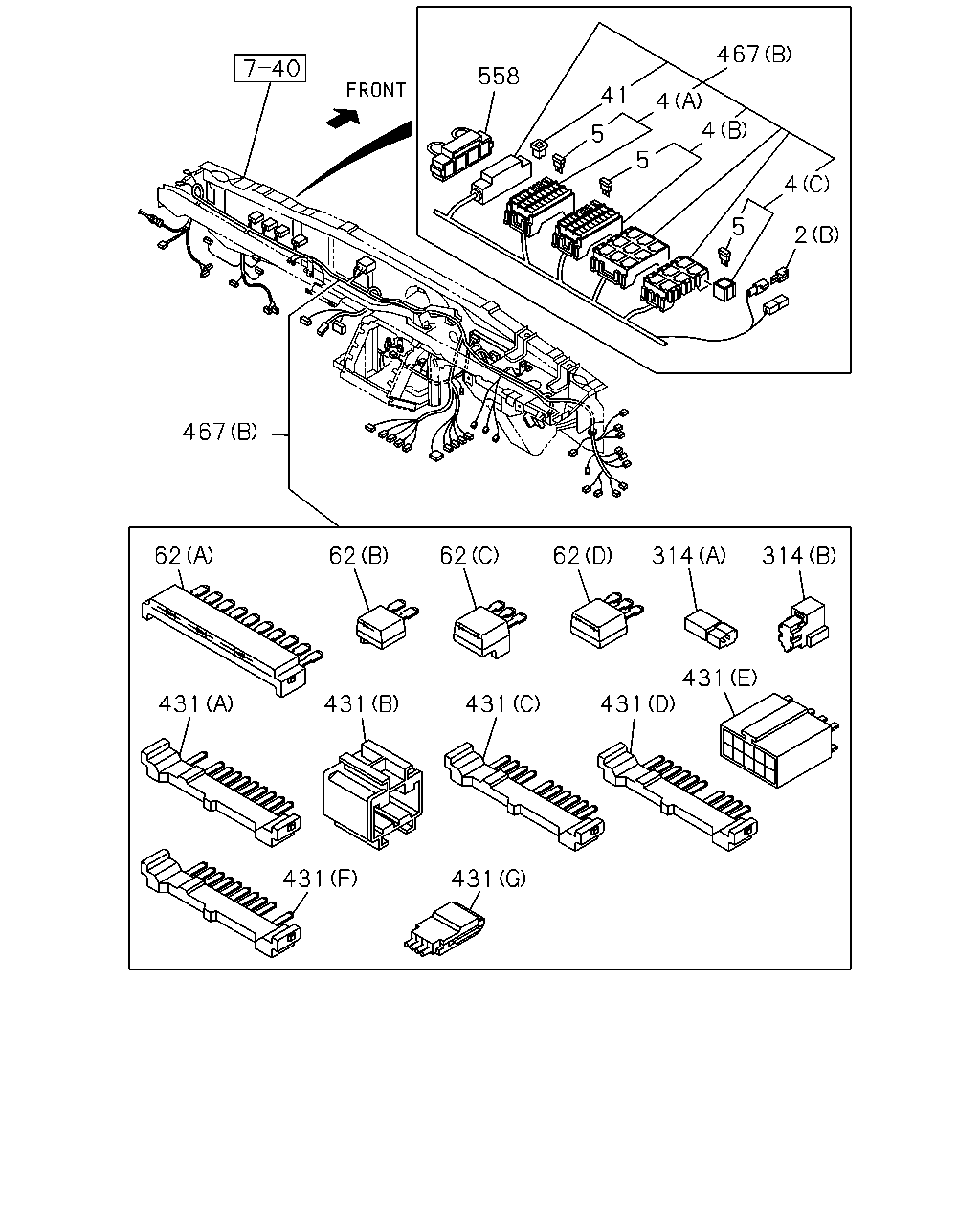

çizim 168767
467 558 41 5 5 4 467 4 4 2 5 62 62 62 62 314 314 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-1411 ●
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1412- ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302 ● ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1303- ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1303-1309 ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1310- ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1009-1302 ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1303-1309 ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 1009- ● ●
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1009- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 27 1 1303- ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1303-1309 ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1009- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1009-1302 ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1303-1309 ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 26 1 1310- ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1009- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 1009-1302 ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 1303-1309 ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1310- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1009- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1009- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1009-1302 ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-1309 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1310- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1303-1309 ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1310- ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1009-1302 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1303-1309 ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1310- ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1009- ● ●
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1009-1302 ● ●
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1303- ●
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 1009-1302 ● ●
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 1303- ●
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 1303- ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1303- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 1303-1309 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 12 1 1310- ●
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 1303-1309 ●
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 1310- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 07 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 1303- ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1303- ●
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 1009-1302 ● ●
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 1303-1309 ●
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 11 1 1310- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97635-010-2 01 1 1009-1302 ●
467 HARNESS; FACIA
(B) 		8-97645-737-1 01 1 1303- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-013-2 01 1 1009-1302 ●
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-1411 ●
467 HARNESS; FACIA
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1412- ●
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302 ● ●
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303- ● ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97635-009-2 01 1 1009-1302 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-1411 ●
467 HARNESS; FACIA
SMOOTHER-G(C1W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97645-321-2 01 1 1412- ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> 4P 		1-82629-690-0 01 1 1009-1302 ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. SMOOTHER-G(C1W) 4P 		1-82629-690-0 01 1 1009-1302 ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. SMOOTHER-G(C1W) 4P 		1-82629-690-0 01 1 1303- ●
çizim 168770
6 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-080-0 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6100MM(61W) EXC. SMOOTHER-G(C1W) (A) 		8-98232-951-3 01 1 1303- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-082-0 01 1 1103-1302 ●
6 HARNESS; FRAME
(A) 		8-98236-445-2 01 1 1303- ●
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> EXC. SMOOTHER-G(C1W) (A) 		8-98186-081-0 01 1 1103-1302 ●
6 HARNESS; FRAME
(A) 		8-97631-066-2 01 1 1009-1102 ●
6 HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-066-2 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) SMOOTHER-G(C1W) (A) 		8-98232-953-4 01 1 1303- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97631-069-2 01 1 1009-1102 ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-069-2 01 1 1103-1302 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97631-068-2 01 1 1009-1102 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-068-2 01 1 1103-1302 ●
6 HARNESS; FRAME
WHEEL BASE 4500MM(45W) (B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
(B) 		8-97631-086-1 01 1 1009-1302 ●
6 HARNESS; FRAME
(A) 		8-98232-959-2 01 1 1303-1411 ● ●
6 HARNESS; FRAME
(A) 		8-98232-959-2 01 1 1412-1502 ●
6 HARNESS; FRAME
FULL FLOATING CAB(W16) (A) 		8-98232-959-2 01 1 1412-1502 ●
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503- ●
6 HARNESS; FRAME
FULL FLOATING CAB(W16) (B) 		8-98306-826-0 01 1 1503- ●
6 HARNESS; FRAME
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) (B) 		8-97631-088-2 01 1 1009-1302 ●
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) EXC. SMOOTHER-G(C1W) (A) 		8-98232-952-4 01 1 1303- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98246-461-0 01 1 1308- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-755-0 01 1 1103-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-756-0 01 1 1103-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) (A) 		8-98186-756-1 01 1 1303-1411 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-756-1 01 1 1412- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (A) 		8-97631-073-1 01 1 1009-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (B) 		8-97631-080-1 01 1 1009-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (A) 		8-97631-074-1 01 1 1009-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (B) 		8-97631-081-1 01 1 1009-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) (A) 		8-97631-072-1 01 1 1009-1102 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-072-1 01 1 1103-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) (B) 		8-97631-079-1 01 1 1009-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) (A) 		8-97631-075-1 01 1 1009-1102 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-075-1 01 1 1103-1302 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) (B) 		8-97631-082-1 01 1 1009- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (A) 		8-97631-076-1 01 1 1009- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (B) 		8-97631-083-2 01 1 1009-1307 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) SMOOTHER-G(C1W) (B) 		8-97631-083-2 01 1 1308- ●

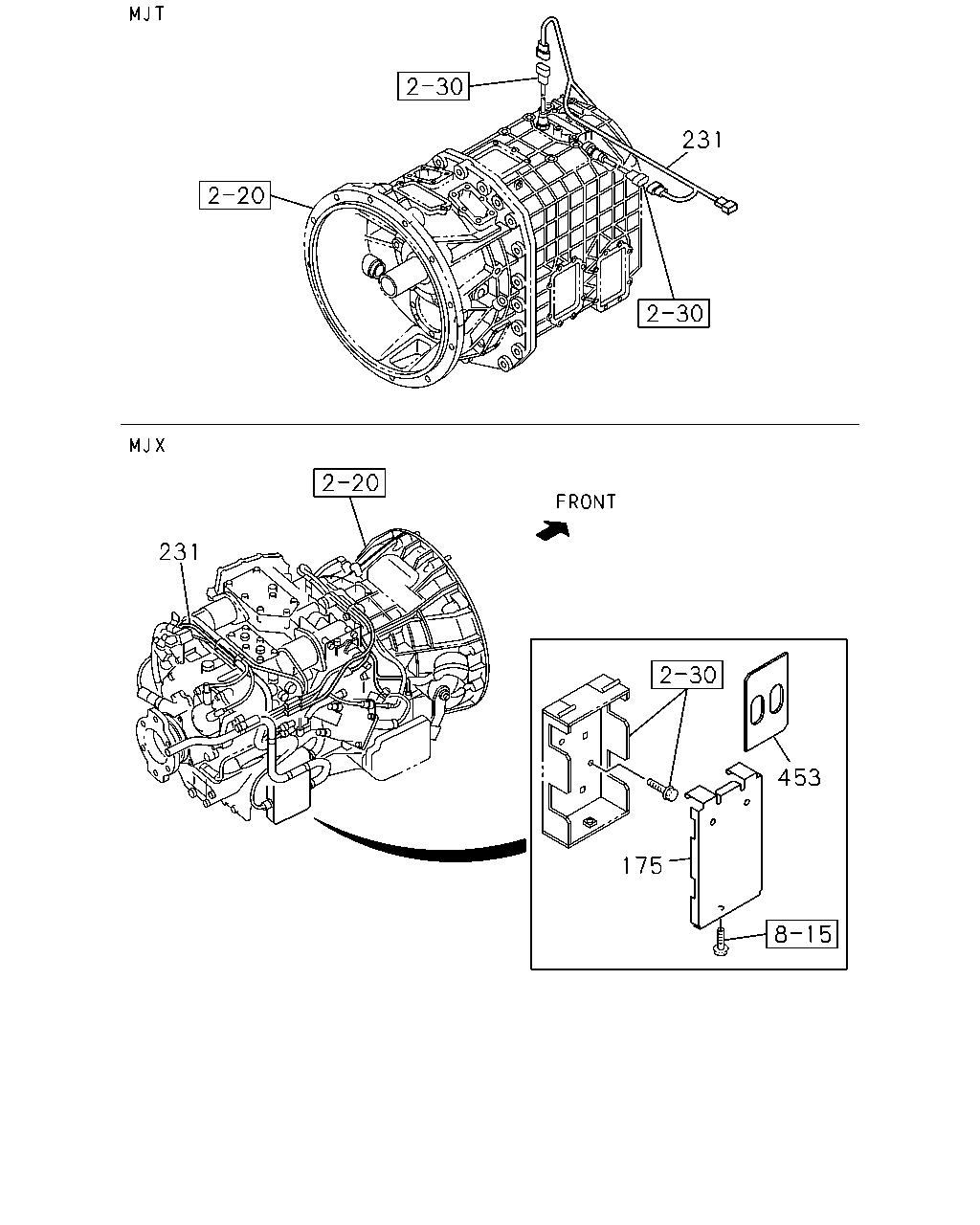

çizim 168774
231 231 453 175
BalonParca AdiParca NoAdetTipApplied Date A B
175 BOX; CONNECTOR
MJX12P M/T SMOOTHER-G(Y4S) 		1-82569-435-1 01 1 1009- ●
231 HARNESS; TRANS 8-98214-252-0 01 1 1303- ●
231 HARNESS; TRANS 8-97615-725-1 01 1 1009-1302 ●
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 1009-1302 ●
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1303- ●
231 HARNESS; TRANS
MJX12P M/T SMOOTHER-G(Y4S) 		8-97631-168-1 01 1 1009- ●
453 PROTECTOR; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) 		8-98213-847-1 01 1 1207- ●

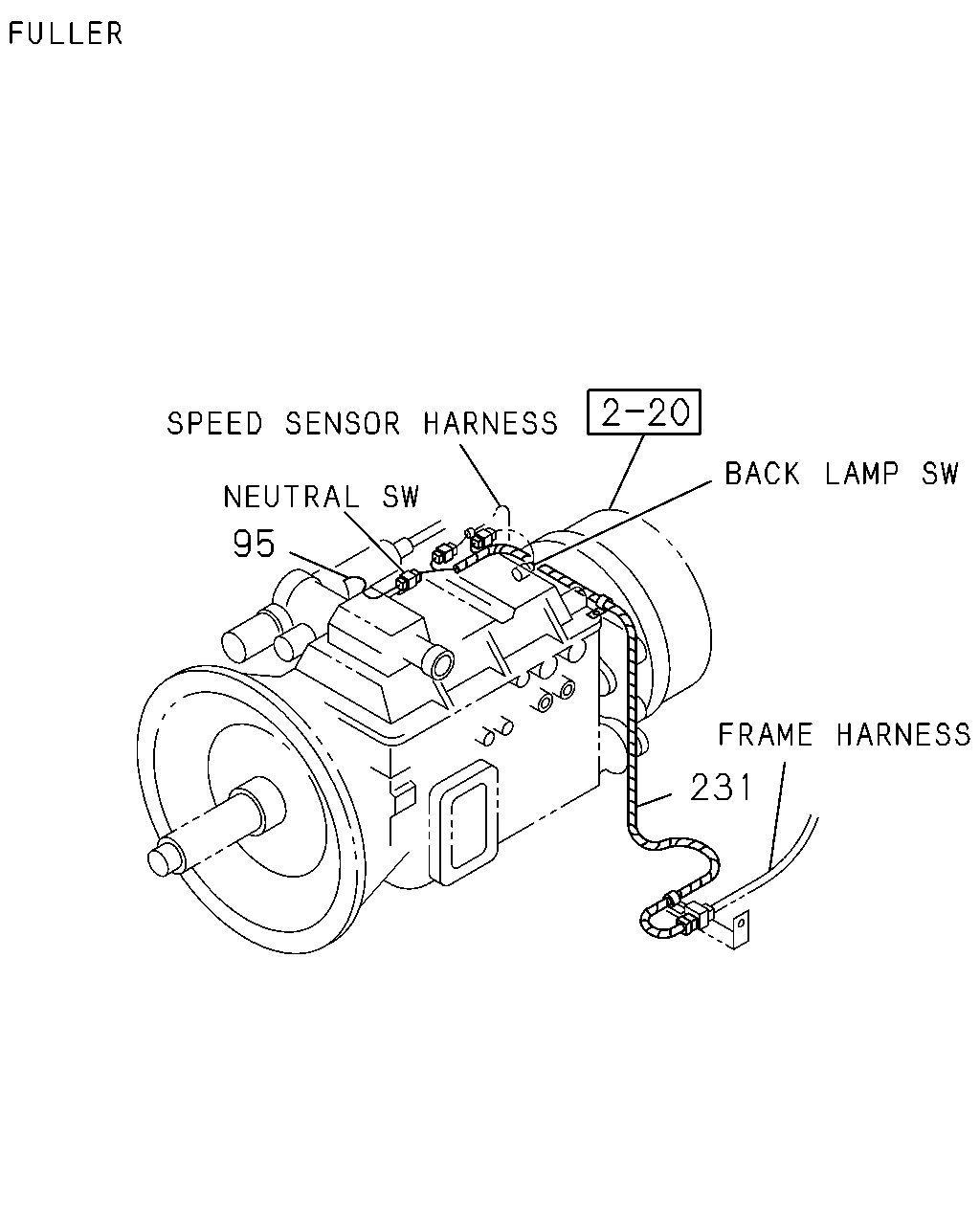

çizim 336922
231 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW 1-82639-626-0 01 1 1303- ●
231 HARNESS; TRANS 8-98214-252-0 01 1 1303- ●
231 HARNESS; TRANS 8-97615-725-1 01 1 1009-1302 ●
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 1009-1302 ●
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1303- ●
231 HARNESS; TRANS
MJX12P M/T SMOOTHER-G(Y4S) 		8-97631-168-1 01 1 1009- ●

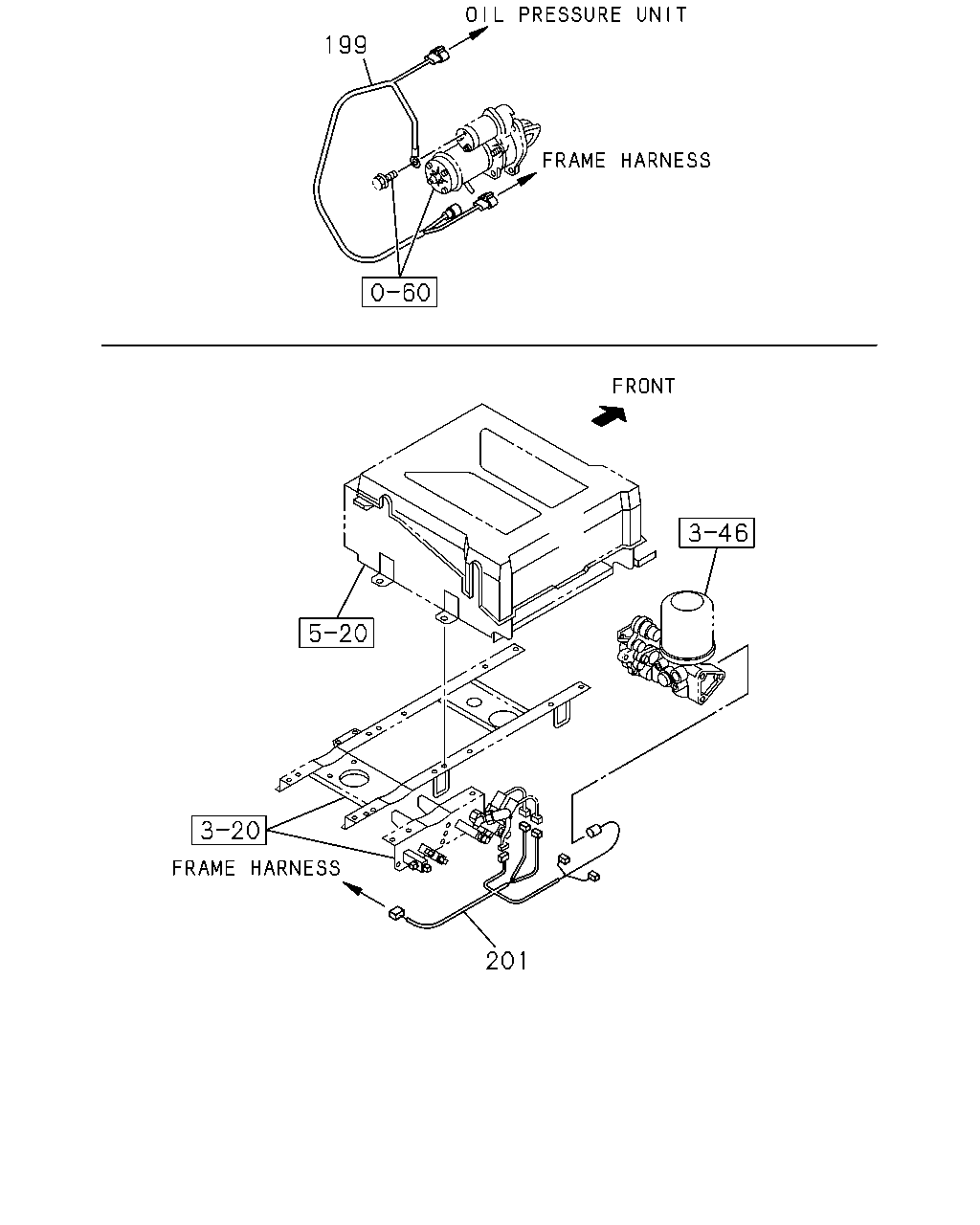

çizim 336991
199 201
BalonParca AdiParca NoAdetTipApplied Date A B
199 HARNESS; STARTER
MIXER TRUCK<RA2> 		8-97612-155-0 01 1 1009-1302 ●
199 HARNESS; STARTER
EXC. MIXER TRUCK<RA2> 		8-97607-313-0 01 1 1009-1302 ●
199 HARNESS; STARTER 8-97607-313-0 01 1 1009-1302 ●
199 HARNESS; STARTER 8-97607-313-0 01 1 1303- ● ●
201 HARNESS; AIR TANK 8-97631-094-1 01 1 1009-1302 ●
201 HARNESS; AIR TANK
EXC. SMOOTHER-G(C1W) 		8-97631-094-1 01 1 1009-1302 ●
201 HARNESS; AIR TANK 8-98232-957-2 01 1 1303-1411 ●
201 HARNESS; AIR TANK
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FULL FLOATING CAB(W16) 		8-98232-957-2 01 1 1412- ●
201 HARNESS; AIR TANK
SMOOTHER-G(C1W) 		8-97631-203-1 01 1 1009-1302 ●
201 HARNESS; AIR TANK 8-98236-452-1 01 1 1303- ●

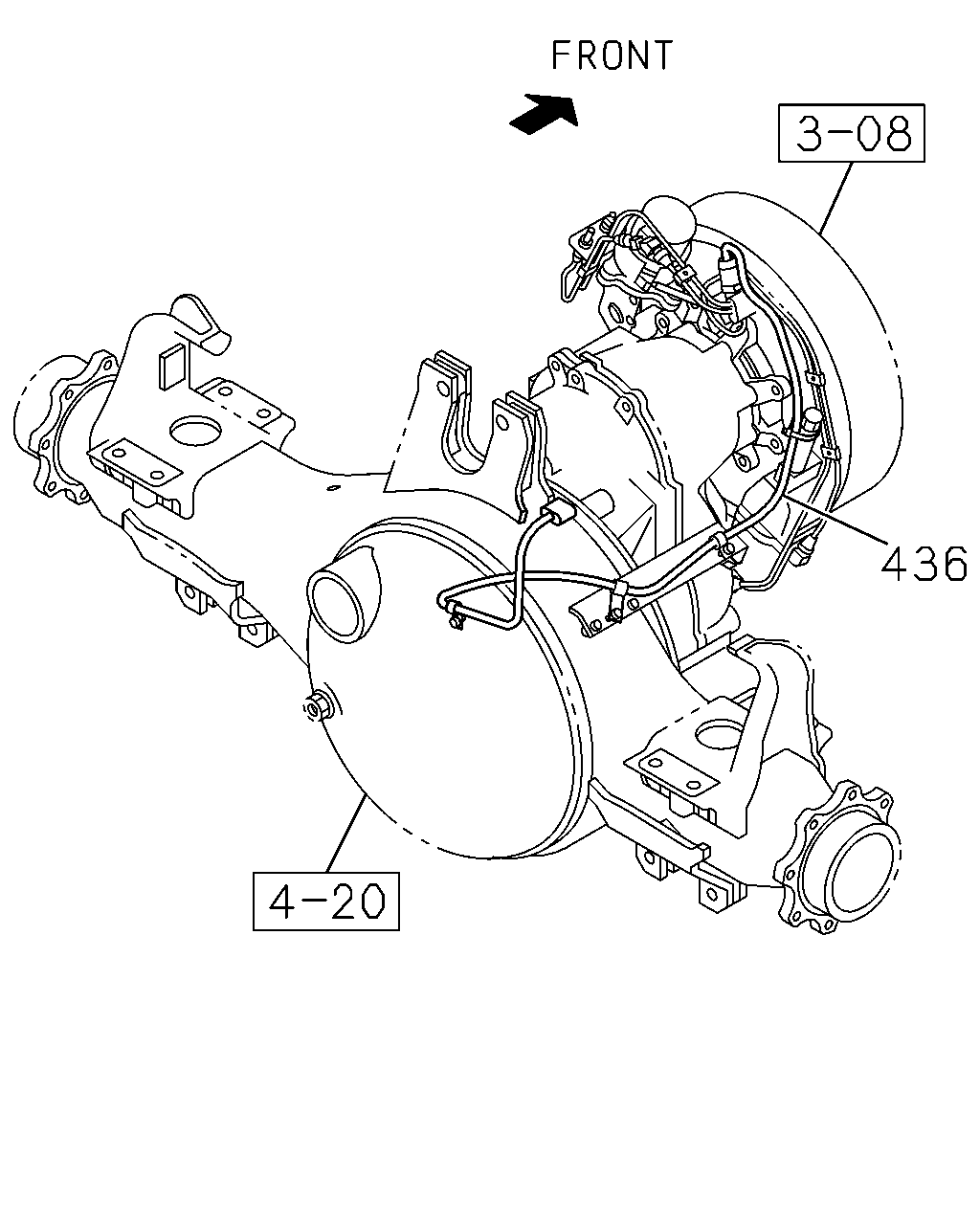

çizim 337027
436
BalonParca AdiParca NoAdetTipApplied Date A B
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-629-0 01 1 1303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
