◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#58863) — 95 parça

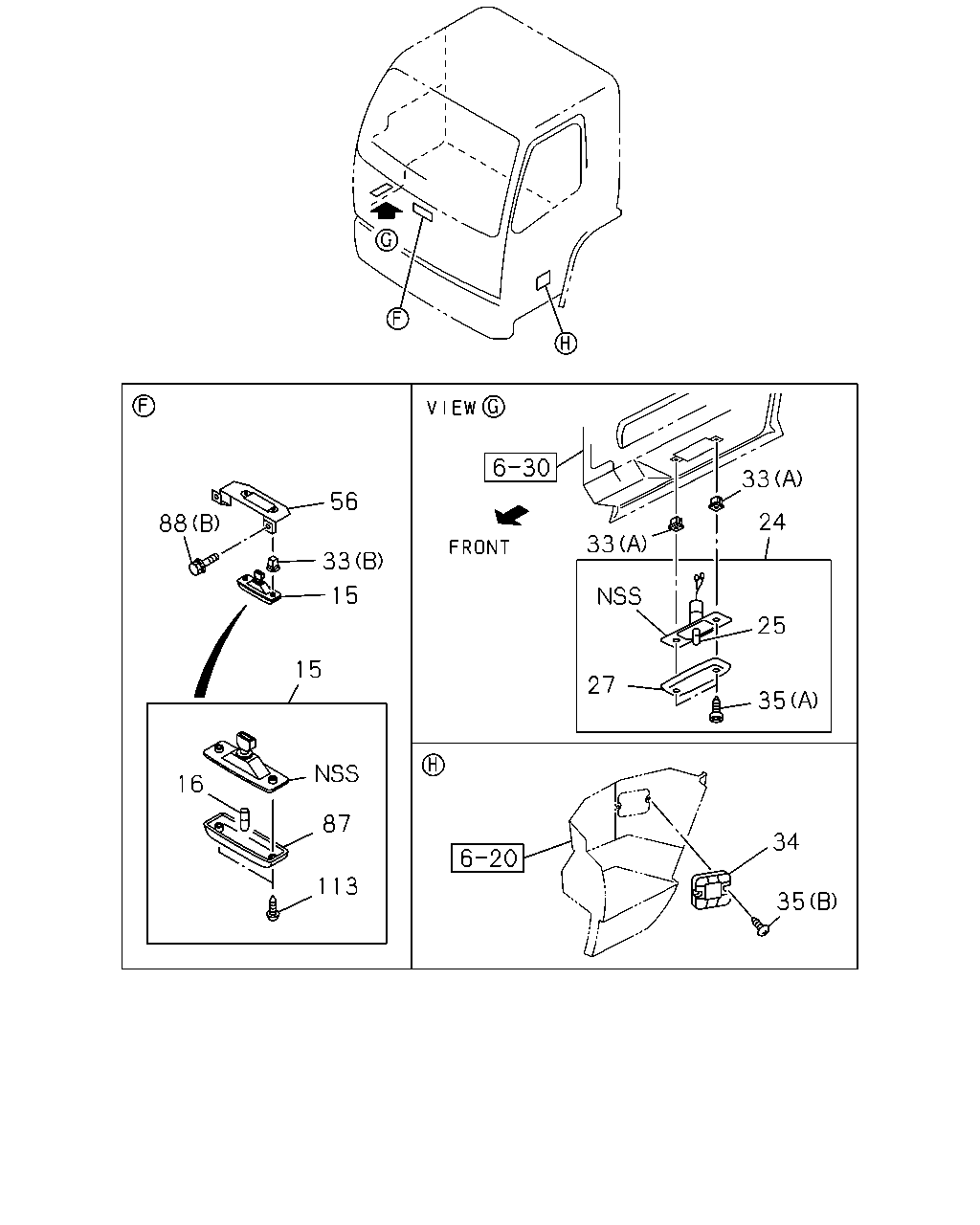

çizim 168578
88 56 33 15 15 16 87 113 33 33 27 24 25 35 34 35
BalonParca AdiParca NoAdetTipApplied Date A B
15 LAMP; INSPECTION 1-82140-052-1 01 1 1303- ●
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 1303- ●
24 LAMP; STEP 1-82140-052-1 01 1 1009- ● ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 1009- ● ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 1009- ● ●
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 1303- ●
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 1009- ● ●
34 COVER; STEP LAMP
SINGAPORE EQUIPMENT(WQ3) EXC. CORNERING LAMP<TDS> 		8-98086-130-0 02 1 1009-1302 ●
35 SCREW; STEP LAMP
SINGAPORE EQUIPMENT(WQ3) EXC. CORNERING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1009-1302 ●
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 1009- ● ●
56 BRACKET; LAMP 8-98121-191-0 01 1 1303- ●
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 1303- ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303- ●
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-1302 ● ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1303-1411 ● ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1412- ●
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1412- ●
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 1303- ●

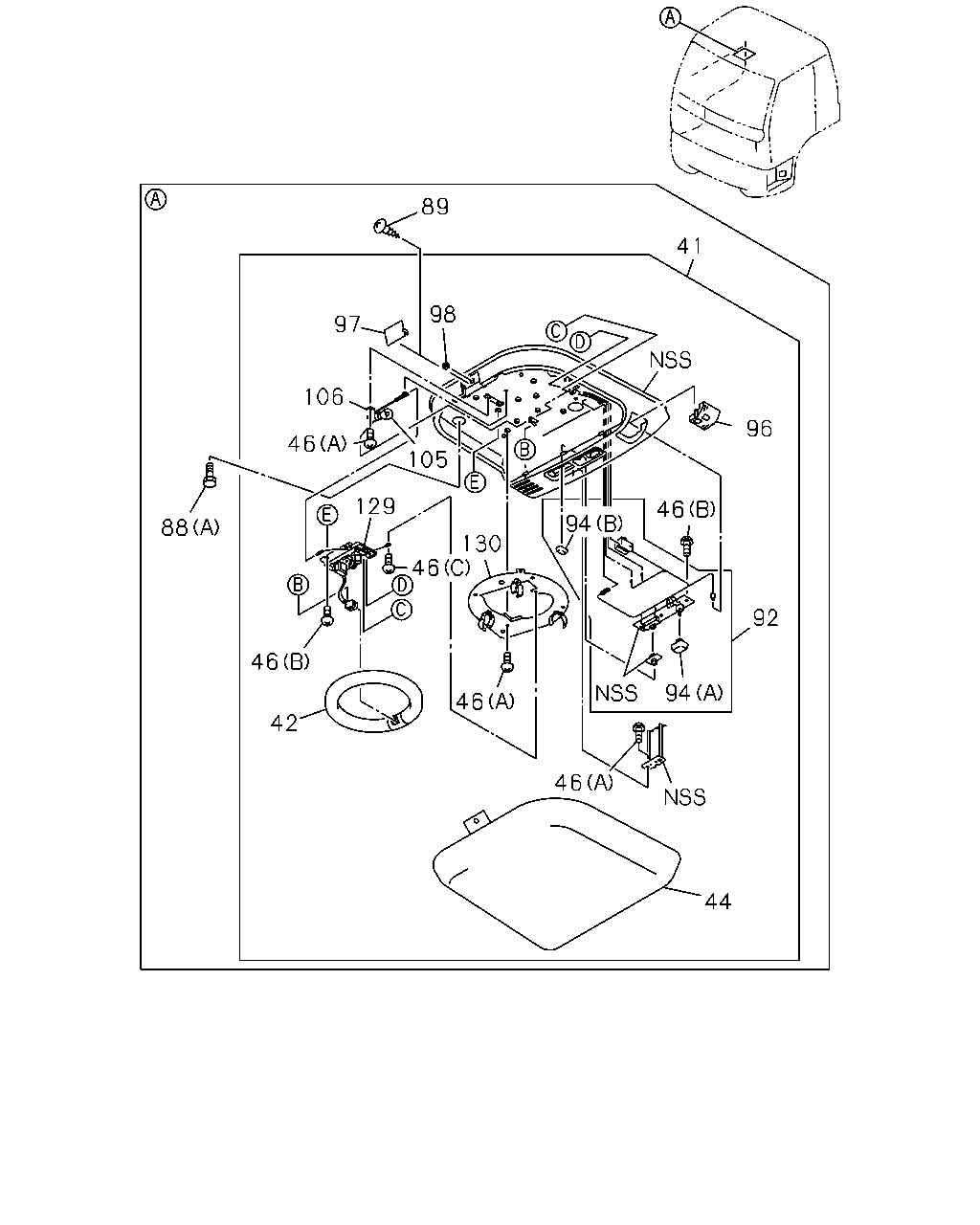

çizim 168584
89 98 97 106 46 88 129 105 46 41 96 46 94 130 46 46 42 92 46 44 94
BalonParca AdiParca NoAdetTipApplied Date A B
41 LAMP ASM; FLUORESCENT 1-86830-323-1 01 1 1303-1411 ●
41 LAMP ASM; FLUORESCENT 1-86830-323-1 01 1 1412- ●
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-323-1 01 1 1412- ●
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-315-2 01 1 1009-1302 ● ●
41 LAMP ASM; FLUORESCENT 1-86830-315-2 01 1 1303-1411 ●
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-315-2 01 1 1412- ●
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1009-1302 ● ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 1303-1411 ● ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 1412- ●
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1412- ●
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1009-1302 ● ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 1303-1411 ● ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 1412- ●
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1009-1302 ● ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 1303-1411 ● ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1009-1302 ● ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 1303-1411 ● ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1009-1302 ● ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 1303-1411 ● ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 1412- ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1412- ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1303- ●
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1009-1302 ● ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1303-1411 ● ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1412- ●
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1412- ●
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1009-1302 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 1303-1411 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 1412- ●
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1412- ●
92 SWITCH ASM; FLUORESCENT 1-86830-341-0 01 1 1303-1411 ●
92 SWITCH ASM; FLUORESCENT 1-86830-341-0 01 1 1412- ●
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-341-0 01 1 1412- ●
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-306-0 01 1 1009-1302 ● ●
92 SWITCH ASM; FLUORESCENT 1-86830-306-0 01 1 1303-1411 ●
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> 		1-86830-306-0 01 1 1412- ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1009-1302 ● ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 1303-1411 ● ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 1412- ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1412- ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1009-1302 ● ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 1303-1411 ● ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 1412- ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1412- ●
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1009-1302 ● ●
96 CAP; SPOT LAMP 1-86830-385-0 01 1 1303-1411 ● ●
96 CAP; SPOT LAMP 1-86830-385-0 01 1 1412- ●
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1412- ●
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1009-1302 ● ●
97 CAP; LENS FIX 1-86830-311-0 01 1 1303-1411 ● ●
97 CAP; LENS FIX 1-86830-311-0 01 1 1412- ●
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1412- ●
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1009-1302 ● ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 1303-1411 ● ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 1412- ●
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1412- ●
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1009-1302 ● ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 1303-1411 ● ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 1412- ●
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1412- ●
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1009-1302 ● ●
106 SOCKET; BULB 1-86830-201-0 01 1 1303-1411 ● ●
106 SOCKET; BULB 1-86830-201-0 01 1 1412- ●
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1412- ●
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1009-1302 ● ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 1303-1411 ● ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 1412- ●
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1412- ●
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1009-1302 ● ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 1303-1411 ● ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 1412- ●
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1412- ●
