8-03 — LAMP; REAR AND REAR SIDE (#58862) — 152 parça

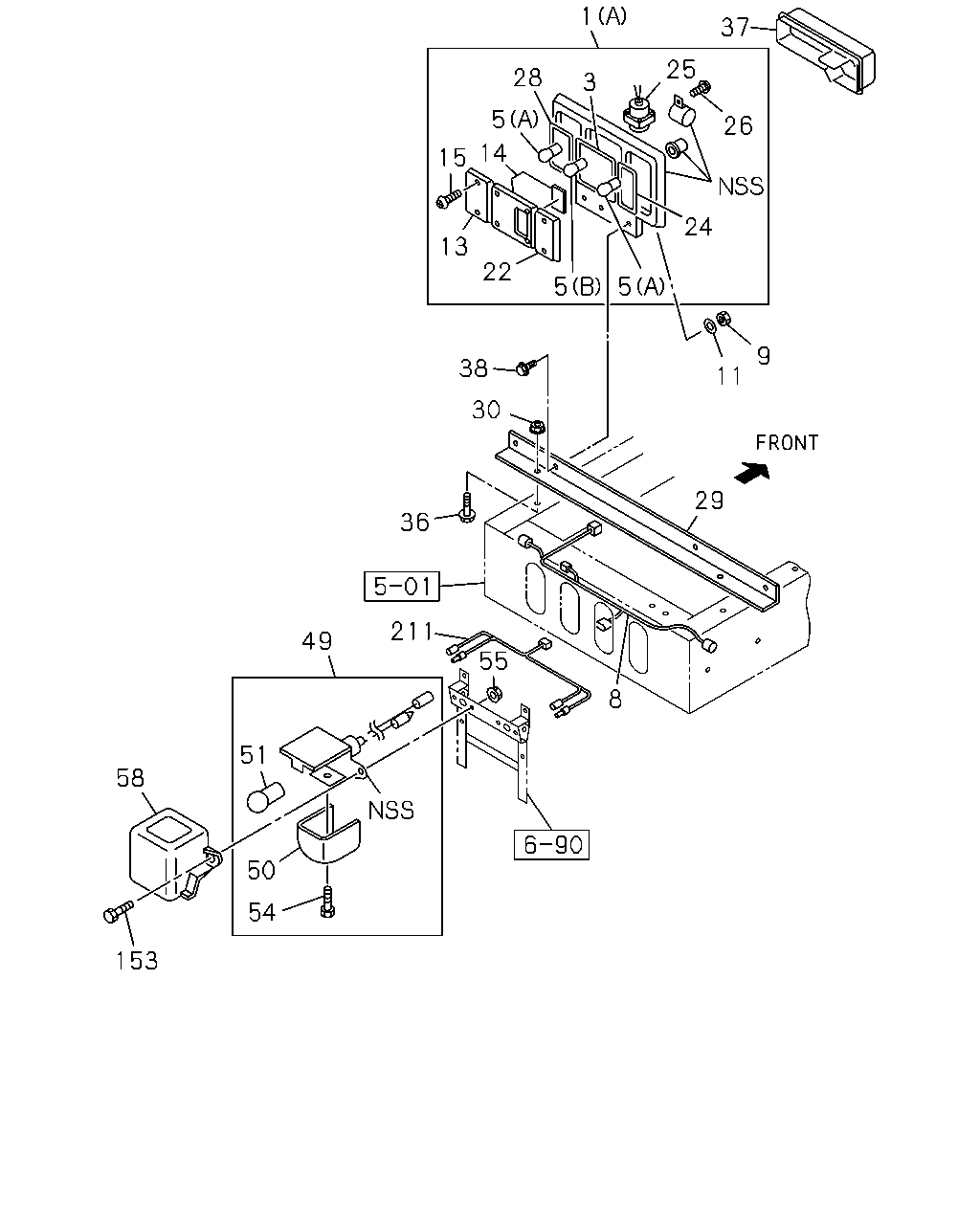

çizim 168606
58 153 54 51 50 49 55 211 36 30 38 29 8 11 9 5 5 22 13 15 14 5 28 24 26 25 3 1 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(B) 		1-82230-203-6 01 1 1303- ●
1 LAMP ASM; RR COMB
(B) 		1-82230-204-5 01 1 1303- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 1009-1302 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 1303- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-209-0 01 1 1009-1302 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-209-0 01 1 1303- ●
3 GASKET; RR COMB LAMP 1-82236-008-0 02 1 1303- ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1009-1302 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(C) 24V 21W 		1-82194-108-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(D) 24V 21/5W 		1-82194-109-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1009-1302 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1303- ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1009-1302 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1303- ●
8 HARNESS; RR COMB LAMP 8-97635-016-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 5300MM(53W) 		8-97635-016-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-97635-017-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-97635-017-1 01 1 1303- ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91180-108-0 02 1 1303- ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1009-1302 ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1303- ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1009-1302 ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1303- ●
13 LENS; TURN SIGNAL 1-82235-036-0 02 1 1303- ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1009-1302 ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1303- ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1009-1302 ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 1-82235-035-0 02 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1009-1302 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1009-1302 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1303- ●
15 SCREW; RR COMB LAMP 1-82239-012-0 26 1 1303- ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1009-1302 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1303- ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1009-1302 ● ●
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1303- ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1009-1302 ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1303- ●
25 HORN ASM; BACK 8-94257-518-0 01 1 1009-1302 ● ●
25 HORN ASM; BACK 8-94257-518-0 01 1 1303- ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1009-1302 ● ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1303- ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1009-1302 ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1303- ●
28 GASKET; TURN,LAMP 1-82236-008-0 02 1 1303- ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1009-1302 ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1303- ●
29 BRACKET; LAMP,RR COMB 1-53487-021-0 01 1 1009-1302 ● ●
29 BRACKET; LAMP,RR COMB 1-53487-021-1 01 1 1303- ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 1009-1302 ● ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 1303- ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28051-040-0 02 1 1009-1302 ● ●
36 BOLT; BRKT,RR COMB
M10X40 FLANGE 		0-28651-040-0 02 1 1303- ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1009-1302 ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1303- ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1009-1302 ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1303- ●
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 1303- ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1009-1302 ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1303- ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1303- ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1009-1302 ● ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1303-1509 ●
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510- ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1303- ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1009-1302 ● ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1303- ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 1303- ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1009-1302 ● ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1303- ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1303- ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1009-1302 ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1303- ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 04 1 1009-1111 ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1303- ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1009-1302 ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1303- ●
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 02 1 1009-1111 ● ●
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 04 1 1112-1302 ● ●
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 04 1 1303- ●
211 HARNESS; EXT 8-98131-066-0 01 1 1009-1302 ● ●
211 HARNESS; EXT 8-98131-066-0 01 1 1303- ●

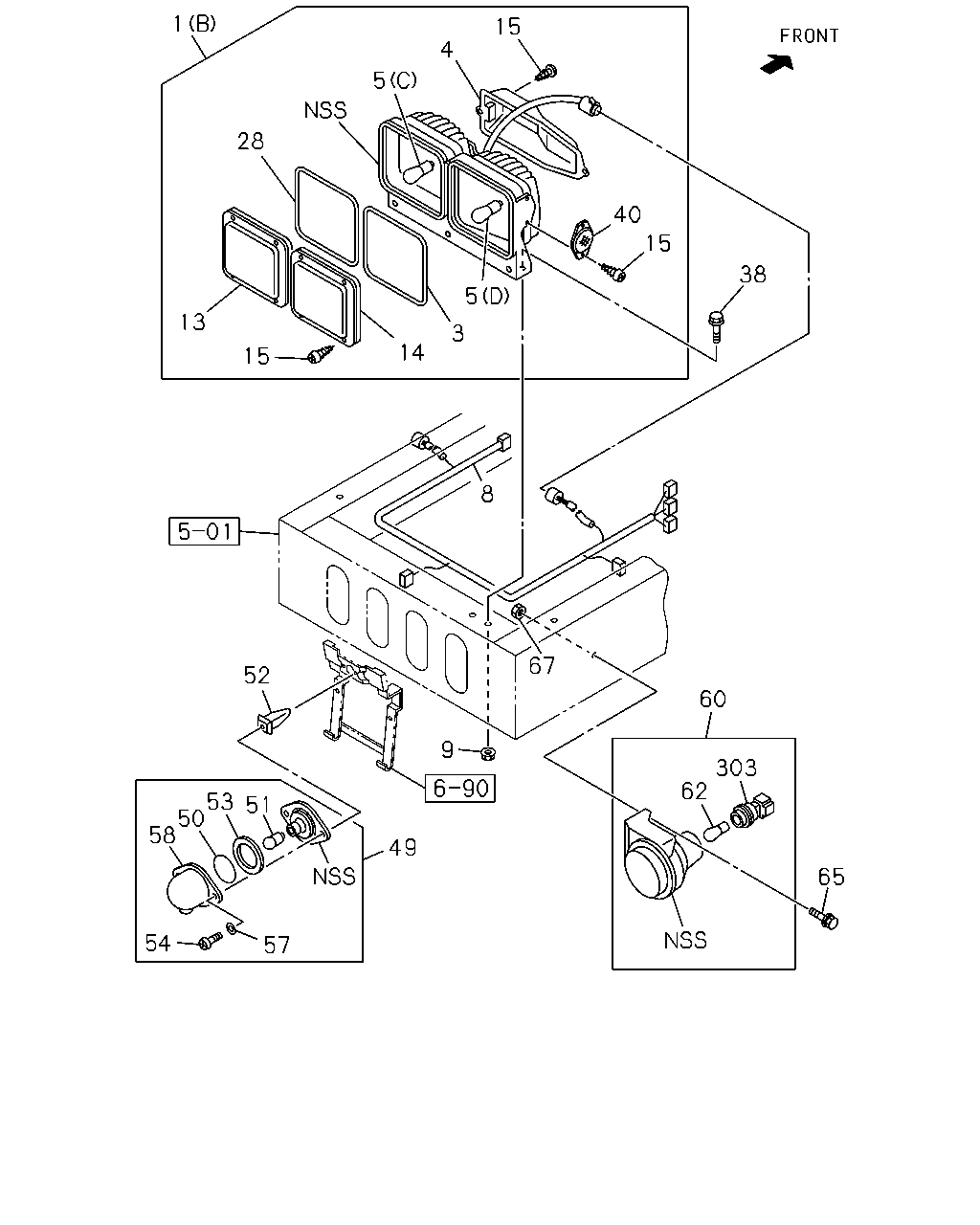

çizim 336839
1 28 4 5 15 40 15 38 5 3 14 15 13 8 67 9 52 51 53 50 58 57 54 49 60 303 62 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(B) 		1-82230-203-6 01 1 1303- ●
1 LAMP ASM; RR COMB
(B) 		1-82230-204-5 01 1 1303- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 1009-1302 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 1303- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-209-0 01 1 1009-1302 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-209-0 01 1 1303- ●
3 GASKET; RR COMB LAMP 1-82236-008-0 02 1 1303- ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1009-1302 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1303- ●
4 COVER; RR,RR COMB LAMP 1-82239-011-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(C) 24V 21W 		1-82194-108-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(D) 24V 21/5W 		1-82194-109-0 02 1 1303- ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1009-1302 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1303- ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1009-1302 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1303- ●
8 HARNESS; RR COMB LAMP 8-97635-016-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 5300MM(53W) 		8-97635-016-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-97635-017-1 01 1 1009-1302 ●
8 HARNESS; RR COMB LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-97635-017-1 01 1 1303- ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91180-108-0 02 1 1303- ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1009-1302 ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1303- ●
13 LENS; TURN SIGNAL 1-82235-036-0 02 1 1303- ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1009-1302 ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1303- ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1009-1302 ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 1-82235-035-0 02 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1009-1302 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1303- ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1009-1302 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1303- ●
15 SCREW; RR COMB LAMP 1-82239-012-0 26 1 1303- ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1009-1302 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1303- ●
28 GASKET; TURN,LAMP 1-82236-008-0 02 1 1303- ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1009-1302 ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1303- ●
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 1303- ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1009-1302 ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1303- ●
40 REFLECTOR; REFLEX 8-97608-772-0 02 1 1303- ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 1303- ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1009-1302 ● ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1303-1509 ●
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510- ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 1303- ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1009-1302 ● ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1303- ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 1303- ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1009-1302 ● ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1303- ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1303- ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1303- ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 1303- ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1009-1302 ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1303- ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1303- ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 1303- ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1009-1302 ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1303- ●
60 LAMP; BACKUP 1-82130-025-0 01 1 1303- ●
62 BULB; BACKUP LAMP
24V 21W 		1-82194-104-0 01 1 1303- ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1303- ●
67 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 02 1 1303- ●
303 SOCKET ASM; BACKUP LAMP 1-82135-006-0 01 1 1303- ●
