◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#58861) — 218 parça

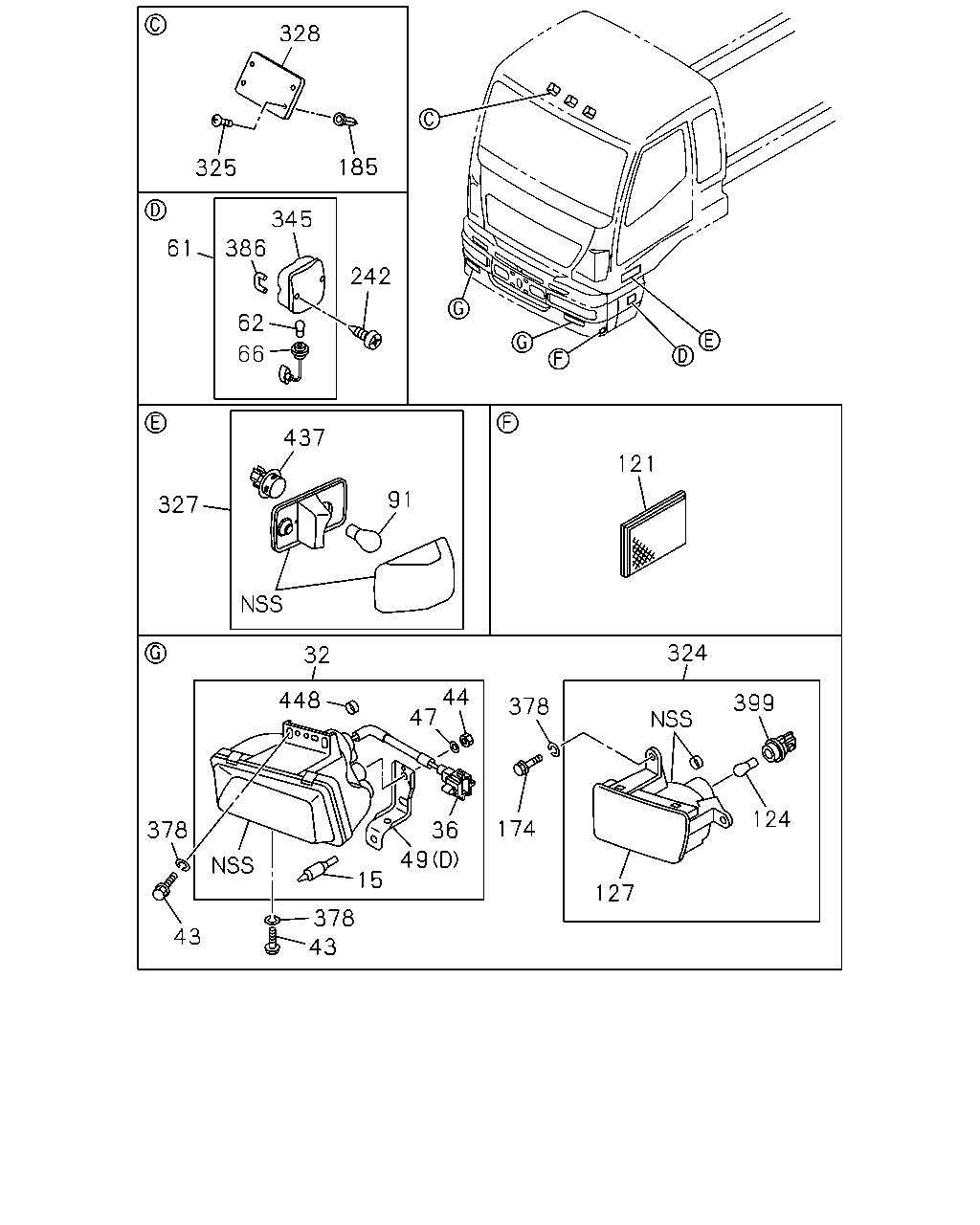

çizim 168573
328 325 185 242 345 386 61 62 66 121 437 91 327 32 44 47 448 324 378 399 124 127 174 36 49 15 378 43 43 378
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1009-1302 ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 1009-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-0 01 1 1302-1302 ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 1009-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-0 01 1 1302-1302 ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1009-1302 ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1009-1302 ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 1009-1302 ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 02 1 1009-1302 ●
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 FLANGE 		0-28650-620-0 02 1 1009-1302 ●
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302 ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-1302 ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-1302 ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1009-1302 ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1009-1302 ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-388-1 01 1 1009-1302 ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-389-1 01 1 1009-1302 ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 02 1 1009-1302 ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 1009-1302 ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1009- ● ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 1009-1302 ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1009-1302 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1009-1302 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1009-1302 ● ●
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 1009-1302 ● ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1303- ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1009- ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 1009-1302 ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1009-1302 ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1009-1302 ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1009- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1009- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1009- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 1009- ● ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-041-0 01 1 1009-1302 ●
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-042-0 01 1 1009-1302 ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 1009-1302 ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 1009-1302 ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 02 1 1009-1302 ●
378 WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4 		0-91610-606-0 02 1 1009-1302 ●
386 TUBE; CORNERING LAMP
CORNERING LAMP<TDS> 		8-94451-175-0 02 1 1009-1302 ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1009-1302 ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1009- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 1009-1302 ● ●
çizim 168583
4 13 211 340 12 13 202 202 5 23 14 339 338 18 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		8-98097-188-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-620-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
(A) 		8-98097-189-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-621-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-313-0 01 1 1306- ● ●
4 HEADLAMP UNIT
(A) 		1-82119-214-0 01 1 1009-1302 ● ●
4 HEADLAMP UNIT
(B) 		8-98199-566-0 01 1 1303- ● ●
4 HEADLAMP UNIT
(A) 		1-82119-215-0 01 1 1009-1302 ● ●
4 HEADLAMP UNIT
(B) 		8-98199-567-0 01 1 1303- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1303- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1009- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 1009-1302 ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 1009-1302 ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 1009-1302 ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 1009-1302 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 1009-1302 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1009-1302 ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1303- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 1009-1302 ● ●
211 TUBE; HEADLAMP 8-98101-137-0 01 1 1009-1302 ● ●
211 TUBE; HEADLAMP 8-98101-138-0 01 1 1009-1302 ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1009- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1009- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 1009-1302 ● ●

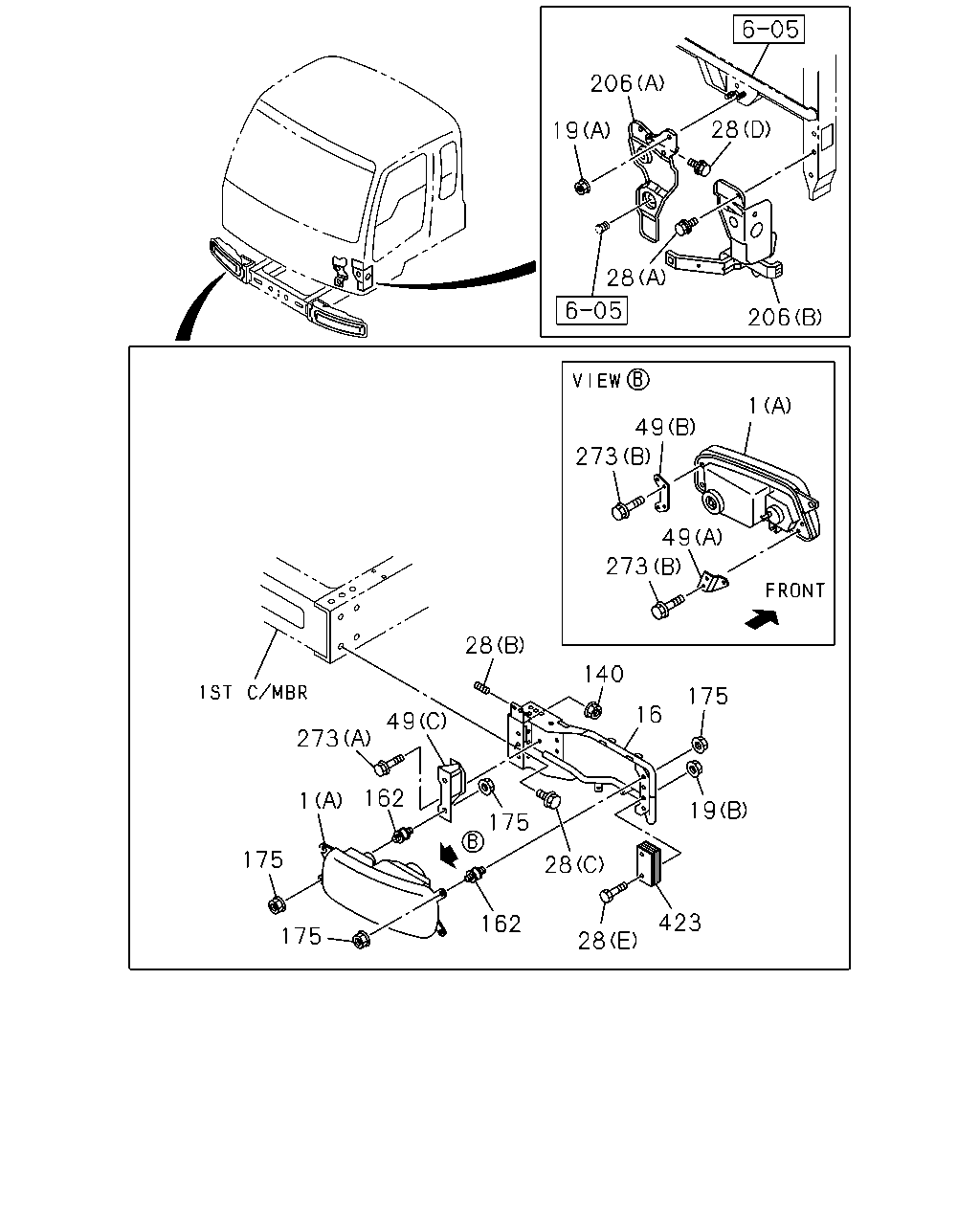

çizim 168588
206 19 28 28 206 49 273 1 49 273 28 49 273 1 162 175 175 162 175 140 16 19 28 28 423 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		8-98097-188-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-620-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
(A) 		8-98097-189-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-621-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-313-0 01 1 1306- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1009-1302 ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1303- ● ●
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 1009-1302 ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1303- ● ●
19 NUT; HEADLAMP
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1009- ● ●
19 NUT; HEADLAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) M10 FLANGE 		0-91180-210-0 04 1 1009-1302 ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(G) M12X35 FLANGE 		0-28051-235-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(F) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009- ● ●
28 BOLT; HEADLAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) M10X60 FLANGE 		0-28051-060-0 04 1 1009-1302 ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1009-1302 ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1009-1302 ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1009-1302 ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1009-1302 ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1303- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1009- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1009- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(F) 		8-98121-219-1 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(E) 		8-98121-330-0 01 1 1303- ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1009-1302 ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-1302 ● ●
423 MASS; HEADLAMP BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-97608-527-1 02 1 1009-1302 ●
çizim 336723
1 4 339 408 338 420 20 5 5 382 457 23 60 68 305 67 439 68 438 304 438 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		8-98097-188-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-620-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
(A) 		8-98097-189-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-621-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-313-0 01 1 1306- ● ●
4 HEADLAMP UNIT
(A) 		1-82119-214-0 01 1 1009-1302 ● ●
4 HEADLAMP UNIT
(B) 		8-98199-566-0 01 1 1303- ● ●
4 HEADLAMP UNIT
(A) 		1-82119-215-0 01 1 1009-1302 ● ●
4 HEADLAMP UNIT
(B) 		8-98199-567-0 01 1 1303- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1303- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1009- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1303- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1009-1302 ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303 ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303 ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1303- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1303- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1303- ● ●
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 1303-1303 ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1009- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1009- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1303- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1303- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1303- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1303-1303 ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1303- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

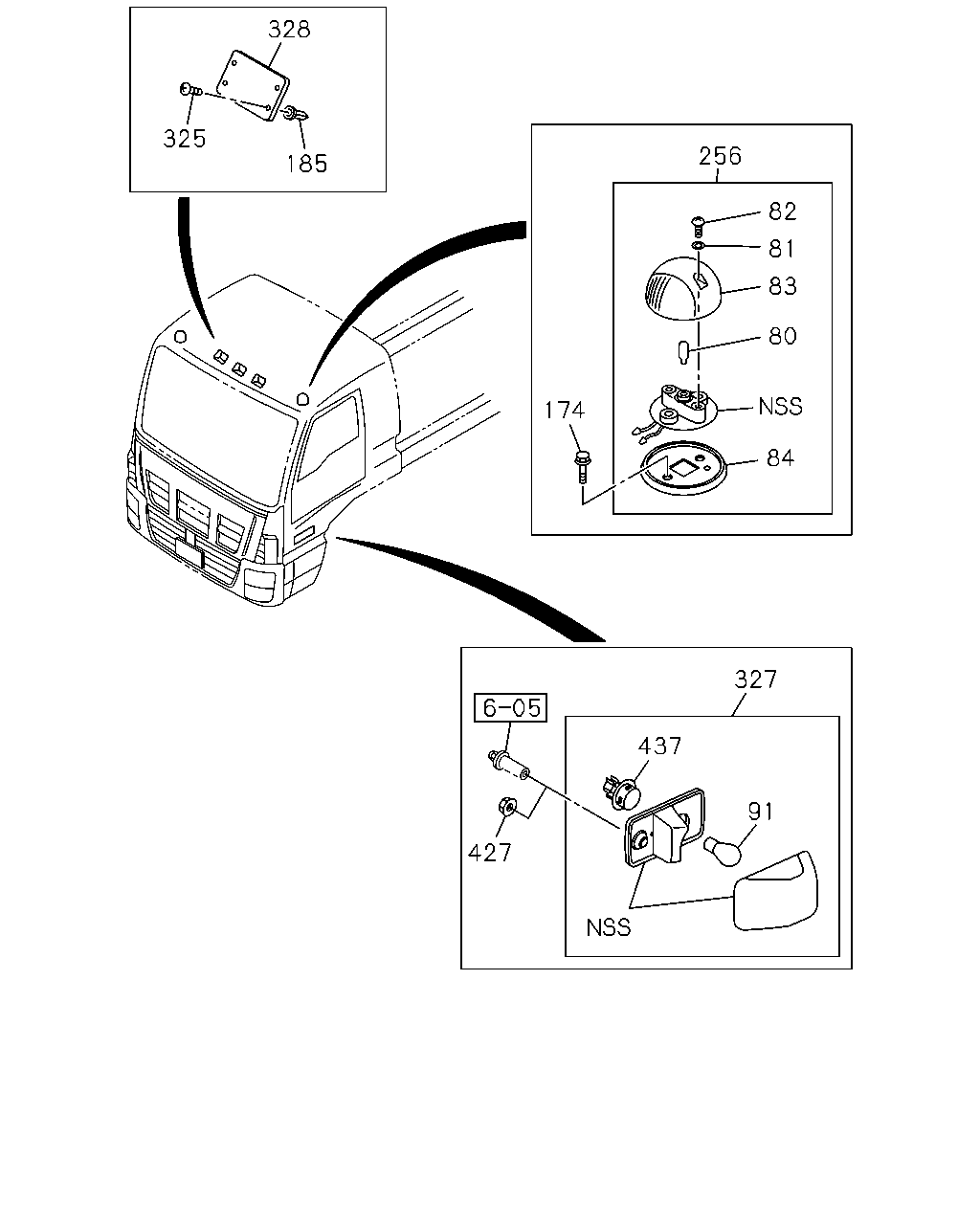

çizim 336746
325 328 185 174 427 437 327 91 256 82 83 81 80 84
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1303- ●
81 SEAT; SCREW 1-82219-012-0 04 1 1303- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1303- ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 1303- ●
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 1303- ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1009- ● ●
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 1009-1302 ● ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1303- ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1009- ● ●
256 LAMP; MARKER 1-86830-242-3 02 1 1303- ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1009- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1009- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1009- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 1009- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1009- ● ●

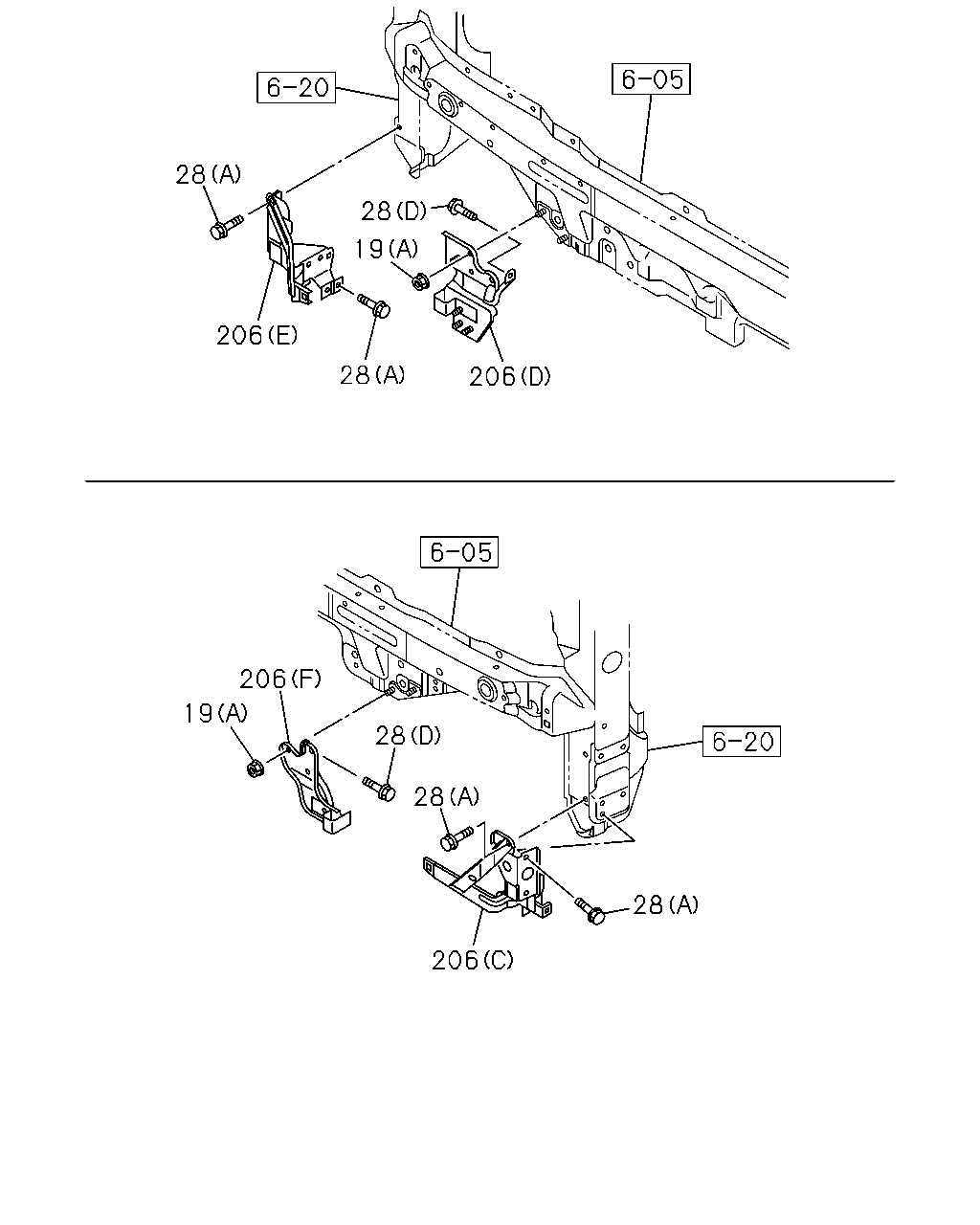

çizim 336764
28 206 28 28 19 206 206 19 28 28 206 28
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; HEADLAMP
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1009- ● ●
19 NUT; HEADLAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) M10 FLANGE 		0-91180-210-0 04 1 1009-1302 ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(G) M12X35 FLANGE 		0-28051-235-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(F) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009- ● ●
28 BOLT; HEADLAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) M10X60 FLANGE 		0-28051-060-0 04 1 1009-1302 ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(F) 		8-98121-219-1 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(D) 		8-98121-218-2 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(C) 		8-98121-335-0 01 1 1303- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 1009-1302 ● ●
206 HOLDER; HEADLAMP
(E) 		8-98121-330-0 01 1 1303- ● ●

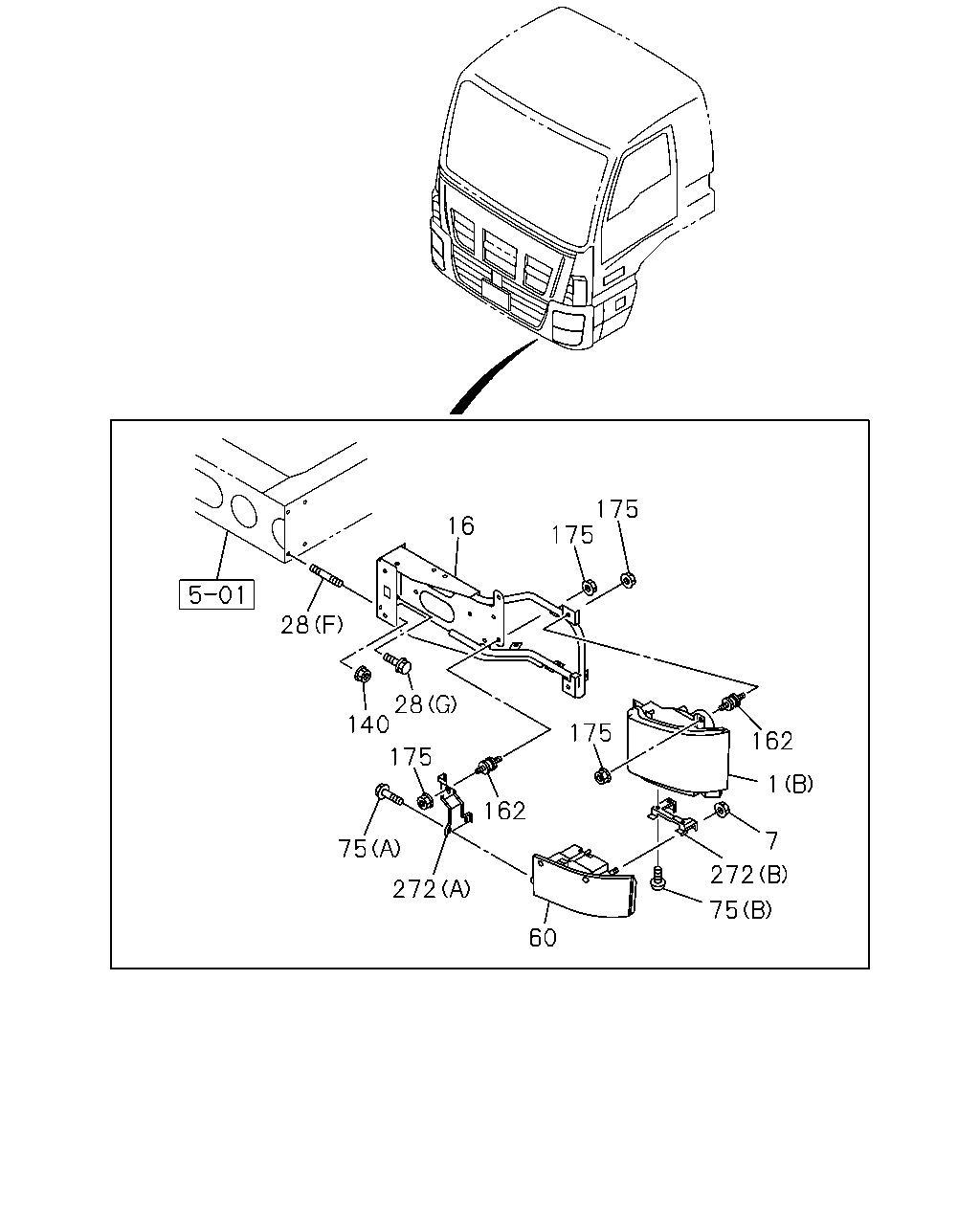

çizim 336859
28 16 175 28 175 140 175 75 272 60 162 175 162 1 7 272 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) 		8-98097-188-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-620-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
(A) 		8-98097-189-0 01 1 1009-1302 ● ●
1 LAMP ASM; HEAD
(B) 		8-98225-621-0 01 1 1303-1305 ● ●
1 LAMP ASM; HEAD
(B) 		8-98241-313-0 01 1 1306- ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1303- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1009-1302 ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1303- ● ●
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 1009-1302 ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1303- ● ●
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(G) M12X35 FLANGE 		0-28051-235-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302 ● ●
28 BOLT; HEADLAMP
(F) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009- ● ●
28 BOLT; HEADLAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) M10X60 FLANGE 		0-28051-060-0 04 1 1009-1302 ●
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303 ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303- ● ●
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303 ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(A) M6X16 FLANGE 		0-28650-616-0 04 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303- ● ●
75 SCREW; FRT COMB LAMP
(C) 		8-98074-439-0 02 1 1303- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1009-1302 ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1303- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1009- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1009- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1303- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1303- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1303- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
