7-70 — SEPARATER AND BED (#58860) — 163 parça

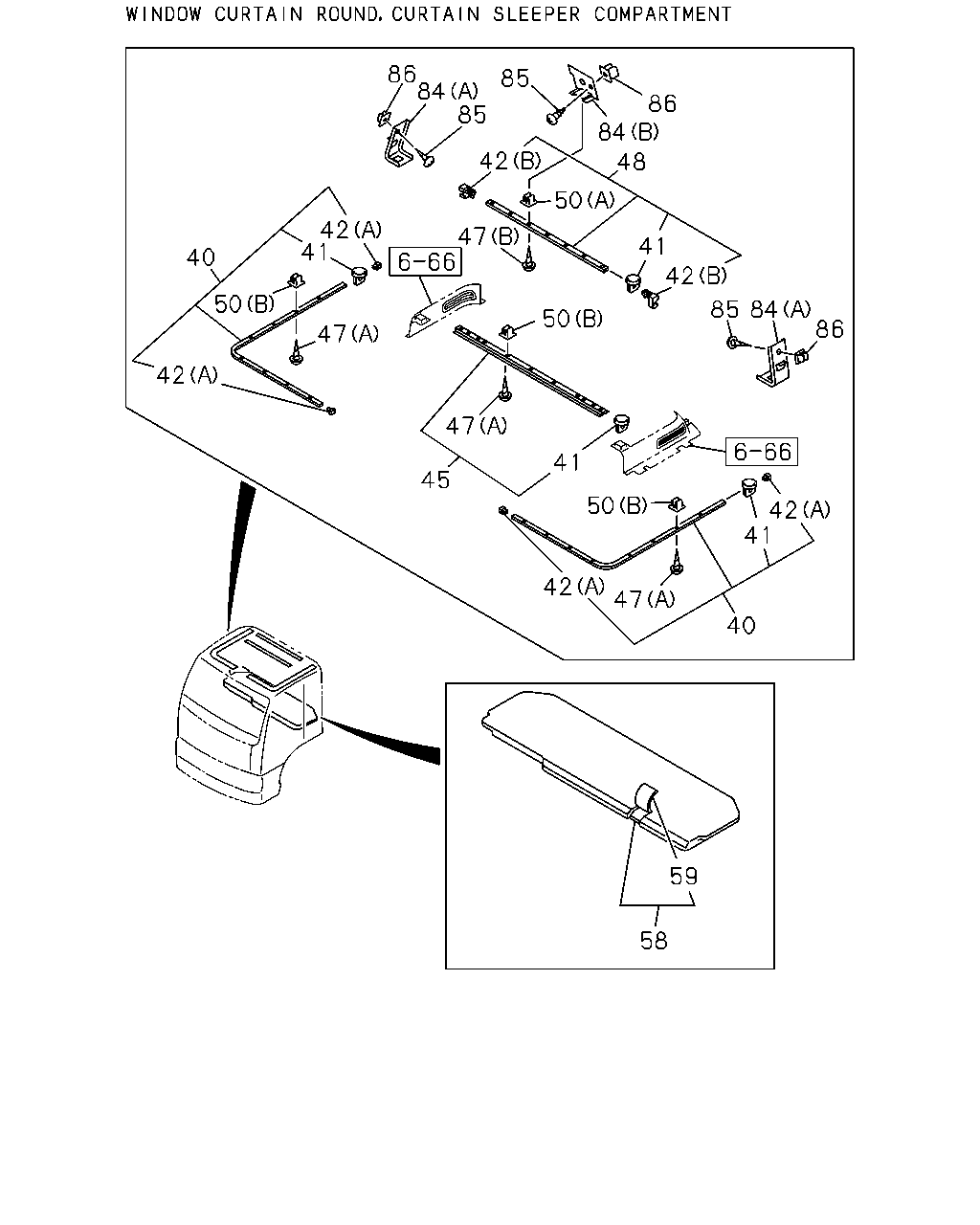

40 42 50 42 41 7 45 47 86 84 85 85 42 47 50 84 86 48 50 41 50 42 47 40 42 41 41 85 42 84 86 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-1411		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-1411		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1412-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1009-1302	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1303-1411	●
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	42	1	1303-1411		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1412-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1009-1302	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1303-1411	●
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	14	1	1303-1411		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1412-	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	14	1	1412-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1303-1411	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-1411		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1412-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1303-1411	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-1411		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1412-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1303-1411	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1412-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1303-1411	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1412-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1303-1411	●
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-1411		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1412-	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>	1-73907-546-3	01	1	1412-		●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1303-1411	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1412-	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-545-2	01	1	1412-		●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1303-1411	●
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-1411		●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1412-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1303-1411	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1412-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302	●	●
58	BED; MAT	1-75127-112-2	01	1	1303-1411		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1412-		●
58	BED; MAT	1-75127-018-3	01	1	1303-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-1411		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1412-		●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	1303-	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-	●	●

64 51 51 44 44 92 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1009-1302	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1303-1411	●
44	CURTAIN ASM; CABIN CENTER	1-73907-480-1	01	1	1303-1411		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1412-	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-480-1	01	1	1412-		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1009-1302	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1303-1411	●
44	CURTAIN ASM; CABIN CENTER	1-73907-481-1	01	1	1303-1411		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1412-	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73907-481-1	01	1	1412-		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1009-1302	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1303-1411	●
46	CURTAIN ASM; DOOR	1-73907-426-0	01	1	1303-1411		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1412-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1009-1302	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1303-1411	●
51	CURTAIN; BACK	1-73907-482-1	01	1	1303-1411		●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1412-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1009-1302	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1303-1411	●
51	CURTAIN; BACK	1-73907-483-1	01	1	1303-1411		●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1412-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1009-1302	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1303-1411	●
64	CURTAIN KIT	1-73907-479-1	01	1	1303-1411		●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1412-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1009-1302	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1303-1411	●
92	CURTAIN ASM; ROUND	1-73907-484-1	01	1	1303-1411		●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1412-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1009-1302	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1303-1411	●
92	CURTAIN ASM; ROUND	1-73907-485-1	01	1	1303-1411		●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1412-	●	●

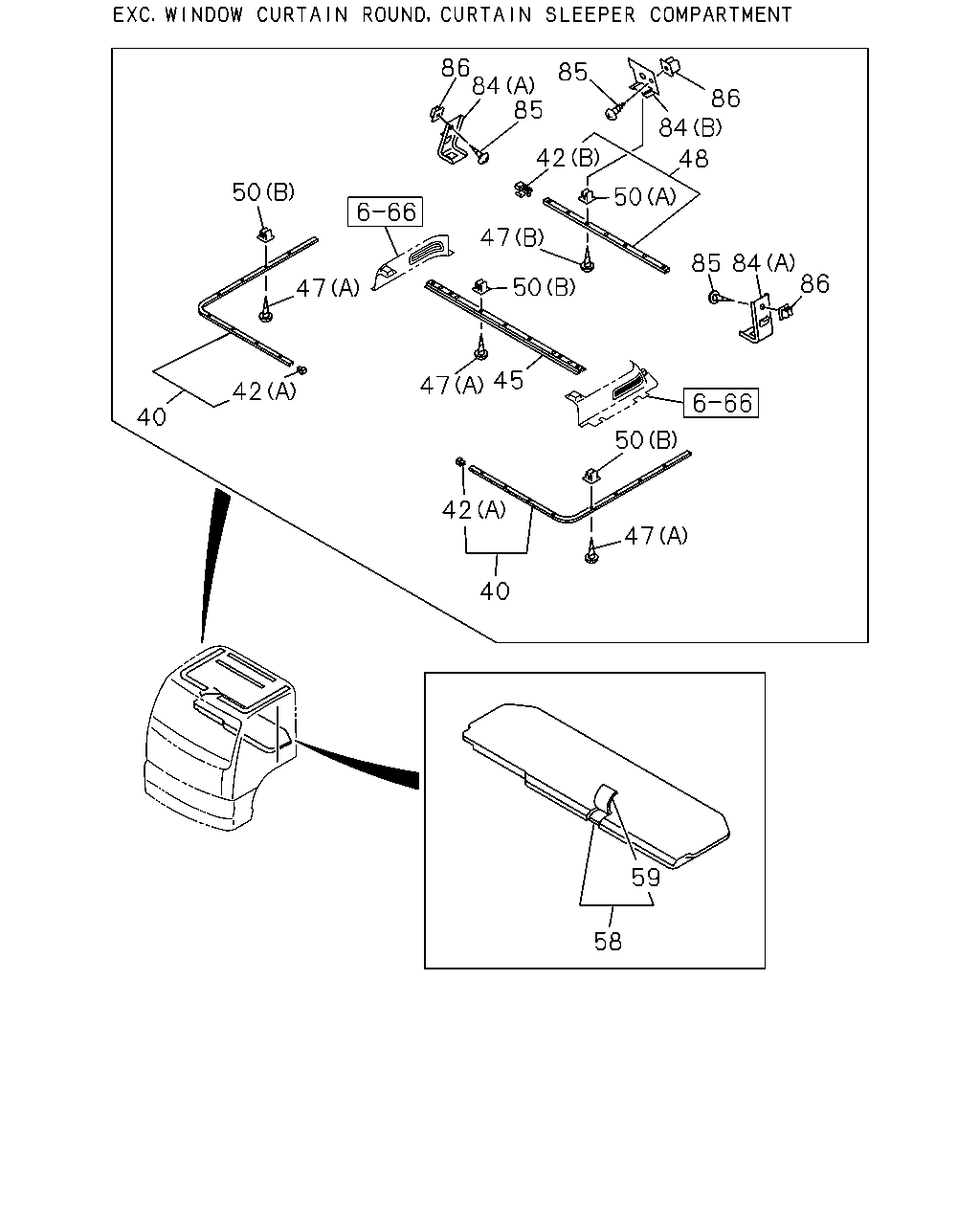

50 40 42 47 47 45 42 40 47 59 58 50 85 84 86 86 84 85 42 85 84 86 48 50 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-1411		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-1411		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1412-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1303-1411	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1412-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1303-1411	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-1411		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1412-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1303-1411	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-1411		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1412-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1303-1411	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1412-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1303-1411	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1412-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1303-1411	●
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-1411		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1412-	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>	1-73907-546-3	01	1	1412-		●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1303-1411	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1412-	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-545-2	01	1	1412-		●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1303-1411	●
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-1411		●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1412-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1303-1411	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1412-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302	●	●
58	BED; MAT	1-75127-112-2	01	1	1303-1411		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1412-		●
58	BED; MAT	1-75127-018-3	01	1	1303-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302	●	●
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-1411		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1412-		●
59	COVER ASM; TRIM,BED MAT	1-75127-132-2	01	1	1303-	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
