◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#58859) — 59 parça

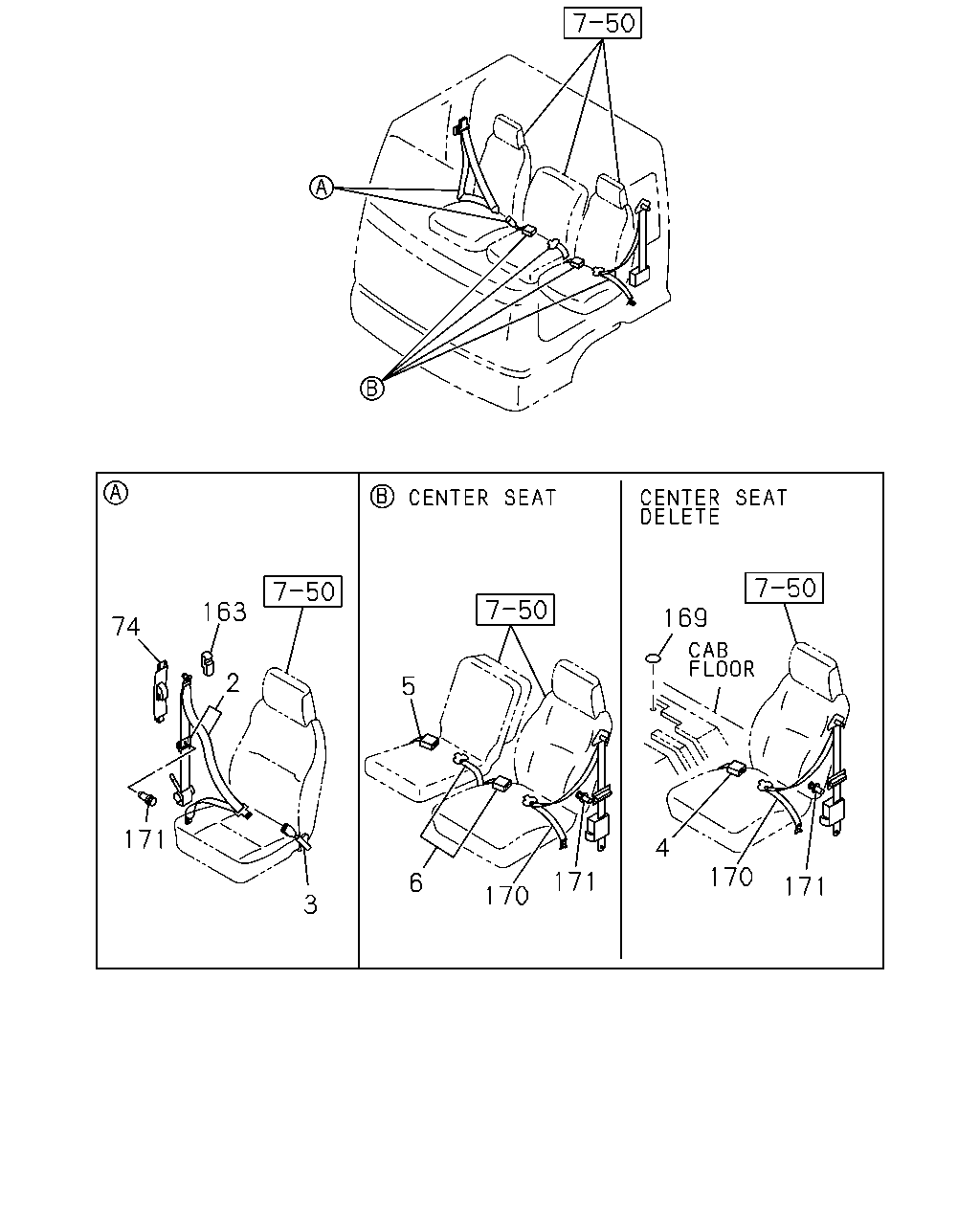

çizim 168631
74 163 2 171 3 6 170 171 5 169 4 170 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98120-814-1 01 1 1009-1302 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-847-3 01 1 1009-1302 ●
2 BELT; SEAT,TONGUE SIDE 8-97386-847-3 01 1 1009-1302 ●
2 BELT; SEAT,TONGUE SIDE 8-97386-847-3 01 1 1303-1411 ●
2 BELT; SEAT,TONGUE SIDE
HONG KONG EQUIPMENT(PQ1) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-847-3 01 1 1412- ●
2 BELT; SEAT,TONGUE SIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SINGAPORE EQUIPMENT(WQ3) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98184-483-1 01 1 1412- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-75618-914-0 01 1 1009-1302 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-846-0 01 1 1009-1302 ●
3 BELT; SEAT,BUCKLE SIDE 8-97386-846-0 01 1 1009-1302 ●
3 BELT; SEAT,BUCKLE SIDE 8-97386-846-0 01 1 1303-1401 ●
3 BELT; SEAT,BUCKLE SIDE 8-98270-818-0 01 1 1402- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1009-1302 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 1303- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1303- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 1009-1302 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 1303-1411 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
HONG KONG EQUIPMENT(PQ1) CENTER SEAT(SA1) 		1-75617-553-1 01 1 1412- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) EXC. HONG KONG EQUIPMENT(PQ1) 		8-98184-487-2 01 1 1412- ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 1009-1302 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		1-75618-926-3 01 1 1303-1411 ●
6 BELT; CENTER SEAT,TONGUE SIDE
HONG KONG EQUIPMENT(PQ1) CENTER SEAT(SA1) 		1-75618-926-3 01 1 1412- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SINGAPORE EQUIPMENT(WQ3) CENTER SEAT(SA1) 		8-98184-488-1 01 1 1412- ●
74 RAIL ASM; SHOULDER ANCHOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-855-2 01 1 1009-1302 ●
74 RAIL ASM; SHOULDER ANCHOR 8-97386-855-2 01 1 1009-1302 ●
74 RAIL ASM; SHOULDER ANCHOR 8-97386-855-2 01 1 1303-1411 ●
74 RAIL ASM; SHOULDER ANCHOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-855-2 01 1 1412- ●
163 COVER; ADJUSTER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-863-0 01 1 1009-1302 ●
163 COVER; ADJUSTER 8-97386-863-0 01 1 1009-1302 ●
163 COVER; ADJUSTER 8-97386-863-0 01 1 1303-1411 ●
163 COVER; ADJUSTER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-863-0 01 1 1412- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302 ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 1009-1302 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 1303-1411 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
HONG KONG EQUIPMENT(PQ1) 		8-98120-820-1 01 1 1412- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1303-1411 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1412- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SINGAPORE EQUIPMENT(WQ3) 		8-98184-486-1 01 1 1412- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1009- ● ●
çizim 336601
88 123 169 35 4 170 171 55
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1009-1302 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE 1-75617-546-1 01 1 1303- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1303- ●
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1303- ●
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 1303- ●
88 PLUG; HOLE
OD=31.6 		8-94198-177-0 01 1 1303- ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1303- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1009-1302 ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1303- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 1009-1302 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 1303-1411 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
HONG KONG EQUIPMENT(PQ1) 		8-98120-820-1 01 1 1412- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1303-1411 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1412- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SINGAPORE EQUIPMENT(WQ3) 		8-98184-486-1 01 1 1412- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1009- ● ●
