Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#58858) — 455 parça

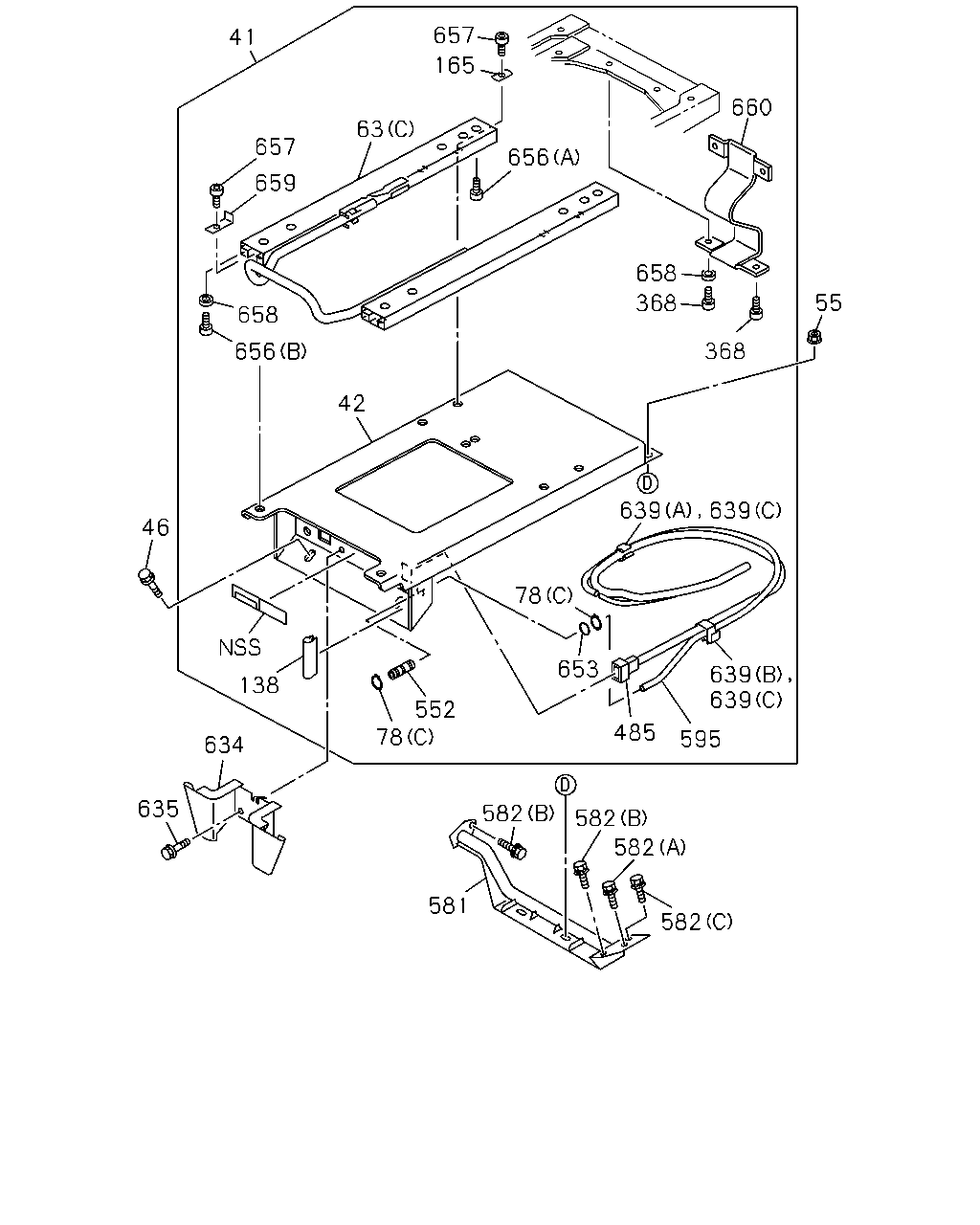

582 582 582 582 581 634 635 138 552 78 485 595 639 639 653 78 639 639 368 55 368 658 656 660 657 63 165 657 41 659 658 42 656 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98195-067-1	01	1	1303-	●
42	STAND; DRIVER SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-1	01	1	1009-1302	●	●
42	STAND; DRIVER SEAT	8-98106-347-0	01	1	1303-	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1009-	●	●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	1303-	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1009-1302	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1303-		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1009-1302	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1303-		●
78	RING; SNAP (C)	8-98101-900-0	02	1	1303-	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1009-1302	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1303-		●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1009-1302	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1303-		●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1303-	●
165	WASHER; PL	1-75590-086-0	04	1	1303-	●
368	BOLT; SEAT	8-98106-353-0	04	1	1303-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1303-	●
552	CONNECTOR	8-98101-902-0	01	1	1303-1508	●
552	CONNECTOR	8-98308-101-0	01	1	1509-	●
581	PIPE; SEAT	1-73907-605-2	01	1	1303-	●
582	BOLT; PIPE,SEAT (B)	1-09980-619-1	02	1	1303-	●
582	BOLT; PIPE,SEAT (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	1303-	●
582	BOLT; PIPE,SEAT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1303-	●
595	TUBE; NYLON	8-98106-348-0	01	1	1303-	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1303-	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1303-	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1303-1508	●
639	CLIP; SEAT (C)	8-98308-100-0	02	1	1509-	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1303-1508	●
653	GASKET	8-98101-901-0	01	1	1303-	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1303-	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1303-	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1303-	●
658	SPACER; BOLT	8-98106-355-0	02	1	1303-	●
659	STOPPER	8-98106-356-0	02	1	1303-	●
660	BELT; TETHER	8-98106-357-0	01	1	1303-	●

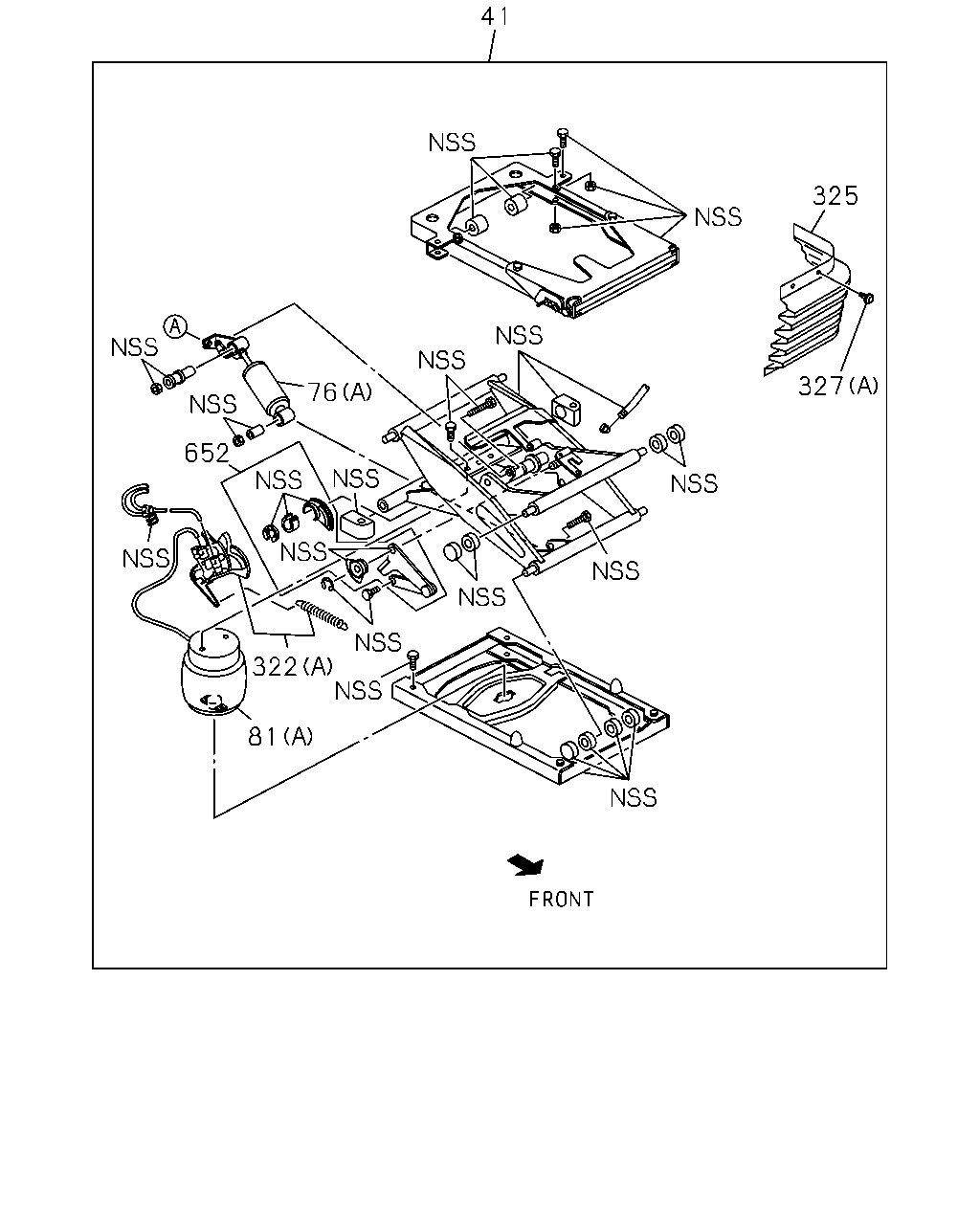

41 76 652 322 81 327 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98195-067-1	01	1	1303-	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	1303-	●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	1009-1302	●	●
76	DAMPER; AIR SUSP (B)	1-75537-230-2	01	1	1303-		●
81	SPRING; AIR (A)	8-98098-000-0	01	1	1303-	●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	1009-1302	●	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1303-1312		●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-		●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-186-2	01	1	1009-1302	●	●
322	VALVE; AIR SPRING (B)	1-75538-186-3	01	1	1303-		●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	1303-1508	●
322	VALVE; AIR SPRING (A)	8-98331-314-0	01	1	1509-	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1303-	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1303-		●
327	CLIP; COVER (A)	8-98098-004-0	01	1	1303-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1303-	●

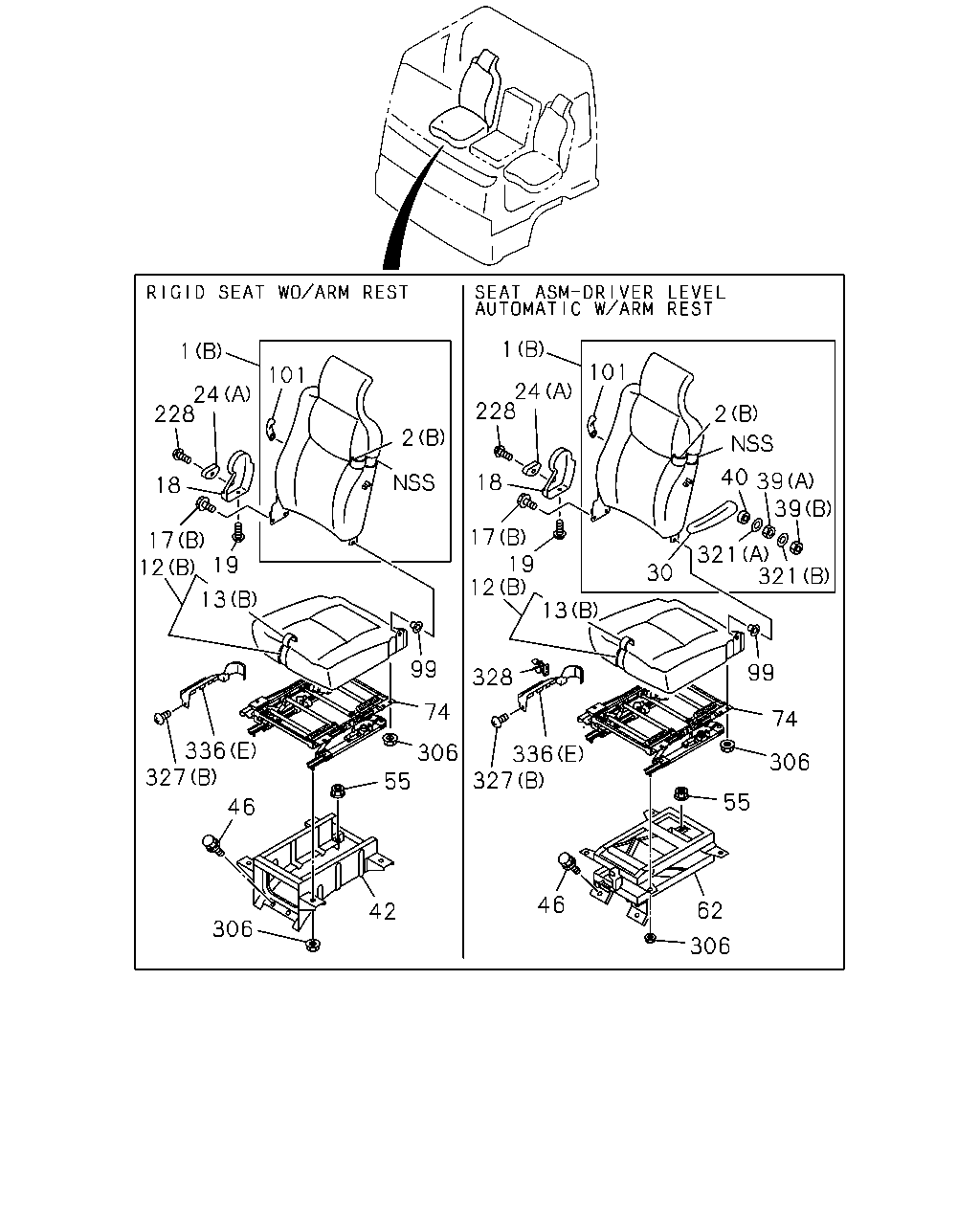

42 306 46 327 336 13 12 17 18 228 24 1 101 2 228 1 24 18 17 12 328 327 336 46 62 306 55 306 74 99 13 19 30 101 2 40 39 39 321 321 99 74 306 55 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98135-630-0	01	1	1009-1302	●	●
1	BACK ASM; SEAT (A)	8-98097-964-0	01	1	1303-	●
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B)	8-98135-635-0	01	1	1009-1302	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98135-639-0	01	1	1009-1009		●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-072-0	01	1	1010-1302		●
1	BACK ASM; SEAT (B)	8-98168-072-0	01	1	1303-		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-146-2	01	1	1009-1302	●	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1303-	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B)	1-75127-165-1	01	1	1009-1302	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-187-0	01	1	1009-1009		●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-089-0	01	1	1010-1302		●
2	COVER; TRIM,FRT SEAT,BACK (B)	8-98168-089-0	01	1	1303-		●
12	CUSHION; SEAT,FRT VINYL SEAT(A83) (B)	1-75207-603-2	01	1	1009-1302	●	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	1303-	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75207-770-0	01	1	1009-1009		●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-048-0	01	1	1010-1302		●
12	CUSHION; SEAT,FRT (B)	8-98168-048-0	01	1	1303-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) (B)	1-75127-102-1	01	1	1009-1302	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	1303-	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-186-0	01	1	1009-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-081-0	01	1	1010-1302		●
13	COVER; TRIM,FRT SEAT,CUSHION (B)	8-98168-081-0	01	1	1303-		●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1303-	●
17	BOLT; RECLINING (B) M8X20	8-97255-906-0	02	1	1009-1302	●	●
17	BOLT; RECLINING (B) M8X20	8-97255-906-0	02	1	1303-		●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	1009-1302	●	●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	1303-		●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1302	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1303-		●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1303	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1304-	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1302	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1303-		●
30	REST ASM; ARM,FRT SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-015-1	01	1	1009-1302	●	●
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-185-0	01	1	1009-1009		●
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-091-0	01	1	1010-1302		●
30	REST ASM; ARM,FRT SEAT	8-98168-091-0	01	1	1303-		●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	1009-1302	●	●
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1303-		●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	1009-1302	●	●
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1303-		●
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	1009-1302	●	●
40	SPACER; ARM REST	8-94285-921-0	02	1	1303-		●
42	STAND; DRIVER SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-1	01	1	1009-1302	●	●
42	STAND; DRIVER SEAT	8-98106-347-0	01	1	1303-	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1009-	●	●

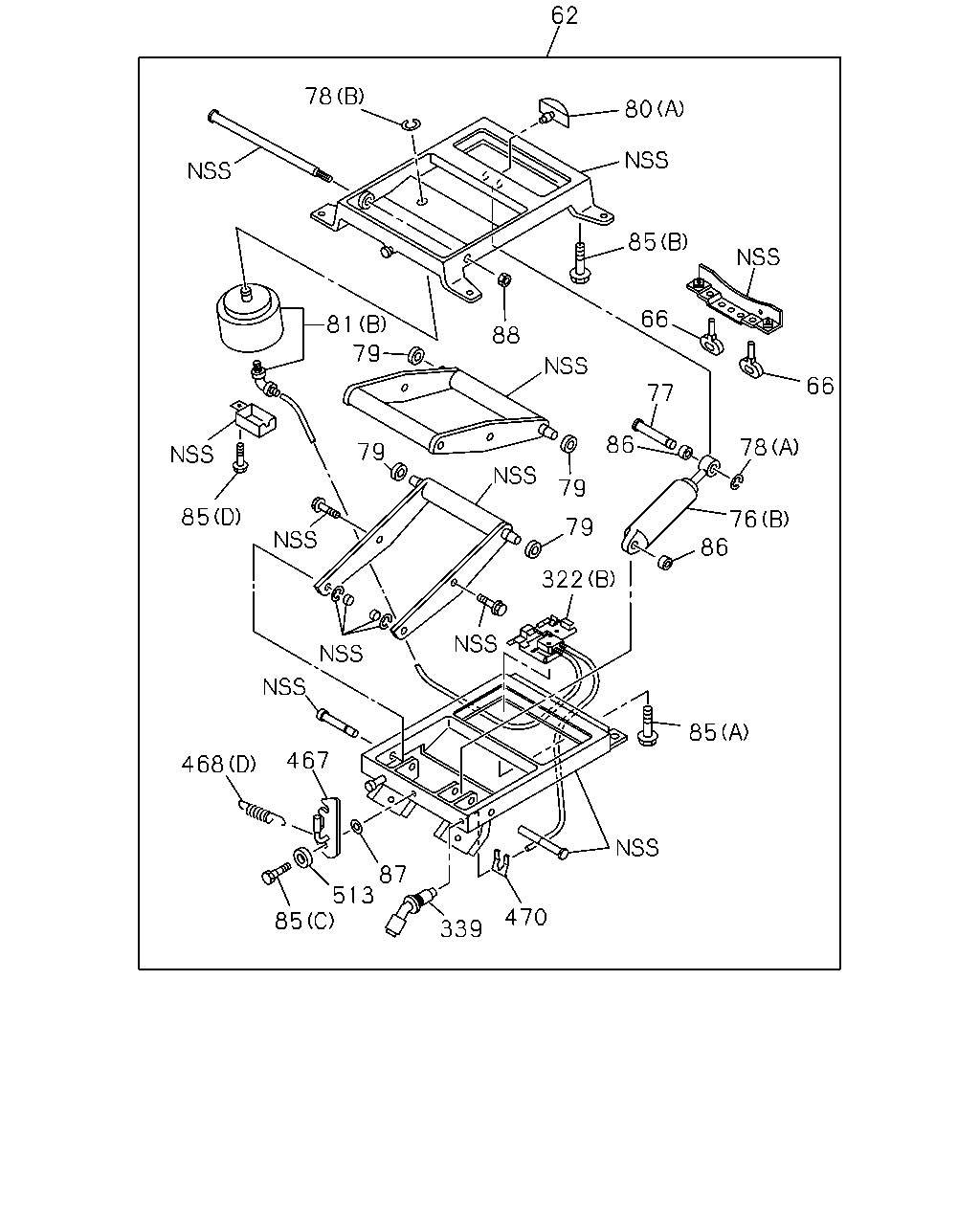

62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	1009-1302	●	●
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	1303-1403		●
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1302	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1303-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-644-0	01	1	1503-		●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1009-1302	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1303-		●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	1009-1302	●	●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	1303-		●
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1302	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1303-1303		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1304-	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1302	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1303-		●
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	1009-1302	●	●
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1303-		●
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	1009-1302	●	●
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1303-		●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1303-		●
327	CLIP; COVER (A)	8-98098-004-0	01	1	1303-	●
328	CLIP; HANDY WARNING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-72537-239-0	01	1	1009-1302	●	●
328	CLIP; HANDY WARNING	1-72537-239-0	01	1	1303-		●
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1009-1302	●	●
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1303-		●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1303-1508	●
336	COVER; DRIVER SEAT (D)	8-98331-313-0	01	1	1509-	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1303-	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1303-	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1303-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●

468 468 512 51 532 302 518 518 278 51 51 512 51 278 532 302 518 518 518 543 71 158 158 278 543 543 468 529 468 74 543 518 543 72 302 72 551 551 201 306 63 63 306 201 518 302 518 551 302 302 302 518 551 302 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER	1-75518-325-1	04	1	1009-1302	●	●
51	SCREW; COVER	1-75518-325-1	04	1	1303-		●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	1303-	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1009-1302	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1303-		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1009-1302	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1303-		●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1009-1302	●	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1303-1502		●
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1009-1302	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	1303-1502		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-644-0	01	1	1503-		●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1009-1302	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1303-		●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1009-1302	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1303-		●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1009-1302	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1303-		●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1009-1302	●	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1303-		●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1009-1302	●	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1303-		●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1009-1302	●	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1303-1502		●
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-		●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1009-1302	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1303-		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1009-1302	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1303-		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-1302	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-		●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1302	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1303-		●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1302	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1303-		●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1302	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1303-		●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
512	COVER; LEVER	1-75518-243-1	02	1	1009-1302	●	●
512	COVER; LEVER	1-75518-243-1	02	1	1303-		●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1009-1302	●	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1303-		●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1009-1302	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1303-		●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1009-1302	●	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1303-		●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1302	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1303-		●
529	PIN; LINK	1-75518-262-0	01	1	1009-1302	●	●
529	PIN; LINK	1-75518-262-0	01	1	1303-		●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1009-1302	●	●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1303-		●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1009-1302	●	●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1303-		●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	1303-	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1009-1302	●	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1303-1502		●
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-		●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1009-1302	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1303-		●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1009-1302	●	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1303-		●

411 2 1 41 12 13 650 365 336 336 651 651 17 642 648 602 651 642 336 642 637 310 638 509 587 532 336 17 661

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98135-630-0	01	1	1009-1302	●	●
1	BACK ASM; SEAT (A)	8-98097-964-0	01	1	1303-	●
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B)	8-98135-635-0	01	1	1009-1302	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98135-639-0	01	1	1009-1009		●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-072-0	01	1	1010-1302		●
1	BACK ASM; SEAT (B)	8-98168-072-0	01	1	1303-		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-146-2	01	1	1009-1302	●	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1303-	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B)	1-75127-165-1	01	1	1009-1302	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-187-0	01	1	1009-1009		●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-089-0	01	1	1010-1302		●
2	COVER; TRIM,FRT SEAT,BACK (B)	8-98168-089-0	01	1	1303-		●
12	CUSHION; SEAT,FRT VINYL SEAT(A83) (B)	1-75207-603-2	01	1	1009-1302	●	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	1303-	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75207-770-0	01	1	1009-1009		●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-048-0	01	1	1010-1302		●
12	CUSHION; SEAT,FRT (B)	8-98168-048-0	01	1	1303-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) (B)	1-75127-102-1	01	1	1009-1302	●	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	1303-	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75127-186-0	01	1	1009-1009		●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	8-98168-081-0	01	1	1010-1302		●
13	COVER; TRIM,FRT SEAT,CUSHION (B)	8-98168-081-0	01	1	1303-		●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1303-	●
17	BOLT; RECLINING (B) M8X20	8-97255-906-0	02	1	1009-1302	●	●
17	BOLT; RECLINING (B) M8X20	8-97255-906-0	02	1	1303-		●
41	SEAT ASM; DRIVER	8-98195-067-1	01	1	1303-	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	1303-	●
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1009-1302	●	●
336	COVER; DRIVER SEAT (E)	1-75518-303-0	01	1	1303-		●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1303-1508	●
336	COVER; DRIVER SEAT (D)	8-98331-313-0	01	1	1509-	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1303-	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1303-	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1303-	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1303-	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1009-1302	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1303-		●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1303-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
509	LEVER; DAMPER	8-98097-988-0	01	1	1303-	●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1009-1302	●	●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1303-		●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1009-1302	●	●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1303-		●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	1303-	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	1303-	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1303-	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1303-	●
638	VALVE; LOWERING	8-98097-994-0	01	1	1303-	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1303-	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1303-	●
650	CABLE	8-98232-354-0	01	1	1303-	●
651	RIVET	8-98194-075-0	04	1	1303-	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	1303-	●

62 78 85 81 79 88 80 85 66 66 77 86 79 322 86 79 78 85 470 339 85 87 513 467 468 79 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	1009-1302	●	●
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	1303-1403		●
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-		●
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1009-1302	●	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1303-		●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	1303-	●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	1009-1302	●	●
76	DAMPER; AIR SUSP (B)	1-75537-230-2	01	1	1303-		●
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1009-1302	●	●
77	PIN; DAMPER	1-75538-138-2	01	1	1303-		●
78	RING; SNAP (C)	8-98101-900-0	02	1	1303-	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1009-1302	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1303-		●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1009-1302	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1303-		●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	1009-1302	●	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1303-1403		●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-		●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-1302	●	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-		●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-1302	●	●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-		●
81	SPRING; AIR (A)	8-98098-000-0	01	1	1303-	●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	1009-1302	●	●
81	SPRING; AIR (B)	1-75538-151-2	01	1	1303-1312		●
81	SPRING; AIR (B)	8-98242-816-0	01	1	1401-		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	1009-1302	●	●
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1303-		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	1009-1302	●	●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1303-		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1009-1302	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1303-1312		●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-		●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-		●
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1009-1302	●	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1303-		●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1009-1302	●	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1303-		●
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1009-1302	●	●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1303-		●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-186-2	01	1	1009-1302	●	●
322	VALVE; AIR SPRING (B)	1-75538-186-3	01	1	1303-		●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	1303-1508	●
322	VALVE; AIR SPRING (A)	8-98331-314-0	01	1	1509-	●
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1009-1302	●	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	1303-		●
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1009-1302	●	●
467	LEVER; LOCK	1-75538-134-0	01	1	1303-		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1009-1302	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1303-		●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1009-1302	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1303-		●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1009-1302	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1303-		●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1009-1302	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1303-		●
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1009-1302	●	●
470	CLIP; HOSE	1-75538-137-0	01	1	1303-		●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1009-1302	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	1303-		●

175 506 360 176 16 188 188 189 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1009-1302	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1303-		●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-856-3	01	1	1009-1302	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-762-0	01	1	1009-1011		●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-329-1	01	1	1012-1302		●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98168-329-1	01	1	1303-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-710-1	01	1	1009-1302	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-191-0	01	1	1009-1011		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-332-0	01	1	1012-1302		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98168-332-0	01	1	1303-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1)	1-75116-696-1	01	1	1009-1302	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-190-0	01	1	1009-1011		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-326-0	01	1	1012-1302		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98168-326-0	01	1	1303-		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-75026-845-4	01	1	1009-1302	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-761-0	01	1	1009-1011		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-318-2	01	1	1012-1302		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98168-318-2	01	1	1303-		●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1009-1302	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1303-		●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1009-1302	●	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1303-		●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-1302	●	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1303-		●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1009-1302	●	●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1303-		●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1009-1302	●	●
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1303-		●

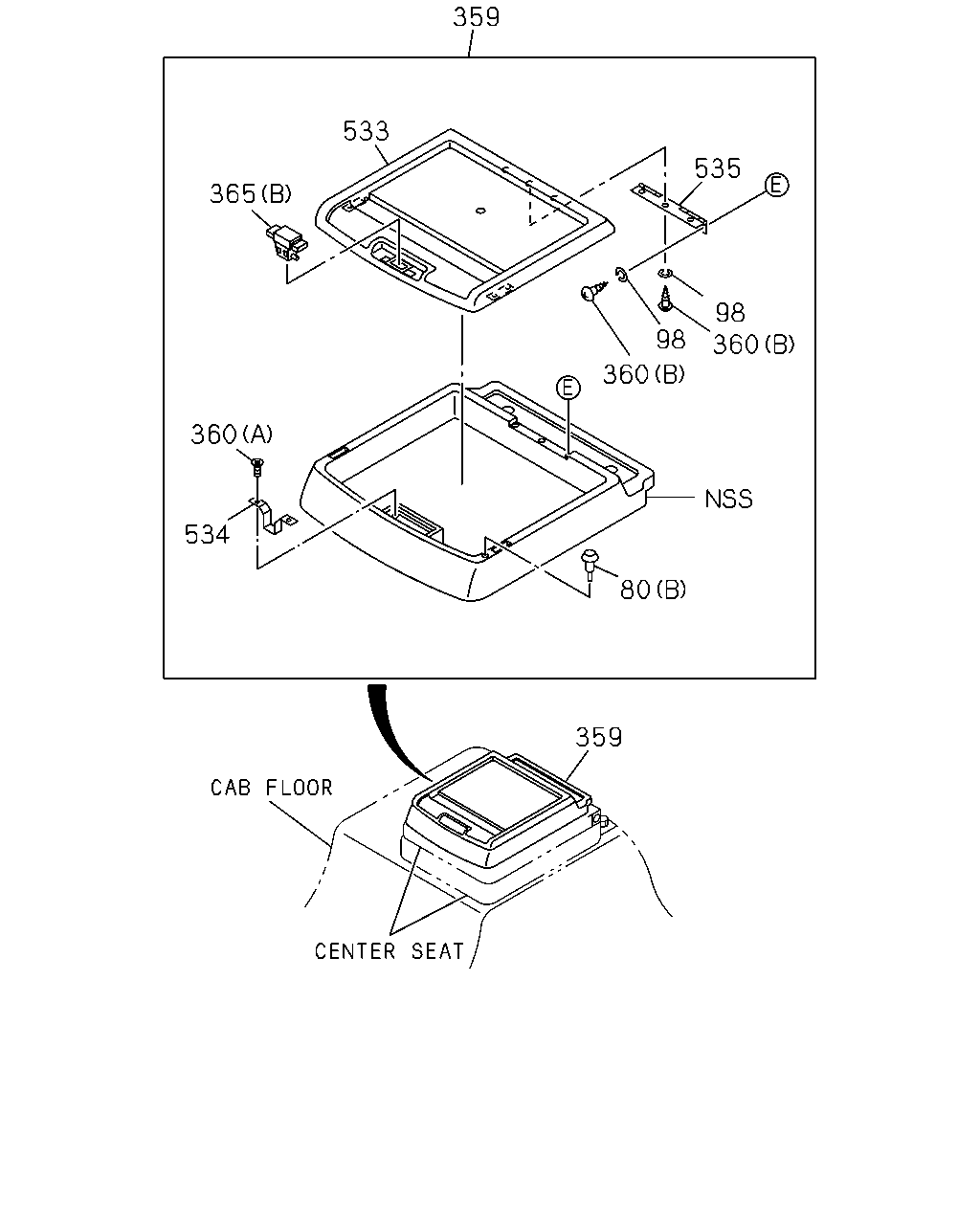

359 533 365 360 534 360 98 98 535 360 80 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1009-1302	●	●
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1303-		●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1009-1302	●	●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1303-		●
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1009-1302	●	●
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1303-		●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1009-1302	●	●
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1009-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1303-		●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1009-1302	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1303-		●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1303-	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1009-1302	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1) (B)	1-72538-180-0	01	1	1303-		●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1009-1302	●	●
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1303-		●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1009-1302	●	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1303-		●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1009-1302	●	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1303-		●

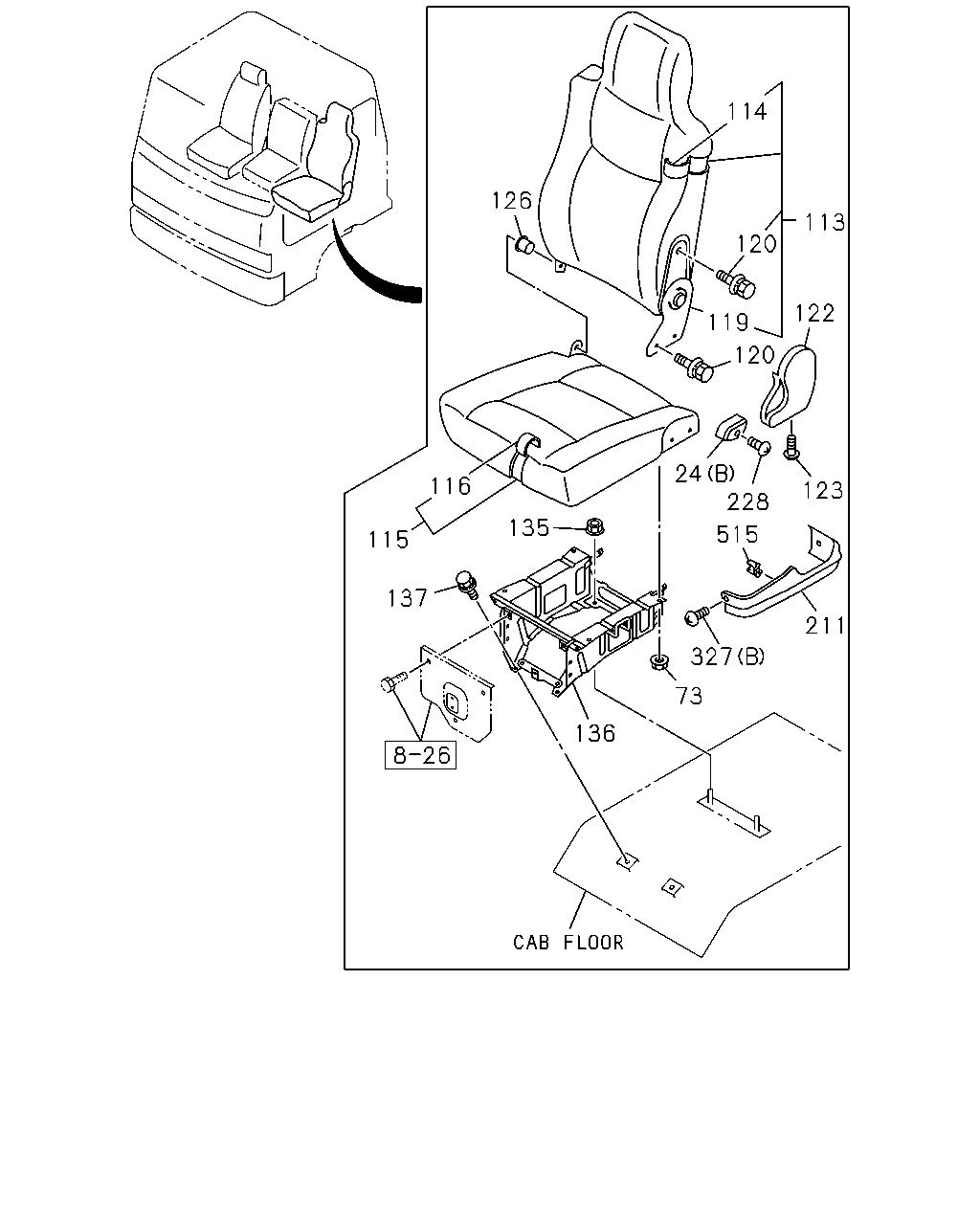

126 114 120 113 119 122 120 123 24 515 211 228 116 115 137 135 136 327 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83) (B) DARK GRAY	8-97859-019-0	01	1	1009-1303	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1304-	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1009-1302	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1303-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1009-	●	●
113	BACK ASM; SEAT VINYL SEAT(A83)	1-75207-652-2	01	1	1009-1302	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-759-0	01	1	1009-1009		●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-280-0	01	1	1010-1302		●
113	BACK ASM; SEAT	8-98168-280-0	01	1	1303-1303	●	●
113	BACK ASM; SEAT	8-98168-280-0	01	1	1304-		●
113	BACK ASM; SEAT	8-98054-773-0	01	1	1304-	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83)	1-75127-171-1	01	1	1009-1302	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-189-0	01	1	1009-1009		●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98168-295-0	01	1	1010-1302		●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98168-295-0	01	1	1303-1303	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98168-295-0	01	1	1304-		●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98054-777-0	01	1	1304-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83)	1-75207-300-0	01	1	1009-1302	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-771-0	01	1	1009-1009		●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-131-0	01	1	1010-1302		●
115	CUSHION ASM; PASSENGER SEAT	8-98168-131-0	01	1	1303-1303	●	●
115	CUSHION ASM; PASSENGER SEAT	8-98168-131-0	01	1	1304-		●
115	CUSHION ASM; PASSENGER SEAT	8-98054-770-0	01	1	1304-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83)	1-75127-124-0	01	1	1009-1302	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-188-0	01	1	1009-1009		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	8-98168-270-0	01	1	1010-1302		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98168-270-0	01	1	1303-1303	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98168-270-0	01	1	1304-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98054-775-0	01	1	1304-	●
119	ADJ; SEAT RECLINING,ASSIST SIDE FABRIC SEAT W/RECLINING(SFQ)	1-75417-597-0	01	1	1009-1302		●
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	1303-1303	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	1304-		●
120	BOLT; RECLINING ADJ VINYL SEAT(A83) M8X20	8-97255-906-0	02	1	1009-1302	●	●
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	04	1	1009-1302		●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	1303-1303	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	1304-	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	1304-		●
122	COVER; ADJ,RECLINING VINYL SEAT(A83) DARK GRAY	8-97859-018-0	01	1	1009-1302	●	●
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ)	1-75417-598-0	01	1	1009-1302		●
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	1303-1303	●	●
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	1304-		●
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	1304-	●
123	SCREW; COVER,RECLINING VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1009-1302	●	●
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) M6X12	9-03490-612-0	01	1	1009-1302		●
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	1303-1303	●	●
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	1304-		●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	1304-	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1009-	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1009-	●	●
136	STAND; PASSENGER SEAT VINYL SEAT(A83)	1-75558-602-3	01	1	1009-1302	●	●
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-522-8	01	1	1009-1302		●
136	STAND; PASSENGER SEAT	1-75558-522-8	01	1	1303-1303	●	●
136	STAND; PASSENGER SEAT	1-75558-522-8	01	1	1304-1305		●
136	STAND; PASSENGER SEAT	8-98242-290-0	01	1	1306-		●
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	1304-1305	●
136	STAND; PASSENGER SEAT	8-98242-298-0	01	1	1306-	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1009-	●	●
211	COVER; FRT SEAT VINYL SEAT(A83)	1-72538-274-0	01	1	1009-1302	●	●
228	SCREW; KNOB VINYL SEAT(A83) PASSENGER M4X6	8-97042-273-0	01	1	1009-1302	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1009-1302	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1303-1303		●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	1304-	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1009-1302	●	●
327	CLIP; COVER (B)	1-09987-273-0	02	1	1303-		●
327	CLIP; COVER (A)	8-98098-004-0	01	1	1303-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1302	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1303-		●
515	CLIP; PIPE VINYL SEAT(A83) BLACK	8-94227-248-1	01	1	1009-1302	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
