◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11290 - CYZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#58857) — 118 parça

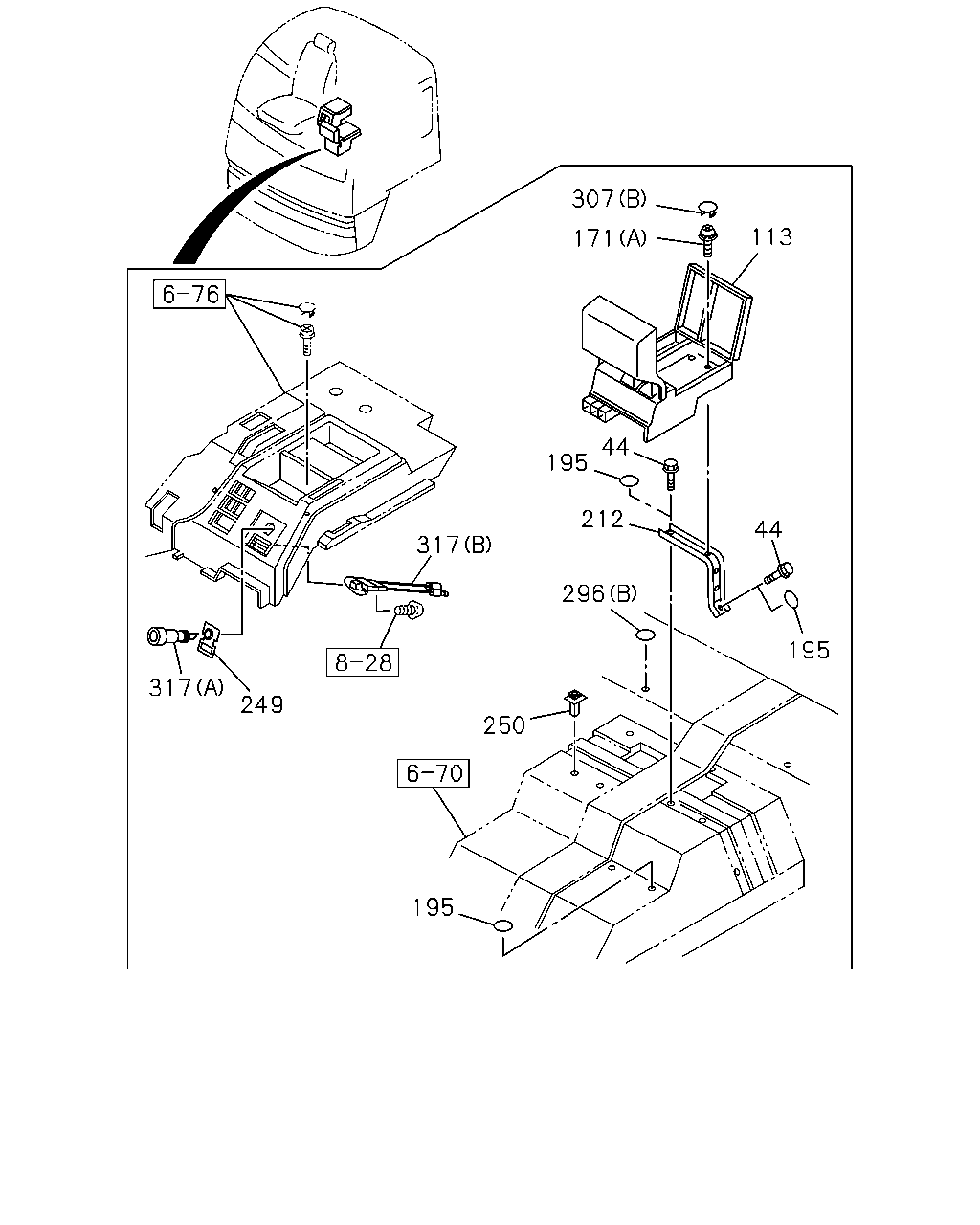

çizim 168601
307 113 171 44 195 317 249 317 195 250 296 195 44 212
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-1302 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303- ●
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303- ●
113 BOX; CONSOLE 1-72537-326-1 01 1 1303- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1009-1302 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-1302 ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1009-1302 ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1303- ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 1009-1302 ● ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 1303- ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 1009-1302 ● ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 1303- ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 1303- ●
249 COVER 1-82529-001-0 01 1 1303- ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 1009- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1009-1302 ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 1303- ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1303- ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1303- ●
317 CONSENT
(A) 		8-94382-451-1 01 1 1303- ●
317 CONSENT
(B) 		1-82523-020-2 01 1 1009- ● ●

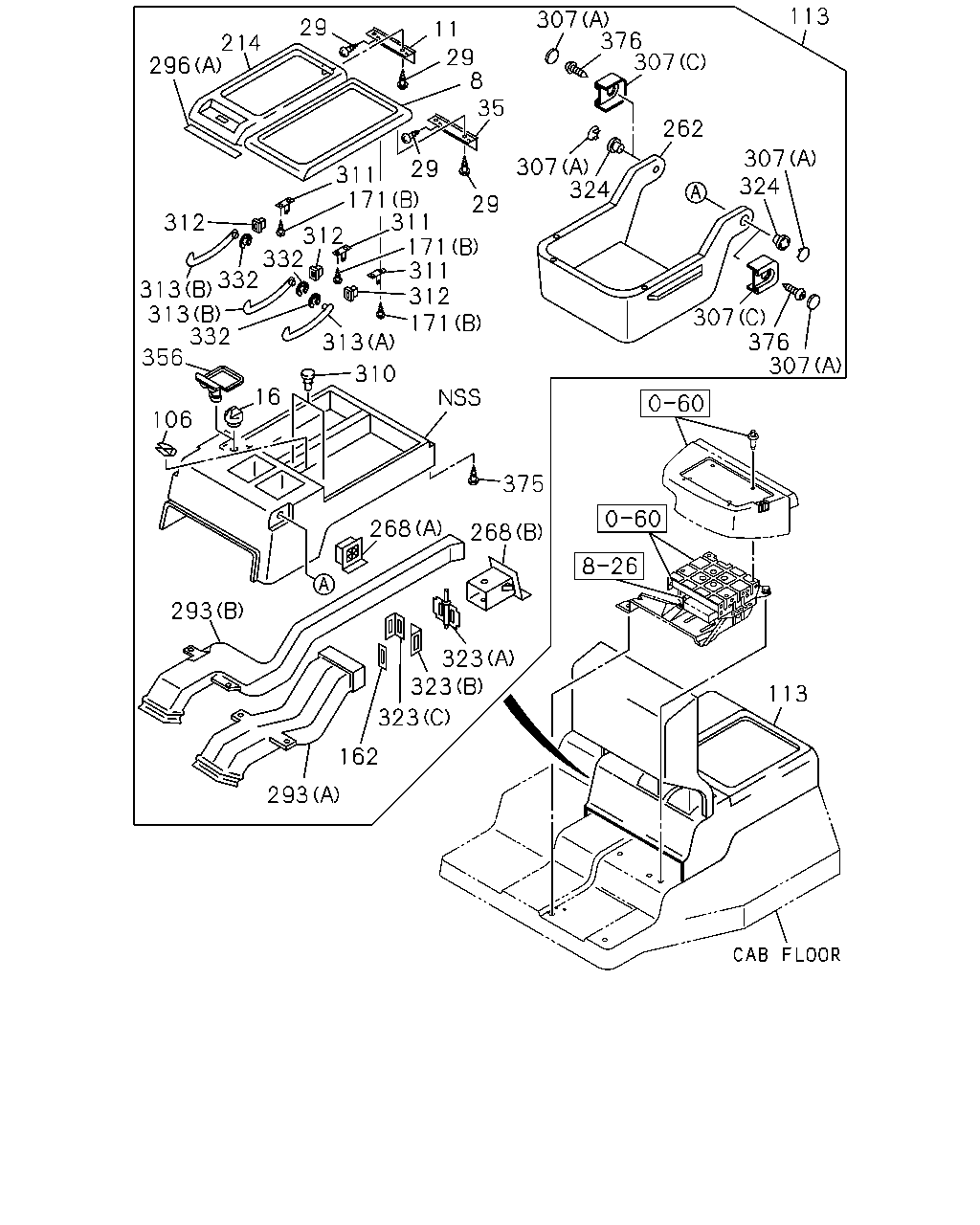

çizim 168618
113 293 162 323 323 323 293 268 268 375 310 106 16 356 332 313 313 312 296 214 29 11 29 8 35 29 311 171 29 311 171 311 312 312 332 332 313 307 376 113 307 262 307 324 307 324 307 307 376 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 1009-1302 ● ●
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 1303- ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 1303- ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1009-1302 ● ●
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 1303- ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1303- ●
16 KNOB ASM 1-72537-189-0 01 1 1303- ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1009-1302 ● ●
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303- ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1303- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1009-1302 ● ●
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 1303- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1303- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 1009-1302 ● ●
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 1303- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 1303- ●
113 BOX; CONSOLE 1-72537-326-1 01 1 1303- ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1009-1302 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1303- ●
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1009-1302 ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1009-1302 ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1303- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1303- ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 1009-1302 ● ●
214 LID; CONSOLE 1-72537-339-0 01 1 1303- ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 1303- ●
262 TABLE ASM 1-72537-187-1 01 1 1303- ●
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 1303- ●
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 1303- ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 1009-1302 ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 1303- ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 1009-1302 ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 1303- ●
293 DUCT
(A) 		1-72537-081-3 01 1 1303- ●
293 DUCT
(B) 		1-72537-083-2 01 1 1303- ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1009-1302 ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 1303- ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1303- ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1009-1302 ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 1303- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1303- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1009-1302 ● ●
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 1303- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1303- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1009-1302 ● ●
311 HOLDER; CONSOLE 1-72538-188-2 03 1 1303- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1303- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1009-1302 ● ●
312 STOPPER; CONSOLE 1-72538-186-1 03 1 1303- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1303- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1009-1302 ● ●
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 1303- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1303- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1009-1302 ● ●
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 1303- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1303- ●
323 SHUTTER
(A) 		1-72537-084-1 01 1 1303- ●
323 SHUTTER
(B) 		1-72537-126-0 01 1 1303- ●
323 SHUTTER
(C) 		1-72537-127-0 01 1 1303- ●
324 BUSHING 1-72537-116-0 02 1 1303- ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1009-1302 ● ●
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 1303- ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1303- ●
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 1009-1302 ● ●
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 1303- ●
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1009-1302 ● ●
375 SCREW; TAP BUSHING
M6X20 		1-72537-319-0 02 1 1303- ●
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1303- ●
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1009-1302 ● ●
376 SCREW; TAP DUCT
M4X14 		1-72537-320-0 03 1 1303- ●
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1303- ●

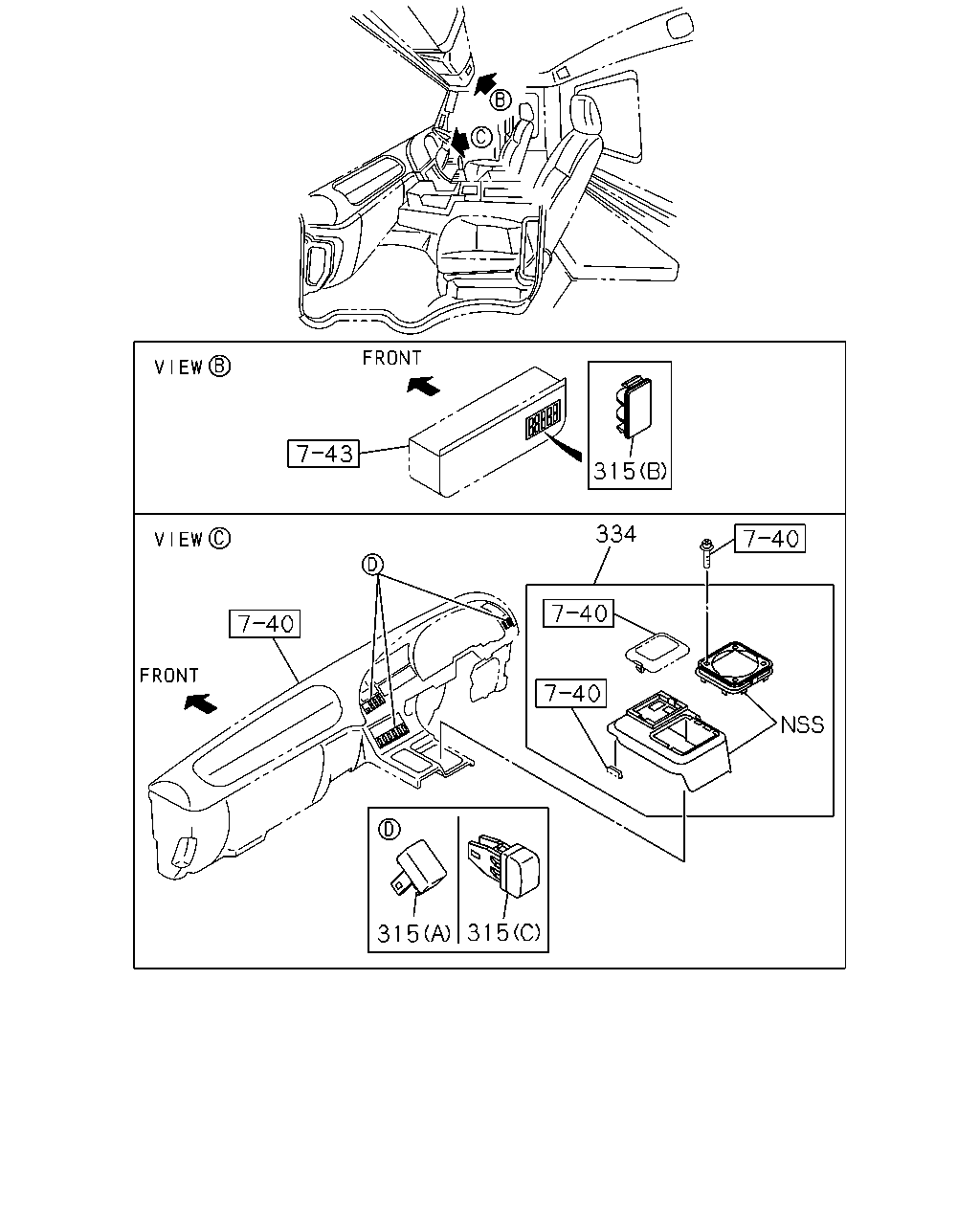

çizim 168665
315 315 334 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 1009-1302 ● ●
315 COVER; HOLE,SW
(C) 		8-98025-954-1 AR 1 1303- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 1009- ● ●
334 COVER; CHANGE LEVER
MJX12P M/T SMOOTHER-G(Y4S) 		1-72447-969-1 01 1 1009-1302 ●
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 1303- ●
