◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#58843) — 22 parça

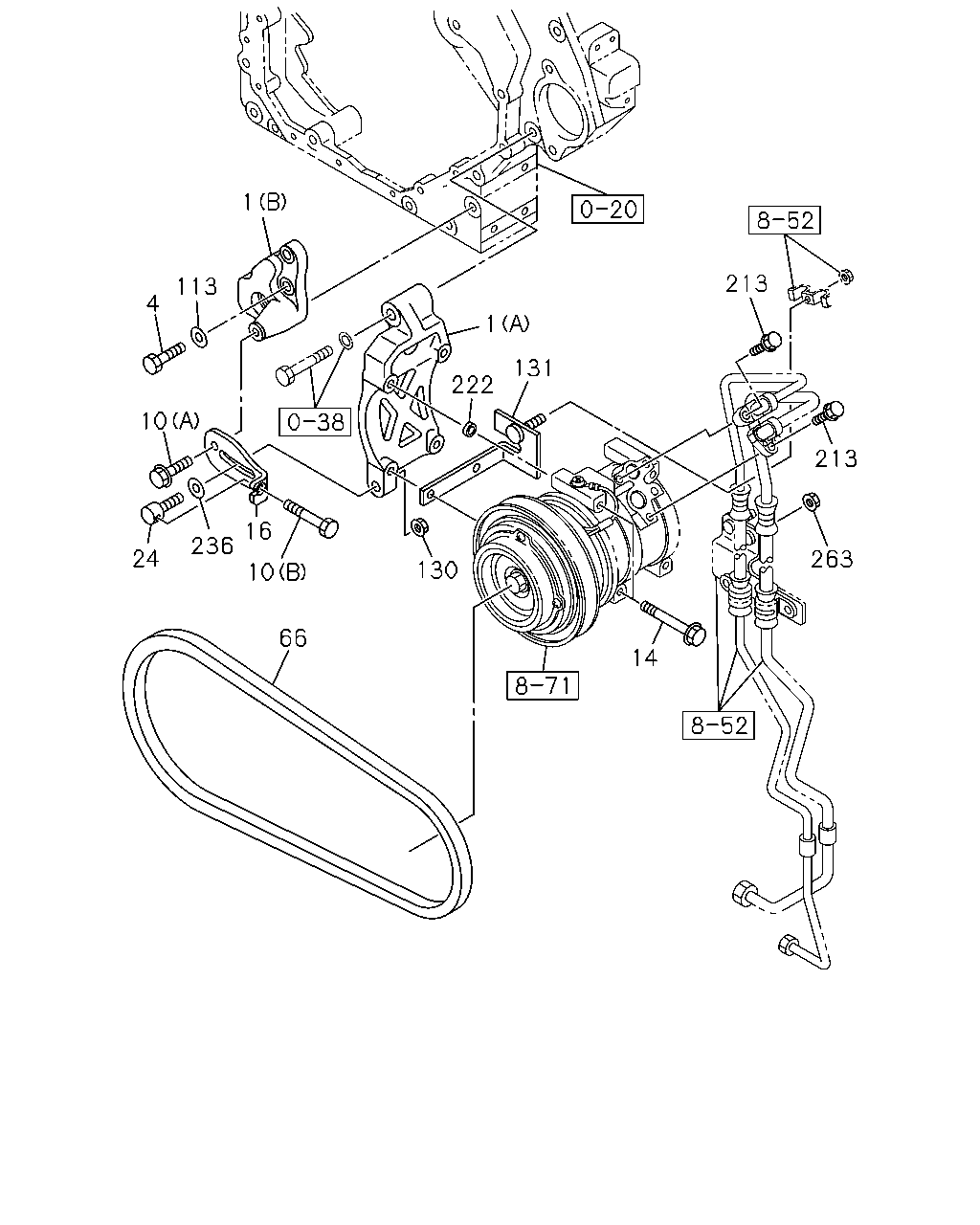

çizim 168330
1 213 113 4 1 131 222 10 213 16 236 24 263 130 10 66 14
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
(A) 		1-83573-095-3 01 1 1008-
1 BRACKET; A/C
(B) 		1-83573-119-0 01 1 1008-
4 BOLT; A/C CMPR BRKT
M14X135 		1-09020-055-0 03 1 1008-
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28151-240-0 01 1 1008-
10 BOLT; ADJ PLATE
(B) M10X90 		1-09009-151-0 01 1 1008-
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 1008-
16 PLATE; ADJ,CMPR 1-13674-293-2 01 1 1008-
24 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1008-
66 BELT; A/C CMPR
L=1189 		8-97604-138-1 01 1 1008-
66 BELT; A/C CMPR
BEST VALUE PARTS 		1-87610-103-0 01 1 1008-
113 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 03 1 1008-
130 NUT; ADJ BRKT
M12 FLANGE 		0-91180-112-0 01 1 1008-
131 STAY; CMPR BRKT 1-83573-244-0 01 1 1008-
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE 		0-28050-625-0 02 1 1008-
222 GASKET; CONNECTOR
ID=8.4 OD=19 		5-11779-001-0 02 1 1008-
236 WASHER; PL,ADJ BOLT
ID=12.5 OD=32 		9-09160-712-0 01 1 1008-
263 NUT; FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 1008-

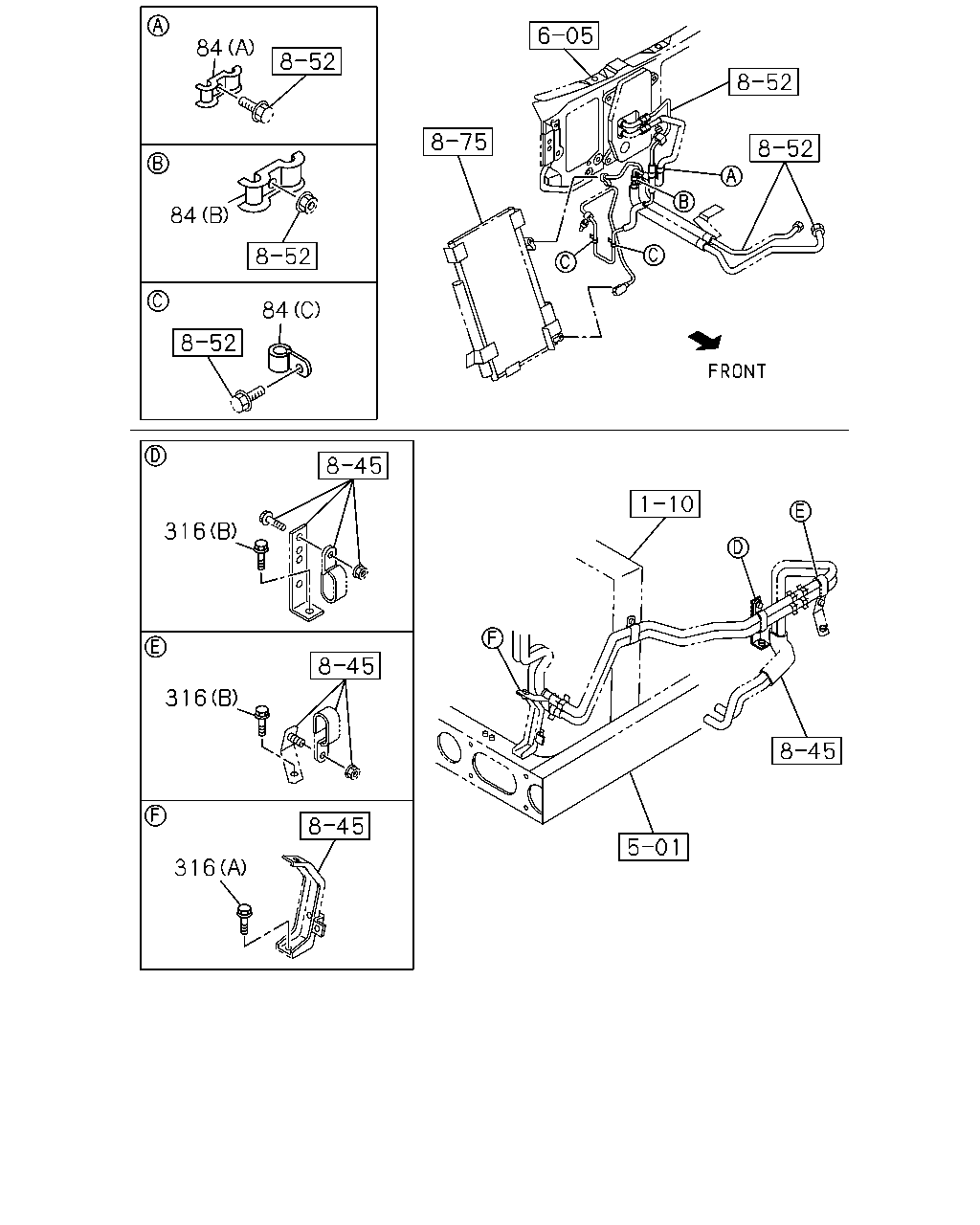

çizim 168336
84 84 84 316 316 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
(C) ID=9 L=20 		0-95234-835-0 02 1 1008-
84 CLIP; PIPE
(A) ID=12.2 & 16.2 		1-83574-190-0 01 1 1008-
84 CLIP; PIPE
(B) ID=20 & 20 		1-83574-195-1 01 1 1008-
316 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
316 BOLT; BRKT FIX
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1008-
