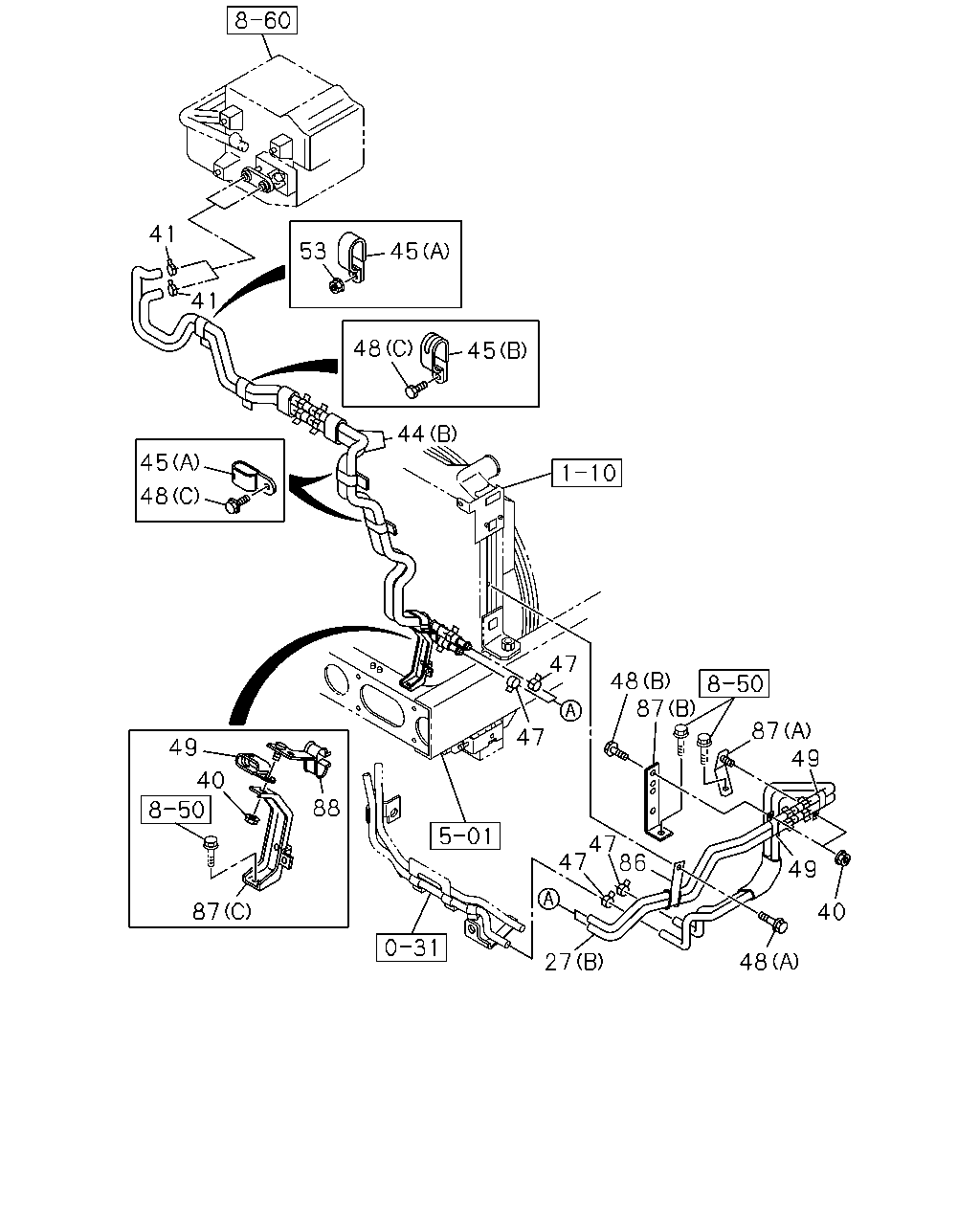

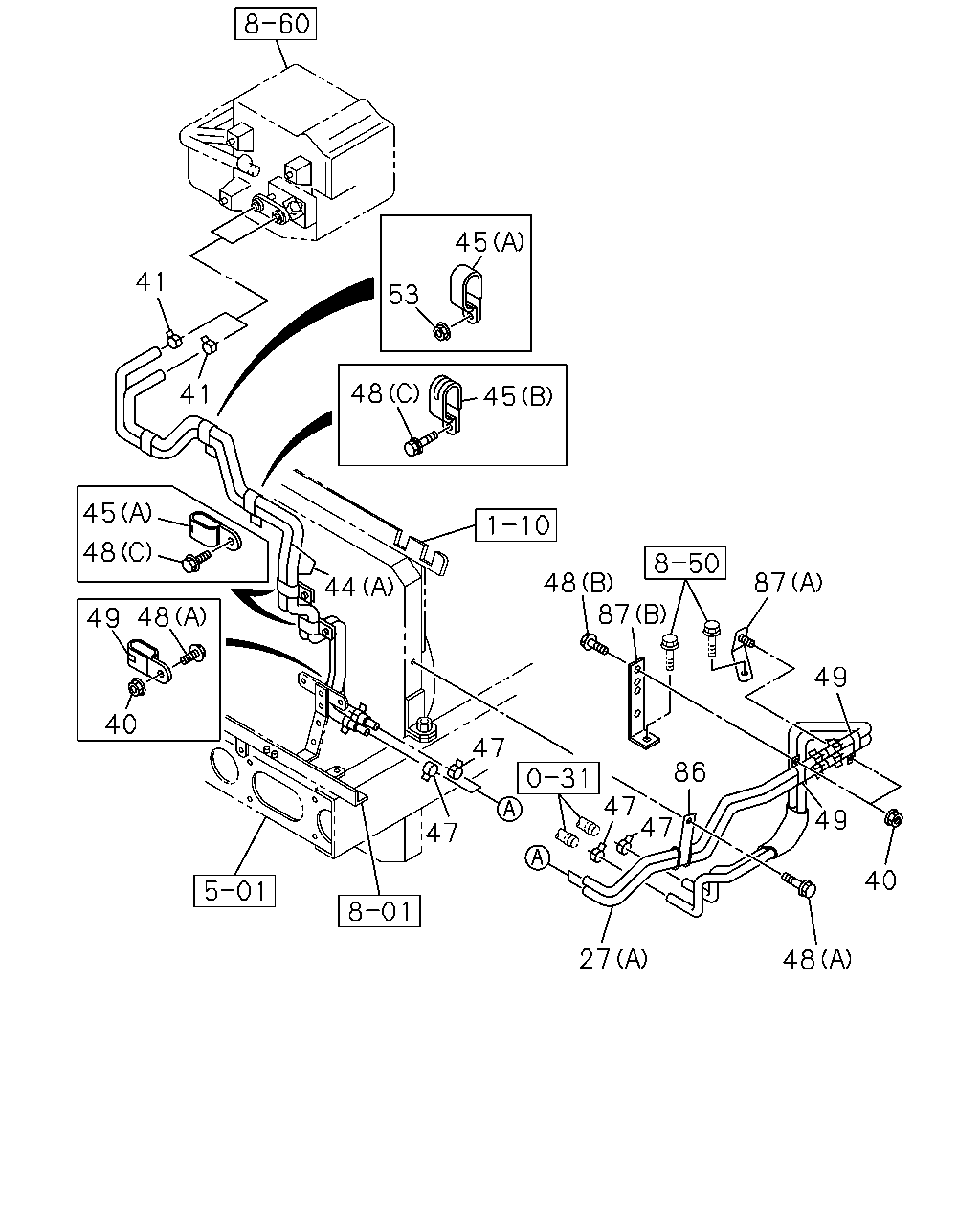

8-45 — HEATER PIPING (#58842) — 39 parça

41 53 45 41 48 45 44 45 48 47 48 87 87 49 47 49 40 88 47 49 87 40 48 27 86 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83565-802-3	01	1	1008-
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL-B2(Q4T) (B)	1-83565-839-1	01	1	1008-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-
44	HOSE; WATER,HTR,INL ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-2	01	1	1008-
44	HOSE; WATER,HTR,INL ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-2	01	1	1008-
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-
48	BOLT; CLIP FIX ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
48	BOLT; CLIP FIX ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	1008-
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-
87	BRACKET; HTR HOSE CLIP ENGINE CONTROL-B2(Q4T) (C)	1-83573-315-0	01	1	1008-
88	STAY; WATER HOSE ENGINE CONTROL-B2(Q4T)	1-83573-291-1	01	1	1008-
