8-28 — CHASSIS ELECTRICAL (#58840) — 119 parça

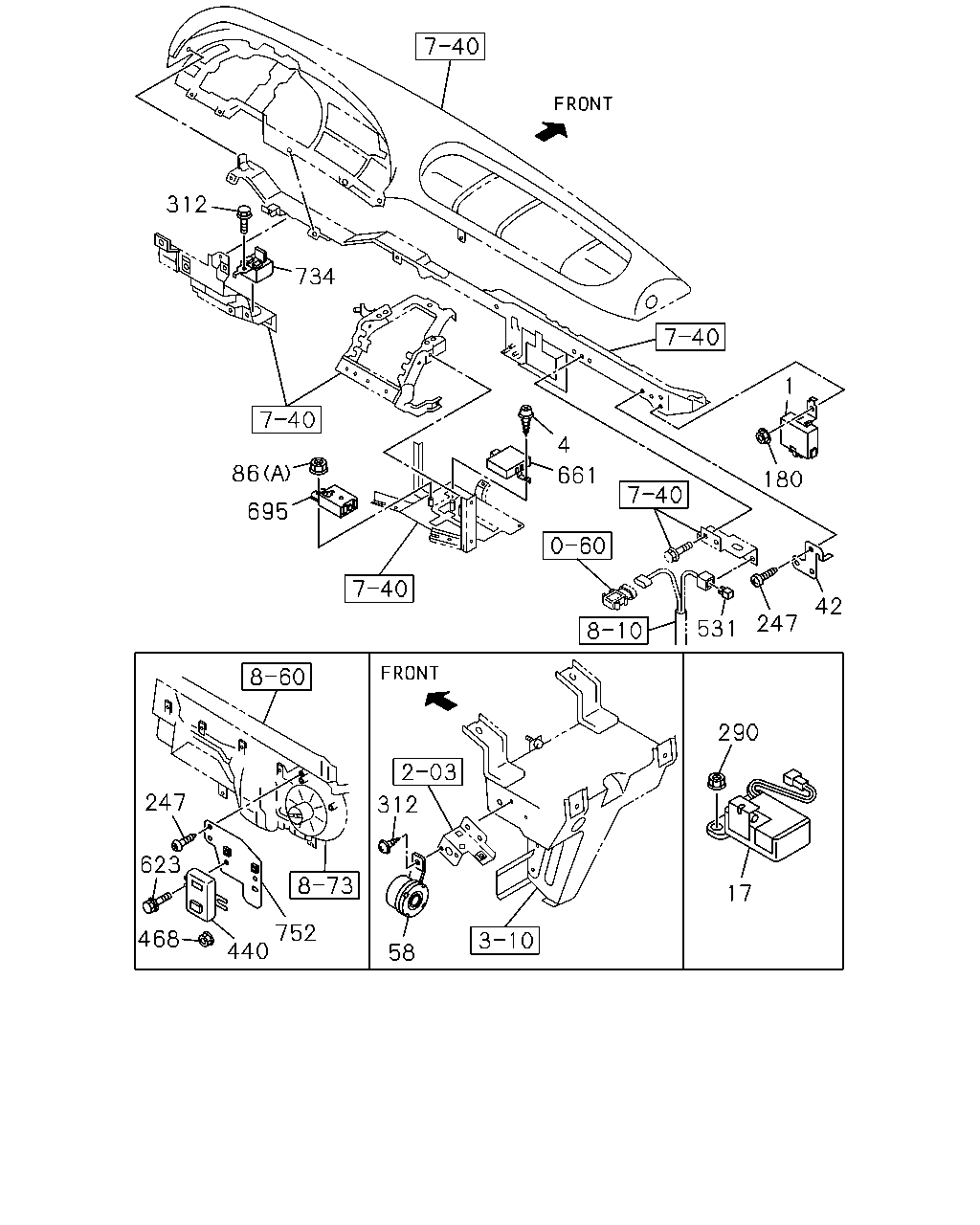

312 734 1 4 86 661 180 695 42 247 531 290 247 312 623 17 752 440 468 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1008-
4	SCREW; FLASHER UNIT ENGINE CONTROL COMMON RAIL(Q4R) M5X14	8-94279-325-0	01	1	1008-
17	TIMER; SEAT BELT	1-82550-183-1	01	1	1008-
42	BRACKET; RELAY ENGINE CONTROL-B2(Q4T)	1-82698-128-2	01	1	1008-
58	BUZZER; AIR PRESSURE WARNING ENGINE CONTROL COMMON RAIL(Q4R) METRO DENSO	8-98069-859-0	01	1	1008-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	1008-
86	NUT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE	0-91180-106-0	01	1	1008-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1008-
180	NUT; FLASHER UNIT ENGINE CONTROL-B2(Q4T) M6 FLANGE	0-91180-106-0	01	1	1008-
247	SCREW; BRKT ENGINE CONTROL-B2(Q4T) M5X14	8-94279-325-0	01	1	1008-
247	SCREW; BRKT ENGINE CONTROL-B2(Q4T) M5X14	8-94279-325-0	03	1	1008-
290	NUT M6 FLANGE	0-91180-106-0	02	1	1008-
312	BOLT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	1008-
468	NUT; MODULE ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE	0-91180-106-0	02	1	1008-
531	RELAY; MAIN ENGINE CONTROL-B2(Q4T) 24V	8-98167-175-0	01	1	1008-
623	BOLT; MODULE ENGINE CONTROL-B2(Q4T) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1008-
695	ALARM; OVER HEAT ENGINE CONTROL COMMON RAIL(Q4R)	1-83460-051-1	01	1	1008-
734	ALARM; MULTI ENGINE CONTROL-B2(Q4T)	1-83460-106-0	01	1	1008-
752	BRACKET; MODULE ENGINE CONTROL-B2(Q4T)	8-97611-710-0	01	1	1008-

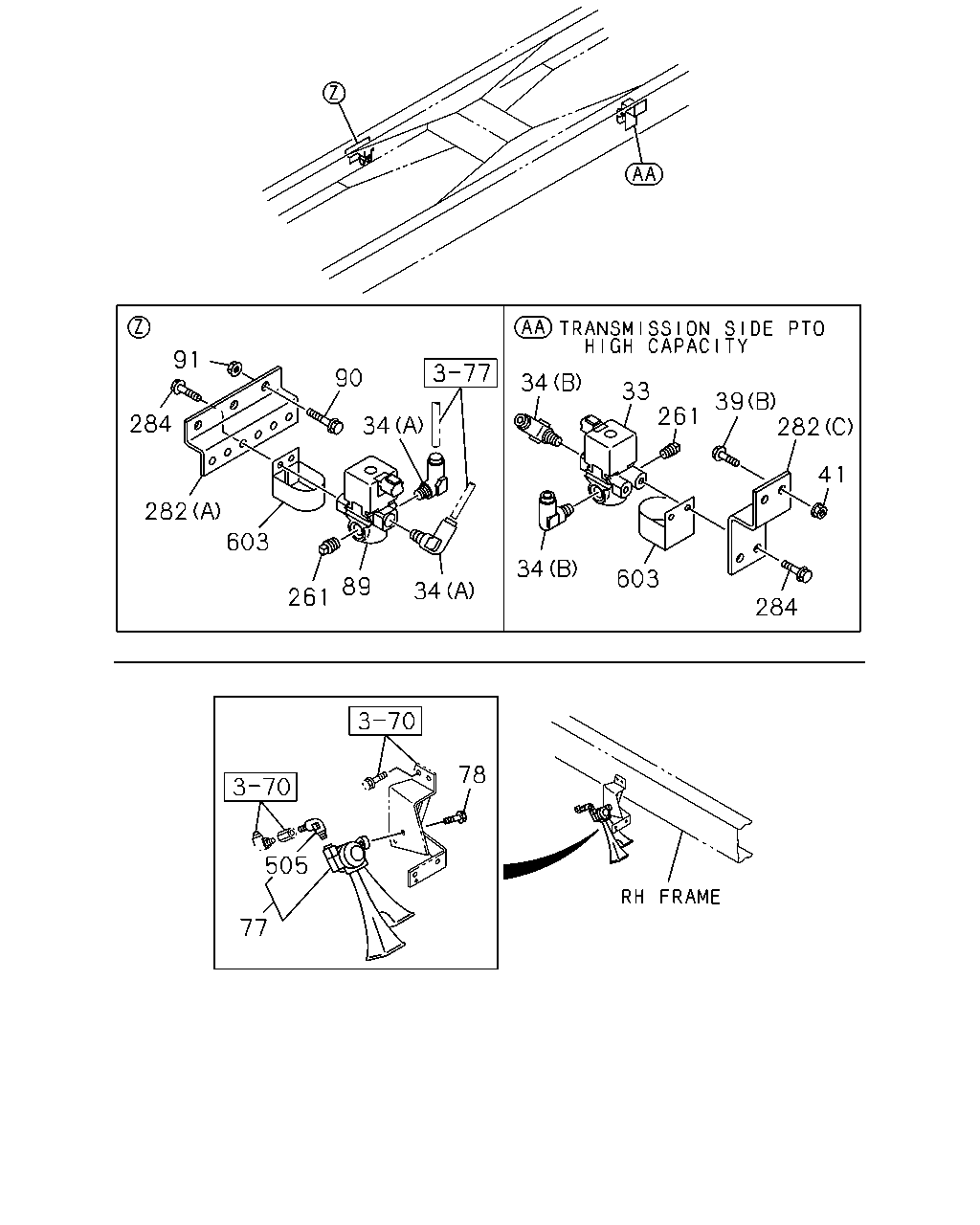

91 90 34 33 261 39 282 284 34 41 282 603 34 603 89 34 261 284 78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	1008-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1008-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1008-
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	1008-
77	HORN ASM	1-83430-043-0	01	1	1008-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1008-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	1008-1205
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1008-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1008-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	1008-
282	BRACKET; MAG VLV (A)	1-82569-421-0	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (B)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (E)	1-82569-290-0	01	1	1008-
282	BRACKET; MAG VLV EURO4 SPECIFICATION<KBT> (D)	1-82569-298-0	01	1	1008-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-47471-175-0	01	1	1008-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	1008-
284	BOLT; MAG VLV EURO4 SPECIFICATION<KBT> M6X50 FLANGE	0-28050-650-0	03	1	1008-
505	JOINT; AIR HORN	1-83439-006-0	01	1	1008-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1008-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-47471-046-0	01	1	1008-

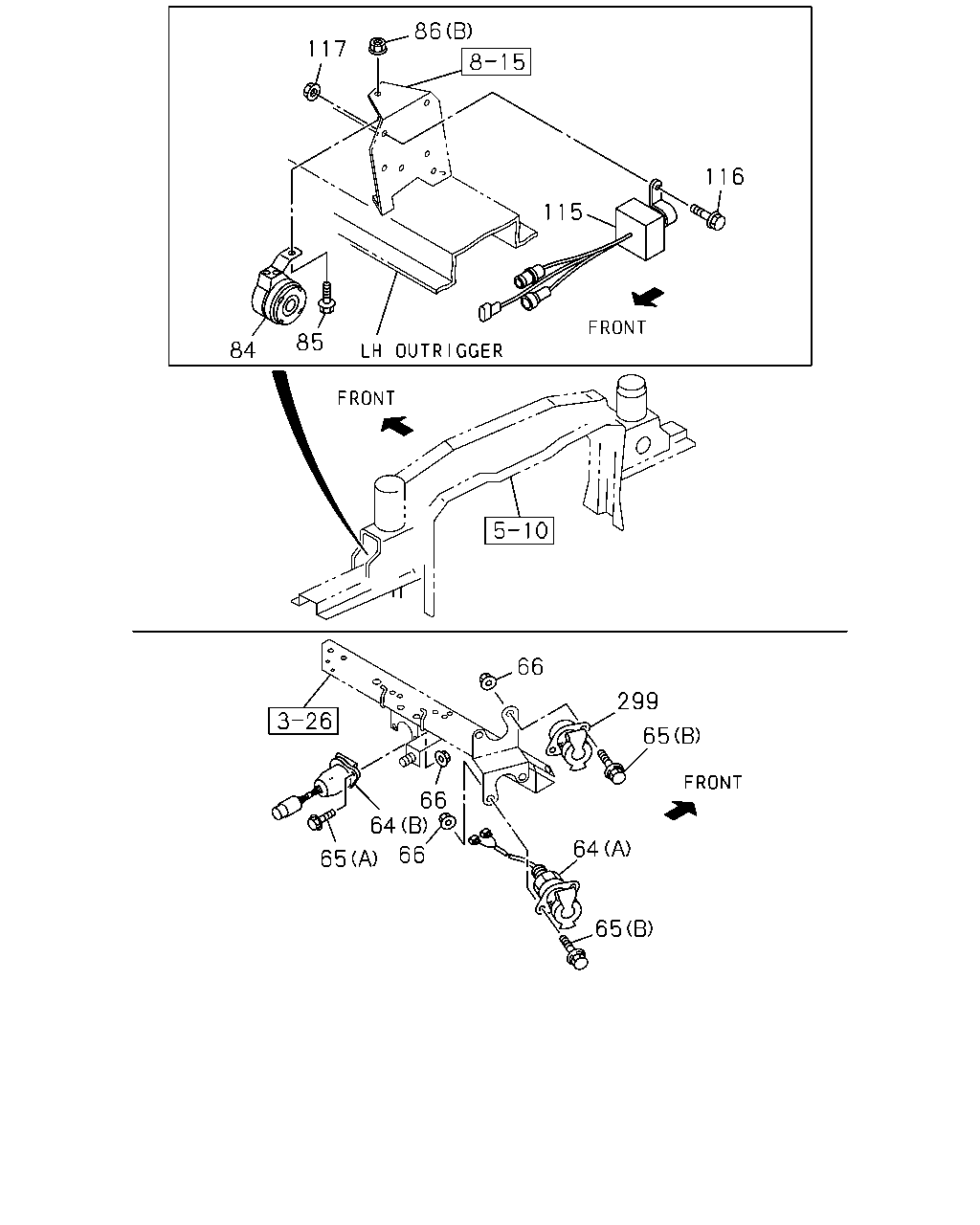

86 117 116 115 85 84 66 299 65 66 64 64 66 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1008-
64	SOCKET; TRAILER (A) L=860	1-82699-449-2	01	1	1008-1008
64	SOCKET; TRAILER (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	1008-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1008-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	1008-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1008-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1008-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	1008-
86	NUT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE	0-91180-106-0	01	1	1008-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1008-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1008-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1008-
299	SOCKET; PARKING	1-82699-396-2	01	1	1008-

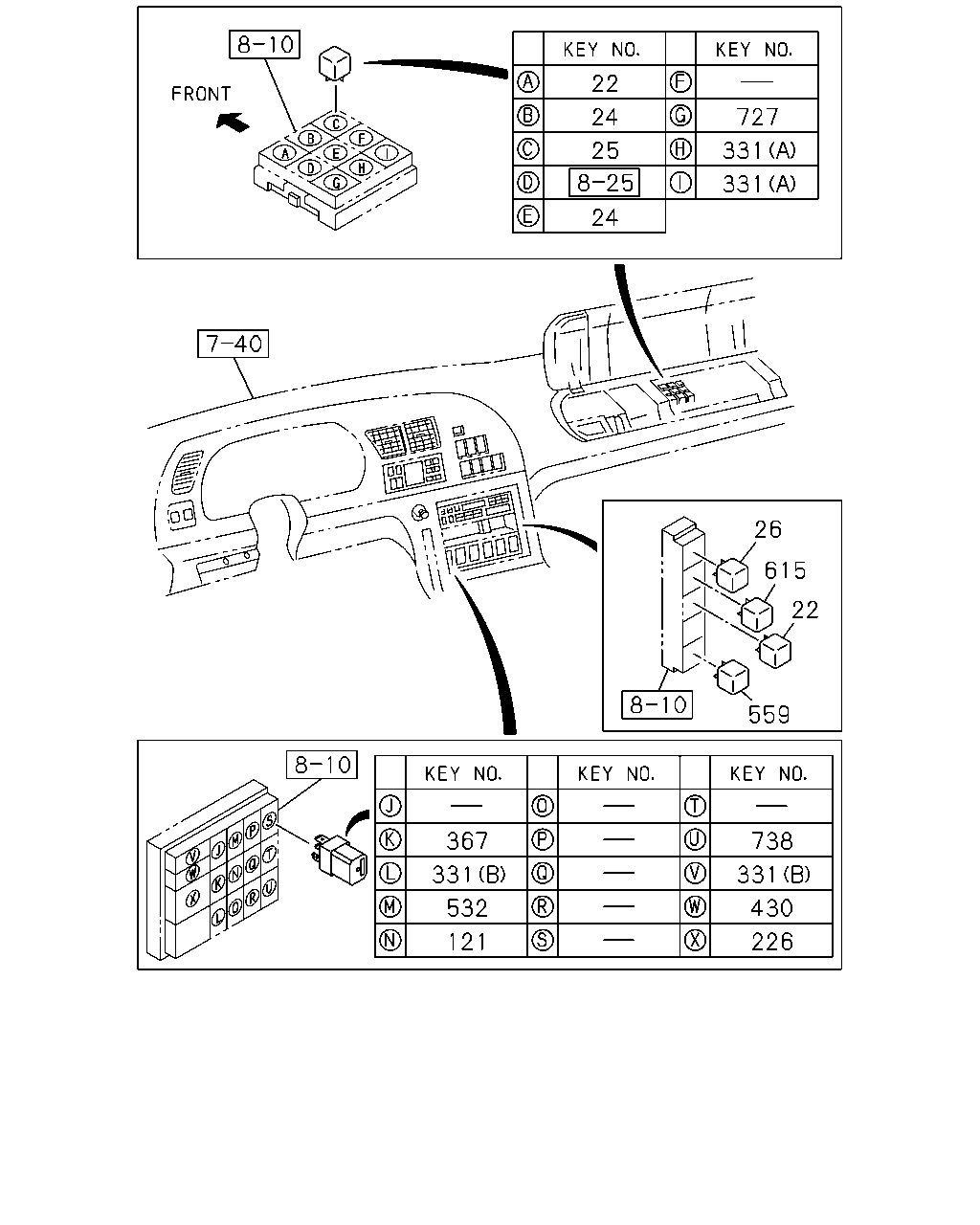

22 24 727 25 331 331 24 26 615 22 559 367 738 331 331 532 430 121 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-
331	RELAY; A/C ENGINE CONTROL-B2(Q4T) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
430	RELAY; RANGE ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
532	RELAY; SEAT BELT WARNING 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
559	RELAY; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1008-

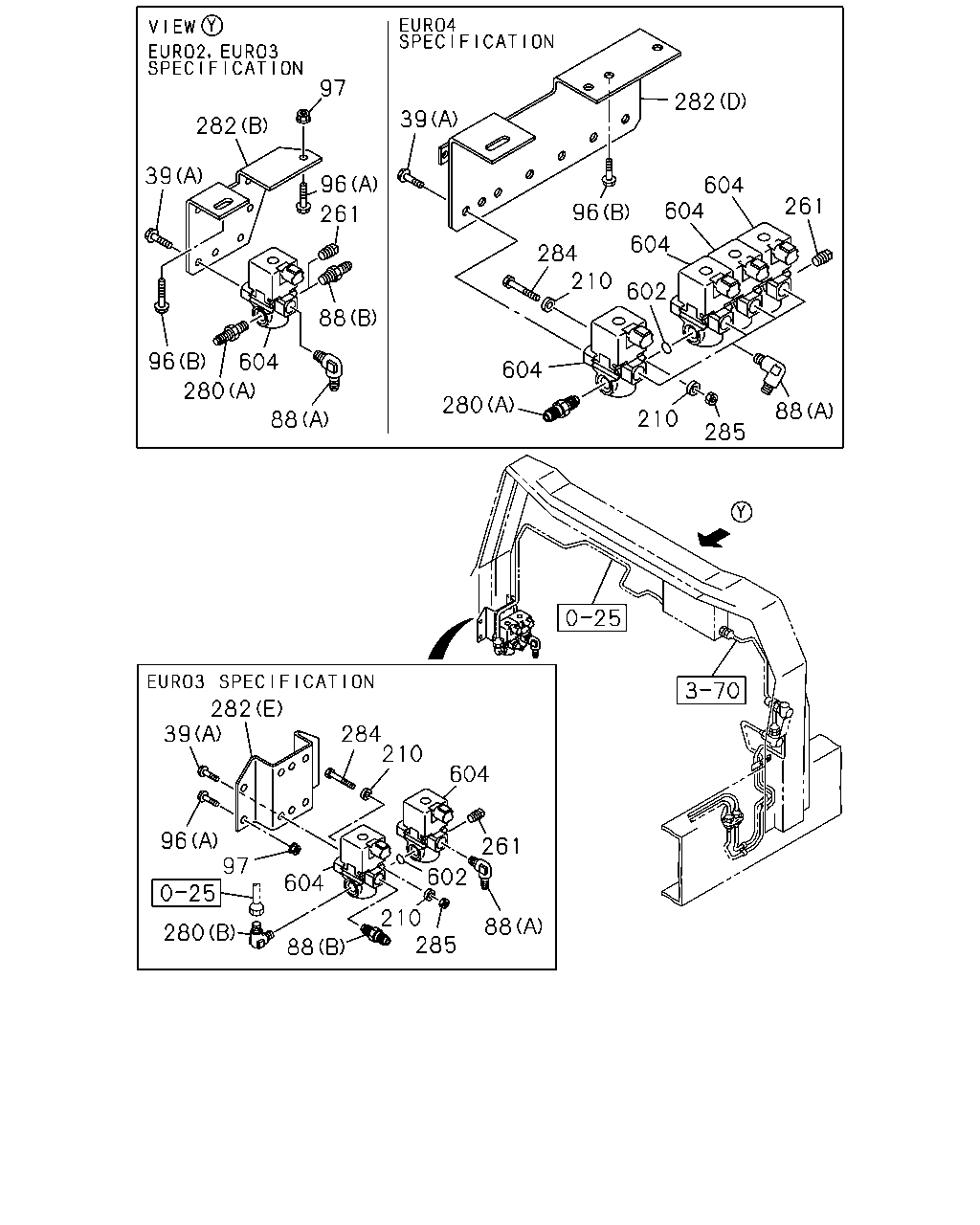

97 282 39 282 39 96 604 604 261 96 261 604 284 210 602 88 96 604 604 280 280 88 210 88 285 282 39 284 210 604 96 97 602 210 285 261 604 88 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-
88	CONNECTOR; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1008-
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1008-
96	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE	0-28651-030-0	01	1	1008-
96	BOLT; BRKT FIX EURO4 SPECIFICATION<KBT> (B) M10X30 FLANGE	0-28651-030-0	02	1	1008-
97	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	1008-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	05	1	1008-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	1008-
210	WASHER; PL,BRKT EURO4 SPECIFICATION<KBT>	1-82569-266-0	06	1	1008-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	1008-
280	CONNECTOR; IN,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
282	BRACKET; MAG VLV (A)	1-82569-421-0	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (B)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (E)	1-82569-290-0	01	1	1008-
282	BRACKET; MAG VLV EURO4 SPECIFICATION<KBT> (D)	1-82569-298-0	01	1	1008-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-47471-175-0	01	1	1008-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	1008-
284	BOLT; MAG VLV EURO4 SPECIFICATION<KBT> M6X50 FLANGE	0-28050-650-0	03	1	1008-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	1008-
285	NUT; MAG VLV EURO4 SPECIFICATION<KBT> M6 FLANGE	0-91180-106-0	03	1	1008-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	1008-
602	GASKET; MAG VLV EURO4 SPECIFICATION<KBT> ID=16.8	9-09565-117-0	03	1	1008-
604	VALVE; MAG,ENG CONT ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82563-871-2	01	1	1008-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	03	1	1008-
604	VALVE; MAG,ENG CONT EURO4 SPECIFICATION<KBT>	1-82563-871-2	04	1	1008-
