8-21 — METER ASM (#58837) — 108 parça

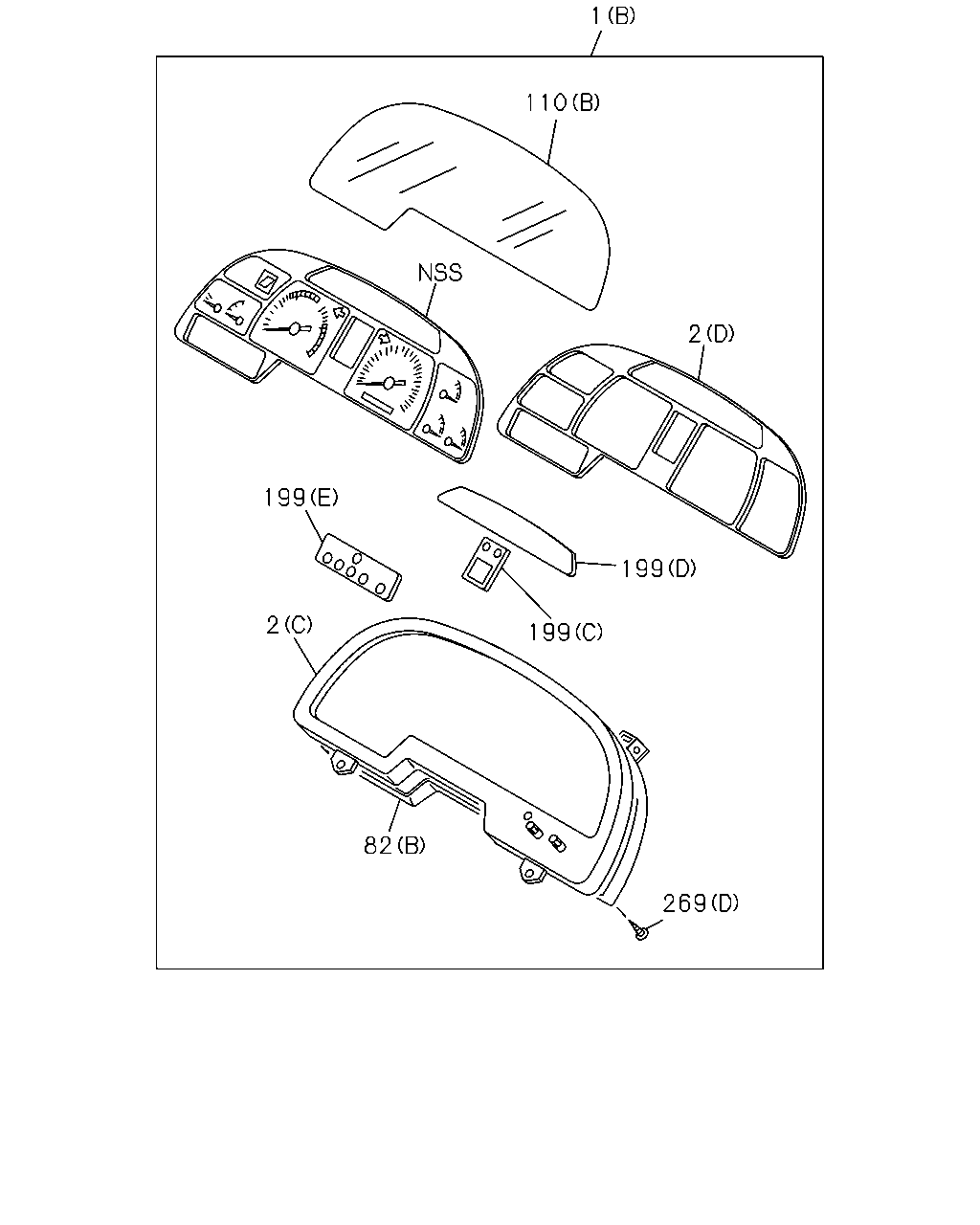

1 110 2 199 199 2 199 82 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98146-463-0	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-97638-845-0	01	1	1104-1105
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98195-538-0	01	1	1106-1205
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98221-615-0	01	1	1206-
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97632-315-2	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97638-838-1	01	1	1104-
2	PANEL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-644-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-83119-682-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL-B2(Q4T) (D)	1-83119-885-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL-B2(Q4T) (C)	1-83119-887-0	01	1	1008-
82	CASE ASM; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-653-0	01	1	1008-
82	CASE ASM; CLUSTER METER ENGINE CONTROL-B2(Q4T) (B)	1-83119-892-0	01	1	1008-
110	GLASS; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-646-0	01	1	1008-
110	GLASS; CLUSTER METER ENGINE CONTROL-B2(Q4T) (B)	1-83119-886-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-83119-912-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98170-738-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (C)	1-83119-891-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (E)	1-83119-928-1	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (D)	8-98162-668-0	01	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A) M3	1-83119-273-0	02	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (C) M3 TAPPING	1-83119-657-0	03	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (B) M3 TAPPING	1-83119-677-0	08	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL-B2(Q4T) (D)	1-83119-893-0	09	1	1008-

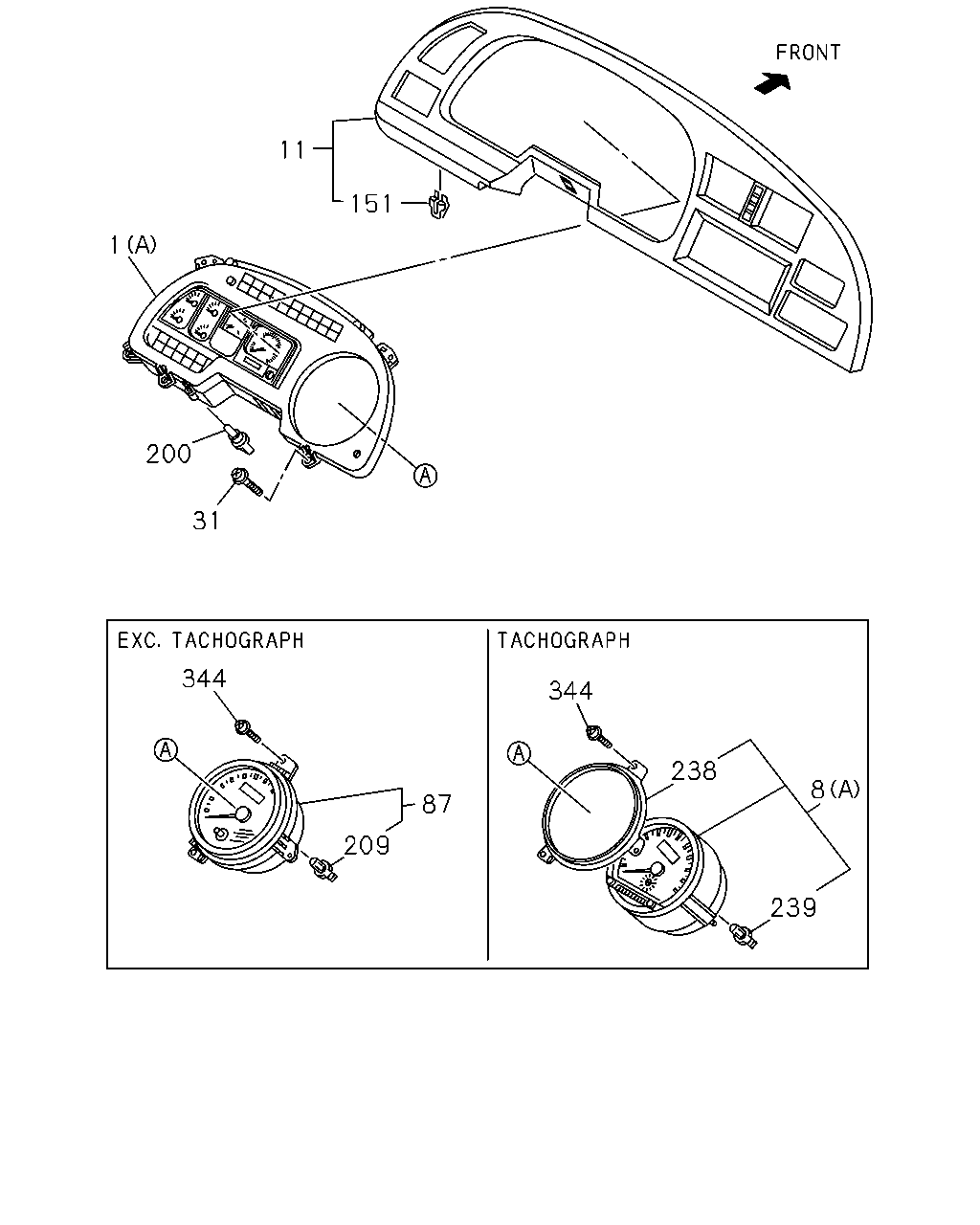

11 151 1 200 31 344 344 238 8 87 209 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98146-463-0	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-97638-845-0	01	1	1104-1105
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98195-538-0	01	1	1106-1205
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98221-615-0	01	1	1206-
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97632-315-2	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97638-838-1	01	1	1104-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 120KM/H<SM8> (A)	1-83120-856-0	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 140KM/H<WC7> (A)	1-83120-857-0	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL-B2(Q4T) TACHOGRAPH 120KM/H<SM8> (B)	1-83120-838-3	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL-B2(Q4T) TACHOGRAPH 140KM/H<WC7> (B)	1-83120-840-3	01	1	1008-
11	CLUSTER ASM; METER	1-72418-022-7	01	1	1008-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	04	1	1008-
87	SPEEDOMETER ENGINE CONTROL COMMON RAIL(Q4R) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	8-98039-481-0	01	1	1008-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	1008-
200	BULB; WARNING LAMP ENGINE CONTROL COMMON RAIL(Q4R) 24V 1.8W BROWN SOCKET	1-82194-062-0	01	1	1008-
209	BULB; SPEEDOMETER ENGINE CONTROL COMMON RAIL(Q4R) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	1008-
238	PANEL; TACHOGRAPH ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83129-311-0	01	1	1008-
239	BULB; TACHOGRAPH ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W	5-82194-034-0	03	1	1008-
344	SCREW; SPEEDOMETER ENGINE CONTROL COMMON RAIL(Q4R) M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	1008-

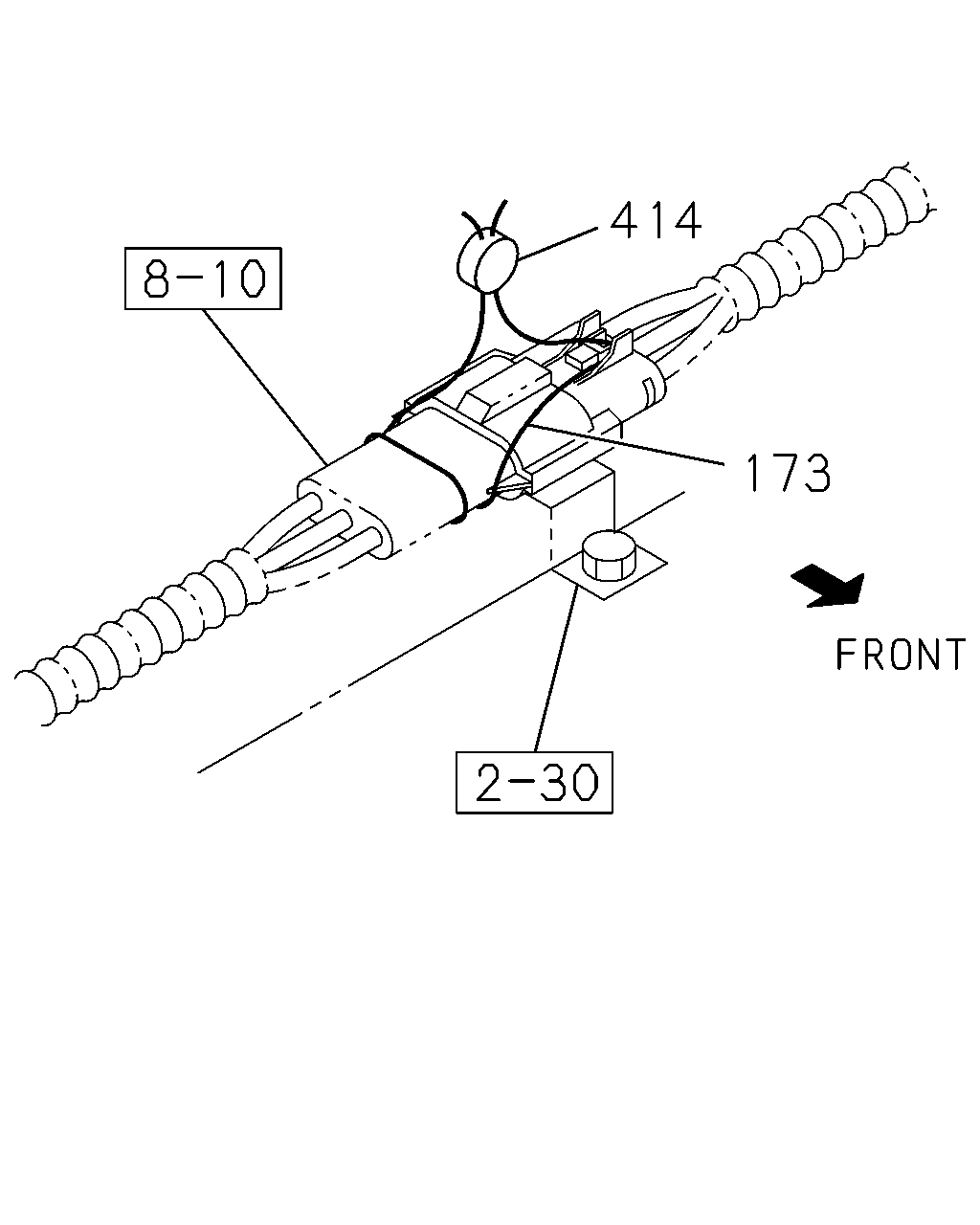

414 173

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	173	WIRE; LEAD RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ)	1-80249-010-0	01	1	1008-
	414	SEAL; LEAD RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ)	1-15739-008-0	01	1	1008-

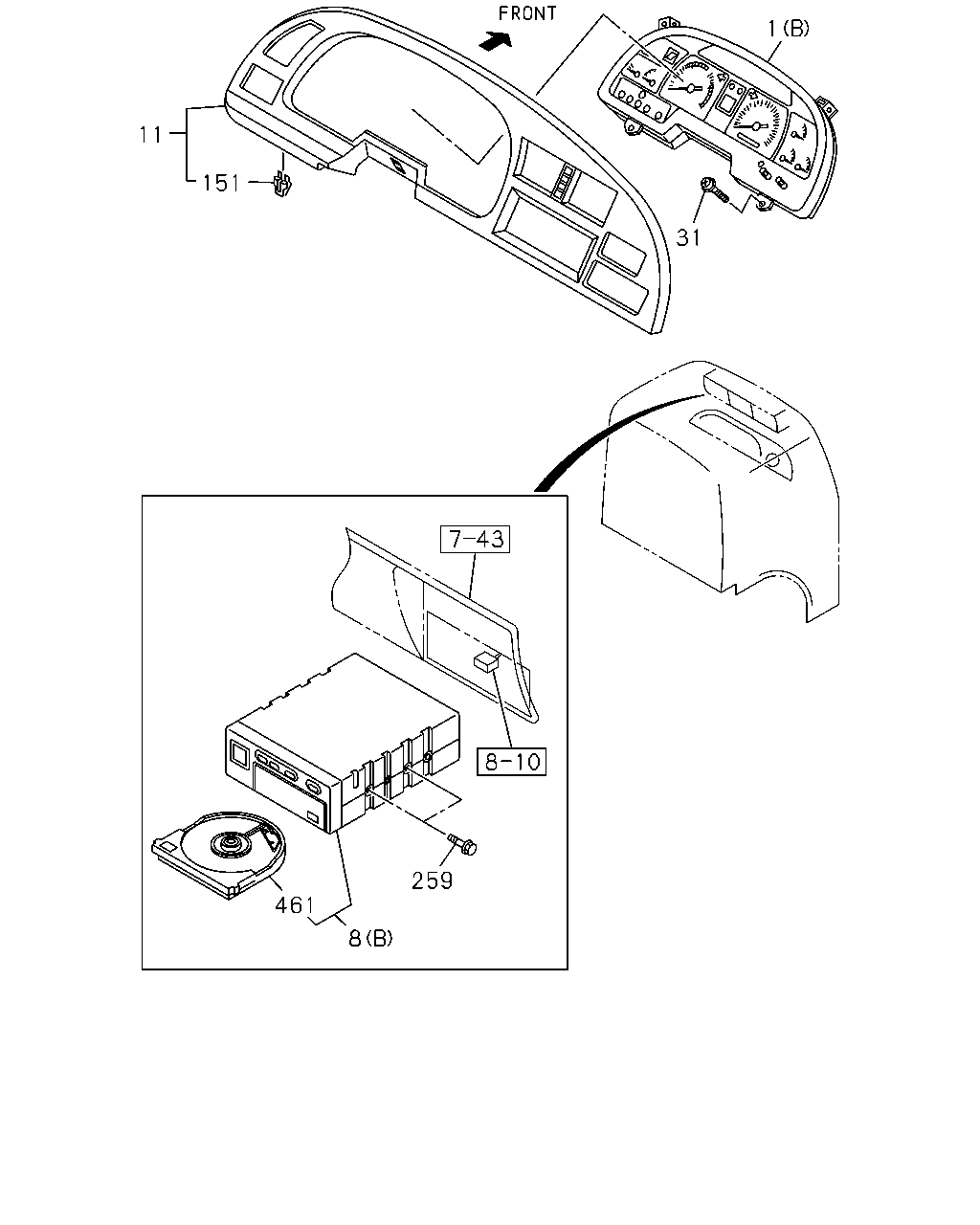

1 11 151 31 259 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98146-463-0	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-97638-845-0	01	1	1104-1105
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98195-538-0	01	1	1106-1205
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98221-615-0	01	1	1206-
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97632-315-2	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97638-838-1	01	1	1104-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 120KM/H<SM8> (A)	1-83120-856-0	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) TACHOGRAPH 140KM/H<WC7> (A)	1-83120-857-0	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL-B2(Q4T) TACHOGRAPH 120KM/H<SM8> (B)	1-83120-838-3	01	1	1008-
8	TACHOGRAPH; CLUSTER METER ENGINE CONTROL-B2(Q4T) TACHOGRAPH 140KM/H<WC7> (B)	1-83120-840-3	01	1	1008-
11	CLUSTER ASM; METER	1-72418-022-7	01	1	1008-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	04	1	1008-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	1008-
259	SCREW; TACHOGRAPH ENGINE CONTROL-B2(Q4T) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER	0-36220-508-0	04	1	1008-
461	CARTRIDGE ASM; TACHOGRAPH ENGINE CONTROL-B2(Q4T) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	1008-

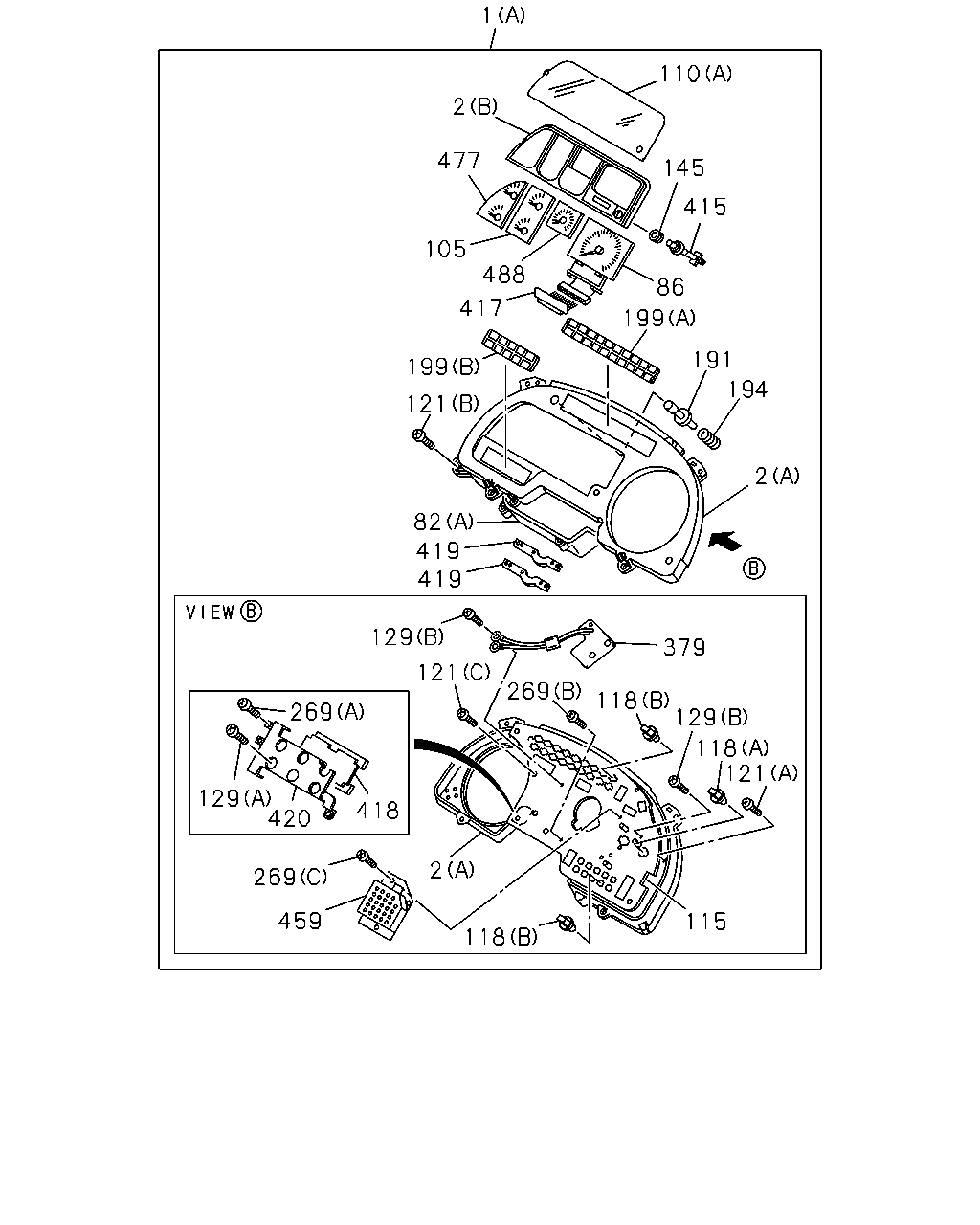

1 110 2 477 145 415 105 488 86 417 199 191 199 194 121 2 82 419 419 129 379 121 269 118 129 269 118 121 129 420 418 2 269 459 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98146-463-0	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-97638-845-0	01	1	1104-1105
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98195-538-0	01	1	1106-1205
1	METER COMPL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98221-615-0	01	1	1206-
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97632-315-2	01	1	1008-1103
1	METER COMPL; CLUSTER ENGINE CONTROL-B2(Q4T) (B)	8-97638-838-1	01	1	1104-
2	PANEL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-644-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-83119-682-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL-B2(Q4T) (D)	1-83119-885-0	01	1	1008-
2	PANEL; CLUSTER ENGINE CONTROL-B2(Q4T) (C)	1-83119-887-0	01	1	1008-
82	CASE ASM; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-653-0	01	1	1008-
82	CASE ASM; CLUSTER METER ENGINE CONTROL-B2(Q4T) (B)	1-83119-892-0	01	1	1008-
86	TACHOMETER; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83120-921-0	01	1	1008-
105	GAUGE; THERMO & FUEL,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83180-281-0	01	1	1008-1103
105	GAUGE; THERMO & FUEL,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	8-98185-065-0	01	1	1104-
110	GLASS; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83119-646-0	01	1	1008-
110	GLASS; CLUSTER METER ENGINE CONTROL-B2(Q4T) (B)	1-83119-886-0	01	1	1008-
115	CIRCUIT; PRINTED,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83189-475-0	01	1	1008-1105
115	CIRCUIT; PRINTED,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	8-98194-994-0	01	1	1106-
118	BULB; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	1008-
118	BULB; CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	26	1	1008-
121	SCREW; PANEL FIX,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (C) M3 TAPPING	1-83119-084-0	01	1	1008-
121	SCREW; PANEL FIX,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (B) M4 TAPPING	1-83119-442-0	05	1	1008-
121	SCREW; PANEL FIX,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A) M3 TAPPING	1-83119-676-0	02	1	1008-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (B) M3 TAPPING	1-83119-657-0	09	1	1008-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R) (A) M3 TAPPING	1-83119-675-0	06	1	1008-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-680-0	01	1	1008-
191	KNOB; BULB CHECK ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-672-0	01	1	1008-
194	SPRING; BULB CHECK KNOB ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-673-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-83119-912-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98170-738-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (C)	1-83119-891-0	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (E)	1-83119-928-1	01	1	1008-
199	LENS; WARNING LAMP ENGINE CONTROL-B2(Q4T) (D)	8-98162-668-0	01	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (A) M3	1-83119-273-0	02	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (C) M3 TAPPING	1-83119-657-0	03	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL COMMON RAIL(Q4R) (B) M3 TAPPING	1-83119-677-0	08	1	1008-
269	SCREW; METER CLUSTER ENGINE CONTROL-B2(Q4T) (D)	1-83119-893-0	09	1	1008-
379	CIRCUIT; DROP ENGINE CONTROL COMMON RAIL(Q4R)	1-83189-369-0	01	1	1008-
415	KNOB; TRIP,METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-674-0	01	1	1008-
417	DISPLAY; ODO & TRIP,METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-671-0	01	1	1008-1105
417	DISPLAY; ODO & TRIP,METER ENGINE CONTROL COMMON RAIL(Q4R)	8-98195-041-0	01	1	1106-
418	CIRCUIT; CONTROL,METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83189-442-0	01	1	1008-
419	SPACER; CIRCUIT,METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-678-0	02	1	1008-
420	HEAT SINK; METER ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-679-0	01	1	1008-
459	POWER SUPPLY ASM ENGINE CONTROL COMMON RAIL(Q4R)	1-83119-925-0	01	1	1008-
477	GAUGE; AIR PRESS & VOLTAGE ENGINE CONTROL COMMON RAIL(Q4R)	1-83180-294-0	01	1	1008-
488	GAUGE; AIR PRESS & OIL PRESS ENGINE CONTROL COMMON RAIL(Q4R)	1-83150-268-0	01	1	1008-1205
488	GAUGE; AIR PRESS & OIL PRESS ENGINE CONTROL COMMON RAIL(Q4R)	8-98221-618-0	01	1	1206-
