Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#58835) — 457 parça

312 312 312 211 312 334 335 312 312 375 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

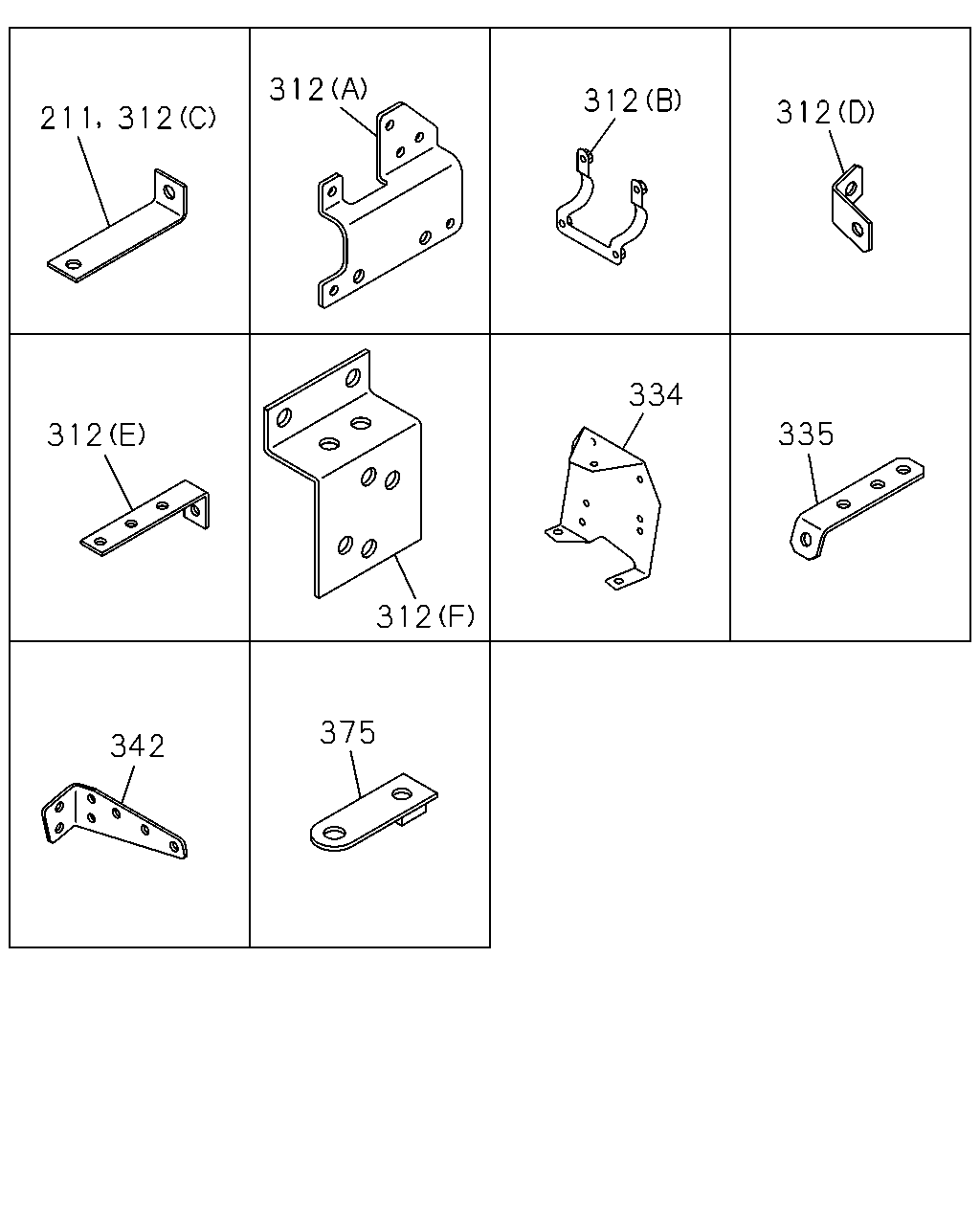

211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1008-
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1008-
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	1008-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-82698-476-0	01	1	1008-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (A)	1-82698-648-0	01	1	1008-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (D)	1-82699-199-0	01	1	1008-
312	BRACKET; CLIP HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (F)	1-82698-424-0	01	1	1008-1105
312	BRACKET; CLIP HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	1-82698-424-0	01	1	1106-
334	BRACKET	8-98160-717-1	01	1	1008-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1008-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1008-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1008-

53 27 53 53 53 53 53 53 53 69 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

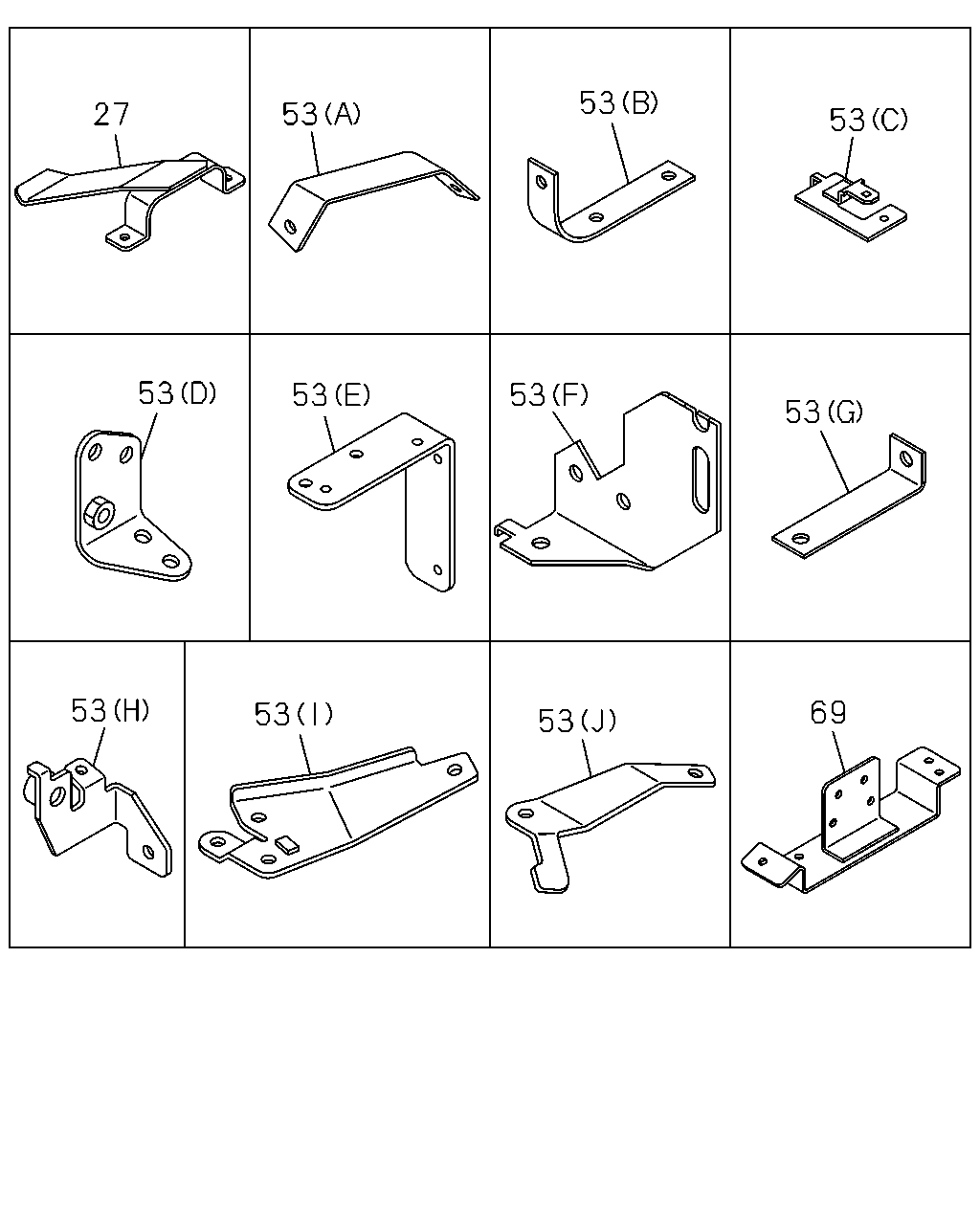

27	PROTECTOR; EDGE	8-97618-028-0	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (I)	8-98190-688-0	01	1	1201-
53	BRACKET; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (J)	8-98190-689-0	01	1	1201-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (H)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	1008-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (G) L=60	1-47475-455-0	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-47479-342-0	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (C)	1-82698-495-2	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (F)	8-97617-970-0	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (D)	8-97610-339-1	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (E)	8-97610-340-1	01	1	1008-
69	BRACKET; CLIP ENGINE CONTROL COMMON RAIL(Q4R)	8-98171-829-0	01	1	1202-

530 224 1 1 1 1 510 5 178 178 178 178 178 178 178 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1008-
1	SLEEVE; RUBBER (D) ID=14 OD=18 L=60	1-09337-030-0	01	1	1008-
1	SLEEVE; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-
1	SLEEVE; RUBBER 6WG1 TC-R(75L) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-
1	SLEEVE; RUBBER 6WG1 TC-R(75L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1008-
5	GUIDE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=360	1-82699-476-1	01	1	1008-1201
178	GROMMET; HARNESS (F) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-
178	GROMMET; HARNESS (F) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	1008-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	1008-
178	GROMMET; HARNESS (G) ID=19 OD=23 T=18	9-09956-130-1	01	1	1008-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	1008-
178	GROMMET; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-82699-891-0	01	1	1008-
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1008-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	1008-
292	CAP; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82691-239-0	02	1	1008-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	1008-1202
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1008-
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1008-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1008-

14 16 51 104 206 212 305 16 104 142 171 228 369 380 470 14 16 194 14 16 48 194 470 16 16 51 142 162 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

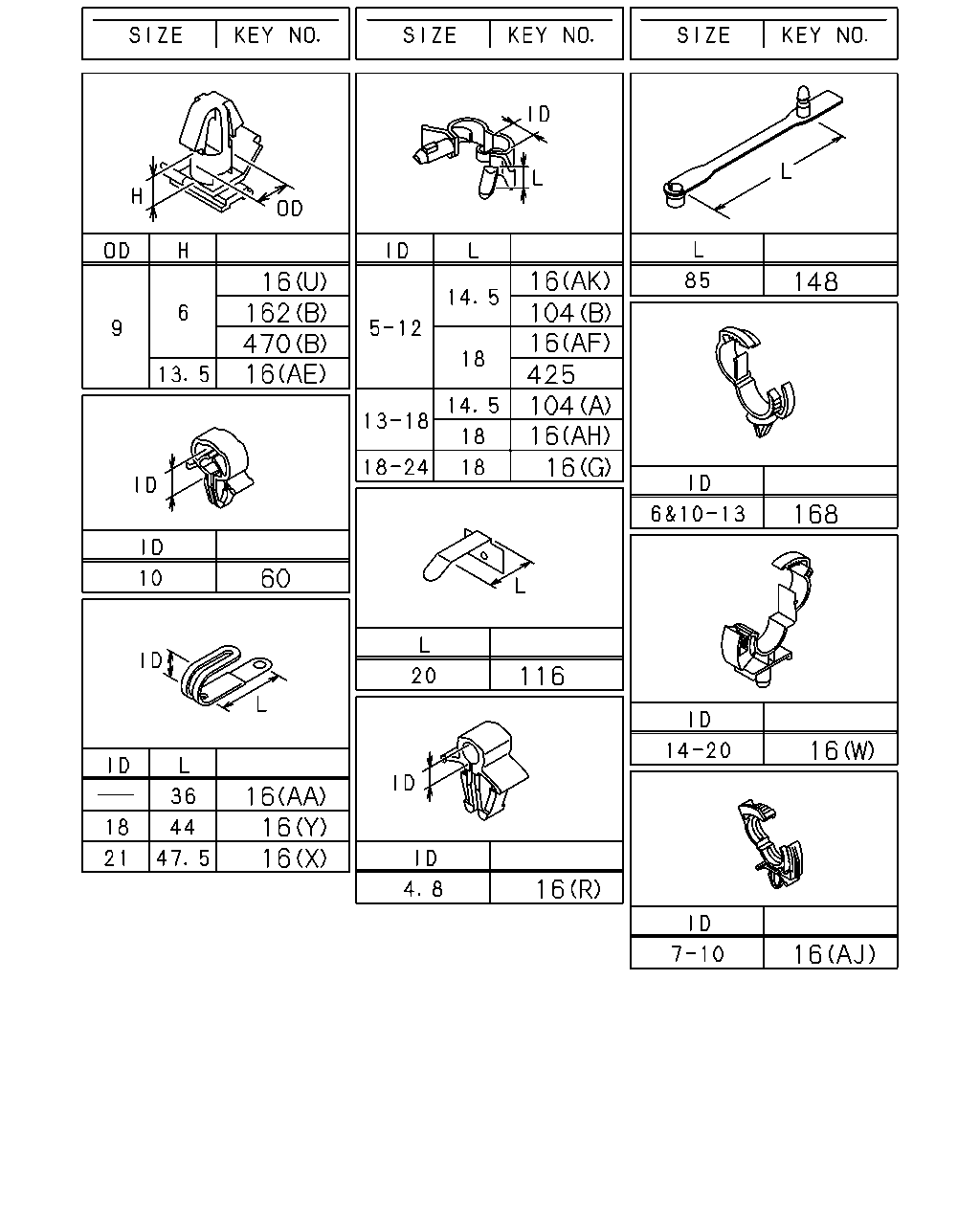

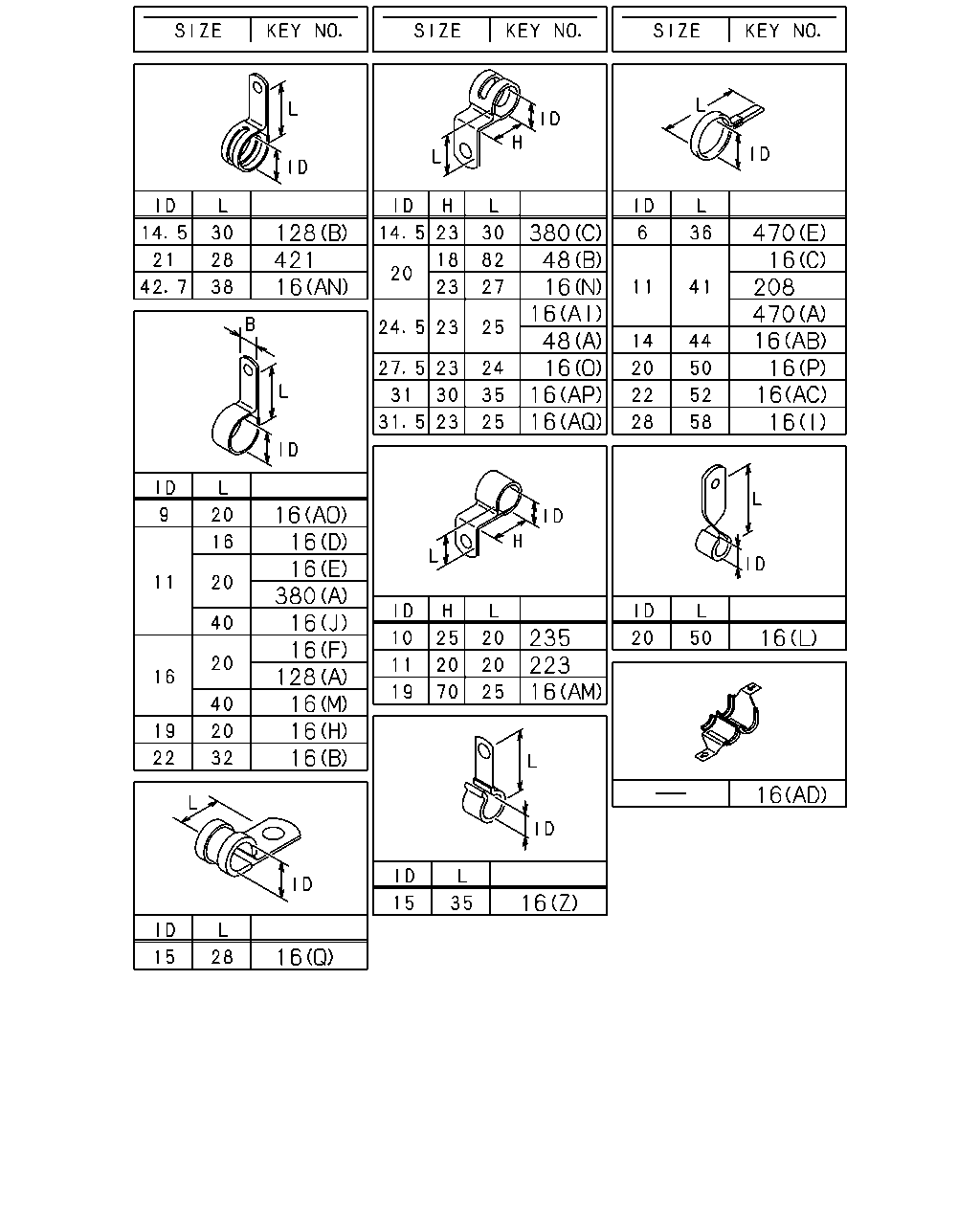

14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	1008-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1008-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AF) ID=5-12 L=18	1-09709-287-0	05	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AF) ID=5-12 L=18	1-09709-287-0	09	1	1106-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AN) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS (J) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (M) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1105
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R),ENGINE CONTROL-B2(Q4T) (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1106-
16	CLIP; HARNESS (Z) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	1008-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	1008-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	1008-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	1008-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (W) ID=14-20	8-97061-603-0	03	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (K) L=250	5-09707-030-1	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AK) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (AL) L=450	1-09707-142-1	01	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (AL) L=450	1-09707-142-1	01	1	1106-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1008-1105
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AM) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AA) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1008-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1008-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	1-09707-162-1	02	1	1008-1207
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	8-98216-427-0	02	1	1208-
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	1-09707-162-1	01	1	1008-1207
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	5-09707-030-1	01	1	1008-1205
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	8-98216-430-0	01	1	1206-
162	CLIP; SW HARNESS ENGINE CONTROL-B2(Q4T) (B) OD=9 H=6	1-09709-178-0	01	1	1410-
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1409
162	CLIP; SW HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) L=180	1-09707-162-1	01	1	1410-
171	CLIP; STARTER HARNESS ENGINE CONTROL-B2(Q4T) L=250	5-09707-030-1	04	1	1008-
171	CLIP; STARTER HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=250	5-09707-030-1	05	1	1008-
194	CLIP; BAND (B) L=350	1-09707-183-0	01	1	1008-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1008-
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	1008-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1008-
212	CLIP; HORN HARNESS L=140	5-09707-031-1	01	1	1008-
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1008-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1008-
369	CLIP; BAND EDS HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) (A) ID=11 L=20	0-95235-035-0	01	1	1008-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) ID=6 L=36	9-09917-423-0	02	1	1008-1111

128 421 16 380 48 16 16 48 16 16 16 470 16 208 470 16 16 16 16 16 16 16 380 16 16 128 16 16 16 235 223 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AF) ID=5-12 L=18	1-09709-287-0	05	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AF) ID=5-12 L=18	1-09709-287-0	09	1	1106-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AN) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS (J) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (M) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1105
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R),ENGINE CONTROL-B2(Q4T) (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1106-
16	CLIP; HARNESS (Z) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	1008-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	1008-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	1008-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	1008-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (W) ID=14-20	8-97061-603-0	03	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (K) L=250	5-09707-030-1	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AK) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (AL) L=450	1-09707-142-1	01	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (AL) L=450	1-09707-142-1	01	1	1106-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1008-1105
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AM) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AA) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1008-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1008-
208	CLIP; HARNESS,MAG VLV ENGINE CONTROL-B2(Q4T) ID=11 L=41	1-09700-403-0	01	1	1008-
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	8-98033-780-0	04	1	1008-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) (A) ID=11 L=20	0-95235-035-0	01	1	1008-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	1008-1202
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) ID=6 L=36	9-09917-423-0	02	1	1008-1111

119 64 524 24 219 294 340 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	1008-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	1008-1202
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1008-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-
219	NUT ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1008-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1008-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1008-
294	NUT M8 FLANGE	0-91180-108-0	03	1	1008-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	02	1	1008-
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1008-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
515	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) M8 FLANGE	0-91180-108-0	02	1	1008-1105
515	NUT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1106-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1008-

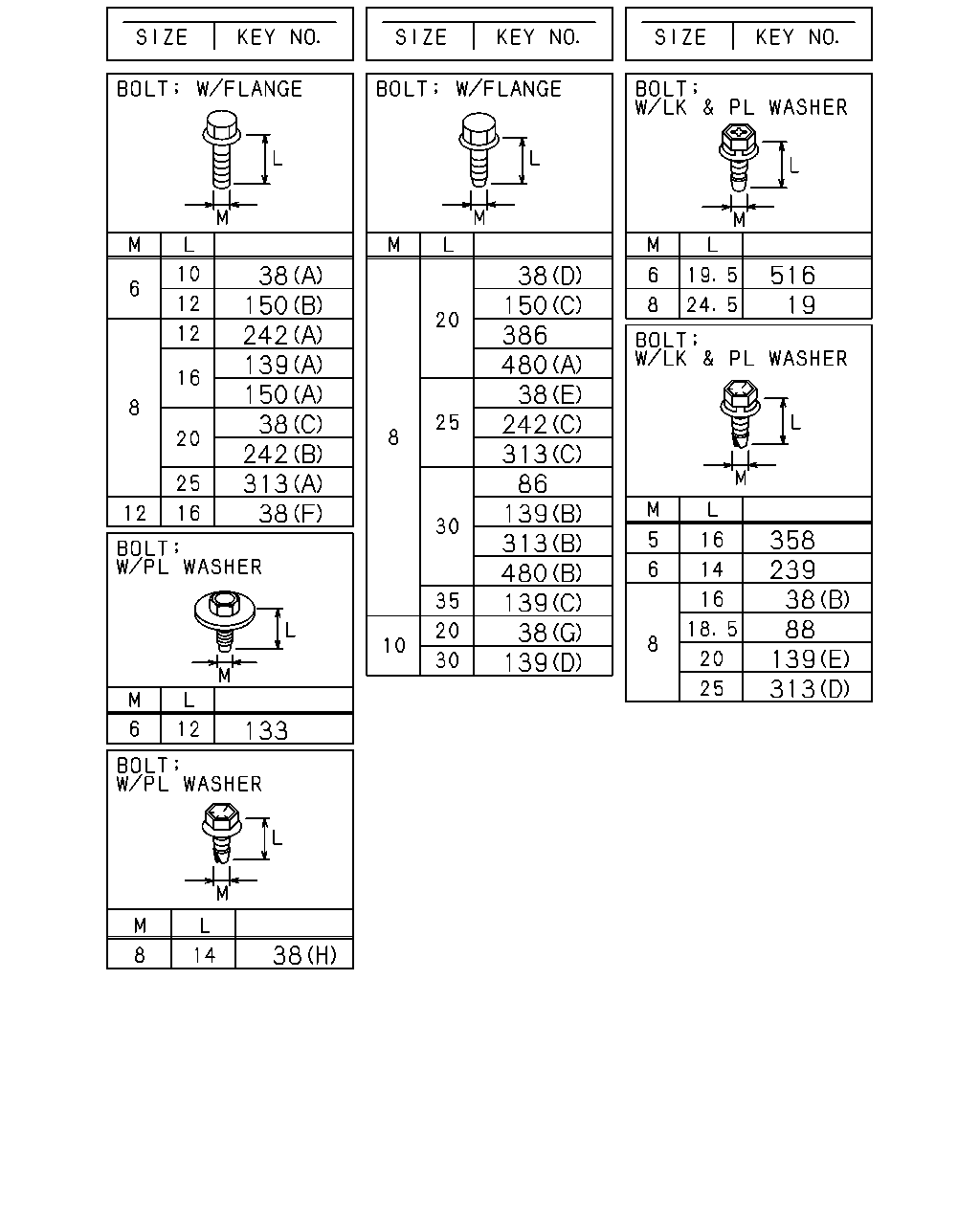

516 19 38 150 242 139 150 38 242 313 38 38 150 386 480 38 242 313 86 139 313 480 139 38 139 358 239 38 88 139 313 133 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
38	BOLT; CLIP,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1008-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1008-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1008-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1008-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1008-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1008-1201
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS ENGINE CONTROL-B2(Q4T) (C) M8X20 FLANGE	0-28050-820-0	02	1	1008-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1008-
139	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1008-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1008-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-
139	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
139	BOLT; BRKT 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	03	1	1201-
150	BOLT; CLIP 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) M8X20 FLANGE	0-28650-820-0	01	1	1202-
150	BOLT; CLIP 6WF1 TC-C(1B8) (B) M6X12 FLANGE	0-28050-612-0	02	1	1008-
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-1208
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	02	1	1209-
150	BOLT; CLIP 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-
150	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	13	1	1008-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-
242	BOLT; BRKT,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	1008-
242	BOLT; BRKT,HARNESS ENGINE CONTROL-B2(Q4T) (B) M8X20 FLANGE	0-28050-820-0	02	1	1008-
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (D) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1202-
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (C) M8X25 FLANGE	0-28650-825-0	01	1	1008-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1008-
313	BOLT; BRKT ENGINE CONTROL-B2(Q4T) (A) M8X25 FLANGE	0-28050-825-0	02	1	1008-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1008-
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1008-
480	BOLT; BRKT ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
480	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) M8X30 FLANGE	0-28650-830-0	02	1	1008-1105
480	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8X30 FLANGE	0-28650-830-0	02	1	1106-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-

16 470 162 16 60 16 16 16 16 16 104 425 16 16 104 116 16 148 168 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AF) ID=5-12 L=18	1-09709-287-0	05	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AF) ID=5-12 L=18	1-09709-287-0	09	1	1106-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AN) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS (J) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (M) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1105
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R),ENGINE CONTROL-B2(Q4T) (C) ID=11 L=41	1-09700-403-0	02	1	1106-1409
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=11 L=41	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-1105
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1106-
16	CLIP; HARNESS (Z) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	1008-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	1008-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	1008-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	1008-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (W) ID=14-20	8-97061-603-0	03	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (K) L=250	5-09707-030-1	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AK) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (AL) L=450	1-09707-142-1	01	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (AL) L=450	1-09707-142-1	01	1	1106-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1008-1105
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> CHINA EQUIPMENT(YT2) (AK) ID=5-12 L=14.5	1-09987-221-0	01	1	1106-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AM) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AA) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1008-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1008-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1008-
162	CLIP; SW HARNESS ENGINE CONTROL-B2(Q4T) (B) OD=9 H=6	1-09709-178-0	01	1	1410-
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1409
162	CLIP; SW HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) L=180	1-09707-162-1	01	1	1410-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	02	1	1008-
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) ID=6 L=36	9-09917-423-0	02	1	1008-1111

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
