◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#58834) — 136 parça

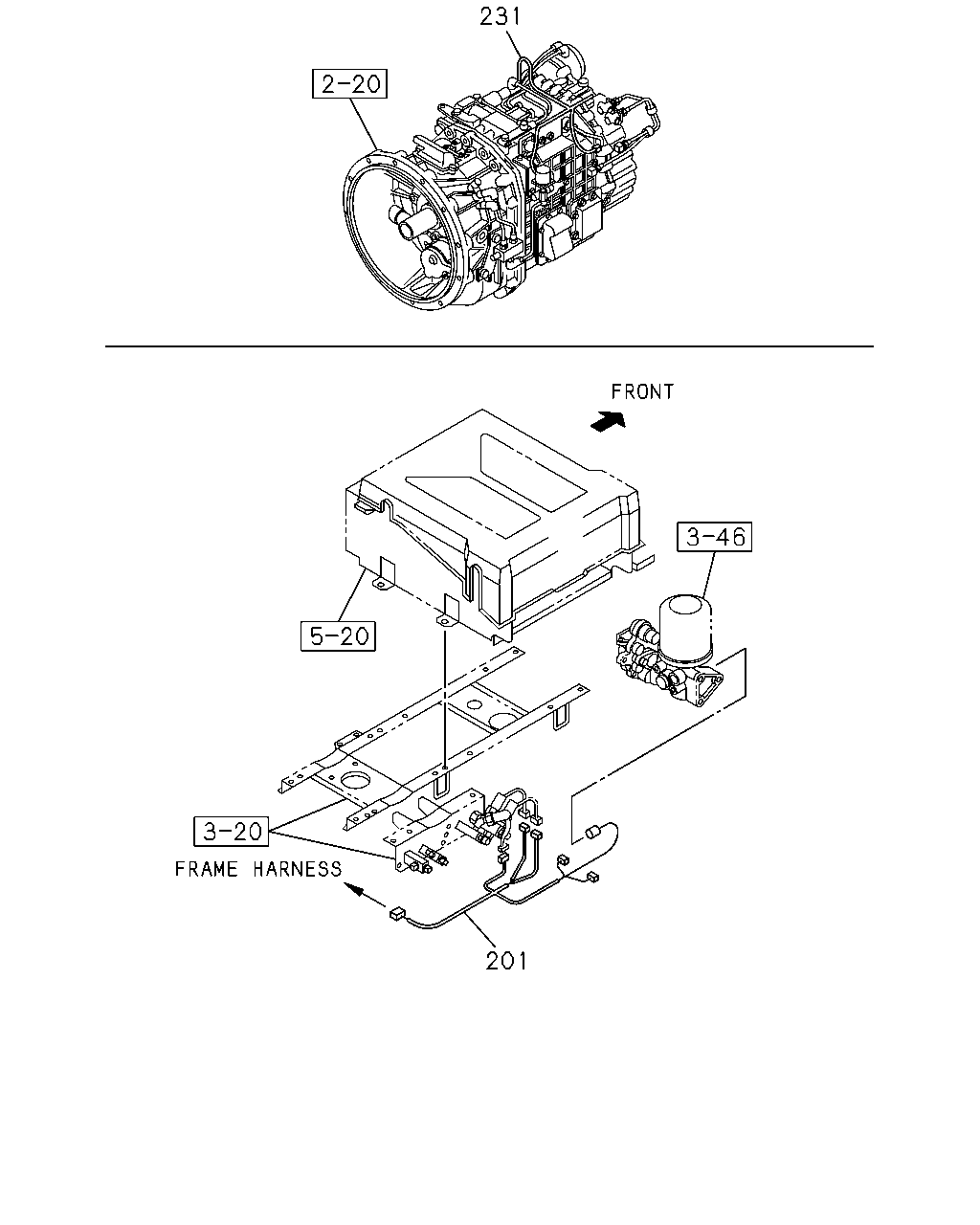

çizim 168276
231 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98149-086-3 01 1 1008-
201 HARNESS; AIR TANK
ENGINE CONTROL-B2(Q4T) 		8-98139-493-3 01 1 1008-
231 HARNESS; TRANS 8-98139-486-4 01 1 1008-

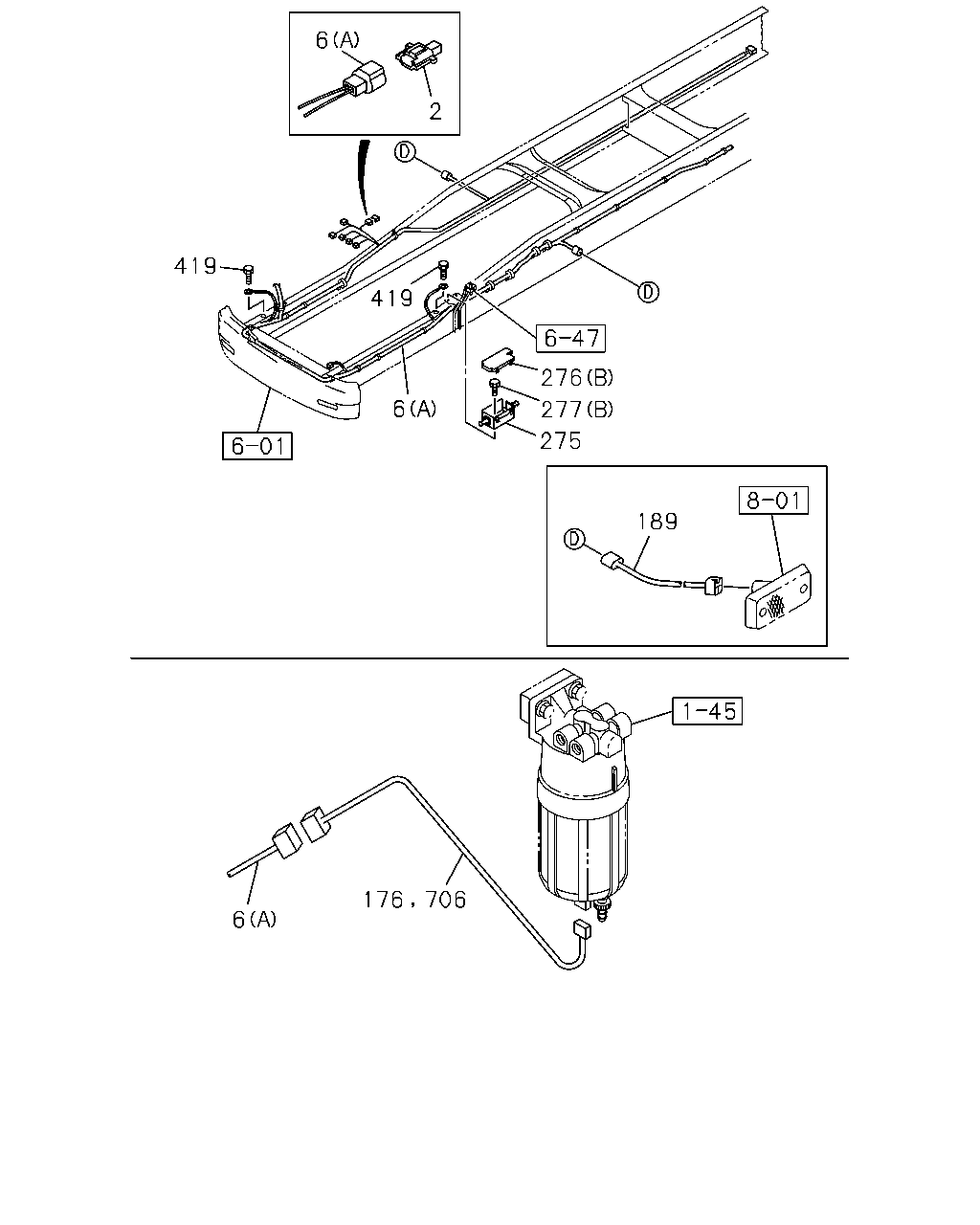

çizim 168289
6 2 419 419 6 276 275 277 189 176 706 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1008-
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82677-379-4 01 1 1008-1201
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		8-98181-561-0 01 1 1202-
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		8-98139-375-5 01 1 1008-
6 HARNESS; FRAME
6WG1 TC-R(75L) (A) 		8-98139-373-5 01 1 1008-
6 HARNESS; FRAME
6WG1 TC-R(75L) (B) 		8-98139-506-1 01 1 1008-
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-637-0 01 1 1106-1203
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-643-0 01 1 1106-1203
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98147-006-1 01 1 1008-1105
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98147-006-1 01 1 1106-1203
176 HARNESS; FUEL SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98152-869-0 01 1 1008-1105
176 HARNESS; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98152-869-0 01 1 1106-1203
189 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) 		1-82673-735-0 06 1 1008-
275 BOX ASM; FRAME HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 		1-82699-474-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
276 COVER; BOX,FRAME HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82699-475-2 01 1 1008-1201
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
ENGINE CONTROL COMMON RAIL(Q4R) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-637-0 01 1 1204-
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-643-0 01 1 1204-
706 HARNESS; EXT,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98147-006-1 01 1 1204-
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98152-869-0 01 1 1204-

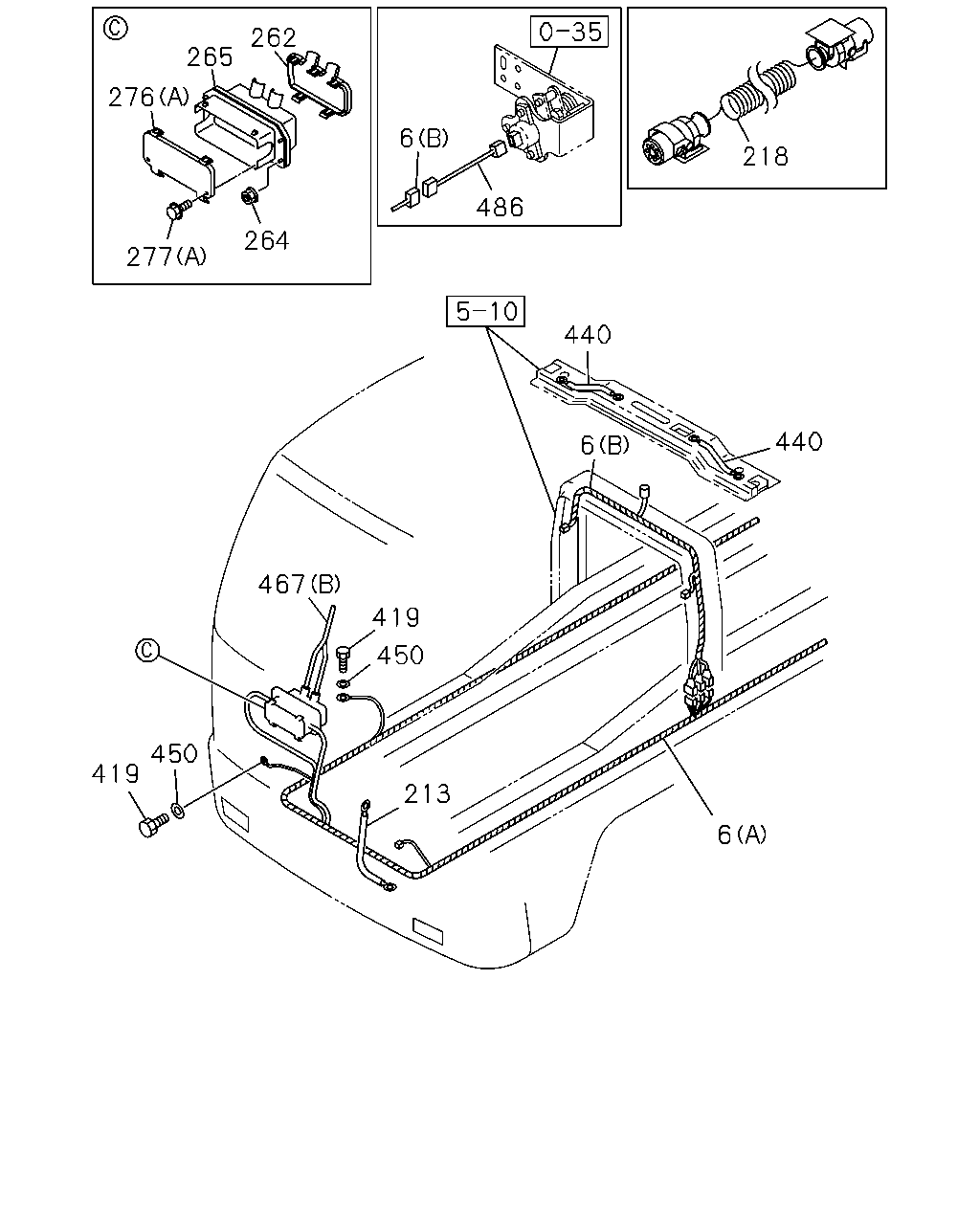

çizim 168294
262 265 276 6 218 486 264 277 440 440 6 467 419 450 450 419 213 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82677-379-4 01 1 1008-1201
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		8-98181-561-0 01 1 1202-
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		8-98139-375-5 01 1 1008-
6 HARNESS; FRAME
6WG1 TC-R(75L) (A) 		8-98139-373-5 01 1 1008-
6 HARNESS; FRAME
6WG1 TC-R(75L) (B) 		8-98139-506-1 01 1 1008-
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 1008-
218 CABLE; JUMPER,ABS
L=5500 		1-82659-198-3 01 1 1008-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1008-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1008-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
276 COVER; BOX,FRAME HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82699-475-2 01 1 1008-1201
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
ENGINE CONTROL COMMON RAIL(Q4R) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
440 CABLE; EARTH 1-82678-273-0 02 1 1008-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008-
486 HARNESS; ALL SPEED ACCEL
ENGINE CONTROL COMMON RAIL(Q4R) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82676-925-0 01 1 1008-
486 HARNESS; ALL SPEED ACCEL
ENGINE CONTROL-B2(Q4T) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97624-338-0 01 1 1008-

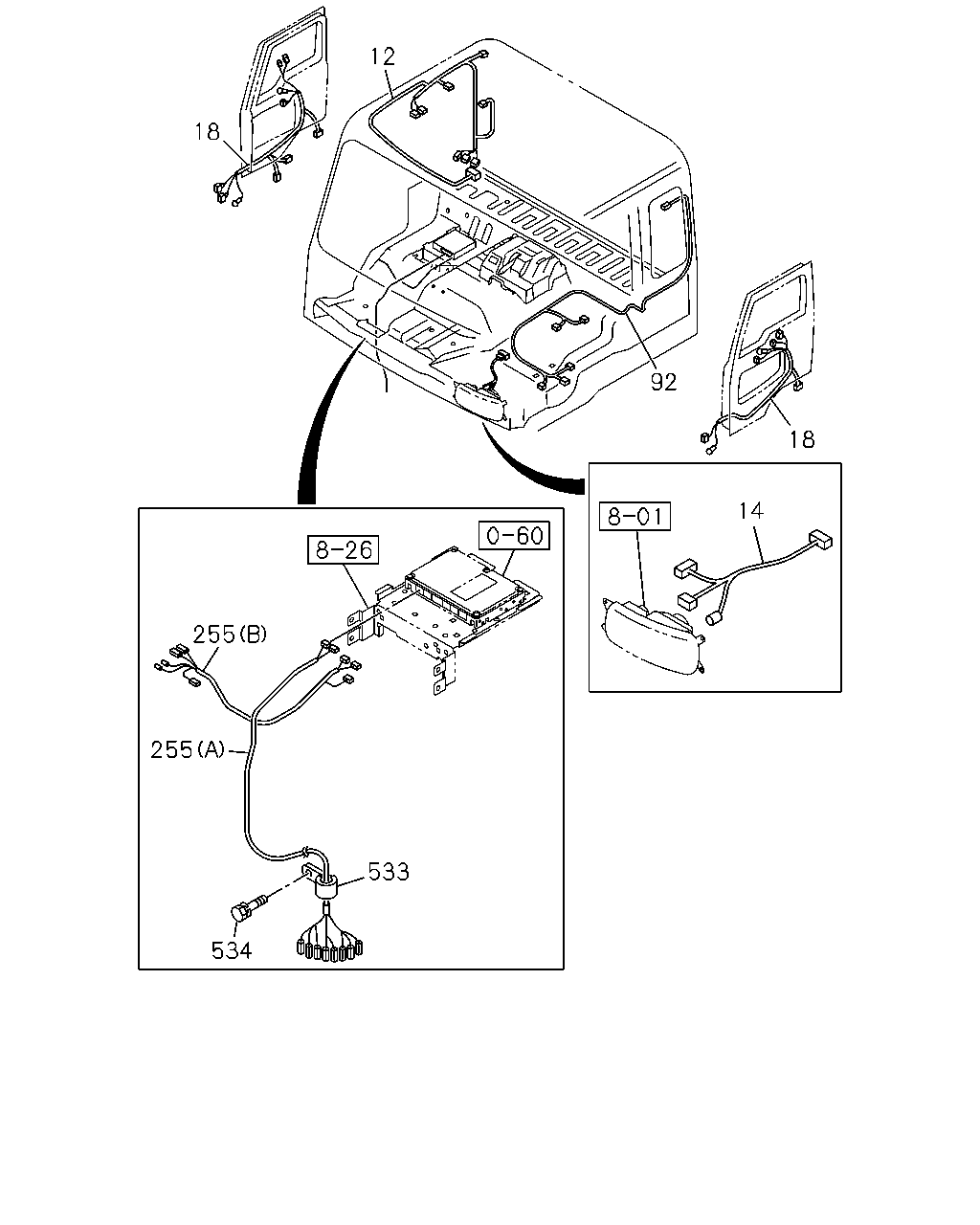

çizim 168318
12 18 92 18 14 255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-82629-921-2 01 1 1008-
12 HARNESS; ROOF
ROOF MARKER LAMP<U01> 		8-98131-062-0 01 1 1008-
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 1008-
18 HARNESS; DOOR
MIR O/S RR VIEW HEATED<DNN> PASSENGER 		8-98144-699-2 01 1 1008-
18 HARNESS; DOOR
MIR O/S RR VIEW HEATED<DNN> DRIVER 		8-98144-701-2 01 1 1008-
18 HARNESS; DOOR
EXC. MIR O/S RR VIEW HEATED<DNN> PASSENGER 		8-98144-348-1 01 1 1008-
18 HARNESS; DOOR
EXC. MIR O/S RR VIEW HEATED<DNN> DRIVER 		8-98144-350-0 01 1 1008-
92 HARNESS; FLOOR
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98093-664-0 01 1 1008-
92 HARNESS; FLOOR
ENGINE CONTROL-B2(Q4T) 		8-98144-563-0 01 1 1008-
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97641-992-1 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-97641-997-0 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97611-877-2 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97641-995-1 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97611-878-1 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97641-998-0 01 1 1203-
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1008-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-

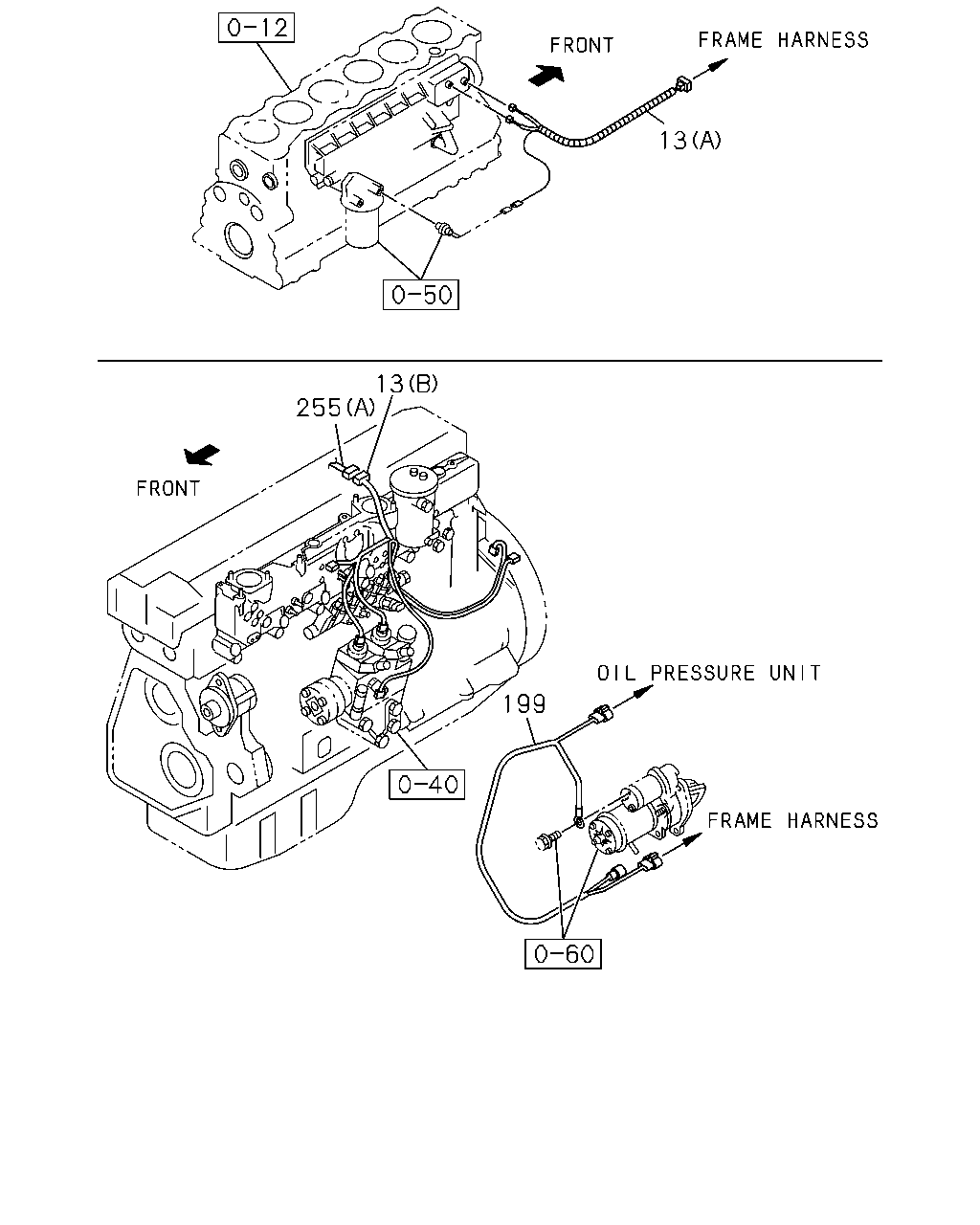

çizim 168328
13 13 255 199
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (B) 		8-98165-844-2 01 1 1008-
13 HARNESS; ENG
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) 		8-97611-417-5 01 1 1008-
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1008-1201
13 HARNESS; ENG
6WF1 TC-C(1B8) CAUTIONS CHINESE<SL7> (B) 		8-98169-641-0 01 1 1202-
13 HARNESS; ENG
6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		8-98180-788-0 01 1 1202-
13 HARNESS; ENG
6WF1 TC-C(1B8) (A) 		1-82640-553-4 01 1 1008-
13 HARNESS; ENG
6WG1 TC-R(75L) (A) 		8-98076-007-0 01 1 1008-
199 HARNESS; STARTER
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98139-485-0 01 1 1008-
199 HARNESS; STARTER
ENGINE CONTROL-B2(Q4T) 		8-97607-313-0 01 1 1008-
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97641-992-1 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-97641-997-0 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97611-877-2 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97641-995-1 01 1 1203-
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97611-878-1 01 1 1008-1202
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97641-998-0 01 1 1203-

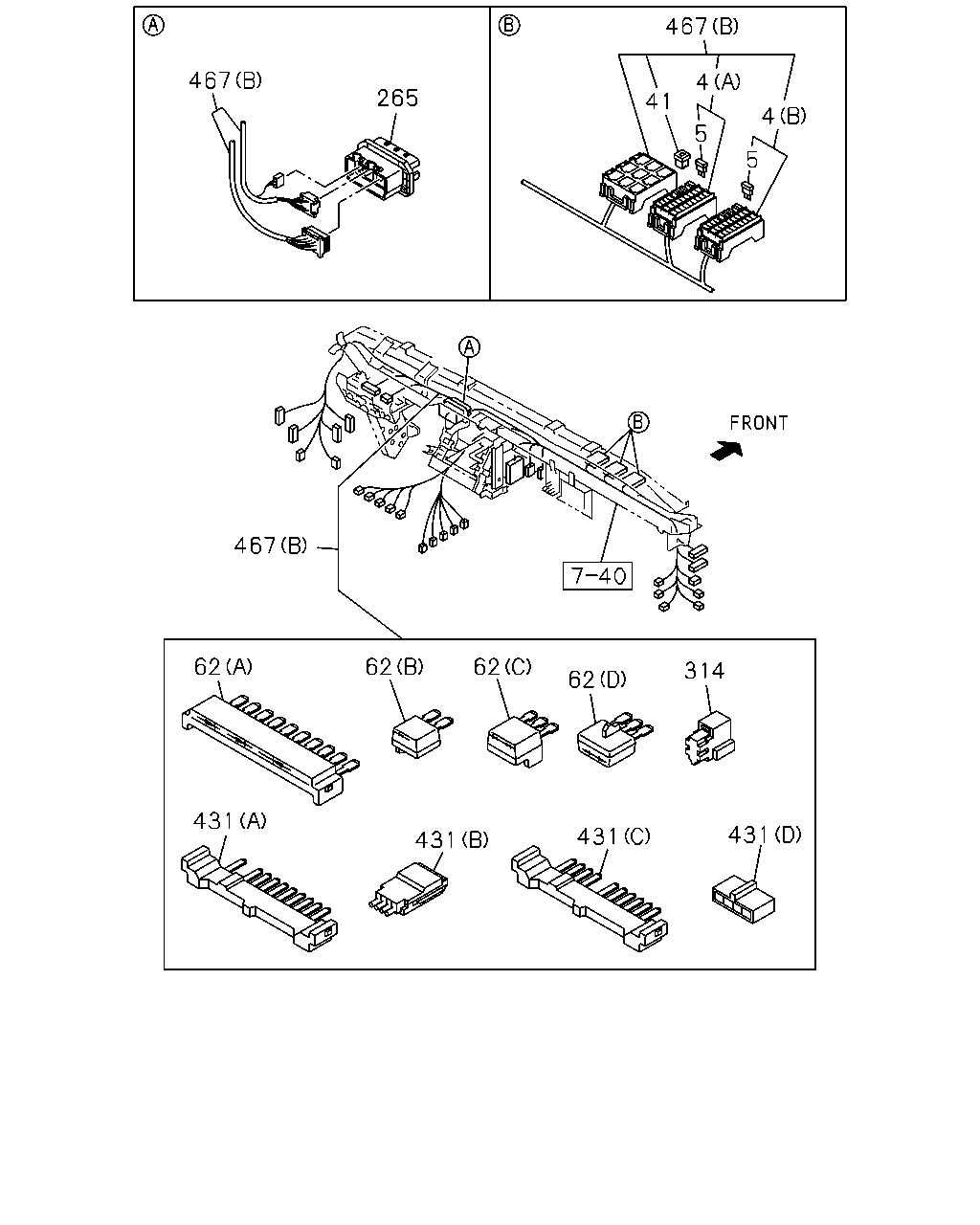

çizim 168339
467 467 4 265 41 4 5 5 467 62 62 62 314 62 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 1008-
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) 15AX22 25AX3 		8-98126-046-0 01 1 1008-
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL-B2(Q4T) (B) 15AX21 25AX2 		1-82510-513-0 01 1 1008-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 21 1 1008-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 15A BLUE 		5-82516-003-0 22 1 1008-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 25A CLEAR 		5-82516-005-0 03 1 1008-
5 FUSE; FACIA HARNESS
ENGINE CONTROL-B2(Q4T) 15A BLUE 		5-82516-003-0 21 1 1008-
5 FUSE; FACIA HARNESS
ENGINE CONTROL-B2(Q4T) 25A CLEAR 		5-82516-005-0 02 1 1008-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1008-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1008-
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (C) BLACK 3P-1.5A 		8-94416-438-1 04 1 1008-
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1008-1112
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1201-
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1008-
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1008-
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1008-
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (D) BLACK 3P-1.5A 		8-94422-640-1 02 1 1008-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1008-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1008-
431 CONNECTOR; JOINT
ENGINE CONTROL COMMON RAIL(Q4R) (B) 4P 		8-97376-776-0 03 1 1008-
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (D) 		1-82698-617-0 01 1 1008-
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (C) 10P BLUE 		1-82699-598-0 02 1 1008-
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (B) 4P 		8-97376-776-0 04 1 1008-1009
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (B) 4P 		8-97376-776-0 06 1 1010-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008-

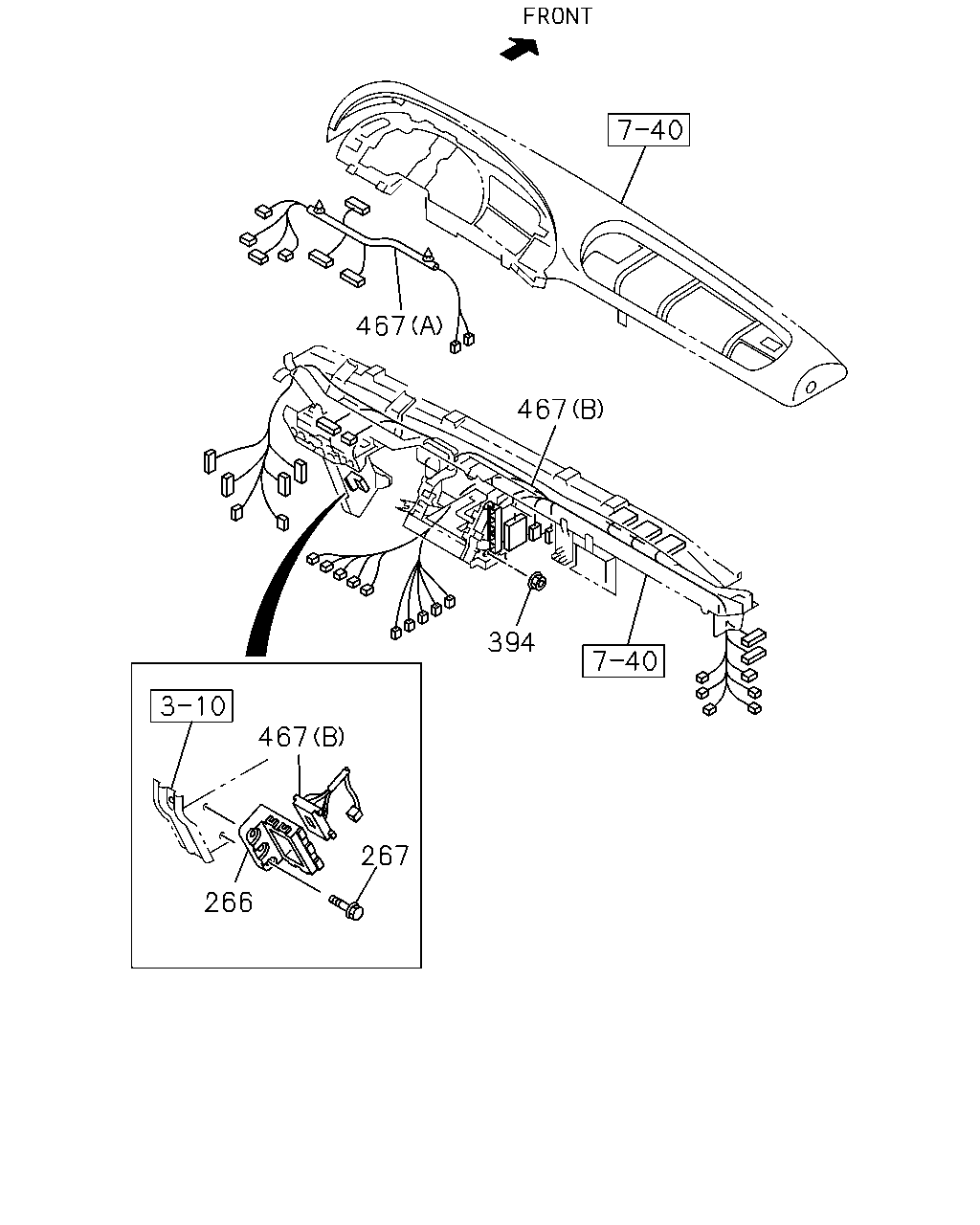

çizim 168360
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1008-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1008-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407-
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
