◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#58832) — 117 parça

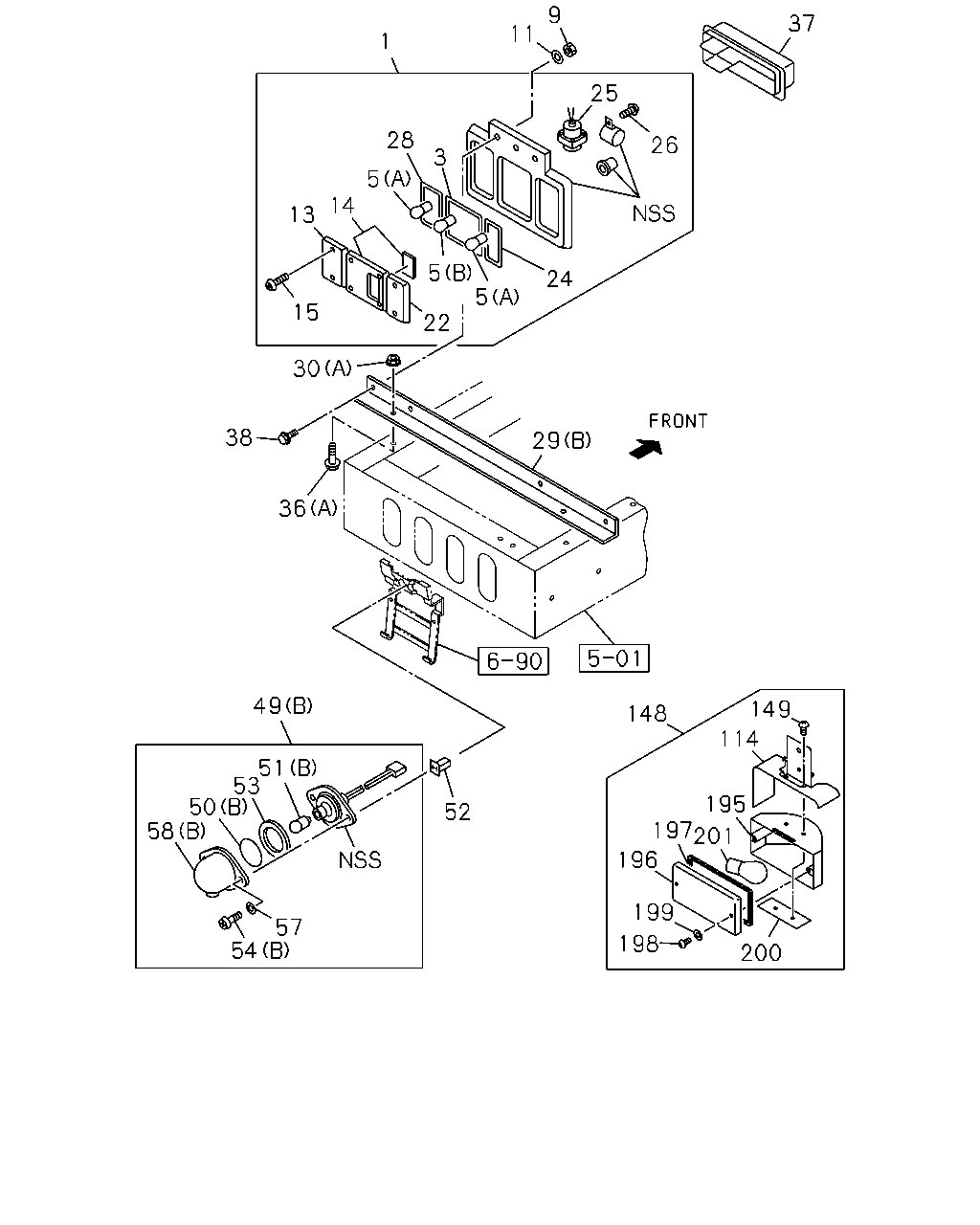

çizim 168281
9 37 11 1 25 28 26 3 5 14 13 5 5 24 15 22 30 38 29 36 49 149 148 114 51 53 50 58 195 52 197 201 196 199 57 54 198 200
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 1008-
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 1008-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1008-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1008-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1008-
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1008-
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1008-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1008-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1008-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1008-
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1008-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1008-
25 HORN ASM; BACK 8-94257-518-0 01 1 1008-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1008-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1008-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1008-
29 BRACKET; LAMP,RR COMB
CHINA EQUIPMENT(YT2) (B) 		1-53487-021-1 01 1 1008-
29 BRACKET; LAMP,RR COMB
EXC. CHINA EQUIPMENT(YT2) (A) 		8-98153-159-0 01 1 1008-
29 BRACKET; LAMP,RR COMB
EXC. CHINA EQUIPMENT(YT2) (C) 		8-98162-777-0 02 1 1008-
30 NUT; BRKT,RR COMB
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-
30 NUT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (B) M6 		0-91110-506-0 04 1 1008-
36 BOLT; BRKT,RR COMB
CHINA EQUIPMENT(YT2) (A) M10X45 FLANGE 		0-28051-045-0 02 1 1008-
36 BOLT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (B) M6X70 FLANGE 		0-28050-670-0 04 1 1008-
36 BOLT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1008-
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1008-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1008-
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1008-
49 LAMP; LICENSE PLATE
CHINA EQUIPMENT(YT2) (B) 24V 10W 		1-82120-024-1 01 1 1008-
49 LAMP; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		8-97105-380-0 02 1 1008-1509
49 LAMP; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 		1-82235-006-0 01 1 1008-
50 LENS; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 		8-97108-212-0 02 1 1008-
51 BULB; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 24V 10W 		1-82194-037-0 01 1 1008-
51 BULB; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		1-82194-039-0 02 1 1008-
52 GROMMET; SCREW,LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1008-
53 GASKET; LICENSE LAMP
CHINA EQUIPMENT(YT2) 		1-82126-005-0 01 1 1008-
54 SCREW; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) M5X20 		1-82129-007-0 02 1 1008-
54 SCREW; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) M4X8 		8-94419-312-0 02 1 1008-
57 WASHER; PL,LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) 		1-82129-008-0 02 1 1008-
58 COVER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 		1-82129-005-0 01 1 1008-
58 COVER; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 		8-97076-590-1 02 1 1008-
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1008-
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 1008-
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1008-
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1008-
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1008-
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1008-
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1008-
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1008-
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1008-
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1008-
çizim 168295
250 253 255 254 256 257
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT 1-82180-012-0 01 1 1008-
253 BULB; SEARCH LIGHT 9-82691-605-0 01 1 1008-
254 LENS; SEARCH LIGHT 9-82681-207-0 01 1 1008-
255 GASKET; SEARCH LIGHT 9-82681-706-0 01 1 1008-
256 RIM; SEARCH LIGHT 9-82681-402-0 01 1 1008-
257 NUT; SEARCH LIGHT
M10 FLANGE 		0-91180-110-0 01 1 1008-

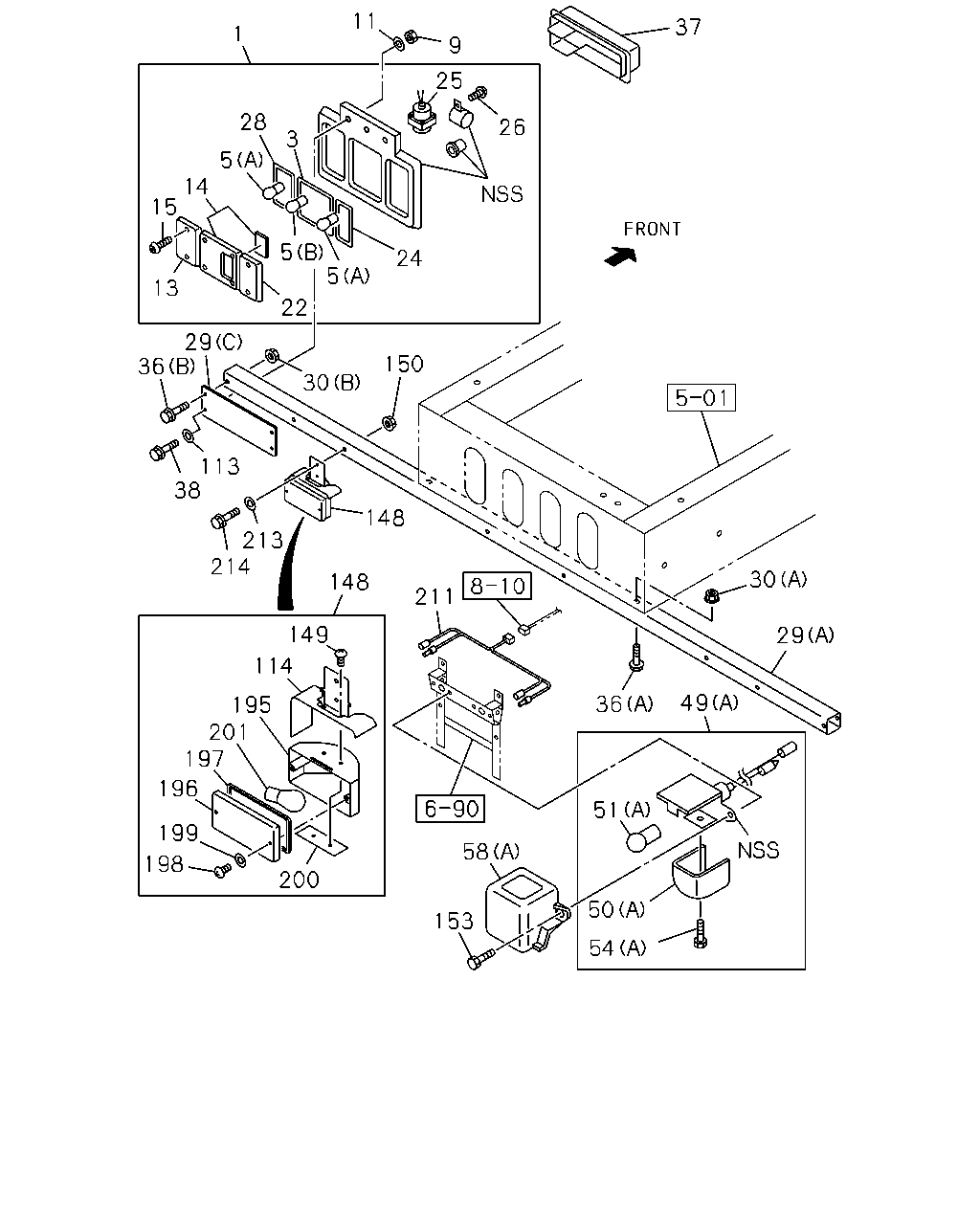

çizim 168302
11 37 1 9 25 28 26 3 5 14 15 5 5 24 13 22 29 36 150 30 113 38 148 213 214 30 148 211 149 29 114 49 36 195 197 196 51 199 58 198 200 50 153 54 201
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 1008-
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 1008-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1008-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1008-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1008-
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1008-
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1008-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1008-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1008-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1008-
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1008-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1008-
25 HORN ASM; BACK 8-94257-518-0 01 1 1008-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1008-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1008-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1008-
29 BRACKET; LAMP,RR COMB
CHINA EQUIPMENT(YT2) (B) 		1-53487-021-1 01 1 1008-
29 BRACKET; LAMP,RR COMB
EXC. CHINA EQUIPMENT(YT2) (A) 		8-98153-159-0 01 1 1008-
29 BRACKET; LAMP,RR COMB
EXC. CHINA EQUIPMENT(YT2) (C) 		8-98162-777-0 02 1 1008-
30 NUT; BRKT,RR COMB
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-
30 NUT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (B) M6 		0-91110-506-0 04 1 1008-
36 BOLT; BRKT,RR COMB
CHINA EQUIPMENT(YT2) (A) M10X45 FLANGE 		0-28051-045-0 02 1 1008-
36 BOLT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (B) M6X70 FLANGE 		0-28050-670-0 04 1 1008-
36 BOLT; BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1008-
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1008-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1008-
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1008-
49 LAMP; LICENSE PLATE
CHINA EQUIPMENT(YT2) (B) 24V 10W 		1-82120-024-1 01 1 1008-
49 LAMP; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		8-97105-380-0 02 1 1008-1509
49 LAMP; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 		1-82235-006-0 01 1 1008-
50 LENS; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 		8-97108-212-0 02 1 1008-
51 BULB; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 24V 10W 		1-82194-037-0 01 1 1008-
51 BULB; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 24V 5W 		1-82194-039-0 02 1 1008-
54 SCREW; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) M5X20 		1-82129-007-0 02 1 1008-
54 SCREW; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) M4X8 		8-94419-312-0 02 1 1008-
58 COVER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) (B) 		1-82129-005-0 01 1 1008-
58 COVER; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) (A) 		8-97076-590-1 02 1 1008-
113 WASHER; PL,BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) ID=5.1 		0-91510-505-0 04 1 1008-1106
113 WASHER; PL,BRKT,RR COMB
EXC. CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		0-91610-706-0 04 1 1008-
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1008-
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 1008-
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1008-
150 NUT; RR FOG LAMP
EXC. CHINA EQUIPMENT(YT2) M6 		0-91110-506-0 01 1 1008-
153 BOLT; LICENSE PLATE LAMP
EXC. CHINA EQUIPMENT(YT2) M5X20 		9-93490-520-0 04 1 1008-
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1008-
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1008-
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1008-
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1008-
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1008-
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1008-
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1008-
211 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) 		8-98131-066-0 01 1 1008-
213 WASHER; PL,RR FOG LAMP
EXC. CHINA EQUIPMENT(YT2) ID=5.1 		0-91510-505-0 01 1 1008-1106
213 WASHER; PL,RR FOG LAMP
EXC. CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		0-91610-706-0 01 1 1008-
214 BOLT; RR FOG LAMP
EXC. CHINA EQUIPMENT(YT2) M6X70 FLANGE 		0-28050-670-0 01 1 1008-
