◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#5883) — 854 parça

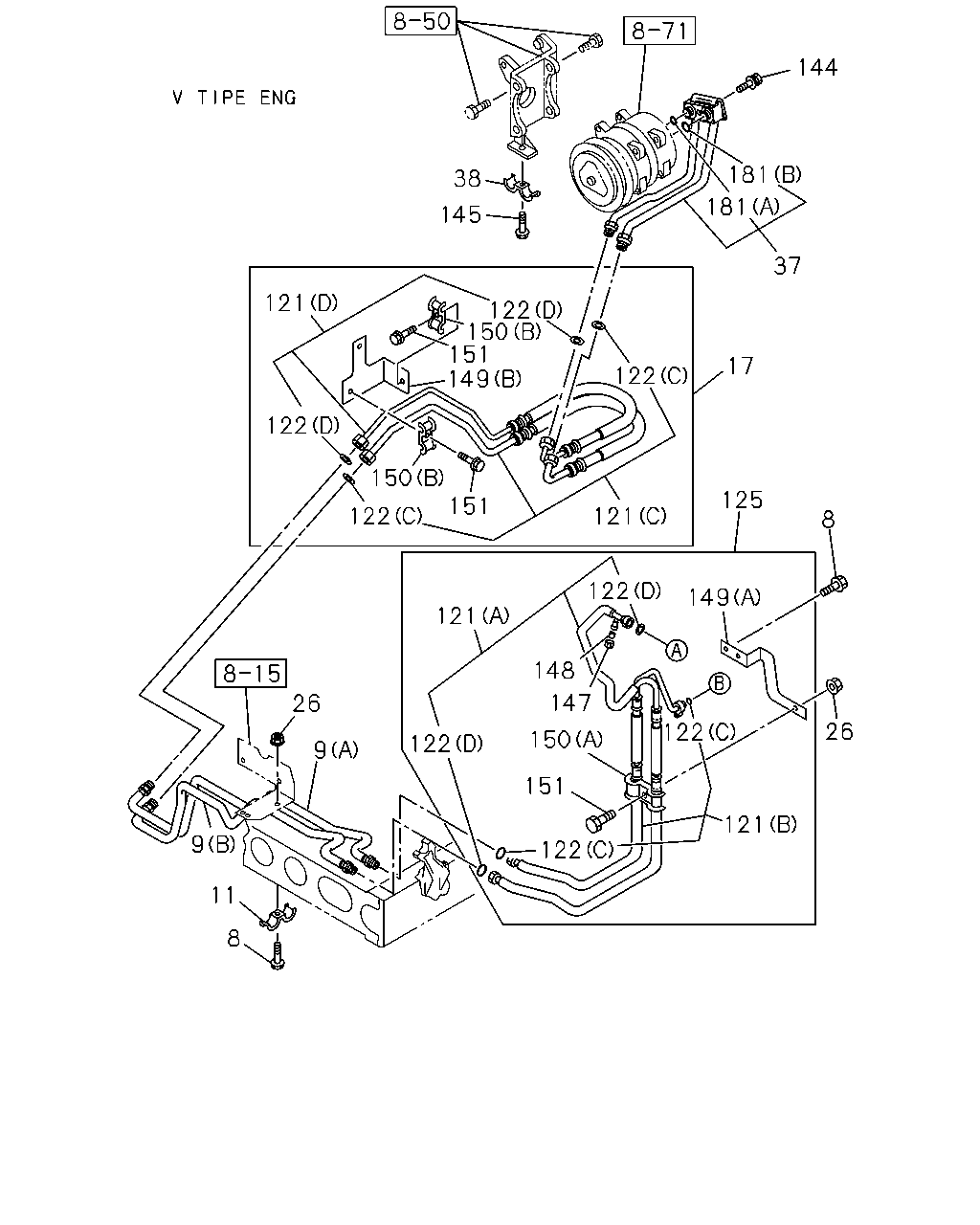

çizim 6854
144 181 38 181 145 37 121 122 150 151 149 17 122 122 150 151 125 122 121 8 122 149 121 148 147 26 122 26 150 122 9 151 121 9 122 11 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9801 ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-557-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-256-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-539-1 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-257-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-540-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-551-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-555-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-250-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A) 		1-83572-550-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-251-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B) 		1-83572-554-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A) 		1-83567-796-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B) 		1-83567-797-0 01 1 0101- ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2 		1-83574-190-0 01 1 9905- ● ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9802-9904 ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ●
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9603-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9603-9801 ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9905-9907 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9908 ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9909- ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9801 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
37 CONNECTOR; CMPR TO FLEX HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-077-0 01 1 9603-9904 ● ●
37 CONNECTOR; CMPR TO FLEX HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 9905- ● ●
38 CLIP; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9603- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-414-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-010-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-83572-010-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-415-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-011-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-83572-011-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-83572-183-0 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-83572-201-1 01 1 9707-9904 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-384-0 01 1 9610-9611 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-385-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-425-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-423-0 01 1 9604-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-426-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-424-0 01 1 9604-9904 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9802-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9802-9904 ● ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9610-9706 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9707-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9604-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9610-9904 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 02 1 9610-9706 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		8-94481-717-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9603-9603 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ●
122 GASKET
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9610-9706 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-203-0 01 1 9603-9603 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-314-0 01 1 9604-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-541-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-545-1 01 1 9905- ●
144 BOLT; CONN TO CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9603- ● ●
145 BOLT; CLIP,CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9603- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9904 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9905- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9904 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9905- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-043-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-593-1 01 1 9612-9706 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-82699-593-1 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-82699-825-0 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-030-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-046-0 01 1 9603-9904 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9603-9611 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9612-9904 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9603-9801 ●
149 BRACKET; COOLER HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9802-9904 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 01 1 9610-9611 ●
150 CLIP; HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 02 1 9610-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9904 ● ●
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9904 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9603-9609 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9603-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 9905- ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9603-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 9905- ● ●

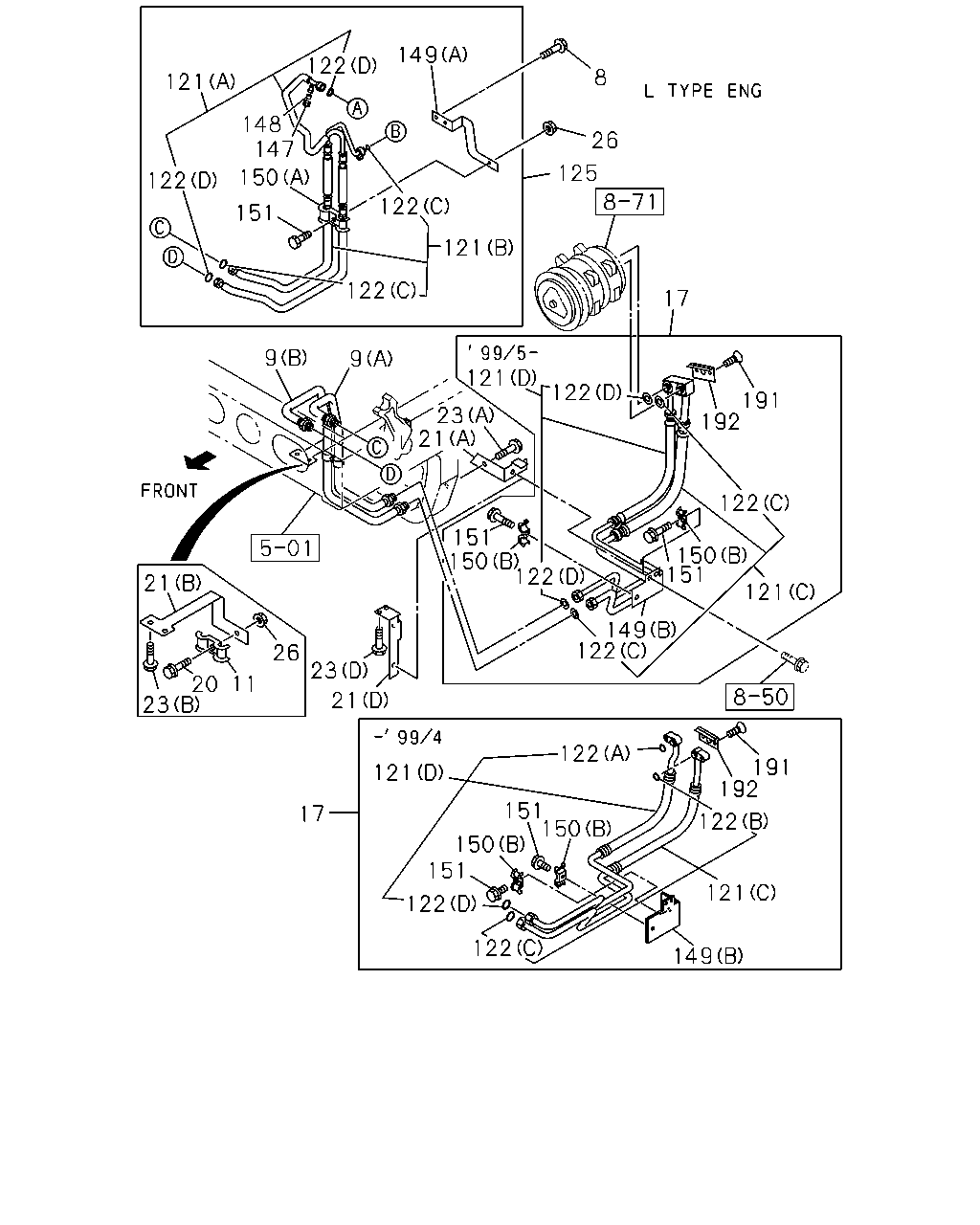

çizim 8319
149 122 8 121 148 147 26 125 150 122 122 151 121 122 17 121 23 21 9 9 122 191 192 122 151 150 122 150 151 21 121 149 122 26 23 20 23 11 21 122 191 192 121 151 150 17 122 150 151 121 122 122 149
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9801 ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-557-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-256-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-539-1 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-257-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-540-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-551-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-555-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-250-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A) 		1-83572-550-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-251-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B) 		1-83572-554-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A) 		1-83567-796-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B) 		1-83567-797-0 01 1 0101- ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2 		1-83574-190-0 01 1 9905- ● ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9802-9904 ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ●
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9603-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9603-9801 ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9905-9907 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908- ● ●
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9603-9609 ●
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9610- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83571-998-0 01 1 9905- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-930-1 01 1 9603-9908 ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83571-930-1 01 1 9909- ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9603-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9610- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-910-0 01 1 9603-9608 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9609-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9610-9904 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9905-9908 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9603 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9908 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) M8X16 FLANGE 		0-28080-816-0 02 1 9909- ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9904 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-9908 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9908 ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9909- ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9801 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-414-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-010-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-83572-010-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-415-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-011-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-83572-011-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-83572-183-0 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-83572-201-1 01 1 9707-9904 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-384-0 01 1 9610-9611 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-385-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-425-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-423-0 01 1 9604-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-426-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-424-0 01 1 9604-9904 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9802-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9802-9904 ● ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9610-9706 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9707-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9604-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9610-9904 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 02 1 9610-9706 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		8-94481-717-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9603-9603 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ●
122 GASKET
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9610-9706 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-203-0 01 1 9603-9603 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-314-0 01 1 9604-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-541-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-545-1 01 1 9905- ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9904 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9905- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9904 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9905- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-043-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-593-1 01 1 9612-9706 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-82699-593-1 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-82699-825-0 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-030-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-046-0 01 1 9603-9904 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9603-9611 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9612-9904 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9603-9801 ●
149 BRACKET; COOLER HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9802-9904 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 01 1 9610-9611 ●
150 CLIP; HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 02 1 9610-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9904 ● ●
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9904 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9603-9609 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9904 ● ●
191 SCREW; CONNECTOR,COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9603-9609 ●
191 SCREW; CONNECTOR,COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9610-9706 ● ●
191 SCREW; CONNECTOR,COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9707-9904 ● ●
192 PLATE; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9603-9609 ●
192 PLATE; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9610-9706 ● ●
192 PLATE; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9707-9904 ● ●

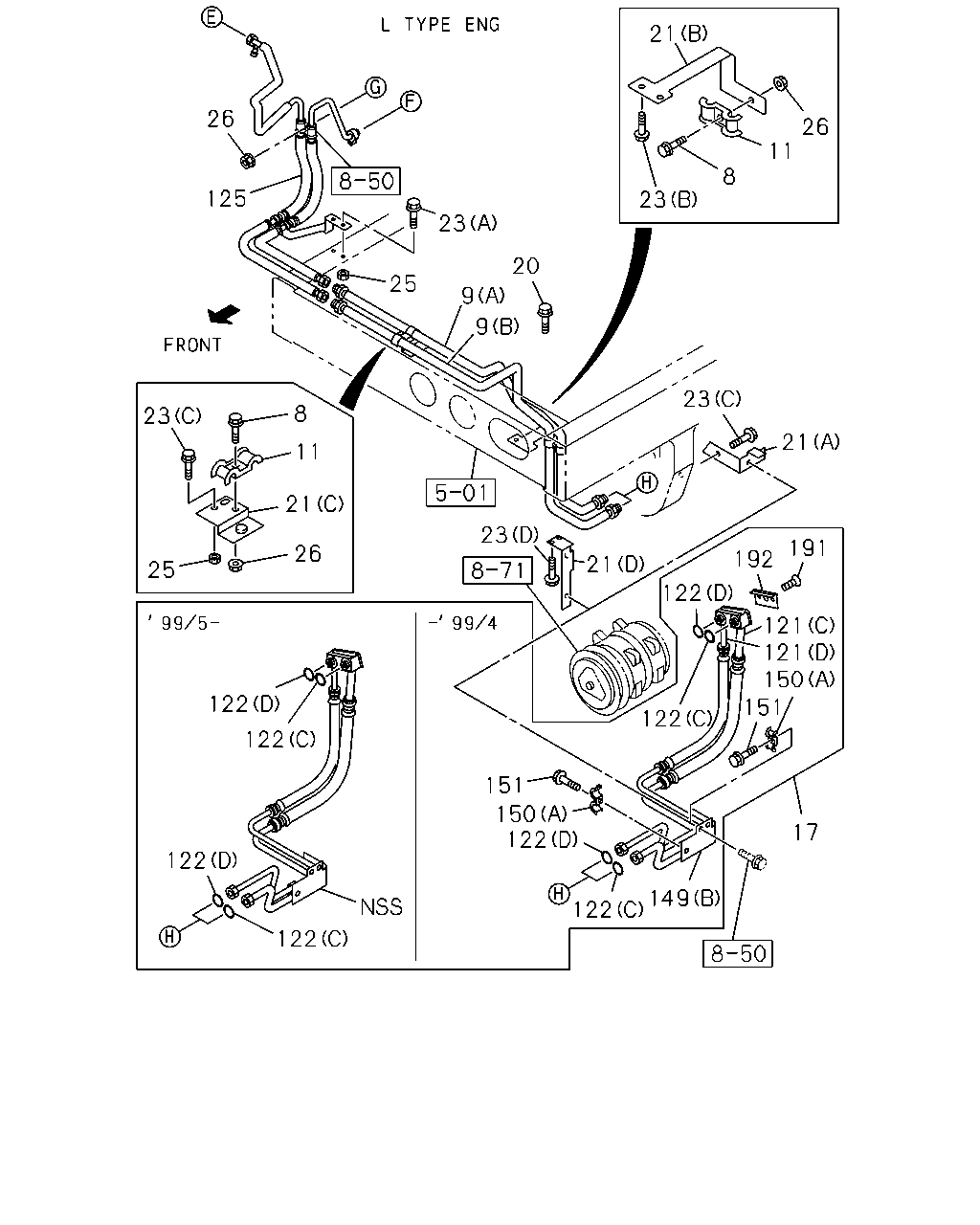

çizim 8517
21 26 26 11 8 125 23 23 20 25 9 9 23 8 23 21 11 21 23 191 26 192 21 25 122 121 121 150 151 122 122 122 151 150 122 17 122 149 122 122
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9801 ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-557-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-256-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-539-1 01 1 9905- ●

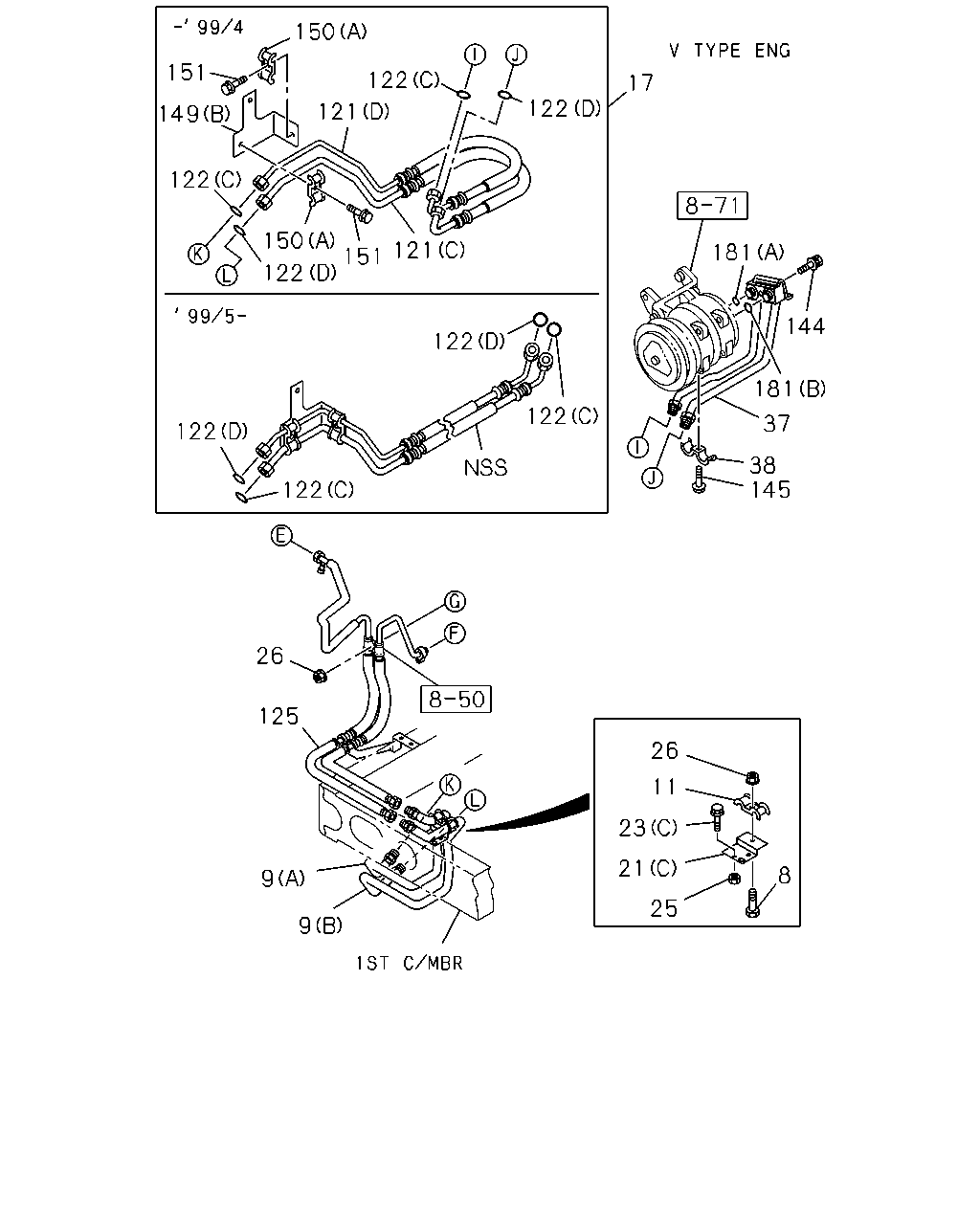

9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-257-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-540-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-551-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-555-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-250-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A) 		1-83572-550-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-251-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B) 		1-83572-554-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A) 		1-83567-796-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B) 		1-83567-797-0 01 1 0101- ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2 		1-83574-190-0 01 1 9905- ● ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9802-9904 ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ●
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9603-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9603-9801 ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9905-9907 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908- ● ●
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9603-9609 ●
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9610- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83571-998-0 01 1 9905- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-930-1 01 1 9603-9908 ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83571-930-1 01 1 9909- ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9603-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9610- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-910-0 01 1 9603-9608 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9609-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9610-9904 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9905-9908 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9603 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9908 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) M8X16 FLANGE 		0-28080-816-0 02 1 9909- ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9904 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-9908 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9603-9908 ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8 		9-09110-408-0 02 1 9909- ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9908 ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9909- ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9801 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-414-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-010-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-83572-010-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-415-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-011-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-83572-011-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-83572-183-0 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-83572-201-1 01 1 9707-9904 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-384-0 01 1 9610-9611 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-385-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-425-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-423-0 01 1 9604-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-426-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-424-0 01 1 9604-9904 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9802-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9802-9904 ● ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9610-9706 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9707-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9604-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9610-9904 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 02 1 9610-9706 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		8-94481-717-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9603-9603 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ●
122 GASKET
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9610-9706 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●

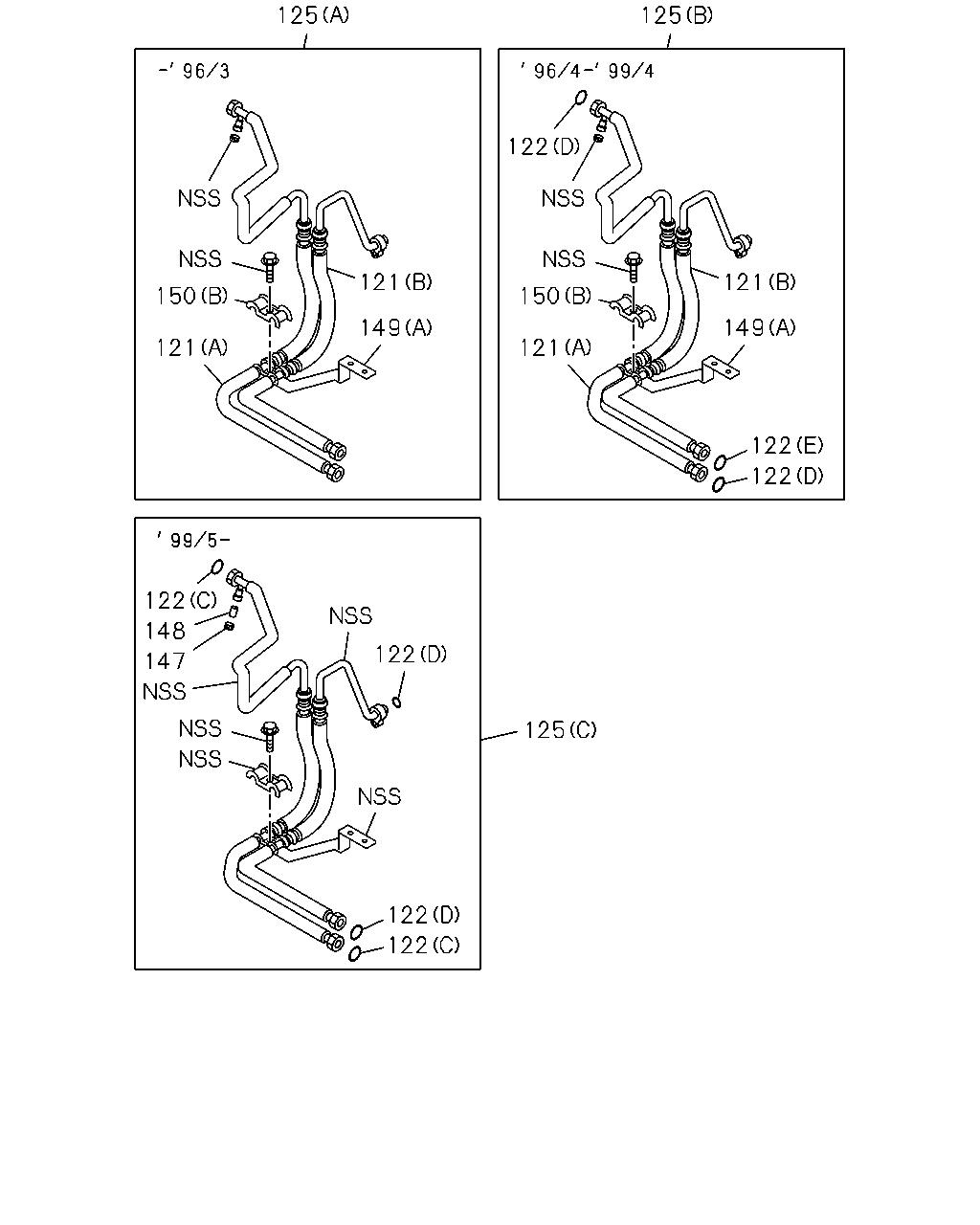

125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-203-0 01 1 9603-9603 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-314-0 01 1 9604-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-541-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-545-1 01 1 9905- ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-043-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-593-1 01 1 9612-9706 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-82699-593-1 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-82699-825-0 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-030-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-046-0 01 1 9603-9904 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9603-9611 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9612-9904 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9603-9801 ●
149 BRACKET; COOLER HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9802-9904 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 01 1 9610-9611 ●
150 CLIP; HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 02 1 9610-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9904 ● ●
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9904 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9603-9609 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9904 ● ●
191 SCREW; CONNECTOR,COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9603-9609 ●
191 SCREW; CONNECTOR,COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9610-9706 ● ●
191 SCREW; CONNECTOR,COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9707-9904 ● ●
192 PLATE; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9603-9609 ●
192 PLATE; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9610-9706 ● ●
192 PLATE; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9707-9904 ● ●
çizim 8878
189 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83566-904-2 01 1 9603-9702 ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 9703- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9603-9609 ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9610-9702 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-411-0 01 1 9703-9904 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 9905- ● ●
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 9603- ● ●
çizim 40419
125 125 122 121 121 150 150 149 149 121 121 122 122 122 148 122 147 125 122 122
BalonParca AdiParca NoAdetTipApplied Date A B
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-414-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-010-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-83572-010-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-415-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-011-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-83572-011-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-83572-183-0 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-83572-201-1 01 1 9707-9904 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-384-0 01 1 9610-9611 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-385-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-425-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-423-0 01 1 9604-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-426-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-424-0 01 1 9604-9904 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9802-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9802-9904 ● ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9610-9706 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9707-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9604-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9610-9904 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 02 1 9610-9706 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		8-94481-717-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9603-9603 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ●
122 GASKET
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9610-9706 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-203-0 01 1 9603-9603 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-314-0 01 1 9604-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-541-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-545-1 01 1 9905- ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9904 ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9905- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9904 ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9905- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-043-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-593-1 01 1 9612-9706 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-82699-593-1 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-82699-825-0 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-030-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-046-0 01 1 9603-9904 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9603-9611 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9612-9904 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9603-9801 ●
149 BRACKET; COOLER HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9802-9904 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 01 1 9610-9611 ●
150 CLIP; HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 02 1 9610-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9904 ● ●
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9904 ● ●
çizim 40900
150 151 122 17 122 121 149 122 150 121 181 151 122 144 122 181 122 37 122 38 145 122 26 125 26 11 23 21 8 9 25 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9603 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606 ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9801 ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-557-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9711 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-256-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-539-1 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-257-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-540-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-551-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-555-0 01 1 9905- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-250-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A) 		1-83572-550-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-251-0 01 1 9603-9904 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 9905-0012 ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B) 		1-83572-554-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A) 		1-83567-796-0 01 1 0101- ●
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B) 		1-83567-797-0 01 1 0101- ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2 		1-83574-190-0 01 1 9905- ● ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9603-9609 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9610-9706 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9707-9801 ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9802-9904 ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9905-9908 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ● ●
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909- ●
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9603-9611 ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-1 01 1 9905- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9603-9801 ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9904 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9905-9907 ● ●
17 HOSE; FLEX,CMPR TO PIPE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83571-998-0 01 1 9905- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-930-1 01 1 9603-9908 ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83571-930-1 01 1 9909- ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9603-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9610- ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-910-0 01 1 9603-9608 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9609-9609 ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9610-9904 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9905-9908 ● ●
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9603 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE 		0-28080-816-0 02 1 9604-9908 ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) M8X16 FLANGE 		0-28080-816-0 02 1 9909- ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9904 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-9908 ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9909- ● ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ●
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9603-9908 ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8 		9-09110-408-0 02 1 9909- ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9908 ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9909- ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9801 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
37 CONNECTOR; CMPR TO FLEX HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-077-0 01 1 9603-9904 ● ●
37 CONNECTOR; CMPR TO FLEX HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 9905- ● ●
38 CLIP; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9603- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-414-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-010-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-83572-010-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-415-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-011-2 01 1 9612-9706 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-83572-011-2 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-83572-183-0 01 1 9707-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-83572-201-1 01 1 9707-9904 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-384-0 01 1 9610-9611 ●
121 HOSE; COOLER
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-385-0 01 1 9610-9611 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-425-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-423-0 01 1 9604-9904 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-426-0 01 1 9603-9603 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-424-0 01 1 9604-9904 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-122-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9603-9611 ●
121 HOSE; COOLER
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-199-0 01 1 9612-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-120-0 01 1 9802-9904 ● ●
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9603-9801 ●
121 HOSE; COOLER
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-302-0 01 1 9802-9904 ● ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9610-9611 ●
122 GASKET
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9610-9706 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9707-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9604-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9610-9904 ● ●
122 GASKET
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-94481-717-0 02 1 9610-9706 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		8-94481-717-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=18.3 		8-97161-778-0 02 1 9905- ● ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9603-9603 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9604-9801 ●
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=10.8 		8-94113-331-0 01 1 9802-9904 ●
122 GASKET
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 01 1 9603-9609 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9610-9706 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9 		8-94113-330-0 02 1 9707-9904 ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9905- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-203-0 01 1 9603-9603 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-314-0 01 1 9604-9904 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-541-1 01 1 9905- ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-545-1 01 1 9905- ●
144 BOLT; CONN TO CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9603- ● ●
145 BOLT; CLIP,CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9603- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-043-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-593-1 01 1 9612-9706 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (A) 		1-82699-593-1 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (A) 		1-82699-825-0 01 1 9707-9904 ●
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-030-0 01 1 9610-9611 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-046-0 01 1 9603-9904 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9603-9611 ●
149 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-902-0 01 1 9612-9904 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9603-9801 ●
149 BRACKET; COOLER HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-901-1 01 1 9802-9904 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 01 1 9610-9611 ●
150 CLIP; HOSE
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 02 1 9610-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9904 ● ●
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9603-9611 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9904 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9603-9609 ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9603-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 9905- ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9603-9904 ● ●
181 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 9905- ● ●
çizim 41208
116 156 171 12 116 14 12 33 1 26 182 183 33 172 15 14 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-073-0 01 1 9610-9904 ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-085-0 01 1 9905- ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-079-0 01 1 9603-9904 ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-087-0 01 1 9905- ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9603-9609 ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9610- ● ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-204-0 01 1 9603-9609 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-579-0 01 1 9610-9904 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-668-0 01 1 9905- ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-204-0 01 1 9612-9904 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-538-0 01 1 9905- ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9603-9609 ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9610-9904 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 9905- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83566-904-2 01 1 9603-9702 ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 9703- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9603-9609 ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9610-9702 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-411-0 01 1 9703-9904 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 9905- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9908 ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909- ● ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9909- ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9801 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9603-9606 ●
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9603-9609 ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9610- ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9603-9609 ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9610-9611 ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9612-9904 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9905- ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9603-9609 ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9611 ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9612-9904 ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9905- ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9603-9609 ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9610-9611 ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9612-9904 ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9905- ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97080-101-0 01 1 9905- ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-044-0 01 1 9905- ● ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9603-9609 ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9610-9904 ● ●
182 PLUG; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-226-0 01 1 9610-9904 ●
183 GASKET; PLUG
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-048-0 01 1 9610-9904 ●
çizim 41592
33 12 116 156 171 116 1 12 172 33 15 2 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-073-0 01 1 9610-9904 ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-085-0 01 1 9905- ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-079-0 01 1 9603-9904 ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-087-0 01 1 9905- ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9603-9609 ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9610- ● ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-204-0 01 1 9603-9609 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-579-0 01 1 9610-9904 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-668-0 01 1 9905- ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-204-0 01 1 9612-9904 ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-538-0 01 1 9905- ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9603-9609 ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9610-9904 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 9905- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83566-904-2 01 1 9603-9702 ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 9703- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9603-9609 ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83566-903-3 01 1 9610-9702 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-411-0 01 1 9703-9904 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 9905- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9603-9609 ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9610- ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9603-9609 ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9610-9611 ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9612-9904 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9905- ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9603-9609 ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9611 ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9612-9904 ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9905- ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9603-9609 ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9610-9611 ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9612-9904 ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9905- ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97080-101-0 01 1 9905- ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-044-0 01 1 9905- ● ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9603-9609 ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9610-9904 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
