◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#58828) — 145 parça

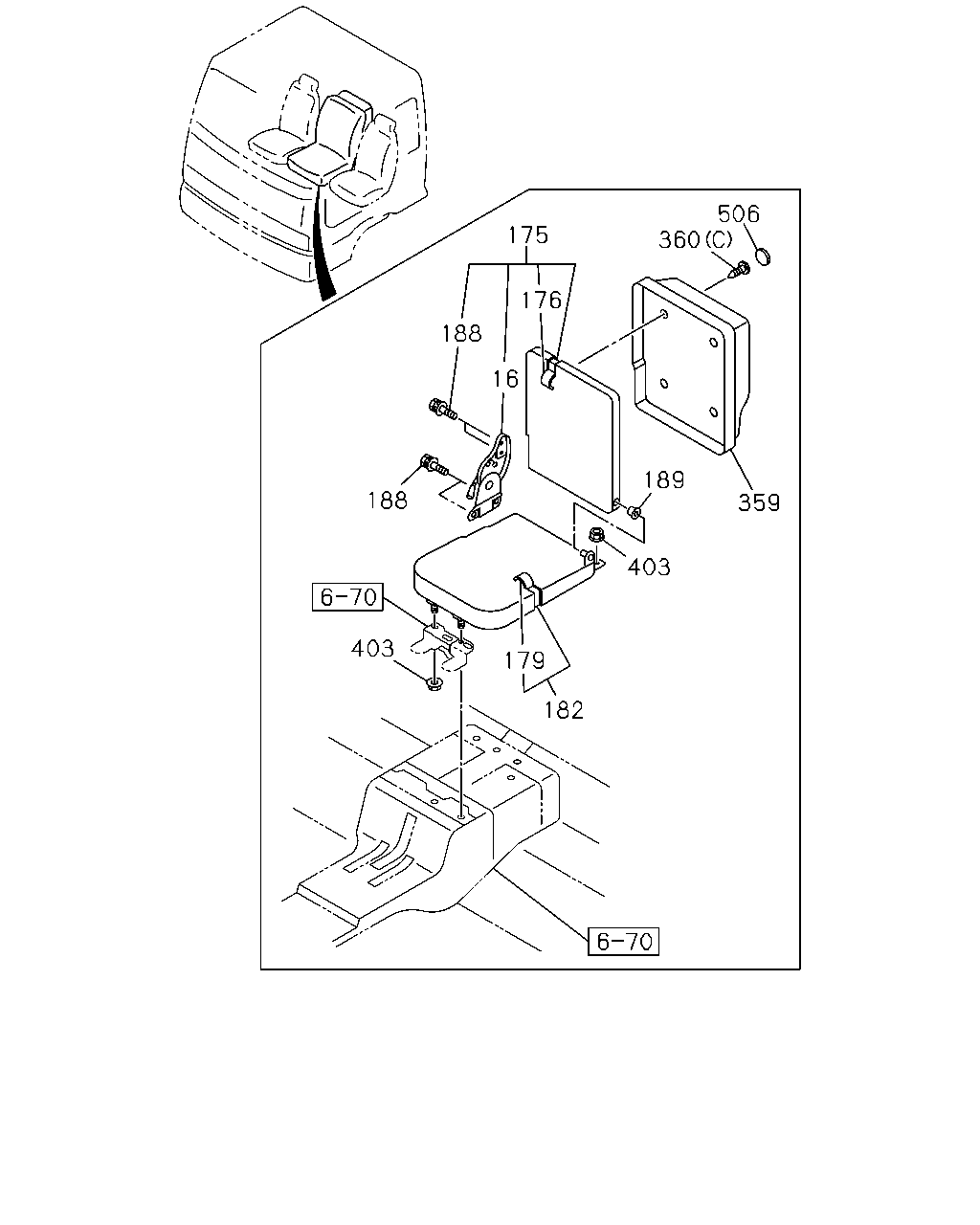

çizim 168248
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1008-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) 		1-75207-602-3 01 1 1008-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) 		8-98168-328-1 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) 		1-75127-156-2 01 1 1008-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) 		8-98168-331-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) 		1-75127-164-1 01 1 1008-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) 		8-98168-325-0 01 1 1012-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) 		1-75207-644-1 01 1 1008-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) 		8-98168-317-2 01 1 1012-
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1008-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 1008-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1008-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1008-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1008-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1008-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1008-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1008-

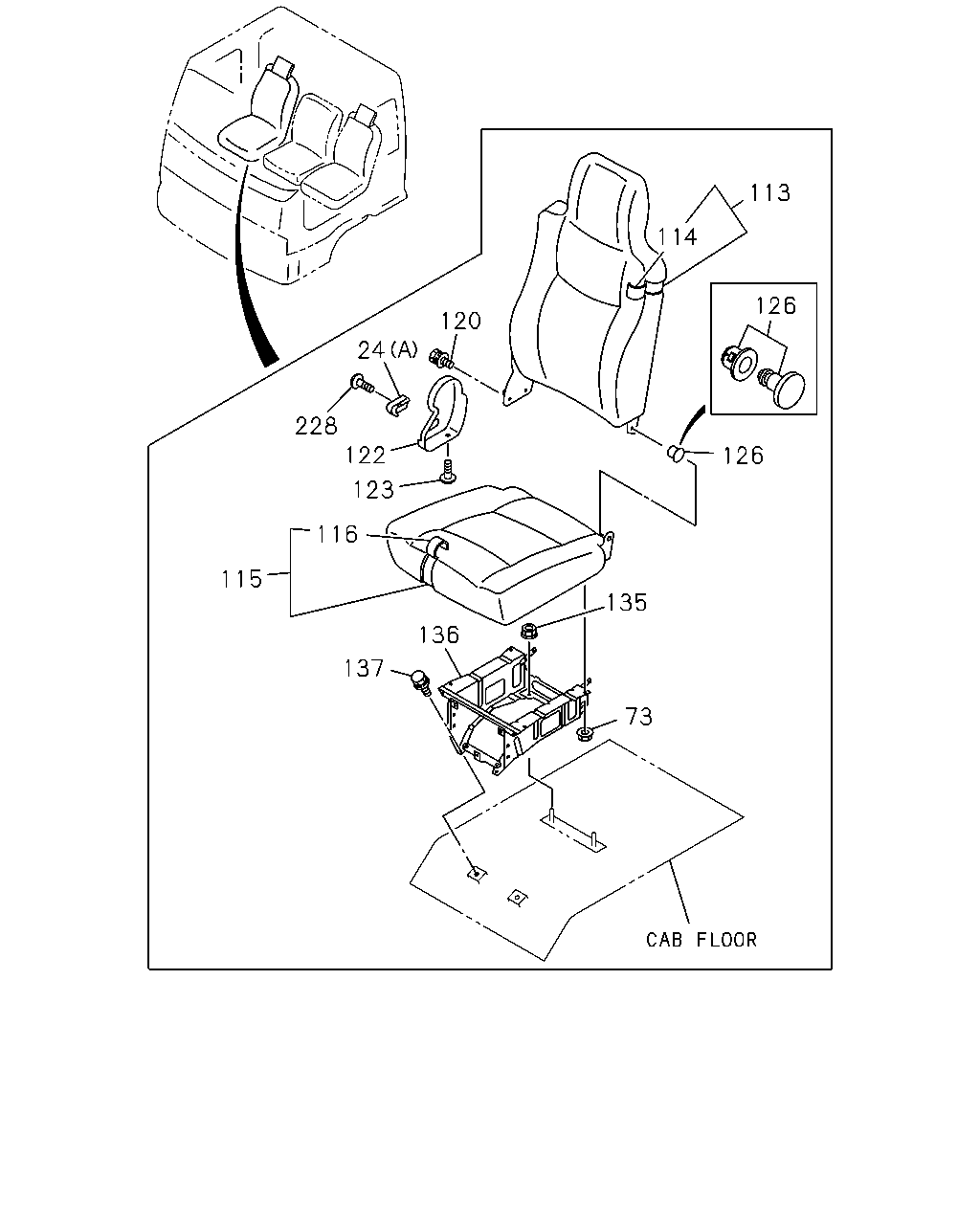

çizim 168263
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1008-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 1008-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 1008-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-118-0 01 1 1008-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-297-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-122-0 01 1 1008-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-298-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 1008-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 1008-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 1008-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97867-020-0 01 1 1008-
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1008-
126 BUSHING; HINGE,RECLINING
FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 1008-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1008-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-602-3 01 1 1008-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1008-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1008-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1008-

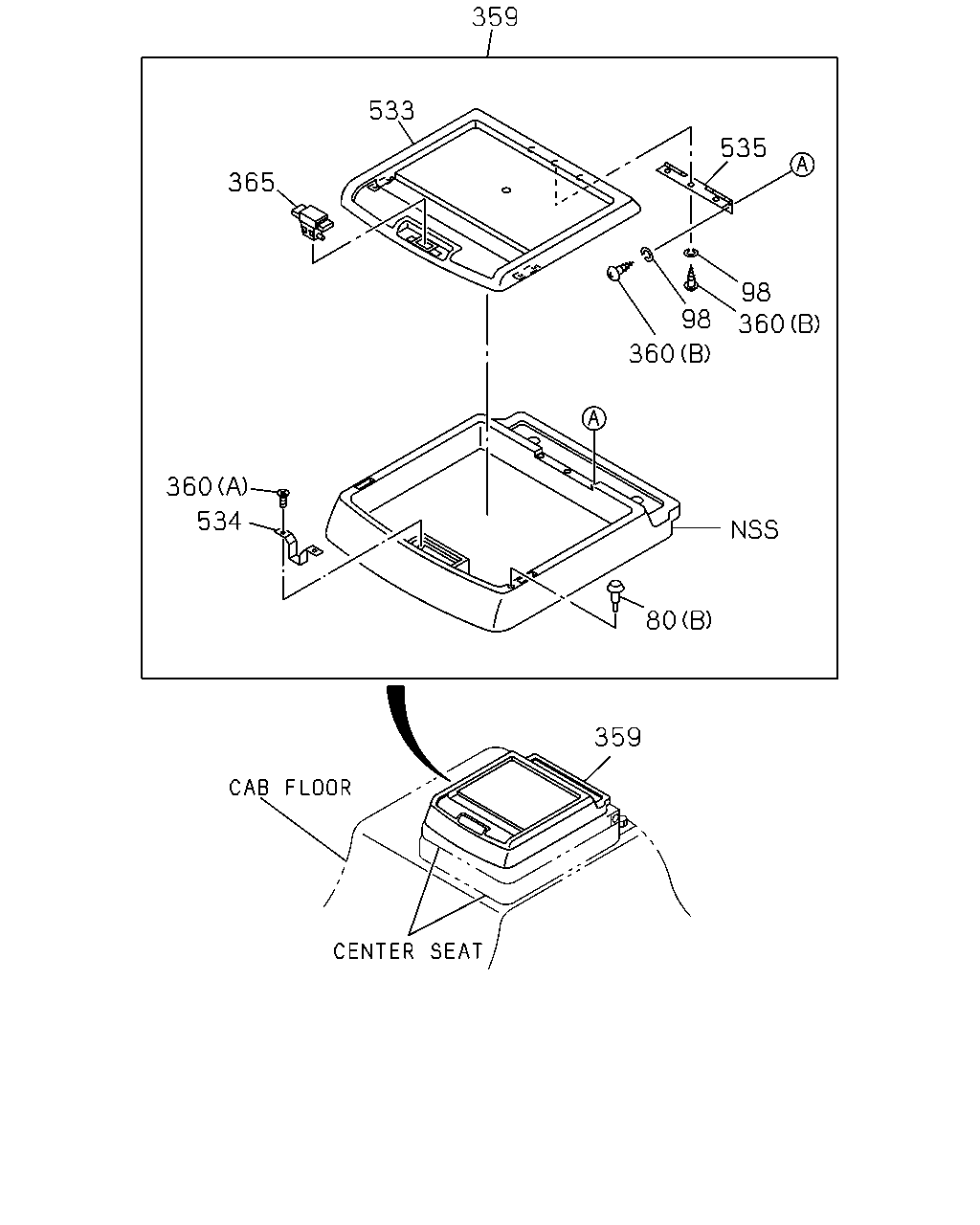

çizim 168274
359 533 535 365 98 360 98 360 360 534 80 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1008-
80 RUBBER; STOPPER
(A) 		1-09987-123-0 01 1 1008-
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1008-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1008-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1008-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1008-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1008-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 1008-
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1008-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-190-0 01 1 1008-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1008-

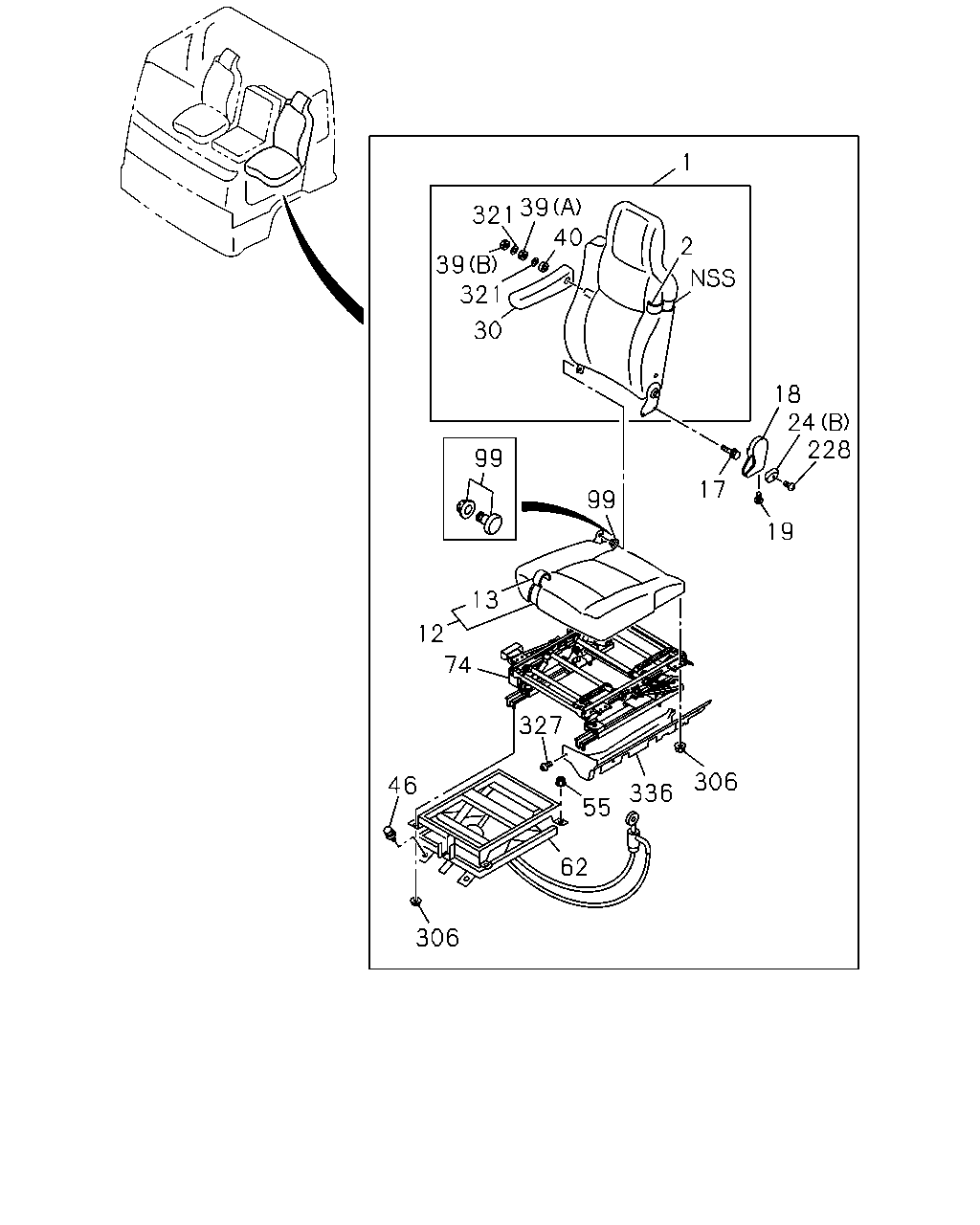

çizim 168282
1 39 321 40 2 39 321 30 18 24 228 99 17 99 19 13 12 74 327 306 46 336 55 62 306
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 8-98124-116-0 01 1 1008-1011
1 BACK ASM; SEAT 8-98168-073-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK 8-98124-120-0 01 1 1008-1011
2 COVER; TRIM,FRT SEAT,BACK 8-98168-090-0 01 1 1012-
12 CUSHION; SEAT,FRT 1-75207-640-2 01 1 1008-1011
12 CUSHION; SEAT,FRT 8-98168-044-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-160-2 01 1 1008-1011
13 COVER; TRIM,FRT SEAT,CUSHION 8-98168-075-0 01 1 1012-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 1008-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 1008-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 1008-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1008-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 1008-
30 REST ASM; ARM,FRT SEAT 8-98147-307-0 01 1 1008-
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 1008-
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 1008-
40 SPACER; ARM REST 8-94285-921-0 02 1 1008-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1008-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1008-
62 DAMPER ASM; SEAT SUSP 1-75537-263-9 01 1 1008-1502
62 DAMPER ASM; SEAT SUSP 8-98261-453-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 1008-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 1008-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1008-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1008-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1008-
321 WASHER; PL,ARM REST
ID=10.5 OD=22 		9-09160-610-0 01 1 1008-
321 WASHER; PL,ARM REST
ID=8.4 OD=22 		9-09164-708-0 01 1 1008-
327 CLIP; COVER 1-09987-273-0 01 1 1008-
336 COVER; DRIVER SEAT 1-75518-313-0 01 1 1008-

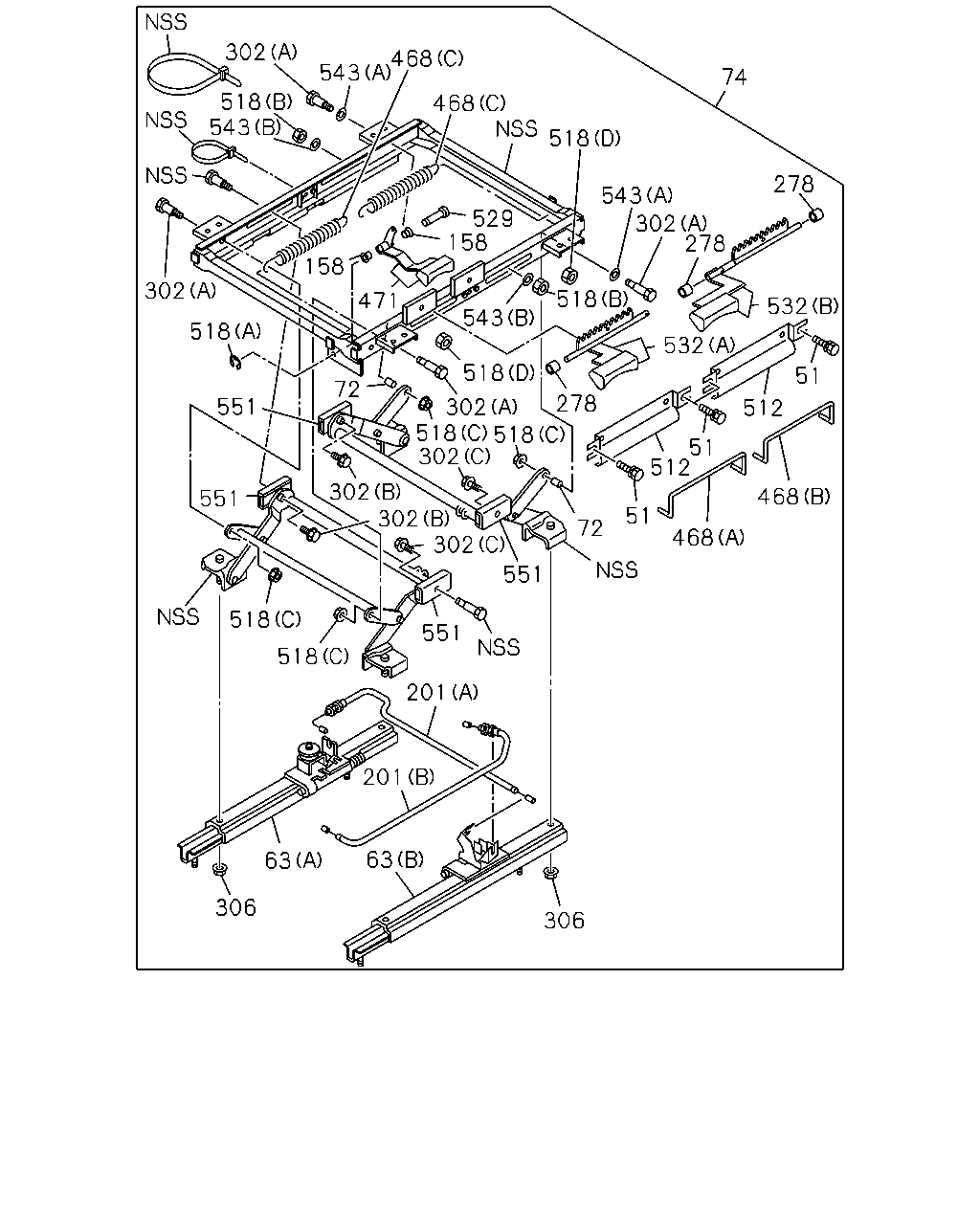

çizim 168288
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 1008-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 1008-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-324-0 01 1 1008-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 1008-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 1008-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1008-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1008-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1008-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1008-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 1008-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 1008-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 1008-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1008-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1008-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1008-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1008-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1008-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1008-
512 COVER; LEVER 1-75518-245-1 02 1 1008-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1008-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1008-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1008-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1008-
529 PIN; LINK 1-75518-262-0 01 1 1008-
532 LEVER ASM; TILT
(A) 		1-75518-221-0 01 1 1008-
532 LEVER ASM; TILT
(B) 		1-75518-222-1 01 1 1008-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 1008-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1008-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1008-

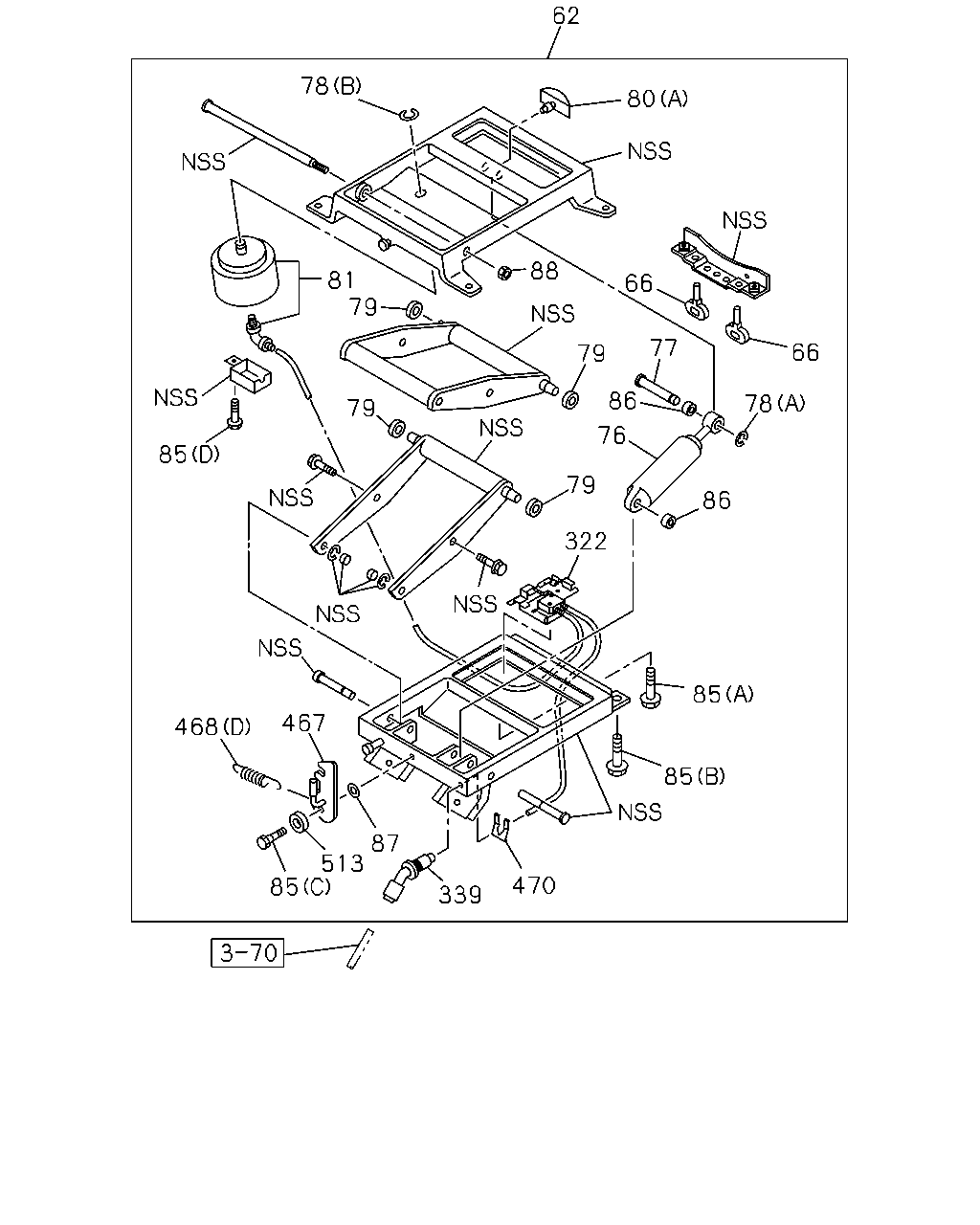

çizim 168317
470 85 85 86 78 66 77 66 80 62 78 81 88 79 76 322 79 86 79 85 467 468 85 513 87 339 79
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP 1-75537-263-9 01 1 1008-1502
62 DAMPER ASM; SEAT SUSP 8-98261-453-0 01 1 1503-
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 1008-
76 DAMPER; AIR SUSP 1-75537-230-2 01 1 1008-
77 PIN; DAMPER 1-75538-138-2 01 1 1008-
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 1008-
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 1008-
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 1008-1502
79 ROLLER ASM; AIR SUSP 8-98261-489-0 04 1 1503-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1008-
80 RUBBER; STOPPER
(A) 		1-09987-123-0 01 1 1008-
81 SPRING; AIR 1-75538-151-2 01 1 1008-1312
81 SPRING; AIR 8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 1008-
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 1008-
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1008-1312
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1008-
87 WASHER; AIR SUSP
ID=8.2 		0-91510-508-0 01 1 1008-
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 1008-
322 VALVE; AIR SPRING 1-75538-187-3 01 1 1008-
339 UNION; DRIVER SEAT 1-75538-131-3 01 1 1008-
467 LEVER; LOCK 1-75538-134-0 01 1 1008-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1008-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1008-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1008-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1008-
470 CLIP; HOSE 1-75538-137-0 01 1 1008-
513 SPACER; LEVER 1-75538-133-0 01 1 1008-
