Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11274 - EXZ LHD EURO2/3/4 WITH 3STEPS
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#58826) — 64 parça
◀

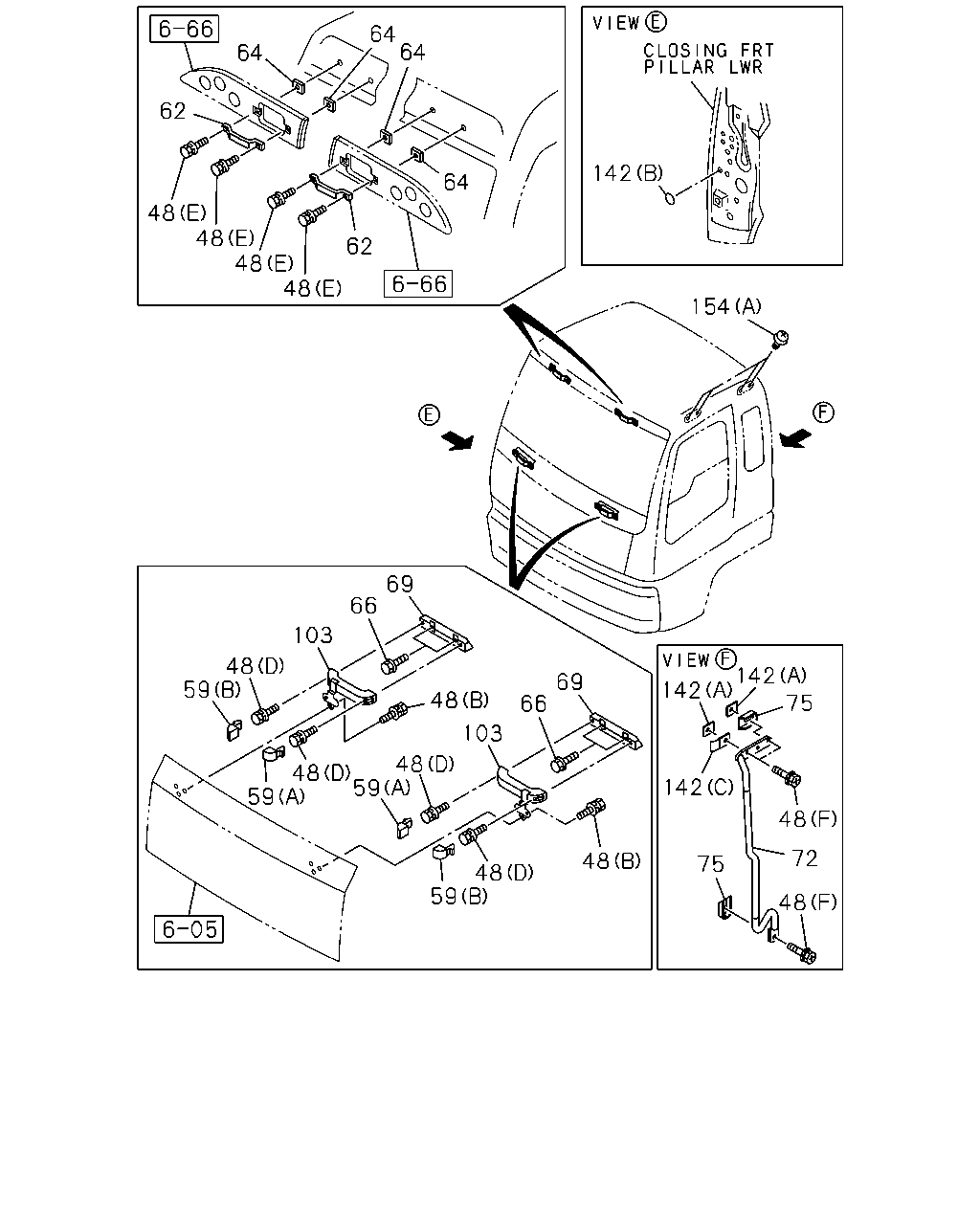

[743A] ASSIST GRIP;CAB OUTSIDE (24 parça)
[743A] ASSIST GRIP;CAB INSIDE (23 parça)

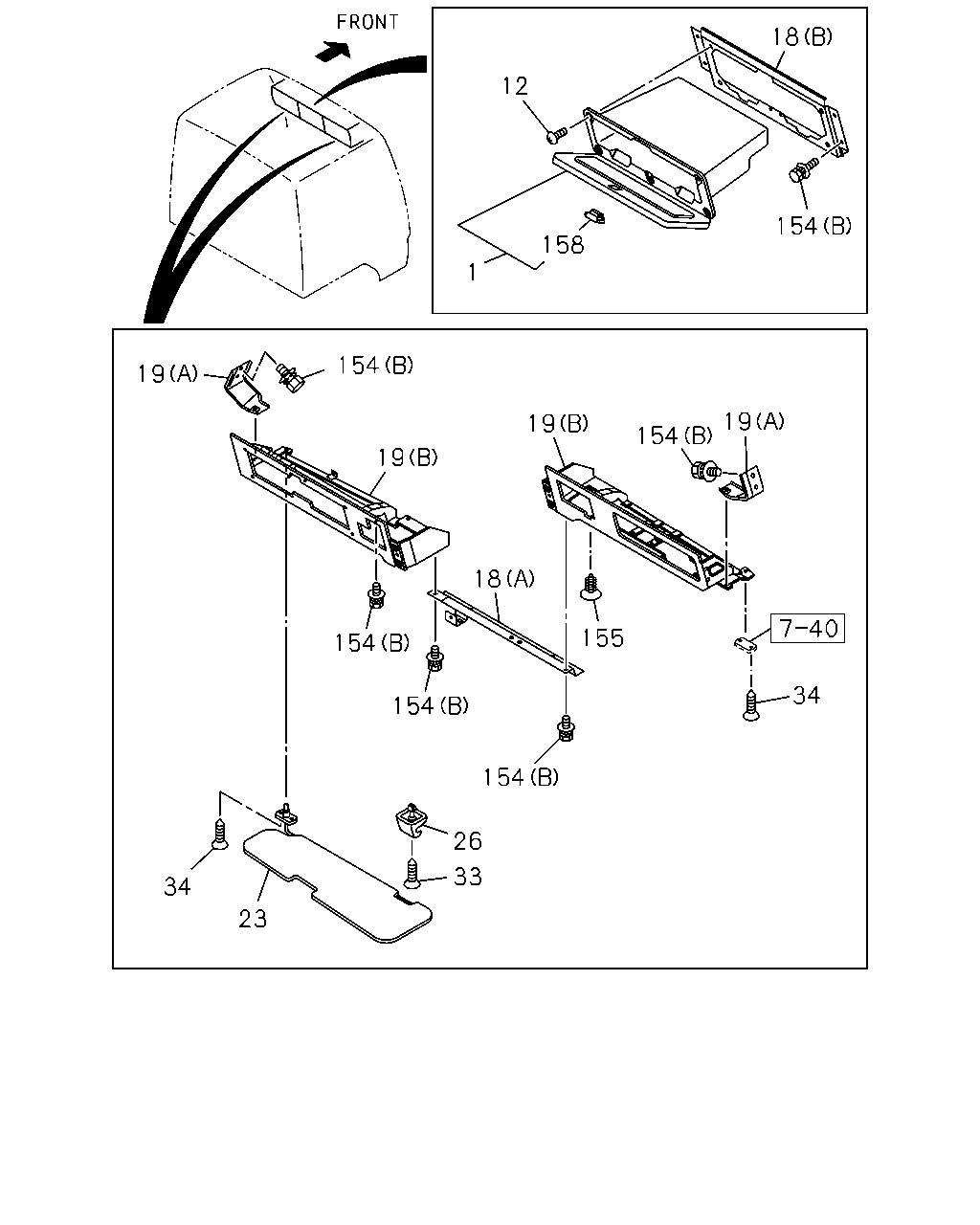

[743A] SUN VISOR AND SUPPORT ASM (17 parça)
▶
64
64
64
62
142
64
48
48
48
48
62
154
69
66
103
142
75
48
59
69
142
48
66
103
48
48
59
59
142
48
72
48
75
48
59
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1008-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1008-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
48
BOLT; ASSIST GRIP
GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1008-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1008-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1008-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1008-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1008-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1008-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1008-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1008-
72
GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52>
1-71907-543-0
01
1
1008-
75
SHEET; ASSIST GRIP,CAB ENTRY
GRIP OUT SIDE<W52>
1-71997-548-0
02
1
1008-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1008-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1008-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1008-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (C)
1-71997-691-1
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
04
1
1008-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1008-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1008-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1008-
150
71
106
87
55
71
142
48
76
54
150
48
71
56
48
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1008-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1008-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
48
BOLT; ASSIST GRIP
GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1008-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1008-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-070-2
01
1
1008-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
02
1
1008-
55
GRIP; ASSIST,CAB SIDE UPR
EXC. GRIP OUT SIDE<W52>
1-73618-169-1
01
1
1008-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1008-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1008-
71
SCREW
(B) M6X30 W/LK WASHER
5-09981-064-0
04
1
1008-
71
SCREW
(A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
1008-
76
SPACER; ASSIST GRIP
OD=13 T=4.5
8-94230-464-1
04
1
1008-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
02
1
1008-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
106
SCREW; ASSIST GRIP
EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
02
1
1008-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1008-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (C)
1-71997-691-1
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
04
1
1008-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1008-
18
12
154
158
1
154
19
19
19
154
19
18
155
154
34
154
154
26
33
34
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
1-72447-968-0
01
1
1008-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1008-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1008-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-937-0
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-938-4
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1008-
23
SUN VISOR
1-73138-157-1
01
1
1008-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1008-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1008-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1008-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1008-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1008-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1008-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1008-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
1008-
