Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#58823) — 236 parça

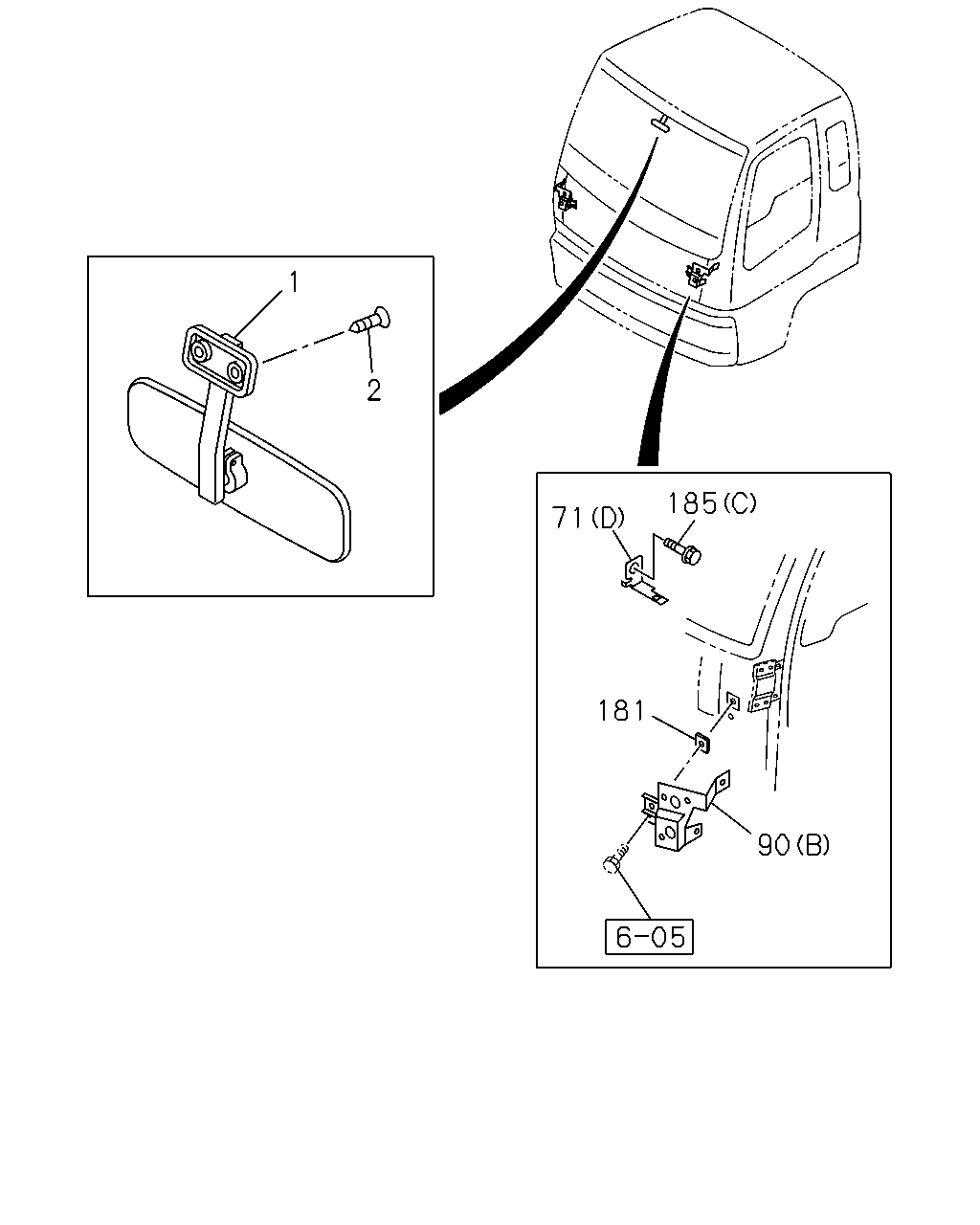

1 2 185 71 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM CHINA EQUIPMENT(YT2)	1-73317-561-0	01	1	1008-
1	MIRROR; ROOM EXC. CHINA EQUIPMENT(YT2)	1-73117-033-1	01	1	1008-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-

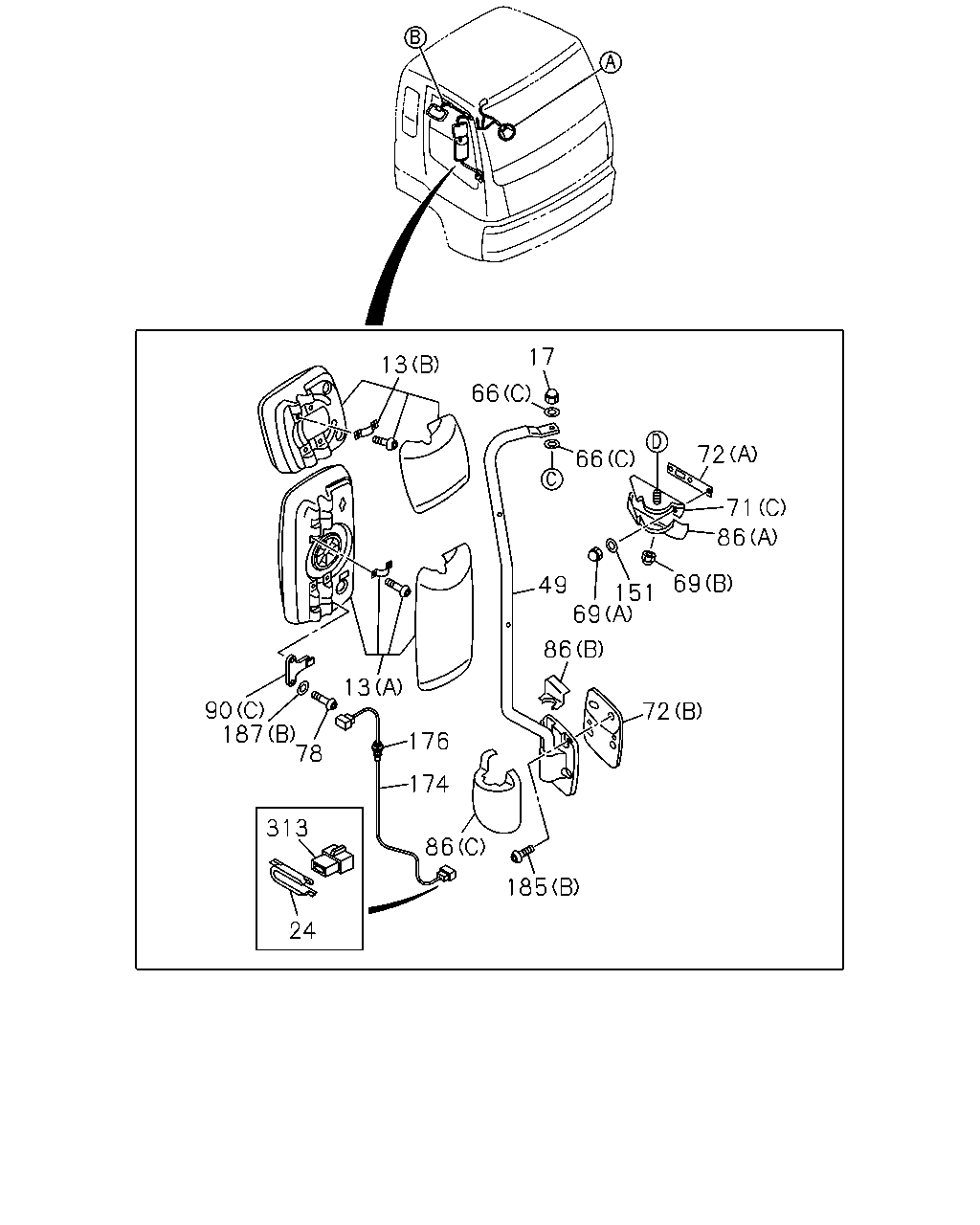

13 17 66 90 187 78 13 66 72 71 86 69 151 69 86 72 185 86 174 176 313 24 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
72	SHEET (A)	8-98147-891-0	02	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-
78	SCREW; BRKT FIX RUSSIA EQUIPMENT(B12)	8-98317-369-0	02	1	1008-
78	SCREW; BRKT FIX MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98317-369-0	02	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1008-
176	GROMMET; HARNESS MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	1-82699-906-0	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-

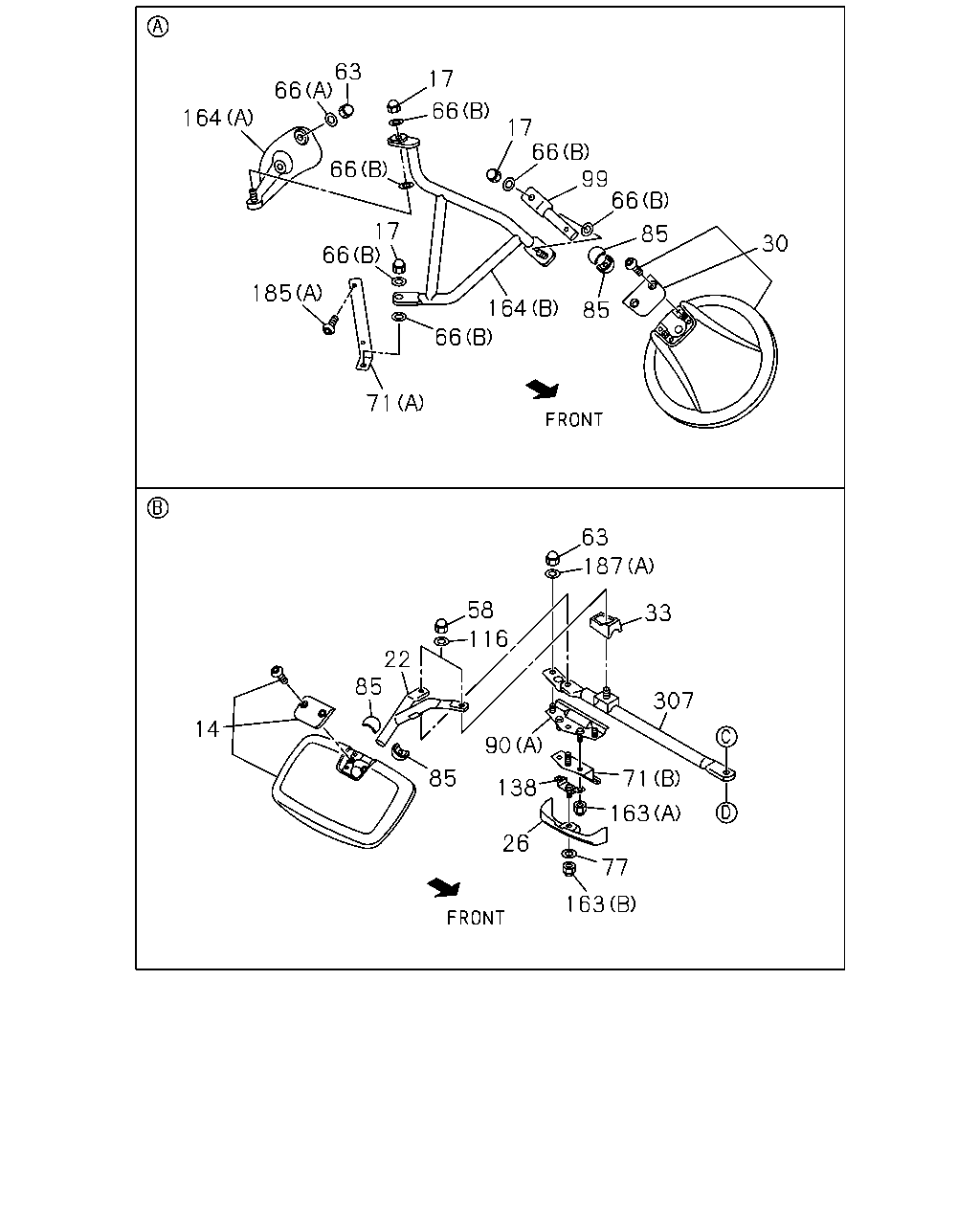

163 26 163 138 85 85 58 116 33 307 187 22 14 90 63 71 77 85 30 85 66 99 66 17 66 17 63 71 185 66 17 66 66 164 164 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE CHINA EQUIPMENT(YT2)	8-98081-674-1	01	1	1008-
14	MIRROR ASM; OUTSIDE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA)	8-98043-065-0	01	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
22	STAY; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2)	8-98154-821-0	01	1	1008-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-
30	MIRROR; UNDER	8-98055-994-0	01	1	1008-1504
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-
33	COVER; MIRROR	8-98171-925-0	01	1	1008-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-
63	NUT; STAY M8	1-09984-187-0	06	1	1008-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1008-
85	PIVOT; MAIN MIRROR RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) ID=19.1	1-71737-633-2	02	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1008-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-
164	STAY; ROOF (A)	1-71798-300-5	01	1	1008-
164	STAY; ROOF (B)	8-98138-918-1	01	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-

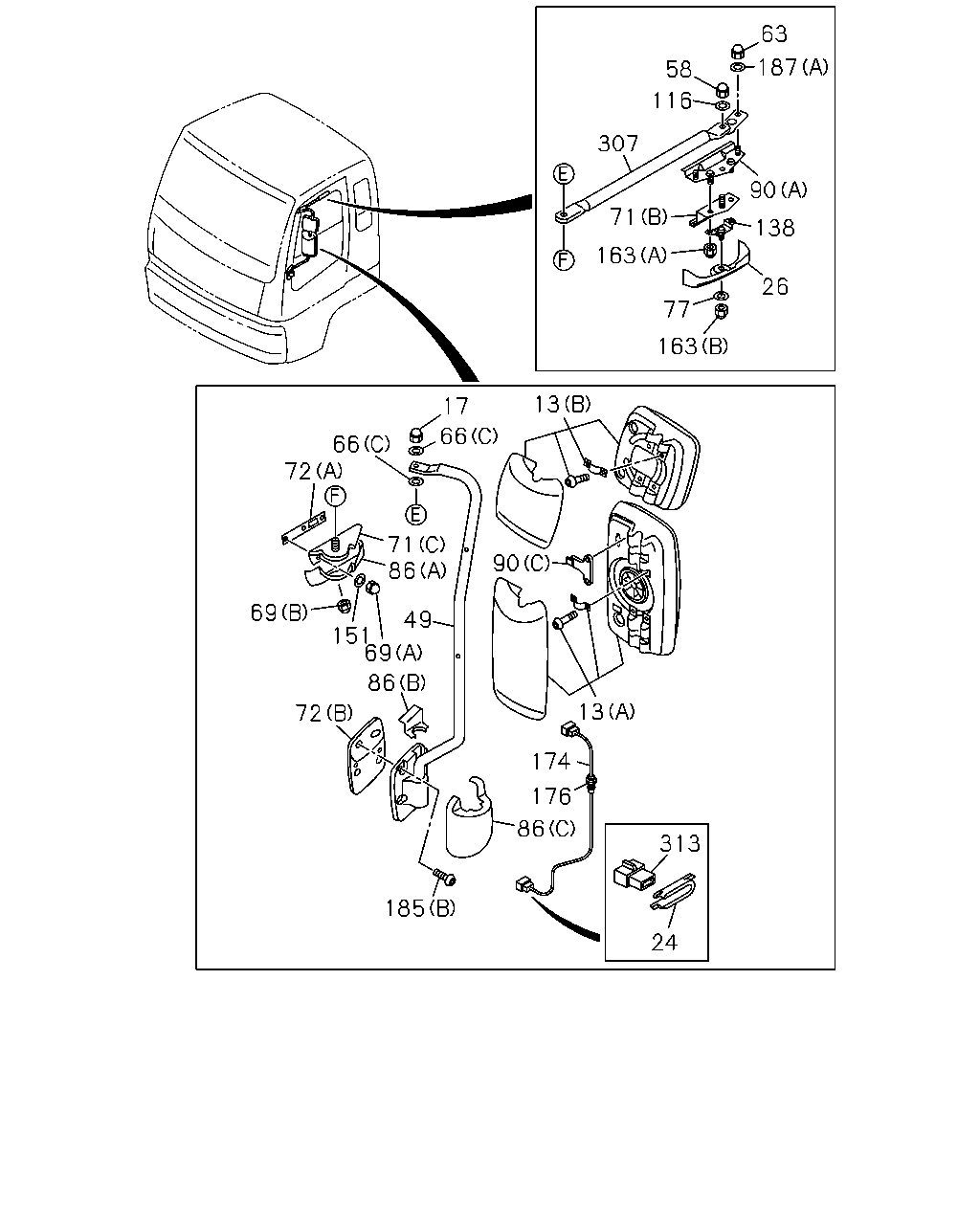

63 58 116 307 71 90 163 77 26 163 138 13 17 66 72 71 90 66 13 174 176 86 185 86 72 69 151 69 86 49 313 24 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-
63	NUT; STAY M8	1-09984-187-0	06	1	1008-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
72	SHEET (A)	8-98147-891-0	02	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1008-
176	GROMMET; HARNESS MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	1-82699-906-0	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
