◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#58812) — 24 parça

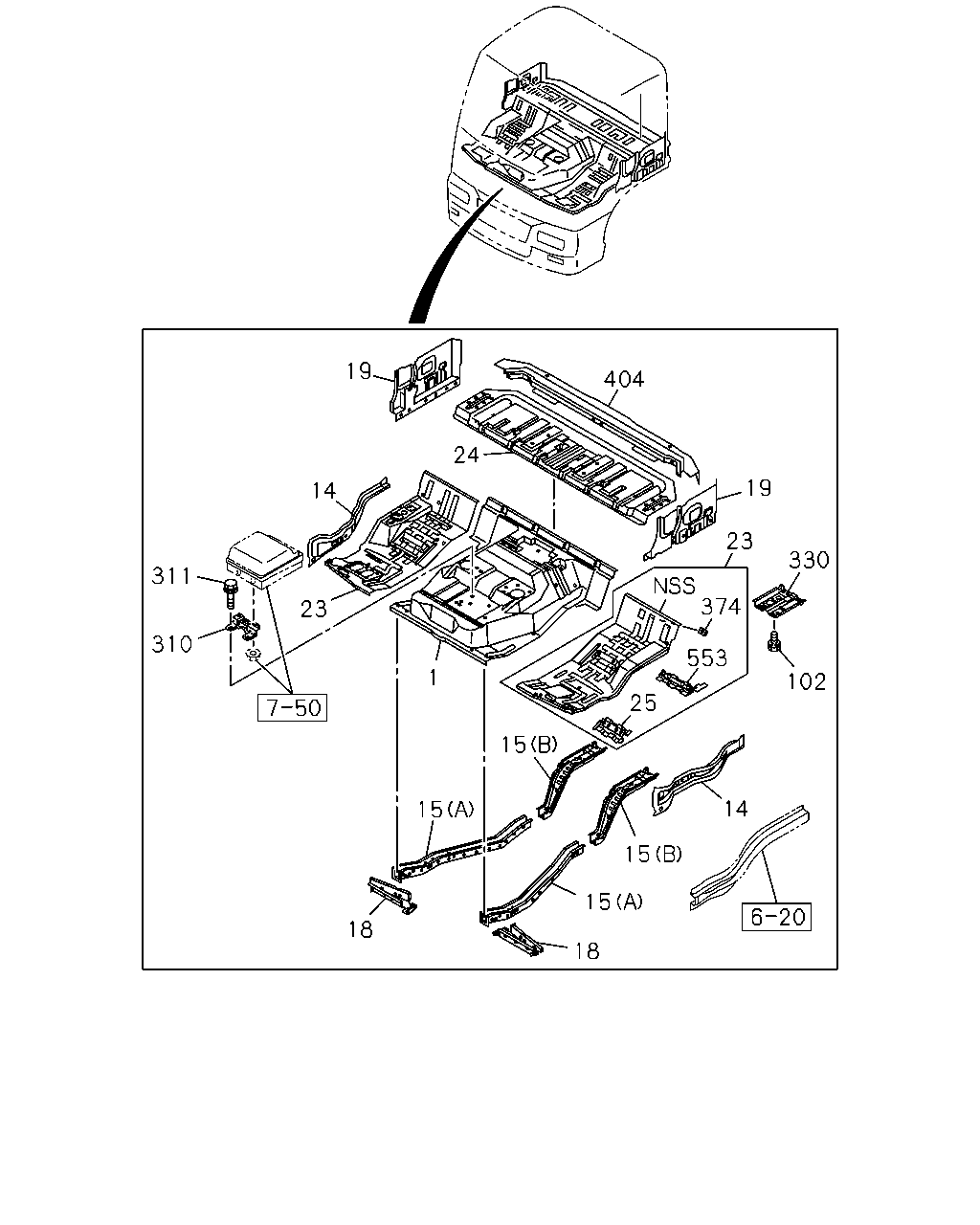

çizim 168216
19 404 24 19 14 23 330 311 374 23 310 553 1 102 25 15 15 14 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
6WF1 TC-C(1B8) 		1-62172-627-5 01 1 1008-
1 PANEL; FLOOR
6WG1 TC-R(75L) 		1-62172-960-1 01 1 1008-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 1008-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 1008-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 1008-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 1008-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 1008-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 1008-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 1008-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 1008-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 1008-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 1008-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 1008-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1008-
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 1008-
24 PANEL; BED PAN 1-62172-540-9 01 1 1008-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 1008-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 1008-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 1008-
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 1008-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 1008-
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 1008-
