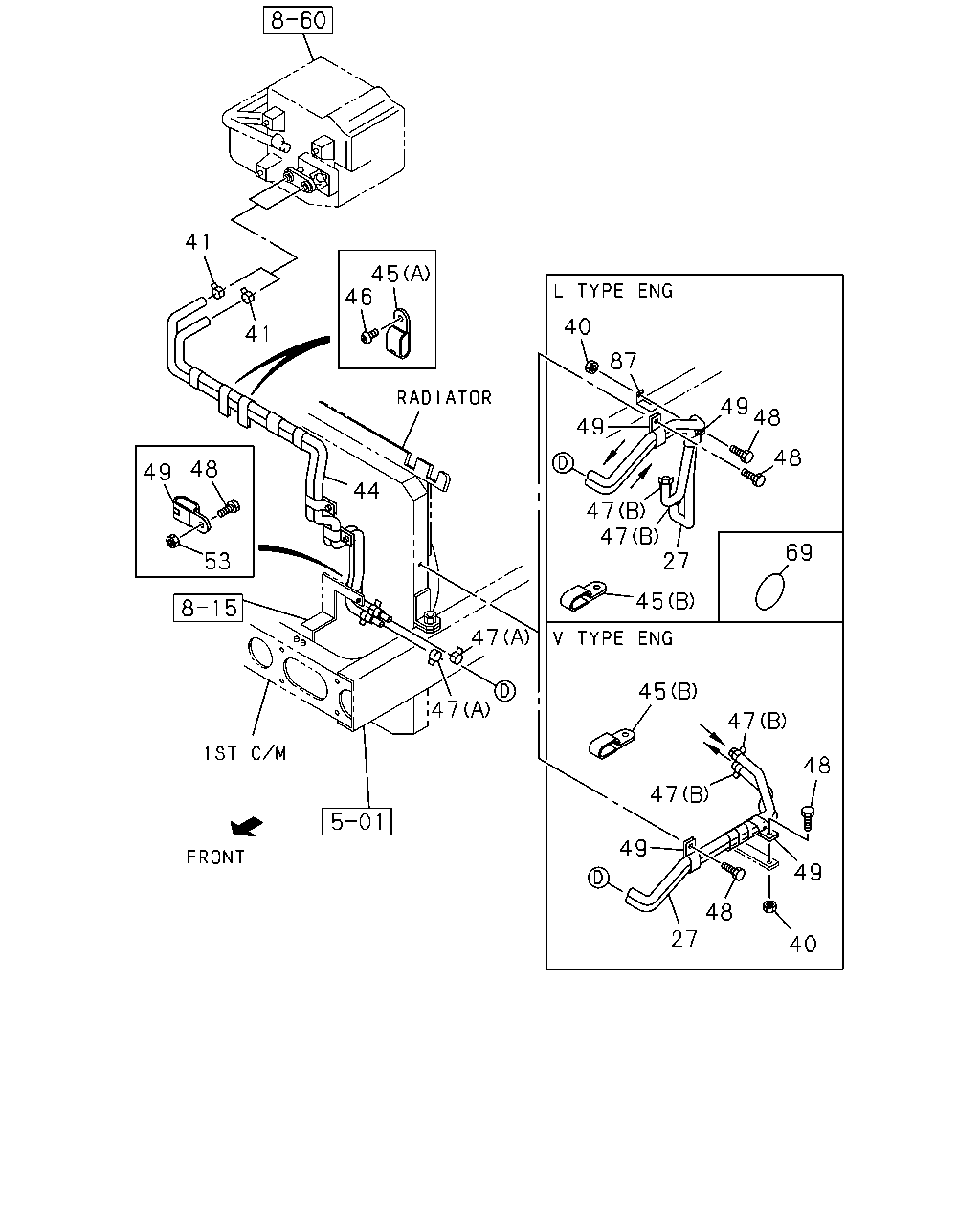

8-45 — HEATER PIPING (#5881) — 73 parça

41 45 46 40 41 87 49 48 49 48 48 49 44 47 47 27 69 53 45 47 45 47 47 48 47 49 49 48 27 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-673-0	01	1	9707-9904	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-614-0	01	1	9603-9804	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-614-0	01	1	9805-9904	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83565-614-0	01	1	9905-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE V TYPE ENG<91L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-598-1	01	1	9603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9608-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9603-	●	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41)	1-83565-569-3	01	1	9603-9609	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-569-4	01	1	9610-	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-616-2	01	1	9603-9609		●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-643-0	01	1	9610-9702		●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-663-0	01	1	9703-		●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	9603-	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	02	1	9603-		●
46	SCREW; CLIP HEATER & DEFROSTER(C41) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9609	●
46	SCREW; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9609		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9603-	●	●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9707-9904	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9607-9706	●	●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-	●	●
48	BOLT; CLIP FIX L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9707-9904	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9707-9904	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9905-	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24 & 24 L=49	1-09701-018-0	01	1	9707-9904	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9603-9706	●	●
49	CLIP; WATER HOSE,HTR L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9707-9904	●	●
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-		●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	01	1	9603-	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	9603-		●
87	BRACKET; HTR HOSE CLIP L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9603-	●	●

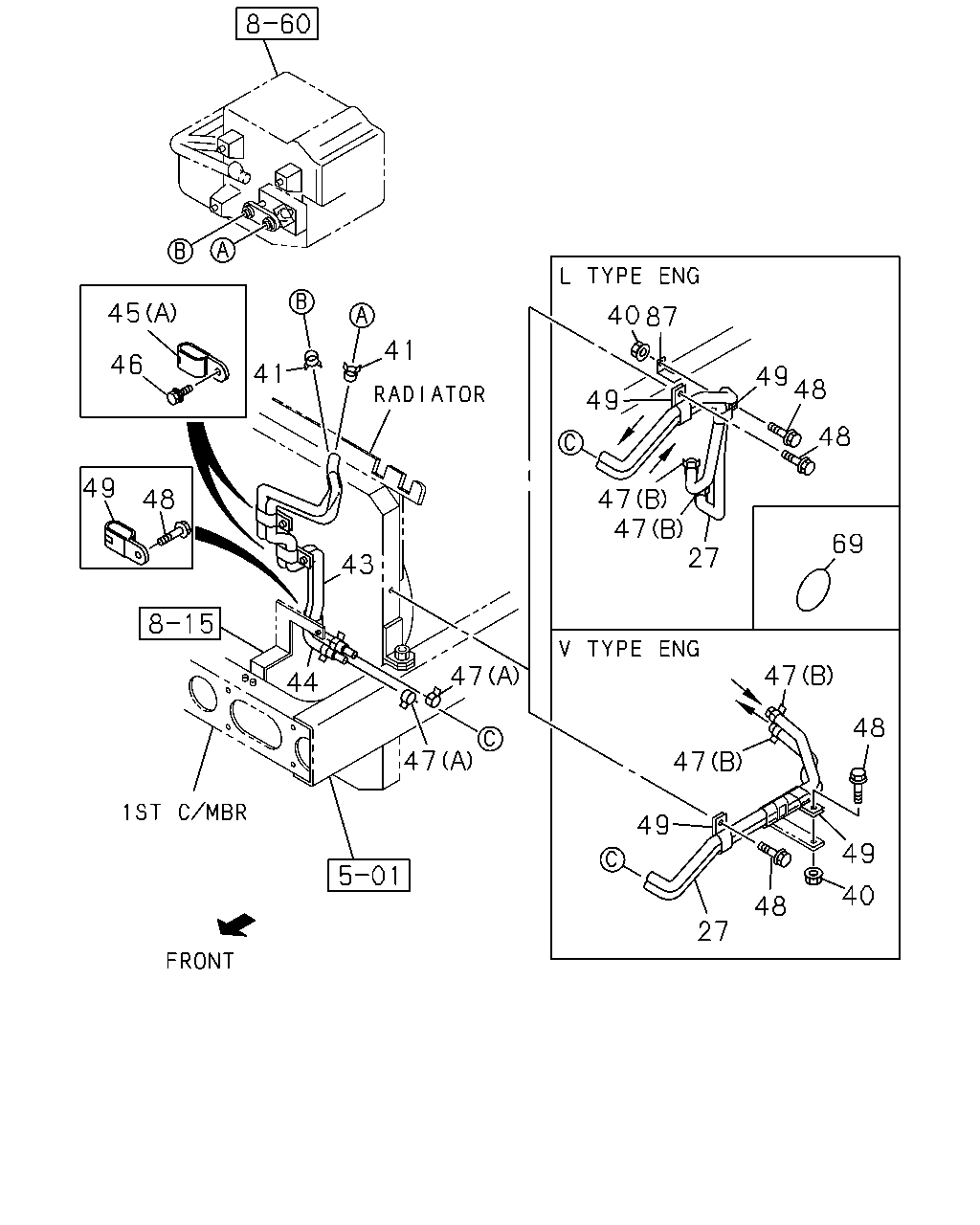

45 41 46 41 49 48 49 48 49 48 47 47 27 69 43 47 47 44 48 47 47 49 49 40 48 27 40 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-673-0	01	1	9707-9904	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-614-0	01	1	9603-9804	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-614-0	01	1	9805-9904	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83565-614-0	01	1	9905-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE V TYPE ENG<91L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-598-1	01	1	9603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9608-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9603-	●	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C41)	1-83565-570-2	01	1	9603-9609	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-570-3	01	1	9610-	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41)	1-83565-569-3	01	1	9603-9609	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-569-4	01	1	9610-	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-616-2	01	1	9603-9609		●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-643-0	01	1	9610-9702		●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-663-0	01	1	9703-		●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	9603-	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	02	1	9603-		●
46	SCREW; CLIP HEATER & DEFROSTER(C41) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9609	●
46	SCREW; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9609		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9603-	●	●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9707-9904	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9607-9706	●	●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-	●	●
48	BOLT; CLIP FIX L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9707-9904	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9707-9904	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9905-	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24 & 24 L=49	1-09701-018-0	01	1	9707-9904	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9603-9706	●	●
49	CLIP; WATER HOSE,HTR L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9707-9904	●	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	01	1	9603-	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	9603-		●
87	BRACKET; HTR HOSE CLIP L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9603-	●	●
