2-39 — POWER ASSISTOR (#58802) — 54 parça

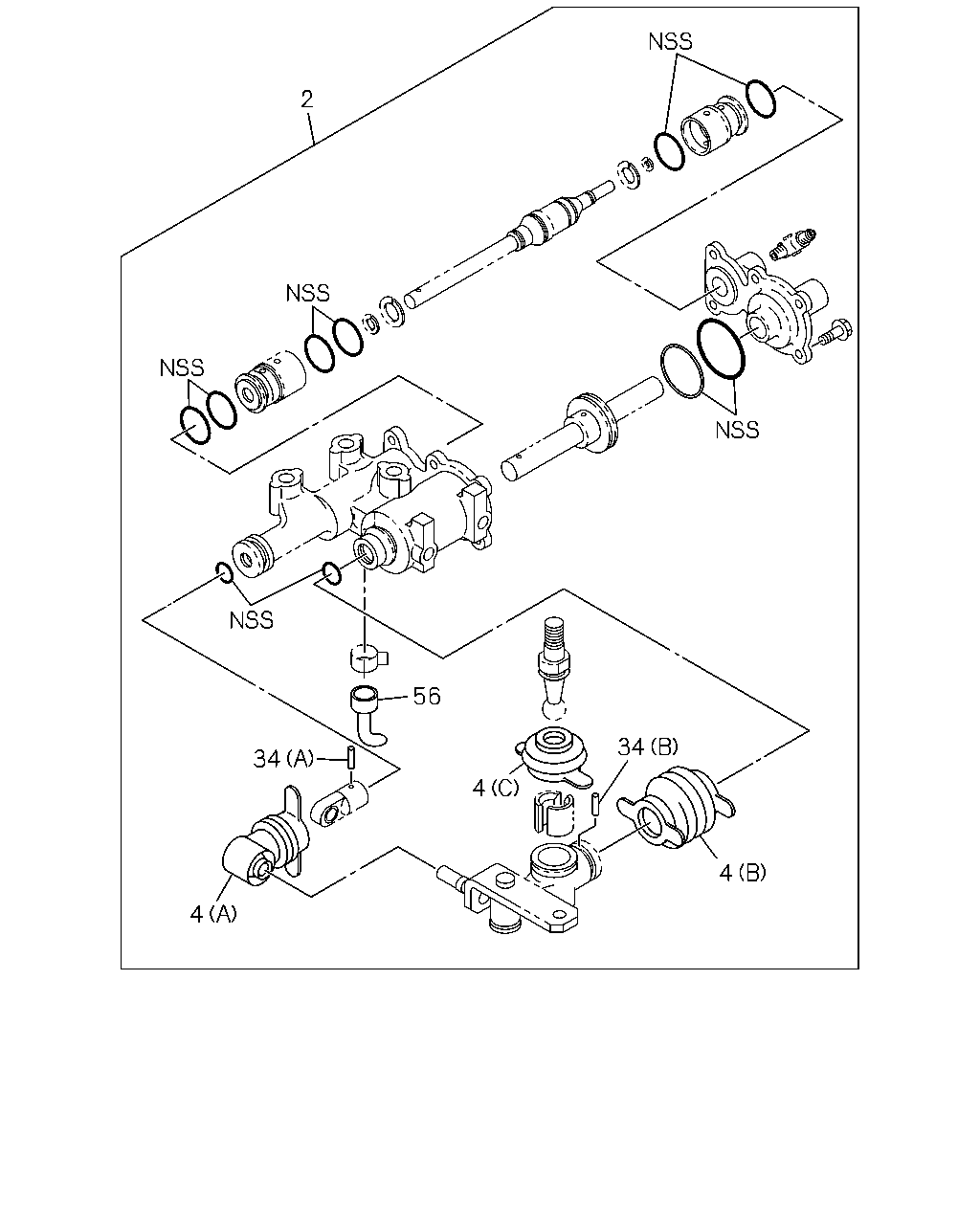

çizim 163821
2 56 34 34 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0906- ●
2 REPAIR KIT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-028-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0906- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0906- ●
56 HOSE; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0906- ●

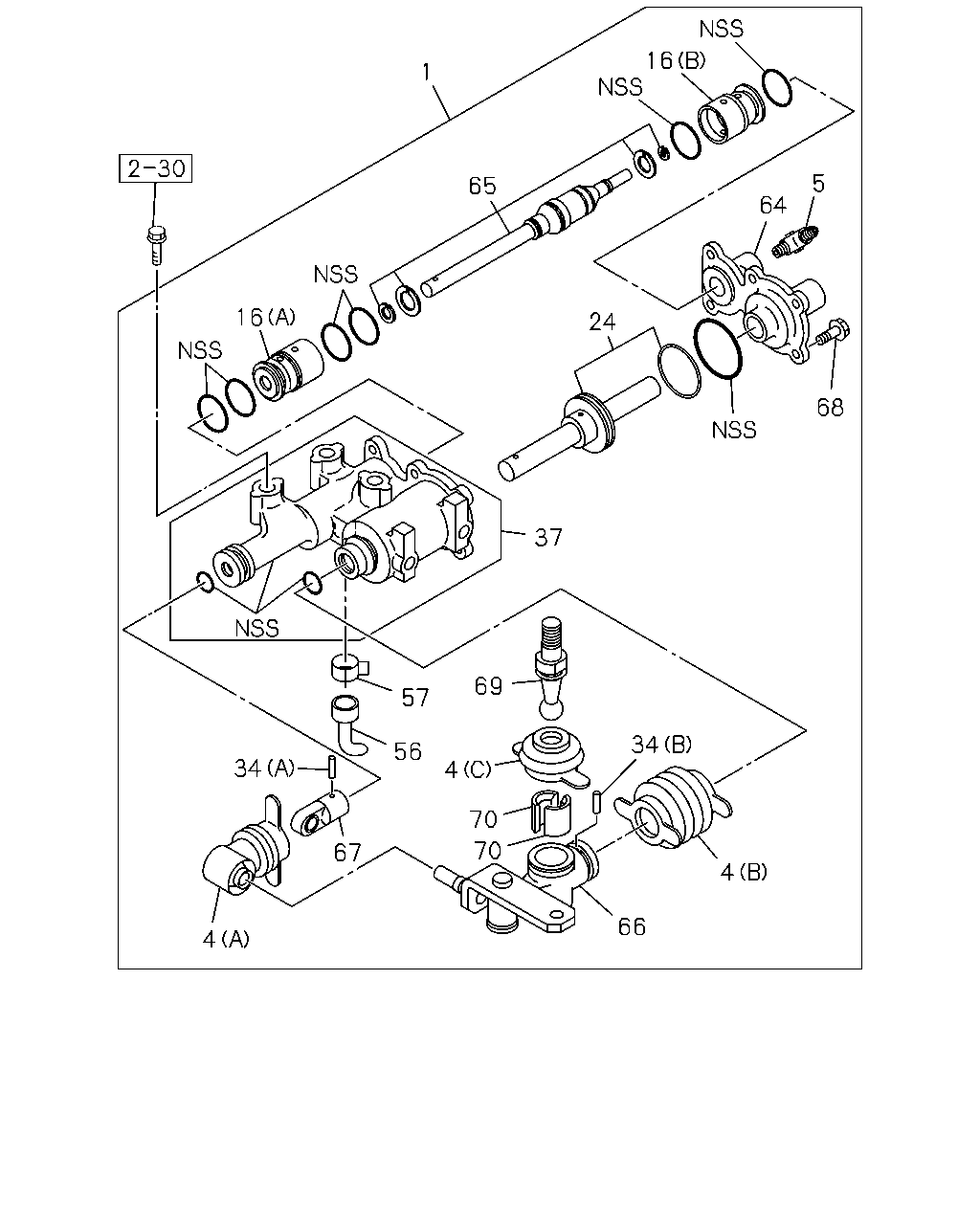

çizim 163823
16 1 5 65 64 16 24 68 37 69 57 34 56 34 4 70 70 67 4 66 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0906- ●
1 ASSISTOR ASM; POWER,SHIFT
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-98022-843-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0906- ●
4 BOOT; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0906- ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0906- ●
5 CONNECTOR; CYL
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 0906- ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0906- ●
16 SEAT; VALVE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 0906- ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0906- ●
16 SEAT; VALVE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 0906- ●
24 PISTON 1-33739-836-1 01 1 0906- ●
24 PISTON
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-836-1 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0906- ●
34 PIN; STRAIGHT,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0906- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0906- ●
37 HOUSING; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-969-0 01 1 0906- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0906- ●
56 HOSE; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0906- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0906- ●
57 CLAMP; HOSE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 0906- ●
64 COVER; HOUSING 1-33739-970-0 01 1 0906- ●
64 COVER; HOUSING
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-970-0 01 1 0906- ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0906- ●
65 VALVE; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 0906- ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0906- ●
66 JOINT ASM; POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-972-0 01 1 0906- ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0906- ●
67 JOINT; BALL,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 0906- ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0906- ●
68 BOLT; COVER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 0906- ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0906- ●
69 STUD; BALL,POWER SHIFTER
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 0906- ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0906- ●
70 SEAT; BALL STUD
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 0906- ●
