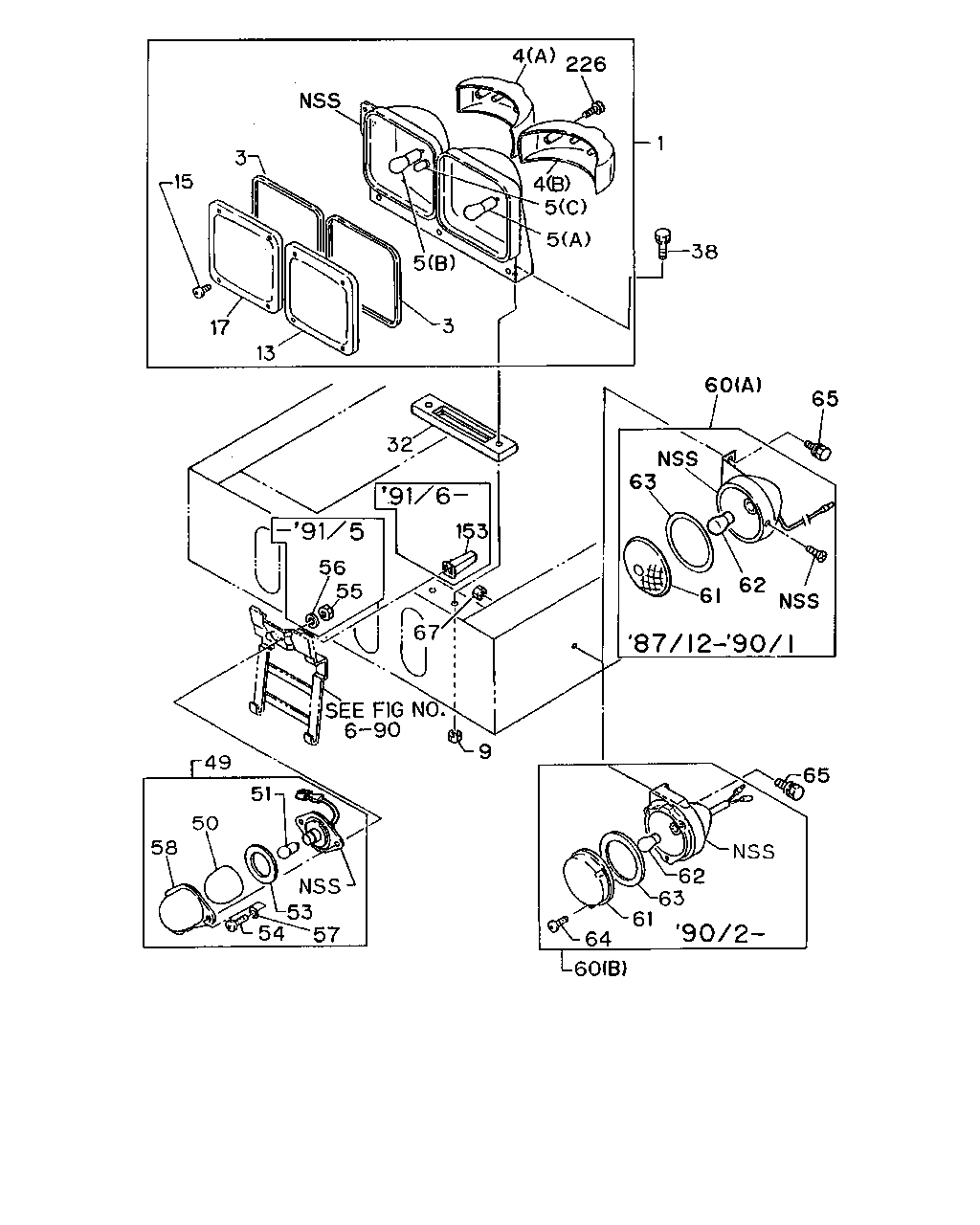

1 |
LAMP ASM; RR COMB
W/REFLECTOR
|
1-82230-118-2 |
01 |
1 |
9202- |
| |
1 |
LAMP ASM; RR COMB
W/REFLECTOR
|
1-82230-117-2 |
01 |
1 |
9202- |
| |
1 |
LAMP ASM; RR COMB
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
W/REFLECTOR
|
1-82230-118-2 |
01 |
1 |
8712-9201 |
| |
1 |
LAMP ASM; RR COMB
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
W/REFLECTOR
|
1-82230-117-2 |
01 |
1 |
8712-9201 |
| |
1 |
LAMP ASM; RR COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
WO/REFLECTER
|
1-82230-149-0 |
01 |
1 |
8712-9006 |
| |
1 |
LAMP ASM; RR COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82230-160-0 |
01 |
1 |
9007-9201 |
| |
1 |
LAMP ASM; RR COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
WO/REFLECTER
|
1-82230-148-0 |
01 |
1 |
8712-9006 |
| |
1 |
LAMP ASM; RR COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82230-159-0 |
01 |
1 |
9007-9201 |
| |
3 |
GASKET; RR COMB LAMP
|
1-82236-003-0 |
04 |
1 |
8712- |
| |
4 |
COVER; RR,RR COMB LAMP
(A) TURN SIGNAL
|
1-82239-033-0 |
02 |
1 |
9007- |
| |
4 |
COVER; RR,RR COMB LAMP
(B) STOP PARKING
|
1-82239-034-0 |
02 |
1 |
9007- |
| |
4 |
COVER; RR,RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
(A) TURN SIGNAL
|
1-82239-033-0 |
02 |
1 |
8712-9006 |
| |
4 |
COVER; RR,RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
(B) STOP PARKING
|
1-82239-034-0 |
02 |
1 |
8712-9006 |
| |
4 |
COVER; RR,RR COMB LAMP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A) (B)
|
1-82239-017-0 |
04 |
1 |
8712-9006 |
| |
5 |
BULB; RR COMB LAMP
(B)
24V 25/10W
|
1-82194-028-0 |
02 |
1 |
9202- |
| |
5 |
BULB; RR COMB LAMP
(A)
24V 25W
|
1-82194-029-0 |
02 |
1 |
9202- |
| |
5 |
BULB; RR COMB LAMP
(C)
24V 3W
|
9-82691-603-0 |
02 |
1 |
9202- |
| |
5 |
BULB; RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
(B)
24V 25/10W
|
1-82194-028-0 |
02 |
1 |
8712-9201 |
| |
5 |
BULB; RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
24V 25W
|
1-82194-029-0 |
02 |
1 |
8712-9201 |
| |
5 |
BULB; RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
24V 3W
|
9-82691-603-0 |
02 |
1 |
8712-9201 |
| |
5 |
BULB; RR COMB LAMP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
24V 21W
|
1-82194-036-0 |
02 |
1 |
8712-9201 |
| |
5 |
BULB; RR COMB LAMP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
(B)
24V 21/5W
|
1-82194-038-0 |
02 |
1 |
8712-9201 |
| |
9 |
NUT; LAMP,RR COMB
M8
|
9-09110-408-0 |
04 |
1 |
8712-9302 |
| |
9 |
NUT; LAMP,RR COMB
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9303-9303 |
| |
9 |
NUT; LAMP,RR COMB
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9304- |
| |
13 |
LENS; TURN SIGNAL
|
1-82235-016-0 |
02 |
1 |
9002- |
| |
13 |
LENS; TURN SIGNAL
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82235-016-1 |
02 |
1 |
8712-9001 |
| |
13 |
LENS; TURN SIGNAL
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82235-001-0 |
02 |
1 |
8712-9001 |
| |
15 |
SCREW; RR COMB LAMP
|
1-82239-019-0 |
16 |
1 |
9002- |
| |
15 |
SCREW; RR COMB LAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82239-019-0 |
16 |
1 |
8712-9001 |
| |
17 |
LENS; STOP,RR COMB LAMP
|
1-82235-002-0 |
02 |
1 |
8712- |
| |
32 |
PLATE; DIST RR COMB LAMP
|
1-82239-005-0 |
02 |
1 |
8712-9302 |
| |
38 |
BOLT; LAMP,RR COMB
M8X40
|
9-01960-840-0 |
04 |
1 |
8712-9204 |
| |
38 |
BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
04 |
1 |
9205-9302 |
| |
38 |
BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER
|
1-09030-073-0 |
04 |
1 |
9303-9303 |
| |
38 |
BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER
|
1-09030-073-0 |
02 |
1 |
9304- |
| |
49 |
LAMP; LICENSE PLATE
|
1-82120-011-1 |
01 |
1 |
8712-9105 |
| |
49 |
LAMP; LICENSE PLATE
|
1-82120-021-0 |
01 |
1 |
9106-9306 |
| |
49 |
LAMP; LICENSE PLATE
|
1-82120-020-0 |
01 |
1 |
9307- |
| |
50 |
LENS; LICENSE PLATE LAMP
|
1-82235-006-0 |
01 |
1 |
8712- |
| |
51 |
BULB; LICENSE PLATE LAMP
24V 12W
|
1-82194-030-0 |
01 |
1 |
8712- |
| |
53 |
GASKET; LICENSE LAMP
|
1-82126-005-0 |
01 |
1 |
8712- |
| |
54 |
SCREW; LICENSE PLATE LAMP
|
9-93497-520-0 |
02 |
1 |
8712-9001 |
| |
54 |
SCREW; LICENSE PLATE LAMP
|
1-82129-003-0 |
02 |
1 |
9002-9002 |
| |
54 |
SCREW; LICENSE PLATE LAMP
|
1-82129-004-0 |
02 |
1 |
9003-9105 |
| |
54 |
SCREW; LICENSE PLATE LAMP
M5X20
|
1-82129-007-0 |
02 |
1 |
9106- |
| |
55 |
NUT; LICENSE PLATE LAMP
M5
|
9-99110-405-0 |
02 |
1 |
8712-9105 |
| |
56 |
WASHER; LK,LICENSE PLATE LAMP
ID=5.1
|
9-09150-505-0 |
02 |
1 |
8712-9105 |
| |
57 |
WASHER; PL,LICENSE PLATE LAMP
|
1-82129-006-0 |
02 |
1 |
8712-9105 |
| |
57 |
WASHER; PL,LICENSE PLATE LAMP
|
1-82129-008-0 |
02 |
1 |
9106- |
| |
58 |
COVER; LICENSE PLATE LAMP
|
1-82129-005-0 |
01 |
1 |
9002- |
| |
60 |
LAMP; BACKUP
(A)
|
1-82130-006-0 |
01 |
1 |
8712-9001 |
| |
60 |
LAMP; BACKUP
(B)
|
1-82130-012-1 |
01 |
1 |
9002-9306 |
| |
60 |
LAMP; BACKUP
(B)
|
1-82130-016-0 |
01 |
1 |
9307- |
| |
61 |
LENS; BACKUP LAMP
|
1-82135-001-0 |
01 |
1 |
8712-9001 |
| |
61 |
LENS; BACKUP LAMP
|
1-82135-003-0 |
01 |
1 |
9002- |
| |
62 |
BULB; BACKUP LAMP
24V 25W
|
9-82691-347-0 |
01 |
1 |
8712- |
| |
63 |
GASKET; BACKUP LAMP
|
1-82136-001-0 |
01 |
1 |
8712-9001 |
| |
63 |
GASKET; BACKUP LAMP
|
1-82136-002-0 |
01 |
1 |
9002- |
| |
64 |
SCREW; BACKUP LAMP
|
1-82139-002-0 |
03 |
1 |
9002- |
| |
65 |
BOLT; LAMP,BACKUP
M10X25 W/LK WASHER
|
9-01901-025-0 |
04 |
1 |
8712-8810 |
| |
65 |
BOLT; LAMP,BACKUP
M10X25
|
9-01911-025-0 |
02 |
1 |
8811-9001 |
| |
65 |
BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER
|
9-01961-030-0 |
02 |
1 |
9002-9204 |
| |
65 |
BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER
|
0-50141-030-0 |
02 |
1 |
9205- |
| |
67 |
NUT; FLANGE
M10
|
9-09110-510-0 |
02 |
1 |
8712- |
| |
153 |
BOLT; LICENSE PLATE LAMP
??????
D=7.8X7.8 L=18 M5 BLACK
|
8-94275-946-0 |
02 |
1 |
9106- |
| |
226 |
SCREW; PROTECTOR
|
1-82239-032-0 |
08 |
1 |
9007- |
| |
226 |
SCREW; PROTECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)
,PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82239-032-0 |
08 |
1 |
9002-9006 |
| |
226 |
SCREW; PROTECTOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-82239-018-0 |
08 |
1 |
9002-9006 |
