Sayfa 8-28 - Isuzu EPC

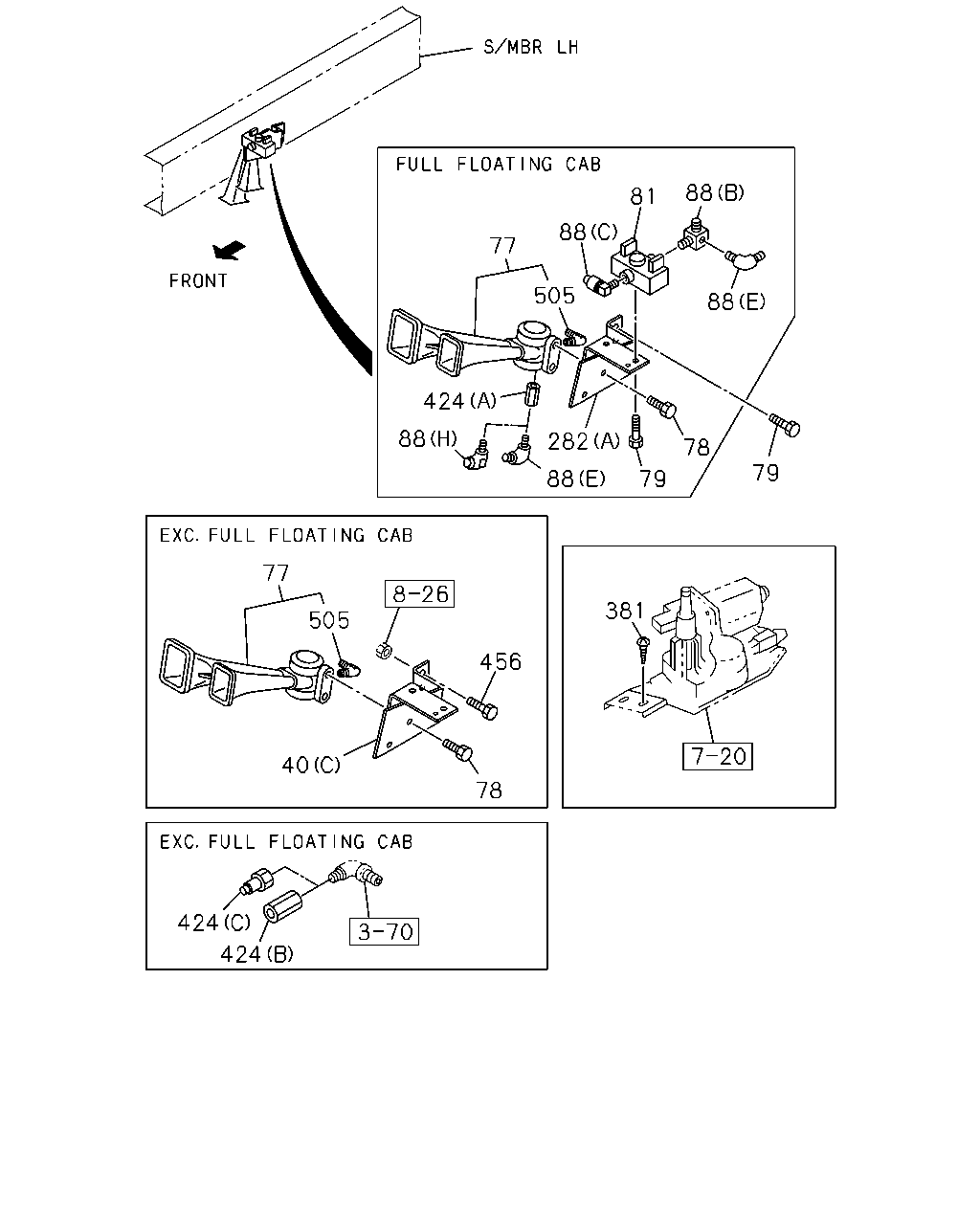

8-28 — CHASSIS ELECTRICAL (#5879) — 614 parça

39 33 89 286 41 40 272 34 290 34 39 275 261 34 34 34 34 39 39 39 33 33 34 40 41 40 261 41 34 39 261 34 34 34 714 33 89 39 272 41 34 34 40 34 261 39 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

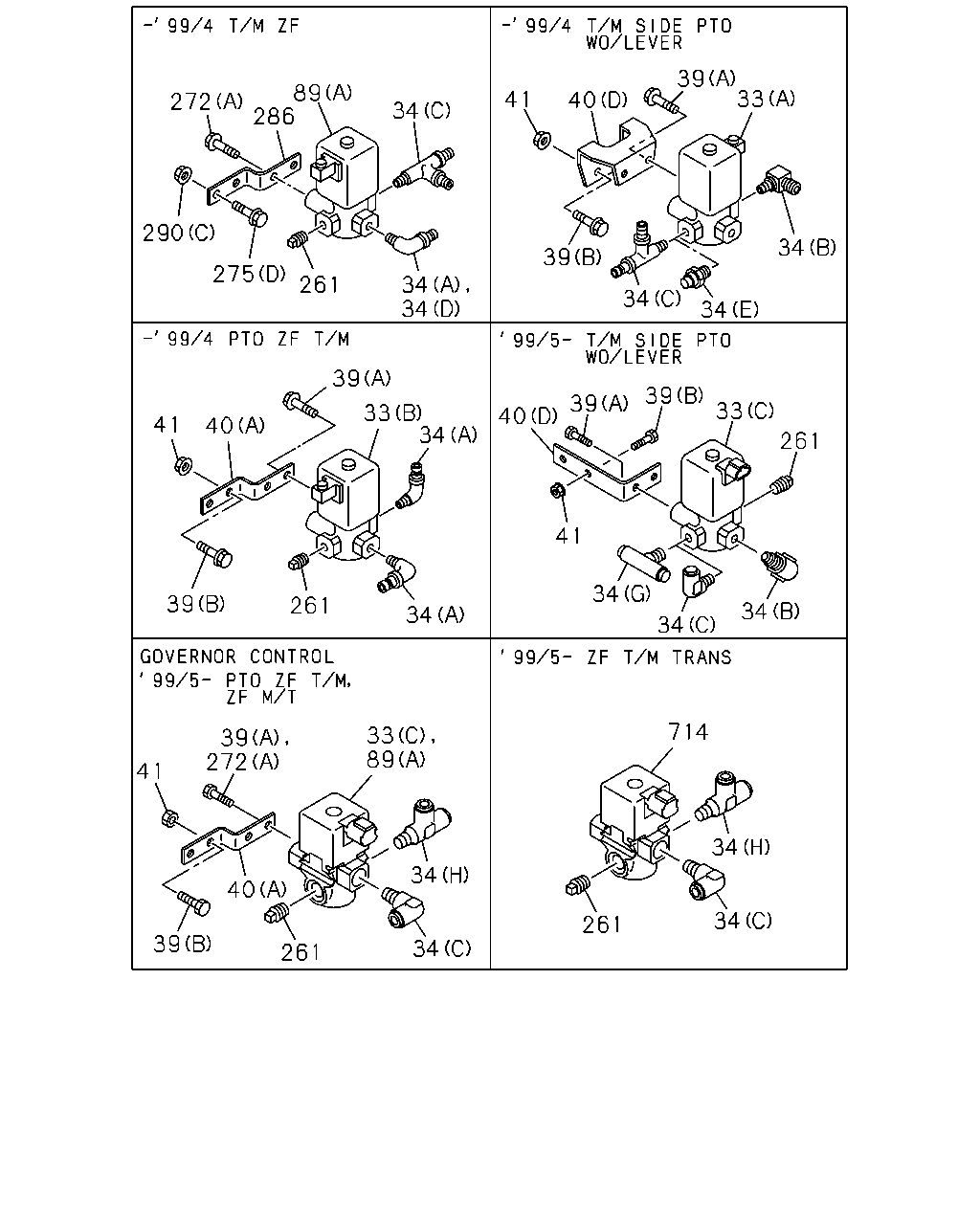

33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-2	01	1	9603-9711	●	●
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (B)	1-82563-600-3	01	1	9712-9904	●	●
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-82563-871-1	01	1	9905-9909	●	●
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-82563-871-2	01	1	9910-	●	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9603-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9905-	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806		●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806		●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9711	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9712-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9608	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9711	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9711	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9712-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-175-1	01	1	9603-9711	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-175-1	01	1	9712-9904	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9905-9906	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9907-	●	●
40	BRACKET; MAG VLV BRAKE REGULATION ECE<TDV> (A)	1-82569-278-0	01	1	9907-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-742-2	01	1	9603-		●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9603-9606	●	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-9711	●	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9712-	●	●

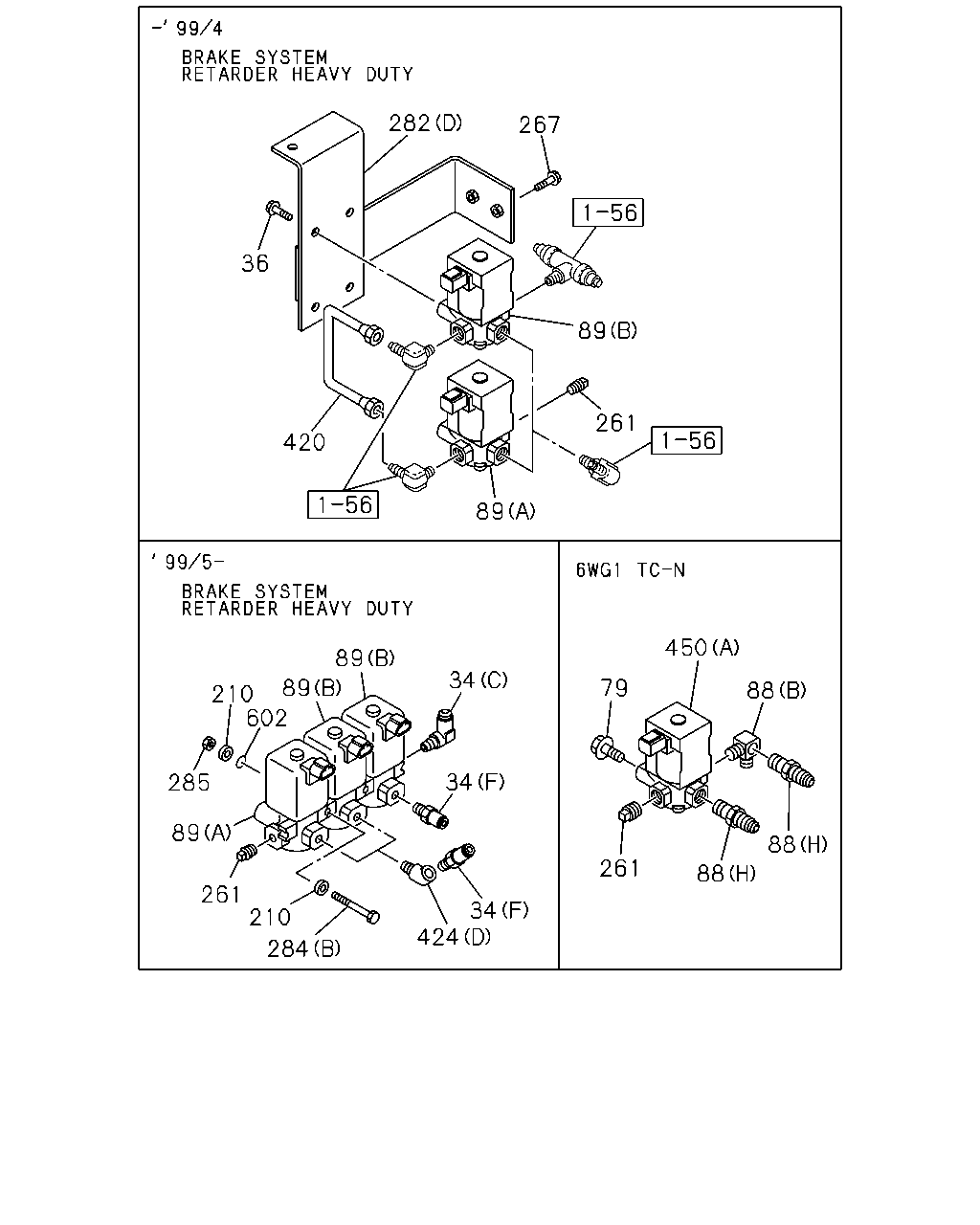

89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-601-3	01	1	9707-9904	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-871-2	02	1	9905-	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-872-1	01	1	9905-	●
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-871-2	01	1	9905-	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-871-2	01	1	9905-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9608	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-	●	●
275	BOLT; BRKT BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9907-	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9905-	●	●
275	BOLT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
286	BRACKET L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28>	1-82569-175-1	01	1	9702-9802	●
286	BRACKET L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28>	1-82569-175-1	01	1	9803-9803	●	●
286	BRACKET L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E>	1-82569-175-1	01	1	9804-9904	●	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9702-9802	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9803-9803	●	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	02	1	9804-9904	●	●

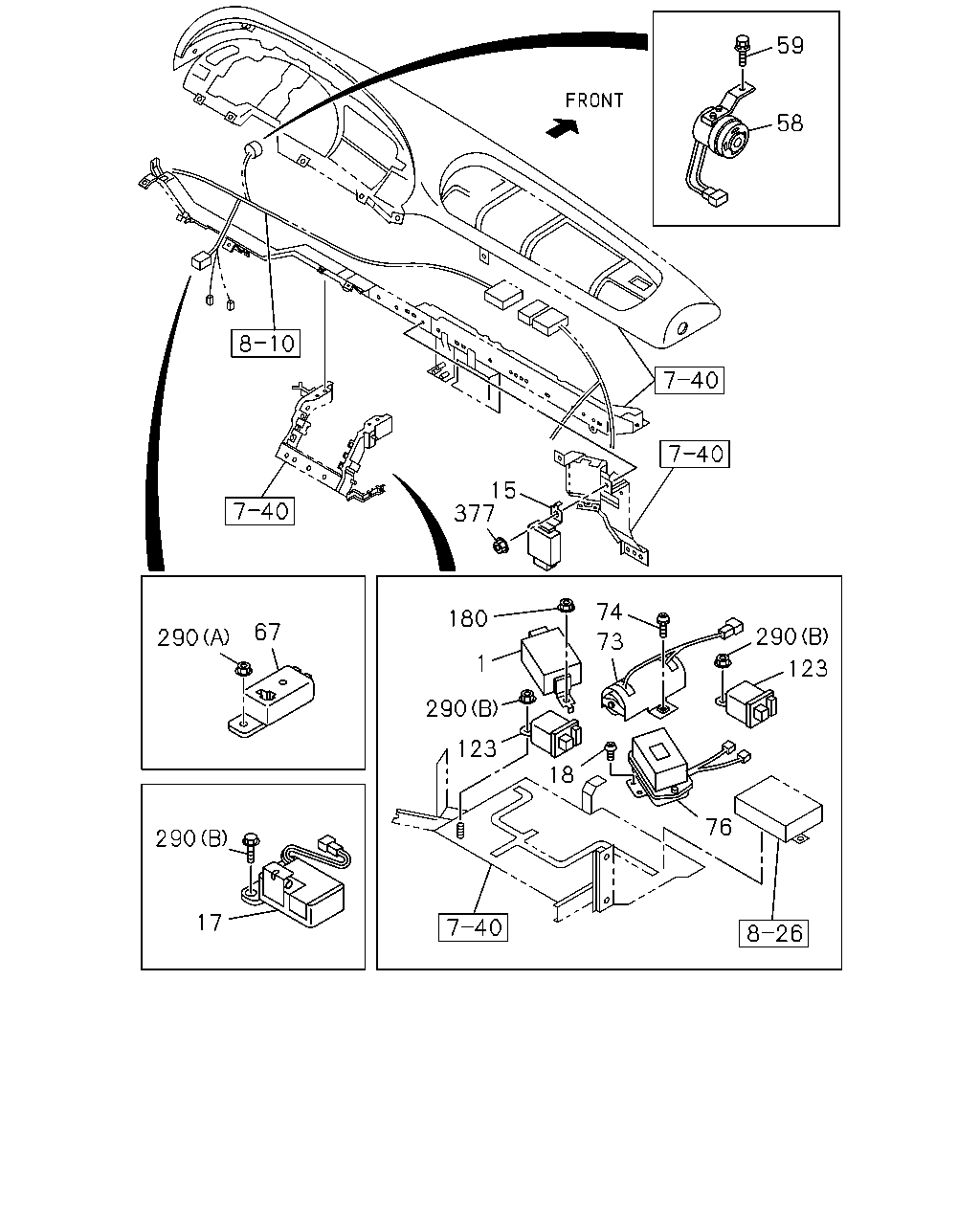

290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9603-9808	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9809-0101		●
290	NUT L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-		●
290	NUT ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9603-9801		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9802-9904		●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) (B) M6 FLANGE	0-91150-106-0	02	1	9802-9904		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9905-	●	●

86 117 116 115 84 85 90 94 88 275 40 88 450 272 65 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-175-1	01	1	9603-9711	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-175-1	01	1	9712-9904	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9905-9906	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9907-	●	●
40	BRACKET; MAG VLV BRAKE REGULATION ECE<TDV> (A)	1-82569-278-0	01	1	9907-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-742-2	01	1	9603-		●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	9603-	●	●

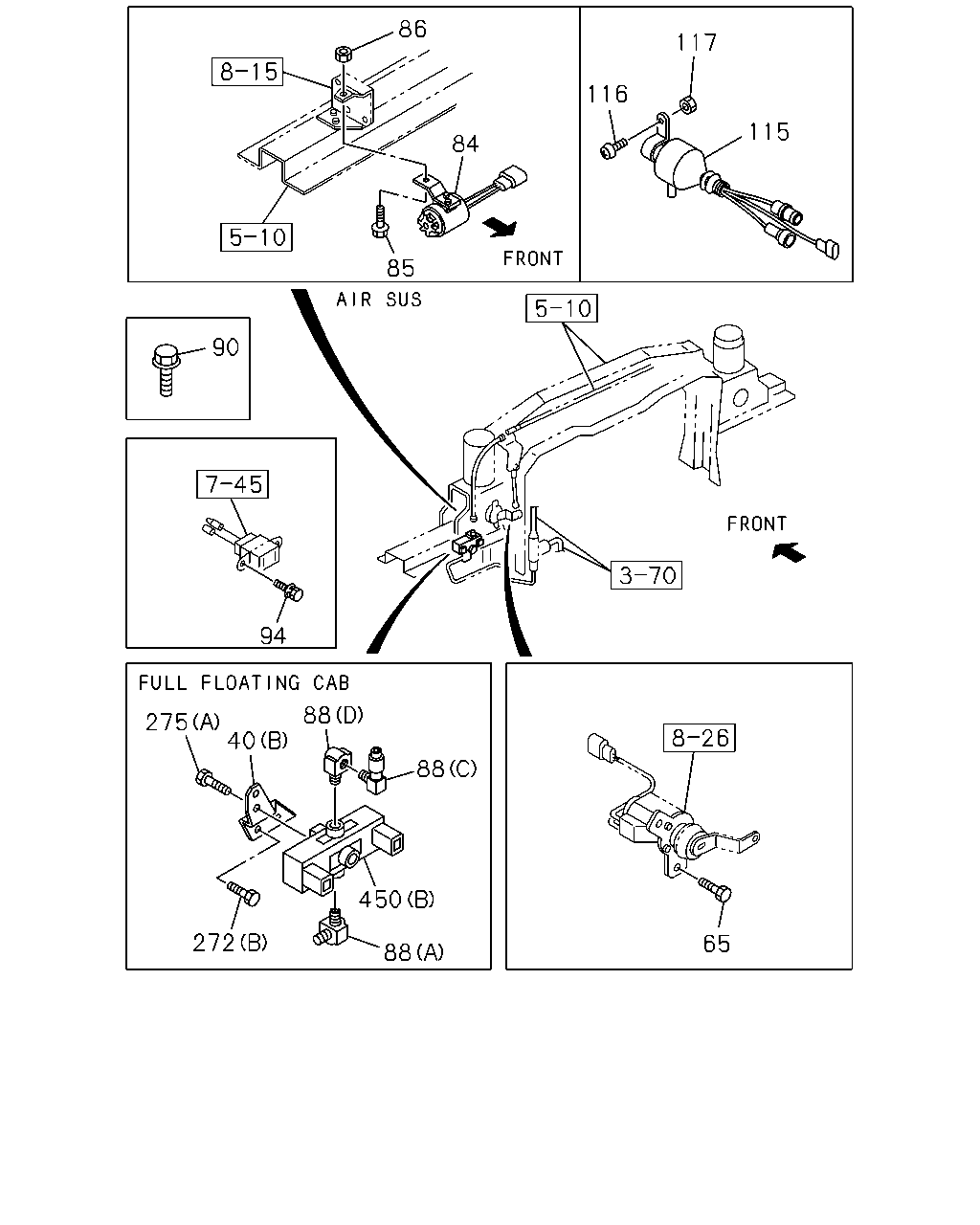

84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9603-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907	●	●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-	●	●
86	NUT; BUZZER M8	9-09110-408-0	01	1	9603-9609	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9610-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-	●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9706		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9905-		●
90	BOLT; MAG VLV M8X35 FLANGE	0-28080-835-0	02	1	9603-9606	●	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	9607-9608	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9609-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9603-9712		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9801-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9603-9606	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-	●	●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907	●	●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9603-	●	●
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9603-9609		●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9610-		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9608	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-	●	●
275	BOLT; BRKT BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9907-	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9905-	●	●
275	BOLT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
450	VALVE; MAG 6WG1 TC-N(71L) (A)	1-82563-600-3	01	1	9707-9904	●
450	VALVE; MAG FULL FLOATING CAB(W16) (B)	1-53458-378-2	01	1	9603-	●	●

282 267 36 89 261 420 89 450 89 34 89 79 88 210 602 34 285 89 88 261 88 261 34 424 210 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9905-	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806		●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9806		●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9807-9904		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (G) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9711	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9712-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28680-820-0	04	1	9709-9904	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904	●
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●
79	BOLT; MAG VLV 6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-	●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9706		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-601-3	01	1	9707-9904	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-871-2	02	1	9905-	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-872-1	01	1	9905-	●
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-871-2	01	1	9905-	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-871-2	01	1	9905-		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	9905-	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-47478-006-0	01	1	9707-9708	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9603-		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9905-	●
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9706	●	●
284	BOLT; MAG VLV 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	9905-	●
420	PIPE; AIR,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-49118-605-0	01	1	9709-9904	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9905-	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9603-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9603-		●
450	VALVE; MAG 6WG1 TC-N(71L) (A)	1-82563-600-3	01	1	9707-9904	●
450	VALVE; MAG FULL FLOATING CAB(W16) (B)	1-53458-378-2	01	1	9603-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	02	1	9905-9910	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	9911-	●

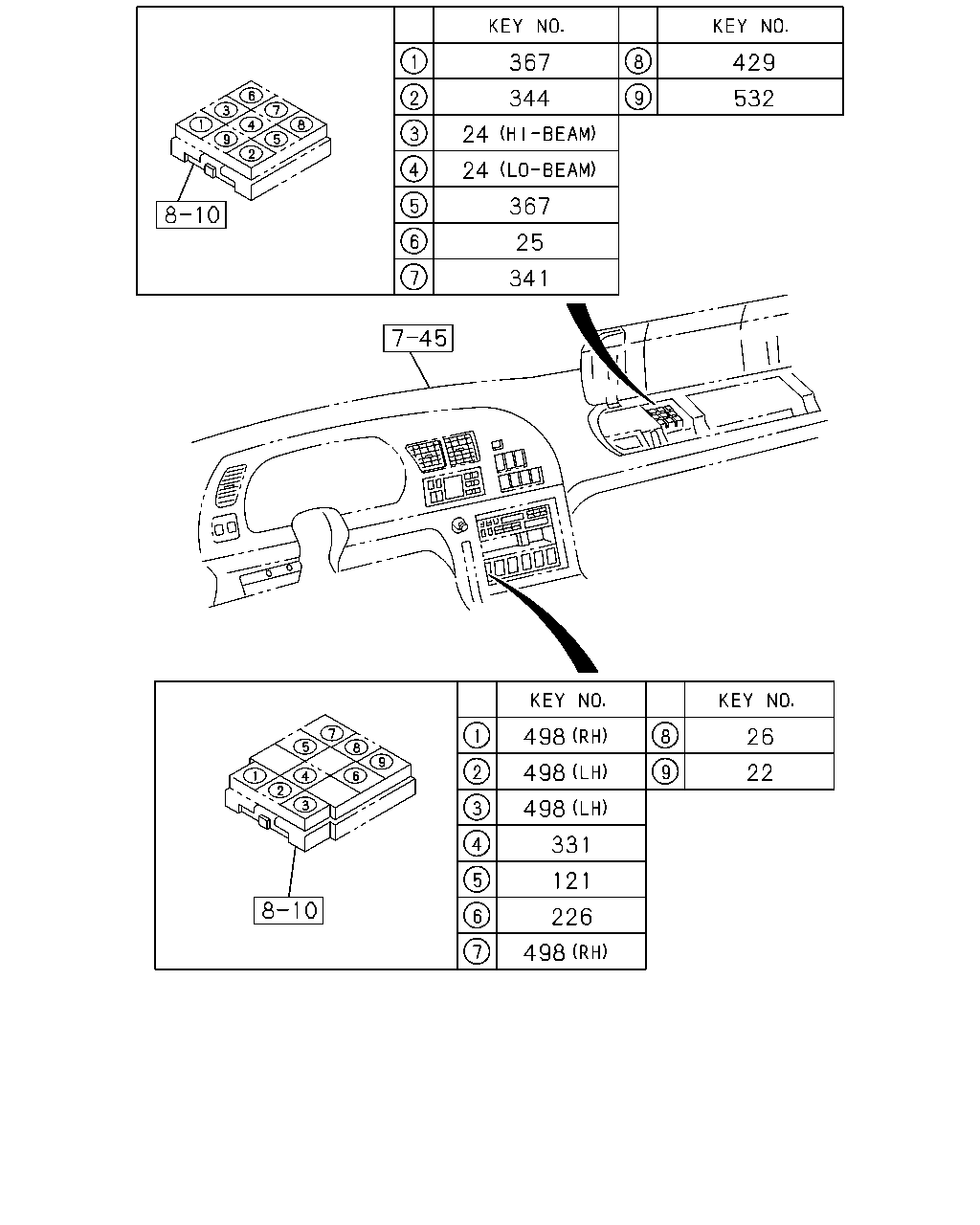

367 429 344 532 24 24 367 25 341 26 22 331 121 226 498 498 498 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
344	RELAY; LAMP CORNARING LAMP<TDS> 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-		●
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
429	RELAY; POWER CUT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9610-9904	●	●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9603-	●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA	8-97062-815-1	01	1	9802-		●

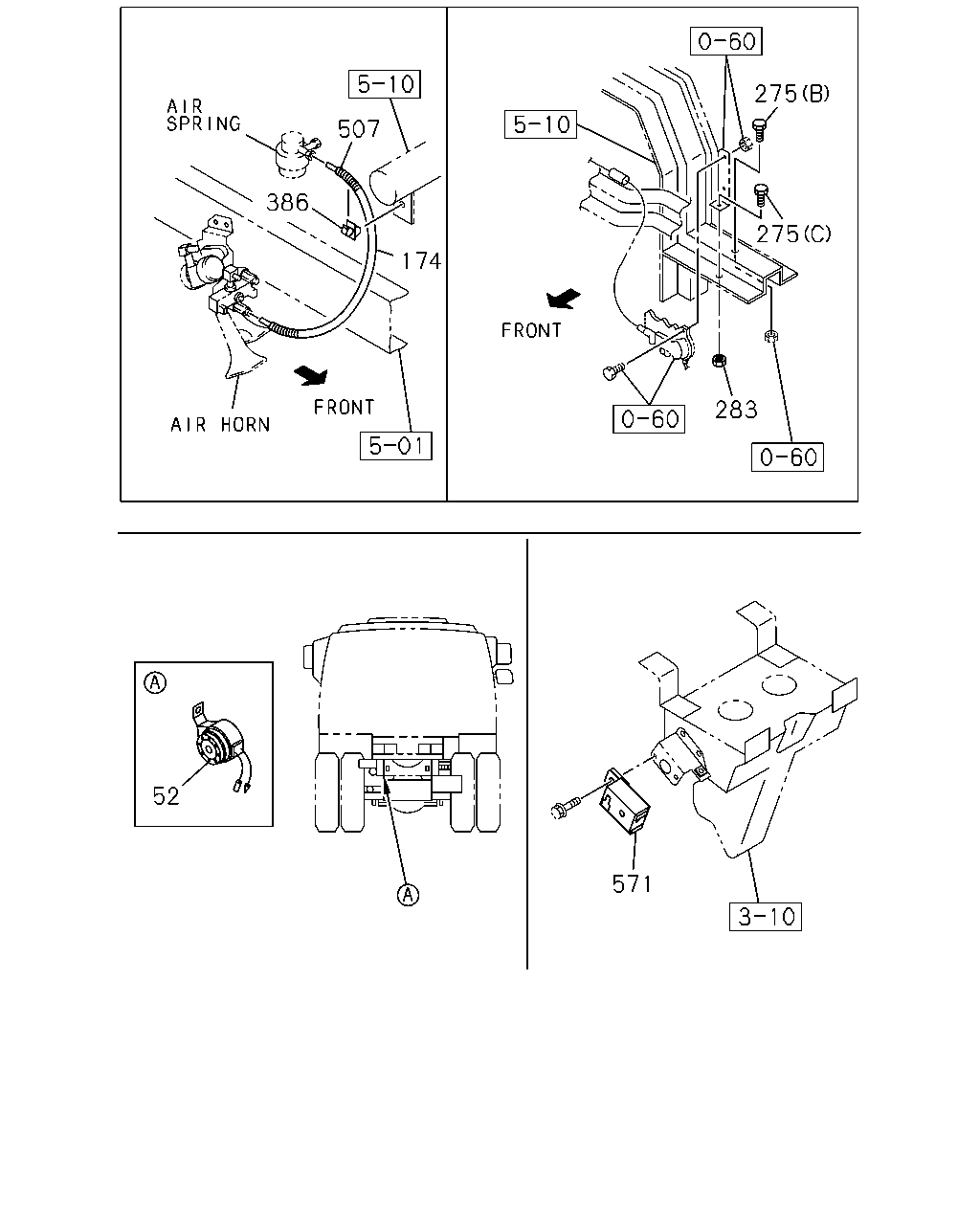

275 507 386 275 174 283 52 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9603-9904	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9905-	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) NIKKO	1-83460-052-0	01	1	9905-		●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9904	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9905-9907	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-0	01	1	9905-9907		●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO DENSO	1-83460-088-1	01	1	9908-	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-1	01	1	9908-		●
174	COVER CAB UP +50MM<W60> SERVICED BY L=800	1-83129-031-1	01	1	9707-9904	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800	1-83129-031-1	01	1	9905-	●	●
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800	1-83129-031-1	01	1	9603-9706	●	●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> SERVICED BY L=800	1-83129-031-1	01	1	9707-9904	●
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800	1-83129-031-1	01	1	9707-9904		●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> SERVICED BY L=800	1-83129-031-1	01	1	9905-	●	●
275	BOLT; BRKT BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9907-	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9905-	●	●
275	BOLT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
283	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9907-	●
283	NUT; BRKT 10PE1S(60L) M10	9-09110-510-0	01	1	9603-9606	●	●
283	NUT; BRKT 10PE1S(60L) M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
283	NUT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
283	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	9603-	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) L=250	5-09707-030-0	01	1	9603-		●
507	TUBE; NYLON CAB UP +50MM<W60> L=1300	1-09368-930-0	01	1	9707-9904	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=2000	1-87411-001-0	01	1	9905-	●
507	TUBE; NYLON FULL FLOATING CAB(W16) L=1300	1-09368-930-0	01	1	9603-9706	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> L=1300	1-09368-930-0	01	1	9707-9904	●
507	TUBE; NYLON FULL FLOATING CAB(W16) L=1300	1-09368-930-0	01	1	9707-9904		●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=2000	1-87411-001-0	01	1	9905-	●	●
571	ALARM; EMERGENCY NEW ZEALAND EQUIPMENT(PK5)	1-83460-040-0	01	1	9706-	●

59 58 15 377 74 180 67 290 290 73 1 123 290 123 18 76 290 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-062-0	01	1	9603-	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9603-	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9802-		●
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	9603-9904		●
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	9905-		●
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	9905-		●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9603-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9603-	●
59	SCREW; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-		●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9603-0101	●	●
67	BUZZER; ENG OVERRUN L TYPE ENG<90L>	1-83460-051-1	01	1	0102-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L>	1-83460-051-1	01	1	0102-	●	●
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9603-		●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9603-9904		●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9905-		●
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9905-		●
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9603-		●
123	RELAY; HTR INTAKE HEATER<SL2>	8-94128-857-0	02	1	9603-		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9603-	●	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9702-9802	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	9803-9803	●	●
290	NUT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	02	1	9804-9904	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9603-9808	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9809-0101		●
290	NUT L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-		●
290	NUT ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9603-9801		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9802-9904		●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) (B) M6 FLANGE	0-91150-106-0	02	1	9802-9904		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) (B) M6 FLANGE	0-91150-106-0	02	1	9905-		●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9603-	●	●

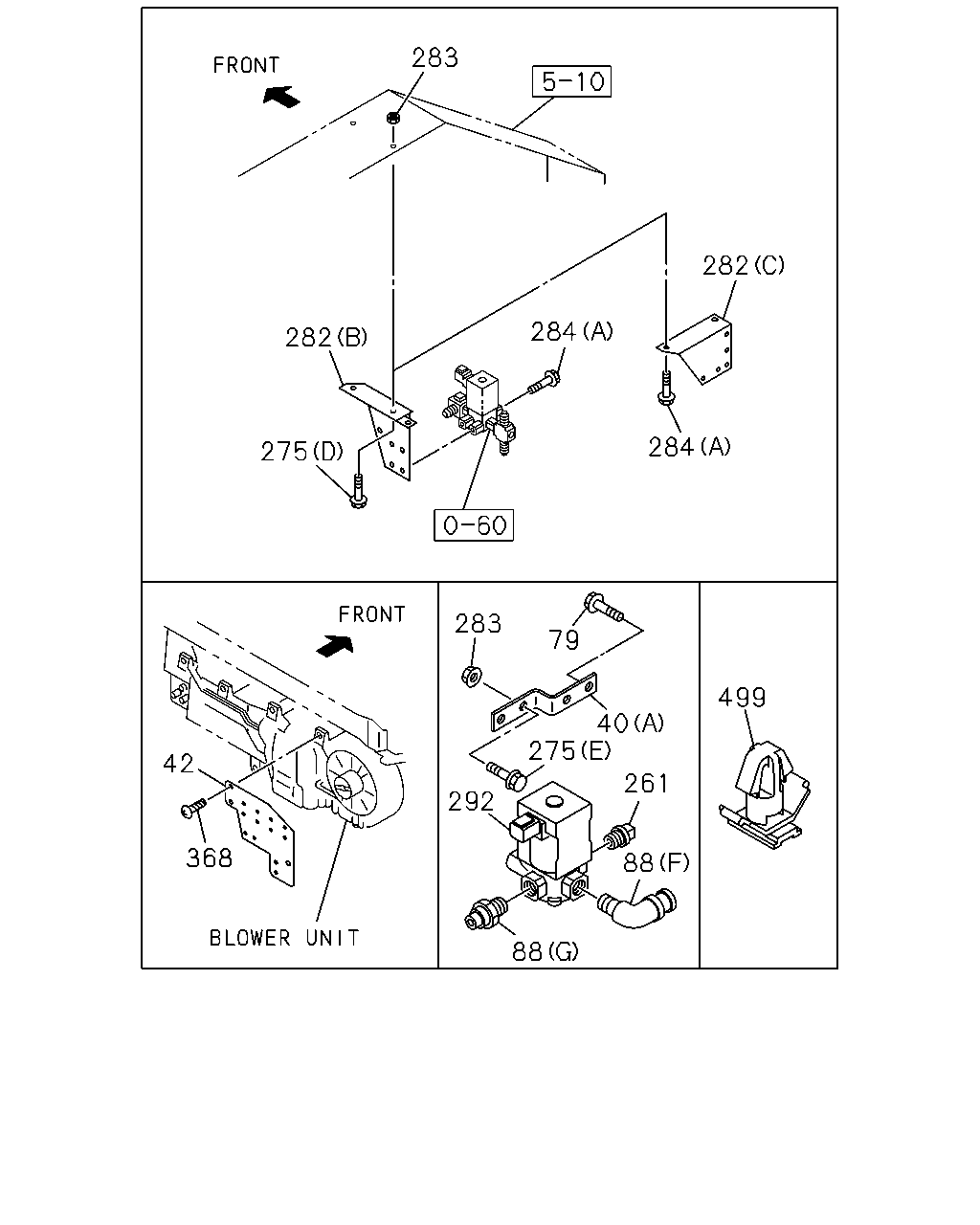

283 282 284 282 284 275 283 79 499 40 275 42 261 368 292 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-175-1	01	1	9603-9711	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-175-1	01	1	9712-9904	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9905-9906	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9907-	●	●
40	BRACKET; MAG VLV BRAKE REGULATION ECE<TDV> (A)	1-82569-278-0	01	1	9907-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-742-2	01	1	9603-		●
42	BRACKET; RELAY DELUXE CAB(W14)	1-82698-054-0	01	1	9905-		●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904	●
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●
79	BOLT; MAG VLV 6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-	●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9706		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9905-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9711	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9711	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9712-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9712-9904	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
275	BOLT; BRKT BRAKE REGULATION ECE<TDV> (E) M8X25 FLANGE	0-28680-825-0	02	1	9907-	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT 10PE1S(60L) (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-9904	●	●
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9905-	●	●
275	BOLT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9702-9706	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9803-9803	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT L TYPE ENG<90L> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> (D) M8X25 FLANGE	0-28680-825-0	02	1	9804-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-47478-006-0	01	1	9707-9708	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9603-		●
283	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9907-	●
283	NUT; BRKT 10PE1S(60L) M10	9-09110-510-0	01	1	9603-9606	●	●
283	NUT; BRKT 10PE1S(60L) M10 FLANGE	0-91150-210-0	01	1	9607-9904	●	●
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
283	NUT; BRKT 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
283	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9905-	●
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9706	●	●
284	BOLT; MAG VLV 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5)	1-82563-600-3	01	1	9603-9904	●
292	VALVE; MAG SPR BRK BRAKE REGULATION ECE<TDV>	1-82563-871-2	01	1	9905-	●
368	SCREW; RELAY FIX DELUXE CAB(W14) M5X14	8-94279-325-0	01	1	9905-		●
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	9603-9604		●

88 81 88 77 505 88 424 88 282 78 79 88 79 77 381 505 456 40 78 424 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	1-82569-175-1	01	1	9603-9711	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-175-1	01	1	9712-9904	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9905-9906	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A)	1-82569-278-0	01	1	9907-	●	●
40	BRACKET; MAG VLV BRAKE REGULATION ECE<TDV> (A)	1-82569-278-0	01	1	9907-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-742-2	01	1	9603-		●
77	HORN ASM	1-83430-038-1	01	1	9603-9710	●	●
77	HORN ASM	1-83430-038-1	01	1	9711-9904	●
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-038-1	01	1	9711-9904		●
77	HORN ASM	1-83430-041-1	01	1	9905-0002	●	●
77	HORN ASM	1-83430-041-1	01	1	0003-	●
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0003-		●
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-1	01	1	9711-9904		●
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0003-		●
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904	●
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●
79	BOLT; MAG VLV 6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904	●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-	●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9706		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9905-		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-47478-006-0	01	1	9707-9708	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9603-		●
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9603-	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9905-	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9603-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9603-		●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X35 FLANGE	0-28680-835-0	02	1	9607-9709	●	●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9710-	●	●
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9710	●	●
505	JOINT; AIR HORN	1-83439-005-0	01	1	9711-9904	●
505	JOINT; AIR HORN EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83439-005-0	01	1	9711-9904		●
505	JOINT; AIR HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83439-006-0	01	1	9711-9904		●
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-	●	●

367 341 429 24 24 25 429 331 26 331 22 498 427 121 427 498 226 498 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-9904	●
427	RELAY; RETARDER ELECTRONIC GOV RED3(KG5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-9904	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-	●
429	RELAY; POWER CUT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9610-9904	●	●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
