1-41 — FUEL PIPING; CHASSIS (#58784) — 54 parça

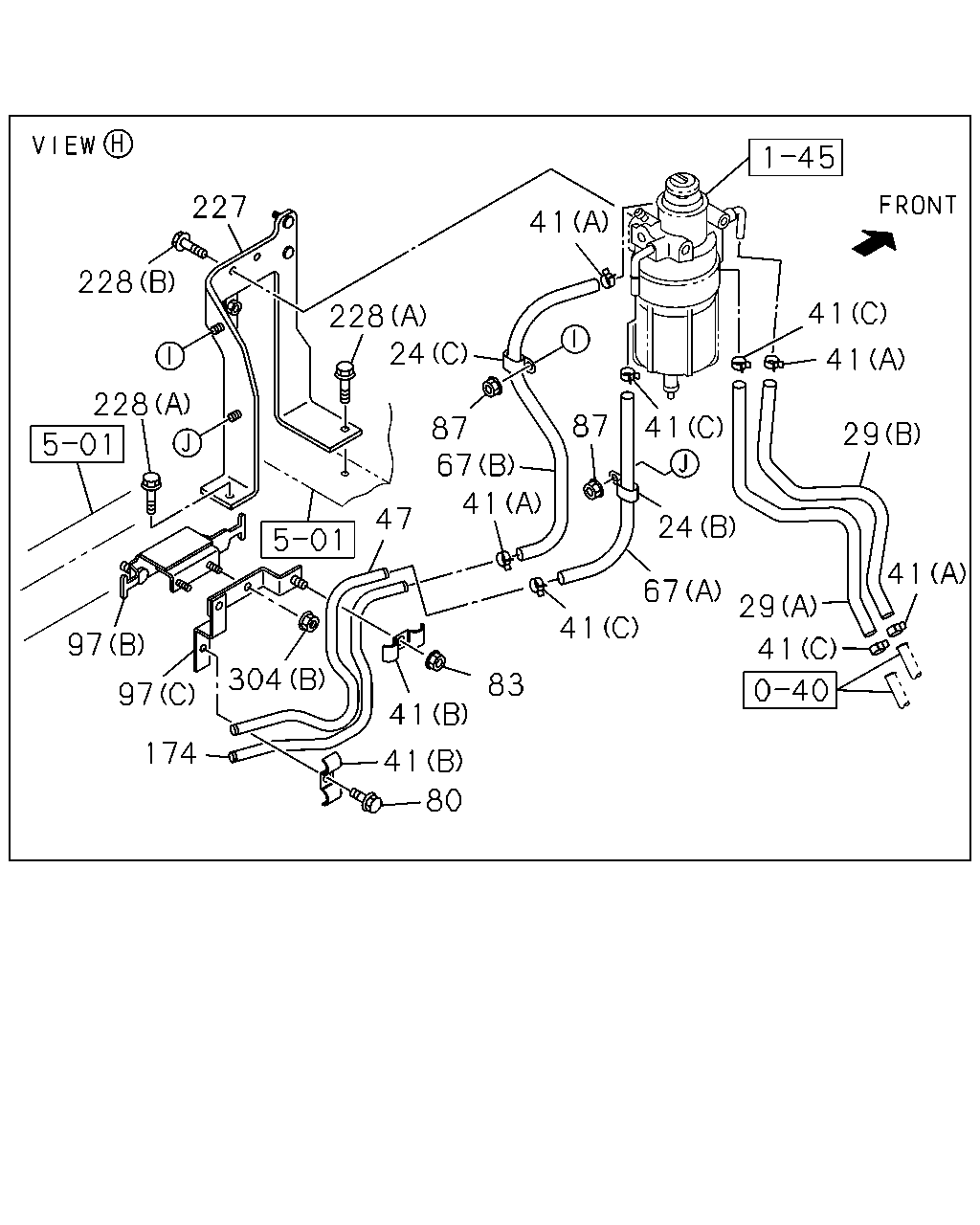

çizim 164132
227 228 228 97 97 174 304 41 41 80 83 47 228 24 87 67 41 41 67 24 41 87 41 41 41 29 29 41 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0906-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0906-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0906-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0906-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0906-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0906-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0906-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0906-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0906-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0906-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0906-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0906-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0906-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0906-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0906-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0906-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0906-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0906-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0906-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0906-
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0906-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-

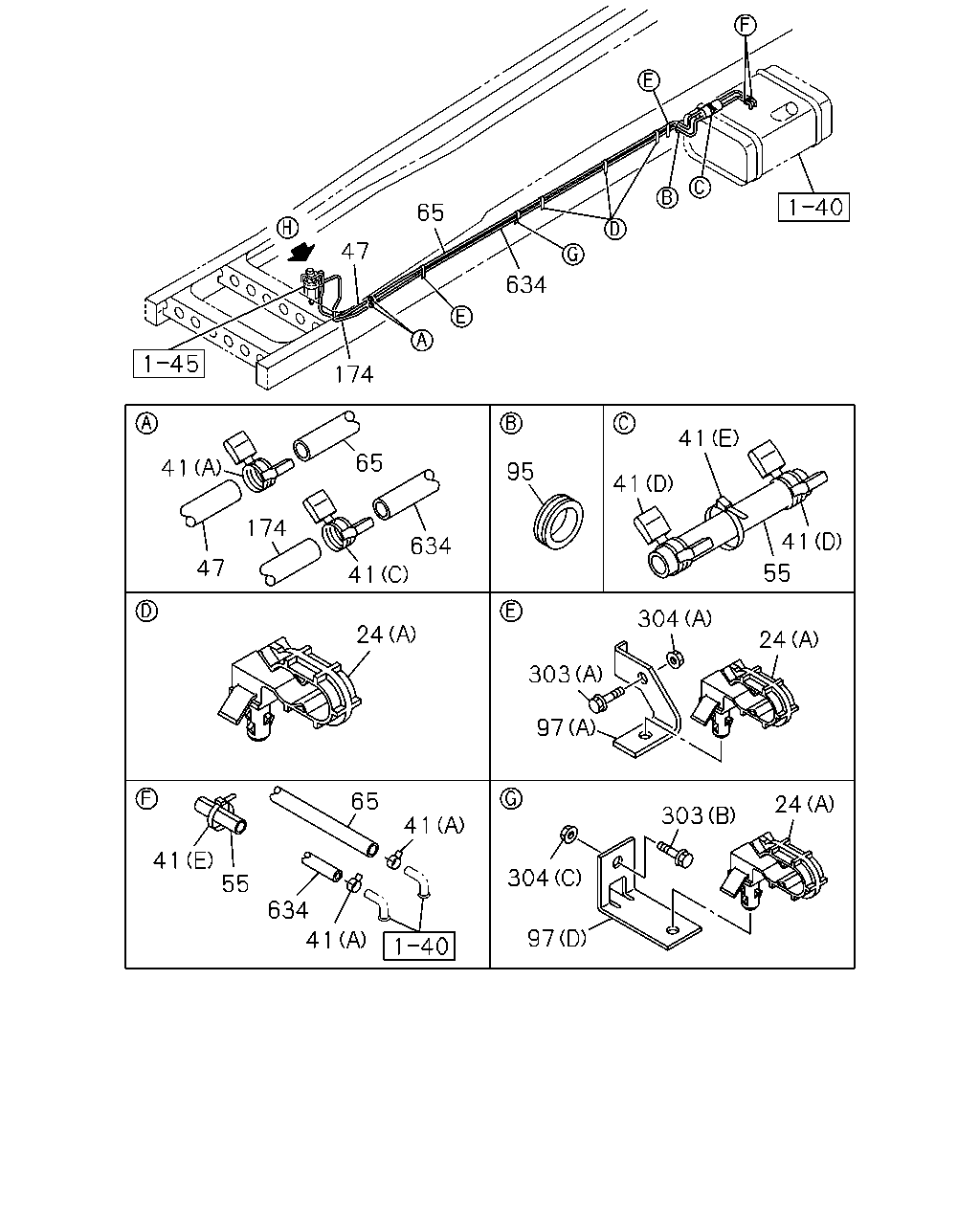

çizim 164134
65 47 634 174 41 65 41 95 41 174 41 634 41 47 55 304 24 24 303 97 65 24 303 41 41 55 304 634 97 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0906-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0906-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 01 1 0906-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1004-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0906-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0906-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0906-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0906-
65 HOSE; FUEL,DELIVERY PIPE
L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0906-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0906-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0906-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0906-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0906-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0906-
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0906-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 0906-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-
304 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0906-
304 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0906-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-
634 HOSE; RUBBER RETURN
L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0906-
