Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#58781) — 39 parça
◀

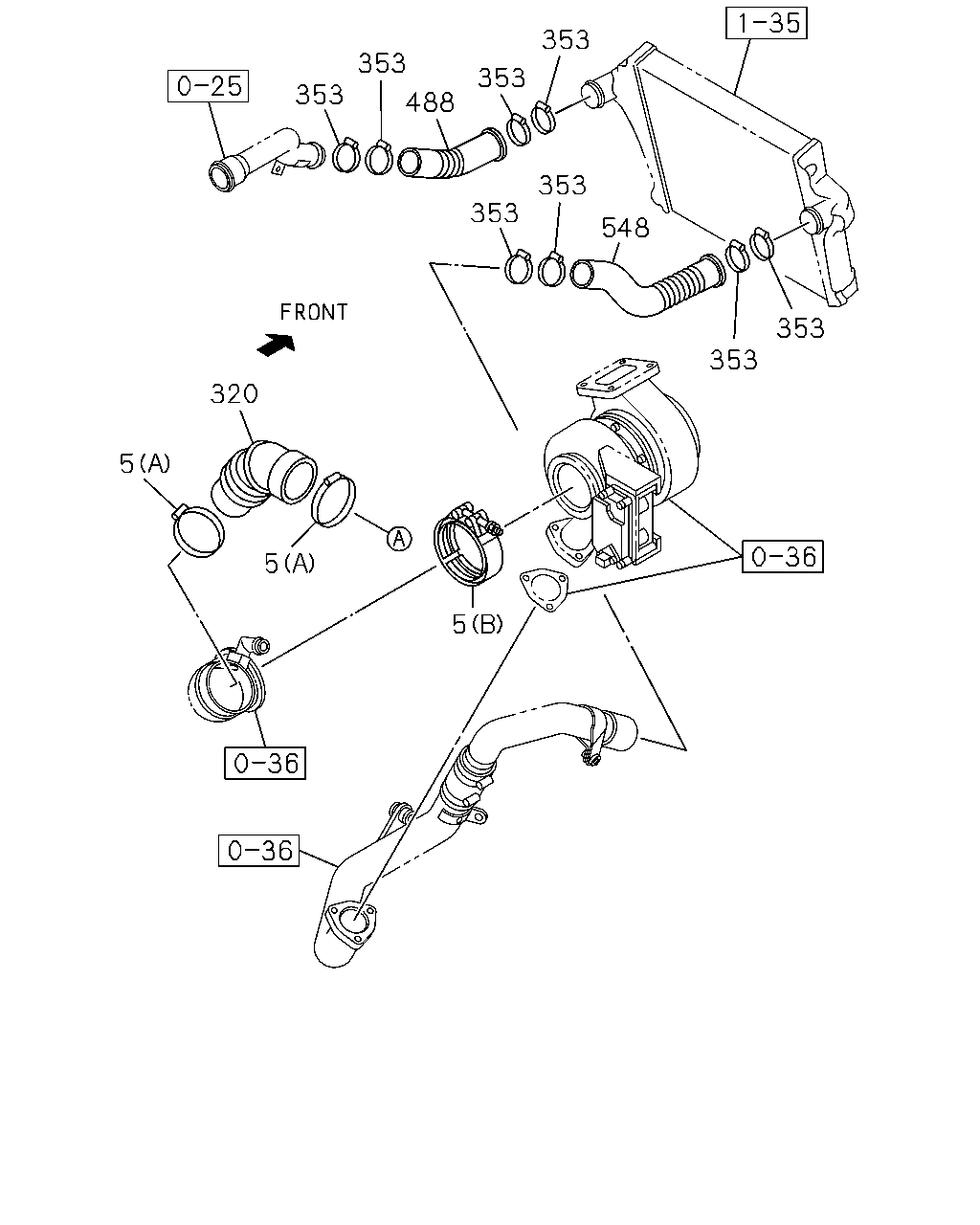

[131A] PIPING (9 parça)
[131A] DUCT FIXING (30 parça)
▶
353
353
353
353
488
353
353
548
353
353
320
5
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0906-
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0906-1001
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
02
1
1002-
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0906-1001
320
HOSE; CONN,ACL
8-98077-619-1
01
1
0906-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0906-1001
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
08
1
1002-
488
HOSE; RUBBER,PIPE
8-98017-224-1
01
1
0906-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98017-223-2
01
1
0906-
49
242
58
56
56
49
49
56
56
58
242
245
61
58
242
49
48
58
26
560
252
450
71
316
543
543
174
225
424
159
357
379
210
357
209
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0906-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0906-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0906-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0906-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0906-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0906-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0906-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0906-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0906-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0906-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
0906-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
0906-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0906-
209
BRACKET; ACL
8-98099-677-0
01
1
0906-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
03
1
0906-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
0906-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0906-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0906-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
0906-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0906-
252
DUCT; AIR INT
8-98019-843-0
01
1
0906-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0906-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
0906-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0906-
379
HOSE; RUBBER
8-98063-172-0
01
1
0906-
424
PIPE; AIR,INL
8-98081-834-0
01
1
0906-
450
CLAMP; HOSE
9-09915-504-1
01
1
0906-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0906-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
0906-
