◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#5878) — 112 parça

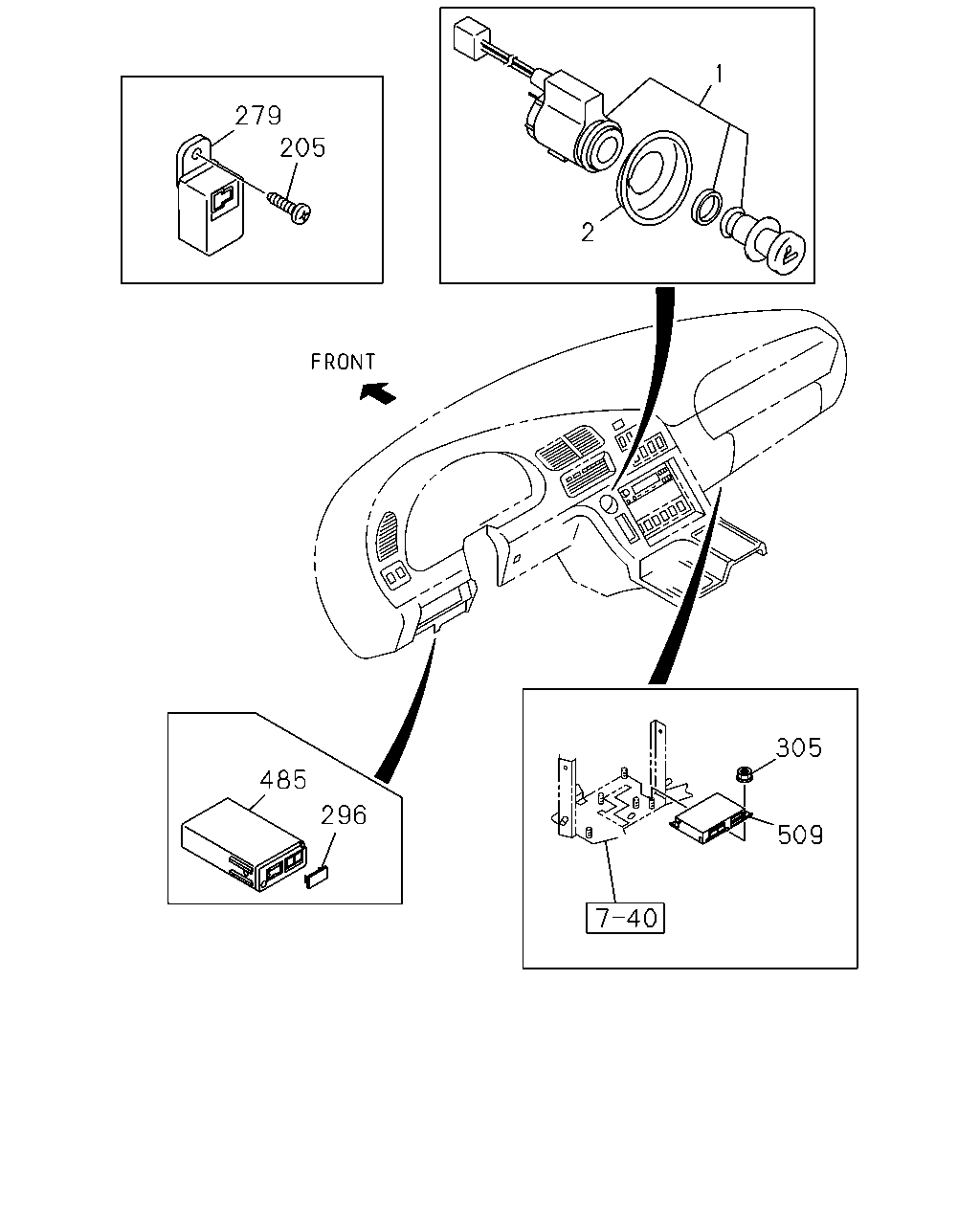

çizim 9081
1 279 205 2 305 485 296 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9603- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9603- ● ●
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 		8-94279-325-0 01 1 9802- ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9802- ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9603-9904 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9603- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9603-9904 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-82505-228-0 01 1 9603-9701 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-030-0 01 1 9702-9904 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9905- ● ●
çizim 9082
244 603
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-523-4 01 1 9905- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-72538-160-2 01 1 9905- ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-535-3 01 1 9905- ●

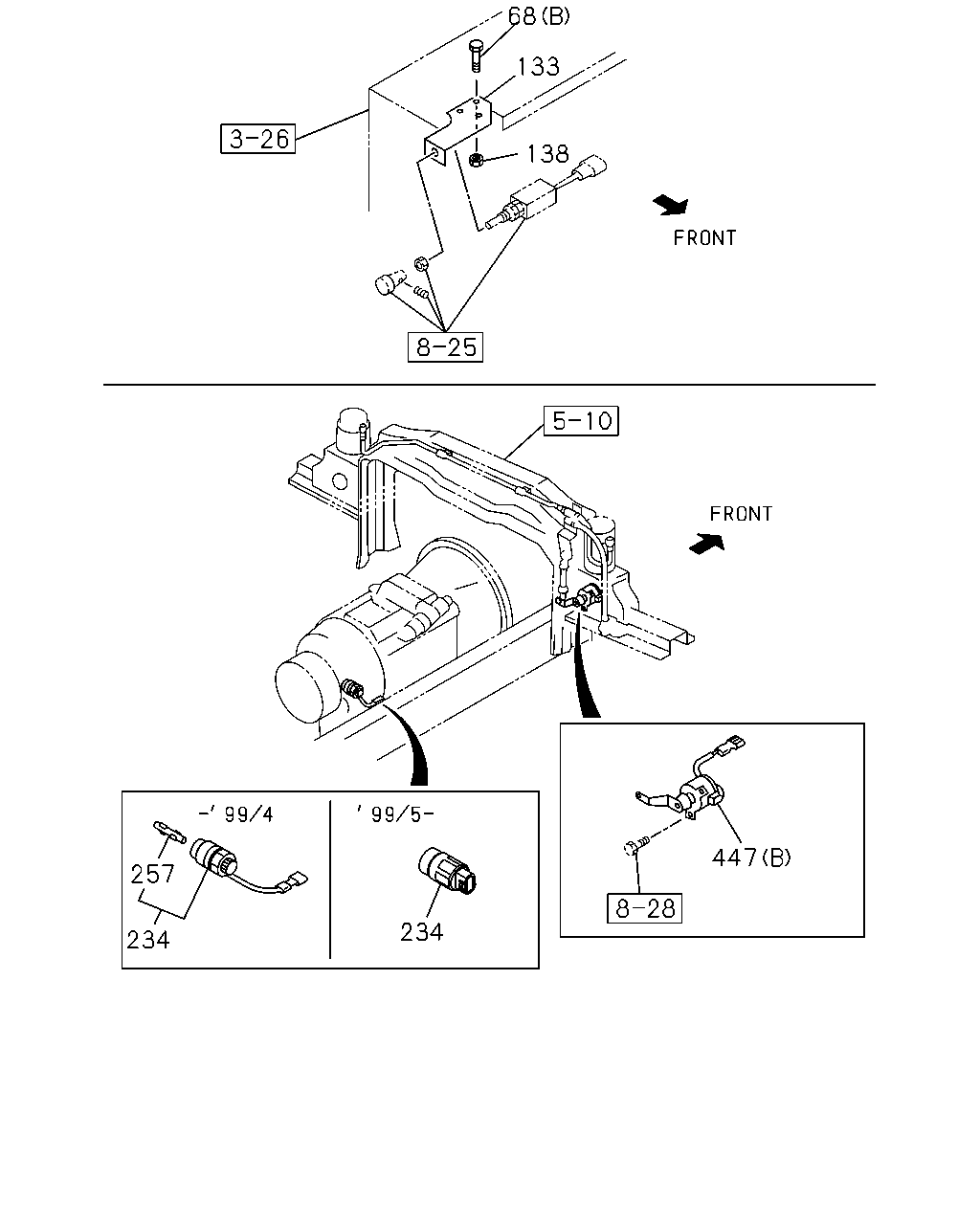

çizim 41596
68 133 138 447 257 234 234
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908- ●
68 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
68 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
133 BRACKET; SWITCH 1-82699-874-0 01 1 9603- ● ●
138 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ● ●
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 25 PULSE 		1-83127-414-0 01 1 9804-9804 ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-0 01 1 9805-9905 ● ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 9906- ●
234 SENSOR; VEHICLE SPD 1-83127-254-2 01 1 9603-9803 ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-83127-254-3 01 1 9804-9904 ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-0 01 1 9905-9910 ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION OIL COOLER<C2C> 		1-80240-001-1 01 1 9911- ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 		1-83129-073-0 01 1 9804-9804 ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 9805-9905 ● ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 9906- ●
257 KEY; SPEED SENSOR 1-83129-125-0 01 1 9603-9803 ● ●
257 KEY; SPEED SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-83129-125-0 01 1 9804-9904 ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603- ● ●

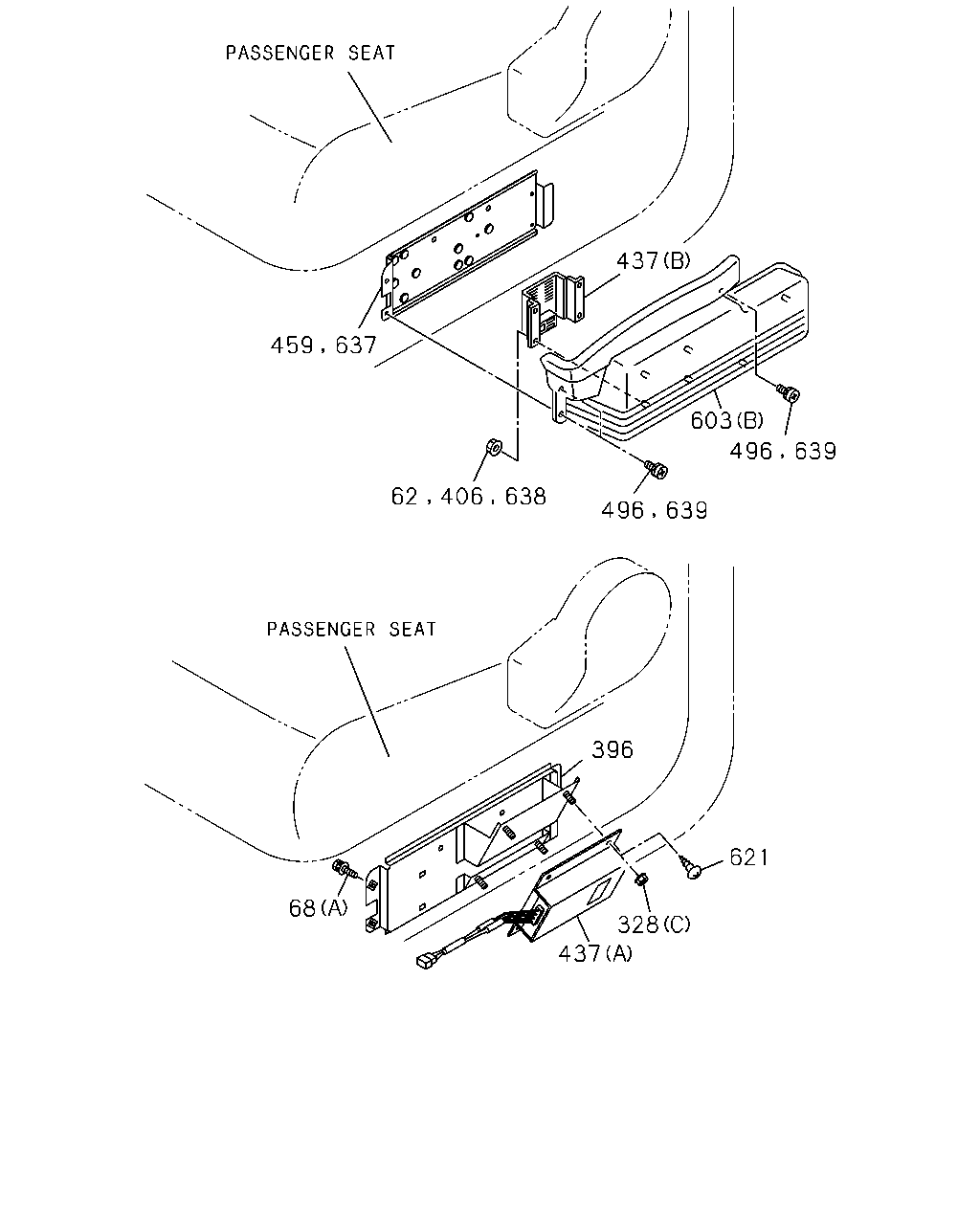

çizim 42336
437 459 637 603 496 639 406 638 496 639 396 621 68 328 437 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA) M6 FLANGE 		0-91150-106-0 02 1 9905- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908- ●
68 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
68 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
328 NUT
ELEC OUTLET 12V<TAW> (C) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603- ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603- ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908- ●
406 NUT; COVER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9905- ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0008 ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) MITSUBISHI 		1-84122-034-1 01 1 0009- ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-488-5 01 1 9905- ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9905- ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-523-4 01 1 9905- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-72538-160-2 01 1 9905- ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-535-3 01 1 9905- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912- ●
637 BRACKET; DC-DC CONVERTER
ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW> 		1-75557-474-1 01 1 9905- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905- ●
639 BOLT; BRKT,DC-DC CONVERTER
ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ●

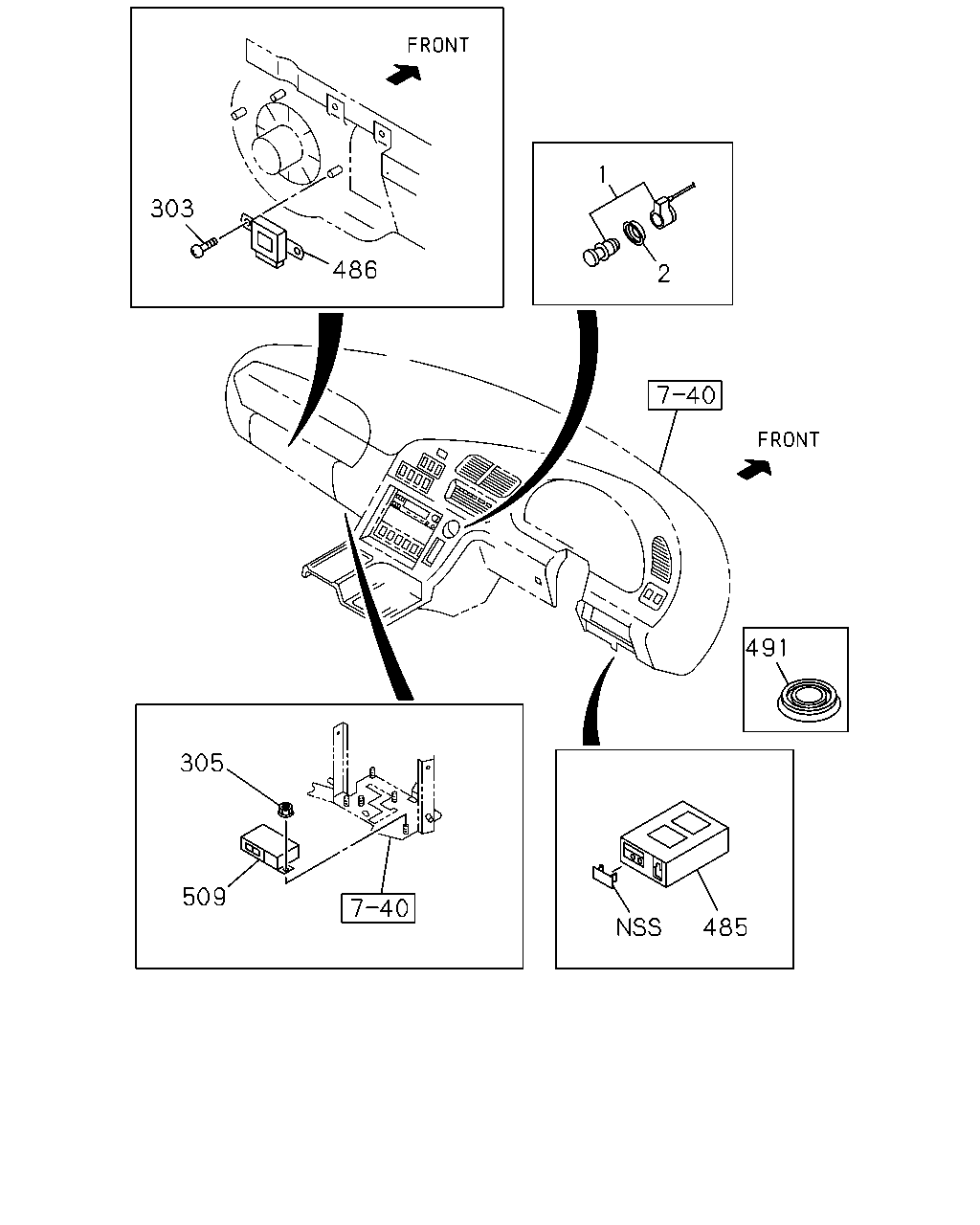

çizim 42546
1 303 486 2 491 305 509 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9603- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9603- ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9603- ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9603- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9603-9904 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905- ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9603- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9603- ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-82505-228-0 01 1 9603-9701 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-030-0 01 1 9702-9904 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9905- ● ●

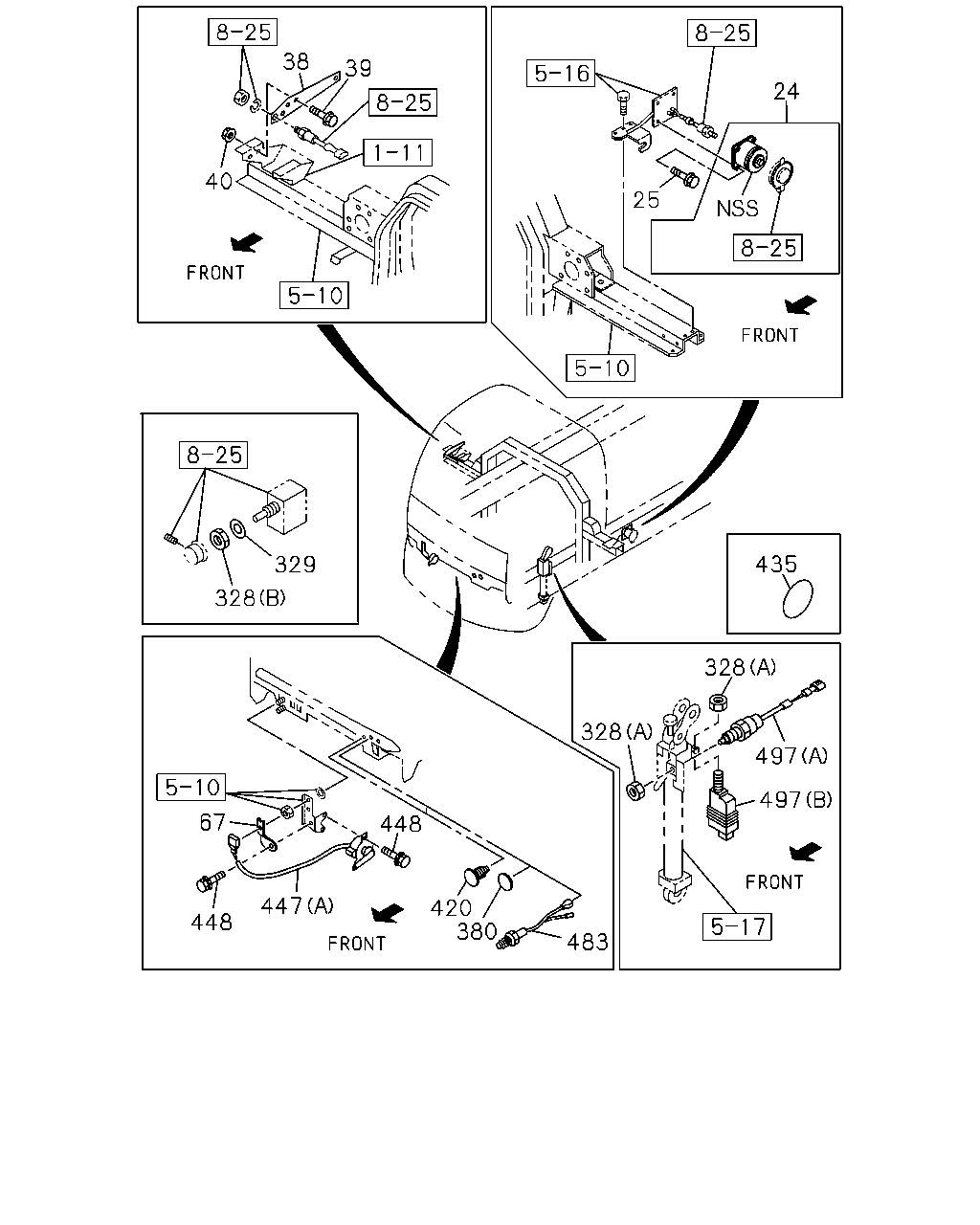

çizim 43148
38 39 24 40 25 435 329 328 328 328 497 497 67 448 447 420 380 448 483
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9603- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 04 1 9603-9606 ● ●
25 BOLT; SW BOX
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9607-9609 ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9610- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9603- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9603-9606 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9603- ● ●
328 NUT
ELEC OUTLET 12V<TAW> (C) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603- ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603- ●
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9603- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9603-9611 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9603-9611 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9612-9612 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9612-9612 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 05 1 9701-9802 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9803-9804 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9803-9804 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9805-9904 ●
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 9905- ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 9805- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 9603-9612 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9701-9802 ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 9803- ●
420 PLUG; SWITCH
OD=15 BLACK 		8-94279-804-0 01 1 9603-9611 ●
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=15 BLACK 		8-94279-804-0 01 1 9612-9803 ● ●
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 9603-9610 ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 04 1 9611- ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-092-0 01 1 9905-0003 ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0004- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9603- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
