Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

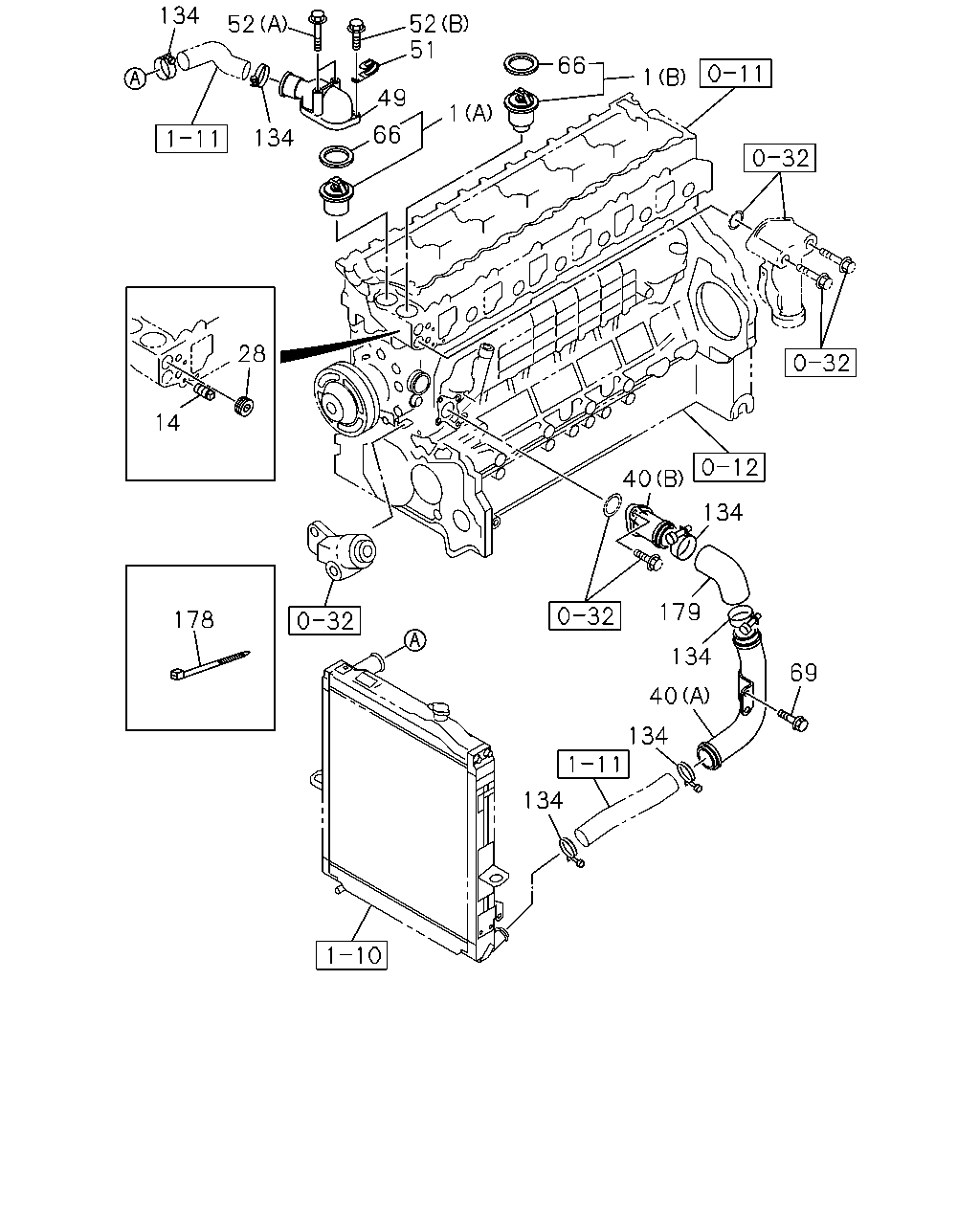

0-31 — THERMOSTAT AND HOUSING
(#58760) — 18 parça
134
52
52
51
49
66
134
1
28
14
178
1
66
40
134
179
134
40
134
69
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-3
01
1
0906-
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0906-1501
1
THERMOSTAT
(B) 82 CELSIUS
8-98295-921-0
01
1
1502-
14
PLUG; SW
PT3/8
8-94397-338-0
01
1
0906-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
0906-
40
DUCT; WATER,SUCTION
(B)
8-94391-091-1
01
1
0906-
40
DUCT; WATER,SUCTION
(A)
8-94394-404-1
01
1
0906-
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0906-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
0906-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0906-
52
BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE
8-97023-062-0
02
1
0906-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0906-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
0906-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
06
1
0906-
178
CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250
5-09707-030-1
01
1
0906-1205
178
CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250
8-98216-430-0
01
1
1206-
179
HOSE; RUBBER,WATER DUCT
8-94390-400-3
01
1
0906-
