◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#5876) — 265 parça

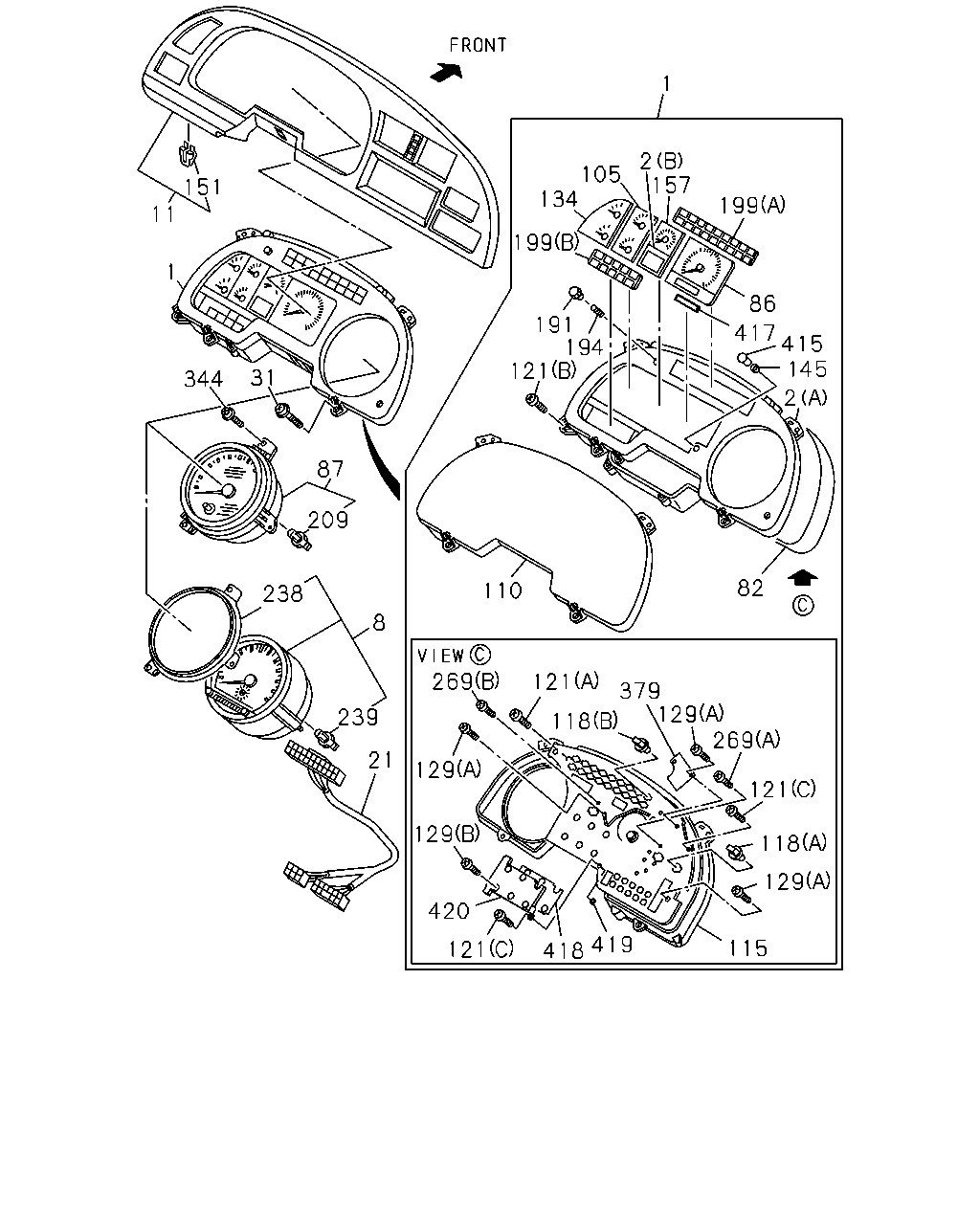

çizim 7412
1 2 157 105 134 151 199 11 199 1 86 191 194 417 415 145 31 121 344 2 87 209 82 110 238 8 269 121 379 129 239 118 269 21 129 121 129 118 129 420 419 418 115 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> 		1-83114-799-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> 		1-83115-044-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-044-2 01 1 9802-9904 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> 		1-83115-172-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> 		1-83115-689-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83114-798-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-043-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-043-2 01 1 9802-9904 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-171-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-688-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83114-797-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83115-042-0 01 1 9705-9706 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L),6WG1 TC-N(71L) DUAL AIR GAUGE<UG2> 		1-83115-042-2 01 1 9707-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L),6WG1 TC-N(71L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9802-9804 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9805-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-167-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-684-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2> 		1-83114-796-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-041-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9802-9804 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9805-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> 		1-83115-168-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> 		1-83115-685-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-101-0 01 1 9802-9904 ●
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9603-9904 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905- ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-859-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-83120-858-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-561-2 01 1 9603-9706 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-745-0 01 1 9707-9904 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-847-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-849-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-662-1 01 1 9603-9706 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-806-0 01 1 9707-9904 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9905- ●
11 CLUSTER ASM; METER 1-72418-012-7 01 1 9603-9904 ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 9905- ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 9905- ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9603- ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-82624-665-1 01 1 9603-9904 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9603-9904 ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
10PE1S(60L) 		1-83120-692-0 01 1 9603-9801 ● ●
86 TACHOMETER; CLUSTER METER
10PE1S(60L) 		1-83120-692-0 01 1 9802-9904 ● ●
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-880-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) 		1-83120-693-0 01 1 9603-9706 ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-83120-693-0 01 1 9707-9804 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-693-0 01 1 9805-9904 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-879-0 01 1 9905- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-490-1 01 1 9603-9904 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-844-0 01 1 9905- ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9905- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-211-0 01 1 9603-9704 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9705-9904 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905- ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-317-0 01 1 9603-9904 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-372-0 01 1 9905- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 AR 1 9603-9706 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 9603-9608 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 08 1 9603-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 05 1 9905- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M3 TAPPING 		1-83119-084-0 01 1 9905- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 9905- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9603-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9905- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9905- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-224-0 01 1 9603-9904 ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905- ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9603-9812 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-190-0 01 1 9603-9608 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-187-0 01 1 9609-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9603-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-214-0 01 1 9905-9910 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-235-0 01 1 9911- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9603-9904 ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-538-0 01 1 9603-9904 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-539-1 01 1 9603-9904 ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9905- ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9603-9904 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 9603-9904 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83129-311-0 01 1 9905- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.8W 		1-82194-076-0 03 1 9603-9904 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W 		5-82194-034-0 03 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9905- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 04 1 9603-9904 ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 11 1 9603-9904 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603- ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905- ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905- ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905- ● ●
418 CIRCUIT; CONTROL,METER
L TYPE ENG<90L> 		1-83189-376-0 01 1 9905- ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> 		1-83189-377-0 01 1 9905- ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905- ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 9905- ● ●

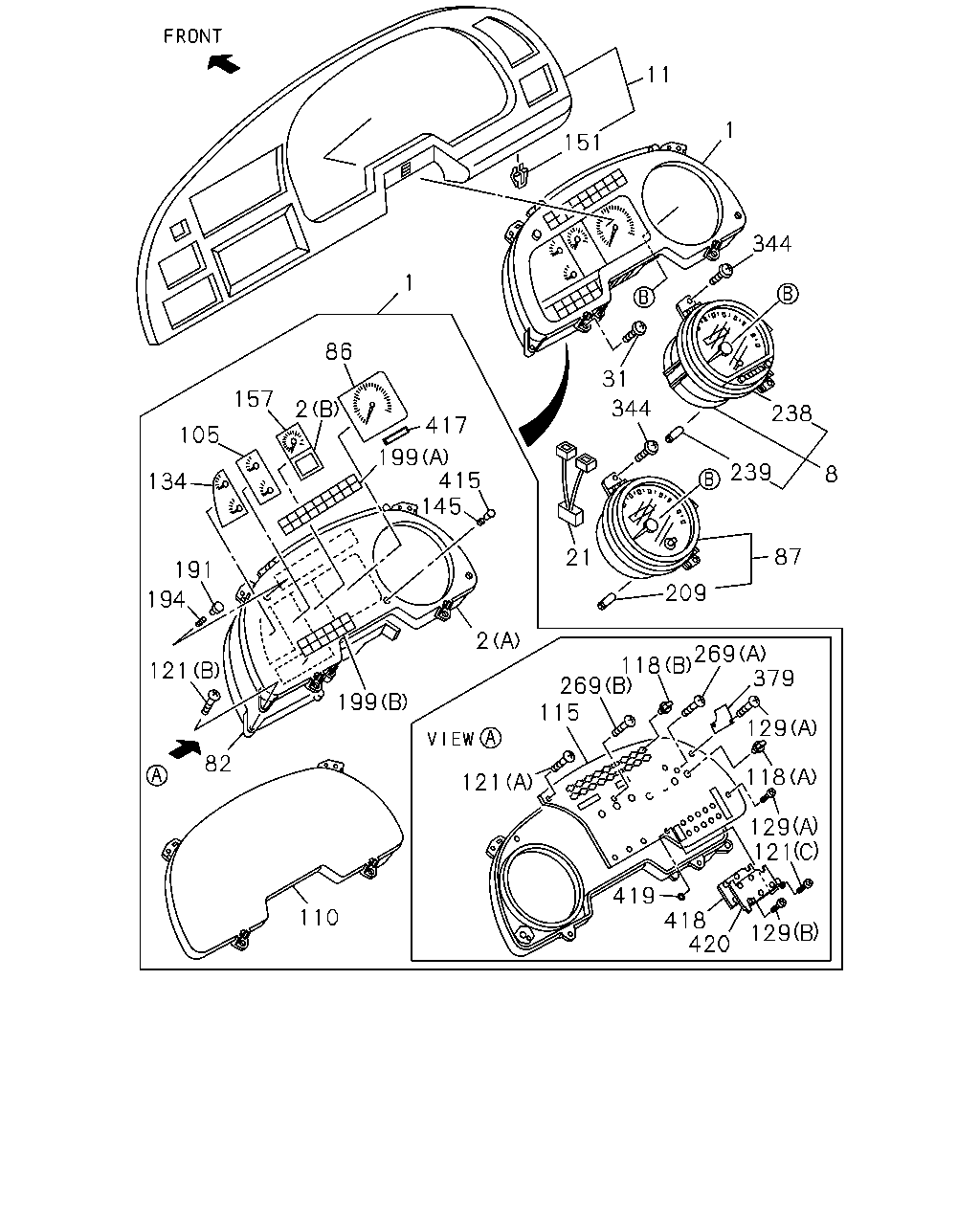

çizim 8635
11 1 151 344 1 86 31 157 344 2 238 417 105 199 415 145 239 8 134 87 21 191 209 194 2 269 118 379 269 115 121 199 129 82 118 129 121 121 419 418 420 110 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> 		1-83114-799-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> 		1-83115-044-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-044-2 01 1 9802-9904 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> 		1-83115-172-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> DUAL AIR GAUGE<UG2> 		1-83115-689-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83114-798-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-043-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-043-2 01 1 9802-9904 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-171-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-688-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83114-797-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83115-042-0 01 1 9705-9706 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L),6WG1 TC-N(71L) DUAL AIR GAUGE<UG2> 		1-83115-042-2 01 1 9707-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L),6WG1 TC-N(71L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9802-9804 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9805-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-167-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2> 		1-83115-684-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2> 		1-83114-796-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-041-2 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9802-9804 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9805-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> 		1-83115-168-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> DUAL AIR GAUGE<UG2> 		1-83115-685-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-101-0 01 1 9802-9904 ●
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9603-9904 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905- ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-859-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-83120-858-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-561-2 01 1 9603-9706 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-745-0 01 1 9707-9904 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-847-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-849-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-662-1 01 1 9603-9706 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-806-0 01 1 9707-9904 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9905- ●
11 CLUSTER ASM; METER 1-72418-012-7 01 1 9603-9904 ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 9905- ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 9905- ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9603- ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-82624-665-1 01 1 9603-9904 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603- ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9603-9904 ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
10PE1S(60L) 		1-83120-692-0 01 1 9603-9801 ● ●
86 TACHOMETER; CLUSTER METER
10PE1S(60L) 		1-83120-692-0 01 1 9802-9904 ● ●
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-880-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) 		1-83120-693-0 01 1 9603-9706 ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L),6WG1 TC-N(71L) 		1-83120-693-0 01 1 9707-9804 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-693-0 01 1 9805-9904 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-879-0 01 1 9905- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-490-1 01 1 9603-9904 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-844-0 01 1 9905- ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9905- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-211-0 01 1 9603-9704 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9705-9904 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905- ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-317-0 01 1 9603-9904 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-372-0 01 1 9905- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 AR 1 9603-9706 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 9603-9608 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 08 1 9603-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 05 1 9905- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M3 TAPPING 		1-83119-084-0 01 1 9905- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 9905- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9603-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9905- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9905- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-224-0 01 1 9603-9904 ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905- ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9603-9812 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-190-0 01 1 9603-9608 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-187-0 01 1 9609-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9603-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-214-0 01 1 9905-9910 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-235-0 01 1 9911- ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9603-9904 ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-538-0 01 1 9603-9904 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-539-1 01 1 9603-9904 ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9905- ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9603-9904 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 9603-9904 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83129-311-0 01 1 9905- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.8W 		1-82194-076-0 03 1 9603-9904 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W 		5-82194-034-0 03 1 9905- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9905- ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 04 1 9603-9904 ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 11 1 9603-9904 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603- ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905- ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905- ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905- ● ●
418 CIRCUIT; CONTROL,METER
L TYPE ENG<90L> 		1-83189-376-0 01 1 9905- ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> 		1-83189-377-0 01 1 9905- ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905- ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 9905- ● ●

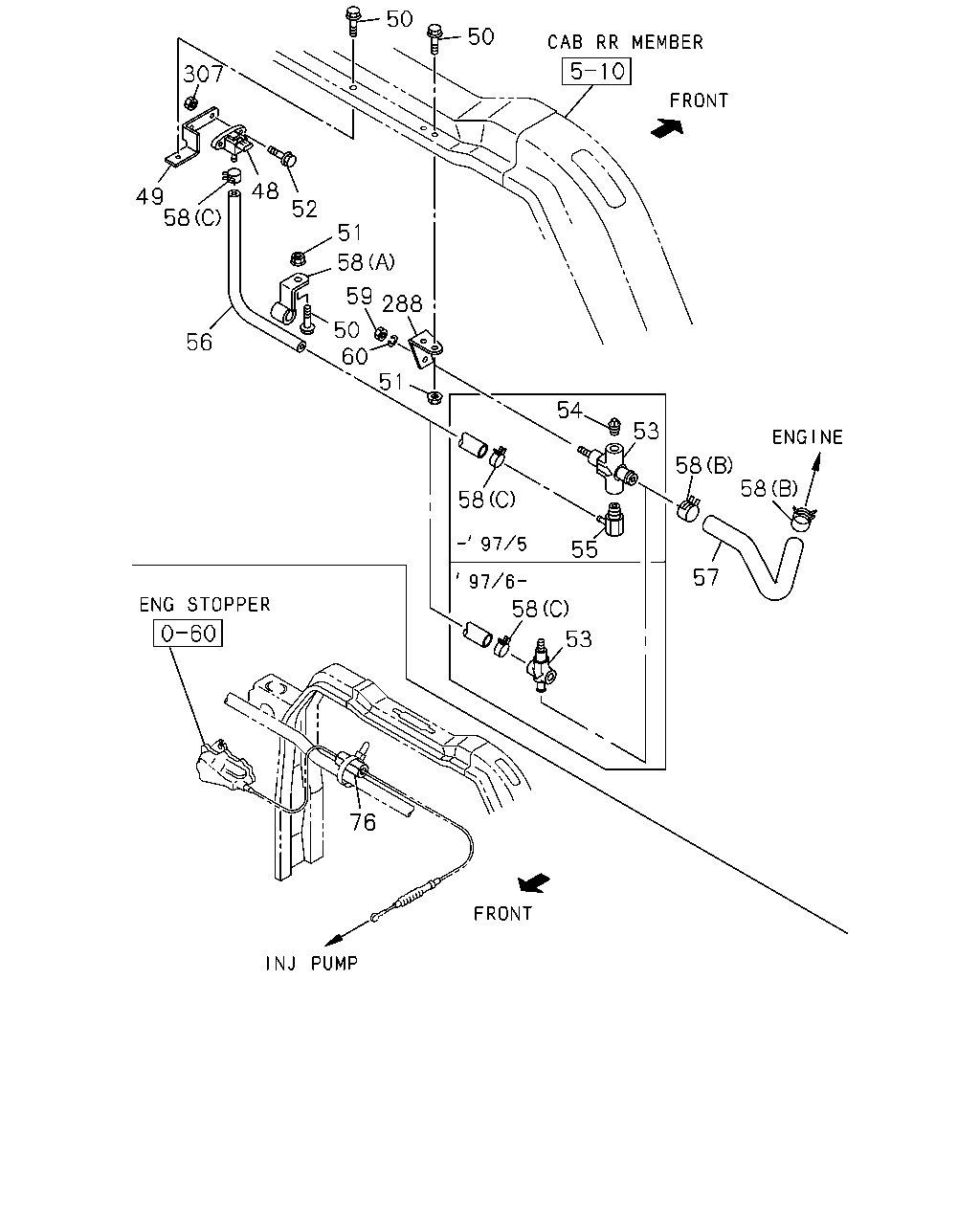

çizim 42333
50 50 307 48 49 58 52 51 58 59 288 50 60 56 51 54 53 58 58 58 55 57 58 53 76
BalonParca AdiParca NoAdetTipApplied Date A B
48 SENSOR; BOOST
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-81531-011-0 01 1 9610-9706 ● ●
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9707-9904 ● ●
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9905- ● ●
49 BRACKET; SENSOR
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-83129-307-1 01 1 9610-9706 ● ●
49 BRACKET; SENSOR
ELECTRONIC GOV RED3(KG5) 		1-83129-307-1 01 1 9707-9904 ● ●
50 BOLT; FIX
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 05 1 9610-9706 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 05 1 9707-9904 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 04 1 9905-9909 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 03 1 9910- ● ●
51 NUT; FIX
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 05 1 9610-9706 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 05 1 9707-9904 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 04 1 9905-9909 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 03 1 9910- ● ●
52 BOLT; SENSOR
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M6X16 FLANGE 		0-28680-616-0 02 1 9610-9706 ● ●
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28680-616-0 02 1 9707- ● ●
53 UNION; BOOST UNIT
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-09660-152-1 01 1 9610-9705 ● ●
53 UNION; BOOST UNIT
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-09661-017-0 01 1 9706-9706 ● ●
53 UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5) 		1-09661-017-0 01 1 9707- ● ●
54 PLUG; UNION
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 9610-9705 ● ●
55 NIPPLE; UNION TO HOSE
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-09660-268-0 01 1 9610-9705 ● ●
56 HOSE; NIPPLE TO SENSOR
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> L=580 SERVICED BY L=3000 		0-04740-300-0 01 1 9610-9705 ● ●
56 HOSE; NIPPLE TO SENSOR
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9706-9706 ● ●
56 HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9707- ● ●
57 HOSE; BOOST
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-83159-017-0 01 1 9610-9706 ● ●
57 HOSE; BOOST
ELECTRONIC GOV RED3(KG5) 		1-83159-017-0 01 1 9707- ● ●
58 CLIP; HOSE
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9610-9706 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9707-9909 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9910- ● ●
58 CLIP; HOSE
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (B) ID=20.8 		8-94125-862-0 02 1 9610-9706 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8 		8-94125-862-1 02 1 9707- ● ●
58 CLIP; HOSE
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> (C) ID=7.8 		8-94246-958-0 02 1 9610-9706 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8 		8-94246-958-0 02 1 9707- ● ●
59 NUT; UNION
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M10 		9-09111-410-0 01 1 9610-9706 ● ●
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		9-09111-410-0 01 1 9707- ● ●
60 WASHER; LK,UNION
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-510-0 01 1 9610-9706 ● ●
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 9707- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 02 1 9603-9910 ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 9911- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911- ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> 		1-47477-469-0 01 1 9910- ● ●
288 BRACKET
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-47477-379-0 01 1 9610-9706 ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) 		1-47477-379-0 01 1 9707-9909 ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-47477-379-0 01 1 9910- ● ●
307 NUT
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> M6 		9-09110-406-0 02 1 9610-9706 ● ●
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		9-09110-406-0 02 1 9707- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
