Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

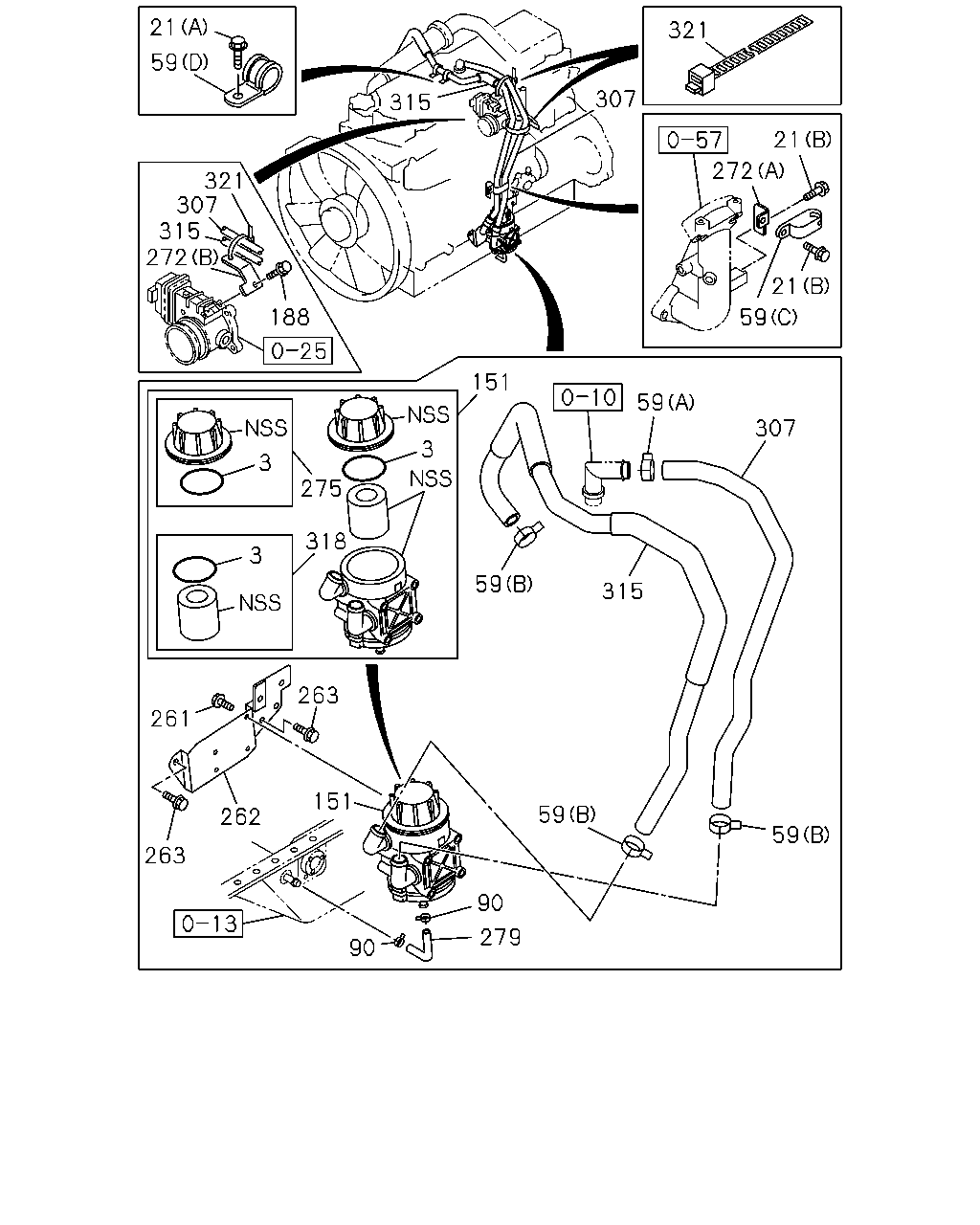

0-28 — VENTILATION SYSTEM
(#58758) — 22 parça
307
59
315
59
59
90
279
59
3
151
275
318
3
3
188
272
315
307
321
59
21
315
307
321
21
272
21
59
151
263
261
263
90
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0906-
21
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
0906-
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
0906-
59
CLIP; HOSE
(D) ID=35 L=33
1-09700-945-0
02
1
0906-
59
CLIP; HOSE
(C) ID=30X2 L=28
1-09701-266-0
01
1
0906-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
0906-
59
CLIP; HOSE
(A) ID=31.2
8-97237-146-0
01
1
0906-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0906-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
0906-
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
0906-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
0906-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
0906-
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
0906-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
0906-
272
BRACKET; PIPE
(A)
8-97607-396-1
01
1
0906-
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
0906-
275
CAP; PCV
8-97606-319-0
01
1
0906-
279
HOSE; RUBBER,OIL DRAIN
L=210 SERVICED BY L=1000
0-02759-100-0
01
1
0906-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98054-285-2
01
1
0906-
315
HOSE; RUBBER
8-98054-286-2
01
1
0906-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
0906-
321
CLIP; HOSE,SEPARATOR
L=300
1-09707-001-1
02
1
0906-
