Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#58754) — 66 parça
◀
[020A] FIXING;FLYWHEEL HOUSING,COVER NO.2 (25 parça)
[020A] GEAR;INJ PUMP (2 parça)
[020A] FIXING;FLYWHEEL HOUSING,COVER NO.1 (18 parça)
[020A] TIMING GEAR CASE (21 parça)
▶

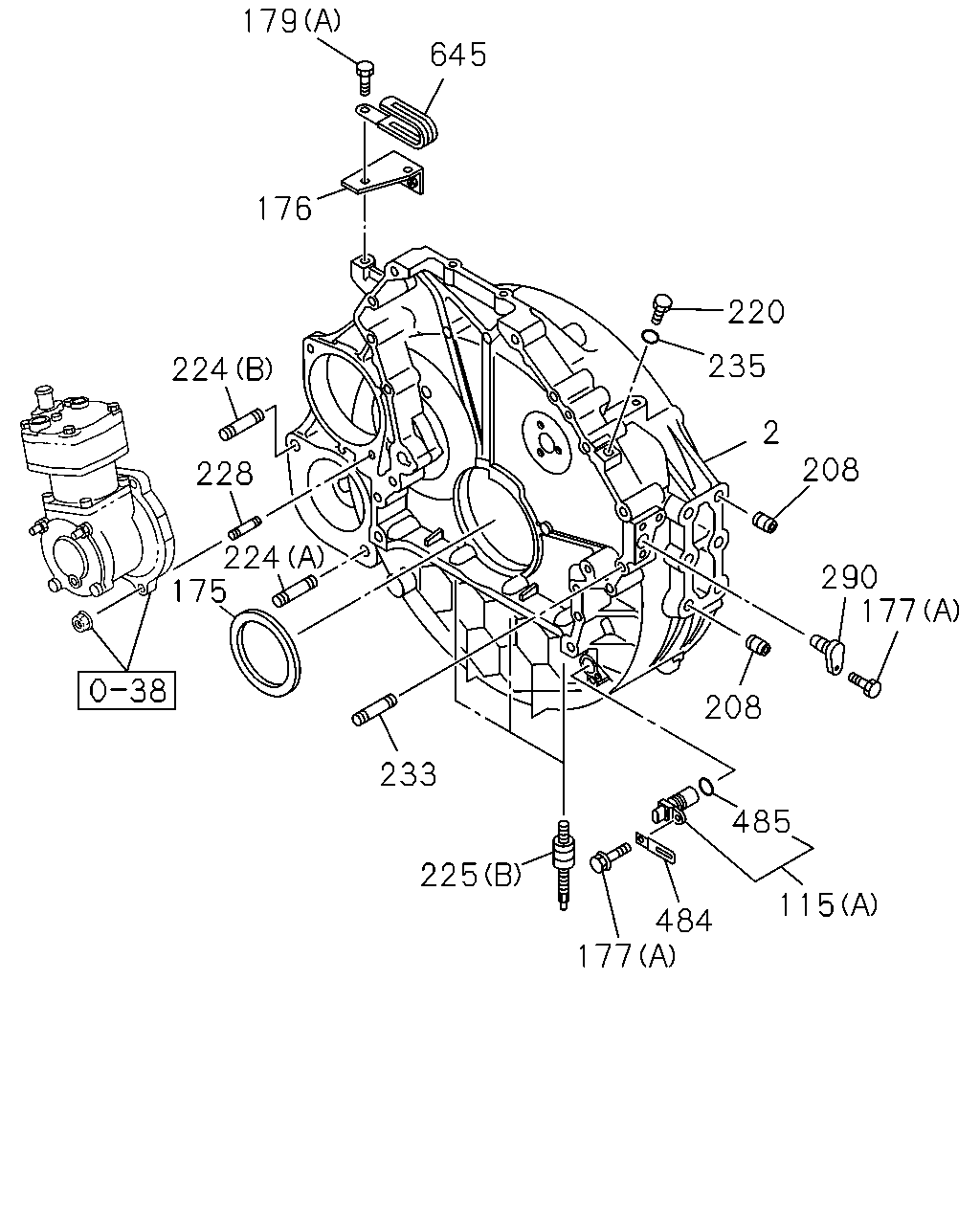

179
645
176
220
235
224
2
208
228
224
175
290
177
38
208
233
485
225
115
484
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
0906-
38
PIN; GEAR CASE COVER
L=22
8-94483-674-0
02
1
0906-
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
0906-
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
0906-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
0906-
176
BRACKET; HARNESS
1-82699-828-1
01
1
0906-
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
0906-
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
0906-
179
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0906-
179
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
0906-
208
DOWEL; ENG FOOT
9-43269-009-1
04
1
0906-
220
PLUG; GEAR CHECK HOLE
M12X10
1-09605-125-0
01
1
0906-1008
220
PLUG; GEAR CHECK HOLE
M12X10
5-13265-001-0
01
1
1009-
224
STUD; STARTER
(A) M14X35 L=56
0-44011-435-0
01
1
0906-
224
STUD; STARTER
(B) M14X45 L=66
0-44011-445-0
01
1
0906-
225
STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER
8-97087-680-2
04
1
0906-
225
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
03
1
0906-
228
STUD; AIR CMPR
M12X35 L=53
0-44011-235-0
01
1
0906-
233
STUD; BRKT
M12X67 L=82
1-09302-112-0
01
1
0906-
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
01
1
0906-1312
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
8-98251-344-0
01
1
1401-
290
PLUG; SENSOR HOLE
8-97101-974-0
01
1
0906-
484
CLIP; BAND
L=80
5-09700-307-1
01
1
0906-
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
02
1
0906-
645
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0906-

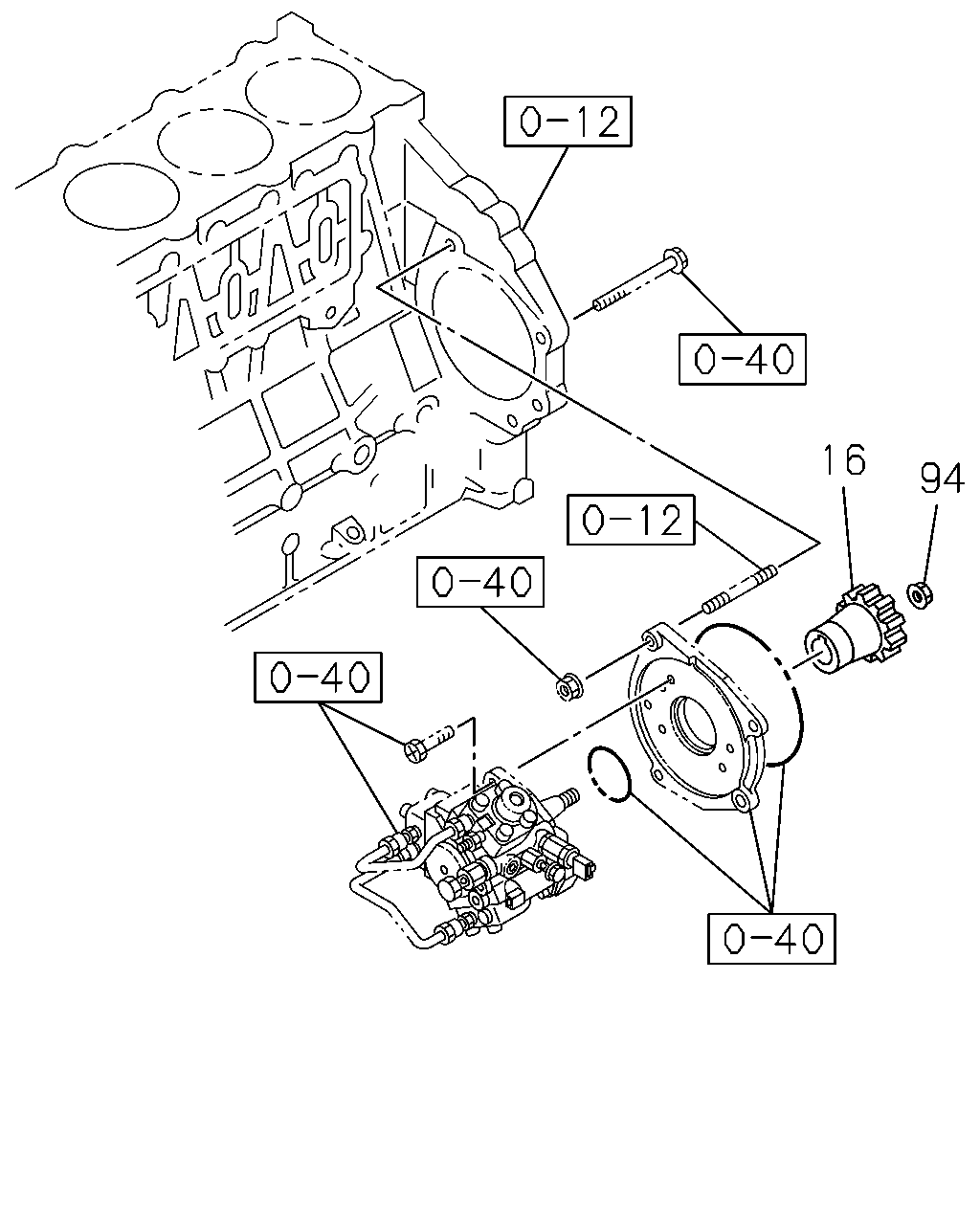

16
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
GEAR; INJ PUMP DRIVE
Z=35
8-97601-153-1
01
1
0906-
94
NUT; GEAR
M14 FLANGE
0-91180-214-0
01
1
0906-

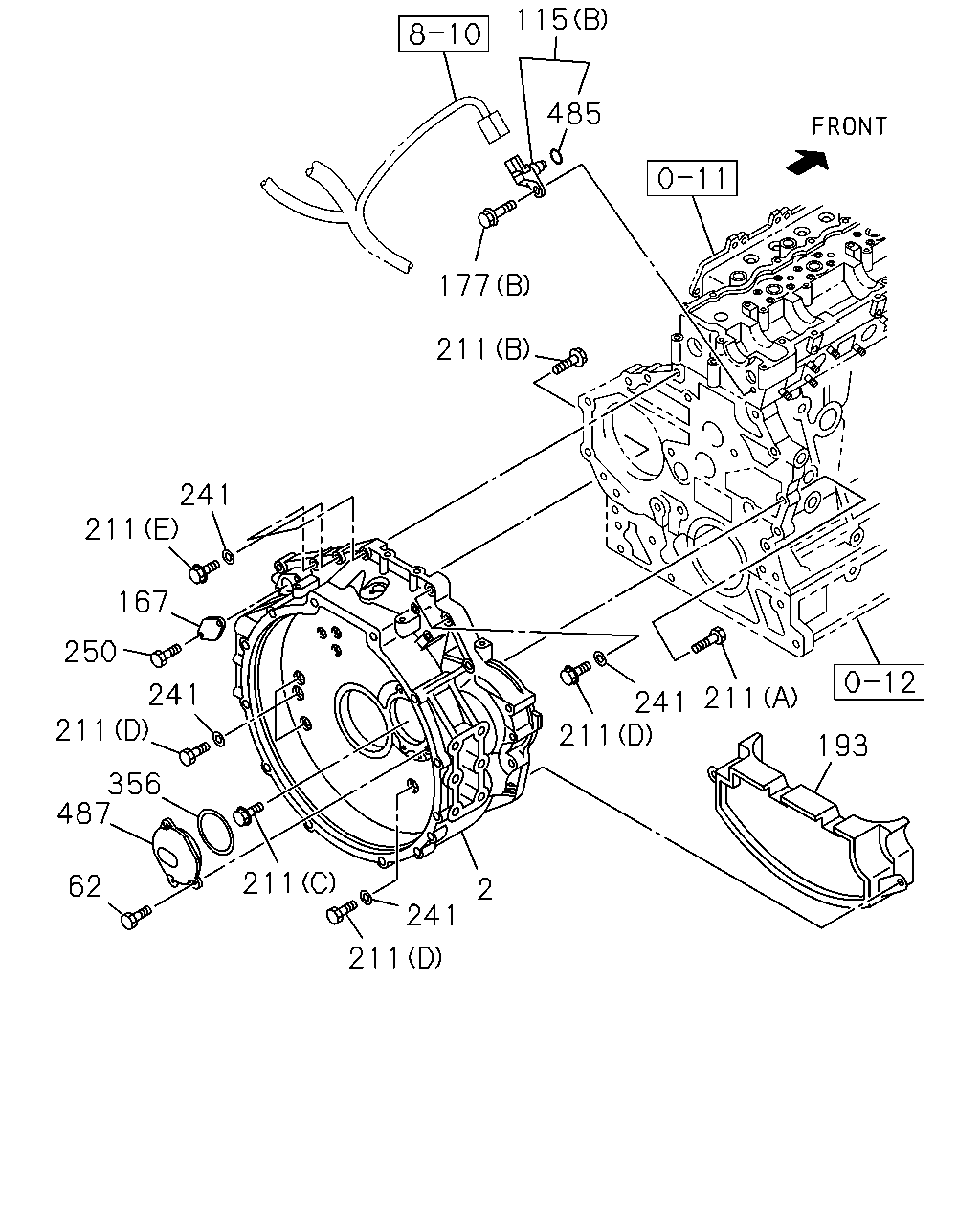

193
211
241
211
2
241
211
211
356
241
250
211
167
241
211
487
62
211
485
115
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
0906-
62
BOLT; COVER
M8X14 FLANGE
0-28080-814-0
03
1
0906-
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
0906-
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
0906-
167
COVER; OIL
1-11219-163-0
01
1
0906-
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
0906-
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
0906-
193
SPACER; STAY TO OIL,PAN
8-98019-738-1
01
1
0906-
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
0906-
211
BOLT; HSG
(D) M12X70
0-16956-270-0
08
1
0906-
211
BOLT; HSG
(E) M12X90
0-16956-290-0
03
1
0906-
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
0906-
211
BOLT; HSG
(C) M14X27 FLANGE
8-94393-995-0
01
1
0906-
241
WASHER; PL,HSG
ID=12.5 OD=22
8-94393-140-1
12
1
0906-
250
BOLT; COVER,OIL
M8X18 FLANGE
0-28080-818-0
02
1
0906-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110
8-94394-186-0
01
1
0906-
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
02
1
0906-
487
COVER; HOLE
8-98023-824-1
01
1
0906-

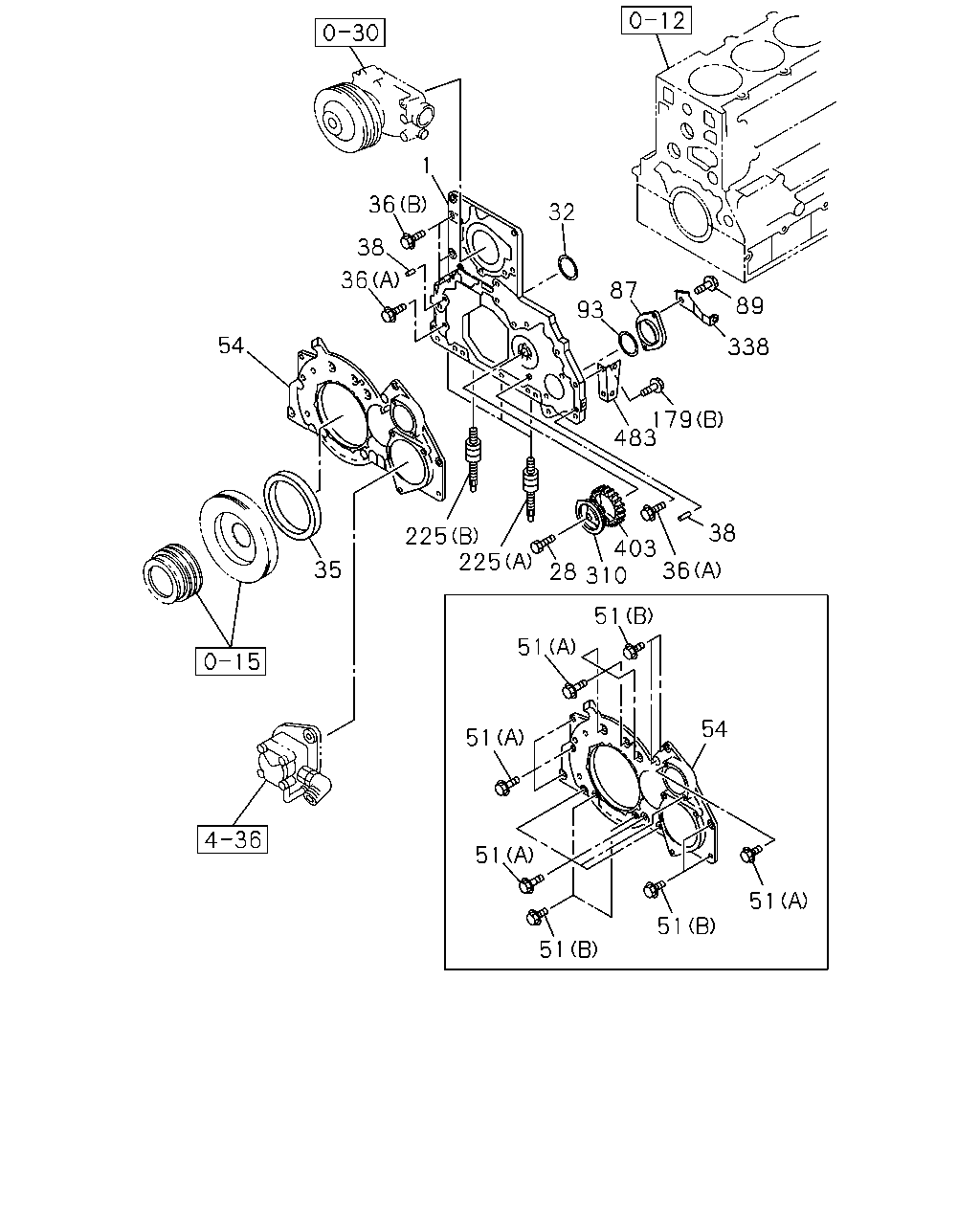

1
36
38
36
54
35
32
87
93
89
338
179
483
38
36
403
310
28
225
225
51
51
51
51
51
51
54
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-94392-282-1
01
1
0906-
28
BOLT; DRIVE GEAR
M8X28
8-94399-256-0
03
1
0906-
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1
8-97028-748-1
01
1
0906-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137
8-97602-378-3
01
1
0906-
36
BOLT; GEAR CASE
(B) M8X35 FLANGE
0-28050-835-0
04
1
0906-
36
BOLT; GEAR CASE
(A) M8X30 FLANGE
0-28650-830-0
02
1
0906-
38
PIN; GEAR CASE COVER
L=22
8-94483-674-0
02
1
0906-
51
BOLT; GEAR CASE COVER
(A) M8X40 FLANGE
0-28050-840-0
11
1
0906-
51
BOLT; GEAR CASE COVER
(B) M8X20 FLANGE
0-28650-820-0
06
1
0906-
54
COVER; GEAR CASE
8-94393-304-1
01
1
0906-
87
COVER; TACHOMETER DRIVE
8-94396-370-0
01
1
0906-
89
BOLT; ELBOW
M8X18 FLANGE
0-28080-818-0
02
1
0906-
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7
1-09623-465-0
01
1
0906-
179
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
0906-
179
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
0906-
225
STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER
8-97087-680-2
04
1
0906-
225
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
03
1
0906-
310
SHAFT; IDLE GEAR
8-94394-806-0
01
1
0906-
338
BRACKET; CLIP,HARNESS
1-82699-889-0
01
1
0906-
403
GEAR; IDLE,FRONT
Z=33
8-94395-943-1
01
1
0906-
483
BRACKET; WATER DUCT
8-94394-405-1
01
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
