◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#5875) — 15 parça

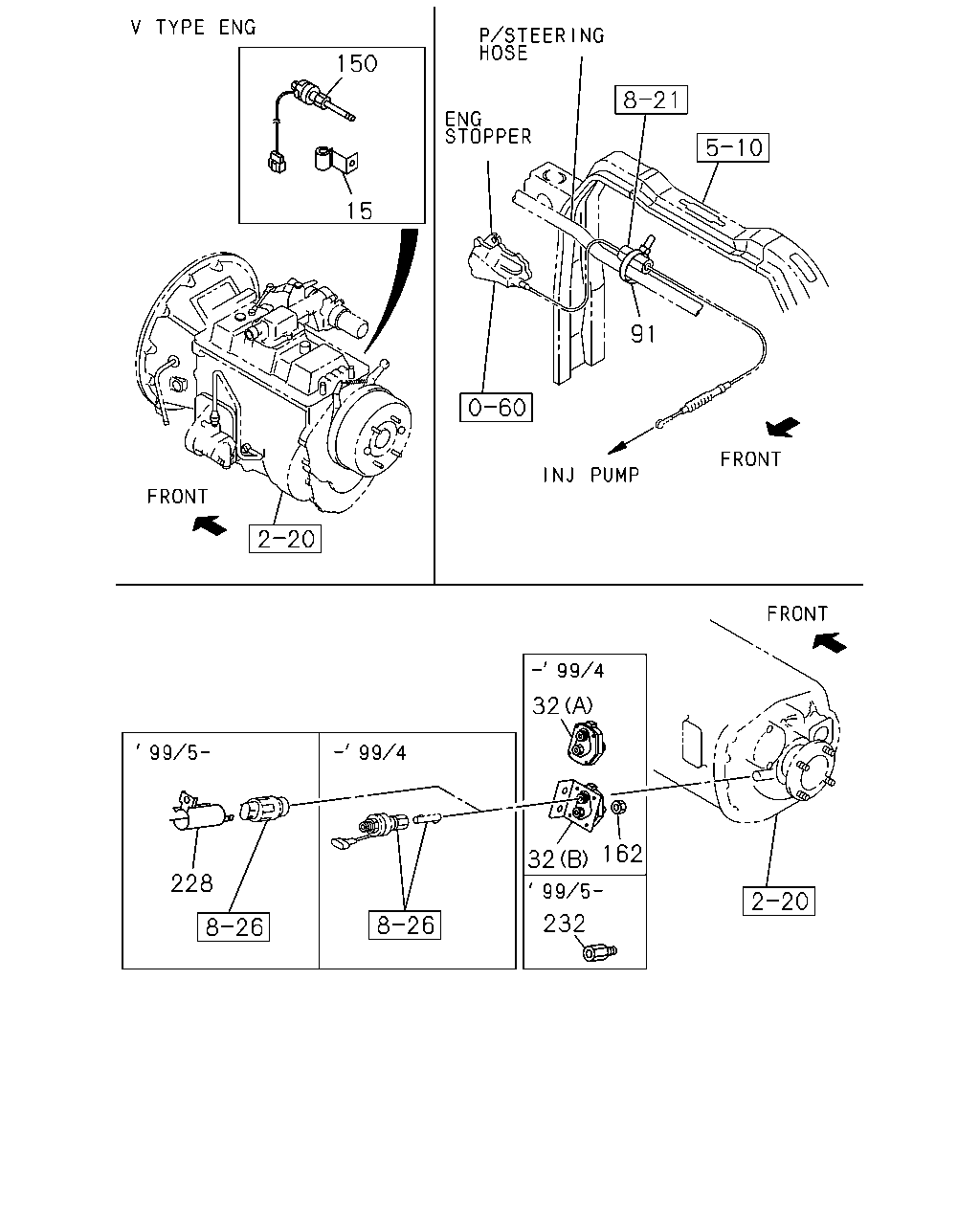

çizim 45103
150 15 91 162 228 232 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; BAND,HARNESS
V TYPE ENG<91L> ID=6 H=25 L=21 		1-09700-432-0 01 1 9603- ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) (A) 		1-83126-331-0 01 1 9603-9803 ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-262-0 01 1 9603-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-409-0 01 1 9703-9904 ● ●
32 BOX; GEAR,FLEX SHAFT
ZF M/T<X9E> (B) 		1-83126-409-0 01 1 9905-9905 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 02 1 9603-9910 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9911- ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911- ● ●
132 SENSOR; SPD,SPEEDOMETER
V TYPE ENG<91L> 		1-83127-115-0 01 1 0004- ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		9-83111-951-0 01 1 9603-9809 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		1-80249-005-0 01 1 9810-9904 ● ●
162 NUT; GEAR BOX
ZF M/T<X9E> M22 		1-80249-005-0 01 1 9905-9905 ● ●
228 PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		8-97168-308-0 01 1 9905-9910 ● ●
228 PROTECTOR; SENSOR
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION OIL COOLER<C2C> 		8-97168-308-0 01 1 9911- ● ●
232 ADAPTER; SPEED SENSOR
ZF M/T<X9E> 		1-80249-006-0 01 1 9905- ● ●
