5 |
GUIDE; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
L=360
|
1-82699-476-1 |
01 |
1 |
9609-9904 |
● |
● |
| |
5 |
GUIDE; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
L=360
|
1-82699-476-1 |
01 |
1 |
9905- |
● |
● |
| |
14 |
CLIP; BAND,HARNESS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
P115 PROP SHAFT<C5X>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
L=250
|
5-09707-030-0 |
01 |
1 |
9707-9804 |
● |
|
| |
14 |
CLIP; BAND,HARNESS
10PE1S(60L)
L=250
|
5-09707-030-1 |
02 |
1 |
9805-9903 |
● |
● |
| |
14 |
CLIP; BAND,HARNESS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
L=250
|
5-09707-030-1 |
02 |
1 |
9805-9903 |
● |
|
| |
14 |
CLIP; BAND,HARNESS
L=250
|
5-09707-030-1 |
02 |
1 |
9904- |
● |
● |
| |
14 |
CLIP; BAND,HARNESS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
P115 PROP SHAFT<C5X>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
L=140
|
5-09707-031-1 |
01 |
1 |
9707-9904 |
● |
|
| |
14 |
CLIP; BAND,HARNESS
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
L=140
|
5-09707-031-1 |
01 |
1 |
9905- |
● |
|
| |
14 |
CLIP; BAND,HARNESS
V TYPE ENG<91L>
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9804 |
● |
● |
| |
14 |
CLIP; BAND,HARNESS
V TYPE ENG<91L>
L=140
|
5-09707-031-1 |
04 |
1 |
9603- |
● |
● |
| |
16 |

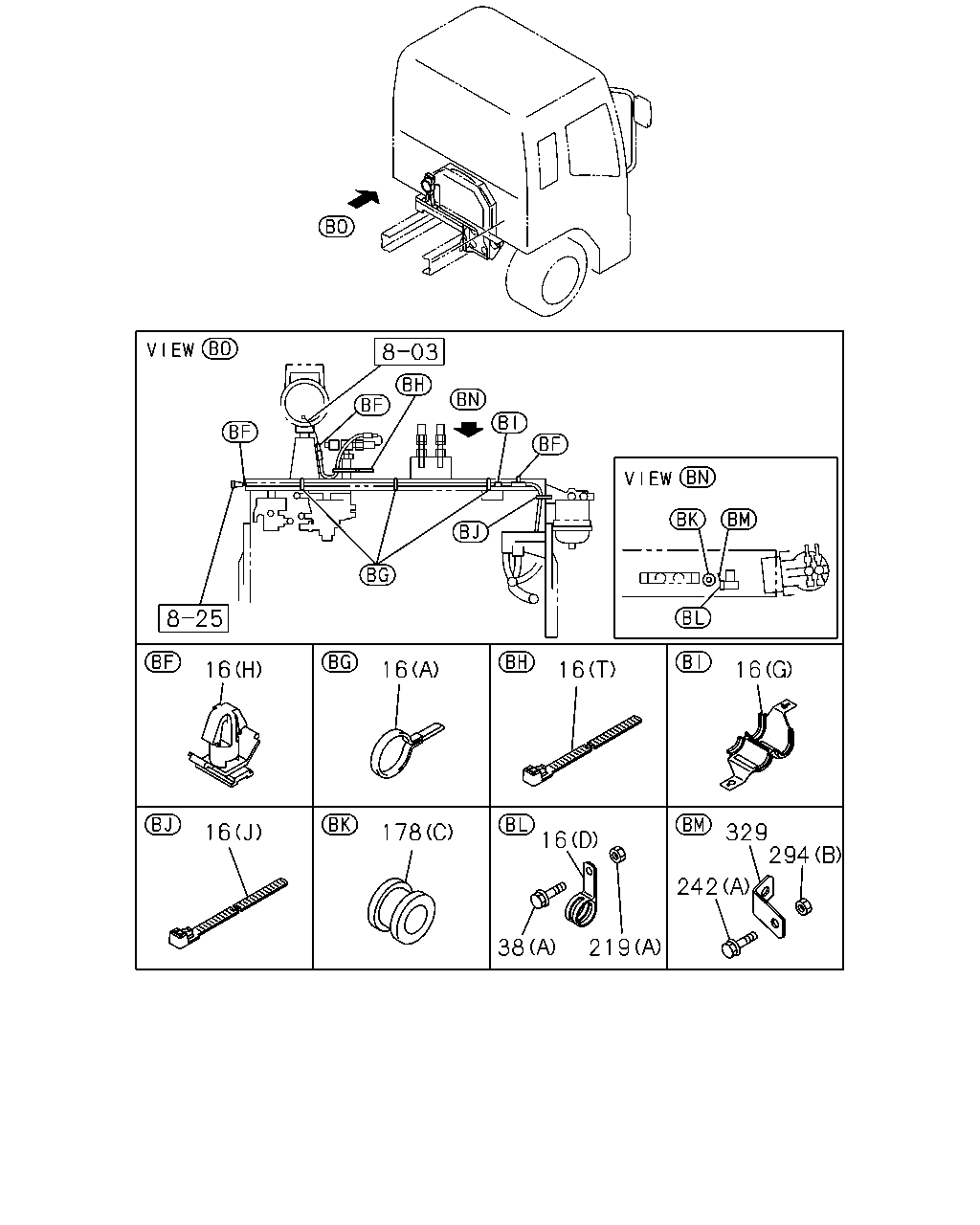

CLIP; HARNESS
(H)
OD=9 H=6
|
1-09709-178-0 |
06 |
1 |
9603- |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(H)
OD=9 H=6
|
1-09709-178-0 |
06 |
1 |
9603- |
|
● |
| |
16 |
CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(I)
ID=11 L=24
|
9-09525-045-0 |
01 |
1 |
9707-9904 |
● |
|
| |
16 |
CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV>
HIGH ROOF<S2F>
(AA)
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
P115 PROP SHAFT<C5X>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
(I)
ID=11 L=16
|
9-09525-025-0 |
01 |
1 |
9707-9904 |
● |
|
| |
16 |
CLIP; HARNESS
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(I)
ID=11 L=16
|
9-09525-025-0 |
01 |
1 |
9905-0011 |
● |
|
| |
16 |
CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(I)
ID=11 L=16
|
9-09525-025-0 |
01 |
1 |
0012- |
● |
|
| |
16 |
CLIP; HARNESS
FULLER M/T<X9B>
(H)
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9607-9802 |
● |
|
| |
16 |
CLIP; HARNESS
FULLER M/T<X9B>
(H)
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9803-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
FULLER M/T<X9B>
(H)
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(Y)
ID=19 L=32
|
1-09701-235-0 |
01 |
1 |
9609-9904 |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(Y)
ID=19 L=32
|
1-09701-235-0 |
01 |
1 |
9905- |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9603-9606 |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9603-9606 |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9607-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0004 |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0004 |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0004 |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0004 |
|
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ZF M/T<X9E>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0005- |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0005- |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0005- |
|
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9603-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
9905-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
0002- |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
9603-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9905-0005 |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
ZF M/T<X9E>
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
0006- |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
0006- |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
02 |
1 |
9603-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
0002- |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
0002- |
|
● |
| |
16 |
CLIP; HARNESS
(B)
ID=15 L=42
|
1-09700-479-0 |
02 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(C)
ID=15 L=35
|
1-09700-507-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9603-0004 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
CAB UP +110MM<TGG>
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
(D)
ID=14.5 L=28
|
1-09701-013-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(P)
ID=21 L=24
|
1-09701-201-0 |
02 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(U)
ID=4.8
|
1-09701-218-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(F)
L=180
|
1-09707-162-1 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(F)
L=180
|
1-09707-162-1 |
02 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(G) WO/SPONGE
WO/SPONGE RUBBER
|
1-09709-103-1 |
02 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(G) W/SPONGE
W/SPONGE RUBBER
|
1-09709-150-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(H)
OD=9 H=6
|
1-09709-178-0 |
04 |
1 |
9603-9710 |
● |
● |
| |
16 |
CLIP; HARNESS
(H)
OD=9 H=13.5
|
1-09709-180-0 |
01 |
1 |
9711- |
● |
● |
| |
16 |
CLIP; HARNESS
(T)
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9606 |
● |
● |
| |
16 |
CLIP; HARNESS
(T)
L=250
|
5-09707-030-1 |
02 |
1 |
9607- |
● |
● |
| |
16 |
CLIP; HARNESS
FULLER M/T<X9B>
(T)
L=250
|
5-09707-030-1 |
02 |
1 |
9607- |
● |
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9708 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9708 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9709-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
02 |
1 |
9905-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=250
|
5-09707-030-1 |
01 |
1 |
9908- |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(J)
L=250
|
5-09707-030-1 |
01 |
1 |
9908- |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=250
|
5-09707-030-1 |
01 |
1 |
9908- |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9603-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9603-0001 |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
04 |
1 |
0002- |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
07 |
1 |
9603-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(AD)
ID=14-20
|
8-97061-603-0 |
01 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
08 |
1 |
9603-0005 |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
14 |
1 |
0006- |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
02 |
1 |
9709-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(AE)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9905-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
DELUXE CAB(W14)
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9905-9907 |
● |
|
| |
16 |
CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
● |
| |
16 |
CLIP; HARNESS
DELUXE CAB(W14)
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909- |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909- |
● |
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909- |
● |
● |
| |
16 |
CLIP; HARNESS
DELUXE CAB(W14)
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909- |
● |
|
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>
(H)
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
(H)
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B>
(S)
L=36
|
8-94224-891-1 |
01 |
1 |
9603-9606 |
● |
● |
| |
16 |
CLIP; HARNESS
MJA7U M/T(X6G),MJA6A M/T(X6V)
(S)
L=36
|
8-94224-891-1 |
01 |
1 |
9607- |
● |
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9603-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9905-9908 |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9905-9908 |
● |
● |
| |
16 |
CLIP; HARNESS
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9909- |
● |
● |
| |
16 |
CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9909- |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9909- |
|
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B>
(AB)
ID=16 L=40
|
9-09525-576-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(O)
|
8-94403-348-0 |
01 |
1 |
9603-0004 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
15 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
EXC. CAB UP +110MM<TGG>
(O)
|
8-94403-348-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(Z)
ID=42.7 L=38
|
1-09700-583-1 |
01 |
1 |
9609-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(Z)
ID=42.7 L=38
|
1-09700-583-1 |
01 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(V)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
9609-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(V)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9609-9708 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9709-9904 |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9905-0001 |
|
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9905-0001 |
|
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0002- |
● |
|
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
(AC)
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9603-0004 |
● |
● |
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(AC)
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
0005- |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(Q)
ID=11 L=20
|
9-09525-035-0 |
01 |
1 |
9603- |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
02 |
1 |
9603-9605 |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
01 |
1 |
9606-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
01 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(H)
OD=9 H=6
|
1-09709-178-0 |
03 |
1 |
9603-9710 |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(H)
OD=9 H=6
|
1-09709-178-0 |
03 |
1 |
9711- |
● |
● |
| |
16 |
CLIP; HARNESS
(H)
OD=9 H=6
|
1-09709-178-0 |
03 |
1 |
9711- |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9603-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9603-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9603-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9603-9907 |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-1 |
03 |
1 |
9908- |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(X)
ID=15 L=42
|
9-09716-203-1 |
01 |
1 |
9606-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
HIGH ROOF<S2F>
(AA)
L=20 SET=10 PIECE
|
1-09987-246-2 |
02 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
(W)
ID=7-10
|
8-94472-578-0 |
01 |
1 |
9603- |
|
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9603-9609 |
|
● |
| |
16 |
CLIP; HARNESS
THAILAND EQUIPMENT(PM9)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9610-9708 |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9610-9708 |
|
● |
| |
16 |
CLIP; HARNESS
THAILAND EQUIPMENT(PM9)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9709-9904 |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9709-9904 |
|
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9709-9904 |
|
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9905-0001 |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9905-0001 |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
0002- |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
0002- |
|
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9603-9608 |
|
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9609-9904 |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9609-9904 |
|
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9905- |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9905- |
|
● |
| |
16 |
CLIP; HARNESS
10PE1S(60L)
(H)
OD=9 H=6
|
1-09709-178-0 |
05 |
1 |
9603-9904 |
|
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(H)
OD=9 H=6
|
1-09709-178-0 |
05 |
1 |
9905- |
|
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
0002- |
|
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9609-9706 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9707-9904 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9707-9904 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9905-9908 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9905-9908 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9909- |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9909- |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9909- |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
ZF M/T<X9E>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9909- |
|
● |
| |
38 |
BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5)
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(J)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9905- |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9607-9904 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28680-820-0 |
06 |
1 |
9905-9907 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28680-820-0 |
05 |
1 |
9908- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9607- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9607- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(B)
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
6WA1 TC-S(56L)
(G)
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
9607-9904 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
9905-9910 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
09 |
1 |
9911- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(C)
M12X16 FLANGE
|
1-09044-079-0 |
01 |
1 |
9603- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
(D)
M8X16 W/LK&PL WASHER
|
8-97087-055-0 |
02 |
1 |
9603- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(E)
M6X8
|
0-20800-608-0 |
01 |
1 |
9603- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(F)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9603-9706 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5)
(F)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9707-9904 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(F)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9707-9904 |
● |
|
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(F)
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9905- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X25 FLANGE
|
0-28080-825-0 |
09 |
1 |
9603-9603 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9604-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9608 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9609-9904 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9609-9904 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905-9910 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9905-9910 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(G)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9911- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
CAB UP +110MM<TGG>
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(H)
M5X8
|
0-20800-508-0 |
01 |
1 |
9603- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(I)
M6X14 FLANGE
|
0-28080-614-0 |
02 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(I)
M6X12 FLANGE
|
0-28080-612-0 |
02 |
1 |
9607-9907 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(I)
M6X16 FLANGE
|
0-28680-616-0 |
02 |
1 |
9908- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(A)
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9607- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(G)
M8X25 FLANGE
|
0-28080-825-0 |
10 |
1 |
9603-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(G)
M8X30 FLANGE
|
0-28680-830-0 |
10 |
1 |
9607- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
V TYPE ENG<91L>
(K)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9603- |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4>
(A)
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
9603-9603 |
|
● |
| |
38 |
BOLT; CLIP,HARNESS
L TYPE ENG<90L>
(A)
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
9604-9606 |
● |
● |
| |
38 |
BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4>
(A)
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
9604-9606 |
|
● |
| |
38 |
BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4>
(A)
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
9607- |
|
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-1 |
01 |
1 |
9603- |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9603-9910 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. CAB UP +110MM<TGG>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
9911- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
9911- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-1 |
06 |
1 |
9603- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
9603-0001 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0002-0004 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9603-0004 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
03 |
1 |
0005- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
ZF M/T<X9E>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9603-9910 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
ZF M/T<X9E>
(F)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9610-0004 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. ZF M/T<X9E>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9603-9910 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9603-9910 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
CAB UP +110MM<TGG>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9911- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9603- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(G)
ID=24 H=40 L=24
|
1-09701-243-0 |
06 |
1 |
9603- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(C)
L=300
|
1-09707-001-1 |
10 |
1 |
9603- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9603-9603 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9603-9603 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9604-9706 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
EXC. THAILAND EQUIPMENT(PM9)
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9604-9706 |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9604-9706 |
|
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9707-0005 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9707-0005 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
10PE1S(60L)
(F)
ID=22 L=52
|
9-09917-431-0 |
01 |
1 |
9603-9603 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N)
10PE1S(60L)
(F)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
9604-9609 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
ZF M/T<X9E>
(F)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9610-0005 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
6WA1 TC-S(56L)
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9603-9603 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
6WA1 TC-S(56L)
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
03 |
1 |
9604-9904 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
03 |
1 |
9905-9910 |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9911- |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-1 |
02 |
1 |
9603- |
|
● |
| |
53 |
BRACKET; HARNESS
(A)
|
1-82699-592-1 |
01 |
1 |
9603-9608 |
● |
|
| |
53 |
BRACKET; HARNESS
(A)
|
1-82699-592-1 |
01 |
1 |
9609-9706 |
● |
|
| |
53 |
BRACKET; HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
|
1-82699-592-1 |
01 |
1 |
9609-9706 |
|
● |
| |
53 |
BRACKET; HARNESS
EXC. CAB UP +50MM<W60>
(A)
|
1-82699-592-1 |
01 |
1 |
9707-9904 |
● |
|
| |
53 |
BRACKET; HARNESS
ELECTRONIC GOV RED3(KG5)
(A)
|
1-82699-592-1 |
01 |
1 |
9707-9904 |
|
● |
| |
53 |
BRACKET; HARNESS
EXC. CAB UP +110MM<TGG>
(A)
|
1-82699-592-2 |
01 |
1 |
9905- |
● |
|
| |
53 |
BRACKET; HARNESS
6WA1 TC-C(55L)
EXC. CAB UP +110MM<TGG>
(A)
|
1-82699-592-2 |
01 |
1 |
9905- |
|
● |
| |
53 |
BRACKET; HARNESS
CAB UP +50MM<W60>
(A)
|
1-82699-661-1 |
01 |
1 |
9707-9904 |
● |
|
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41)
(B)
|
1-82699-916-0 |
01 |
1 |
9603-9706 |
● |
|
| |
53 |
BRACKET; HARNESS
(B)
|
1-82699-916-0 |
01 |
1 |
9603-9706 |
|
● |
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41)
EXC. CAB UP +50MM<W60>
(B)
|
1-82699-916-0 |
01 |
1 |
9707-9805 |
● |
|
| |
53 |
BRACKET; HARNESS
(B)
|
1-82699-916-0 |
01 |
1 |
9707-9805 |
|
● |
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. CAB UP +50MM<W60>
(B)
|
1-82699-916-0 |
01 |
1 |
9806-9904 |
● |
|
| |
53 |
BRACKET; HARNESS
(B)
|
1-82699-916-0 |
01 |
1 |
9806-9904 |
|
● |
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. CAB UP +110MM<TGG>
(B)
|
1-82699-916-0 |
01 |
1 |
9905- |
● |
|
| |
53 |
BRACKET; HARNESS
EXC. CAB UP +110MM<TGG>
(B)
|
1-82699-916-0 |
01 |
1 |
9905- |
|
● |
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41)
CAB UP +50MM<W60>
(B)
|
1-82699-917-0 |
01 |
1 |
9707-9805 |
● |
|
| |
53 |
BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
CAB UP +50MM<W60>
(B)
|
1-82699-917-0 |
01 |
1 |
9806-9904 |
● |
|
| |
53 |
BRACKET; HARNESS
(C)
|
1-82699-826-0 |
01 |
1 |
9603-9904 |
● |
● |
| |
53 |
BRACKET; HARNESS
EXC. CAB UP +110MM<TGG>
(C)
|
1-82699-826-0 |
01 |
1 |
9905- |
● |
● |
| |
53 |
BRACKET; HARNESS
6WA1 TC-C(55L)
(D)
|
1-82699-239-0 |
02 |
1 |
9905-9907 |
|
● |
| |
53 |
BRACKET; HARNESS
6WA1 TC-C(55L)
EXC. CAB UP +110MM<TGG>
(D)
|
1-82699-239-0 |
02 |
1 |
9908- |
|
● |
| |
64 |
SCREW; CLIP
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
01 |
1 |
9905- |
● |
● |
| |
64 |
SCREW; CLIP
6WA1 TC-S(56L)
EURO2 SPECIFICATION<THN>
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
02 |
1 |
9703-9904 |
● |
● |
| |
64 |
SCREW; CLIP
ELECTRONIC GOV RED3(KG5)
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
02 |
1 |
9905- |
● |
● |
| |

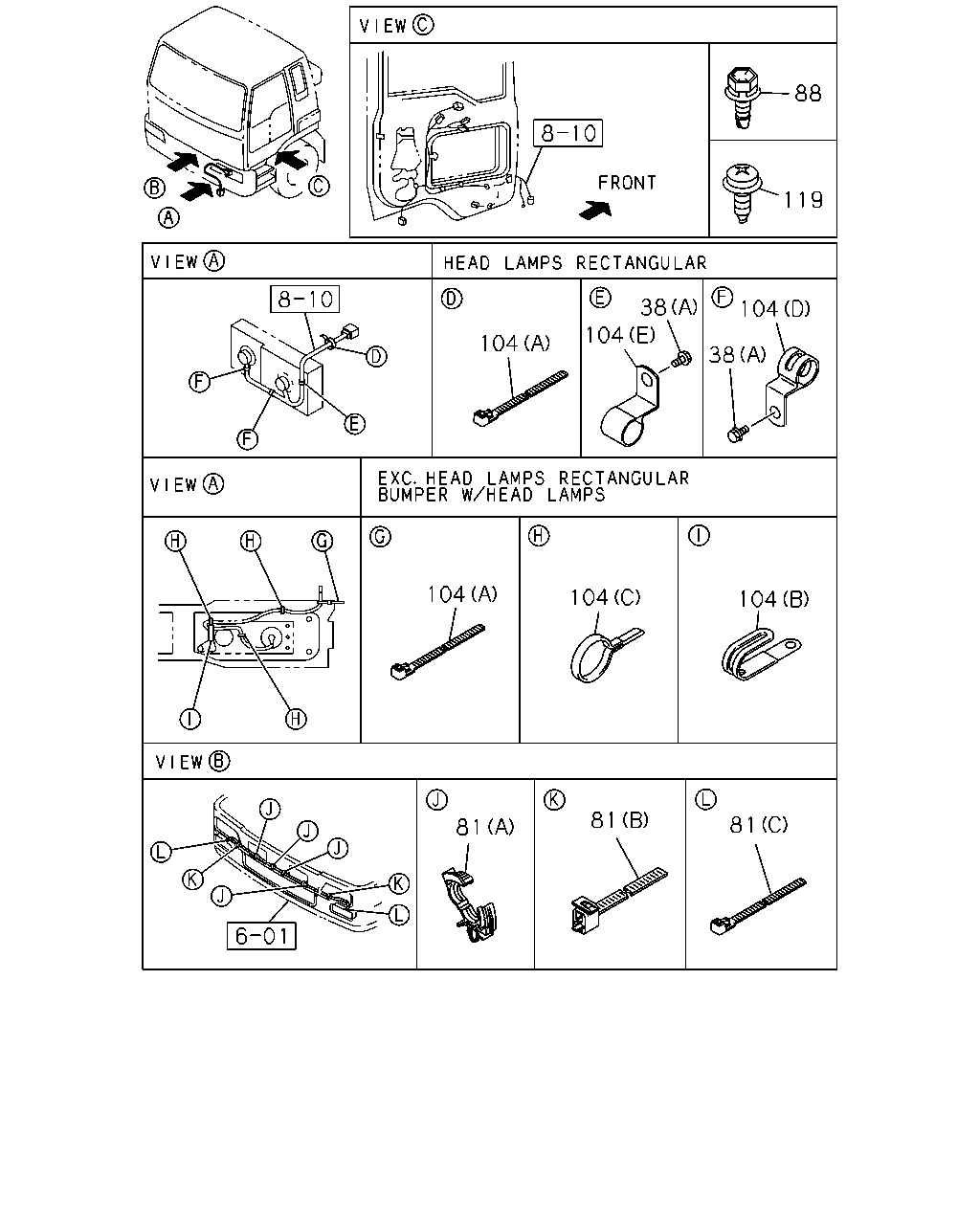

81 |
CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(D)
ID=11 L=16
|
9-09525-025-0 |
01 |
1 |
9707-9904 |
● |
|
| |
81 |
CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5)
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(D)
ID=11 L=16
|
9-09525-025-0 |
01 |
1 |
9905- |
● |
|
| |
81 |
CLIP; HARNESS
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9603-9606 |
● |
● |
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9607-9904 |
● |
|
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9905-9907 |
● |
● |
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
02 |
1 |
9908- |
● |
● |
| |
81 |
CLIP; HARNESS
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
9606- |
● |
● |
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9908- |
● |
● |
| |
81 |
CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT
BUMPER<VG7>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
9603- |
● |
● |
| |
81 |
CLIP; HARNESS
REINFORCEMENT BUMPER<VG7>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9603- |
● |
● |
| |
81 |
CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9603- |
|
● |
| |
111 |
CLIP; STOP LAMP SW HARNESS
L=250
|
5-09707-030-1 |
01 |
1 |
9905- |
● |
|
| |
116 |

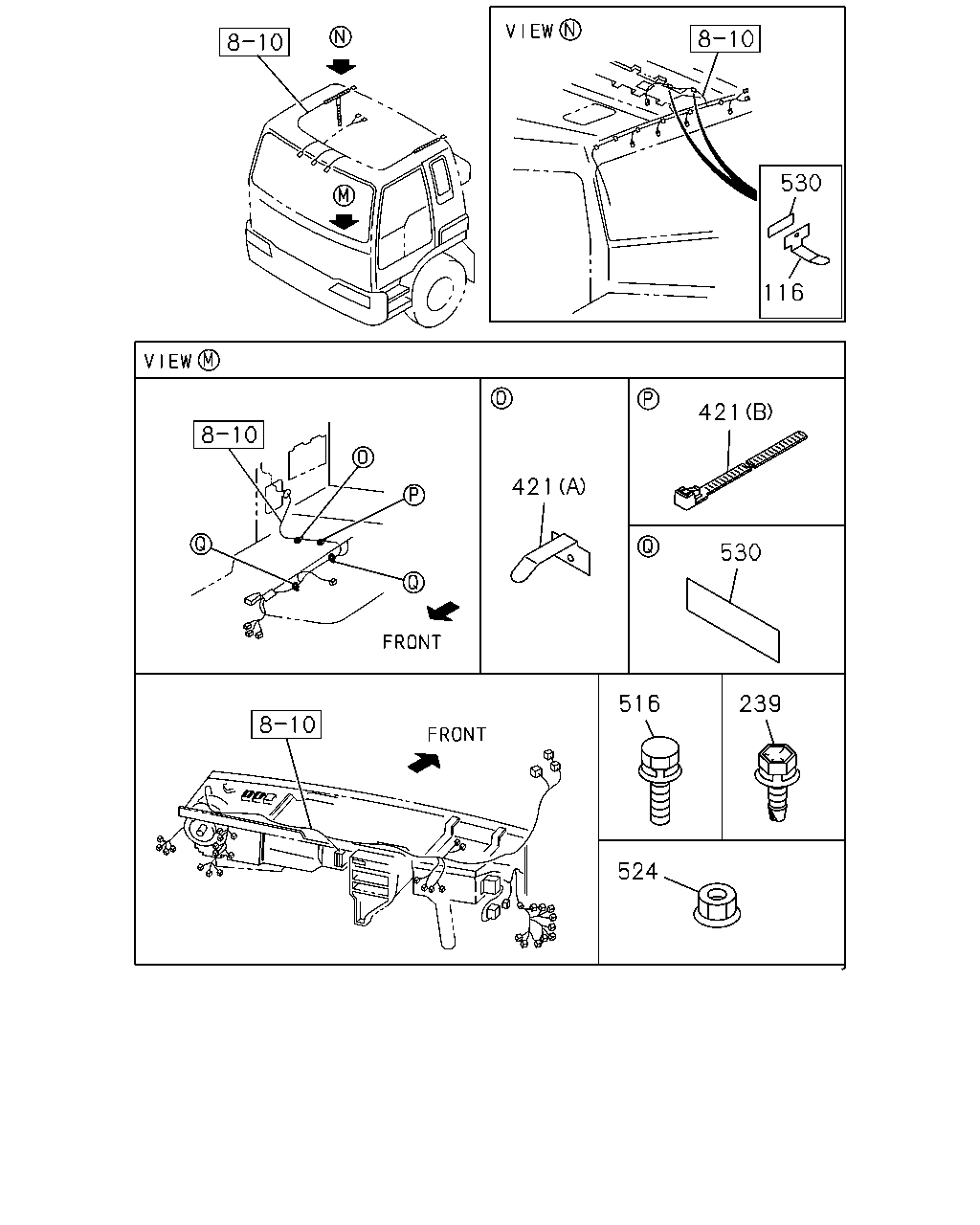

CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9603-0009 |
● |
● |
| |
116 |
CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0010- |
● |
● |
| |
116 |
CLIP; ROOF HARNESS
HIGH ROOF<S2F>
L=20 SET=10 PIECE
|
1-09987-246-2 |
03 |
1 |
9905- |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
(A)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9603- |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
(A)
ID=19 L=32
|
9-09525-862-0 |
01 |
1 |
9603-0011 |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
(B)
ID=14.5 L=30
|
9-09916-893-1 |
01 |
1 |
0012- |
● |
● |
| |
133 |
SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER
|
8-94279-402-0 |
02 |
1 |
9603- |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WG1 TC-N(71L)
L=180
|
1-09707-162-1 |
02 |
1 |
9707-9904 |
● |
|
| |
142 |
CLIP; HARNESS,ENG
6WG1 TC-C(72L)
L=180
|
1-09707-162-1 |
02 |
1 |
9905- |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
L TYPE ENG<90L>
L=180
|
1-09707-162-0 |
01 |
1 |
9603-9802 |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WA1 TC-S(56L)
L=180
|
1-09707-162-1 |
01 |
1 |
9803-9903 |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WA1 TC-C(55L),6WA1 TC-S(56L)
L=180
|
1-09707-162-1 |
01 |
1 |
9904-9904 |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
● |
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9804 |
● |
● |
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(B)
L=85
|
8-94232-611-0 |
04 |
1 |
9603- |
● |
● |
| |
150 |
BOLT; CLIP
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8
17.5"(W4A)
INTERNATIONAL STANDARD ISO 10STUD<B3V>
P115 PROP SHAFT<C5X>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
EXC. REAR AXLE RT260<C2B>,WHEEL 8STUD 7.50VX20
165-13<Q62>
(D)
M8X12 W/LK WASHER
|
0-50040-812-0 |
01 |
1 |
9707-9904 |
● |
|
| |
150 |
BOLT; CLIP
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
(D)
M8X12 W/LK WASHER
|
0-50040-812-0 |
01 |
1 |
9905- |
● |
|
| |
150 |
BOLT; CLIP
(A)
M6X20 W/LK&PL WASHER
|
1-09980-493-0 |
02 |
1 |
9603-9604 |
● |
● |
| |
150 |
BOLT; CLIP
(B)
M6X16 W/LK&PL WASHER
|
1-09980-506-0 |
01 |
1 |
9603-9604 |
● |
● |
| |
150 |
BOLT; CLIP
6WA1 TC-S(56L)
EURO2 SPECIFICATION<THN>
(C)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9610-9702 |
● |
● |
| |
168 |
CLIP; DASH HARNESS
(B)
ID=6 & 10-13
|
8-97069-515-0 |
06 |
1 |
9603- |
● |
|
| |
168 |
CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(A)
L=30
|
1-09987-265-0 |
01 |
1 |
0102- |
● |
● |
| |
168 |
CLIP; DASH HARNESS
(B)
ID=6 & 10-13
|
8-97069-515-0 |
02 |
1 |
9603- |
|
● |
| |
178 |
GROMMET; HARNESS
(A)
ID=28 OD=35 T=25
|
1-09332-011-1 |
03 |
1 |
9603- |
● |
● |
| |
178 |
GROMMET; HARNESS
(E)
ID=24 OD=30 T=22
|
1-09332-104-0 |
01 |
1 |
9603- |
● |
● |
| |
178 |
GROMMET; HARNESS
(B)
ID=15 OD=20 T=26
|
1-09332-132-0 |
01 |
1 |
9603- |
● |
● |
| |
178 |
GROMMET; HARNESS
(C)
ID=32 OD=40 T=18
|
1-09891-003-0 |
03 |
1 |
9603- |
● |
● |
| |
178 |
GROMMET; HARNESS
(D)
|
1-82699-891-0 |
01 |
1 |
9603- |
● |
● |
| |
208 |
CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9707- |
● |
|
| |
219 |
NUT
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9603-9603 |
● |
● |
| |
219 |
NUT
ZF M/T<X9E>
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9603-9603 |
● |
● |
| |
219 |
NUT
ZF M/T<X9E>
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9604-9606 |
● |
● |
| |
219 |
NUT
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9604-9606 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9604-9606 |
● |
● |
| |
219 |
NUT
(A)
M8
|
9-09110-408-0 |
01 |
1 |
9607-9609 |
● |
● |
| |
219 |
NUT
(B)
M10 FLANGE
|
0-91250-210-0 |
01 |
1 |
9607- |
● |
● |
| |
219 |
NUT
ISUZU M/T<X9A>
(B)
M10X16 FLANGE
|
0-28081-016-0 |
01 |
1 |
9607-9904 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9905-9908 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9909- |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
(A)
M8
|
9-09110-408-0 |
09 |
1 |
9603-9603 |
● |
● |
| |
219 |
NUT
6WA1 TC-S(56L)
(A)
M8
|
9-09110-408-0 |
06 |
1 |
9604-9606 |
● |
● |
| |
219 |
NUT
6WA1 TC-S(56L)
(A)
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
9607-9910 |
● |
● |
| |
219 |
NUT
6WA1 TC-S(56L)
(A)
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9911- |
● |
● |
| |
219 |
NUT
MJA7U M/T(X6G),MJA6A M/T(X6V)
(B)
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
219 |
NUT
EXC. TRANSMISSION-ZF 16S151 OD(Y2N)
(B)
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
219 |
NUT
ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9908 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9908 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9909- |
● |
● |
| |
219 |
NUT
FULLER M/T<X9B>,ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9909- |
● |
|
| |
219 |
NUT
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9909- |
● |
|
| |
219 |
NUT
ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9909- |
|
● |
| |
219 |
NUT
MJA7U M/T(X6G),MJA6A M/T(X6V)
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9607- |
● |
● |
| |
219 |
NUT
V TYPE ENG<91L>
(A)
M8
|
9-09110-408-0 |
13 |
1 |
9603-9606 |
● |
● |
| |
219 |
NUT
V TYPE ENG<91L>
(A)
M8 FLANGE
|
0-91150-108-0 |
13 |
1 |
9607- |
● |
● |
| |
219 |
NUT
EXC. ZF M/T<X9E>
(A)
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
219 |
NUT
(A)
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
219 |
NUT
EXC. ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9608 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9608 |
● |
● |
| |
219 |
NUT
EXC. ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9609 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9609 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9609 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9609 |
● |
|
| |
219 |
NUT
EXC. ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9904 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9904 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9904 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9904 |
● |
● |
| |
219 |
NUT
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9610-9904 |
● |
|
| |
219 |
NUT
ISUZU M/T<X9A>,FULLER M/T<X9B>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
219 |
NUT
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
| |
219 |
NUT
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
|
| |
219 |
NUT
EXC. ZF M/T<X9E>
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-9908 |
● |
● |
| |
219 |
NUT
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-9908 |
● |
● |
| |
219 |
NUT
6WA1 TC-C(55L),6WG1 TC-C(72L)
(A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-9908 |
● |
|
| |
219 |
NUT
6WA1 TC-S(56L)
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9909-9910 |
● |
● |
| |
255 |
SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER
|
0-74305-620-0 |
02 |
1 |
9603- |
● |
● |
| |
263 |
CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9603- |
● |
● |
| |
304 |
BOLT; ENG HARNESS CLIP
V TYPE ENG<91L>
M10X16 W/LK WASHER
|
1-09033-012-0 |
06 |
1 |
9603- |
● |
● |
| |
305 |
CLIP; ENG HARNESS
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9603- |
● |
● |
| |
305 |
CLIP; ENG HARNESS
V TYPE ENG<91L>
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
07 |
1 |
9603- |
● |
● |
| |
305 |
CLIP; ENG HARNESS
V TYPE ENG<91L>
(C)
L=36
|
8-94224-891-1 |
02 |
1 |
9603- |
● |
● |
| |
305 |
CLIP; ENG HARNESS
6WA1 TC-N(54L),6WA1 TC-S(56L)
(D)
L=140
|
5-09707-031-1 |
01 |
1 |
0102- |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(C)
|
1-82699-239-0 |
01 |
1 |
9609-9904 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(C)
|
1-82699-239-0 |
01 |
1 |
9905-9907 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(C)
|
1-82699-239-0 |
01 |
1 |
9908- |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
(A)
L=120
|
1-82699-465-0 |
01 |
1 |
9603-9908 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
CAB UP +110MM<TGG>
(F)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
9905-0004 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(D)
|
1-47477-156-2 |
01 |
1 |
9609-9904 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(D)
|
1-47477-156-2 |
01 |
1 |
9905- |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(E)
|
1-82699-199-0 |
01 |
1 |
9609-9708 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(E)
|
1-82699-199-0 |
01 |
1 |
9709-9904 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L)
(E)
|
1-82699-199-0 |
01 |
1 |
9905- |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
V TYPE ENG<91L>
(B)
|
1-82699-348-0 |
01 |
1 |
9603- |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
ZF M/T<X9E>
(A)
|
1-82699-208-1 |
01 |
1 |
9606-9701 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
ZF M/T<X9E>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9702-9711 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
FULLER M/T<X9B>,ZF M/T<X9E>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9712-9802 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
ZF M/T<X9E>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9712-9802 |
|
● |
| |
312 |
BRACKET; CLIP HARNESS
FULLER M/T<X9B>,ZF M/T<X9E>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9803-9904 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
FULLER M/T<X9B>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9905-9907 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ISUZU M/T<X9A>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9908-9908 |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
FULLER M/T<X9B>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9908-9908 |
● |
|
| |
312 |
BRACKET; CLIP HARNESS
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9909- |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ISUZU M/T<X9A>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9909- |
● |
● |
| |
312 |
BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),CAB UP
+110MM<TGG>
(G)
|
1-82699-593-1 |
01 |
1 |
9905-9907 |
|
● |
| |
312 |
BRACKET; CLIP HARNESS
CAB UP +110MM<TGG>
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(H)
|
1-82699-825-0 |
01 |
1 |
9905-9907 |
|
● |
| |
312 |
BRACKET; CLIP HARNESS
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(C)
|
1-82699-239-0 |
02 |
1 |
9609- |
|
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
(A)
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9608 |
● |
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9904 |
● |
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
L TYPE ENG<90L>
ELECTRONIC GOV RED3(KG5)
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9904 |
|
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905- |
● |
● |
| |
340 |
NUT; HARNESS CAB TO FRAME
6WA1 TC-C(55L)
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905- |
|
● |
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9608 |
● |
● |
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-1 |
03 |
1 |
9609- |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
(B)
|
1-82699-625-0 |
01 |
1 |
9603-0007 |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
L TYPE ENG<90L>
EXC. ZF M/T<X9E>
(B)
|
1-82699-625-0 |
01 |
1 |
0008- |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
V TYPE ENG<91L>
(B)
|
1-82699-625-0 |
01 |
1 |
0008- |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
L TYPE ENG<90L>
ZF M/T<X9E>
(C)
|
1-82698-224-0 |
01 |
1 |
0008- |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
V TYPE ENG<91L>
(A)
|
1-82699-208-1 |
01 |
1 |
9603-9701 |
● |
● |
| |
342 |
BRACKET; HARNESS CAB MTG
V TYPE ENG<91L>
(A)
L=120 H=35
|
1-82699-970-0 |
01 |
1 |
9702- |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93>
(A)
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0102- |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW>
(A)
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0102- |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER
VENTILATION AIR CONDITIONING DELETE(TFA)
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9603- |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-S(56L)
ELECTRONIC GOV RED3(KG5)
EURO2 SPECIFICATION<THN>
(C)
ID=16 L=20
|
9-09525-532-0 |
02 |
1 |
9610-9904 |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905-9905 |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905-9905 |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=20
|
9-09525-832-0 |
02 |
1 |
9905- |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=20
|
9-09525-832-0 |
02 |
1 |
9905- |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
(A)
L=20 SET=10 PIECE
|
1-09987-246-2 |
12 |
1 |
9603-9704 |
|
● |
| |
421 |
CLIP; FLOOR HARNESS
(A)
L=20 SET=10 PIECE
|
1-09987-246-2 |
12 |
1 |
9705-0101 |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
(A)
L=20 SET=10 PIECE
|
1-09987-246-2 |
01 |
1 |
0102- |
● |
● |
| |
423 |
WASHER; HARNESS,EARTH
ID=8.4
|
1-09503-264-0 |
02 |
1 |
9603- |
● |
● |
| |
470 |
CLIP; HARNESS,LICENSE LAMP
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603- |
● |
● |
| |
510 |
GROMMET; SCREW
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
D=9.7X9.7 L=8
|
8-94222-314-0 |
01 |
1 |
9905- |
● |
● |
| |
510 |
GROMMET; SCREW
6WA1 TC-S(56L)
EURO2 SPECIFICATION<THN>
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
9610-9904 |
● |
● |
| |
510 |
GROMMET; SCREW
ELECTRONIC GOV RED3(KG5)
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
9905- |
● |
● |
| |
515 |
NUT; BRKT
L TYPE ENG<90L>
(B)
M10
|
9-09110-510-0 |
02 |
1 |
9603-9612 |
● |
● |
| |
515 |
NUT; BRKT
L TYPE ENG<90L>
EXC. ELECTRONIC GOV RED3(KG5)
(B)
M10
|
9-09110-510-0 |
02 |
1 |
9701- |
● |
|
| |
515 |
NUT; BRKT
L TYPE ENG<90L>
(B)
M10
|
9-09110-510-0 |
02 |
1 |
9701- |
|
● |
| |
515 |
NUT; BRKT
V TYPE ENG<91L>
(D)
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
● |
● |
| |
515 |
NUT; BRKT
V TYPE ENG<91L>
(C)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607- |
● |
● |
| |
515 |
NUT; BRKT
V TYPE ENG<91L>
(A)
M8
|
9-09110-408-0 |
02 |
1 |
9603-9609 |
|
● |
| |
515 |
NUT; BRKT
V TYPE ENG<91L>
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9610- |
|
● |
